Toyota Porte

2004-07 → 2012-06 · chassis NNP1# · catalogue 123110 · Japan

Supported model Data version 2012-07

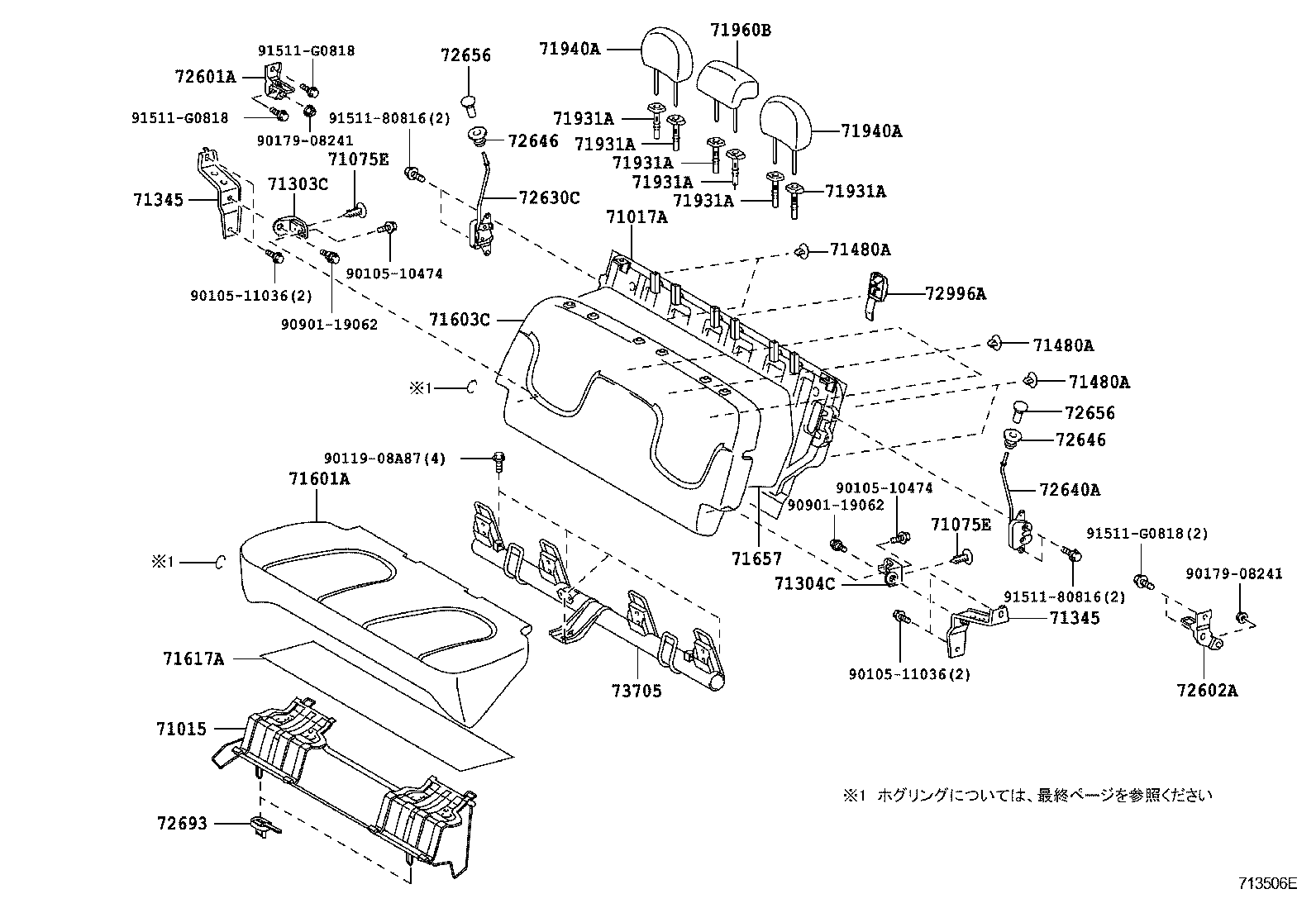

Rear Seat & Seat Track

38 part groups · 5 illustrations

PNC	Description
71015	Frame Sub-assy, Rear Seat Cushion
71017	Frame Sub-assy, Rear Seatback, RH
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71075E	Clip(FOR REAR SEAT)
71301D	Hinge Sub-assy, Rear Seat, RH
71302D	Hinge Sub-assy, Rear Seat, LH
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71345	Hinge, Rear Seatback
71480A	Clip (FOR REAR SEATBACK)
71601A	Pad Sub-assy, Rear Seat Cushion W/Cover
71603C	Pad Sub-assy, Rear Seatback W/Cover
71603D	Pad Sub-assy, Rear Seatback W/Cover, RH
71604D	Pad Sub-assy, Rear Seatback W/Cover, LH
71617A	Cloth, Rear Seat Cushion Under
71657	Cloth, Rear Seatback Under
71695C	Protector, Rear Seat, NO.1
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71960B	Headrest Assy, Rear Seat, Center
72065A	Hook Sub-assy,Rear Seat Cushion Lock,RH
72158A	Cover, Rear Seat Track Bracket, Inner LH
72159B	Cover, Rear Seat Track Bracket, Outer
72159F	Cover, Rear Seat Track Bracket, RH
72159G	Cover, Rear Seat Track Bracket, LH
72601A	Striker Sub-assy, Rear Seatback Look, RH
72601B	Striker Sub-assy, Rear Seatback Lock
72602A	Striker Sub-assy, Rear Seatback Lock, LH
72630C	Lock Assy, Rear Seatback, RH
72640A	Lock Assy, Rear Seatback, LH
72646	Grommet, Rear Seatback Stop Button
72650F	Lock Assy, Rear Seat, RH
72656	Button, Rear Seatback Stop Release
72691B	Striker, Rear Seat Cushion Lock
72693	Hook, Rear Seat Cushion Lock
72996A	Cover, Rear Seatback
73705	Bracket Sub-assy, Child Restraint Seat Anchor, RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
