Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

19 part groups · 5 illustrations

Illustrations

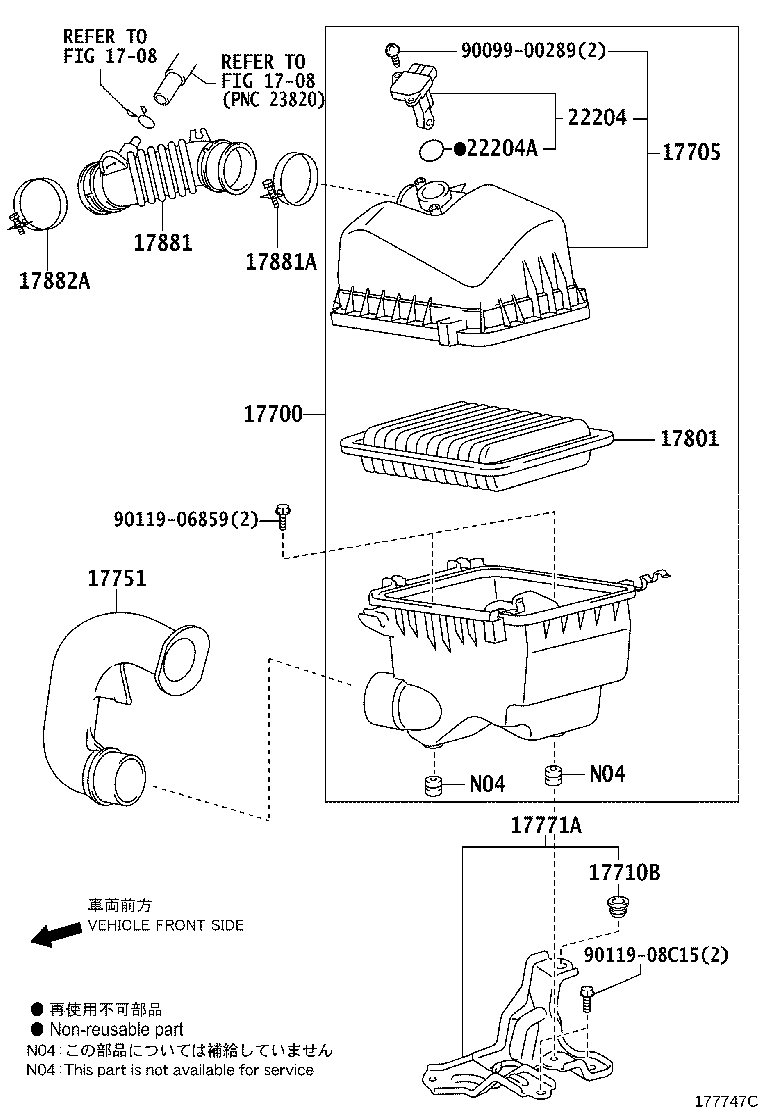

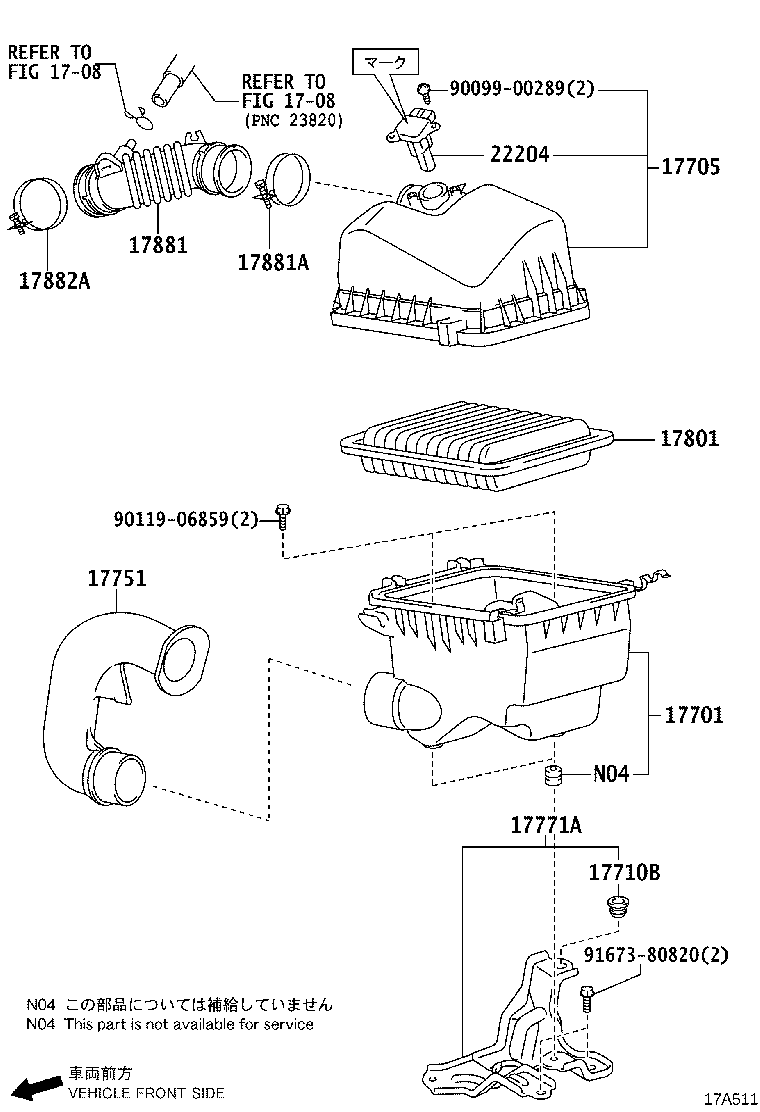

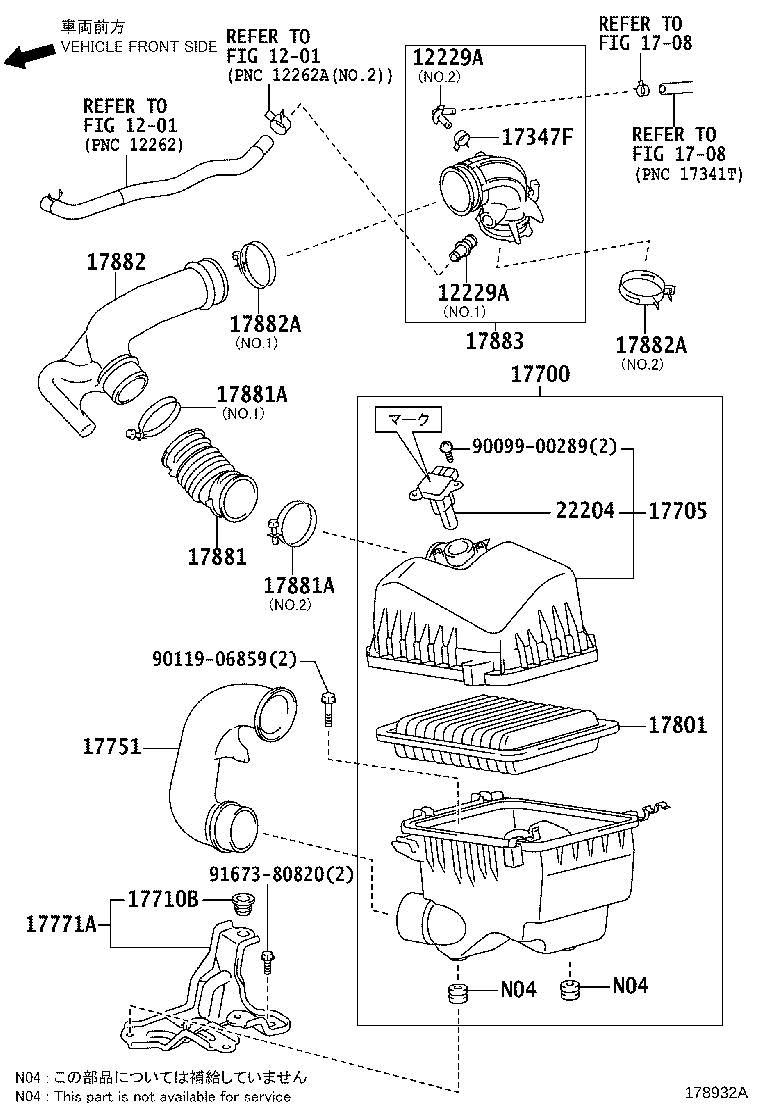

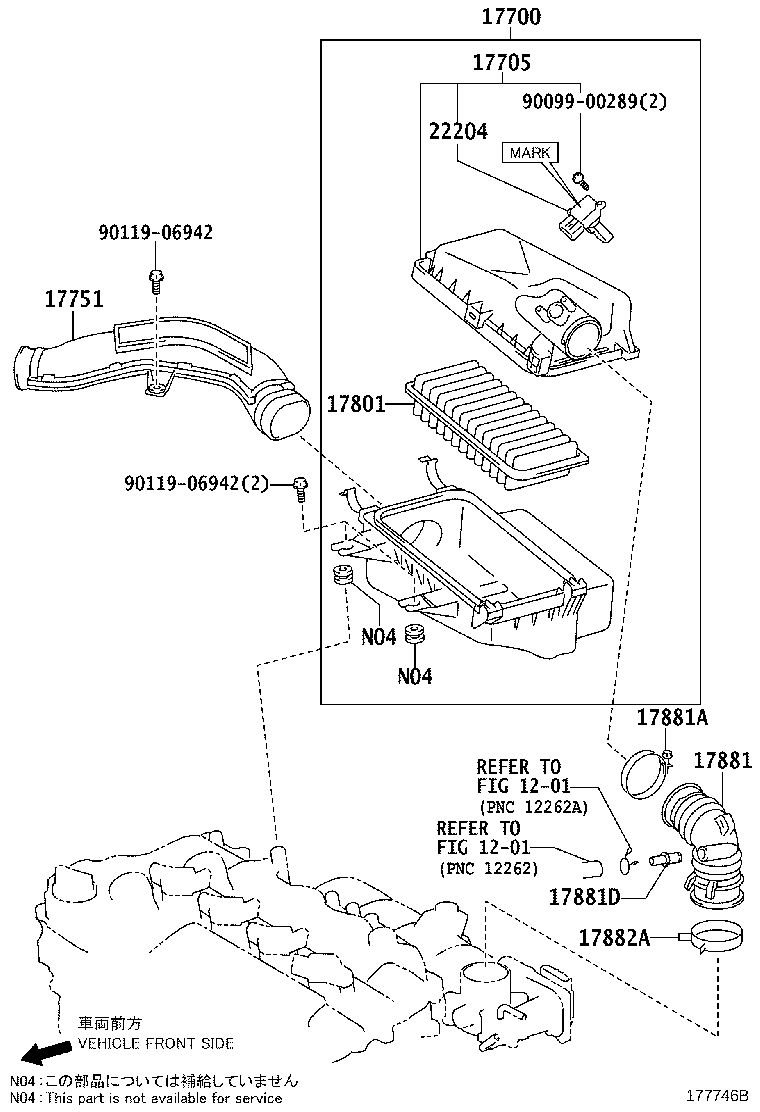

Figure 177748C 177748C 2012-07 → — Figure 177747C 177747C 2012-07 → 2019-07 Figure 17A511 17A511 2019-07 → — Figure 177746B 177746B 2012-07 → — Figure 178932A 178932A 2015-07 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17347F Clamp OR Clip(FOR AIR HOSE)
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17893 Resonator, Intake Air
17893A Clamp, Hose
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
