Toyota Tank/Roomy

2016-11 → present · chassis M900A,M910A · catalogue 124110 · Japan

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

178 part groups · 15 illustrations

Illustrations

71A529Q 2016-11 → —

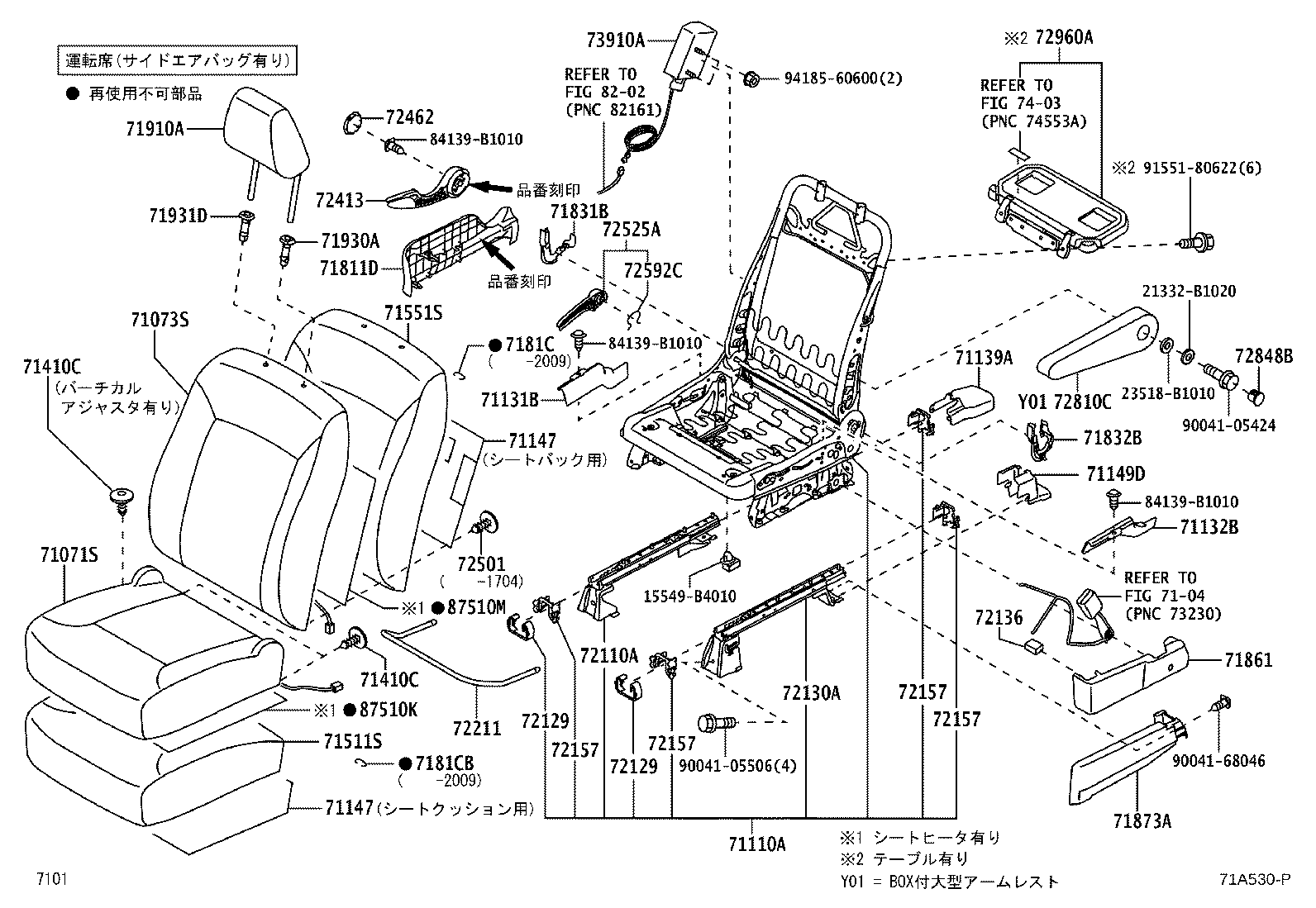

71A530P 2016-11 → —

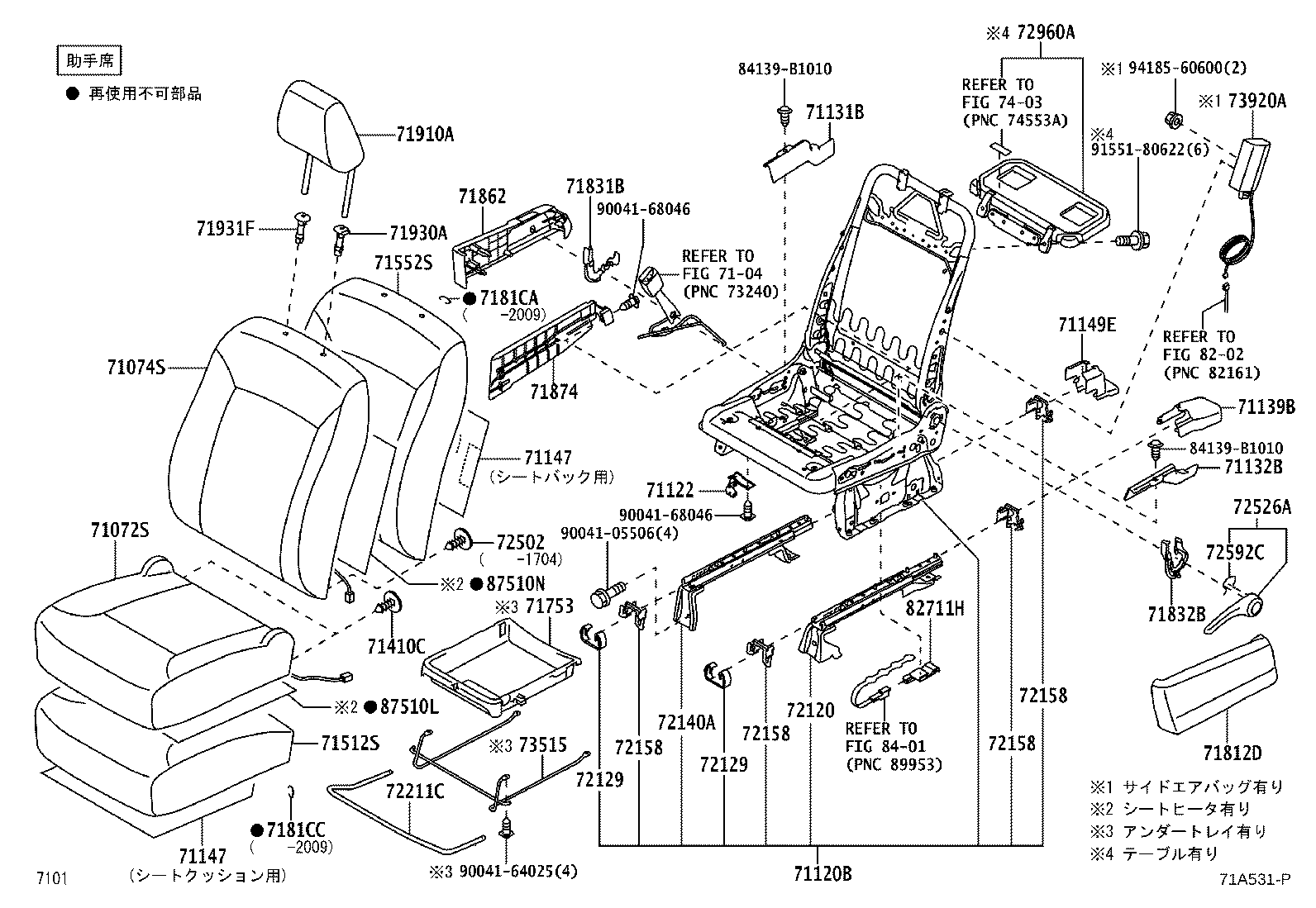

71A531P 2016-11 → —

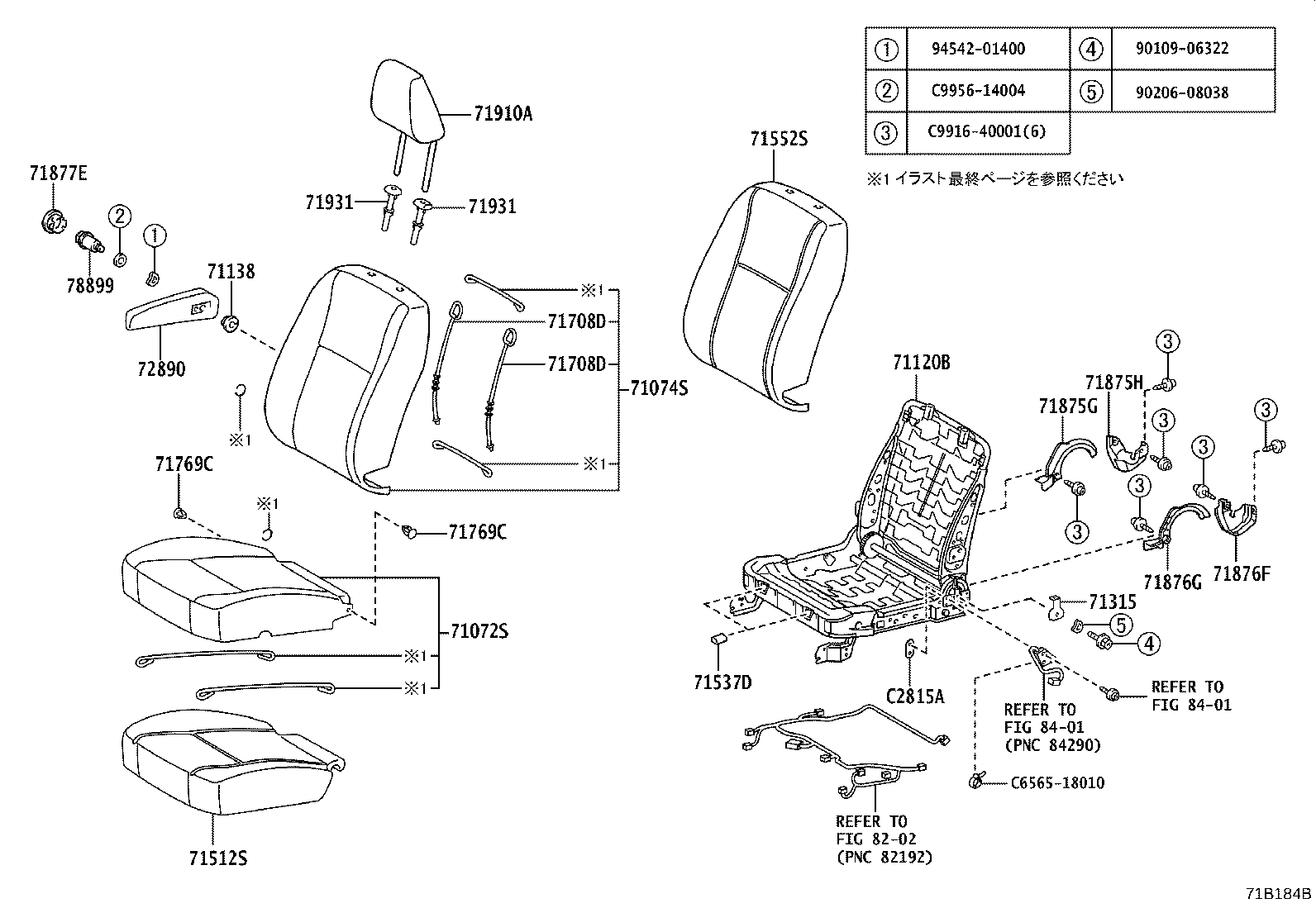

71B184B 2018-03 → 2020-09

71B198B 2018-03 → 2020-09

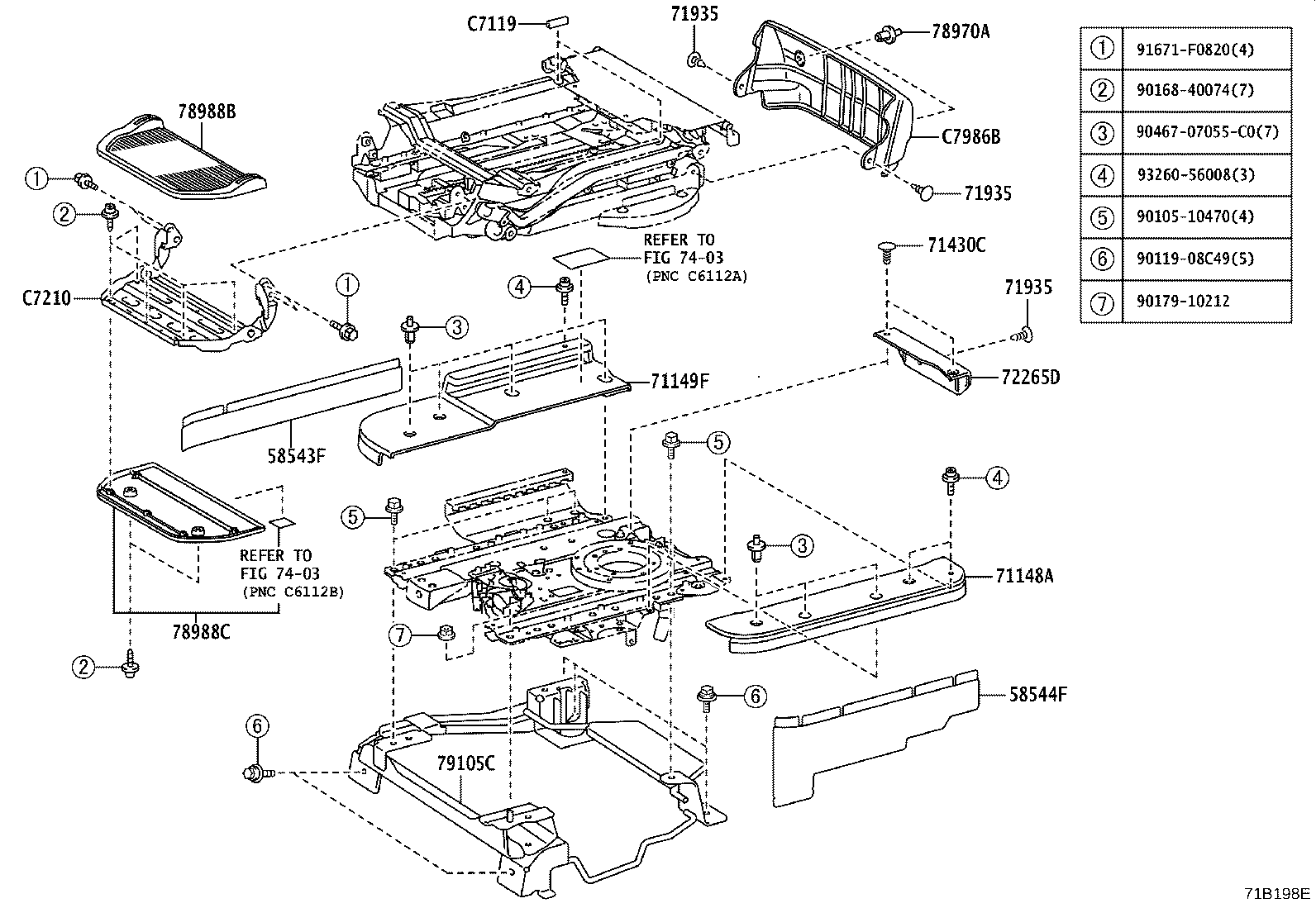

71B198E 2020-09 → —

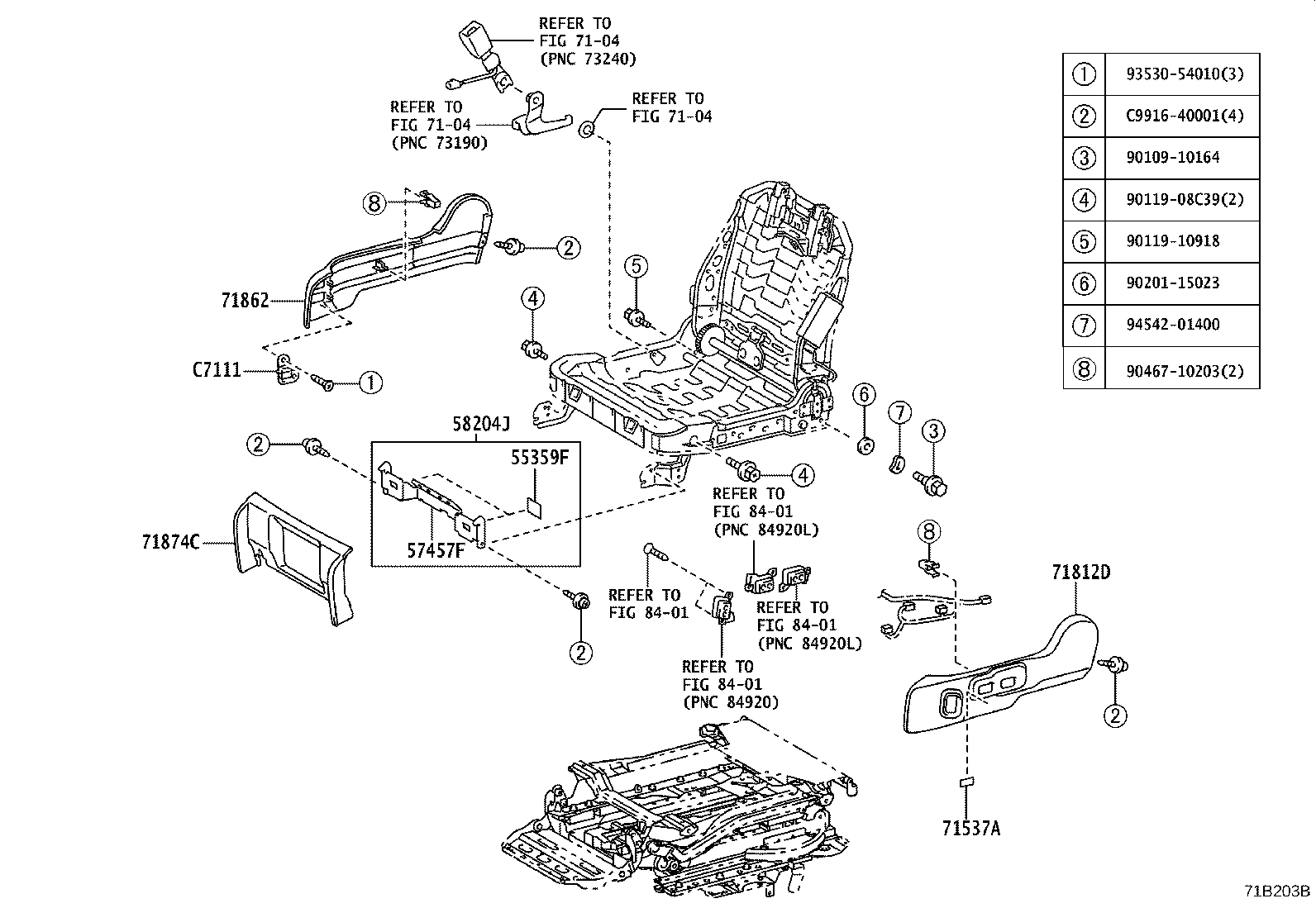

71B203B 2018-03 → 2020-09

71B203C 2020-09 → —

71B210 2018-03 → —

Part groups

PNC	Description
53019A	Shutter Sub-assy, Radiator
55359F	Cushion, Welcab Seat
57457F	Bracket, Front Seat
58204J	Bracket Sub-assy, Front Seat
58543F	Carpet, Step Side, RH
58544F	Carpet, Step Side, LH
58835B	Protector, Wiring Harness
62786H	Case, Side Window Lock
68332A	Roller, Slide Door, Lower
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71122	Bracket, Front Seat Cushion, LH
71131B	Plate, Front Seat Cushion, NO.1
71132B	Plate, Front Seat Cushion, NO.2
71138	Spacer, Front Seat Set
71139A	Cover, Front Seat Leg, NO.1
71139B	Cover, Front Seat Leg, NO.2
71147	Silencer, Seat Spring
71148A	Cover, FR Seat Leg, Outer
71149D	Cover, Front Seat Leg, Inner (FOR RH SEAT)
71149E	Cover, Front Seat Leg, Inner (FOR LH SEAT)
71149F	Cover, Front Seat Leg, Inner
71315	Plate, Front Seat Hinge
71410C	Clip(FOR FRONT SEAT CUSHION)
71430C	Clip
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71537D	Protector, Front Seat Cushion Edge, LH
71537E	Protector, Front Seat Cushion, NO.1
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71647H	Protector, Front Seat Cushion Edge
71708D	Strap Sub-assy, Seat Cover, LH
71753	Tray, Front Seat Under
71769C	Clip, Front Seat Cushion Cover
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
7181C	Ring, Hog, Small (FOR FRONT SEATBACK)
7181CA	Ring, Hog, Small (FOR FRONT SEATBACK)
7181CB	Ring, Hog, Small (FOR FRONT SEAT CUSHION)
7181CC	Ring, Hog, Small (FOR FRONT SEAT CUSHION)
71831B	Cover, Front Seat Hinge, RH
71832B	Cover, Front Seat Hinge, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874C	Shield, Front Seat Cushion, Lower
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875H	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F	Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71877E	Cover, Seat Armrest Hole, LH
71910A	Headrest Assy, Front Seat
71930A	Support Assy, Front Seat Headrest
71931	Support, Front Seat Headrest
71931D	Support, Front Seat Headrest, RH
71931F	Support, Front Seat Headrest, LH
71935	Clip
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72129	Protector, Seat Track Lower Rail, NO.1
72129E	Clip(FOR SEAT TRACK LOWER RAIL PROTECTOR)
72130A	Track Assy, Front Seat, Inner RH
72136	Spacer, Seat Track, Lower NO.1
72140A	Track Assy, Front Seat,Inner LH
72157	Cover, Seat Track Bracket, Inner
72158	Cover, Seat Track Bracket, Inner LH
72211	Handle, Seat Track Adjusting
72211C	Handle, Seat Track Adjusting
72265D	Cover, Seat Track Upper Rail
72275C	Stopper, Front Seat Track Slide
72413	Lever, Vertical Adjuster Lock
72462	Cover, Vertical Adjuster RH
72501	Stopper Assy, Front Seatback, RH
72502	Stopper Assy, Front Seatback, LH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72589A	Cable, Reclining Remote Control
72592C	Ring, Shaft Snap
72810C	Armrest Assy, Front Seat, Center
72848B	Cap, Seat Armrest, NO.1
72890	Armrest Assy, Seat, C LH
72960A	Table Assy, Seat Turn
73515	Rail, Front Seat Under Tray, NO.1
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
78899	Bolt, Front Seat
78899A	Bolt, Front Seat
78970A	Clip
78988B	Cover, Front Seat Footrest, NO.1
78988C	Cover, Front Seat Footrest, NO.2
79105C	Leg Sub-assy, Front Seat
82711H	Clamp, Wiring Harness
85820Z	Motor Assy, Power Seat
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH
89279L	Cover
C2815A	Retainer, Front Panel
C3588	Bracket, Side Rail, NO.2 LH
C4109	Housing Sub-assy, Slide Door Lock, Rear
C7015	Panel Sub-assy, Turn Table
C7025	Bracket Sub-assy, Seat Holder
C7103	Panel Sub-assy, Welcab Seat Leg, NO.1
C7104	Plate Sub-assy, Seat Turn
C7111	Bracket, Seat Holder, Front
C7119	Protector, Welcab Seat Holder
C7137	Plate, Front Seat Turn
C7137A	Plate, Front Seat Turn
C7139	Bracket, Hook
C7158	Cover, Welcab Seat Leg
C7159	Cushion, Welcab Seat Leg Stopper
C7159A	Cushion, Welcab Seat Leg Stopper, NO.1
C7160	Panel Assy, Slide Table
C7192	Plate, Seat Holder Stopper, NO.1
C7192A	Plate, Seat Holder Stopper, NO.2
C7192B	Plate, Seat Holder Stopper, NO.3
C7192C	Plate, Seat Holder Stopper, NO.4
C7196	Cover, Turn Table, NO.1
C7210	Footrest Assy, Welcab Seat
C7230	Track Assy, Welcab Seat, NO.1
C7230A	Track Assy, Welcab Seat, NO.2
C7230B	Track Assy, Welcab Seat, NO.3
C7250	Bracket Assy, Welcab Seat Track Stopper
C7252	Bracket, Welcab Seat Track Stopper, NO.2
C7401	Guide Sub-assy, Welcab Seat, Front
C7402	Guide Sub-assy, Welcab Seat, Rear
C7408	Rod Sub-assy, Welcab Seat
C7408A	Rod Sub-assy, Welcab Seat, NO.1
C7409	Bracket Sub-assy, Welcab Seat Rod Support, NO.1
C7417	Plate, Welcab Seat Arm Guide, Front
C7451	Arm, Welcab Seat Link, NO.1
C7452	Arm, Welcab Seat Link, NO.2
C7452A	Arm, Welcab Seat Link, NO.2
C7488	Plate, Welcab Seat Rod Support, NO.2
C7488A	Plate, Welcab Seat Rod Support, NO.2
C7691	Cushion, Seat Flat, NO.1 RH
C7691A	Cushion, Seat Flat, NO.2 RH
C7986B	Cover, Front Seat Turn Guard
C7996	Spacer, Turn Seat, NO.1
C7996A	Spacer, Turn Seat, NO.2
C8284	Wire, Power Lift Main
C8291	Protector, Tecs Wiring Harness
C8299	Bracket, Welcab Seat Harness Connector
C8299A	Bracket, Welcab Seat Harness Connector
C8340	Computer Assy, Welcab Device Control
C8417	Switch, Limit, NO.1
C8417A	Switch, Limit, NO.2
C8417B	Switch, Limit, NO.3
C8417C	Switch, Limit, NO.4
C8419A	Bracket, Limit Switch
C8419B	Bracket, Limit Switch
C8419D	Bracket, Limit Switch, NO.1
C8530	Relay Assy, Power Lift Motor
C9025	Pin Sub-assy, Lift Arm Link
C9229	Spacer, Tail Gate Link
C9535	Pulley, Power Lift
C9589	Spring, Platform Lock Handle
C9604	Bracket Sub-assy, Power Lift Motor
C9610	Motor Assy, Power Lift
C9610C	Motor Assy, Lift UP Seat Turn
C9610D	Motor Assy, Lift UP Seat Slide
C9641	Bracket, Power Lift Motor, NO.1
C9641A	Bracket, Power Lift Motor, NO.1
C9642	Bracket, Power Lift Motor, NO.2
C9642A	Bracket, Power Lift Motor, NO.2
C9652A	Cap, Power Lift Cylinder
C9654	Collar, Power Lift Cylinder
C9654A	Collar, Power Lift Cylinder
C9658	Plate, Power Lift Cylinder Rod
C9938C	Bush

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
