Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

22 part groups · 5 illustrations

Illustrations

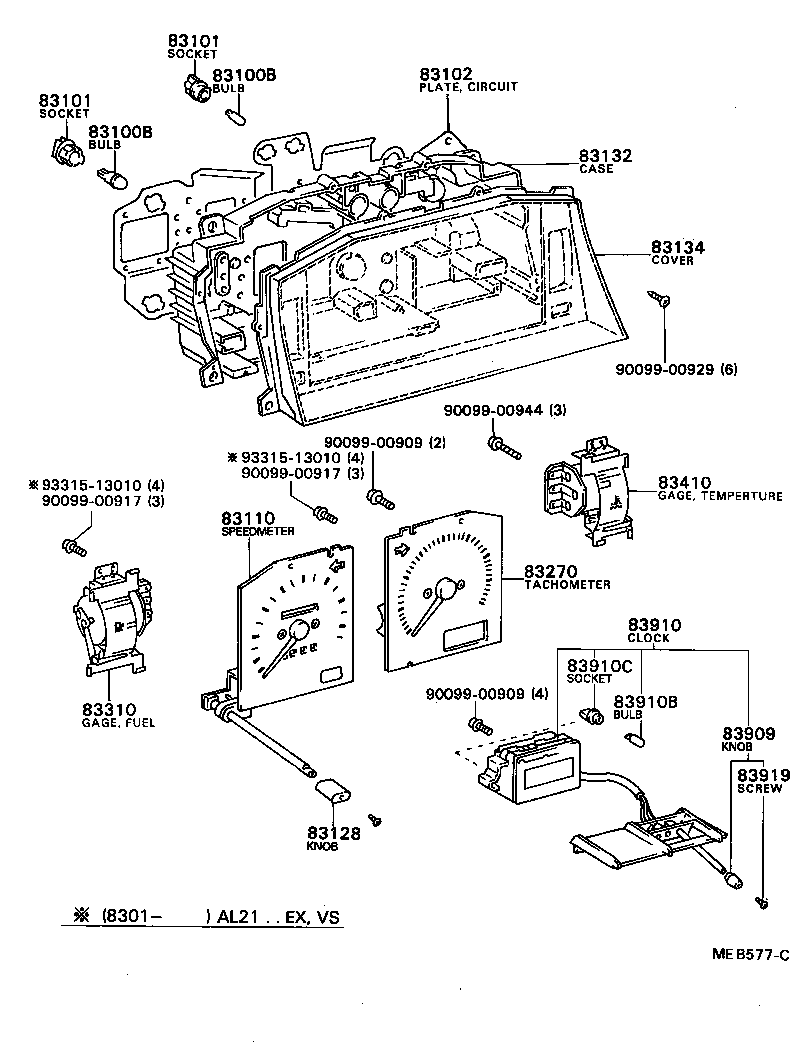

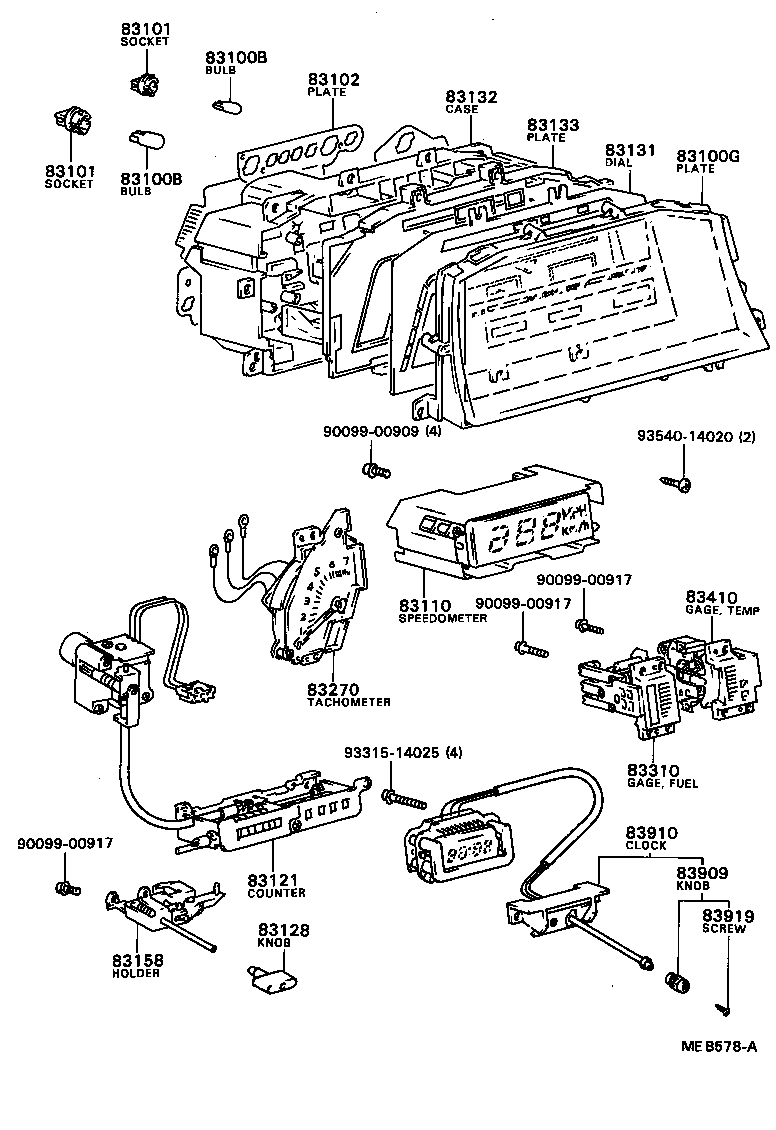

Figure MEC279C MEC279C 1982-05 → — Figure MEB577C MEB577C 1982-05 → — Figure MEB577C MEB577C 1984-08 → — Figure MEB578A MEB578A 1982-05 → — Figure MEF064 MEF064 1982-05 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83121 Counter, Total
83128 Knob, Trip Counter
83131 Dial, Meter, NO.1
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83158 Holder, Trip Gear
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83909 Knob, Clock
83910 Clock Assy
83910B Bulb, Clock Indicator
83910C Socket Sub-assy, Clock Bulb
83919 Screw, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
