Toyota Corolla 2

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 143140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 7 illustrations

Illustrations

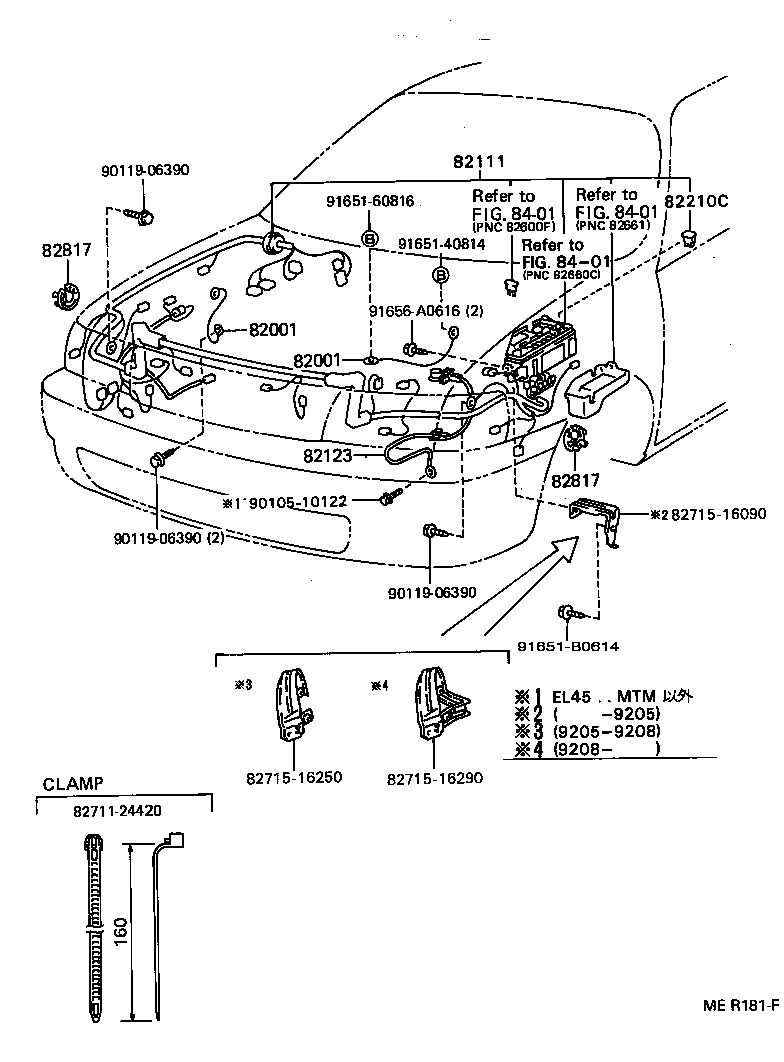

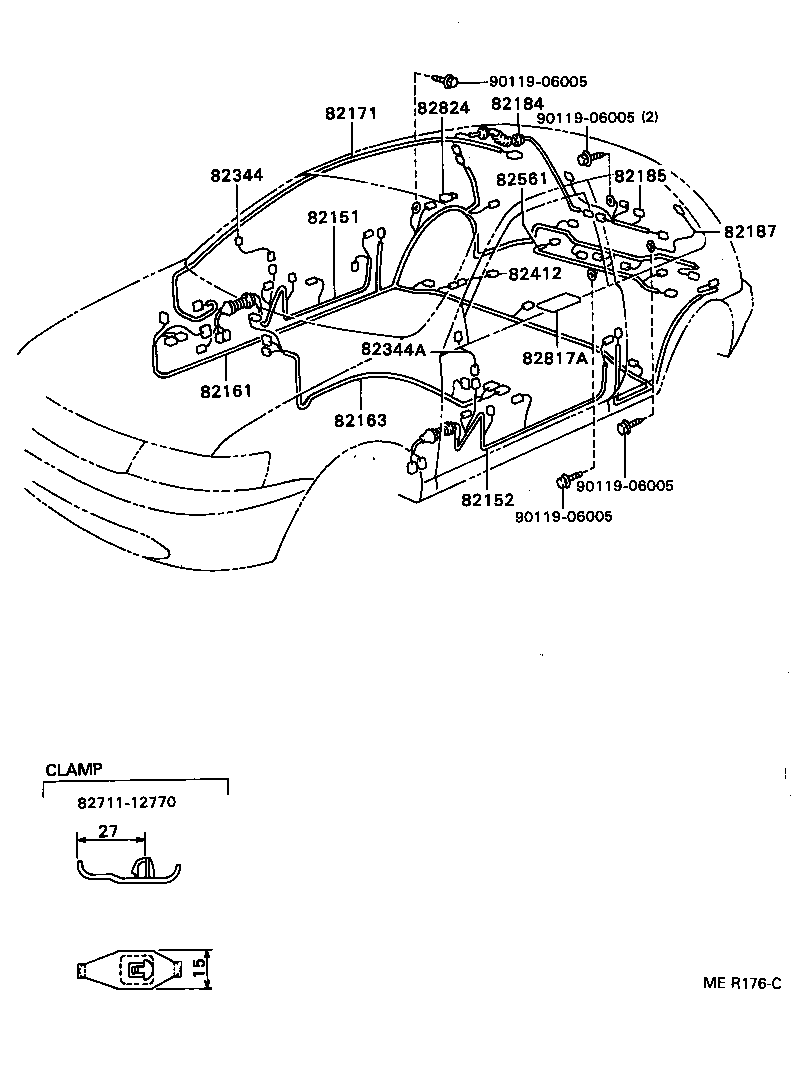

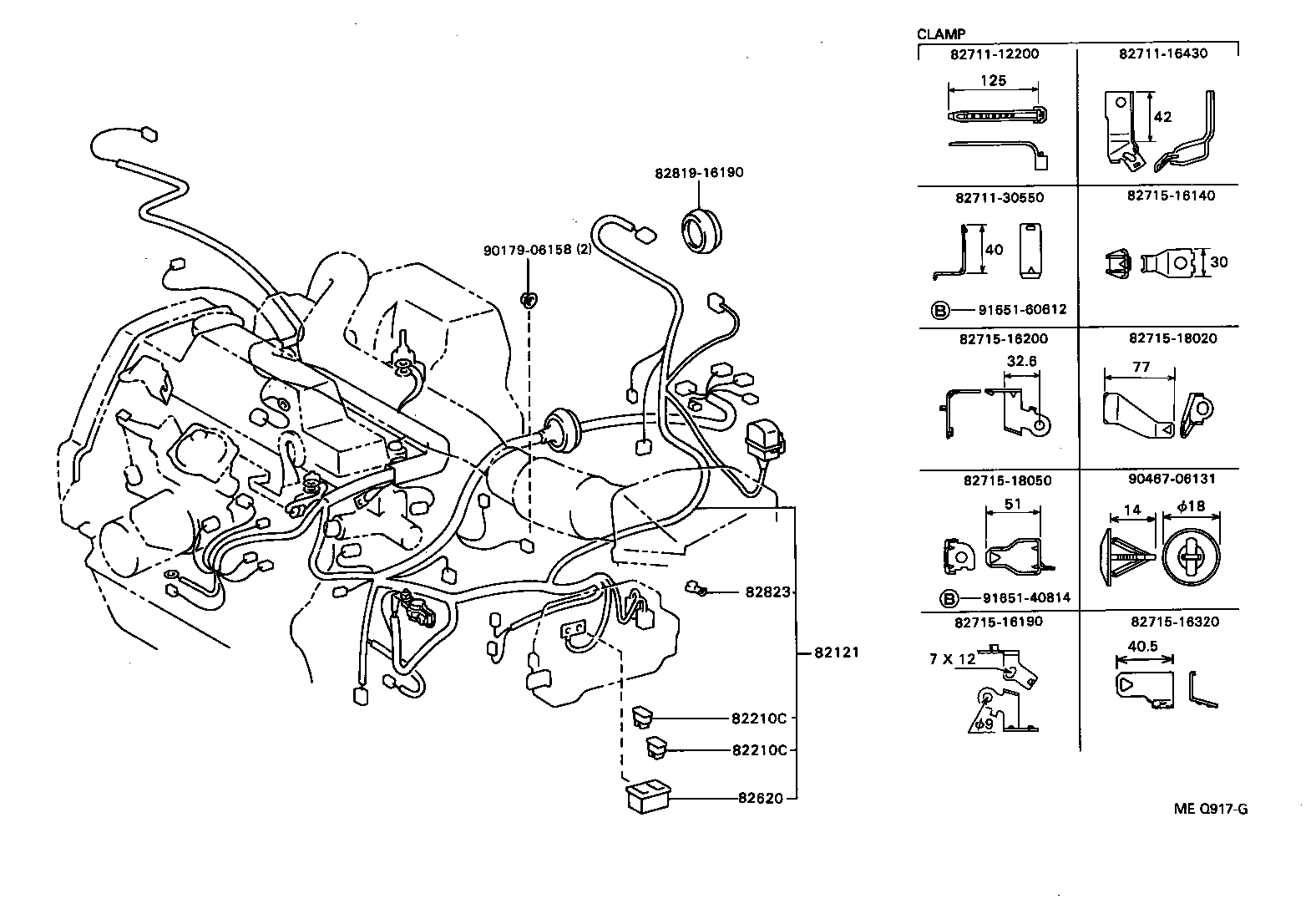

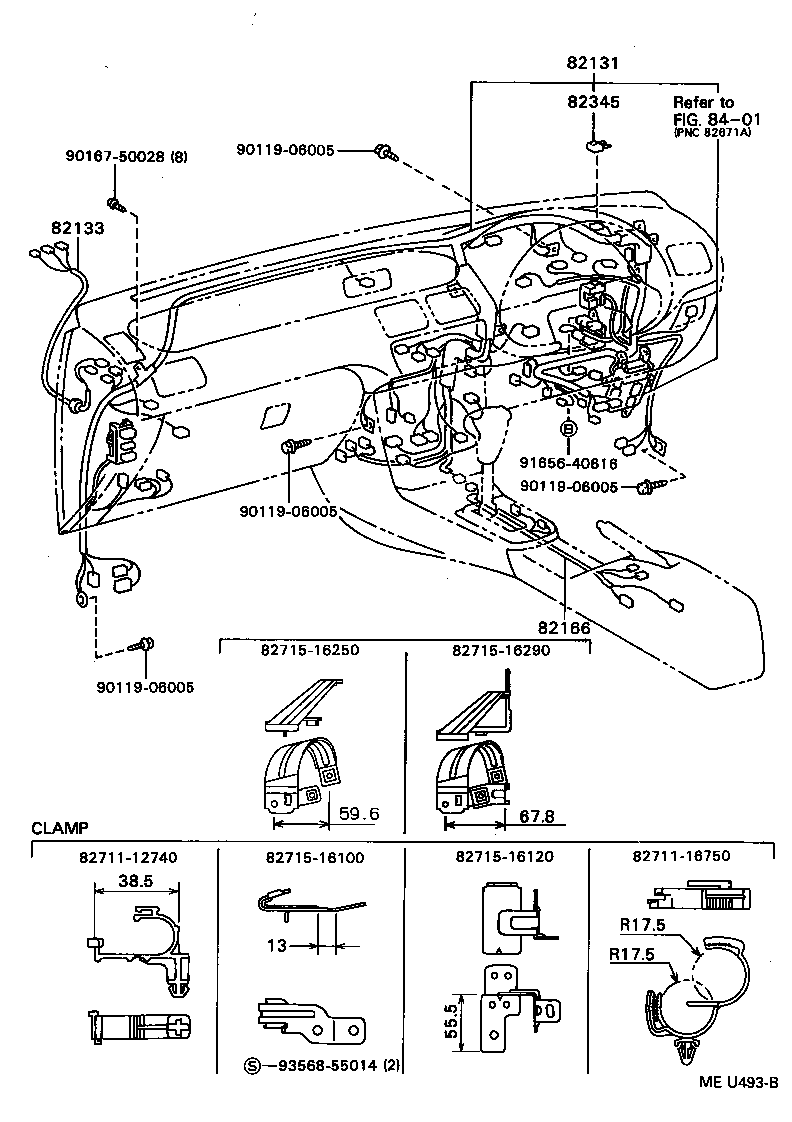

Figure MEQ916G MEQ916G 1990-09 → — Figure MEQ917G MEQ917G 1990-09 → — Figure MER181F MER181F 1990-09 → — Figure MEU493B MEU493B 1990-09 → — Figure MER176C MER176C 1990-09 → — Figure MER184 MER184 1990-09 → — Figure MEU925 MEU925 1992-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82133 Wire, Cowl, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82344 Wire, Mirror, RH
82344A Wire, Mirror, LH
82345 Diode
82412 Wire, Fuel Gage
82561 Wire, Rear Speaker
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
