Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

31 part groups · 11 illustrations

Illustrations

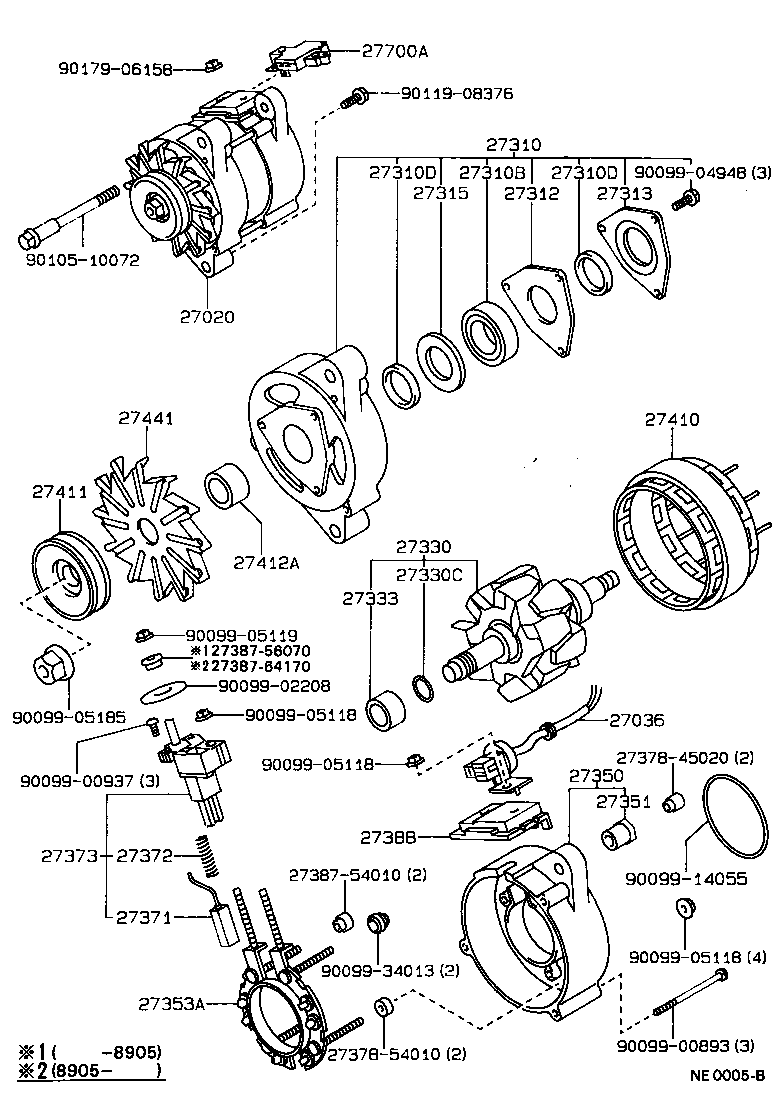

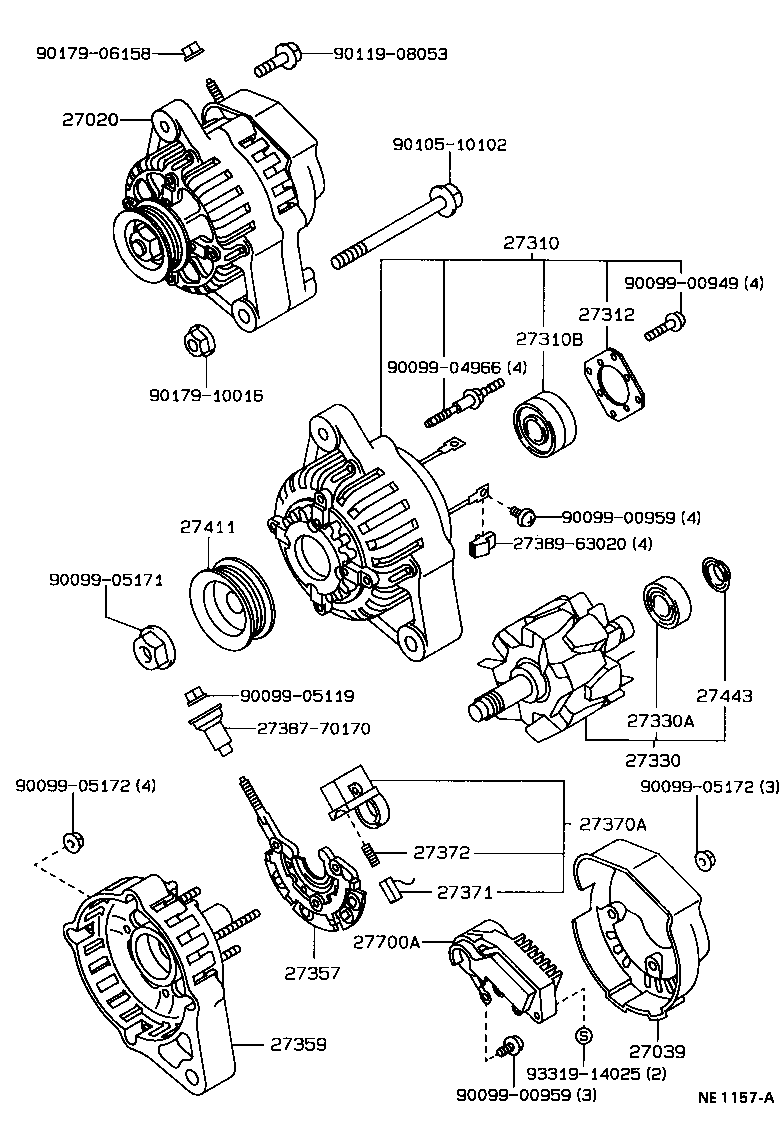

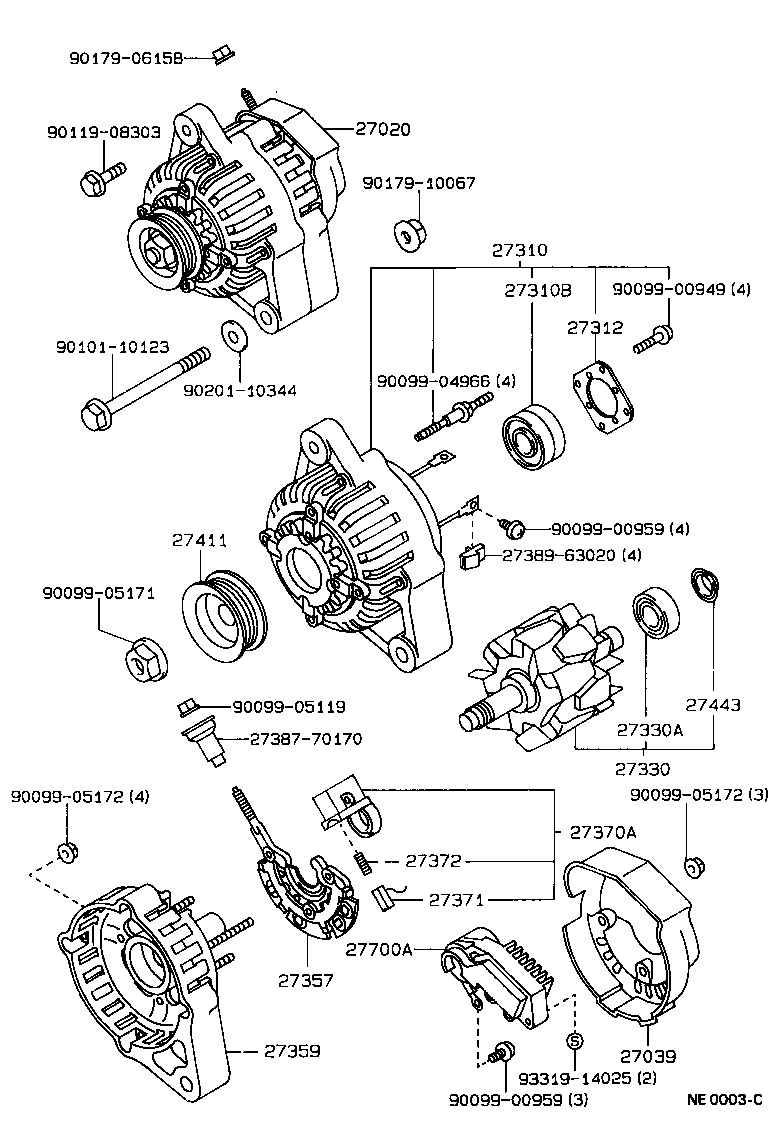

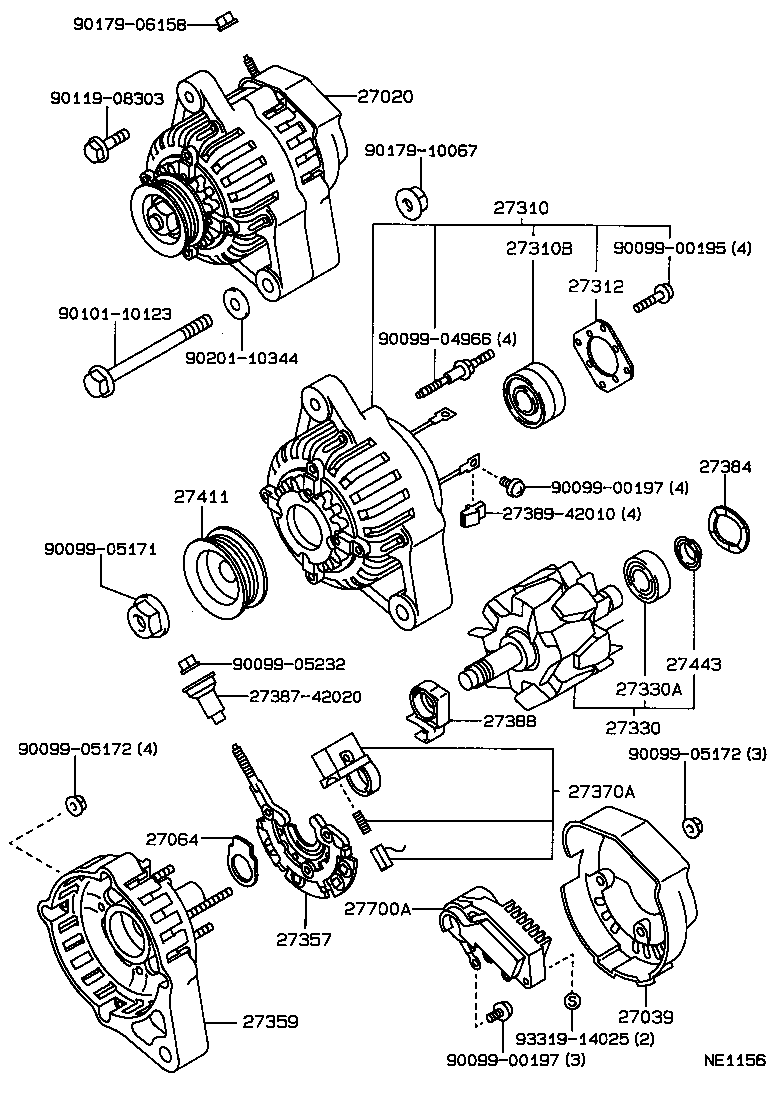

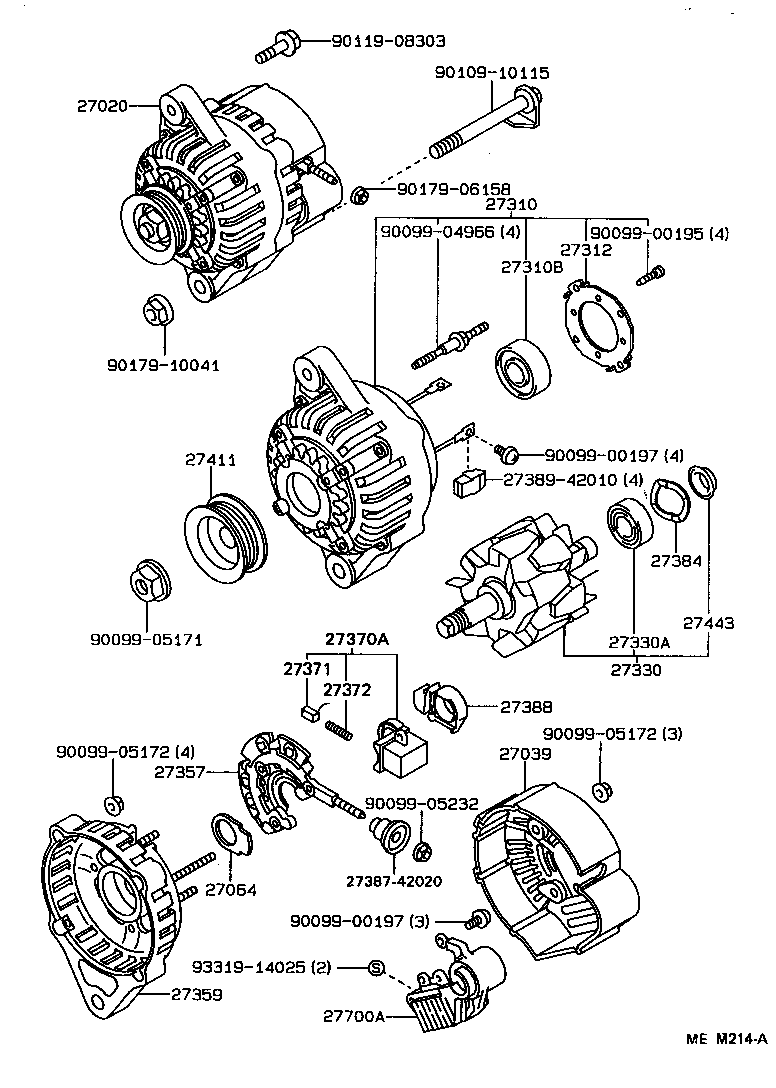

Figure NE0001C NE0001C 1987-05 → — Figure NE0001C NE0001C 1989-05 → — Figure NE1157A NE1157A 1989-05 → — Figure NE0002C NE0002C 1987-05 → 1988-05 Figure NE0002C NE0002C 1987-05 → 1989-05 Figure NE0002C NE0002C 1988-05 → — Figure MEM214A MEM214A 1988-05 → — Figure NE0003C NE0003C 1987-05 → 1988-05 Figure NE0003C NE0003C 1988-05 → — Figure NE1156 NE1156 1988-05 → — Figure NE0005B NE0005B 1987-05 → —

Part groups

PNCDescription
27020 Alternator Assy
27036 Terminal Sub-assy, Lead Wire, Alternator
27039 Cover, Alternator Rear End
27064 Seal, Alternator Plate
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27310D Washer, Felt
27312 Plate, Retainer
27313 Cover, Alternator Felt, Inner NO.2
27315 Cover, Alternator Felt, Inner NO.1
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27330C Ring, Snap
27333 Collar, Space(FOR ALTERNATOR ROTOR)
27350 Frame Assy, Rectifier End
27351 Bush(FOR ALTERNATOR RECTIFIER END FRAME)
27353A Holder, W/Rectifier
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27370A Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27373 Holder, Alternator Brush, A
27384 Washer
27388 Cover, Alternator Brush
27410 Stator Assy, Alternator
27411 Pulley, Alternator
27412A Collar, Space(FOR ALTERNATOR DRIVE END FRAME)
27441 Fan, Alternator
27443 Cover, Alternator Bearing
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
