Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

37 part groups · 14 illustrations

Illustrations

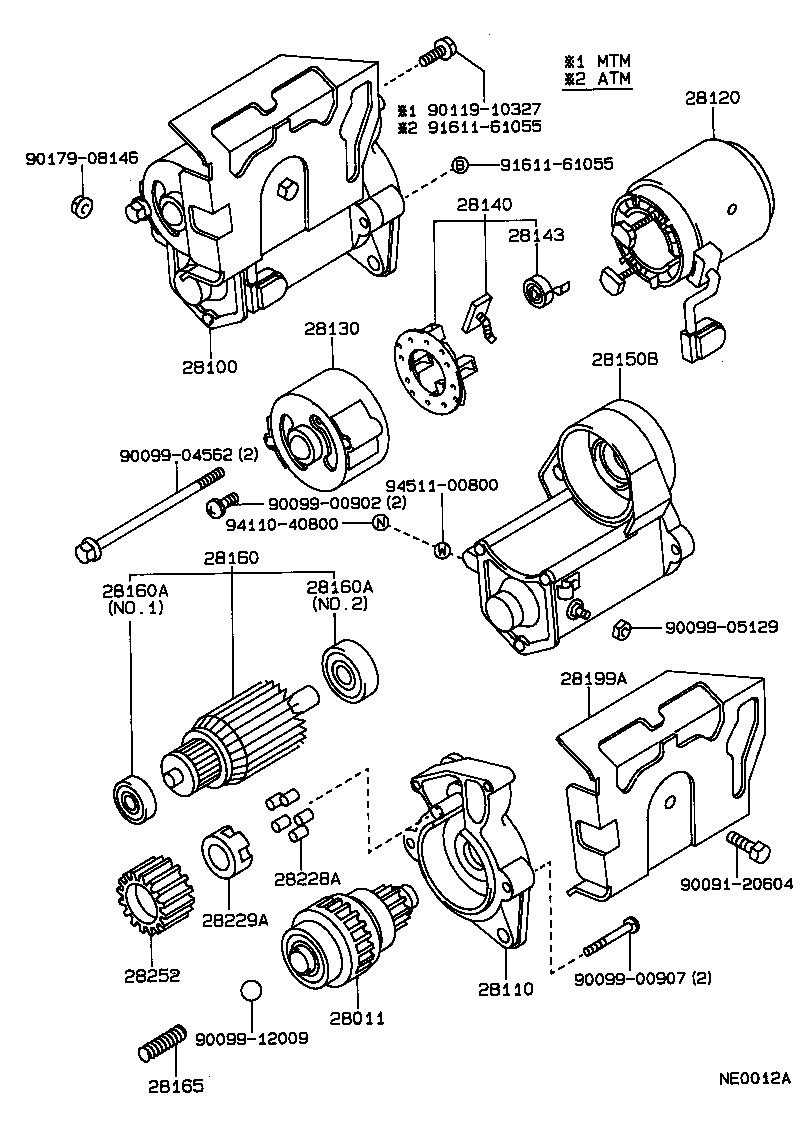

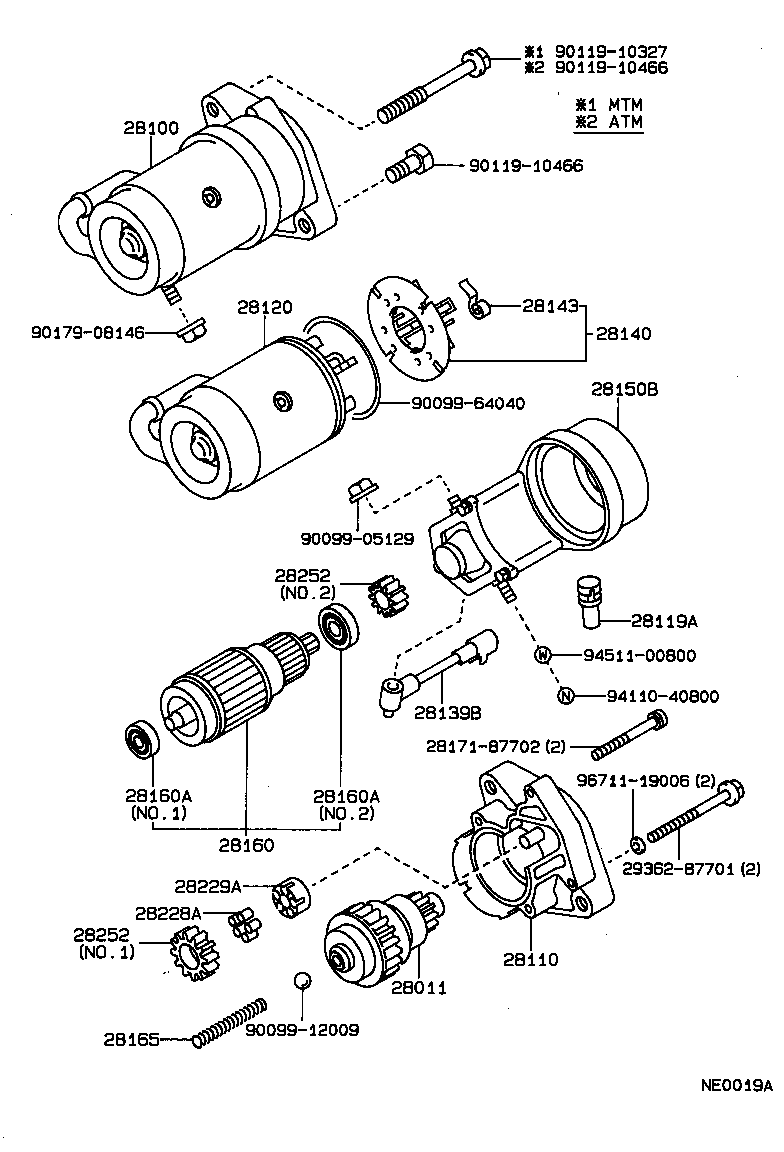

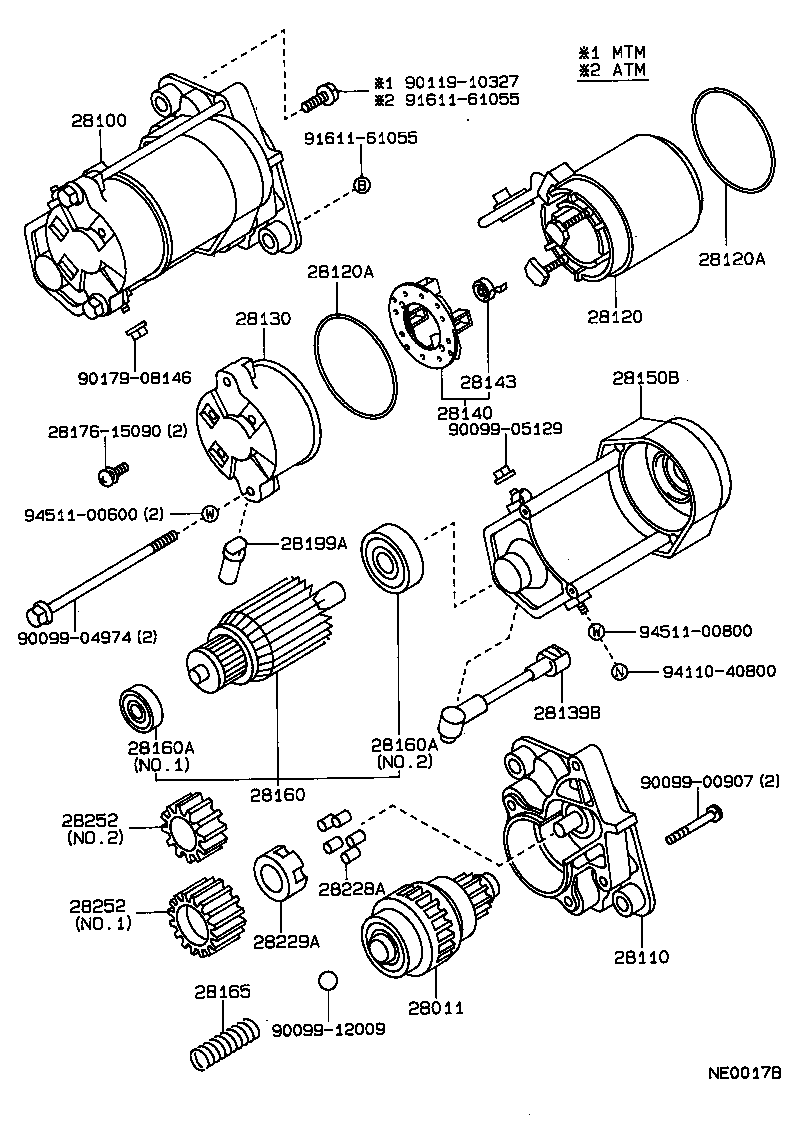

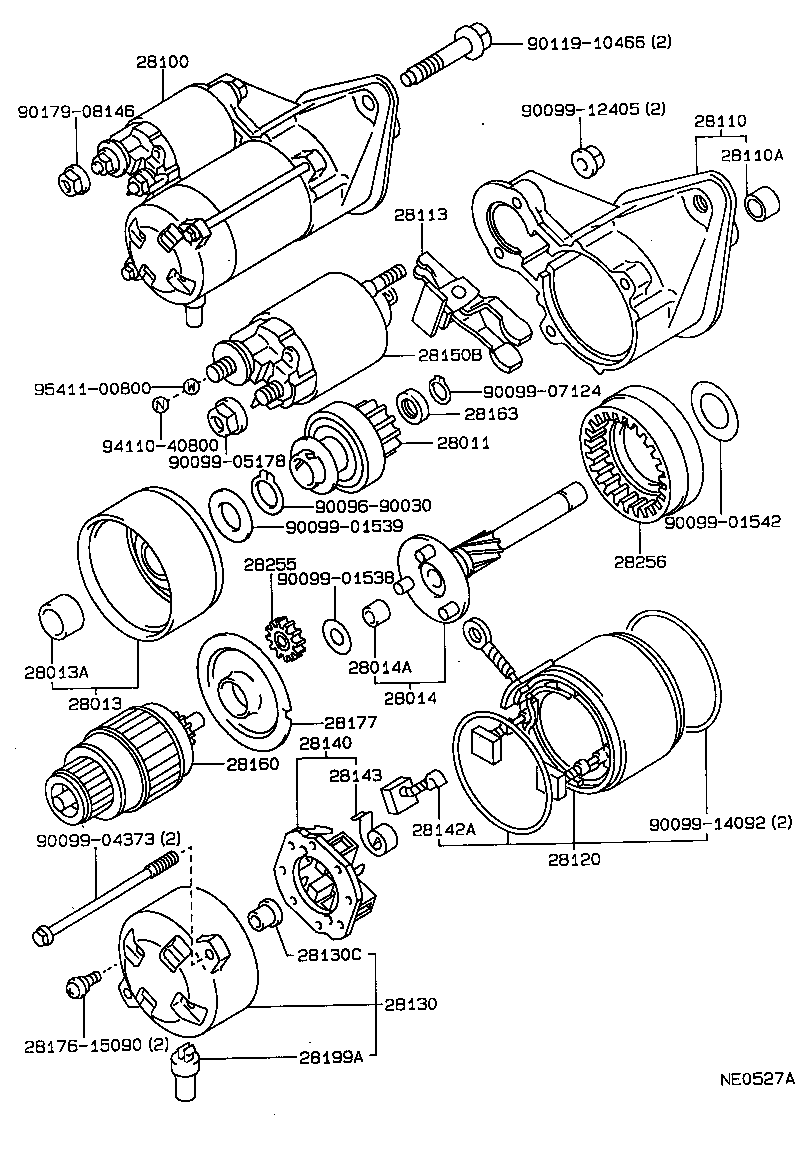

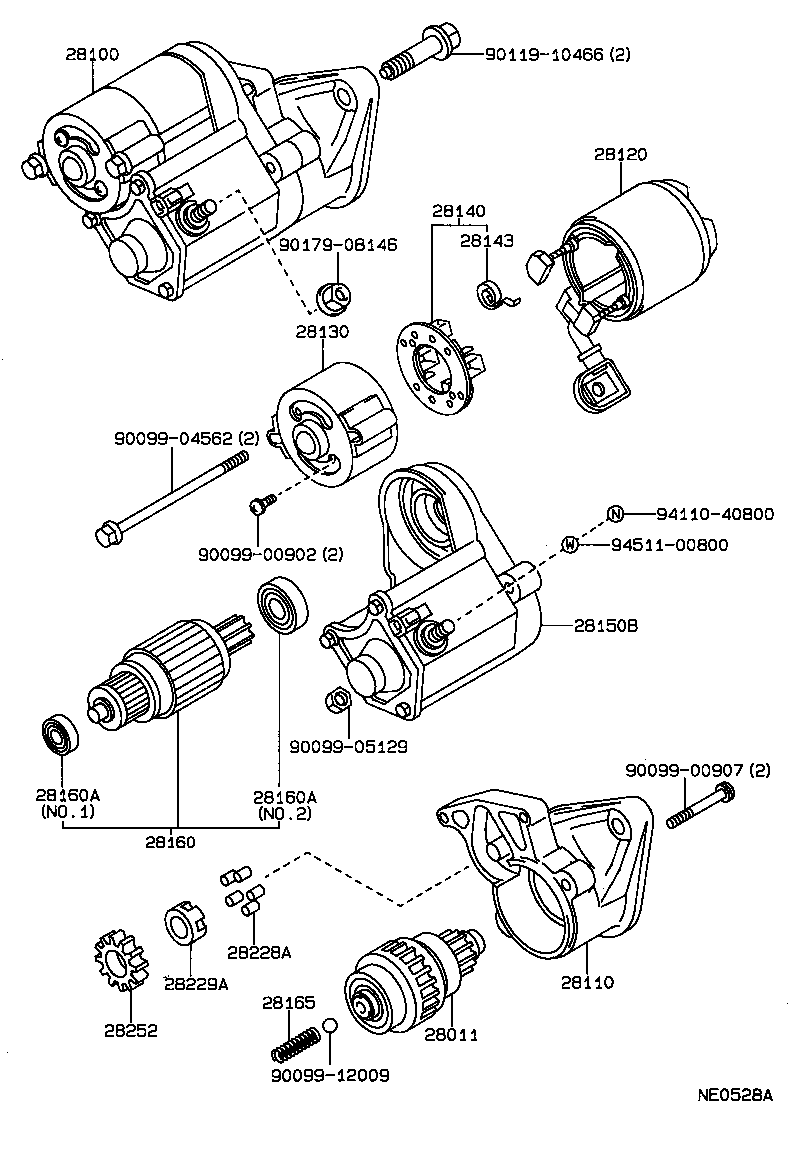

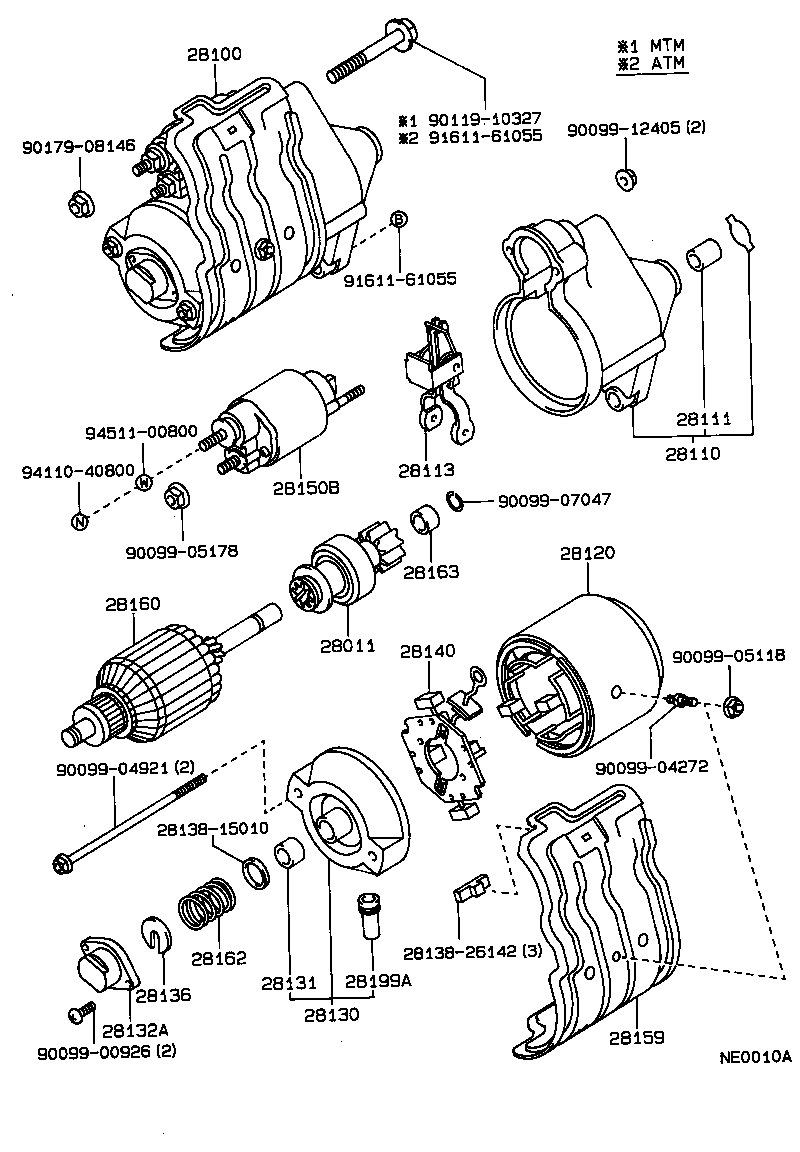

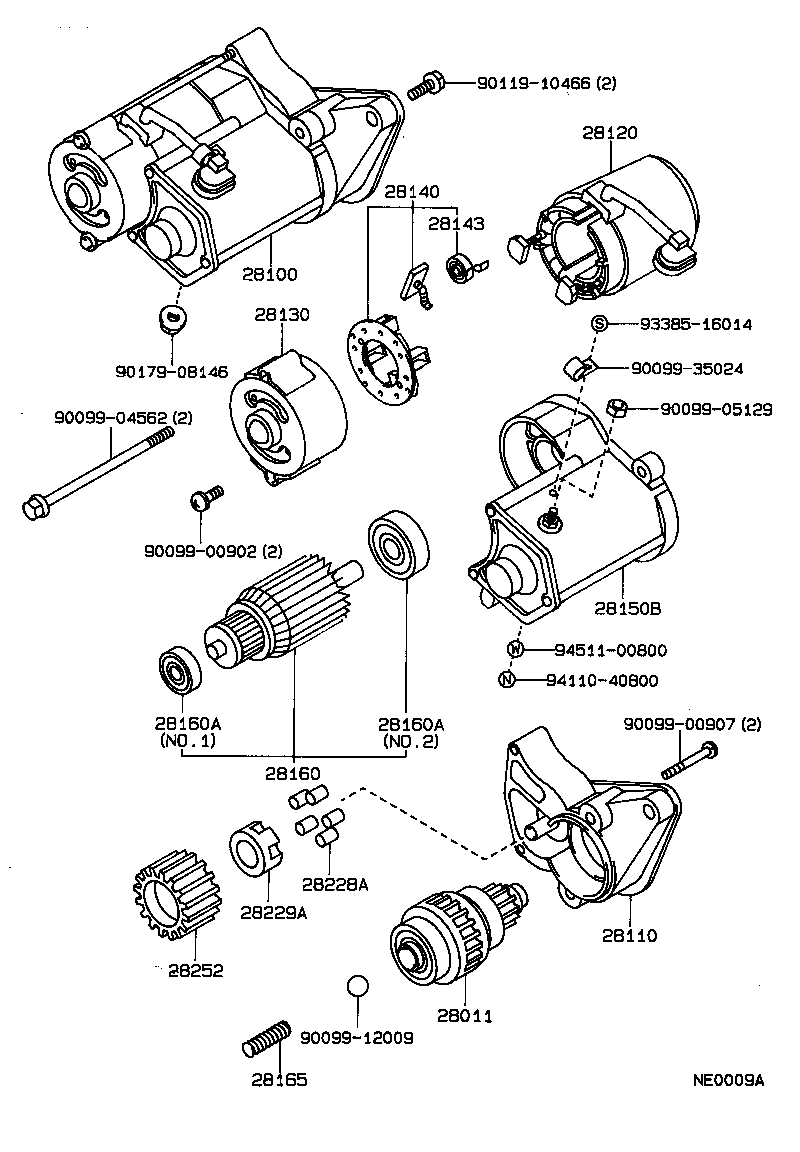

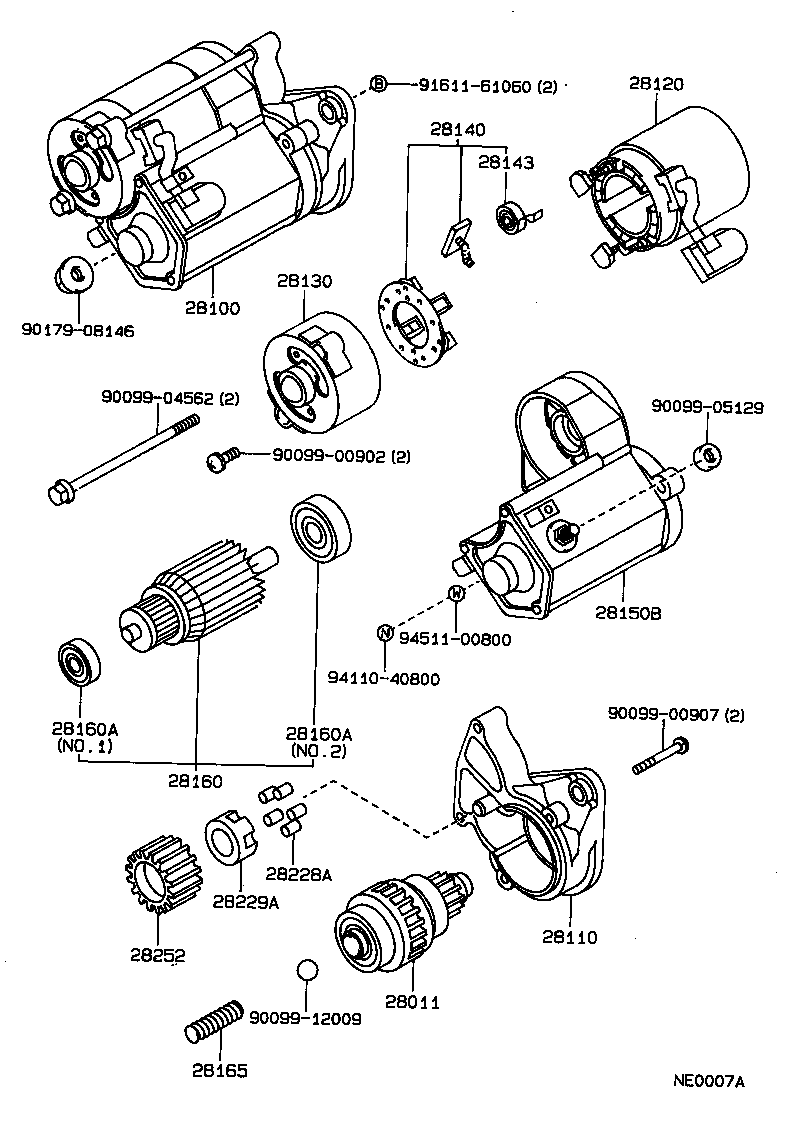

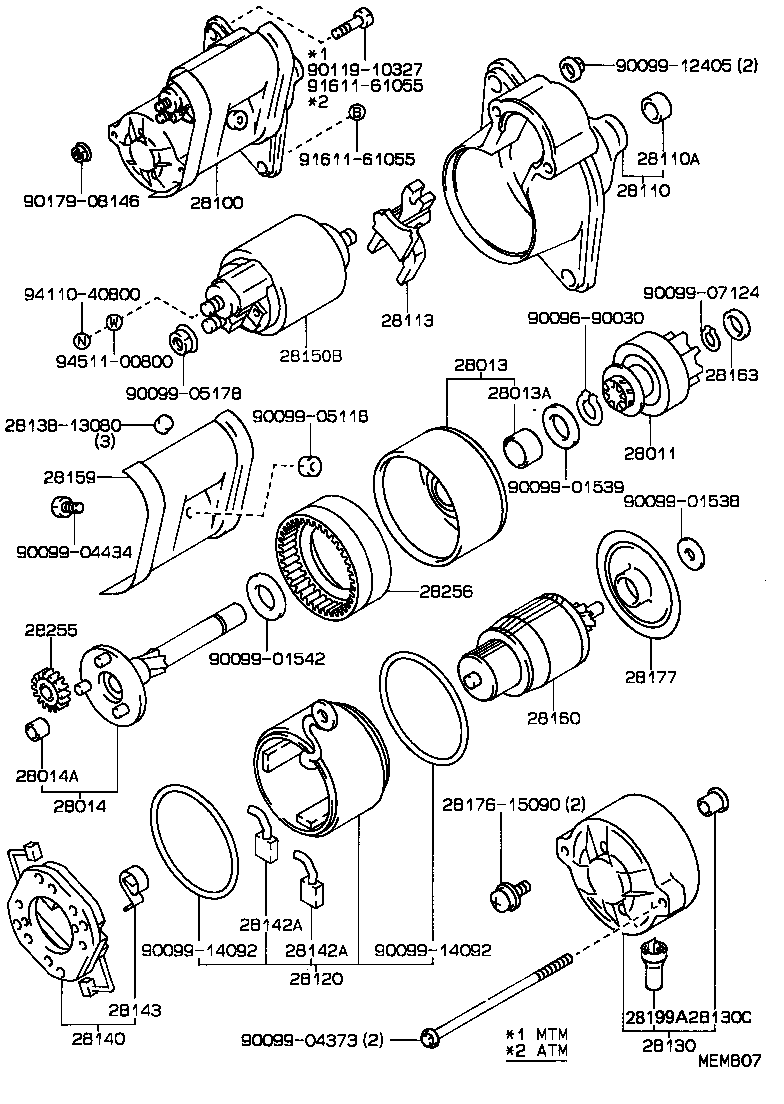

Figure NE0006A NE0006A 1987-05 → — Figure NE0007A NE0007A 1987-05 → — Figure NE0008A NE0008A 1987-05 → 1987-11 Figure NE0008A NE0008A 1987-11 → 1988-02 Figure NE0009A NE0009A 1987-05 → — Figure NE0527A NE0527A 1987-10 → — Figure NE0527A NE0527A 1987-11 → — Figure NE0527A NE0527A 1988-02 → — Figure NE0528A NE0528A 1987-10 → 1989-05 Figure NE0010A NE0010A 1987-05 → 1989-05 Figure MEM807 MEM807 1989-05 → — Figure NE0012A NE0012A 1987-05 → — Figure NE0017B NE0017B 1987-05 → — Figure NE0019A NE0019A 1987-05 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28013 Bearing, Starter Center & Shock Absorber, NO.1
28013A Bearing, Starter Center & Shock Absorber, NO.2
28014 Shaft Sub-assy, Planet Carrier
28014A Bush OR Bearing, Planet Carrier Shaft
28100 Starter Assy
28110 Housing Assy, Starter Drive
28110A Bearing(FOR STARTER HOUSING)
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28119A Cover, Starter End Frame
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28130C Bearing, Starter Flange
28131 Bush, Commutator End Frame
28132A Cover, Starter Commutator End Frame
28136 Plate, Starter Lock
28139B Wire, Lead
28140 Holder Assy, Starter Brush
28142A Starter Kit
28143 Spring, Starter Brush
28150B Switch Assy, Magnetic
28159 Cover, Starter Protector
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28162 Spring, Starter Brake
28163 Nut OR Collar, Pinion Stop, Starter
28165 Spring, Starter Magnet Switch Return
28166A Cover, Starter Housing
28177 Plate(FOR STARTER ARMATURE)
28199A Protector, Dust Starter
28228A Roller, Starter Clutch
28229A Retainer, Starter Idle Gear
28252 Gear, Starter Idle
28255 Gear, Planet
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
