Toyota Corolla
1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan
Discontinued model
Data version 1992-11

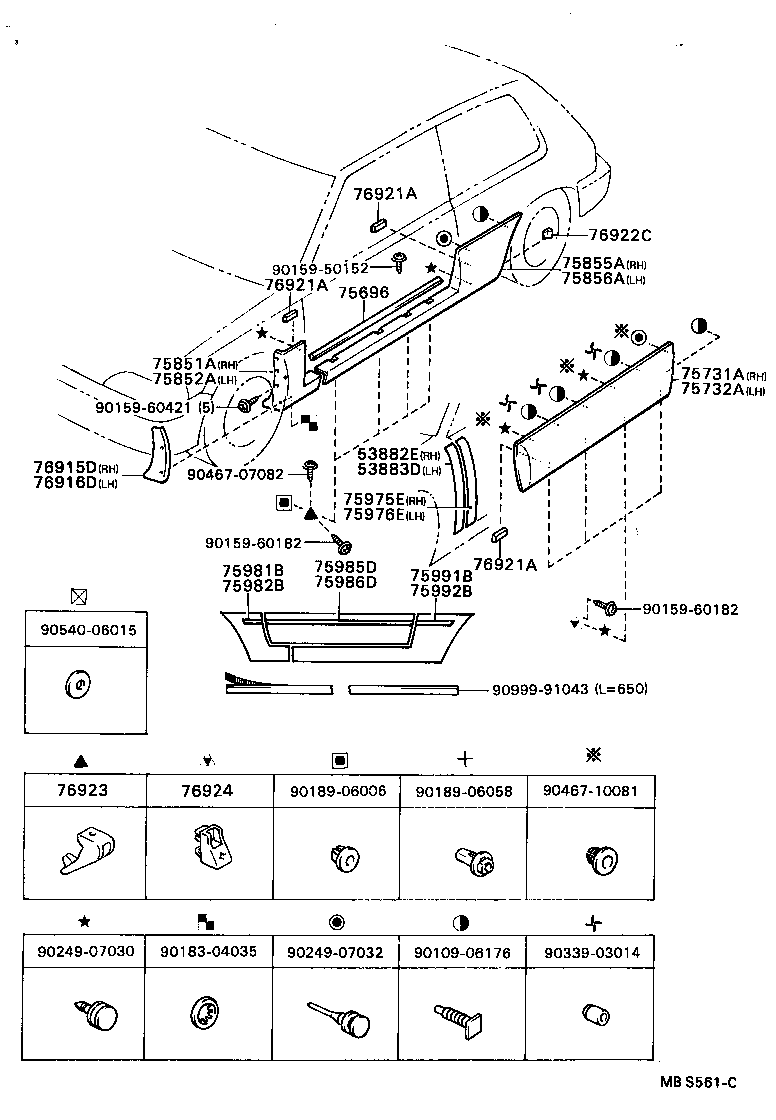

Side Moulding
45 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53882E | Seal, Front Fender, RH |
| 53883D | Seal, Front Fender, LH |
| 68153A | Moulding, Quarter Window NO.2 Glass, RH |
| 68154A | Moulding, Quarter Window NO.2 Glass, LH |
| 68211A | Clip, Door Belt Moulding |
| 68212A | Clip, Door Glass Weatherstrip, Outer |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75591 | Retainer, Quarter Garnish Front Moulding, NO.1 |
| 75623A | Moulding, Front Fender, Outside Rear RH |
| 75624A | Moulding, Front Fender, Outside Rear LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75671 | Moulding, Quarter Belt, RH |
| 75672 | Moulding, Quarter Belt, LH |
| 75683 | Moulding, Quarter Belt, Rear RH |
| 75684 | Moulding, Quarter Belt, Rear LH |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75851A | Moulding, Rocker Panel, Front RH |
| 75852A | Moulding, Rocker Panel, Front LH |
| 75855A | Moulding, Rocker Panel, Rear RH |
| 75856A | Moulding, Rocker Panel, Rear LH |
| 75975E | Seal, FR Door, Outside RH |
| 75976E | Seal, FR Door, Outside LH |
| 75981B | Stripe, Fender, RH |
| 75982B | Stripe, Fender, LH |
| 75985D | Stripe, Front Door Outside, RH |
| 75986D | Stripe, Front Door Outside, LH |
| 75991B | Stripe, Quarter, RH |
| 75992B | Stripe, Quarter, LH |
| 76671 | Clip, Quarter Belt Moulding, NO.1 |
| 76915D | Mudguard, Side, Front RH |
| 76916D | Mudguard, Side, Front LH |
| 76921A | Protector, Side Mudguard, NO.1 |
| 76922C | Protector, Side Mudguard, NO.2 |
| 76923 | Retainer, Side Mudguard |
| 76924 | Retainer, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
