Toyota Corolla
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan
Discontinued model
Data version 2003-01

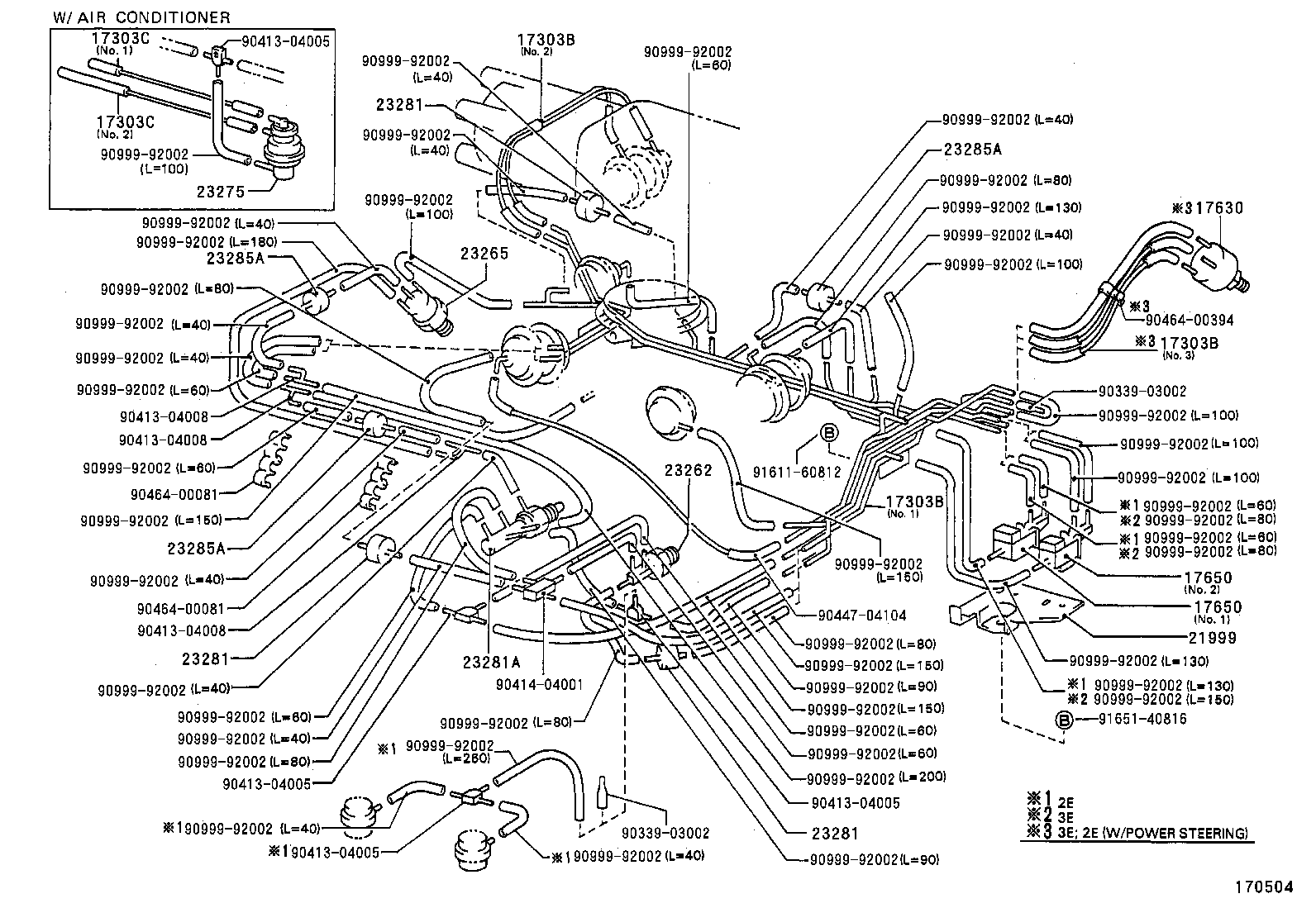

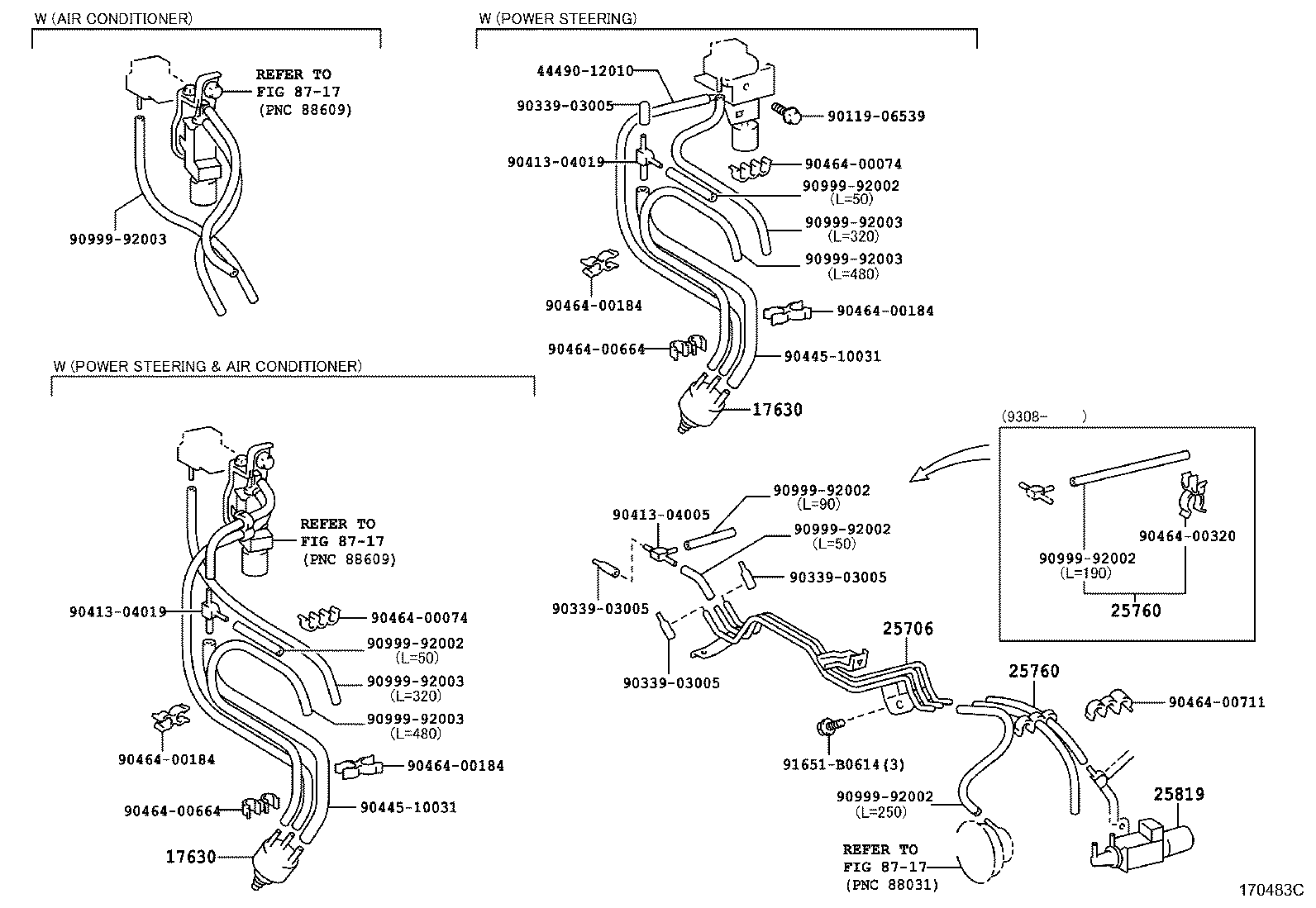

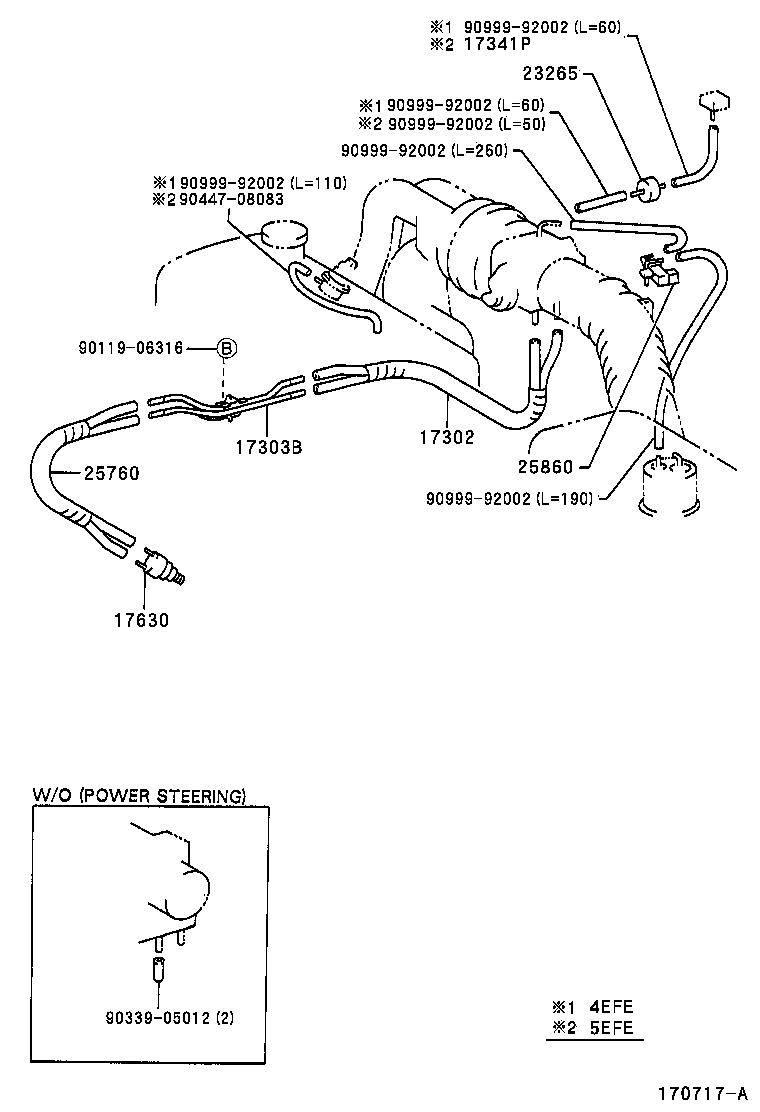

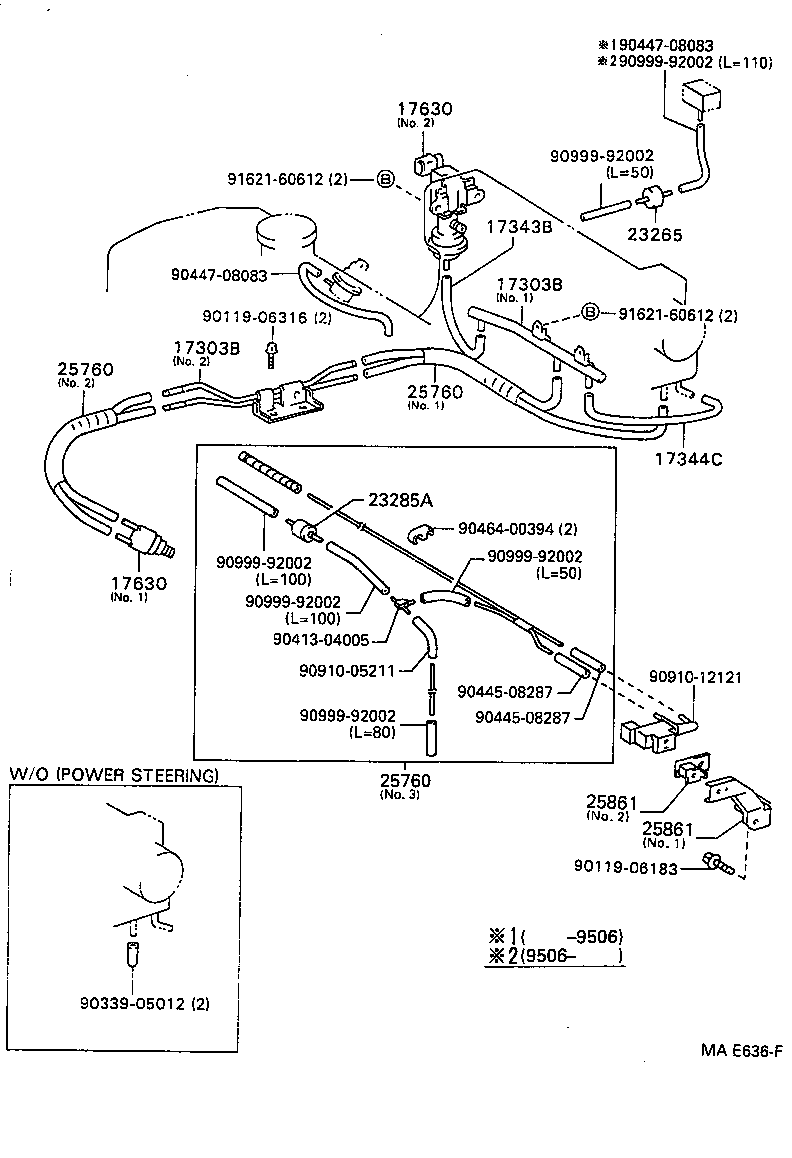

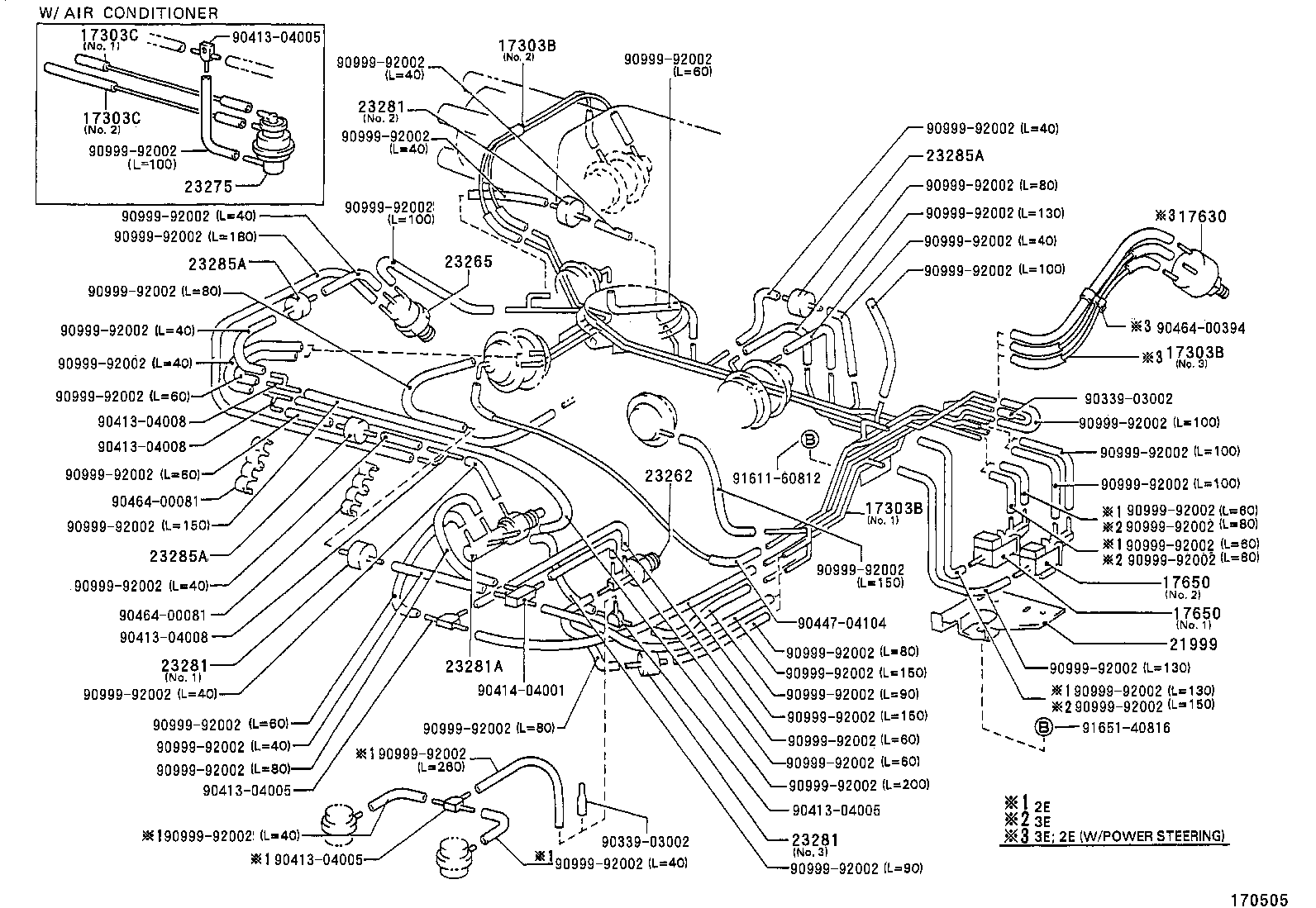

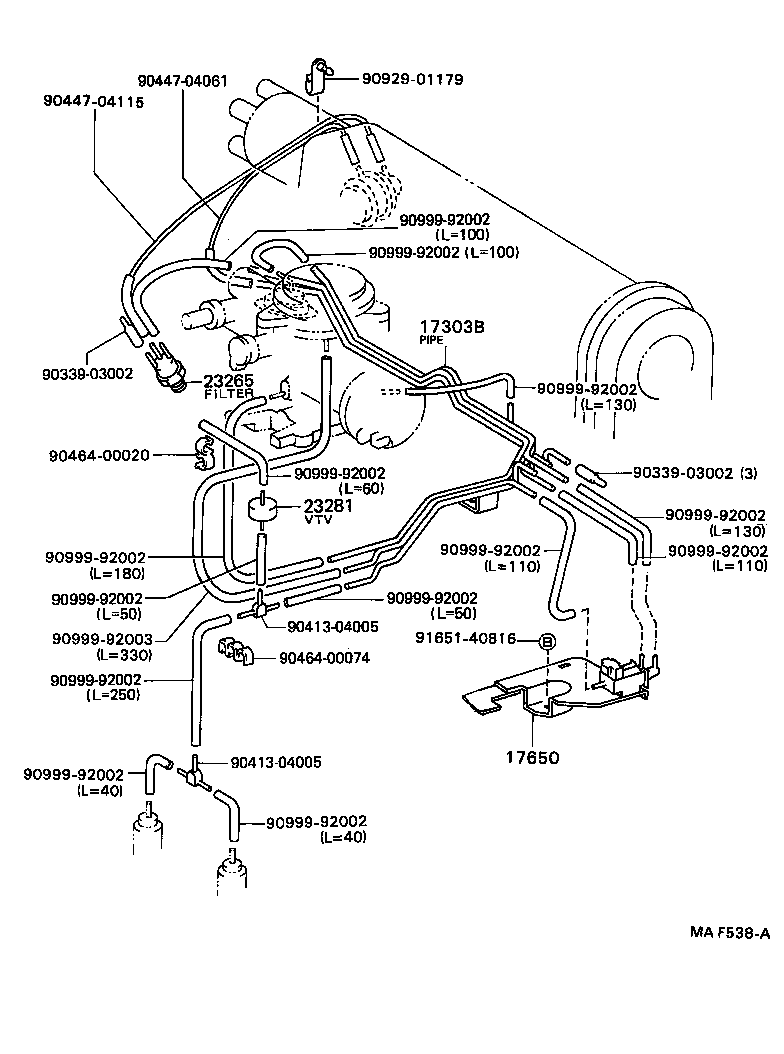

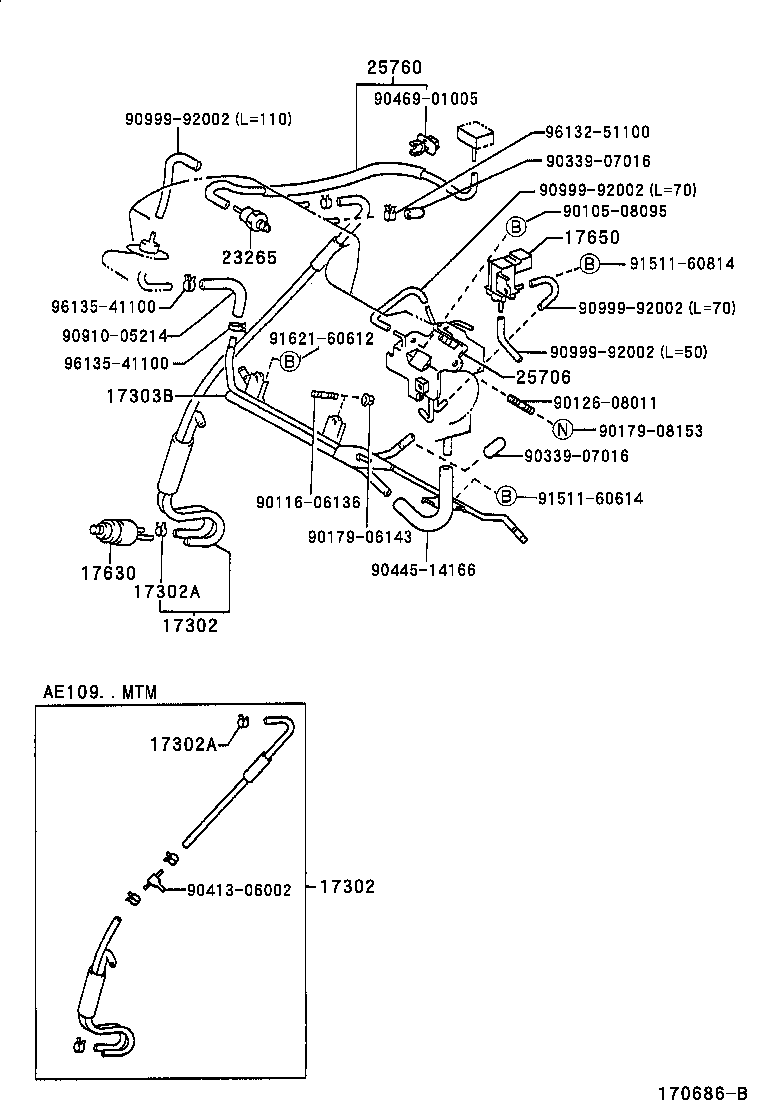

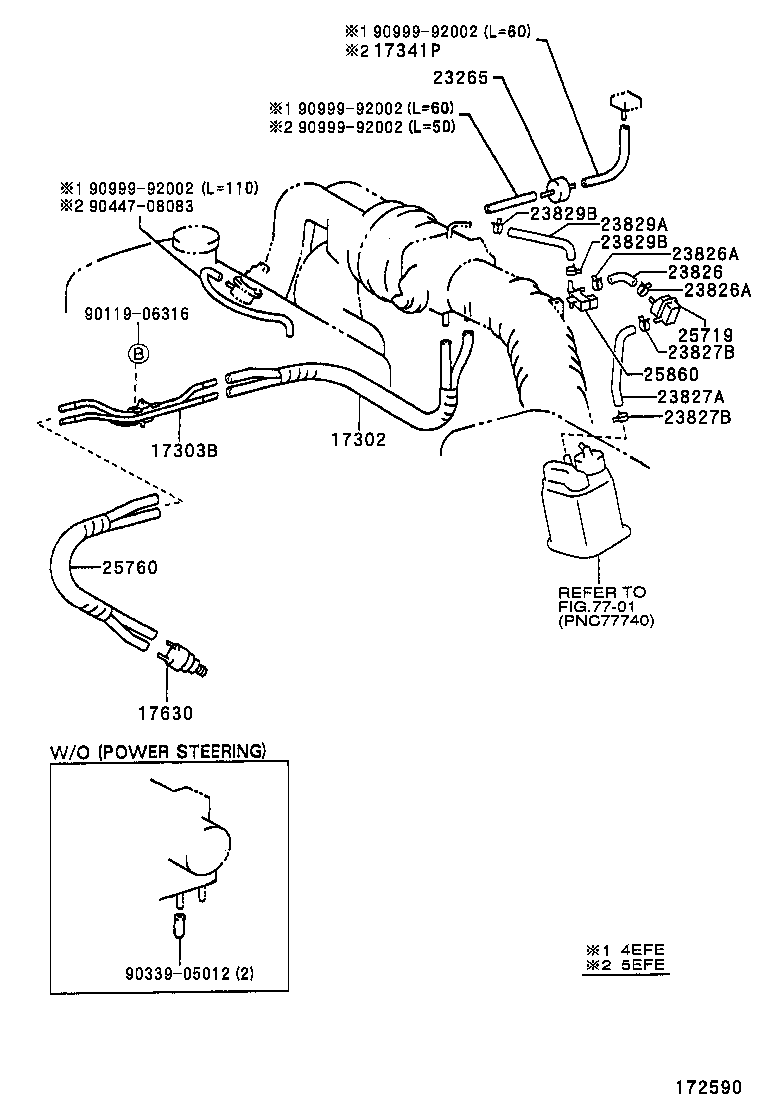

Vacuum Piping
35 part groups · 17 illustrations

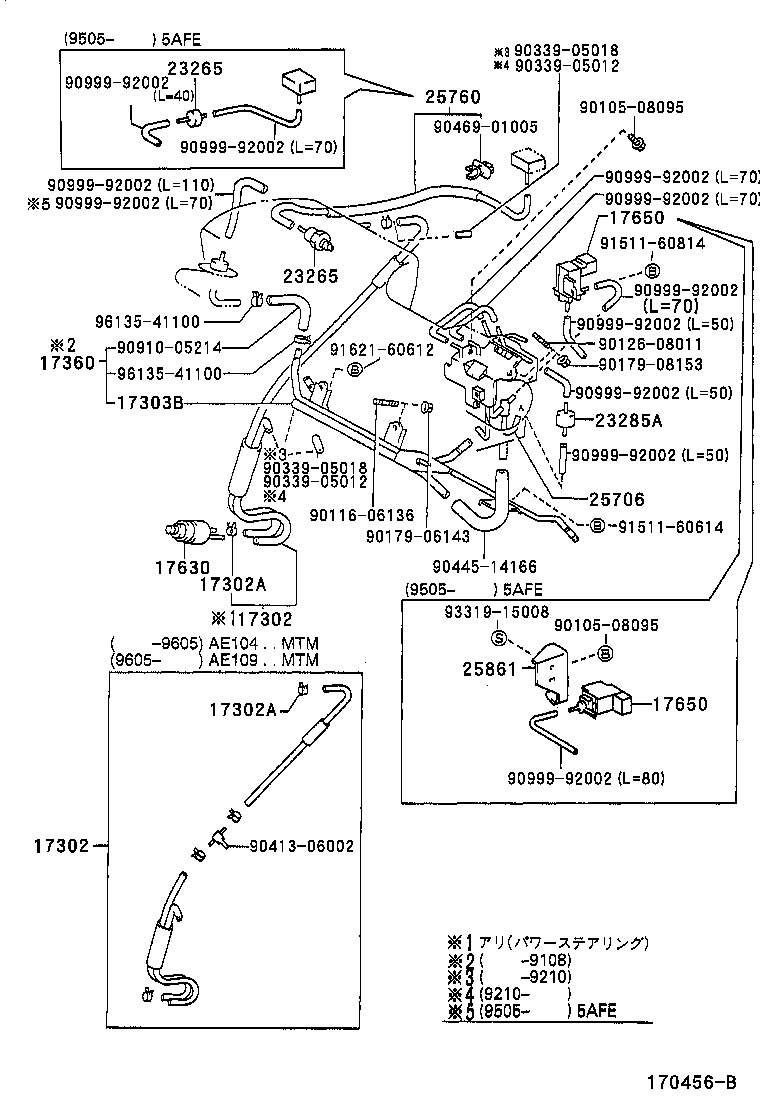

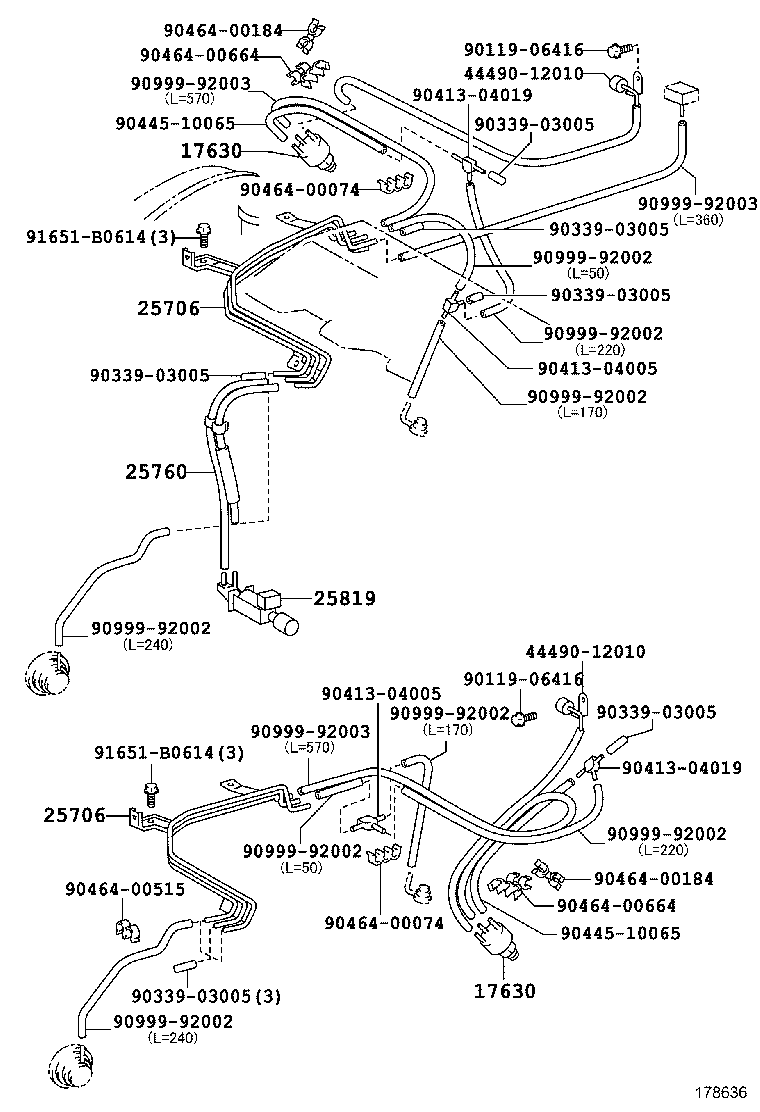

Illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17302A | Clip, Hose |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17303C | Pipe Sub-assy, Air, NO.2 |
| 17341P | Hose, Air |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17344C | Hose, NO.4(FOR IDLE-UP) |
| 17345D | Hose, Air, NO.5 |
| 17346B | Hose, Air, NO.6 |
| 17346E | Clip(FOR AIR HOSE NO.6) |
| 17347B | Hose, Air, NO.7 |
| 17360 | Tube Assy, Air |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 21999 | Bracket, Vacuum Switching Valve |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23265 | Filter, Gas, NO.1 |
| 23275 | Valve, Vacuum Control, NO.1 |
| 23281 | Valve, Vacuum Transmitting, NO.1 |
| 23281A | Valve, Vacuum Transmitting, NO.2 |
| 23285A | Valve, Check, NO.1 |
| 23288 | Jet, NO.1 |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25719 | Tank, Vacuum Surge |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25760A | Hose Assy, Vacuum Transmitting |
| 25819 | Valve Assy, Vacuum Regulating |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
