Toyota Corolla/Fielder
2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan
Discontinued model
Data version 2007-04

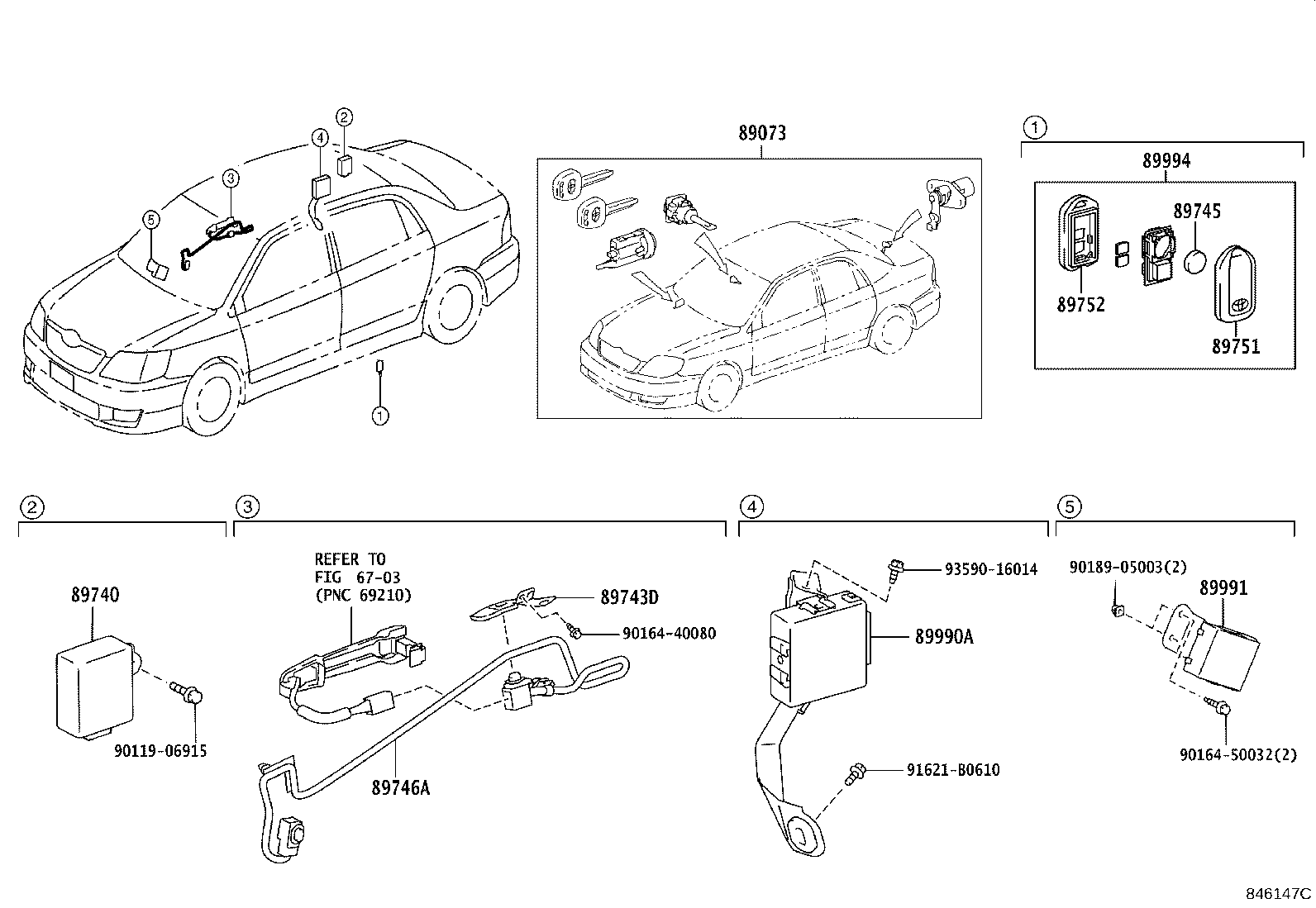

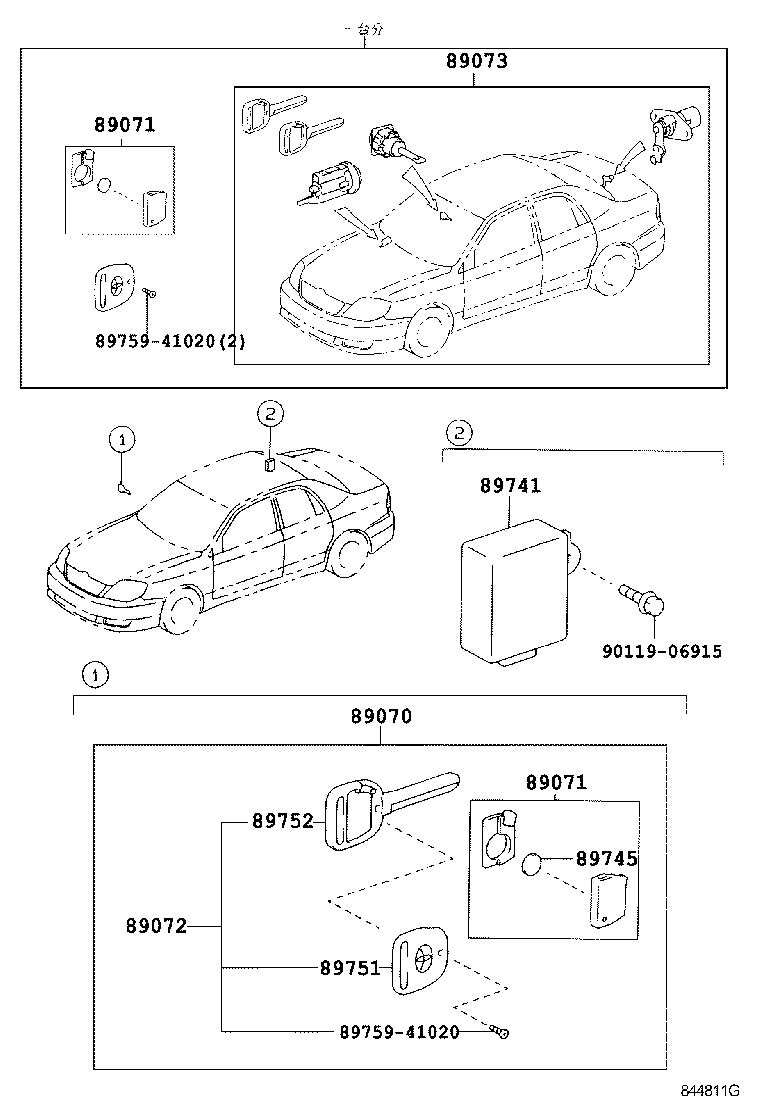

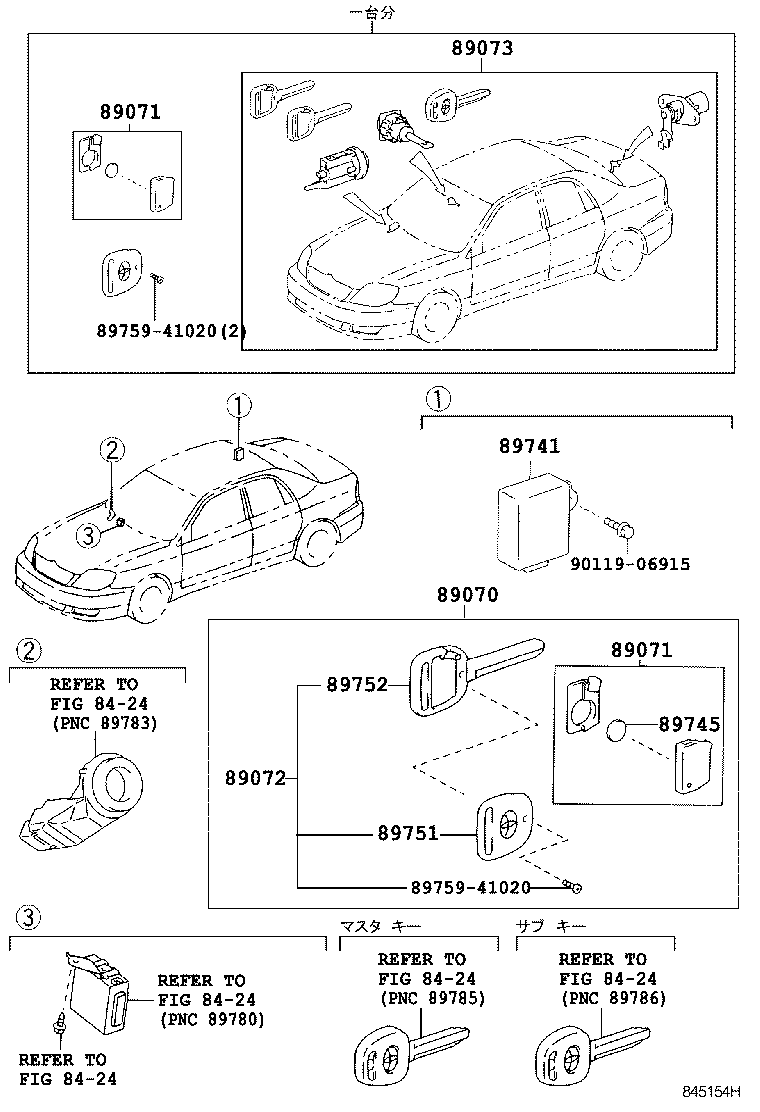

Wireless Door Lock
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 89070 | Transmitter Assy, Door Control |
| 89071 | Module Set, Transmitter Sub-assy, Door Control |
| 89072 | Housing Set, Door Control Transmitter |
| 89073 | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89740 | Computer Assy, Door Control W/Receiver |
| 89741 | Receiver, Door Control |
| 89743D | Bracket, Electrical Key Wire Harness |
| 89745 | Battery, Transmitter |
| 89746A | Harness, Electrical Key Wire |
| 89751 | Cover, Transmitter Housing |
| 89752 | Case, Transmitter Housing |
| 89990A | Computer Assy, Smart Key |
| 89991 | Oscillator, Door Electrical Key |
| 89994 | Transmitter, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
