Rear Seat & Seat Track

80 part groups · 7 illustrations

Illustrations

714664C 2006-09 → —

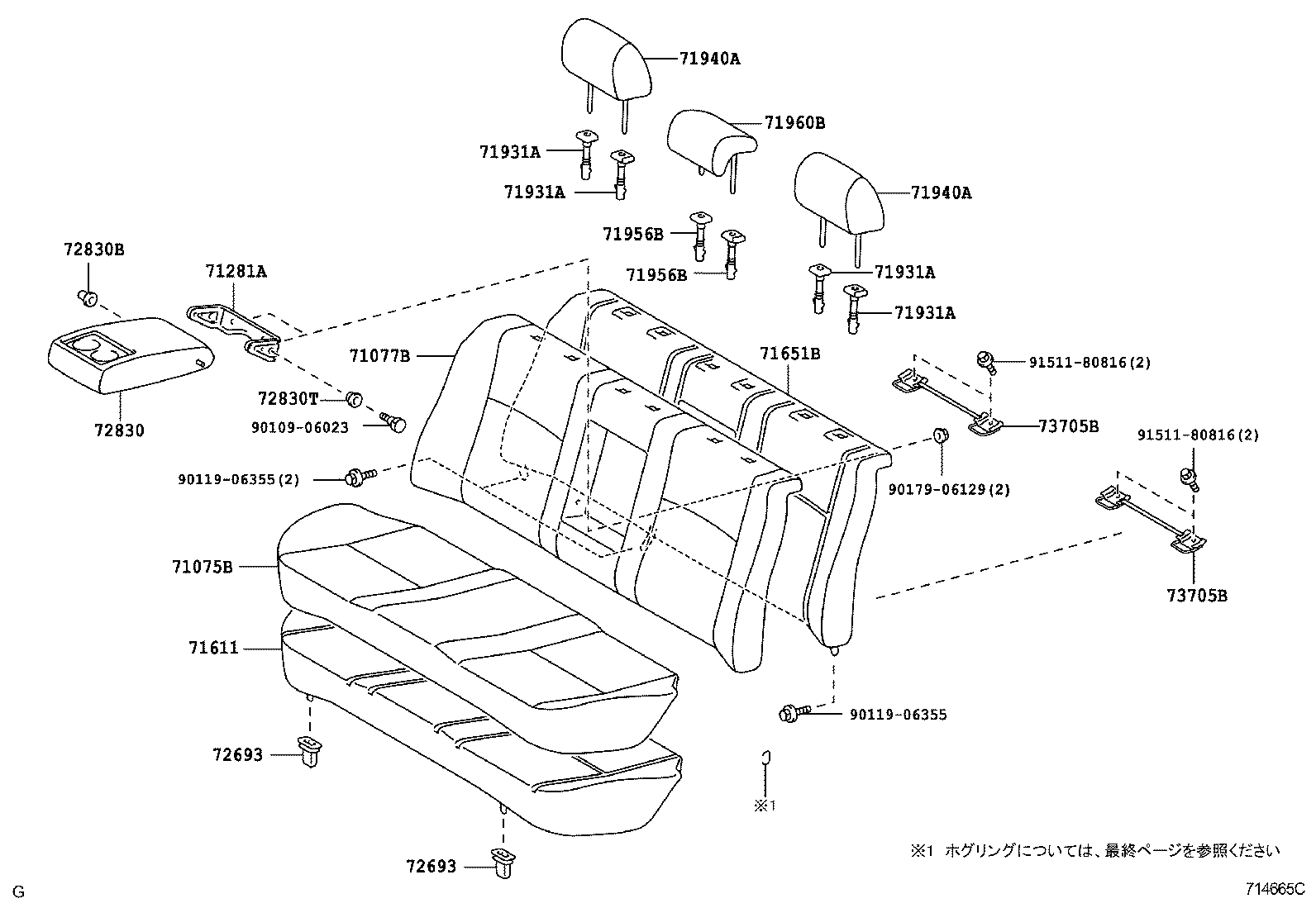

714665C 2006-09 → —

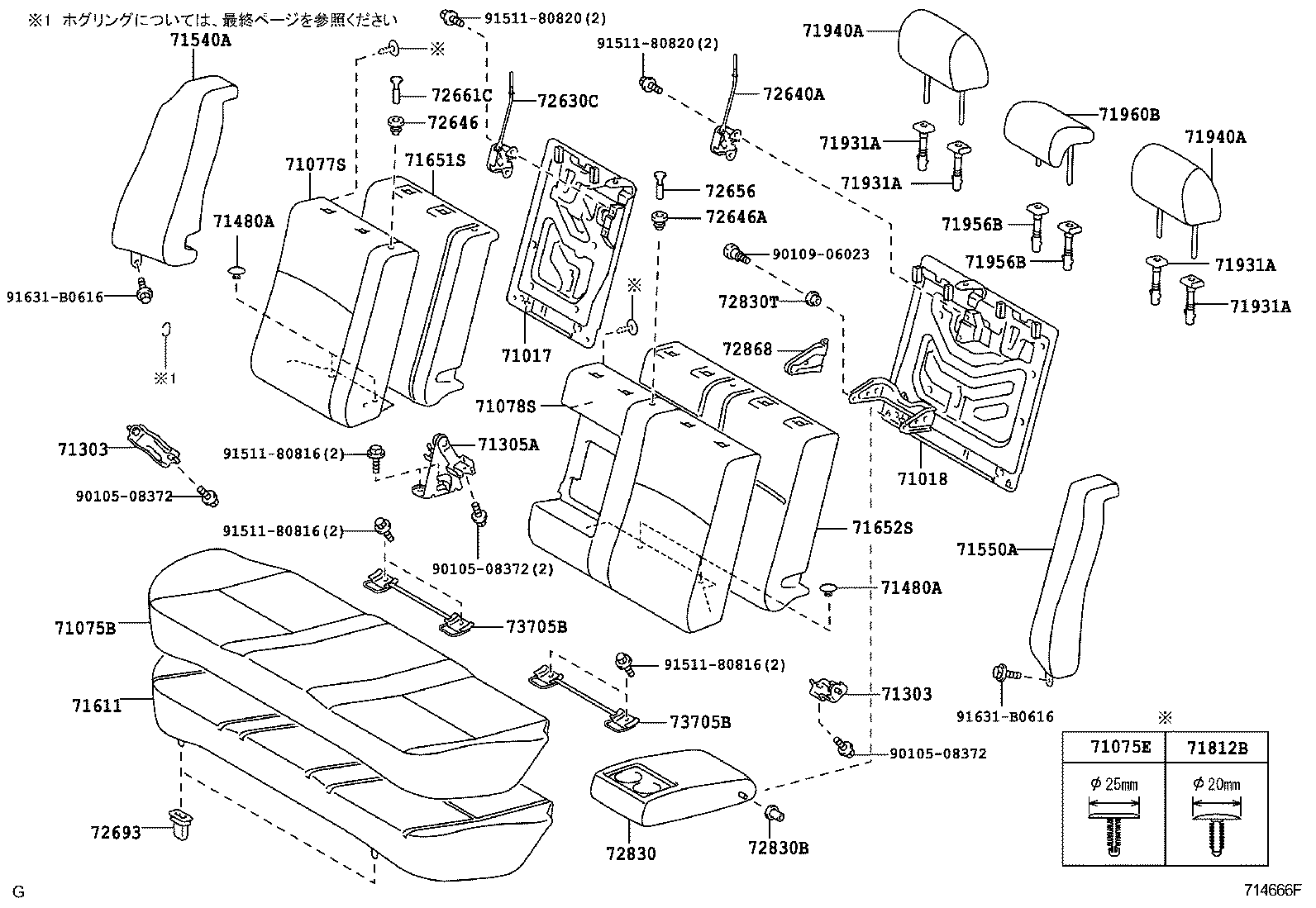

714666F 2006-09 → —

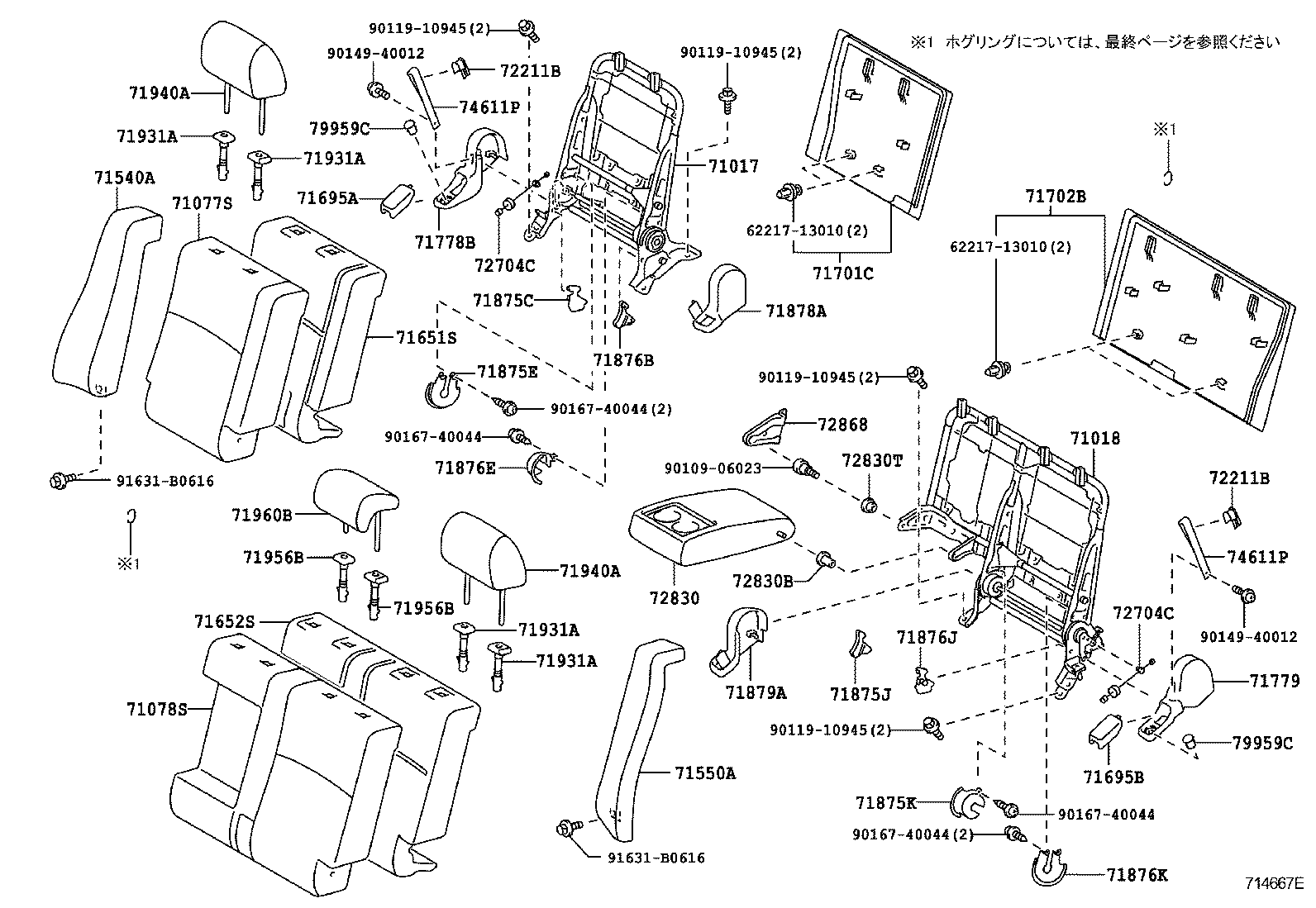

714667E 2006-09 → 2008-10

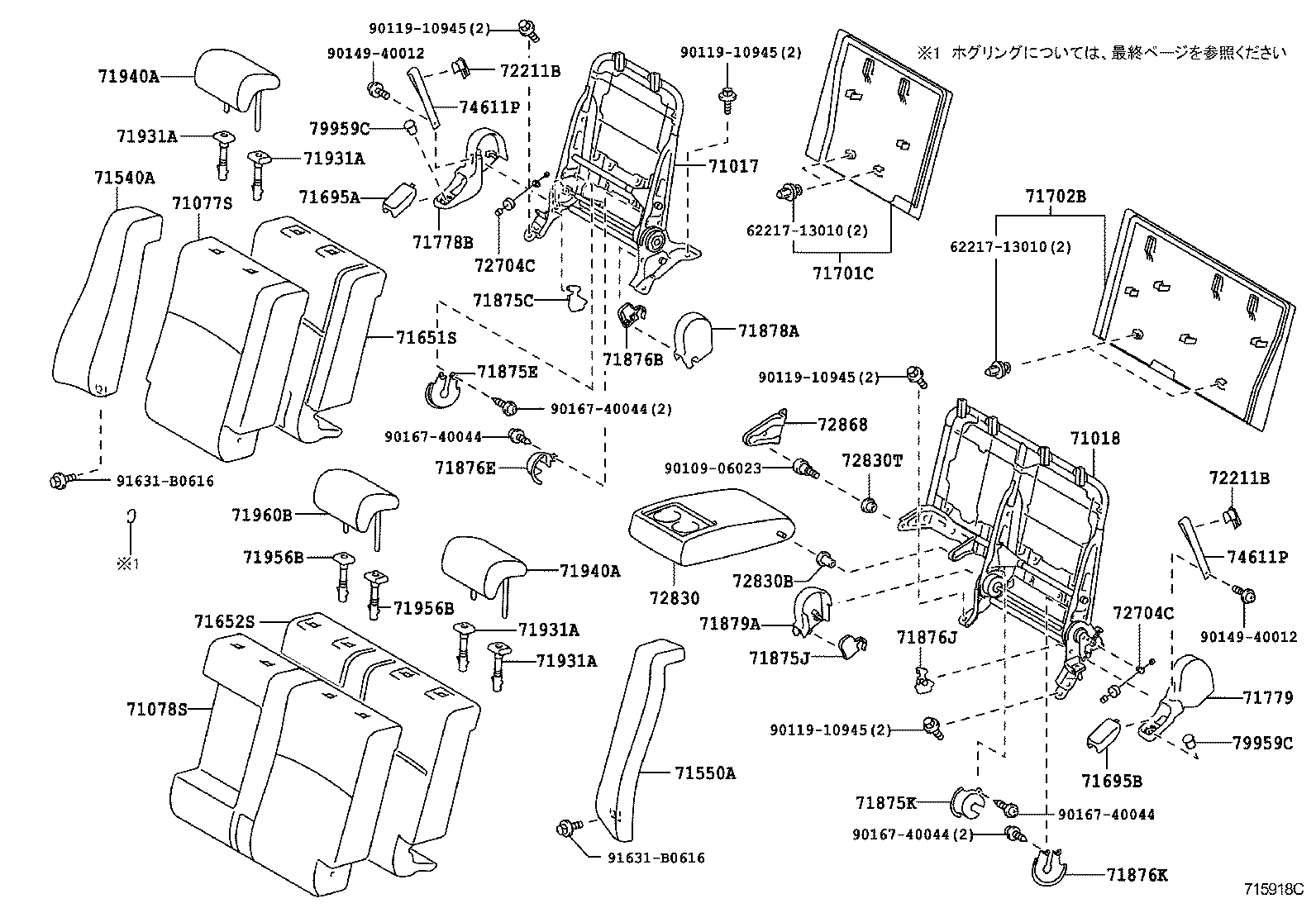

715918C 2008-10 → —

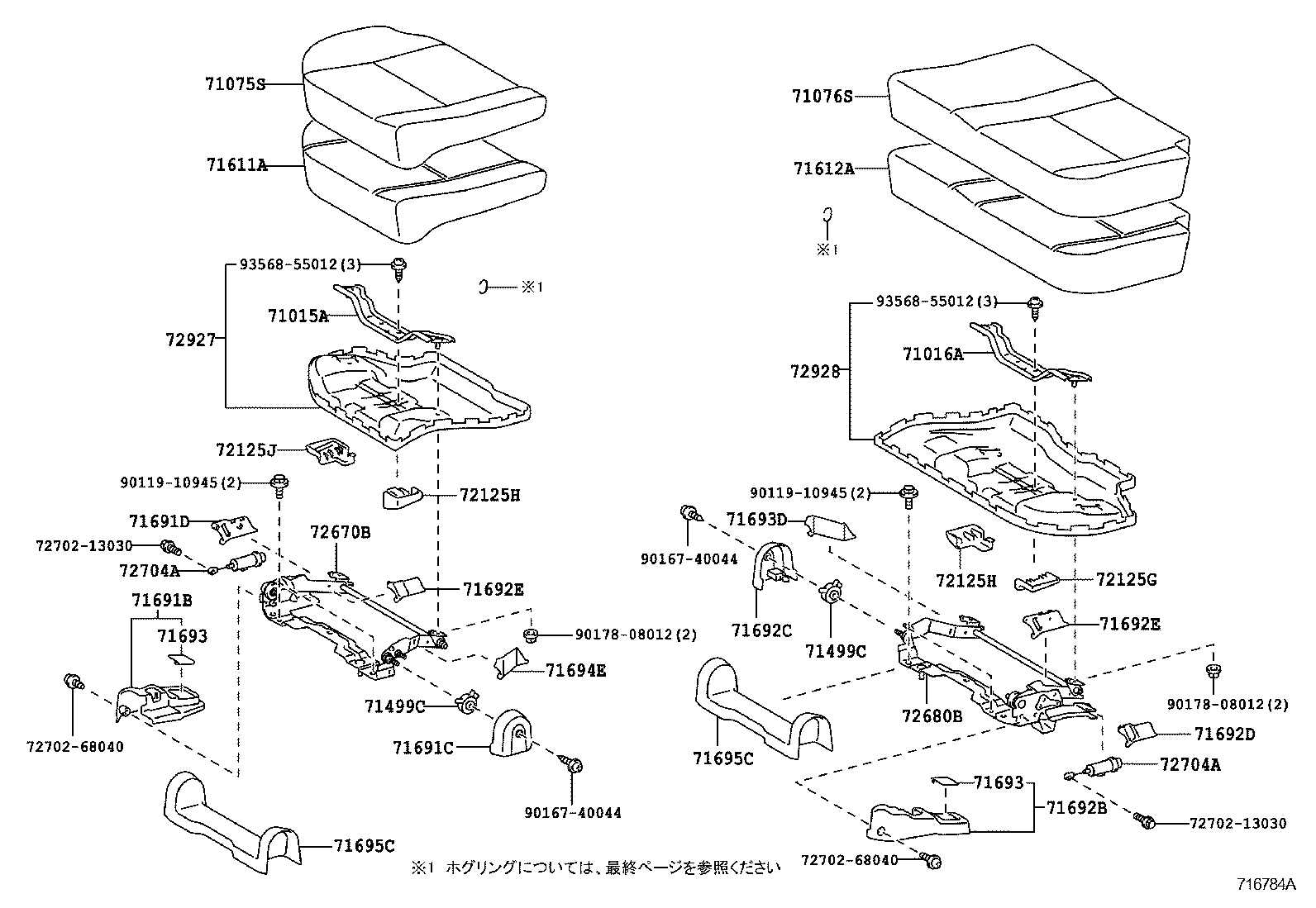

716784A 2006-09 → —

718165A 2006-09 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075E	Clip(FOR REAR SEAT)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71281A	Hinge, Rear Seat Center Armrest
71303	Hinge Sub-assy, Rear Seatback
71305A	Hinge Sub-assy, Rear Seatback, Center
71480A	Clip (FOR REAR SEATBACK)
71499C	Damper, Rear Seat Cushion Spring
71540A	Back Assy, Rear Side Seat, RH
71550A	Back Assy, Rear Side Seat, LH
71611	Pad, Rear Seat Cushion
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691B	Cover, Rear Seat Lock, Outer RH
71691C	Cover, Rear Seat Lock, Inner RH
71691D	Cover, Rear Seat Cushion Hinge, Upper RH
71692B	Cover, Rear Seat Lock, Outer LH
71692C	Cover, Rear Seat Lock, Inner LH
71692D	Cover, Rear Seat Cushion Hinge, Upper LH
71692E	Cover, Rear Seat Cushion Hinge, NO.2
71693	Cover, Rear Seat Cushion Hinge, Lower RH
71693D	Cover, Rear Seat Cushion Hinge, Inner RH
71694E	Cover, Rear Seat Cushion Hinge, Inner LH
71695A	Protector, Rear Seat, NO.1 RH
71695B	Protector, Rear Seat, NO.1 LH
71695C	Protector, Rear Seat, NO.1
71701C	Board Sub-assy, Rear Seatback, RH
71702B	Board Sub-assy, Rear Seatback, LH
71778B	Cover, Rear Seat Side Hinge Male, RH
71779	Cover, Rear Seat Side Hinge Male, LH
71812B	Clip(FOR REAR SEAT CUSHION COVER)
71875C	Cover, Reclining Adjuster Inside, RH
71875E	Cover, Reclining Adjuster Inside, RH
71875J	Cover, Reclining Adjuster Inside, RH
71875K	Cover, Reclining Adjuster Inside, RH
71876B	Cover, Reclining Adjuster Inside, LH
71876E	Cover, Reclining Adjuster Inside, LH
71876J	Cover, Reclining Adjuster Inside, LH
71876K	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71956B	Support, Rear Seat Headrest
71960B	Headrest Assy, Rear Seat, Center
72125G	Cover, Seat Track Lock Plate, NO.1
72125H	Cover, Seat Track Lock Plate, NO.2
72125J	Cover, Seat Track Lock Plate, NO.3
72211B	Handle, Seat Track Adjusting
72630C	Lock Assy, Rear Seatback, RH
72640A	Lock Assy, Rear Seatback, LH
72646	Grommet, Rear Seatback Stop Button
72646A	Grommet, Rear Seatback Stop Button
72656	Button, Rear Seatback Stop Release
72661C	Button, Rear Seatback Lock Release
72670B	Lock Assy, Rear Seat Cushion, RH
72680B	Lock Assy, Rear Seat Cushion, LH
72693	Hook, Rear Seat Cushion Lock
72704A	Cable, Rear Seat Reclining Control
72704C	Cable, Rear NO.2 Seat Reclining Control
72830	Armrest Assy, Rear Seat, Center
72830B	Bush(FOR REAR SEAT CENTER ARMREST)
72830T	Bush (FOR REAR SEAT CENTER ARMREST)
72868	Cover, Center Armrest Hinge, RH
72927	Cover, Rear Seat Cushion Under, RH
72928	Cover, Rear Seat Cushion Under, LH
73705B	Bracket Sub-assy, Cross Anchor
74611P	Pad, Assist Grip
79959C	Cover, Rear Seat Leg

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
