Toyota Corolla Axio/Fielder
2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan
Supported model
Data version 2018-02
Front Seat & Seat Track

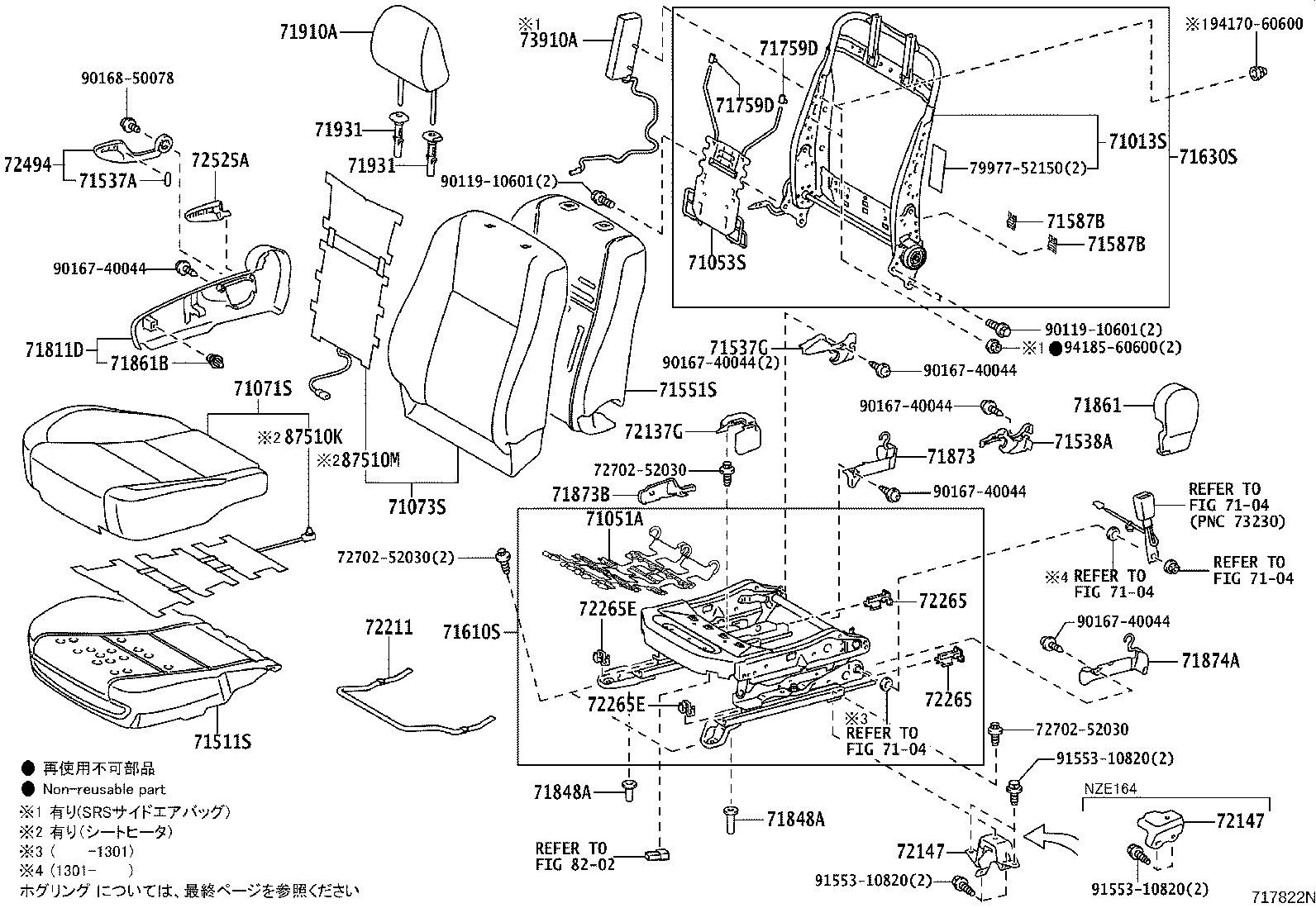

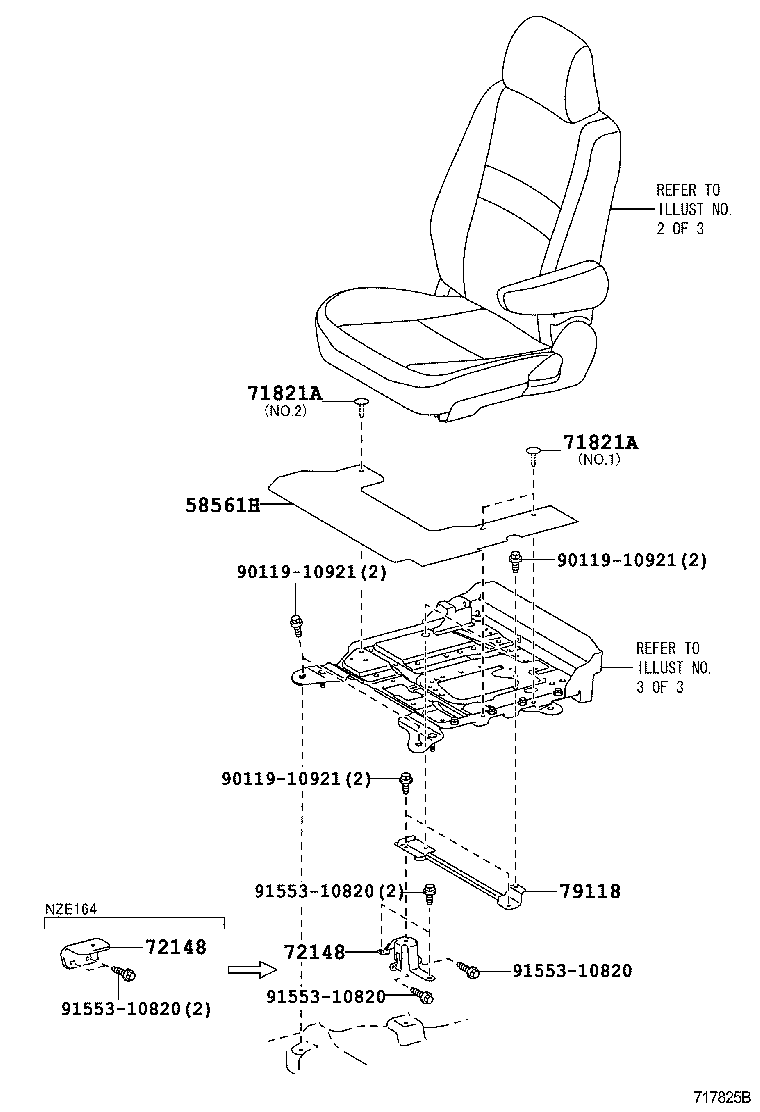

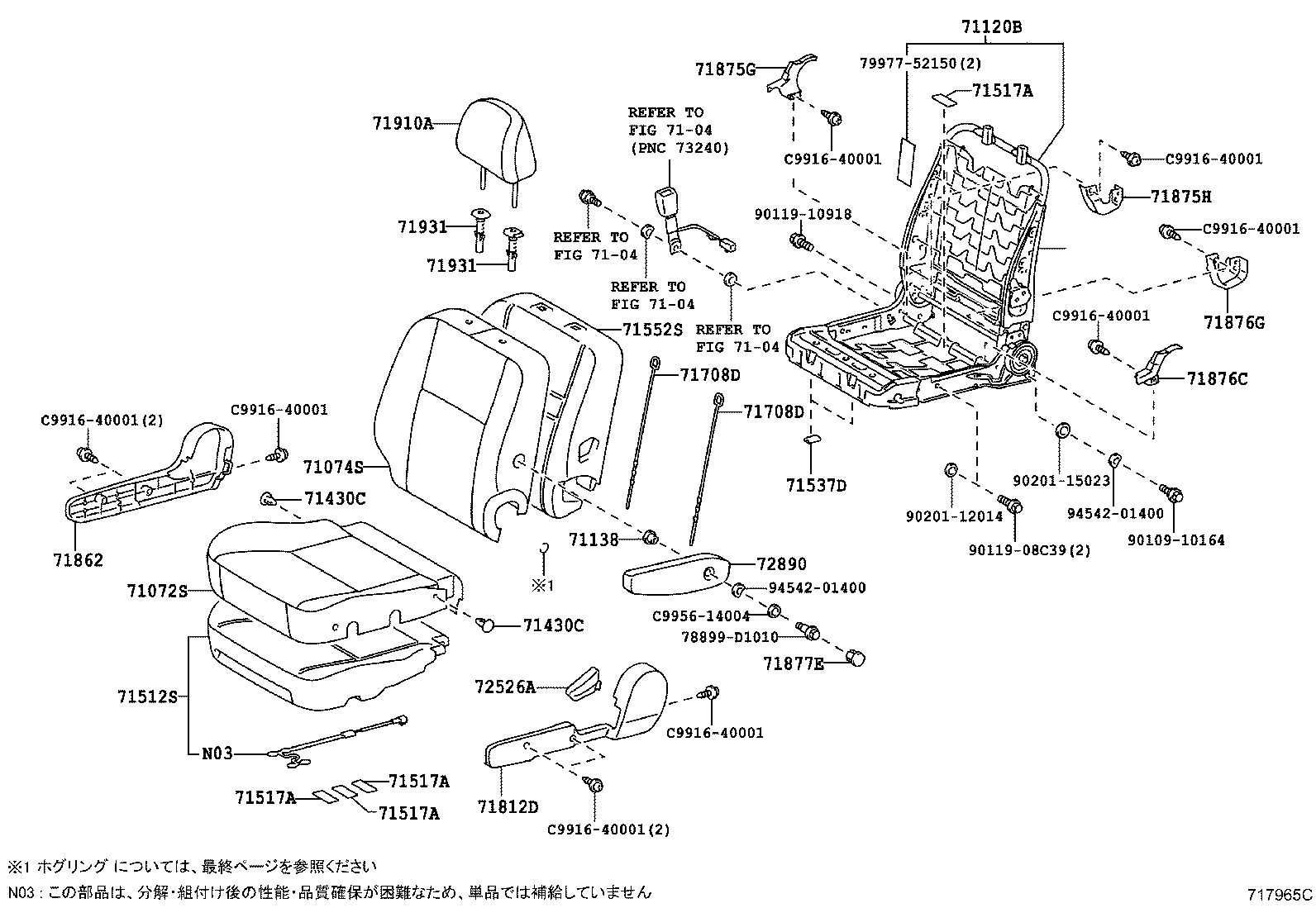

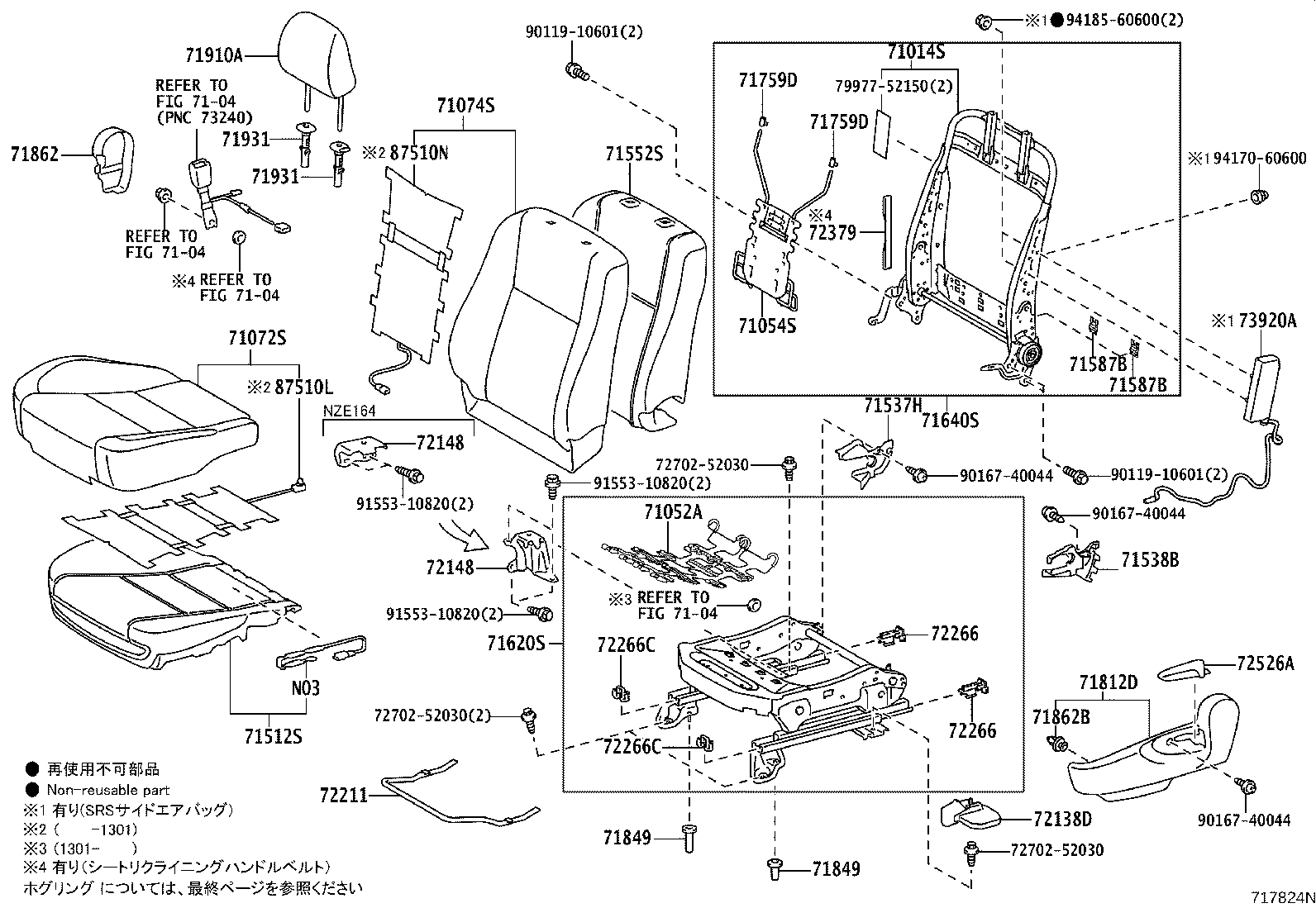

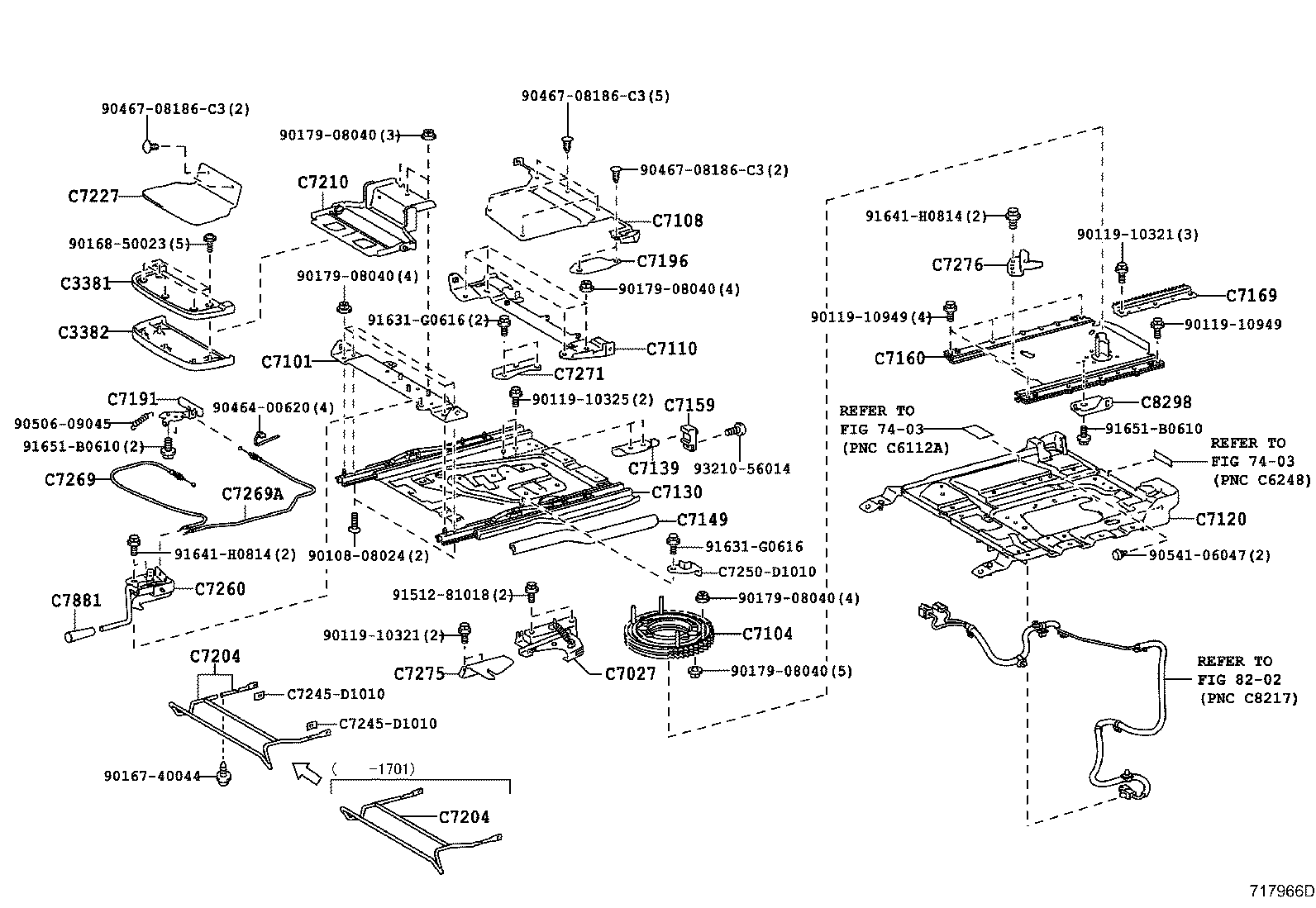

103 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 58561H | Carpet, Front Floor Side, LH |
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71138 | Spacer, Front Seat Set |
| 71430C | Clip |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71517A | Pad, Front Seat Cushion Cover |
| 71537A | Protector, Front Seat Cushion |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71537G | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71537H | Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) |
| 71538A | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538B | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587B | Protector, Front Seatback Edge |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71708D | Strap Sub-assy, Seat Cover, LH |
| 71759D | Hook, Front Seatback, NO.2 |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71821A | Clip (FOR FRONT SEAT SIDE SHIELD) |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71861B | Clip(FOR FRONT SEAT SHIELD, RH) |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71862B | Clip(FOR FRONT SEAT SHIELD, LH) |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873B | Shield, Front Seat Cushion, Lower RH, NO.1 |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71875H | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876C | Cover, Reclining Adjuster Inside, LH |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71877E | Cover, Seat Armrest Hole, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72137G | Cover, Seat Track, Outer RH |
| 72138D | Cover, Seat Track, Outer, LH |
| 72147 | Bracket, Front Inner Seat Track, Lower Rear RH |
| 72148 | Bracket, Front Inner Seat Track, Lower Rear LH |
| 72211 | Handle, Seat Track Adjusting |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72265E | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72266C | Cover, Seat Track Upper Rail, LH |
| 72379 | Belt, Seat Reclining Handle |
| 72494 | Handle, Vertical Adjusting, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72890 | Armrest Assy, Seat, C LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 79118 | Bracket, NO.1 Seat Leg |
| 85860A | Blower Assy, Seat Cushion Climate Control, RH |
| 85866 | Duct, Seat Cushion Climate Control, RH |
| 85867 | Blower, Seatback Climate Control, RH |
| 85868 | Bracket, Seat Cushion Climate Control, RH |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
| C3381 | Cover, Slide Step, NO.1 |
| C3382 | Cover, Slide Step, NO.2 |
| C7027 | Lock Sub-assy, Welcab Seat Turn |
| C7101 | Bracket Sub-assy, Seat Holder, Front |
| C7104 | Plate Sub-assy, Seat Turn |
| C7108 | Cover Assy, Turn Table |
| C7110 | Bracket Sub-assy, Seat Holder, Rear |
| C7120 | Leg, Welcab Seat, NO.1 |
| C7130 | Panel Assy, Turn Table |
| C7139 | Bracket, Hook |
| C7149 | Protector, Turn Table Panel Edge, LH |
| C7159 | Cushion, Welcab Seat Leg Stopper |
| C7160 | Panel Assy, Slide Table |
| C7169 | Gear, Slide Table Rack |
| C7191 | Bracket, Seat Holder Link |
| C7196 | Cover, Turn Table, NO.1 |
| C7204 | Handle Sub-assy, Welcab Seat Track |
| C7210 | Footrest Assy, Welcab Seat |
| C7227 | Carpet, Welcab Seat Footrest Step |
| C7260 | Handle Assy, Seat Turn Lock |
| C7269 | Cable, Seat Turn Lock Release |
| C7269A | Cable, Seat Turn Lock Release, NO.1 |
| C7271 | Bracket, Interlock, Upper |
| C7275 | Plate, Lock Striker, NO.1 |
| C7276 | Plate, Lock Striker, NO.2 |
| C7881 | Grip, Control Link |
| C8298 | Bracket, Welcab Seat Harness Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
