Toyota Corolla Axio/Fielder
2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan
Supported model
Data version 2018-02

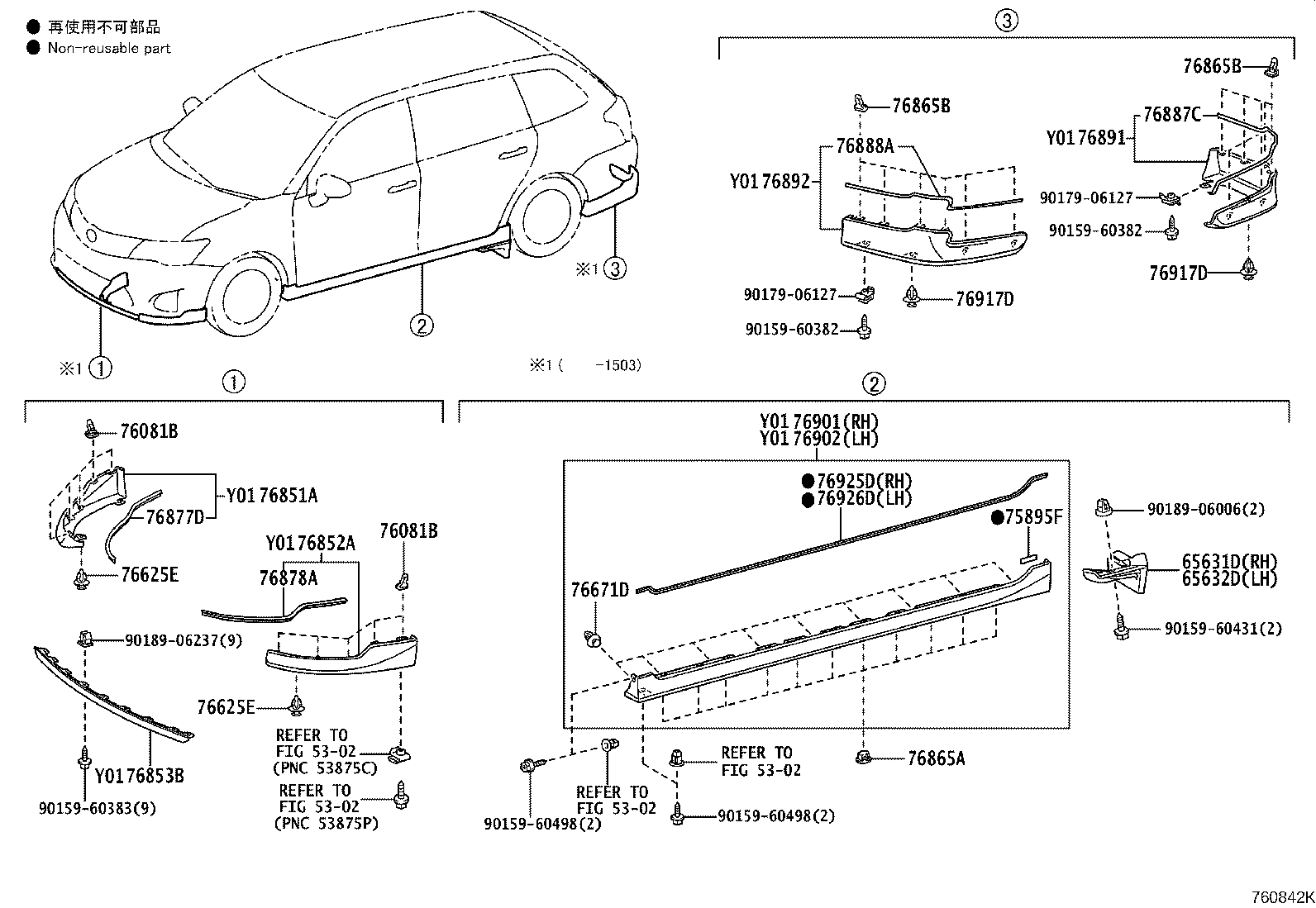

Mudguard & Spoiler
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75851E | Moulding, Body Rocker Panel, RH |
| 75852B | Moulding, Body Rocker Panel, LH |
| 75895F | Tape, Moulding, NO.1 |
| 76081B | Retainer, Front Spoiler |
| 76085 | Spoiler Sub-assy, Rear |
| 76621C | Mudguad, Front Fender, RH |
| 76622C | Mudguard, Front Fender, LH |
| 76625D | Mudguard, Quarter Panel, Rear RH |
| 76625E | Clip |
| 76626D | Mudguard, Quarter Panel, Rear LH |
| 76671D | Clip, Side Mudguard |
| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76853B | Cover, Front Spoiler, Center |
| 76865A | Retainer, Side Mudguard |
| 76865B | Retainer, Rear Spoiler |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76872B | Protector, Rear Spoiler, Center |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76873A | Protector, Rear Spoiler, RH |
| 76874B | Protector, Rear Spoiler, LH |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76876A | Protector, Rear Spoiler, NO.10 |
| 76877D | Protector, Front Spoiler Side, RH |
| 76878A | Protector, Front Spoiler Side, LH |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76883A | Protector, Rear Sopiler, NO.7 |
| 76887C | Protector, Rear Spoiler, NO.9 RH |
| 76888A | Protector, Rear Spoiler, NO.9 LH |
| 76891 | Spoiler, Rear NO.1 |
| 76892 | Spoiler, Rear NO.2 |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76917D | Clip |
| 76923A | Retainer, Side Mudguard |
| 76924C | Retainer, Side Mudguard, NO.2 |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
