Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

112 part groups · 17 illustrations

Illustrations

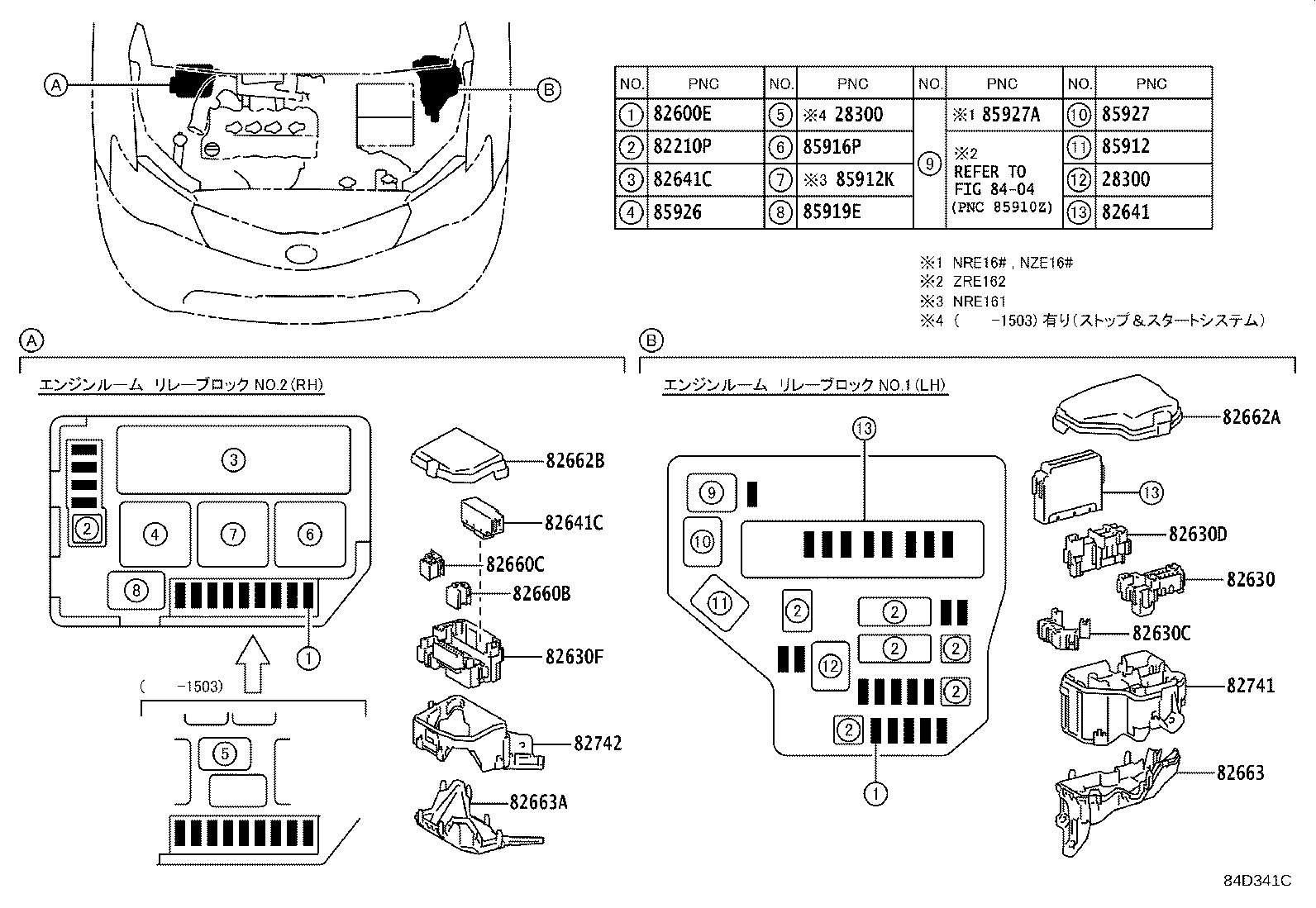

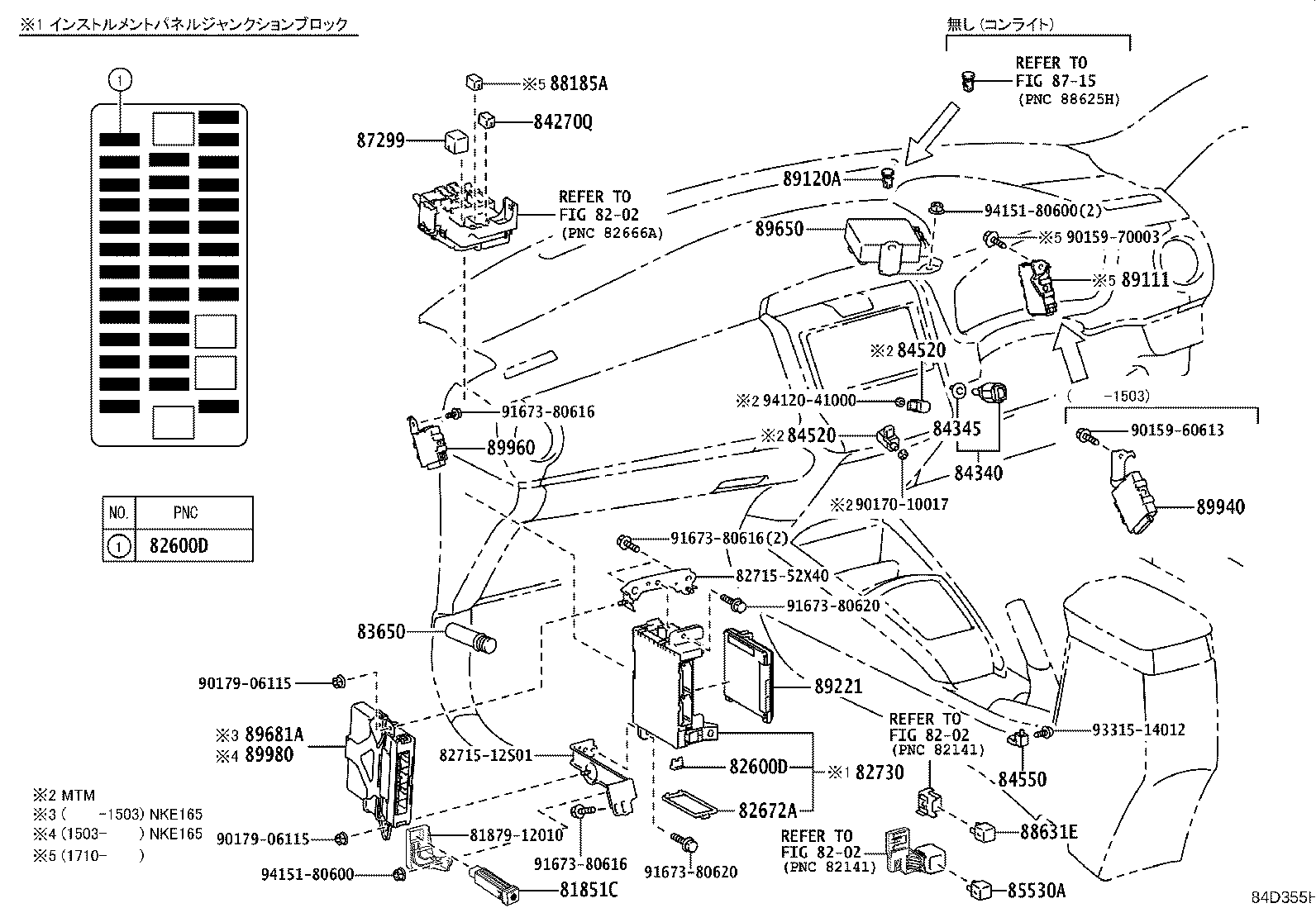

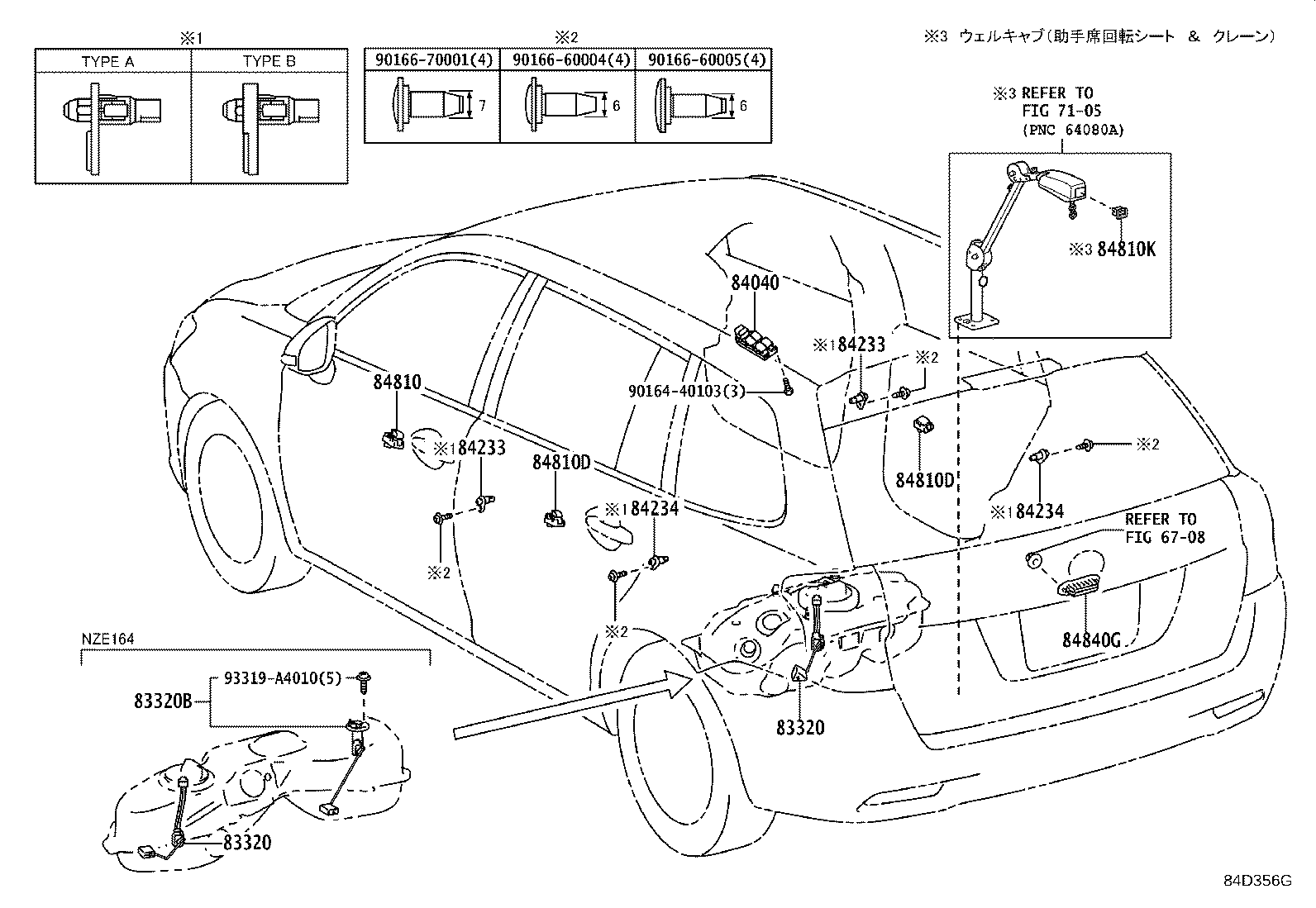

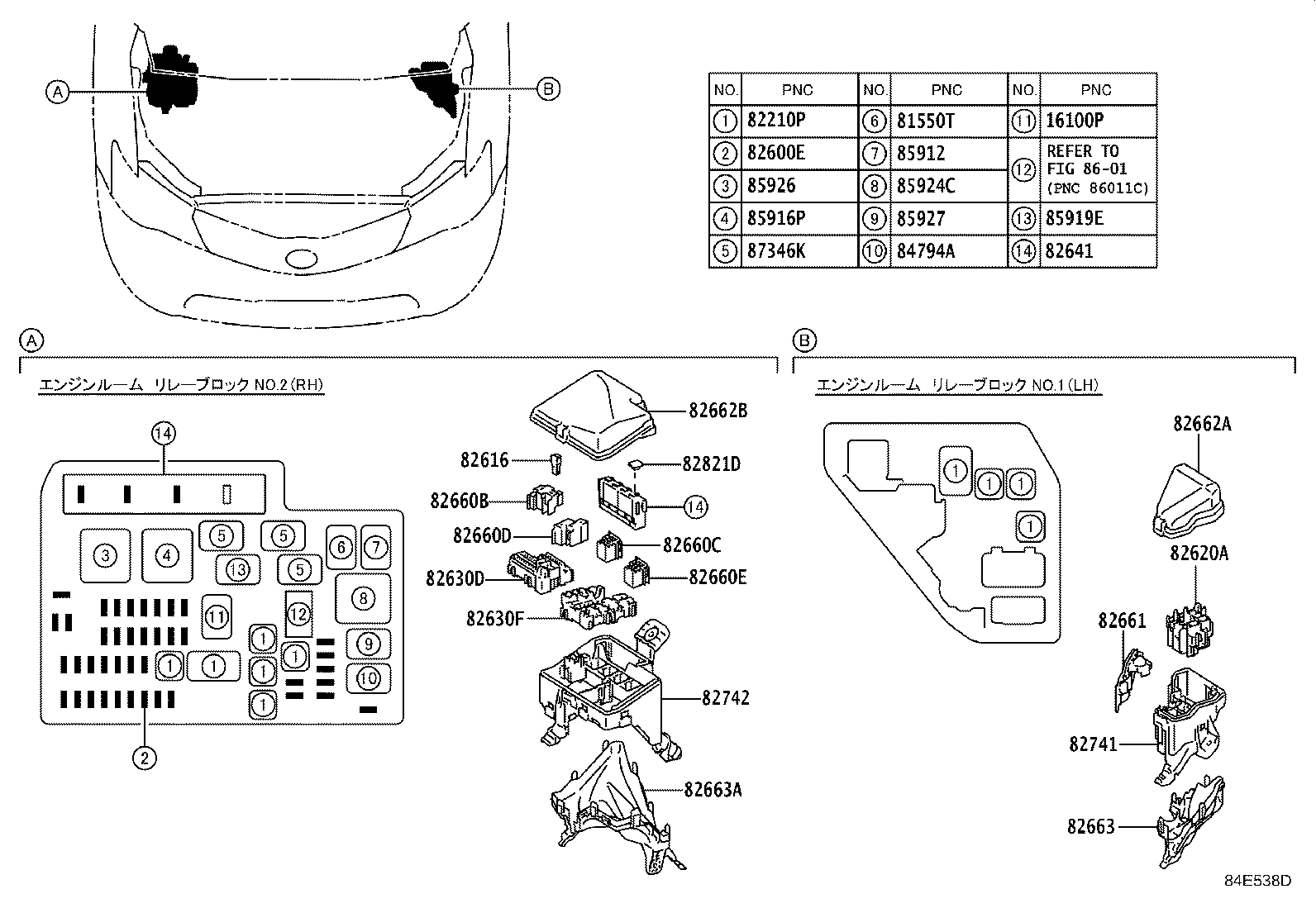

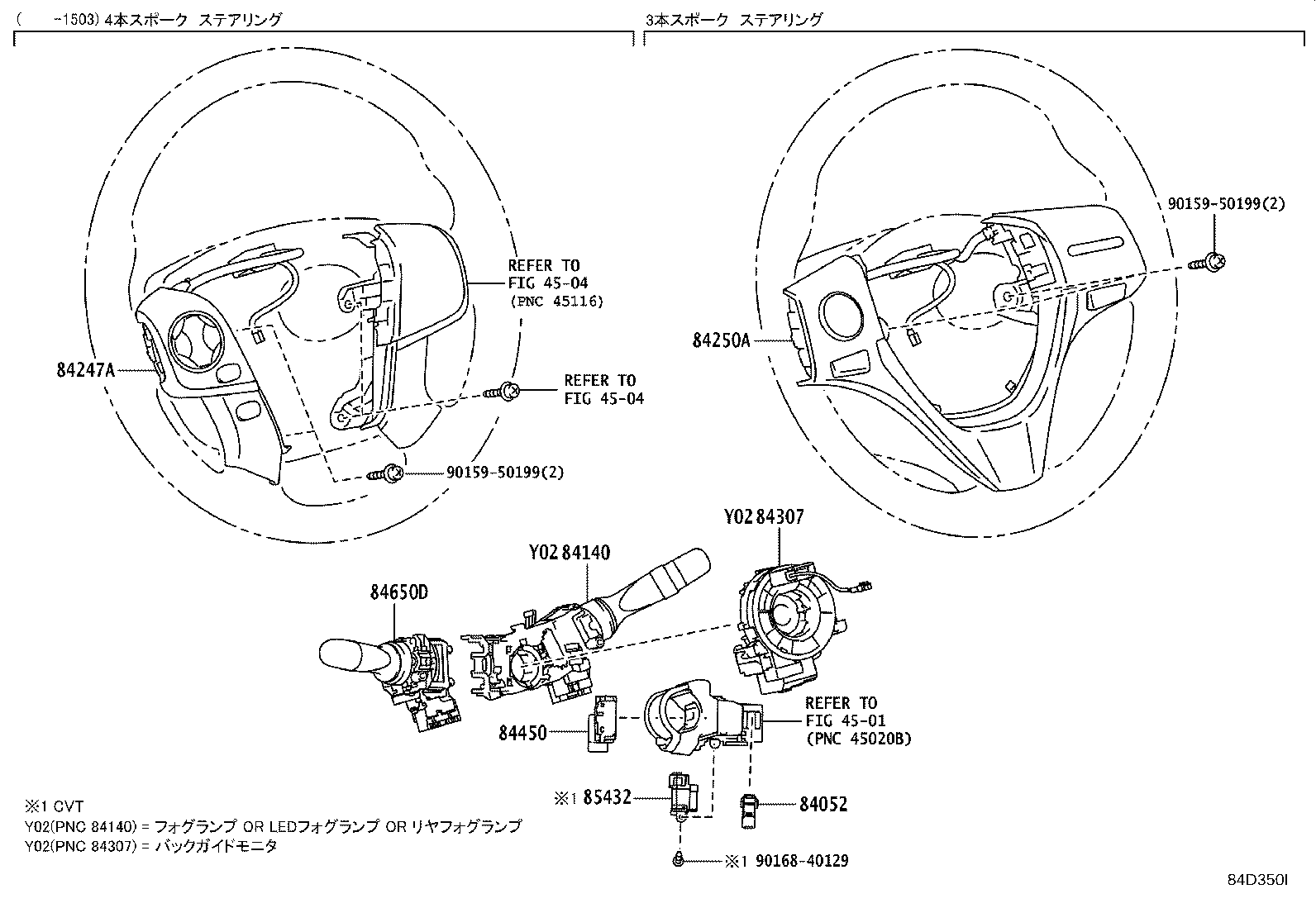

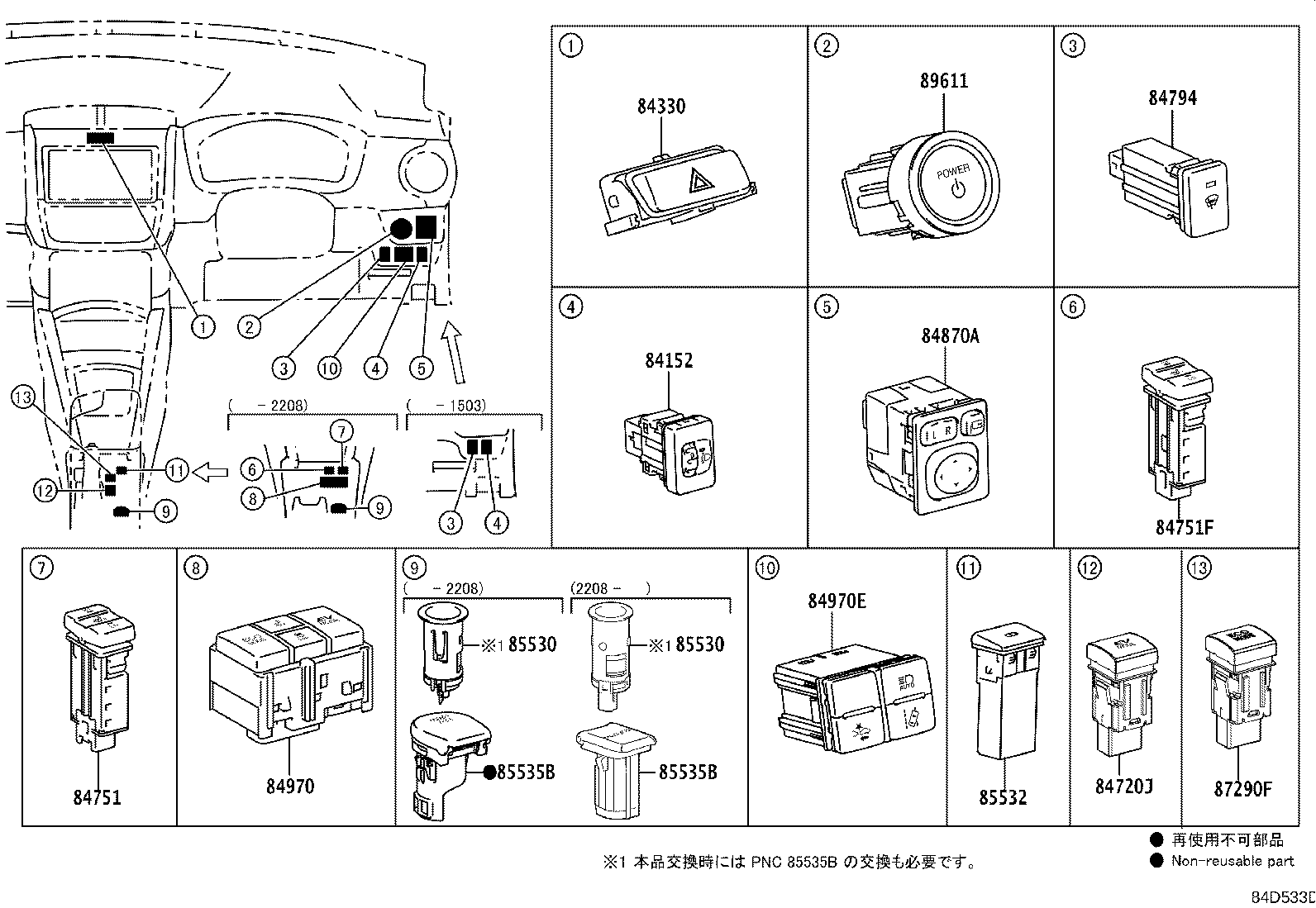

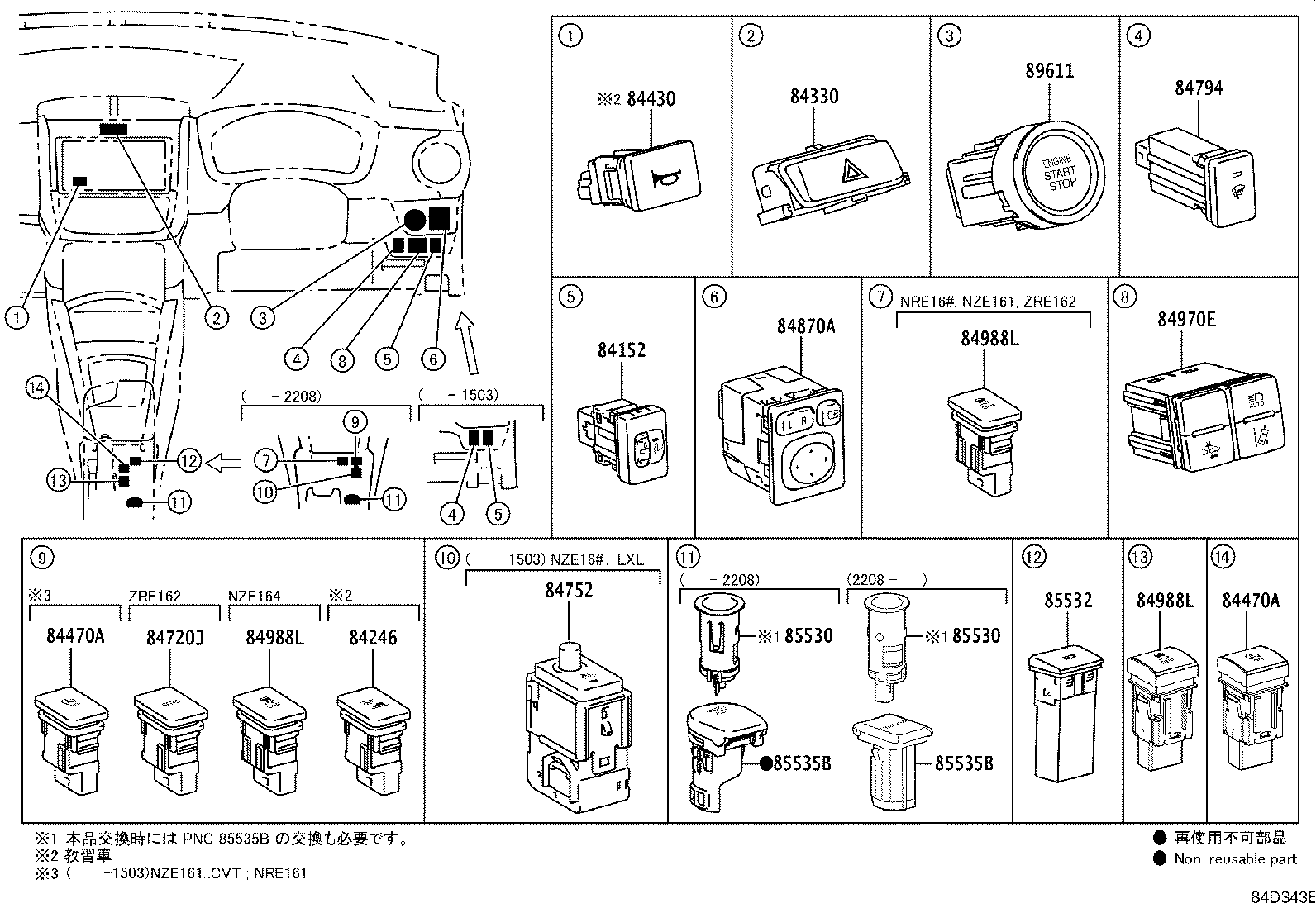

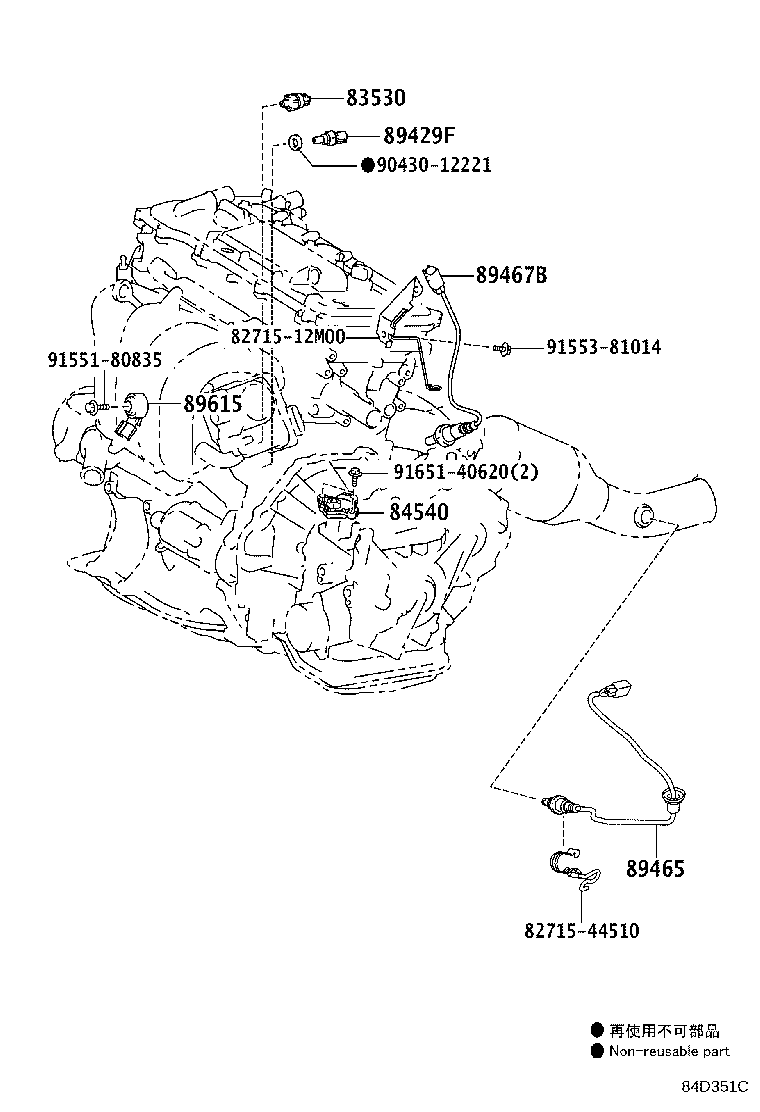

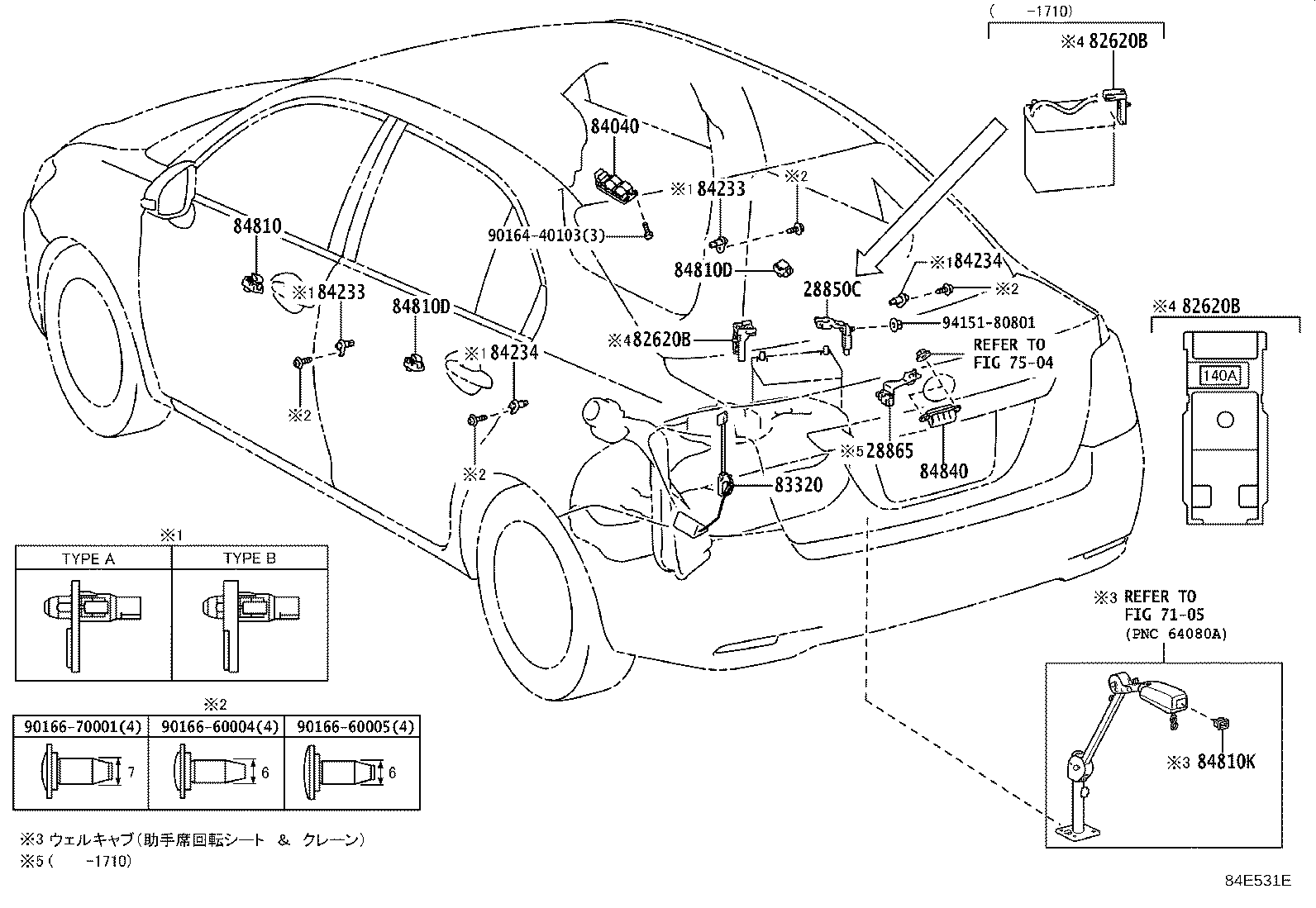

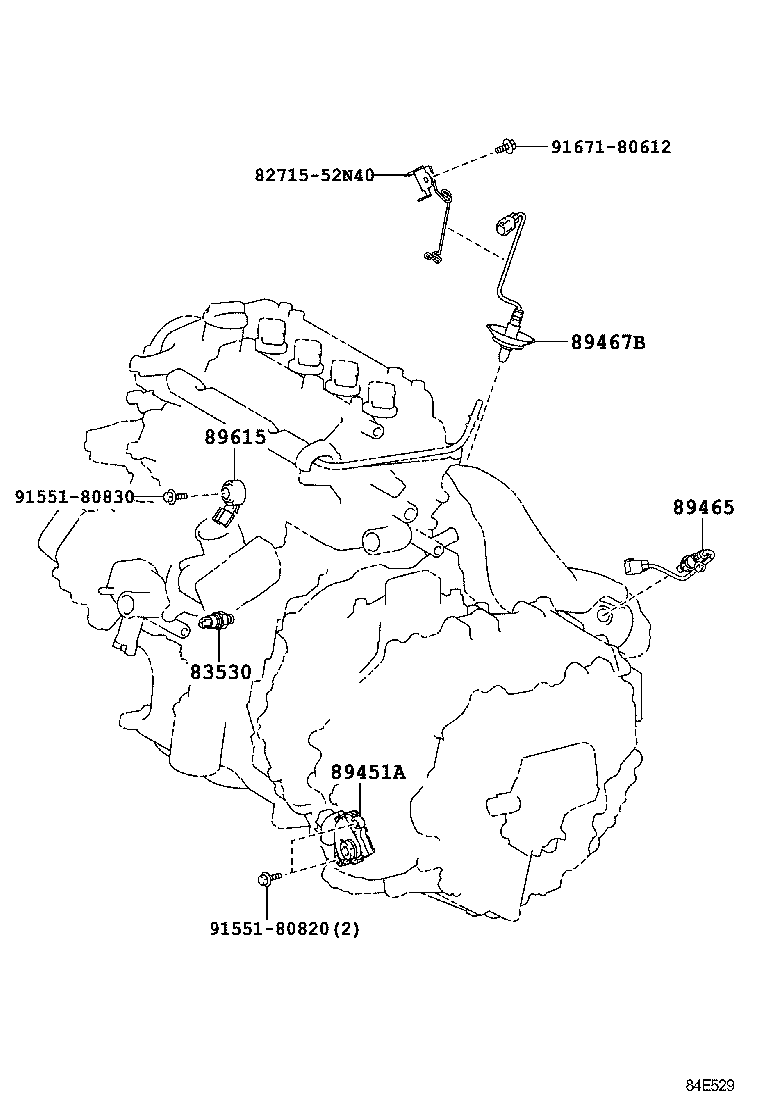

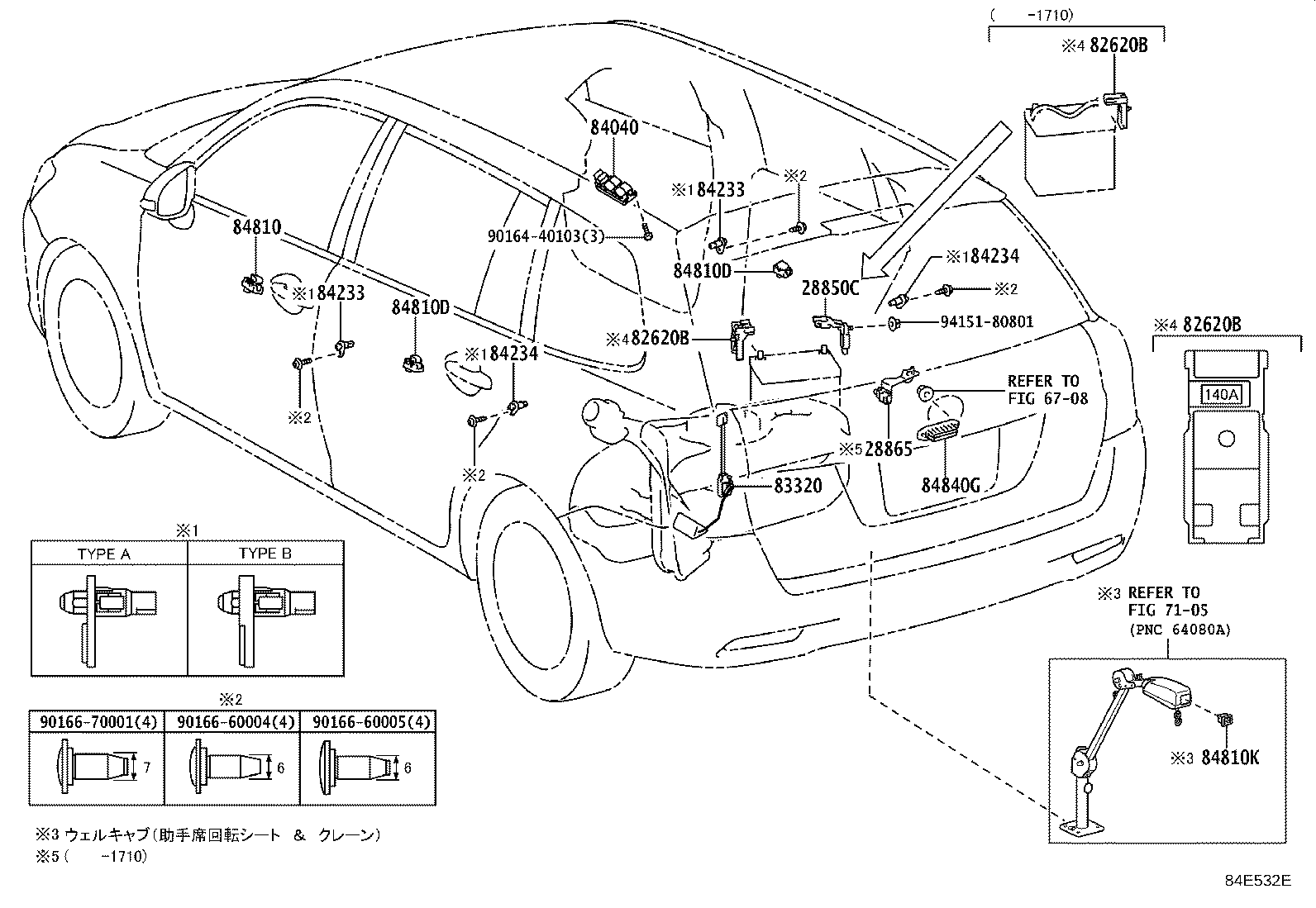

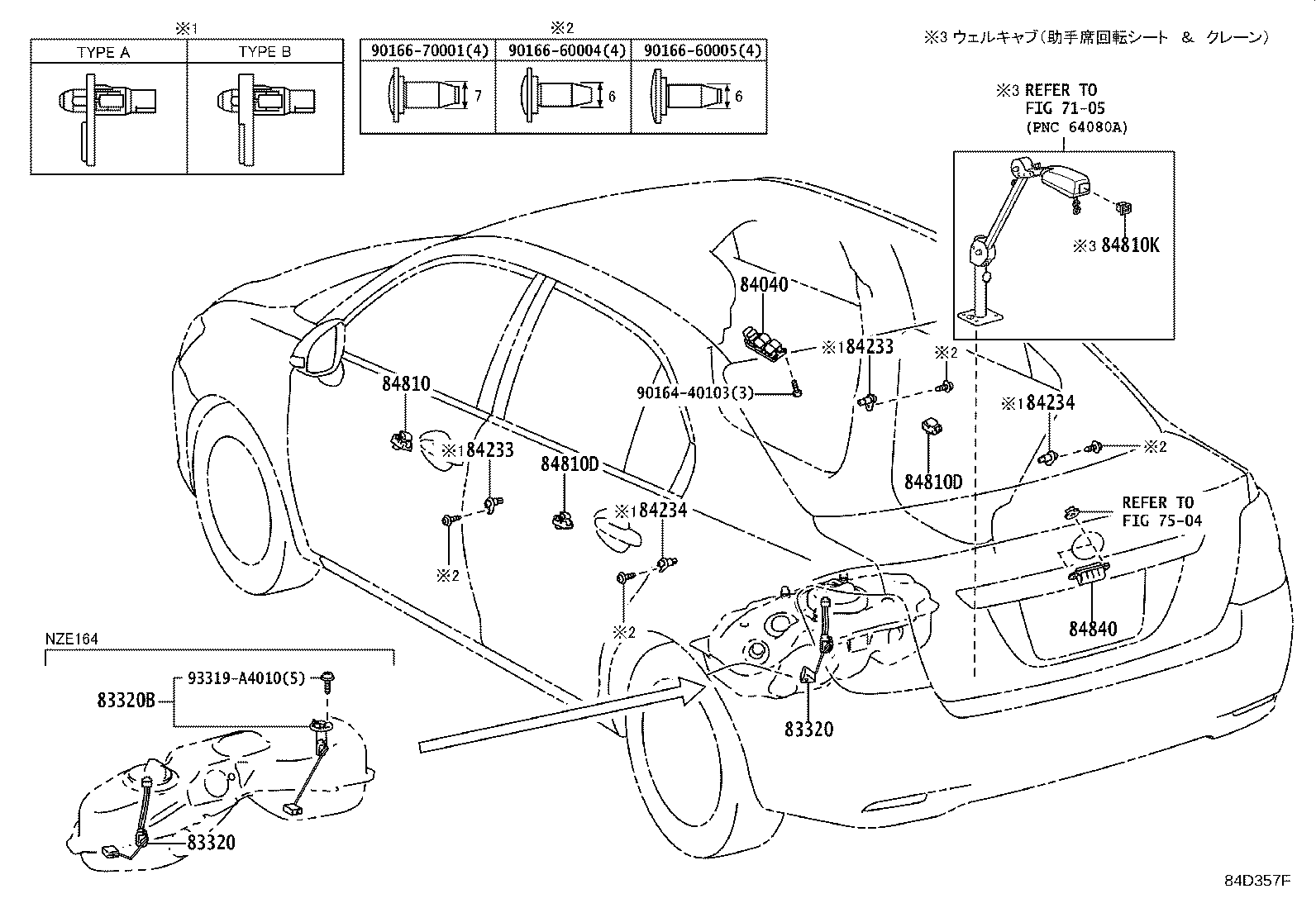

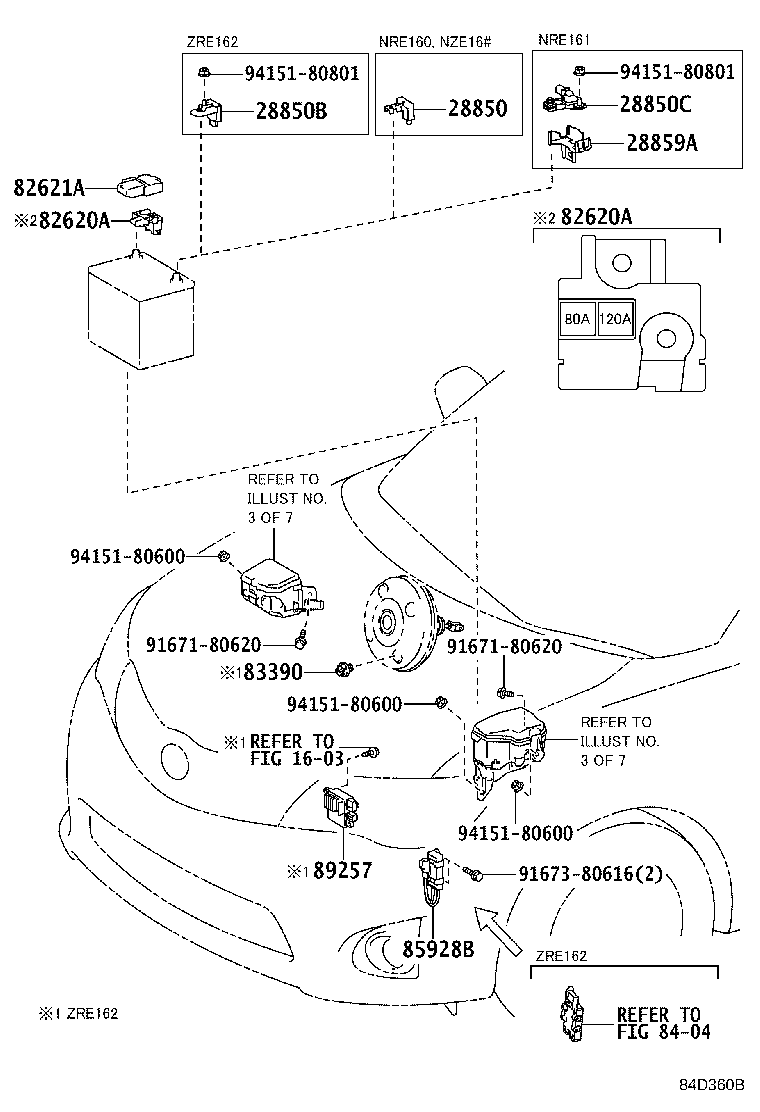

Figure 84D353B 84D353B 2012-04 → — Figure 84D352 84D352 2012-04 → — Figure 84D351C 84D351C 2012-04 → — Figure 84E529 84E529 2013-07 → — Figure 84F864 84F864 2015-03 → — Figure 84D360B 84D360B 2012-04 → — Figure 84E530A 84E530A 2013-07 → — Figure 84D341C 84D341C 2012-04 → — Figure 84E538D 84E538D 2013-07 → — Figure 84D355H 84D355H 2012-04 → — Figure 84D343E 84D343E 2012-04 → — Figure 84E533D 84E533D 2013-07 → — Figure 84D350I 84D350I 2012-04 → — Figure 84D357F 84D357F 2012-04 → — Figure 84D356G 84D356G 2012-04 → — Figure 84E531E 84E531E 2013-07 → — Figure 84E532E 84E532E 2013-07 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
28850 Sensor Assy, Battery Current
28850B Computer Assy, Alternator Control
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
28865 Sensor, Battery Thermometer
81550T Relay, Back UP Lamp
81851C Lamp Assy, Indicator
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82621A Cover, Fusible Link
82630 Holder Assy, Fuse
82630C Holder Assy, Fuse
82630D Holder, Fuse
82630F Holder, Fuse
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82821D Cover, Connector
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83390 Switch Assy, Vacuum Warning
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84246 Switch, Foot Lamp
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84430 Switch Assy, Horn
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720J Switch Assy, Pattern Select
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84752 Switch, Refreshing Seat
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810K Switch, Chair Lift Arm
84840 Switch Assy, Luggage Compartment Door Opening
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84970 Switch Assy, Combination
84970E Switch Assy, Combination NO.2
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85532 Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85912 Relay, Defogger
85912K Relay, Vvt
85916P Relay, Headlamp
85919E Relay, Stop Lamp
85924C Relay, Igct
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
87290F Switch Assy, Eco
87299 Relay, Heater
87346K Relay, Ptc Heater
88185A Relay, Pre-collision City Heater
88631E Relay, Airconditioner
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89257 Computer, Cooling Fan
89429F Sensor, Temperature
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89940 Computer Assy, Headlamp Swivel
89960 Computer Assy, Headlamp Leveling
89980 Computer Assy, Hybrid Vehicle Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
