Heating & Air Conditioning - Water Piping

6 part groups · 6 illustrations

Illustrations

Figure 87C882A

87C882A 2012-04 → —

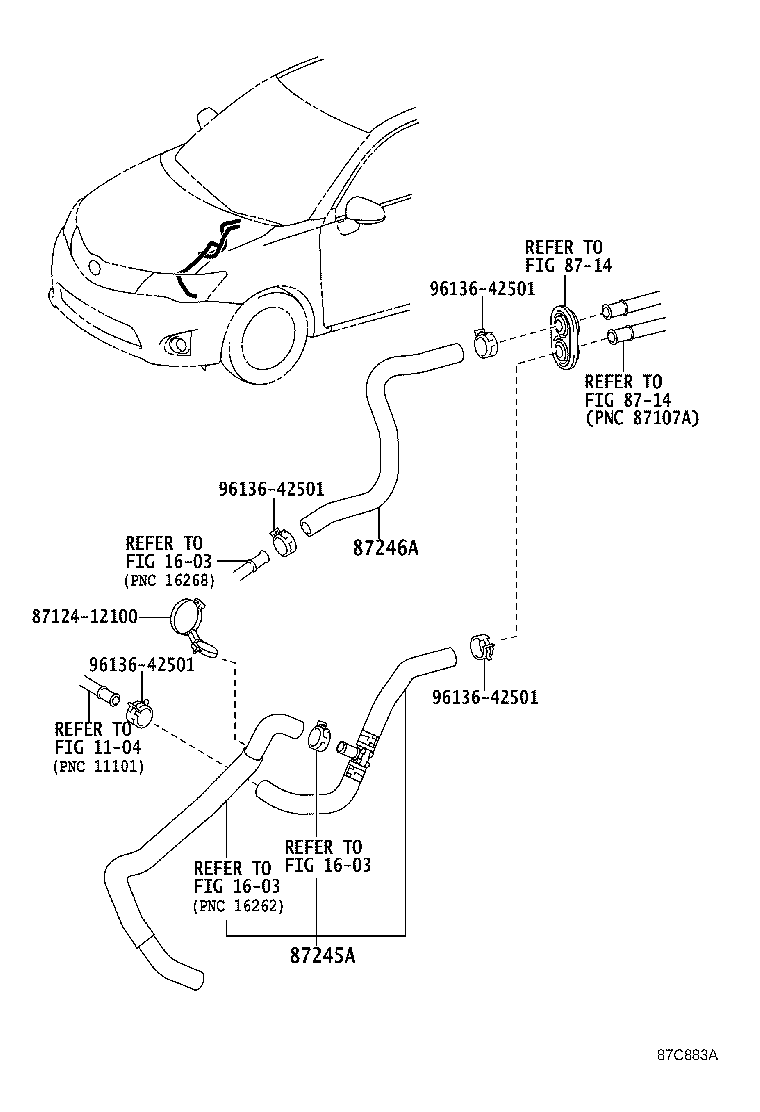

Figure 87C883A

87C883A 2012-04 → —

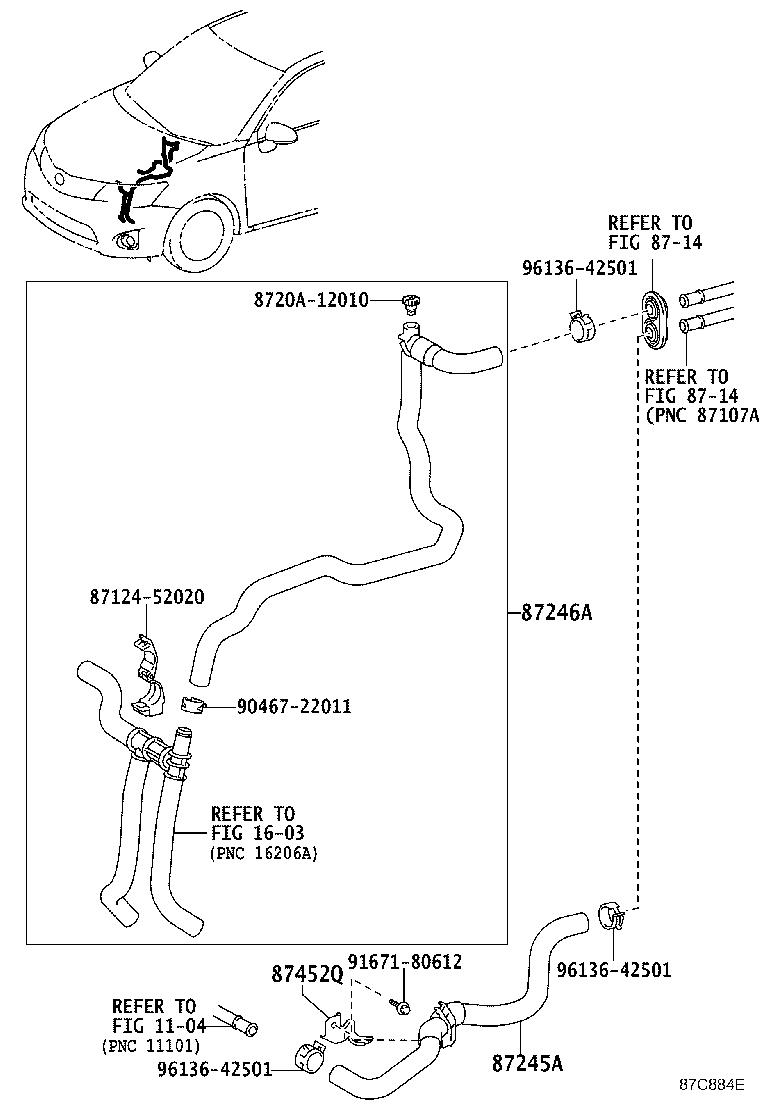

Figure 87C884E

87C884E 2012-04 → —

Figure 87C885A

87C885A 2012-06 → —

Figure 87D745A

87D745A 2013-07 → —

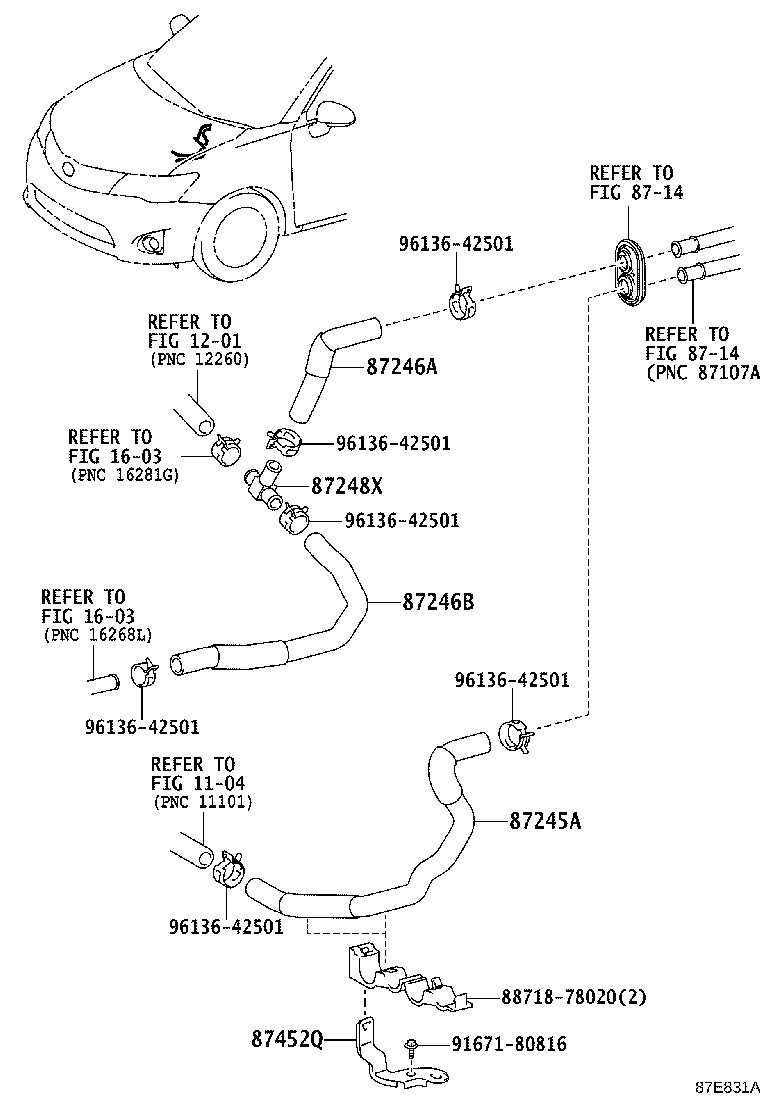

Figure 87E831A

87E831A 2015-03 → —

Part groups

PNC	Description
87209	Hose Sub-assy, Water
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248X	Pipe, Heater Water
87452Q	Bracket, Heater, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
