Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

50 part groups · 10 illustrations

Illustrations

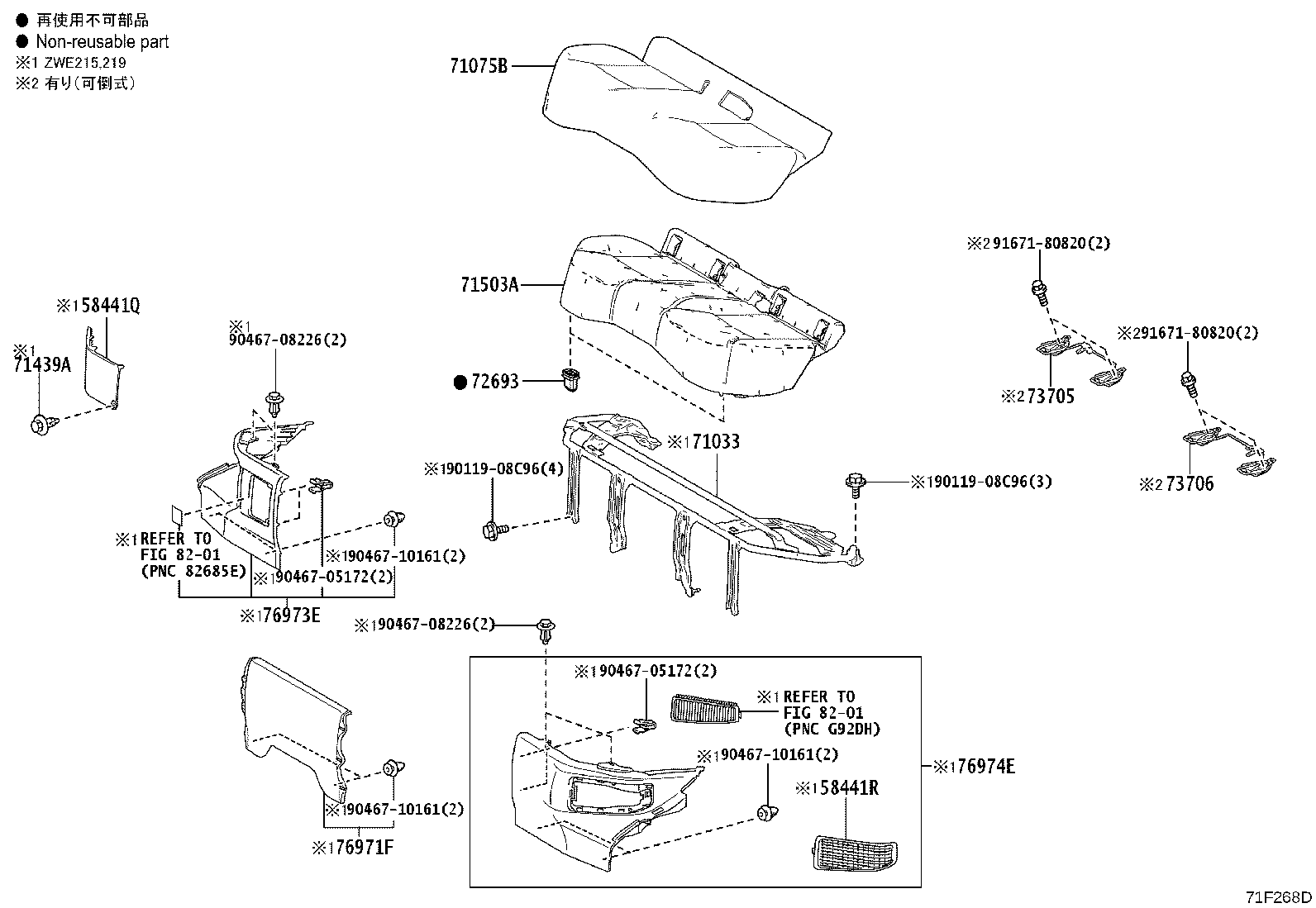

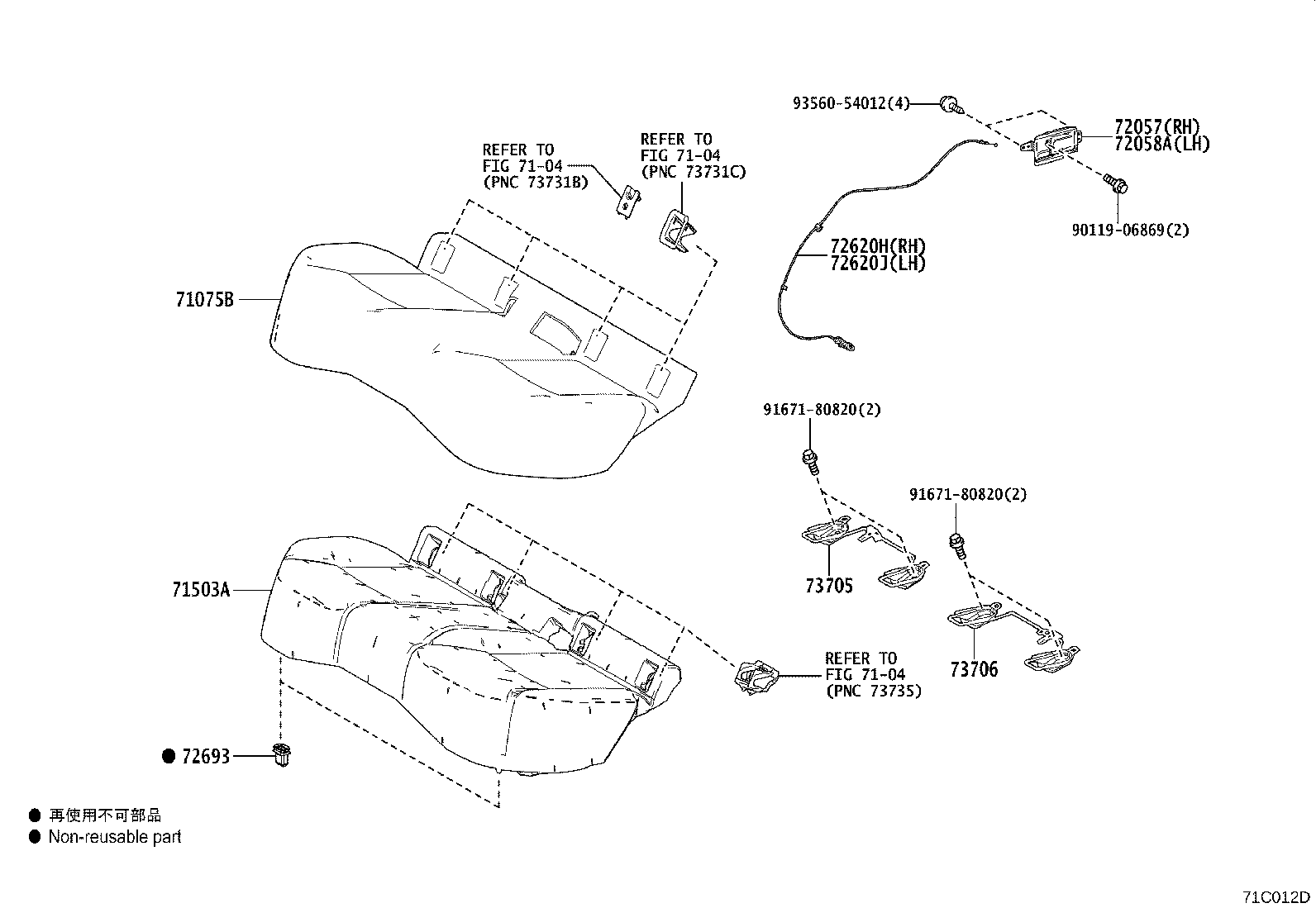

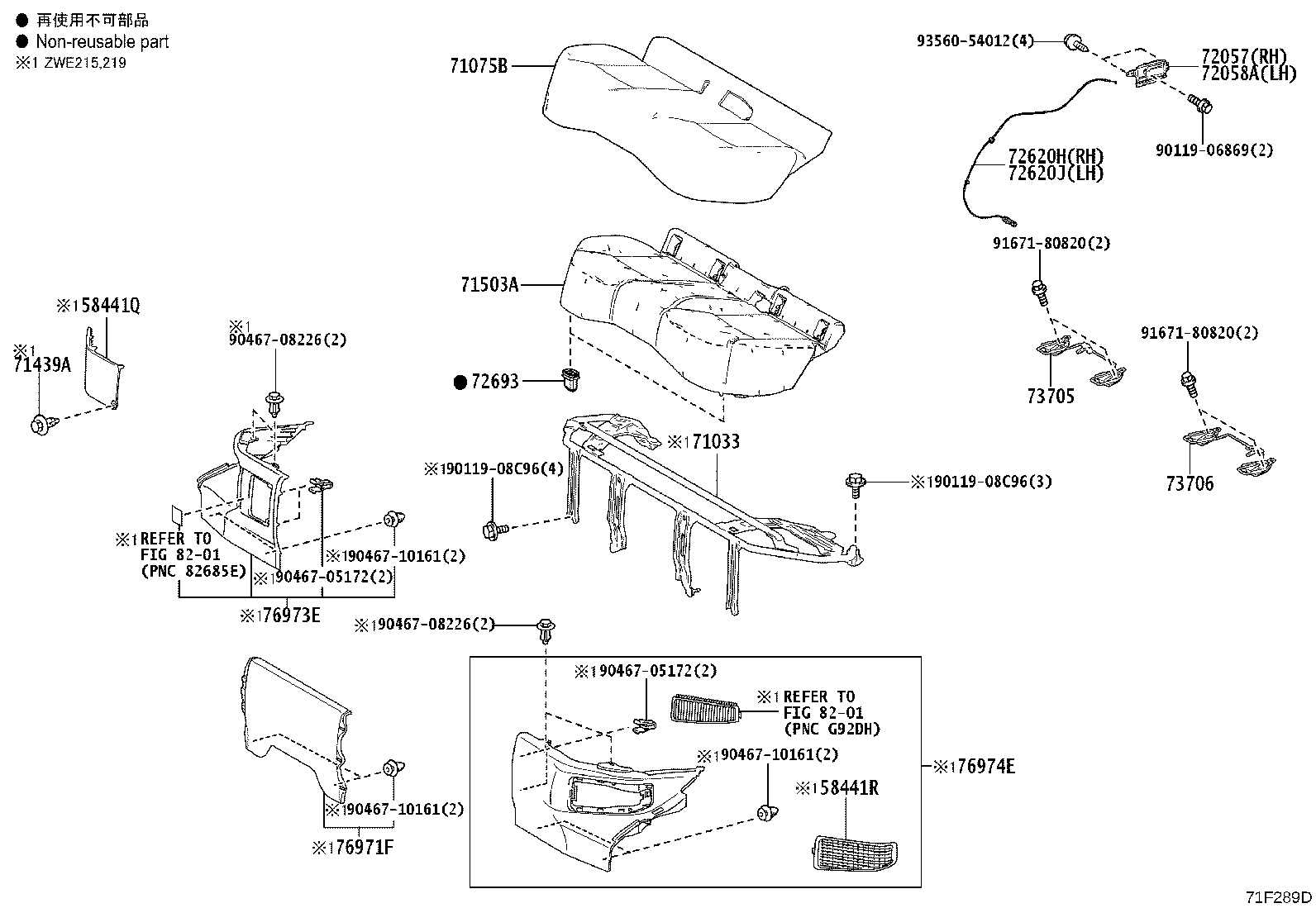

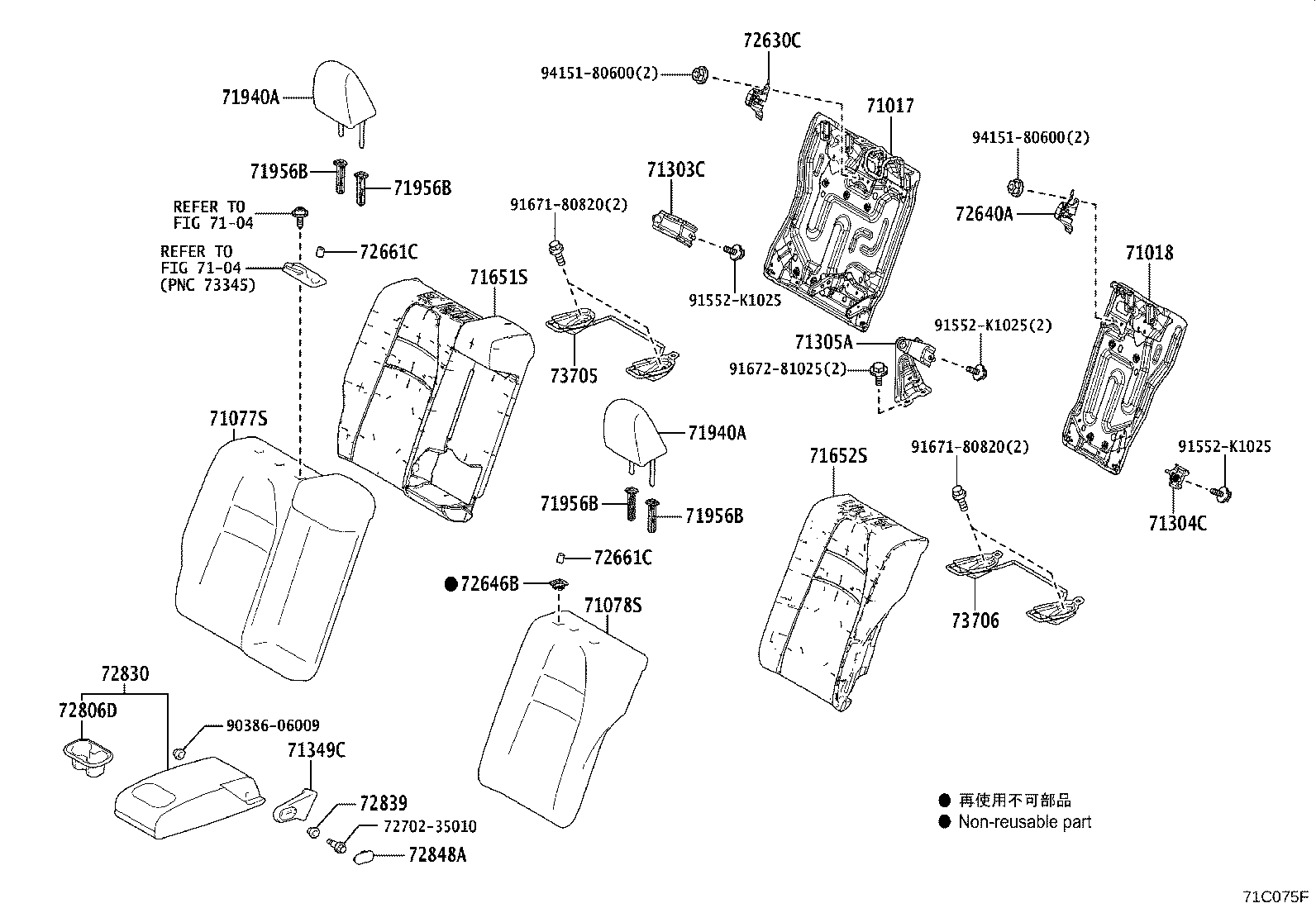

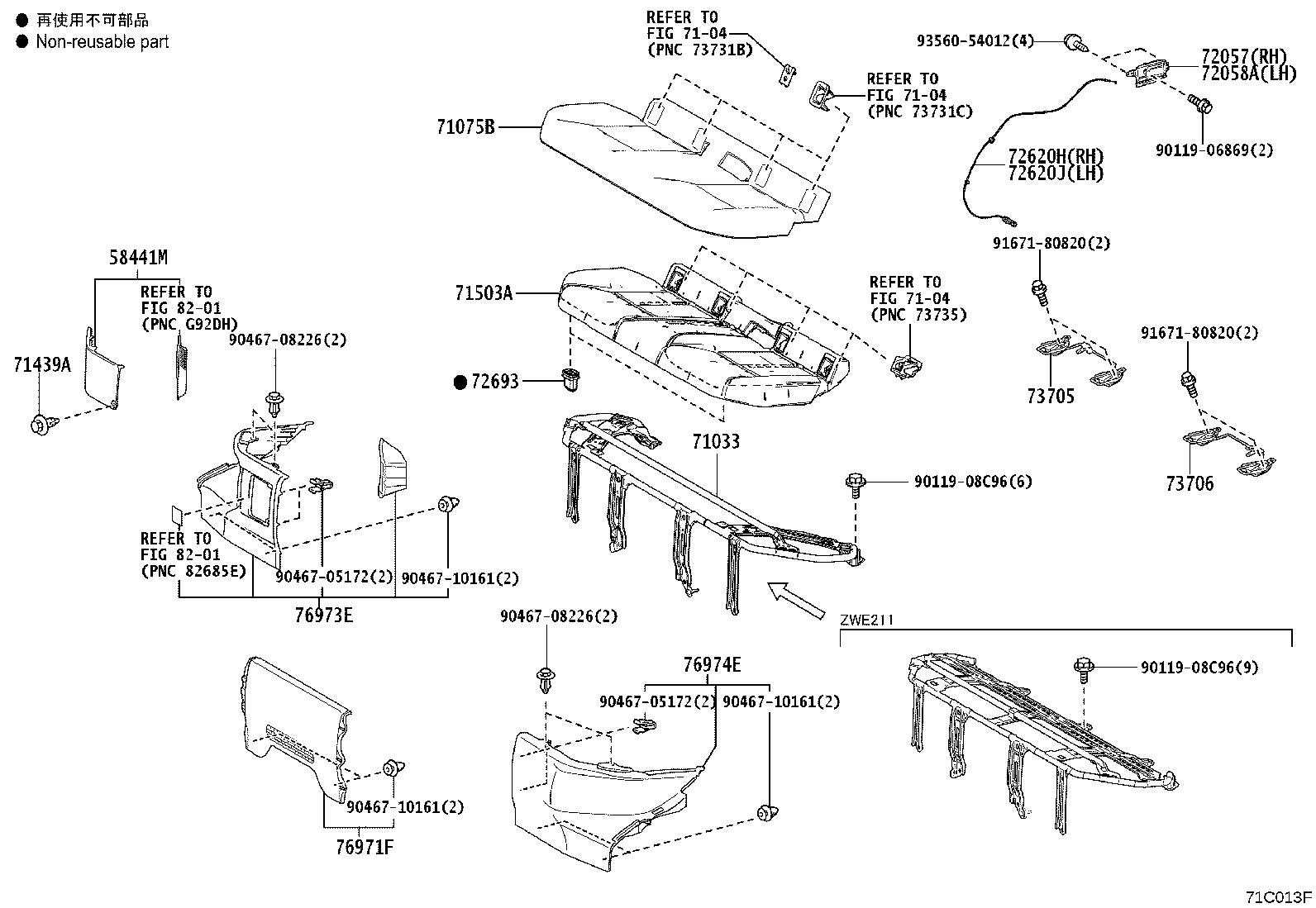

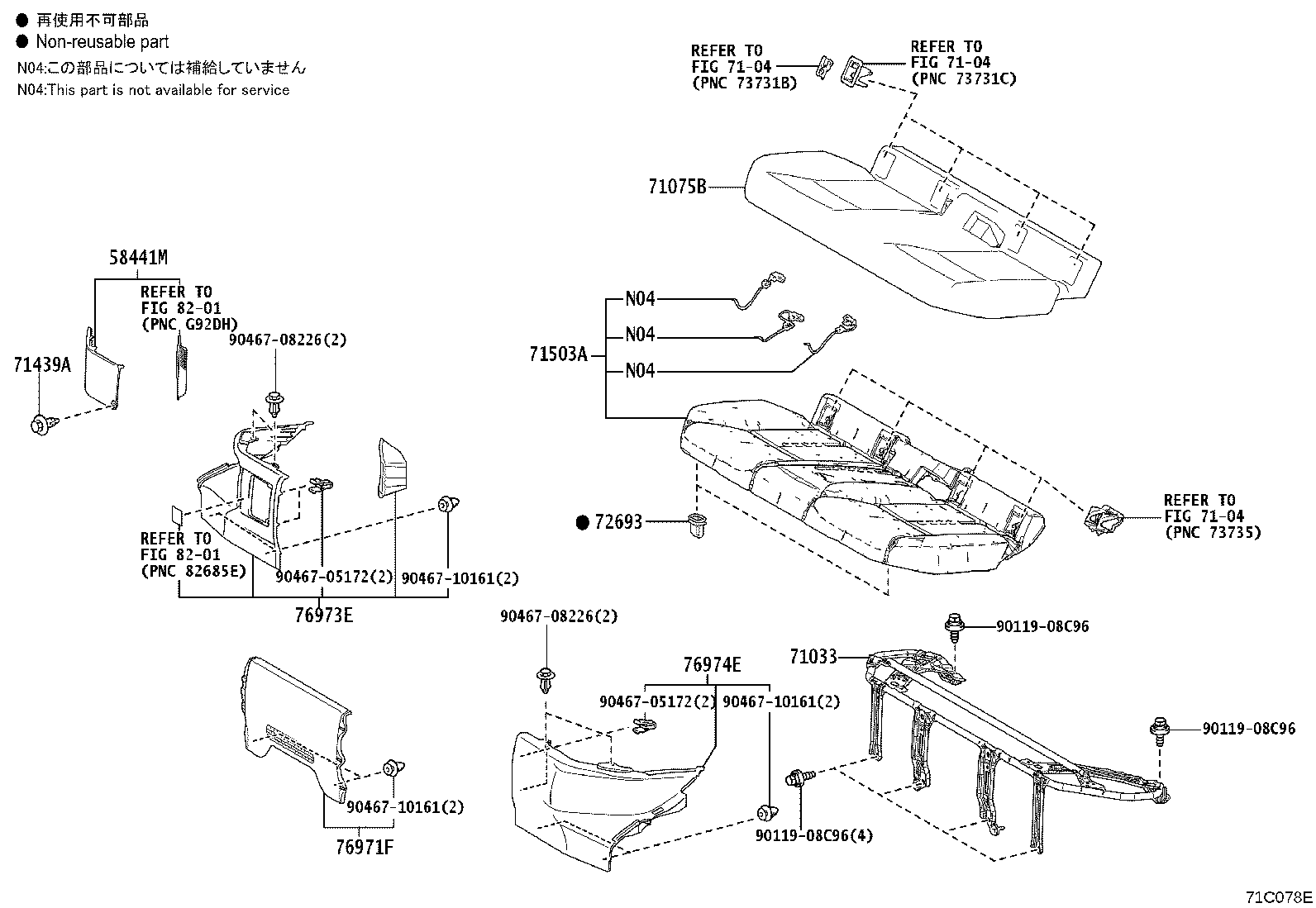

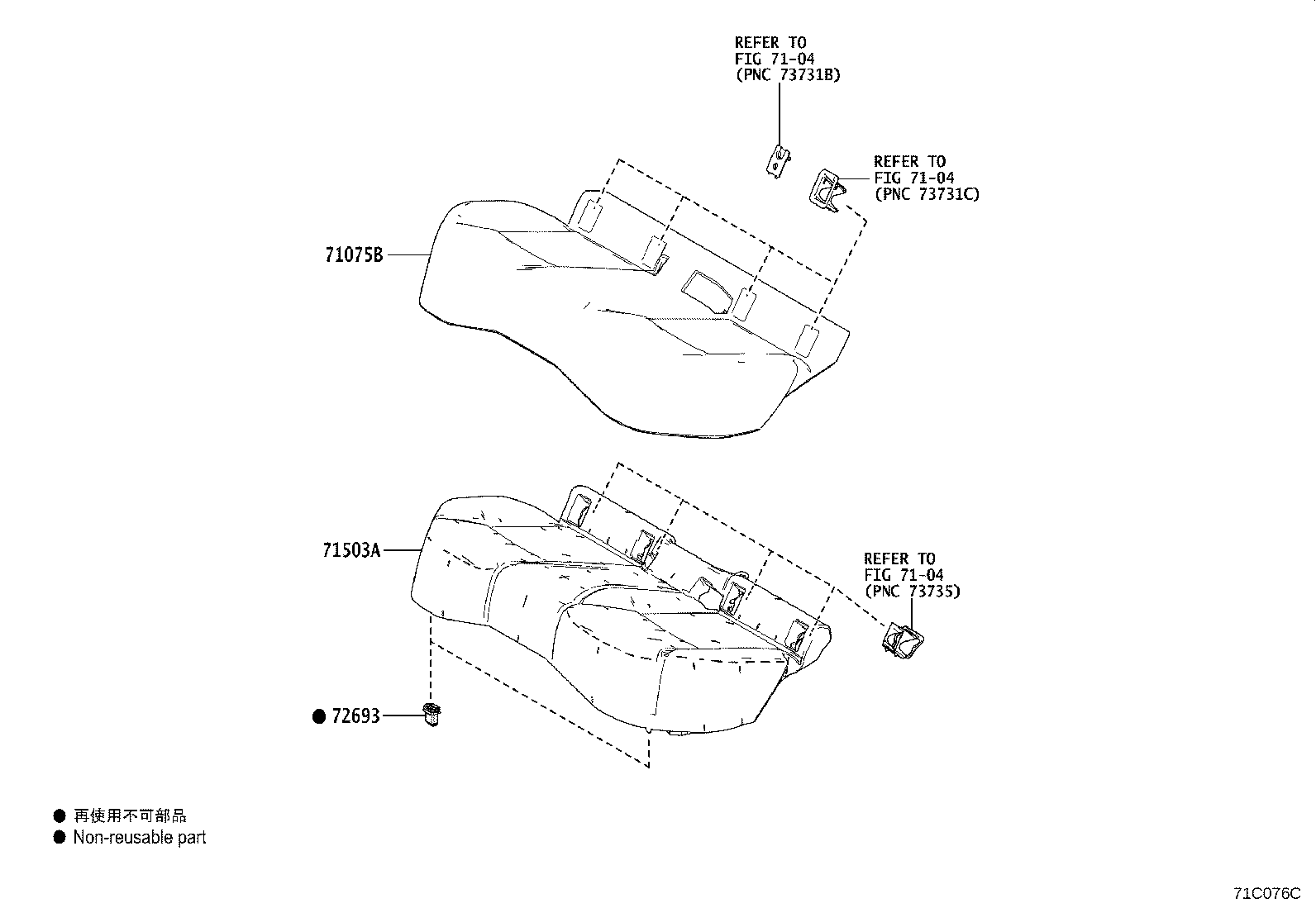

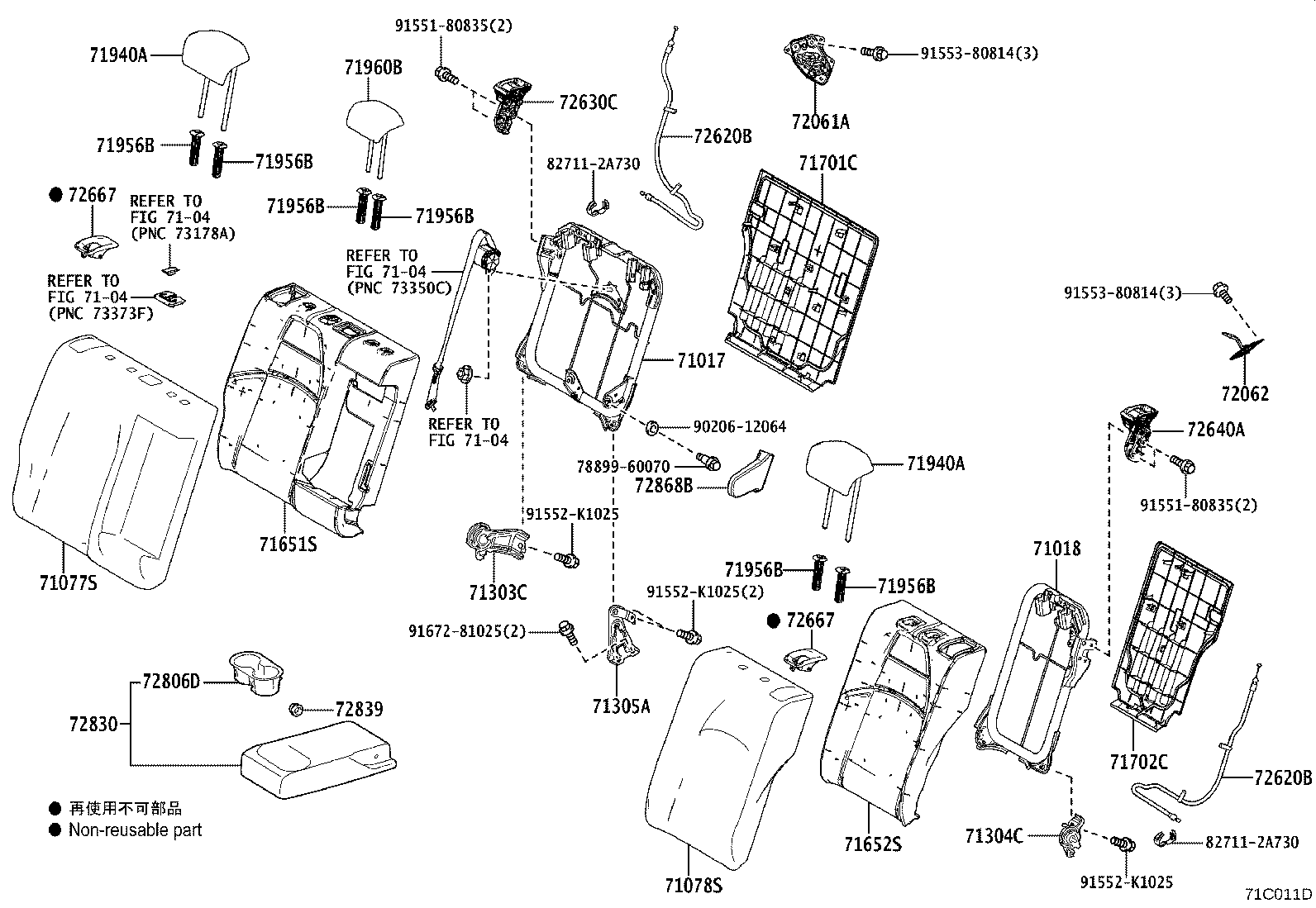

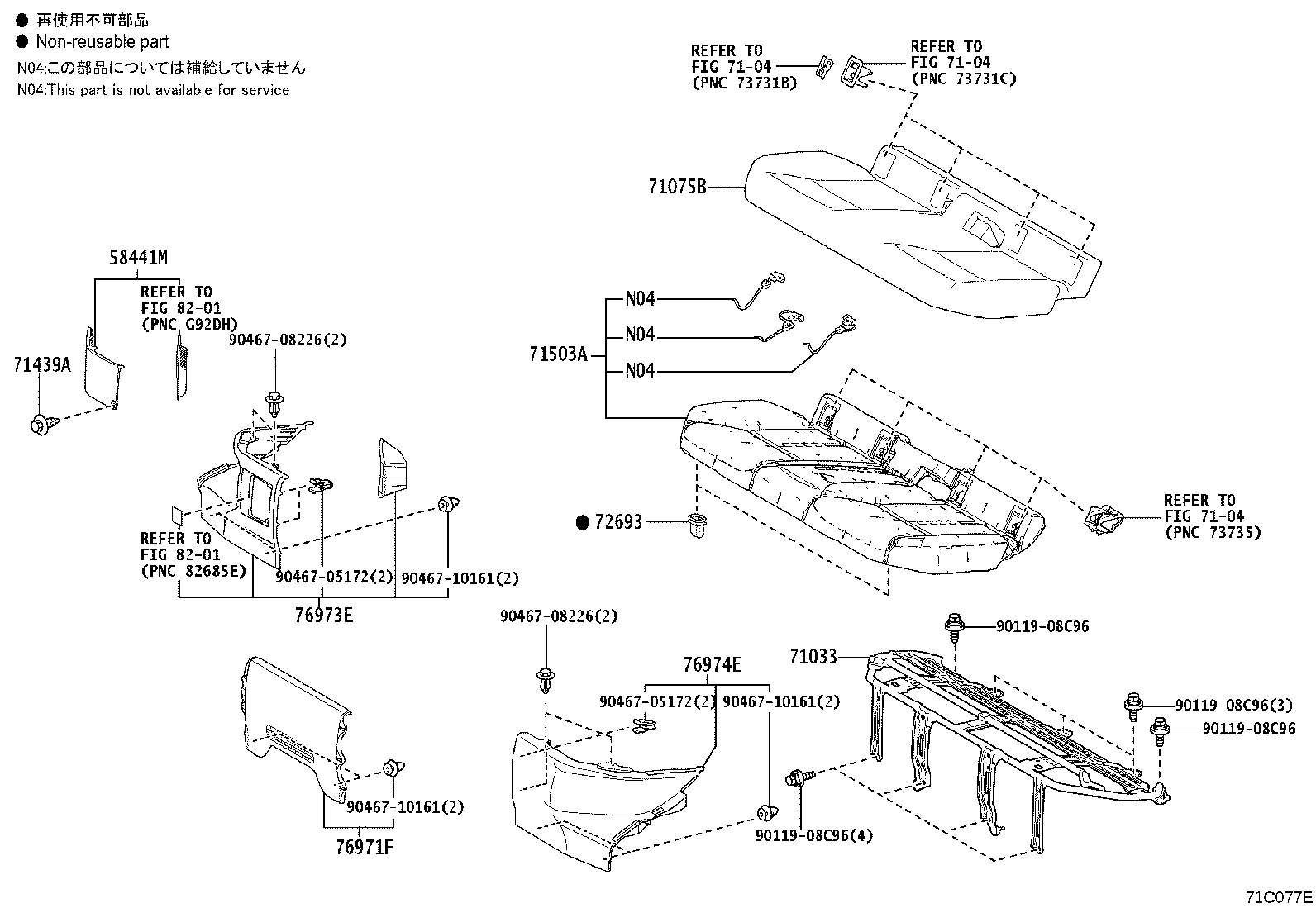

Figure 71C074F 71C074F 2019-08 → — Figure 71C075F 71C075F 2019-08 → — Figure 71C011D 71C011D 2019-09 → — Figure 71C076C 71C076C 2019-08 → — Figure 71C077E 71C077E 2019-08 → — Figure 71C078E 71C078E 2019-08 → — Figure 71C012D 71C012D 2019-09 → — Figure 71C013F 71C013F 2019-09 → — Figure 71F268D 71F268D 2022-10 → — Figure 71F289D 71F289D 2022-10 → —

Part groups

PNCDescription
58441M Cover, Battery Service Hole
58441Q Cover, Battery Service Hole, RH
58441R Cover, Battery Service Hole, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71349C Cover, Rear Seatback Hinge
71398A Holder, Rear Seatback
71439A Clip
71503A Pad Sub-assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71891 Bracket, Rear Seatback Set, NO.1
71892 Bracket, Rear Seatback Set, NO.2
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72061A Base Sub-assy, Rear Seatback Lock, RH
72062 Base Sub-assy, Rear Seatback Lock, LH
72620B Cable Assy, Rear NO.1 Seat Lock
72620H Cable Assy, Rear Seat Remote Folding, RH
72620J Cable Assy, Rear Seat Remote Folding, LH
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646B Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72667 Bezel, Rear Seatback Lock, Upper
72693 Hook, Rear Seat Cushion Lock
72806D Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72839 Shim, Rear Seat Armrest Hinge
72848A Cap, Seat Armrest, NO.1
72868B Cover, Center Armrest Hinge
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
76971F Cover, Rear Under
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
