Toyota Sprinter

1987-05 → 1991-08 · chassis AE9#,CE9#,EE9# · catalogue 152120 · Japan

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 3 illustrations

Illustrations

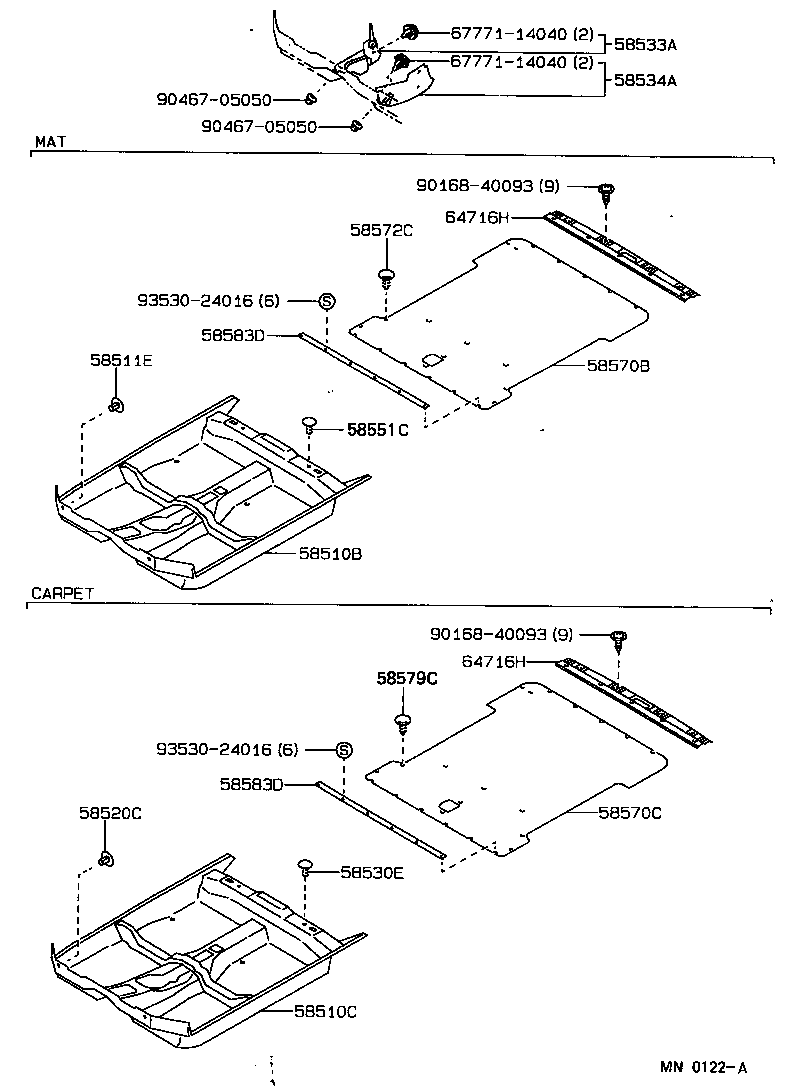

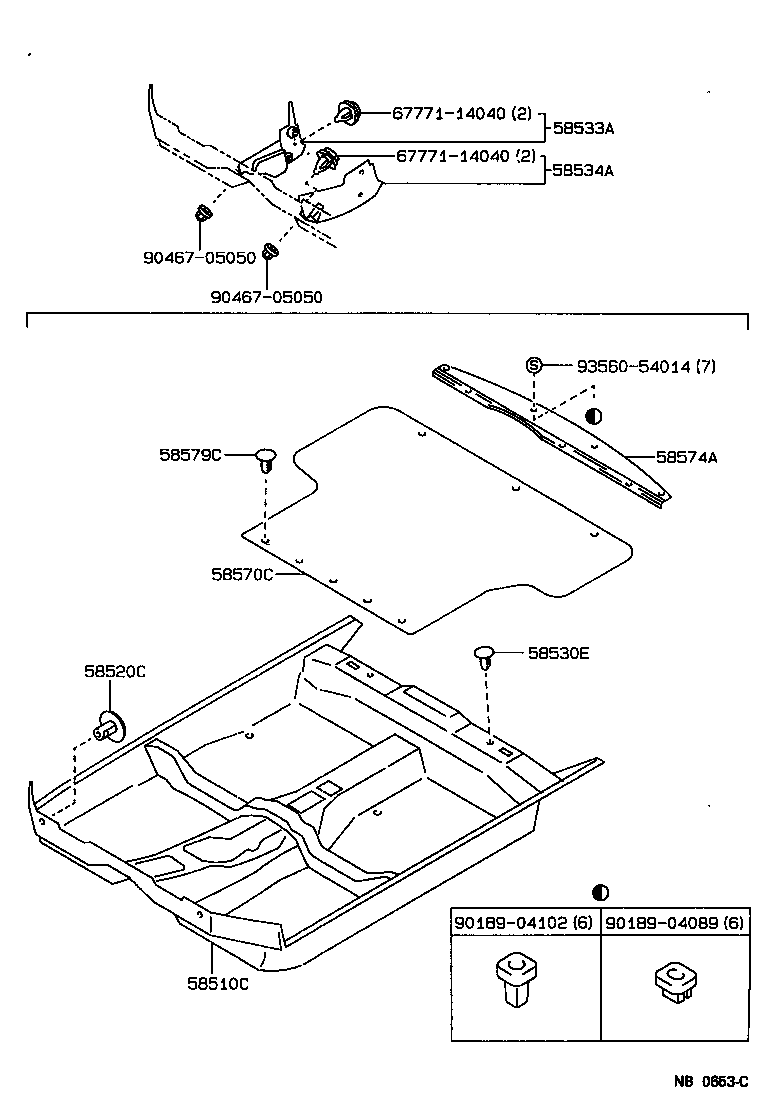

Figure NB0177D NB0177D 1987-05 → — Figure NB0653C NB0653C 1988-02 → — Figure MN0122A MN0122A 1988-08 → —

Part groups

PNCDescription
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58520C Clip(FOR FRONT FLOOR CARPET)
58530E Clip(FOR FRONT FLOOR REAR CARPET)
58533A Cover, Floor Carpet, Center RH
58534A Mat, Transmission Cover
58551C Clip(FOR FLOOR MAT, REAR)
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58572C Clip, Rear Floor Mat Set
58574A Plate, Rear Floor Mat Support, Rear
58579C Clip, Rear Floor Carpet Set
58583D Plate, Rear Seatback Carpet Support
64716H Cover, Deck Trim, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
