Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

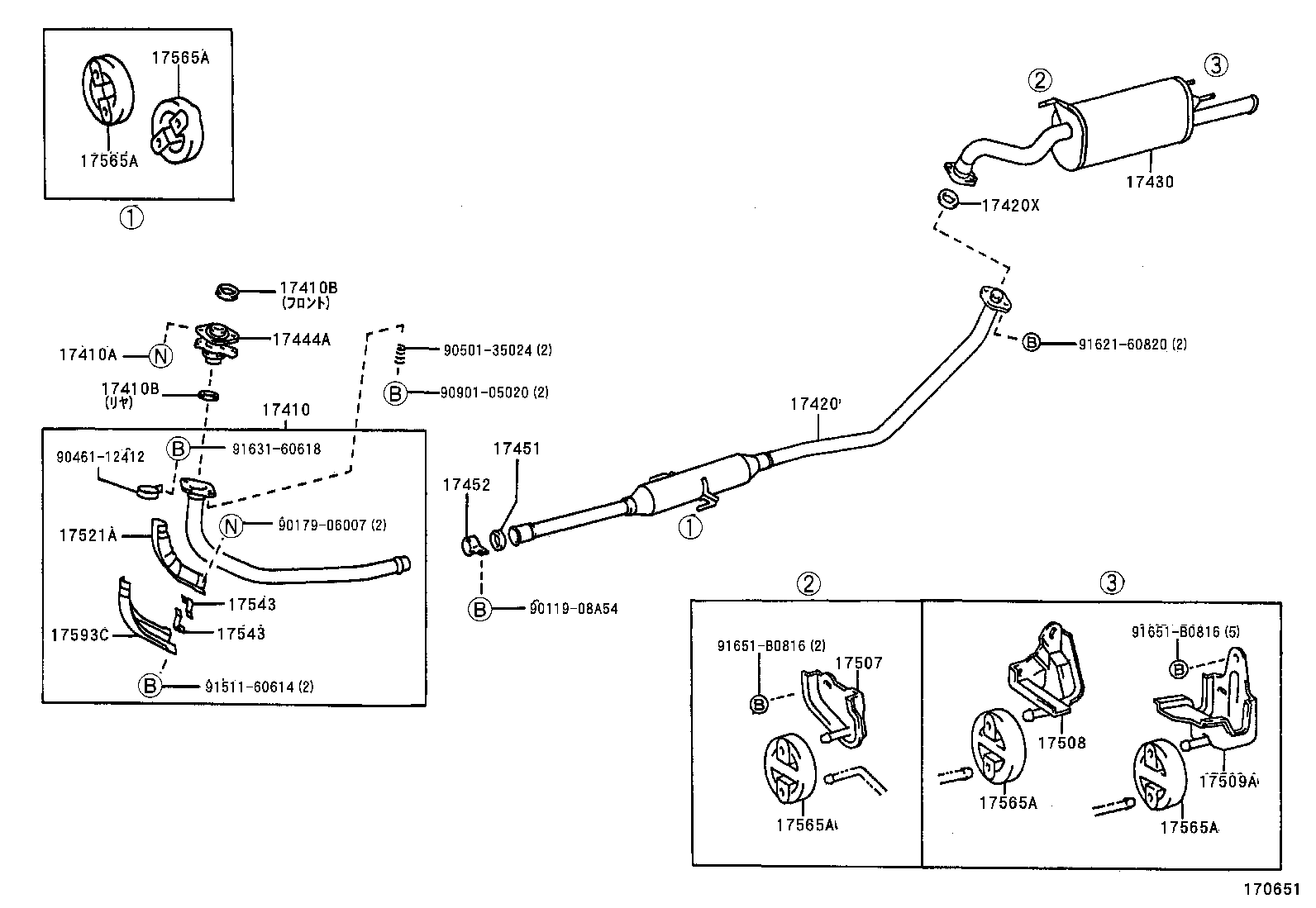

Exploded illustration 170651 17565A — SUPPORT, EXHAUST PIPE, NO.4 (11 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (11 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (16 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (5 parts) 17410B — GASKET, EXHAUST PIPE (16 parts) 17444A — SPACER, EXHAUST FRONT PIPE (1 parts) 9162160820 — not listed in this catalogue 9050135024 — not listed in this catalogue 17410A — NUT, EXHAUST PIPE SET STUD BOLT (5 parts) 17410B — GASKET, EXHAUST PIPE (16 parts) 9090105020 — not listed in this catalogue 17420 — PIPE ASSY, EXHAUST, CENTER (21 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (28 parts) 17451 — GASKET, EXHAUST PIPE (17 parts) 9163160618 — not listed in this catalogue 9046112412 — not listed in this catalogue 17452 — CLAMP, EXHAUST PIPE (3 parts) 9017906007 — not listed in this catalogue 17521A — PROTECTOR, EXHAUST PIPE, UPPER NO.1 (11 parts) 17543 — STAY, EXHAUST PIPE PROTECTOR, NO.3 (3 parts) 9011908A54 — not listed in this catalogue 91651B0816 — not listed in this catalogue 17543 — STAY, EXHAUST PIPE PROTECTOR, NO.3 (3 parts) 17593C — PROTECTOR, EXHAUST PIPE, LOWER NO.1 (13 parts) 91651B0816 — not listed in this catalogue 17507 — BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT (2 parts) 9151160614 — not listed in this catalogue 17508 — SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 (5 parts) 17509A — BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT (3 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (11 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (11 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (11 parts)
170651 · 22 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
160 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-11560 Pipe Assy, Exhaust, Front
1991-09 → 1994-01 ended
2E EE106 ¥21,600
17410-11570 Pipe Assy, Exhaust, Front
1991-09 → 1994-01 ended
3E EE107,108 ¥21,600
17410-11650 Pipe Assy, Exhaust, Front
1993-05 → 1997-04 ended
4EFE EE101,102 ¥21,500
17410-11660 Pipe Assy, Exhaust, Front
1994-01 → 1997-04 ended
5EFE EE103,104 ¥21,500
17410-11860 Pipe Assy, Exhaust, Front
1997-04 → 2000-08 ended
4EFE EE102 ¥10,200
17410-15241 Pipe Assy, Exhaust, Front
1991-06 → 1993-05 ended
4EFE EE101 ¥29,000
17410-15260 Pipe Assy, Exhaust, Front
1991-06 → 1995-05 ended
5AFE AE100 ¥23,500
17410-16780 Pipe Assy, Exhaust, Front
1991-06 → 1995-05 ended
4AFE AE101 ¥24,700
17410-16810 Pipe Assy, Exhaust, Front
1991-06 → 1993-05 ended
4AGE AE101 ¥32,400
17410-16820 Pipe Assy, Exhaust, Front
1991-09 → 1995-05 ended
4AFE AE104 ¥23,500
17410-1A120 Pipe Assy, Exhaust, Front
1993-05 → 1995-05 ended
4AGE AE101 ¥28,200
17410-1A240 Pipe Assy, Exhaust, Front
1996-05 → 1997-04 ended
4AFE AE109 ¥23,200
17410-1A520 Pipe Assy, Exhaust, Front
1997-04 → —
4AFE AE109 ¥23,300
17410-1B120 Pipe Assy, Exhaust, Front
1997-04 → 2000-08 ended
5EFE EE103,104 ¥17,000
17410-1B280 Pipe Assy, Exhaust, Front
2000-08 → —
4EFE EE102 ¥80,200
17410-1B290 Pipe Assy, Exhaust, Front
2000-08 → —
5EFE EE103,104 ¥80,200
17410-64401 Pipe Assy, Exhaust, Front
1991-09 → 1995-08 ended
2C CE104,109 ¥15,100
17410-64530 Pipe Assy, Exhaust, Front
1991-06 → 1992-01 ended
2C CE100 ¥19,500
17410-64532 Pipe Assy, Exhaust, Front
1992-01 → 1993-05 ended
2C CE100 ¥19,500
17410-64550 Pipe Assy, Exhaust, Front
1991-09 → 1992-01 ended
2C CE106,108 ¥19,500
17410-64551 Pipe Assy, Exhaust, Front
1992-01 → 1994-01 ended
2C CE106,108 ¥19,500
17410-64600 Pipe Assy, Exhaust, Front
1994-01 → 1995-05 ended
2C CE100,106,108 ¥21,500
17410-64600 Pipe Assy, Exhaust, Front
1993-05 → 1994-01 ended
2C CE100 ¥21,500
17410-64601 Pipe Assy, Exhaust, Front
1995-05 → 1997-04 ended
2C CE106,108 ¥21,500
17410-64700 Pipe Assy, Exhaust, Front
1995-08 → 1998-04 ended
2C CE109 ¥14,900
17410-64780 Pipe Assy, Exhaust, Front
1997-04 → 1998-04 ended
2C CE106,108 ¥12,600
17410-64830 Pipe Assy, Exhaust, Front
1998-04 → —
3CE CE105 ¥12,600
17410-64840 Pipe Assy, Exhaust, Front
1998-04 → —
3CE CE102,107 ¥12,600
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1991-06 → 1991-08 ended
4EFE EE101 ¥120
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1991-06 → 1991-08 ended
5AFE,2C AE100,CE100 ¥120
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1991-08 → 1997-05 ended
5AFE,2C,2E,3E,4EFE,5EFE AE100,CE10#,EE10# ¥120
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1991-06 → —
4A# AE101,104,109 ¥120
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1997-05 → —
2C,3CE CE102,106,107,108,109 ¥120
17410B — Gasket, Exhaust Pipe
17451-64030 note Gasket, Exhaust Pipe
1998-04 → —
3CE CE105 ¥1,450
90917-06061 note Gasket, Exhaust Pipe
1997-04 → 1998-04 ended
2C CE106,108 ¥520
90917-06061 note Gasket, Exhaust Pipe
1998-04 → —
3CE CE102,107 ¥520
90917-06061 Gasket, Exhaust Pipe
1997-05 → 1998-04 ended
2C CE109 ¥520
90917-06061 Gasket, Exhaust Pipe
1994-01 → 1997-04 ended
2C,4EFE,5EFE CE104,109,EE10# ¥520
90917-06061 Gasket, Exhaust Pipe
1991-06 → 1993-05 ended
2C,2E,3E,4EFE CE10#,EE10# ¥520
90917-06061 Gasket, Exhaust Pipe
1991-06 → 1995-05 ended
4AGE AE101 ¥520
90917-06061 Gasket, Exhaust Pipe
1993-05 → 1994-01 ended
2C,2E,3E,4EFE CE104,106,108,109,EE10# ¥520
90917-06064 Gasket, Exhaust Pipe
1991-06 → —
4AFE AE101,104,109 ¥540
90917-06065 Gasket, Exhaust Pipe
1991-06 → 1995-05 ended
5AFE AE100 ¥480
90917-06077 Gasket, Exhaust Pipe
1994-01 → 1997-04 ended
2C CE100,106,108 ¥550
90917-06077 Gasket, Exhaust Pipe
1993-05 → 1994-01 ended
2C CE100 ¥550
90917-06080 note Gasket, Exhaust Pipe
1997-04 → 1998-04 ended
2C CE106,108 ¥2,060
90917-06080 Gasket, Exhaust Pipe
1997-04 → —
4EFE,5EFE EE10# ¥2,060
90917-06080 note Gasket, Exhaust Pipe
1998-04 → —
3CE CE102,107 ¥2,060
90917-06080 note Gasket, Exhaust Pipe
1998-04 → —
3CE CE105 ¥2,060
17420 — Pipe Assy, Exhaust, Center
17420-11210 Pipe Assy, Exhaust, Center
1991-06 → 1993-05 ended
4EFE EE101 ¥35,400
17420-11220 Pipe Assy, Exhaust, Center
1991-09 → 1994-01 ended
2E,3E EE106,107,108 ¥26,900
17420-11300 Pipe Assy, Exhaust, Center
1994-01 → 1997-04 ended
4EFE,5EFE EE102,103,104 ¥26,800
17420-11430 Pipe Assy, Exhaust, Center
1997-04 → 2000-08 ended
4EFE,5EFE EE10# ¥31,900
17420-11510 Pipe Assy, Exhaust, Center
2000-08 → —
4EFE,5EFE EE10# ¥46,300
17420-15150 Pipe Assy, Exhaust, Center
1991-06 → 1993-05 ended
5AFE AE100 ¥31,900
17420-15150 Pipe Assy, Exhaust, Center
1993-05 → 1995-05 ended
5AFE,4EFE AE100,EE101 ¥31,900
17420-16350 Pipe Assy, Exhaust, Center
1991-06 → 1995-05 ended
4AFE AE101 ¥30,900
17420-16540 Pipe Assy, Exhaust, Center
1991-06 → 1995-05 ended
4AGE AE101 ¥36,700
17420-16560 Pipe Assy, Exhaust, Center
1991-09 → 1995-05 ended
4AFE AE104 ¥20,500
17420-16700 Pipe Assy, Exhaust, Center
1996-05 → —
4AFE,3CE AE109,CE105 ¥44,200
17420-64130 Pipe Assy, Exhaust, Center
1991-06 → 1992-01 ended
2C CE100 ¥35,400
17420-64131 Pipe Assy, Exhaust, Center
1992-01 → 1993-05 ended
2C CE100 ¥35,400
17420-64140 Pipe Assy, Exhaust, Center
1991-09 → 1995-05 ended
2C CE104 ¥40,500
17420-64150 Pipe Assy, Exhaust, Center
1991-09 → 1992-01 ended
2C CE106,108 ¥35,400
17420-64151 Pipe Assy, Exhaust, Center
1992-01 → 1994-01 ended
2C CE106,108 ¥35,400
17420-64160 Pipe Assy, Exhaust, Center
1991-09 → 1998-04 ended
2C CE109 ¥48,900
17420-64200 Pipe Assy, Exhaust, Center
1993-05 → 1995-05 ended
2C CE100 ¥38,700
17420-64220 Pipe Assy, Exhaust, Center
1994-01 → 1997-04 ended
2C CE106,108 ¥26,800
17420-64300 Pipe Assy, Exhaust, Center
1997-04 → 1998-04 ended
2C CE106,108 ¥35,400
17420-64340 Pipe Assy, Exhaust, Center
1998-04 → —
3CE CE102,107 ¥32,000
17420X — Gasket, Exhaust Pipe, Center
90917-06039 note Gasket, Exhaust Pipe, Center
1991-06 → 1995-05 ended
4AGE AE101 ¥240
90917-06039 Gasket, Exhaust Pipe, Center
1991-06 → —
4AFE,2C,3CE AE101,104,109,CE102,104,106,107,108,109 ¥240
90917-06045 note Gasket, Exhaust Pipe, Center
1991-06 → 1995-05 ended
4AGE AE101 ¥580
90917-06060 Gasket, Exhaust Pipe, Center
1991-06 → —
5AFE,2E,3E,4EFE,5EFE AE100,EE10# ¥330
90917-06074 Gasket, Exhaust Pipe, Center
1991-06 → 1995-05 ended
2C CE100 ¥540
17430 — Pipe Assy, Exhaust, Tail
17430-11620 Pipe Assy, Exhaust, Tail
1991-09 → 1994-01 ended
2E EE106 ¥25,200
17430-11630 Pipe Assy, Exhaust, Tail
1991-09 → 1994-01 ended
3E EE107,108 ¥27,000
17430-11631 Pipe Assy, Exhaust, Tail
1994-01 → 2000-08 ended
4EFE,5EFE EE102,103,104 ¥26,900
17430-15540 Pipe Assy, Exhaust, Tail
1991-06 → 1995-05 ended
5AFE,4EFE AE100,EE101 ¥25,900
17430-1A010 Pipe Assy, Exhaust, Tail
1991-06 → 1995-05 ended
4AFE AE101 ¥29,800
17430-1A070 note Pipe Assy, Exhaust, Tail
1991-06 → 1995-05 ended
4AGE AE101 ¥32,800
17430-1A080 Pipe Assy, Exhaust, Tail
1991-09 → 1995-05 ended
4AFE,2C AE104,CE104 ¥29,800
17430-1A730 Pipe Assy, Exhaust, Tail
1996-05 → —
4AFE,3CE AE109,CE105 ¥17,600
17430-1B230 Pipe Assy, Exhaust, Tail
2000-08 → —
4EFE,5EFE EE10# ¥25,900
17430-64680 Pipe Assy, Exhaust, Tail
1991-06 → 1995-05 ended
2C CE100 ¥29,800
17430-64690 Pipe Assy, Exhaust, Tail
1991-09 → 1994-01 ended
2C CE106,108 ¥27,000
17430-64691 Pipe Assy, Exhaust, Tail
1994-01 → 1998-04 ended
2C CE106,108 ¥26,900
17430-64700 Pipe Assy, Exhaust, Tail
1991-09 → 1994-01 ended
2C CE109 ¥20,300
17430-64701 Pipe Assy, Exhaust, Tail
1994-01 → 1998-04 ended
2C CE109 ¥20,300
17430-6A350 Pipe Assy, Exhaust, Tail
1998-04 → —
3CE CE102,107 ¥30,100
17440-16010 note Pipe Assy, Exhaust, Tail
1991-06 → 1995-05 ended
4AGE AE101 ¥29,800
17444A — Spacer, Exhaust Front Pipe
17444-64030 Spacer, Exhaust Front Pipe
1997-04 → —
2C,3CE CE102,106,107,108 ¥6,700
17451 — Gasket, Exhaust Pipe
90917-06039 Gasket, Exhaust Pipe
1993-05 → 1998-04 ended
2C CE104,109 ¥240
90917-06039 Gasket, Exhaust Pipe
1993-05 → 1998-04 ended
4AFE AE104 ¥240
90917-06039 Gasket, Exhaust Pipe
1996-05 → —
4AFE,3CE AE109,CE105 ¥240
90917-06039 Gasket, Exhaust Pipe
1991-06 → 1993-05 ended
4AFE AE104 ¥240
90917-06039 Gasket, Exhaust Pipe
1991-06 → 1993-05 ended
2C,4EFE CE104,109,EE101 ¥240
90917-06043 note Gasket, Exhaust Pipe
1991-06 → 1995-05 ended
4A# AE101 ¥550
90917-06044 note Gasket, Exhaust Pipe
1991-06 → 1993-05 ended
5AFE,2E,3E AE100,EE106,107,108 ¥630
90917-06044 note Gasket, Exhaust Pipe
1993-05 → 1997-05 ended
5AFE,2E,3E,4EFE,5EFE AE100,EE10# ¥630
90917-06045 note Gasket, Exhaust Pipe
1991-06 → 1993-05 ended
5AFE,2E,3E AE100,EE106,107,108 ¥580
90917-06045 Gasket, Exhaust Pipe
1993-05 → 1994-01 ended
2C CE100 ¥580
90917-06045 Gasket, Exhaust Pipe
1994-01 → 1997-04 ended
2C CE100,106,108 ¥580
90917-06045 note Gasket, Exhaust Pipe
1993-05 → 1997-05 ended
5AFE,2E,3E,4EFE,5EFE AE100,EE10# ¥580
90917-06054 note Gasket, Exhaust Pipe
1991-06 → 1995-05 ended
4AGE AE101 ¥350
90917-06057 note Gasket, Exhaust Pipe
1991-06 → 1995-05 ended
4AFE AE101 ¥350
90917-06074 Gasket, Exhaust Pipe
1993-05 → 1994-01 ended
2C CE106,108 ¥540
90917-06074 Gasket, Exhaust Pipe
1991-06 → 1993-05 ended
2C CE100,106,108 ¥540
90917-06082 Gasket, Exhaust Pipe
1997-04 → —
2C,3CE,4EFE,5EFE CE102,106,107,108,EE10# ¥580
17452 — Clamp, Exhaust Pipe
17452-16110 Clamp, Exhaust Pipe
1997-04 → 2000-08 ended
4EFE,5EFE EE10# ¥780
90461-15013 Clamp, Exhaust Pipe
1997-04 → 2000-08 ended
2C,3CE CE102,106,107,108 ¥2,100
90461-15013 Clamp, Exhaust Pipe
2000-08 → —
3CE,4EFE,5EFE CE102,107,EE10# ¥2,100
17507 — Bracket Sub-assy, Exhaust Pipe NO.2 Support
17507-11050 Bracket Sub-assy, Exhaust Pipe NO.2 Support
1991-09 → —
4AFE,2C,3CE,2E,3E,4EFE,5EFE ,108 AE109,CE102,105,106,107,108,109,EE102,103,104,106,107 ¥1,090
17507-15040 Bracket Sub-assy, Exhaust Pipe NO.2 Support
1991-06 → 1995-05 ended
4A#,5AFE,2C,4EFE AE100,101,CE100,EE101 ¥1,090
17508 — Support Sub-assy, Exhaust Pipe, NO.3
17508-11060 Support Sub-assy, Exhaust Pipe, NO.3
1991-09 → 1993-10 ended
2C,2E,3E CE106,108,EE106,107,108 ¥1,320
17508-11080 Support Sub-assy, Exhaust Pipe, NO.3
1993-10 → —
2C,3CE,2E,3E,4EFE,5EFE CE102,106,107,108,EE102,103,104,106,107,108 ¥1,320
17508-15050 Support Sub-assy, Exhaust Pipe, NO.3
1991-06 → 1995-05 ended
4A#,5AFE,2C,4EFE AE100,101,CE100,EE101 ¥2,390
17508-16050 Support Sub-assy, Exhaust Pipe, NO.3
1991-09 → 1995-05 ended
4AFE,2C AE104,CE104 ¥2,160
17508-64040 Support Sub-assy, Exhaust Pipe, NO.3
1991-09 → —
4AFE,2C,3CE AE109,CE105,109 ¥1,330
17509A — Bracket Sub-assy, Exhaust Pipe NO.4 Support
17509-11070 Bracket Sub-assy, Exhaust Pipe NO.4 Support
1991-09 → 1993-10 ended
2C,2E,3E CE106,108,EE106,107,108 ¥1,540
17509-11080 Bracket Sub-assy, Exhaust Pipe NO.4 Support
1993-10 → —
2C,3CE,2E,3E,4EFE,5EFE CE102,106,107,108,EE102,103,104,106,107,108 ¥1,530
17509-16040 Bracket Sub-assy, Exhaust Pipe NO.4 Support
1991-06 → 1995-05 ended
4AGE AE101 ¥2,160
17521A — Protector, Exhaust Pipe, Upper NO.1
17521-11110 Protector, Exhaust Pipe, Upper NO.1
1991-09 → 1994-01 ended
2E,3E EE106,107,108 ¥2,260
17521-11140 Protector, Exhaust Pipe, Upper NO.1
1993-05 → 1997-04 ended
4EFE EE101,102 ¥1,920
17521-11150 Protector, Exhaust Pipe, Upper NO.1
1994-01 → 1997-04 ended
5EFE EE103,104 ¥2,030
17521-11180 Protector, Exhaust Pipe, Upper NO.1
1997-04 → 2000-08 ended
4EFE,5EFE EE10# ¥2,370
17521-15130 Protector, Exhaust Pipe, Upper NO.1
1991-06 → 1995-05 ended
5AFE AE100 ¥2,020
17521-16350 Protector, Exhaust Pipe, Upper NO.1
1991-09 → 1997-05 ended
4AFE AE104,109 ¥2,250
17521-64040 Protector, Exhaust Pipe, Upper NO.1
1993-05 → 1994-01 ended
2C CE106,108 ¥2,020
17521-64040 Protector, Exhaust Pipe, Upper NO.1
1991-06 → 1993-05 ended
2C CE100,106,108 ¥2,020
17521-64100 Protector, Exhaust Pipe, Upper NO.1
1993-05 → 1994-01 ended
2C CE100 ¥3,920
17521-64100 Protector, Exhaust Pipe, Upper NO.1
1994-01 → 1997-04 ended
2C CE100,106,108 ¥3,920
17521-64170 Protector, Exhaust Pipe, Upper NO.1
1997-04 → —
2C,3CE CE102,106,107,108 ¥2,020
17543 — Stay, Exhaust Pipe Protector, NO.3
17543-26010 Stay, Exhaust Pipe Protector, NO.3
1997-04 → —
2C,3CE CE102,106,107,108 ¥550
17543-64010 Stay, Exhaust Pipe Protector, NO.3
1991-06 → 1993-05 ended
2C CE100,106,108 ¥940
17543-64010 Stay, Exhaust Pipe Protector, NO.3
1993-05 → 1994-01 ended
2C CE106,108 ¥940
17565A — Support, Exhaust Pipe, NO.4
17565-11160 note Support, Exhaust Pipe, NO.4
1991-09 → 1995-05 ended
4AFE,2C AE104,CE104 ¥980
17565-11160 note Support, Exhaust Pipe, NO.4
1998-04 → —
3CE CE10# ¥980
17565-11160 note Support, Exhaust Pipe, NO.4
1997-04 → 1998-04 ended
2C CE106,108 ¥980
17565-11160 note Support, Exhaust Pipe, NO.4
1991-09 → —
4AFE,2C AE109,CE109 ¥980
17565-15140 note Support, Exhaust Pipe, NO.4
1998-04 → —
3CE CE10# ¥780
17565-15140 Support, Exhaust Pipe, NO.4
1997-04 → —
4EFE,5EFE EE10# ¥780
17565-15140 note Support, Exhaust Pipe, NO.4
1997-04 → 1998-04 ended
2C CE106,108 ¥780
17565-15140 Support, Exhaust Pipe, NO.4
1991-09 → 1997-04 ended
2C,2E,3E,4EFE,5EFE CE106,108,EE102,103,104,106,107,108 ¥780
17565-15140 note Support, Exhaust Pipe, NO.4
1991-09 → —
4AFE,2C AE109,CE109 ¥780
17565-16230 note Support, Exhaust Pipe, NO.4
1991-09 → 1995-05 ended
4AFE,2C AE104,CE104 ¥680
17565-16230 Support, Exhaust Pipe, NO.4
1991-06 → 1995-05 ended
4A#,5AFE,2C,4EFE AE100,101,CE100,EE101 ¥680
17593C — Protector, Exhaust Pipe, Lower NO.1
17593-11150 Protector, Exhaust Pipe, Lower NO.1
1991-09 → 1994-01 ended
2E,3E EE106,107,108 ¥2,020
17593-11200 Protector, Exhaust Pipe, Lower NO.1
1993-05 → 1997-04 ended
4EFE EE101,102 ¥2,030
17593-11210 Protector, Exhaust Pipe, Lower NO.1
1994-01 → 1997-04 ended
5EFE EE103,104 ¥2,030
17593-11260 Protector, Exhaust Pipe, Lower NO.1
1997-04 → 2000-08 ended
4EFE,5EFE EE10# ¥2,560
17593-11290 Protector, Exhaust Pipe, Lower NO.1
2000-08 → —
4EFE,5EFE EE10# ¥2,100
17593-15090 Protector, Exhaust Pipe, Lower NO.1
1991-06 → 1993-05 ended
4EFE EE101 ¥1,840
17593-15140 Protector, Exhaust Pipe, Lower NO.1
1991-06 → 1995-05 ended
5AFE AE100 ¥2,020
17593-16310 Protector, Exhaust Pipe, Lower NO.1
1991-09 → 1997-05 ended
4AFE AE104,109 ¥2,020
17593-64040 Protector, Exhaust Pipe, Lower NO.1
1993-05 → 1994-01 ended
2C CE106,108 ¥2,020
17593-64040 Protector, Exhaust Pipe, Lower NO.1
1991-06 → 1993-05 ended
2C CE100,106,108 ¥2,020
17593-64090 Protector, Exhaust Pipe, Lower NO.1
1993-05 → 1994-01 ended
2C CE100 ¥3,920
17593-64090 Protector, Exhaust Pipe, Lower NO.1
1994-01 → 1997-04 ended
2C CE100,106,108 ¥3,920
17593-64140 Protector, Exhaust Pipe, Lower NO.1
1997-04 → —
2C,3CE CE102,106,107,108 ¥2,020
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
