Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

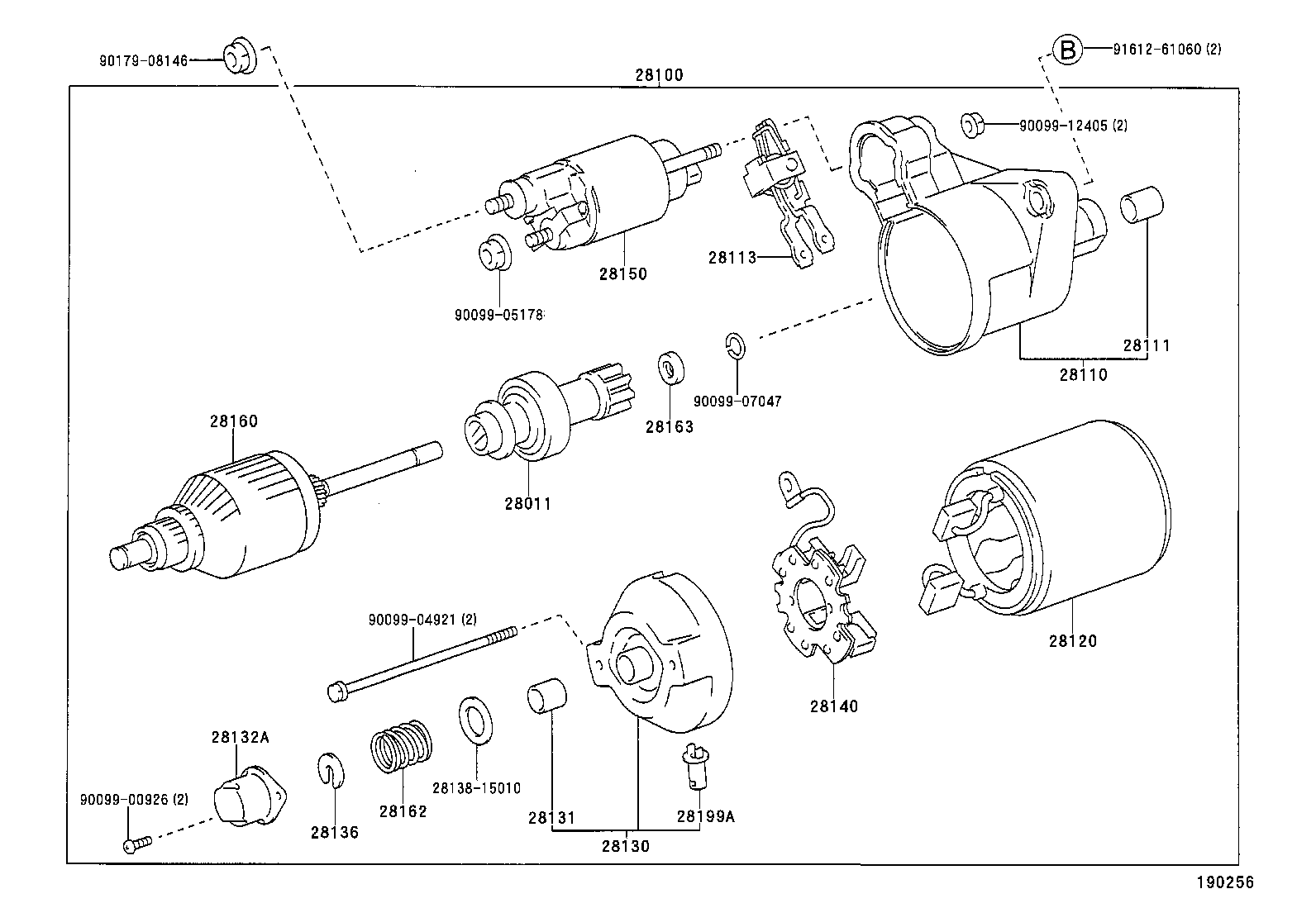

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

109 parts on this figure

Part number	Description	Fitment	Price
28011 — Clutch Sub-assy, Starter
28011-10030	Clutch Sub-assy, Starter 1991-09 → 1994-01 ended	2E,3E EE106,107,108	¥4,790
28011-16040	Clutch Sub-assy, Starter 1991-06 → 1992-08 ended	4A#,5AFE AE10# ATM	¥6,100
28011-26042 note	Clutch Sub-assy, Starter 1991-09 → 1994-01 ended	2E EE106 4F	¥24,000
28011-26042 note	Clutch Sub-assy, Starter 1991-06 → 1997-05 ended	2E EE106 3FC;4A#,5AFE,3E,4EFE,5EFE AE10#,EE101,102,103,104,107,108	¥24,000
28011-64010 note	Clutch Sub-assy, Starter 1991-06 → —	2C,3CE CE10#	¥23,000
28011-64130	Clutch Sub-assy, Starter 1991-06 → —	2C,3CE CE10#	¥20,300
28011-70020	Clutch Sub-assy, Starter 1991-06 → 1992-08 ended	4EFE EE101;4A#,5AFE AE10# 5F	¥3,990
28011-70020	Clutch Sub-assy, Starter 1992-08 → —	4A#,5AFE,4EFE,5EFE AE10#,EE101,102,103,104	¥3,990
28100 — Starter Assy
28100-10030 note	Starter Assy 1991-09 → 1994-01 ended	2E,3E EE106,107,108	¥69,200
28100-10040 note	Starter Assy 1991-09 → 1994-01 ended	2E EE106 4F	¥94,600
28100-10040 note	Starter Assy 1991-06 → 1995-05 ended	2E EE106 3FC;3E,4EFE,5EFE EE101,102,103,104,107,108	¥94,600
28100-11010 note	Starter Assy 1991-06 → 1995-05 ended	4EFE,5EFE EE101,102,103,104	¥66,700
28100-11080 note	Starter Assy 1995-05 → 1997-04 ended	4EFE,5EFE EE10#	¥66,800
28100-11100 note	Starter Assy 1995-05 → 1997-05 ended	4EFE,5EFE EE10#	¥94,900
28100-11140 note	Starter Assy 1997-04 → —	4EFE,5EFE EE10#	¥66,800
28100-11160 note	Starter Assy 1997-04 → —	4EFE,5EFE EE10#	¥80,900
28100-16041 note	Starter Assy 1991-06 → 1992-08 ended	4A#,5AFE AE10# ATM	¥69,200
28100-16071 note	Starter Assy 1992-08 → 1995-05 ended	4A#,5AFE AE10#	¥69,200
28100-16071 note	Starter Assy 1991-06 → 1992-08 ended	4A#,5AFE AE10# 5F	¥69,200
28100-16080 note	Starter Assy 1991-09 → 1995-05 ended	4AFE AE104	¥94,600
28100-16110 note	Starter Assy 1991-06 → 1992-05 ended	4AFE,5AFE AE100,101	¥94,600
28100-16140 note	Starter Assy 1991-06 → 1995-05 ended	4AGE AE101	¥94,500
28100-16190 note	Starter Assy 1997-04 → —	4AFE AE109	¥80,900
28100-16210 note	Starter Assy 1992-05 → 1995-05 ended	4AFE,5AFE AE100,101	¥95,200
28100-16230 note	Starter Assy 1996-05 → —	4AFE AE109	¥66,800
28100-16260 note	Starter Assy 1996-05 → 1997-05 ended	4AFE AE109	¥94,900
28100-64130 note	Starter Assy 1991-06 → 1995-05 ended	2C CE10#	¥105,000
28100-64140 note	Starter Assy 1991-06 → 1995-05 ended	2C CE10#	¥147,000
28100-64340 note	Starter Assy 1995-05 → —	2C,3CE CE10#	¥105,000
28100-64350 note	Starter Assy 1995-05 → —	2C,3CE CE10#	¥147,000
28110 — Housing Assy, Starter Drive
28110-10030	Housing Assy, Starter Drive 1991-09 → 1994-01 ended	2E,3E EE106,107,108	¥5,100
28110-10040 note	Housing Assy, Starter Drive 1991-06 → 1997-05 ended	2E EE106 3FC;3E,4EFE,5EFE EE101,102,103,104,107,108	¥6,100
28110-10040 note	Housing Assy, Starter Drive 1991-09 → 1994-01 ended	2E EE106 4F	¥6,100
28110-11010	Housing Assy, Starter Drive 1991-06 → —	4EFE,5EFE EE101,102,103,104	¥5,100
28110-16020 note	Housing Assy, Starter Drive 1992-05 → 1995-05 ended	4AGE AE101	¥6,800
28110-16020 note	Housing Assy, Starter Drive 1991-06 → 1992-05 ended	4A#,5AFE AE100,101	¥6,800
28110-16041	Housing Assy, Starter Drive 1991-06 → 1992-08 ended	4A#,5AFE AE10# ATM	¥6,100
28110-16071	Housing Assy, Starter Drive 1991-06 → 1992-08 ended	4A#,5AFE AE10# 5F	¥7,200
28110-16071	Housing Assy, Starter Drive 1992-08 → —	4A#,5AFE AE10#	¥7,200
28110-16080 note	Housing Assy, Starter Drive 1991-09 → 1997-05 ended	4AFE AE104,109	¥6,800
28110-16150 note	Housing Assy, Starter Drive 1992-05 → 1995-05 ended	4AFE,5AFE AE100,101	¥6,800
28110-64130	Housing Assy, Starter Drive 1991-06 → 1995-05 ended	2C CE10#	¥7,100
28110-64340	Housing Assy, Starter Drive 1995-05 → —	2C,3CE CE10#	¥7,100
28115-64140 note	Housing Assy, Starter Drive 1991-06 → 1995-05 ended	2C CE10#	—
28115-64350 note	Housing Assy, Starter Drive 1995-05 → 1998-04 ended	2C CE10#	—
28115-64350 note	Housing Assy, Starter Drive 1998-04 → —	3CE CE10#	—
28111 — Bush(FOR STARTER HOUSING)
90099-10200	Bush(FOR STARTER HOUSING) 1991-09 → 1994-01 ended	2E,3E EE106,107,108	—
28113 — Lever, Starter Pinion Drive
28113-15011	Lever, Starter Pinion Drive 1991-09 → 1994-01 ended	2E,3E EE106,107,108	¥1,220
28113-16070	Lever, Starter Pinion Drive 1991-06 → —	4A#,5AFE,4EFE,5EFE AE10#,EE101,102,103,104	¥1,150
28120 — Yoke Assy, Starter
28120-15010	Yoke Assy, Starter 1991-09 → 1994-01 ended	2E,3E EE106,107,108	—
28120-26071 note	Yoke Assy, Starter 1991-09 → 1994-01 ended	2E EE106 4F	—
28120-26071 note	Yoke Assy, Starter 1991-06 → 1997-04 ended	2E EE106 3FC;4A#,5AFE,3E,4EFE,5EFE AE10#,EE101,102,103,104,107,108	—
28120-55050	Yoke Assy, Starter 1997-08 → —	2C,3CE CE10#	—
28120-64040 note	Yoke Assy, Starter 1991-06 → —	2C,3CE CE10#	—
28120-64130	Yoke Assy, Starter 1991-06 → 1997-08 ended	2C CE10#	—
28120-70020	Yoke Assy, Starter 1991-06 → —	4A#,5AFE,4EFE,5EFE AE10#,EE101,102,103,104	—
28120-70050 note	Yoke Assy, Starter 1997-04 → —	4AFE,4EFE,5EFE AE109,EE10#	—
28130 — Frame Assy, Starter Commutator End
28130-10040 note	Frame Assy, Starter Commutator End 1991-06 → 1992-05 ended	2E EE106 3FC;3E,4EFE EE101,107,108	¥0
28130-10040 note	Frame Assy, Starter Commutator End 1992-05 → 1997-05 ended	2E EE106 3FC;4AFE,5AFE,3E,4EFE,5EFE AE100,101,EE101,102,103,104,107,108	¥0
28130-10040 note	Frame Assy, Starter Commutator End 1991-09 → 1994-01 ended	2E EE106 4F	¥0
28130-10050	Frame Assy, Starter Commutator End 1991-09 → 1994-01 ended	2E,3E EE106,107,108	¥0
28130-11010	Frame Assy, Starter Commutator End 1991-06 → —	4EFE,5EFE EE101,102,103,104	¥0
28130-16070	Frame Assy, Starter Commutator End 1991-06 → —	4A#,5AFE AE10#	¥3,340
28130-16080 note	Frame Assy, Starter Commutator End 1991-09 → 1997-05 ended	4AFE AE104,109	¥2,370
28130-64130	Frame Assy, Starter Commutator End 1991-06 → —	2C,3CE CE10#	¥0
28130-72010 note	Frame Assy, Starter Commutator End 1992-05 → 1995-05 ended	4AGE AE101	¥2,630
28130-72010 note	Frame Assy, Starter Commutator End 1991-06 → 1992-05 ended	4A#,5AFE AE100,101	¥2,630
28131 — Bush, Commutator End Frame
90099-10134	Bush, Commutator End Frame 1991-09 → 1994-01 ended	2E,3E EE106,107,108	—
28132A — Cover, Starter Commutator End Frame
28132-15010	Cover, Starter Commutator End Frame 1991-09 → 1994-01 ended	2E,3E EE106,107,108	—
28136 — Plate, Starter Lock
28136-15010	Plate, Starter Lock 1991-09 → 1994-01 ended	2E,3E EE106,107,108	—
28140 — Holder Assy, Starter Brush
28140-15010	Holder Assy, Starter Brush 1991-09 → 1994-01 ended	2E,3E EE106,107,108	—
28140-26070 note	Holder Assy, Starter Brush 1991-09 → 1994-01 ended	2E EE106 4F	—
28140-26070 note	Holder Assy, Starter Brush 1991-06 → 1997-05 ended	2E EE106 3FC;4A#,5AFE,3E,4EFE,5EFE AE10#,EE101,102,103,104,107,108	—
28140-64040 note	Holder Assy, Starter Brush 1991-06 → —	2C,3CE CE10#	—
28140-64130	Holder Assy, Starter Brush 1991-06 → —	2C,3CE CE10#	—
28140-70020	Holder Assy, Starter Brush 1991-06 → —	4A#,5AFE,4EFE,5EFE AE10#,EE101,102,103,104	—
28150 — Switch Assy, Magnet Starter
28150-10021	Switch Assy, Magnet Starter 1991-06 → 1995-05 ended	4A#,5AFE,4EFE,5EFE AE10#,EE101,102,103,104	¥9,300
28150-11080	Switch Assy, Magnet Starter 1995-05 → 1997-04 ended	4EFE,5EFE EE10#	¥12,800
28150-11100 note	Switch Assy, Magnet Starter 1995-05 → 1997-05 ended	4EFE,5EFE EE10#	¥14,900
28150-16080 note	Switch Assy, Magnet Starter 1991-09 → 1995-05 ended	4AFE AE104	¥25,700
28150-16110 note	Switch Assy, Magnet Starter 1991-06 → 1992-05 ended	4AFE,5AFE AE100,101	¥25,700
28150-16140 note	Switch Assy, Magnet Starter 1991-06 → 1995-05 ended	4AGE AE101	¥15,300
28150-16160	Switch Assy, Magnet Starter 1997-04 → —	4AFE,4EFE,5EFE AE109,EE10#	¥9,300
28150-16160	Switch Assy, Magnet Starter 1996-05 → 1997-04 ended	4AFE AE109	¥9,300
28150-16210 note	Switch Assy, Magnet Starter 1992-05 → 1995-05 ended	4AFE,5AFE AE100,101	¥15,200
28150-16260 note	Switch Assy, Magnet Starter 1996-05 → 1997-05 ended	4AFE AE109	¥15,100
28150-34080 note	Switch Assy, Magnet Starter 1991-09 → 1994-01 ended	2E EE106 4F	¥25,600
28150-34080 note	Switch Assy, Magnet Starter 1991-06 → 1995-05 ended	2E EE106 3FC;3E,4EFE,5EFE EE101,102,103,104,107,108	¥25,600
28150-37011	Switch Assy, Magnet Starter 1991-09 → 1994-01 ended	2E,3E EE106,107,108	¥7,800
28150-64041 note	Switch Assy, Magnet Starter 1991-06 → 1995-05 ended	2C CE10#	¥23,000
28150-64130	Switch Assy, Magnet Starter 1991-06 → 1995-05 ended	2C CE10#	¥16,700
28150-64300	Switch Assy, Magnet Starter 1995-05 → 1997-08 ended	2C CE10#	¥16,700
28150-64310 note	Switch Assy, Magnet Starter 1995-05 → 1998-05 ended	2C,3CE CE10#	¥23,200
28150-64341	Switch Assy, Magnet Starter 1997-08 → —	2C,3CE CE10#	¥16,700
28150-64390 note	Switch Assy, Magnet Starter 1998-05 → 1999-04 ended	3CE CE10#	¥23,200
28160 — Armature Assy, Starter
28160-15010	Armature Assy, Starter 1991-09 → 1994-01 ended	2E,3E EE106,107,108	¥17,100
28160-26071 note	Armature Assy, Starter 1991-09 → 1994-01 ended	2E EE106 4F	—
28160-26071 note	Armature Assy, Starter 1991-06 → 1997-04 ended	2E EE106 3FC;4A#,5AFE,3E,4EFE,5EFE AE10#,EE101,102,103,104,107,108	—
28160-64041 note	Armature Assy, Starter 1991-06 → —	2C,3CE CE10#	¥18,500
28160-70021	Armature Assy, Starter 1991-06 → —	4A#,5AFE,4EFE,5EFE AE10#,EE101,102,103,104	¥9,800
28160-70050 note	Armature Assy, Starter 1997-04 → —	4AFE,4EFE,5EFE AE109,EE10#	¥12,000
28160-74070	Armature Assy, Starter 1991-06 → —	2C,3CE CE10#	—
28162 — Spring, Starter Brake
28162-15010	Spring, Starter Brake 1991-09 → 1994-01 ended	2E,3E EE106,107,108	—
28163 — Nut OR Collar, Pinion Stop, Starter
28163-40011	Nut OR Collar, Pinion Stop, Starter 1991-09 → 1994-01 ended	2E,3E EE106,107,108	—
28163-70020	Nut OR Collar, Pinion Stop, Starter 1991-06 → —	4A#,5AFE,4EFE,5EFE AE10#,EE101,102,103,104	—
28199A — Protector, Dust Starter
28199-46080	Protector, Dust Starter 1991-06 → —	4A#,5AFE,4EFE,5EFE AE10#,EE101,102,103,104	—
28199-46080 note	Protector, Dust Starter 1991-06 → —	2C,3CE CE10#	—
28199-64150	Protector, Dust Starter 1991-09 → 1994-01 ended	2E,3E EE106,107,108	—
28199-74110	Protector, Dust Starter 1991-06 → —	2C,3CE CE10#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
