Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

8 part groups · 2 illustrations

Illustrations

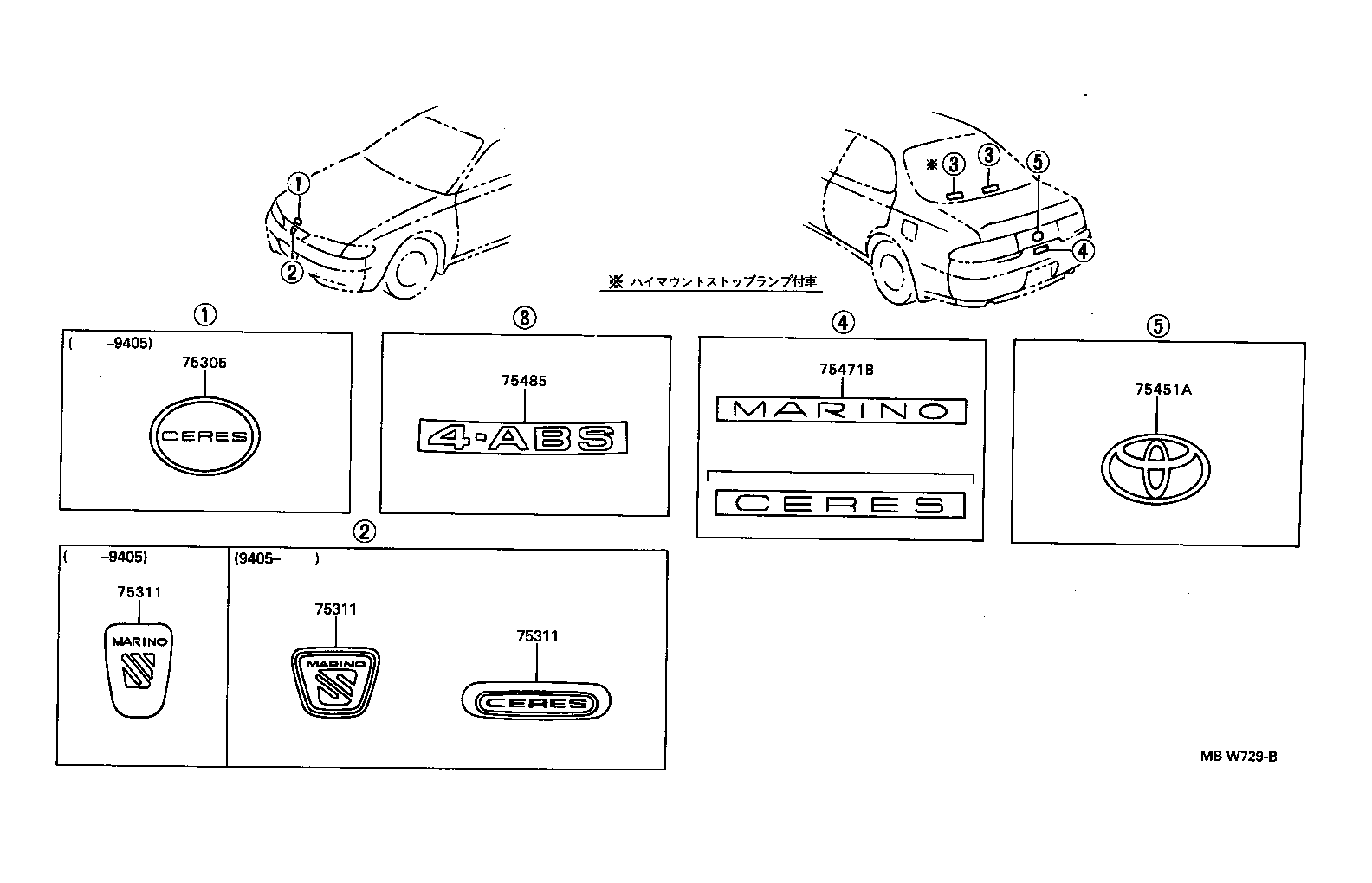

Figure 750122 750122 1991-06 → 1995-05 Figure MBW729B MBW729B 1992-05 → —

Part groups

PNCDescription
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75314 Emblem, Front Bumper
75441D Plate, Luggage Compartment Door Name, NO.1
75443A Plate, Luggage Compartment Door, NO.3
75451A Emblem, Lower Back Panel, NO.1
75471B Plate, Rear Body Name, NO.1
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
