Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

18 part groups · 7 illustrations

Illustrations

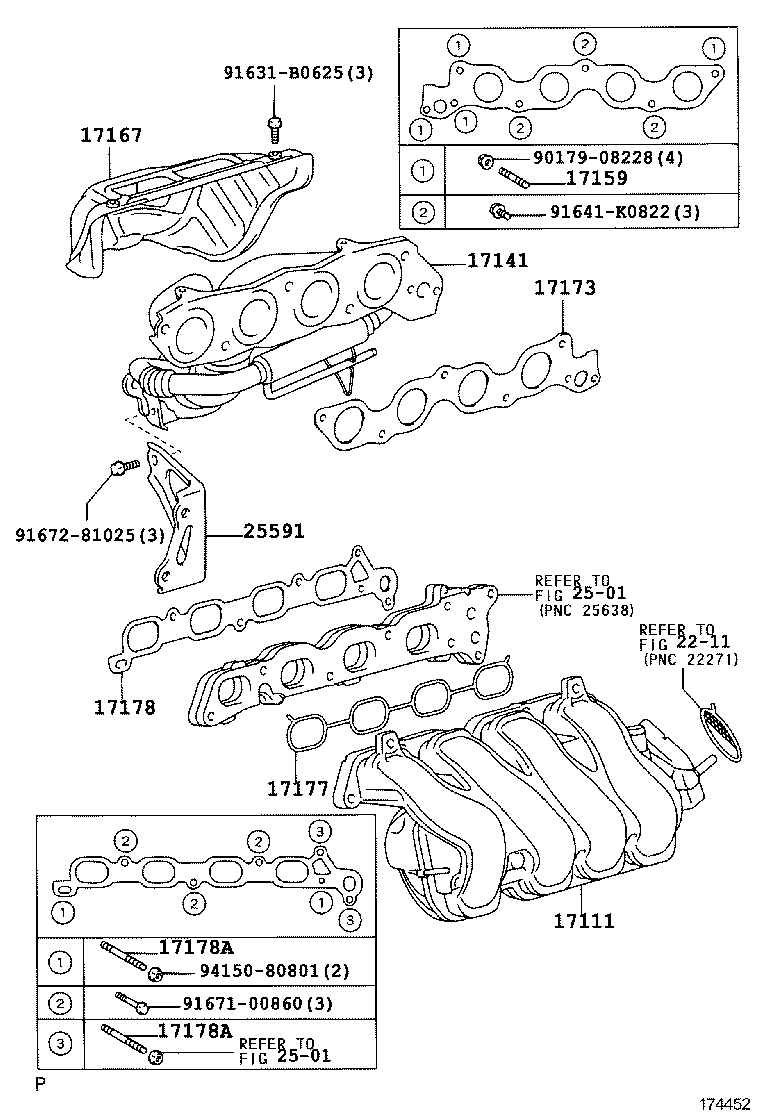

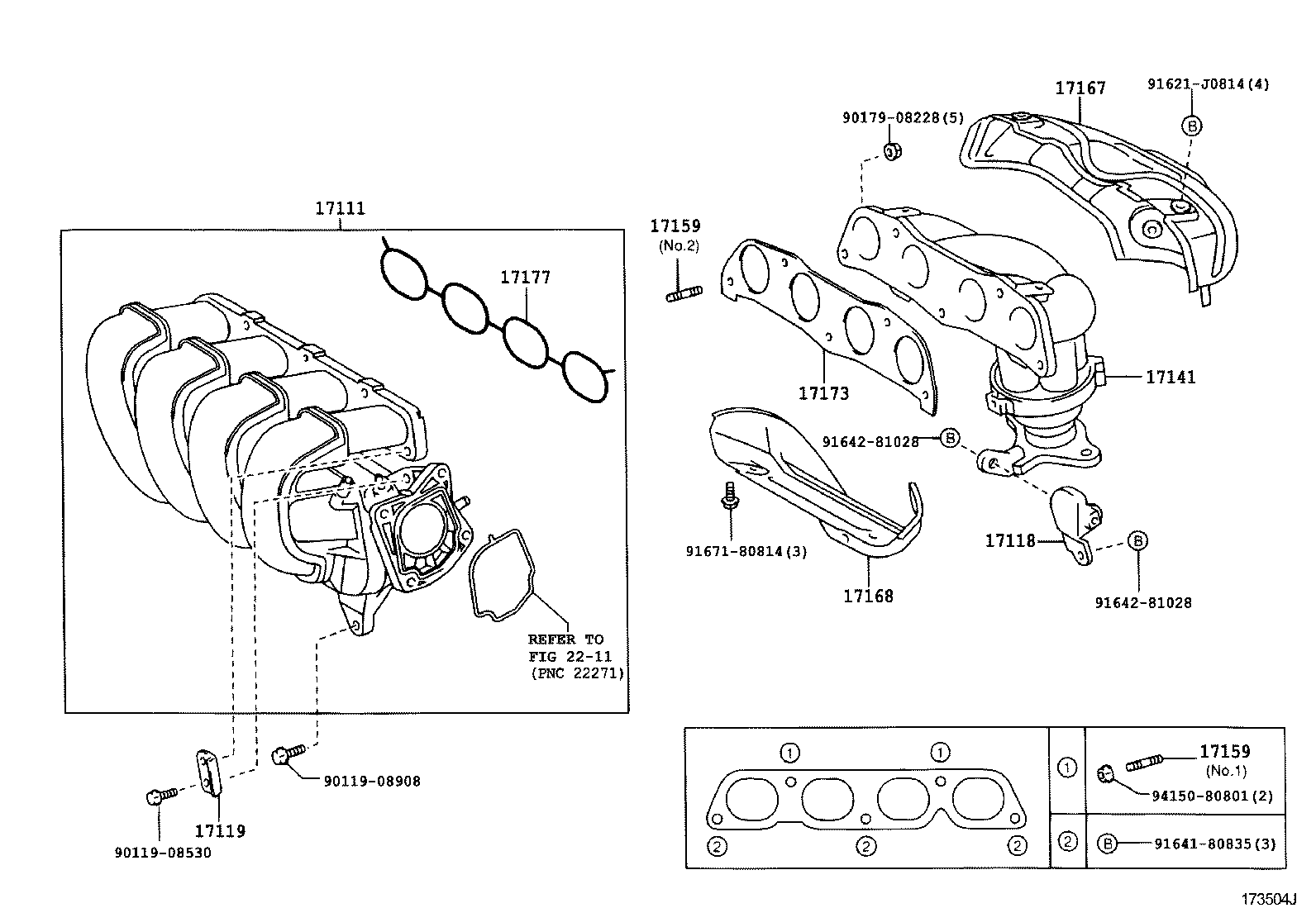

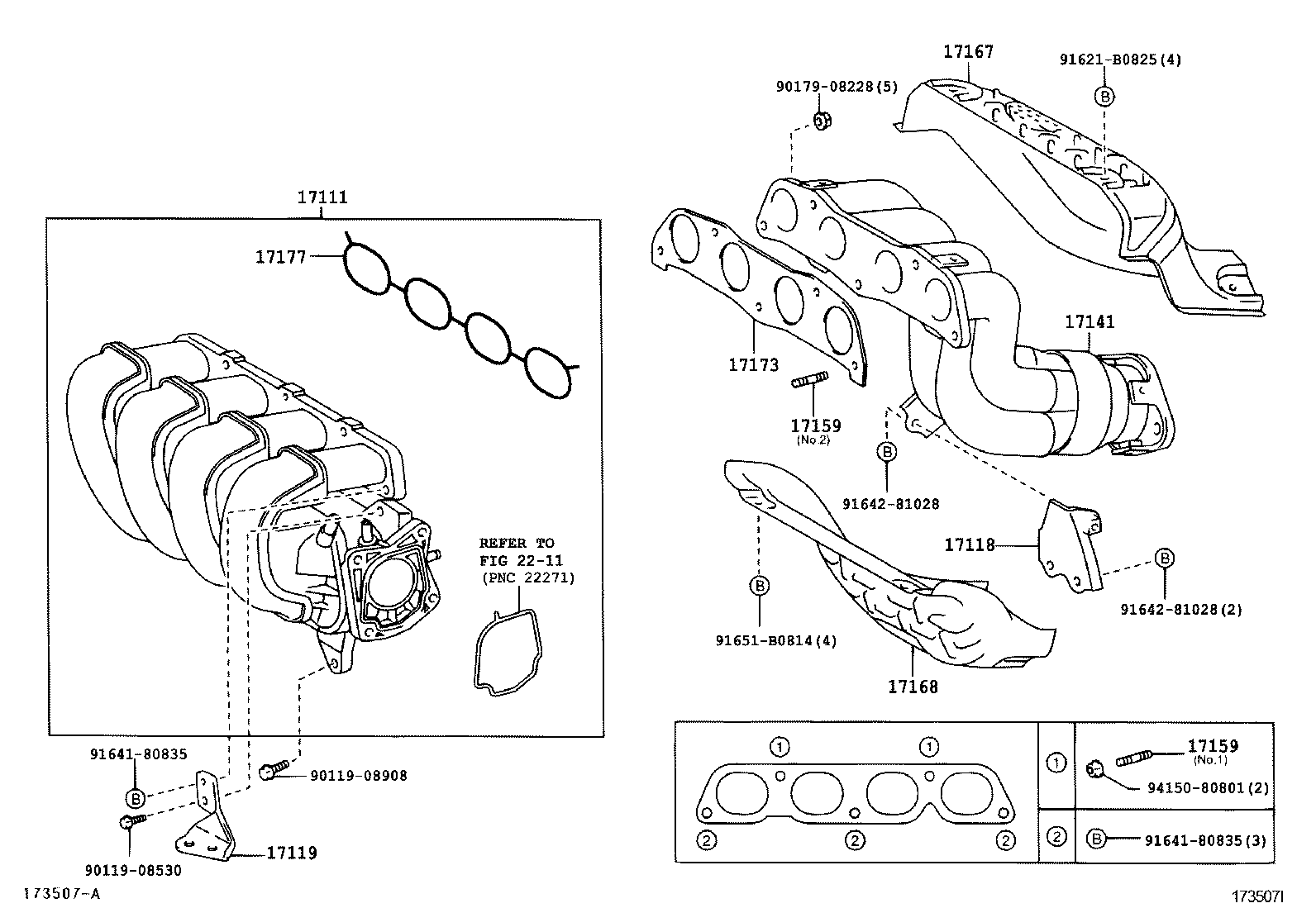

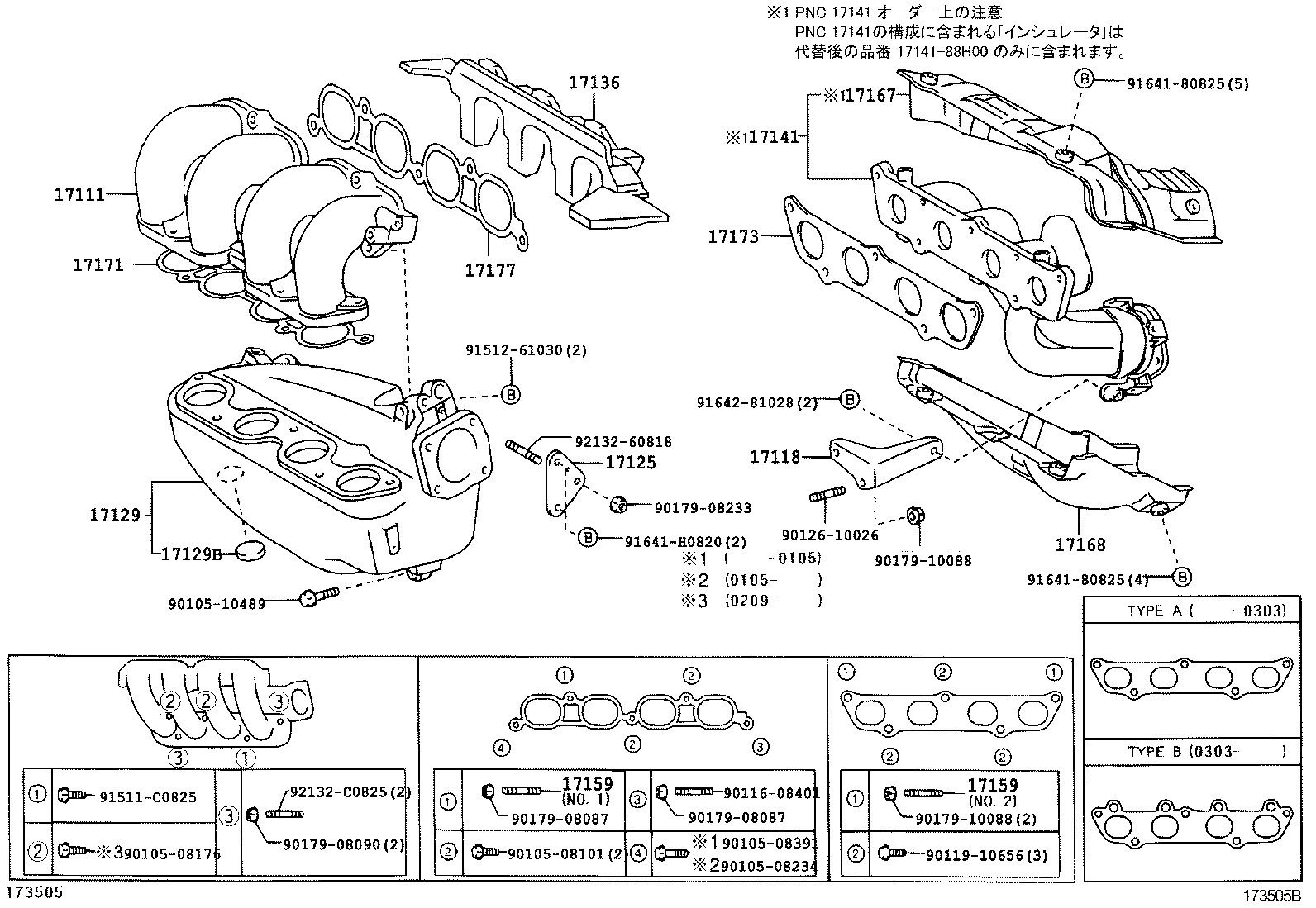

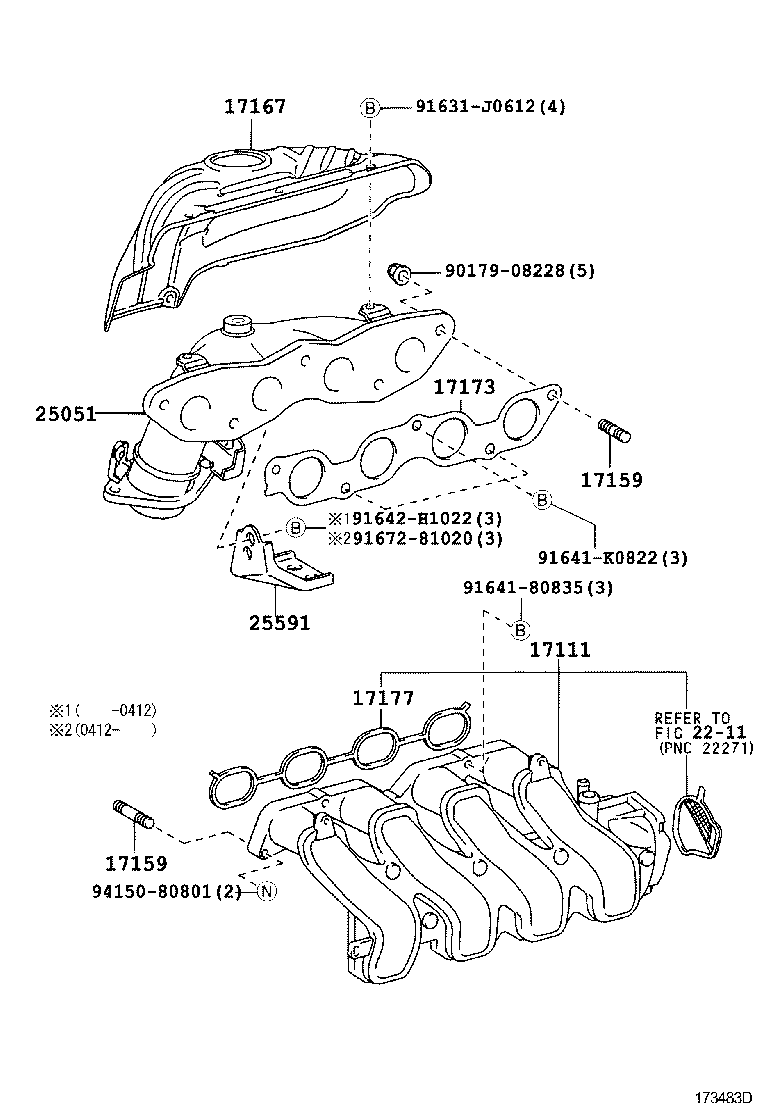

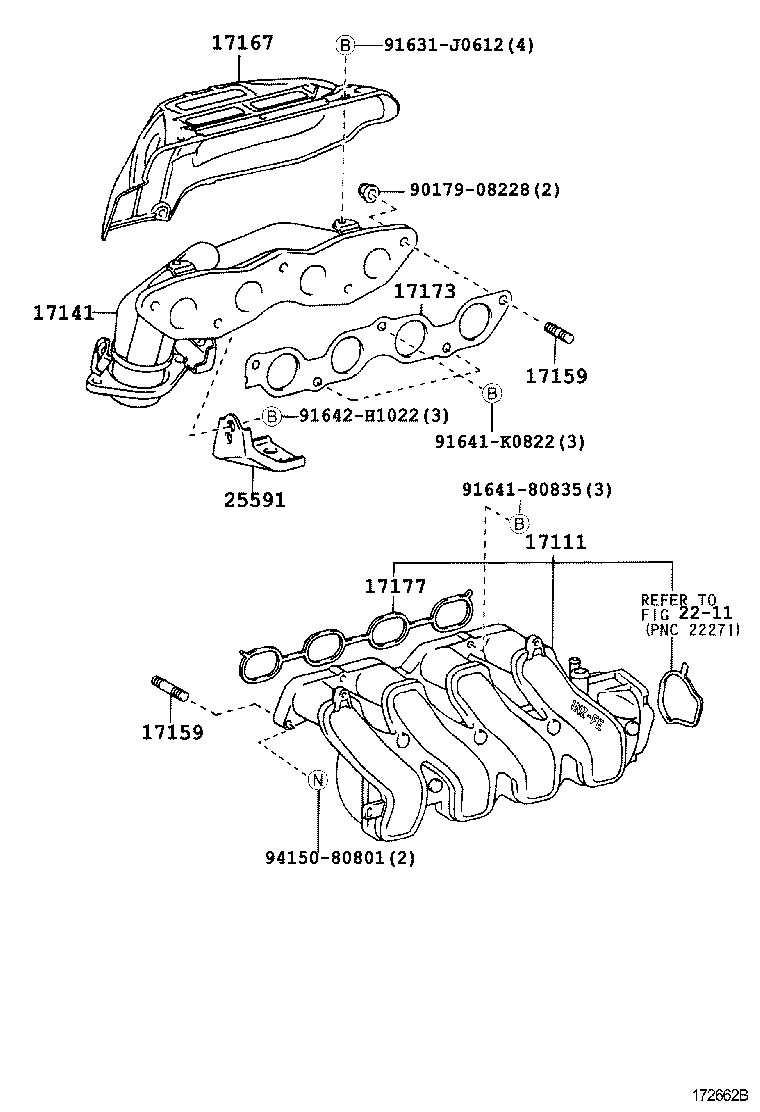

Figure 173482B 173482B 2001-01 → 2004-04 Figure 172662B 172662B 2001-01 → 2002-09 Figure 173483D 173483D 2002-09 → — Figure 174452 174452 2004-04 → — Figure 173507I 173507I 2002-09 → — Figure 173504J 173504J 2002-09 → — Figure 173505B 173505B 2001-01 → —

Part groups

PNCDescription
17111 Manifold, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17129B Plug
17136 Insulator, Intake Manifold, NO.2
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17171 Gasket, Intake TO Exhaust Manifold
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17178A Stud, Hex Lobular(INTAKE MANIFOLD TO HEAD GASKET)
25051 Converter Sub-assy, Exhaust Manifold
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
