Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

40 part groups · 18 illustrations

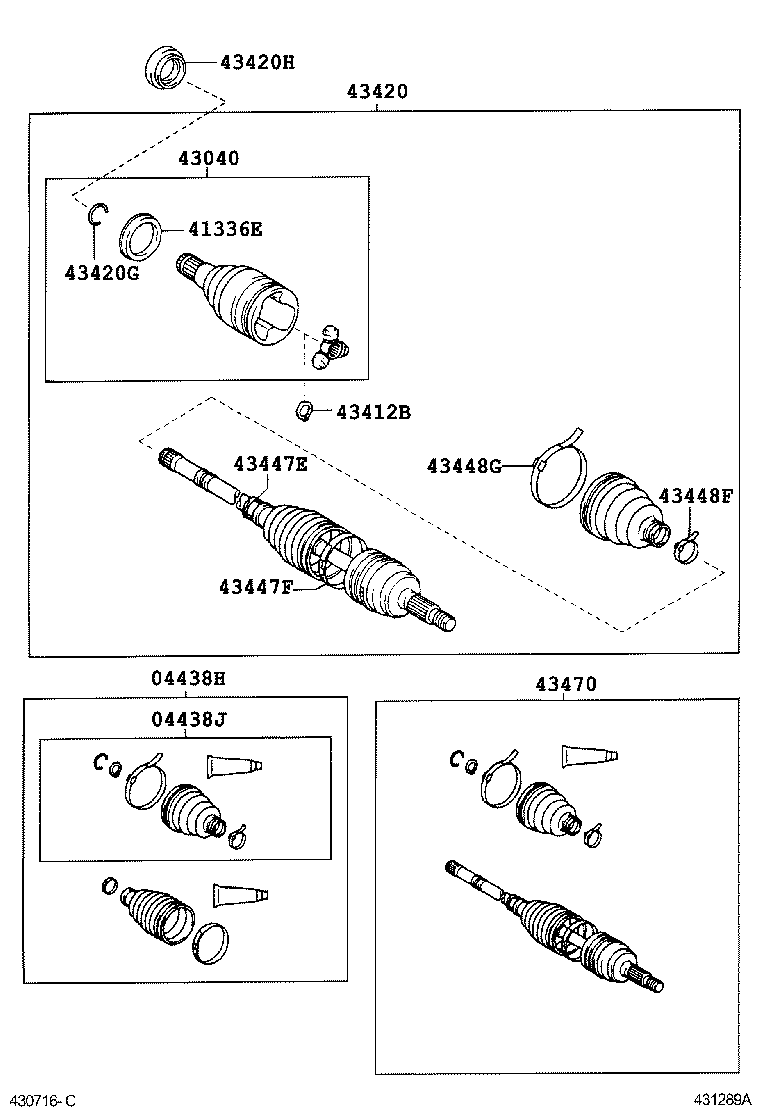

Illustrations

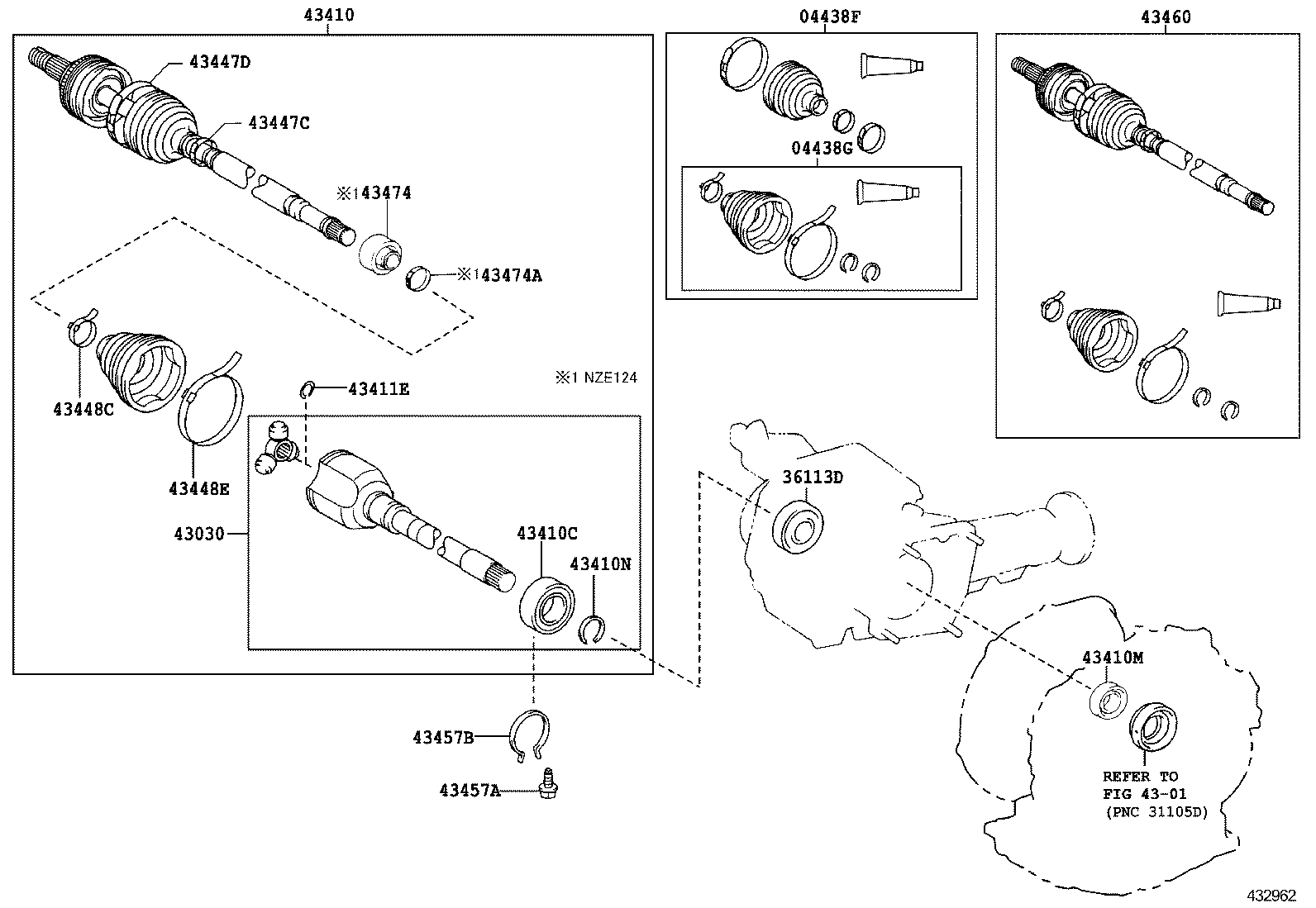

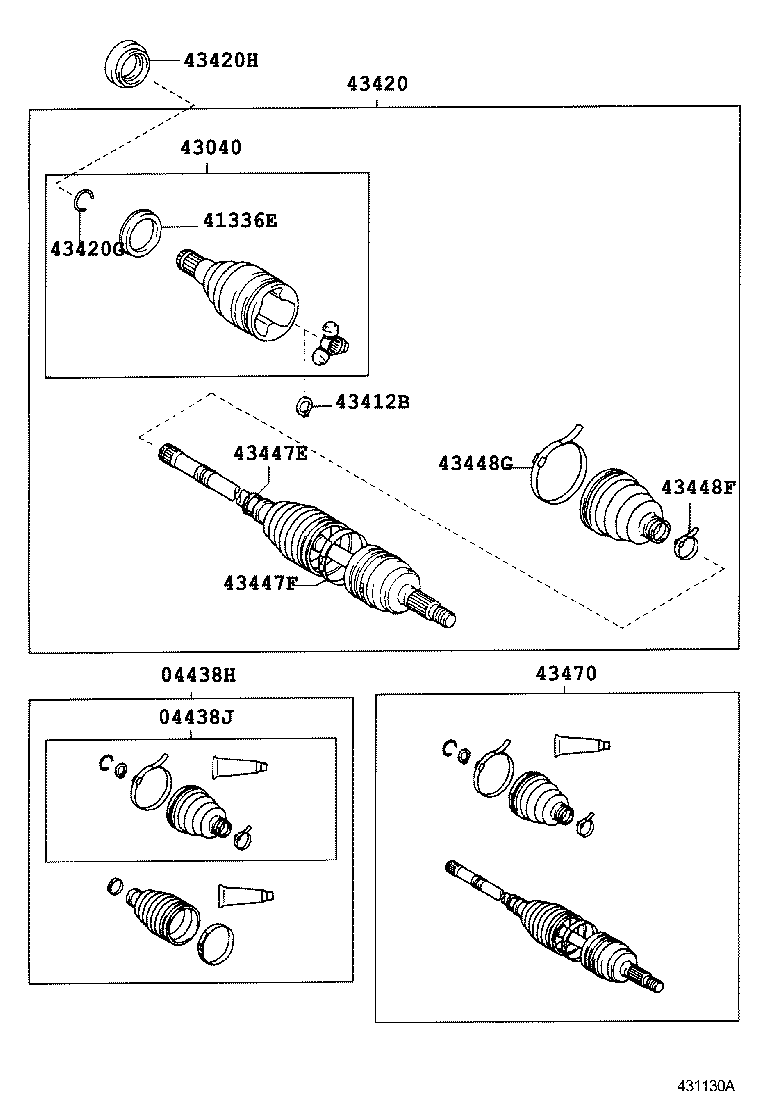

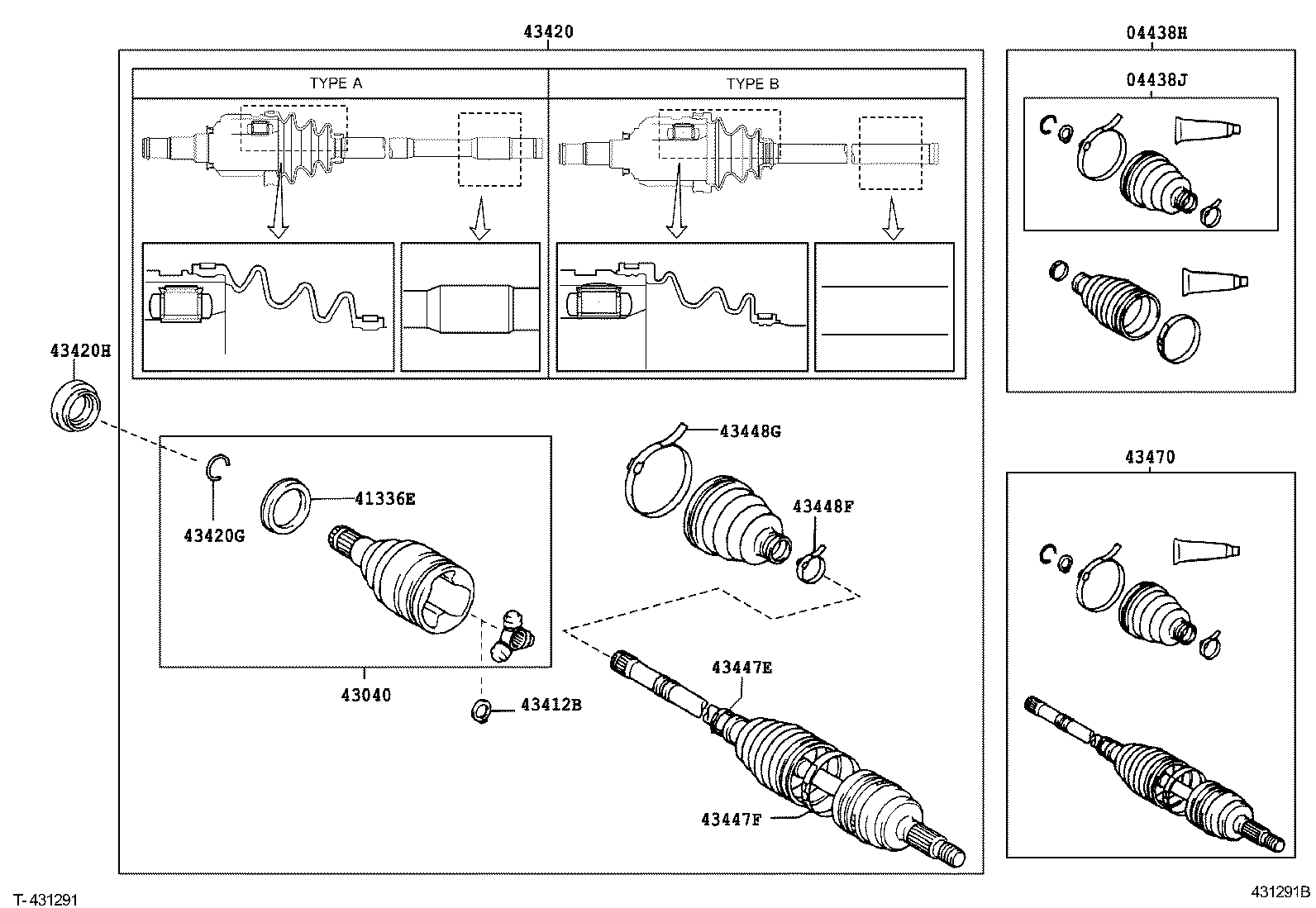

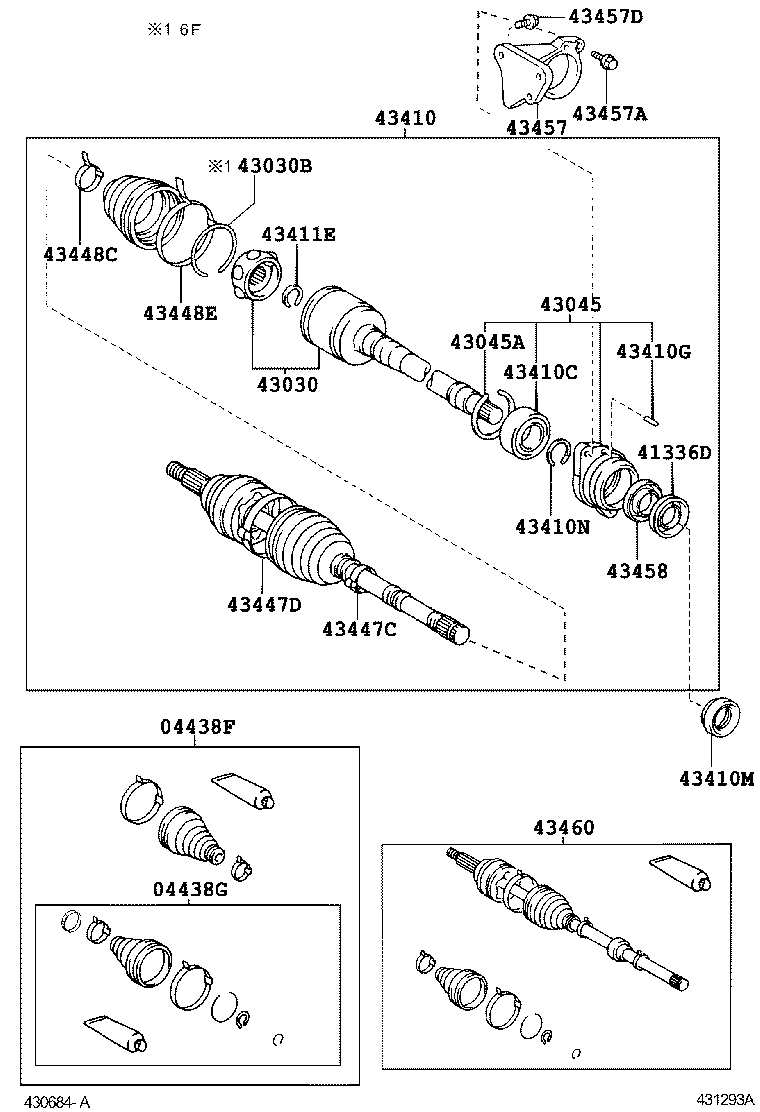

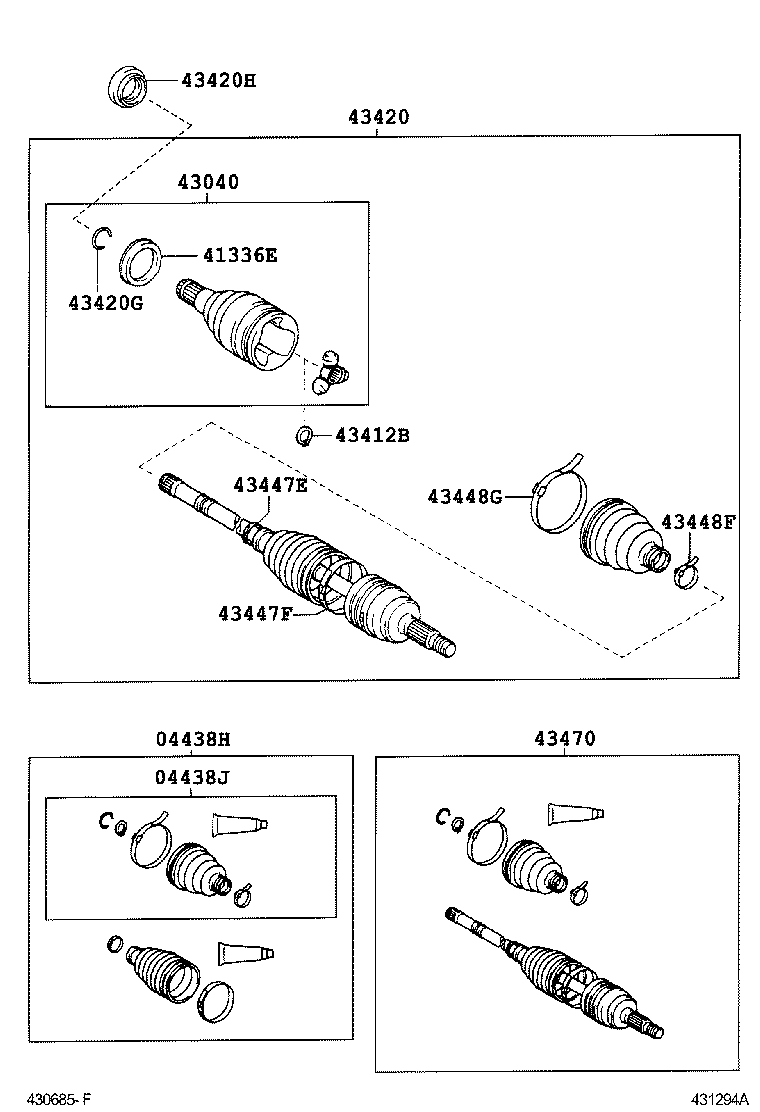

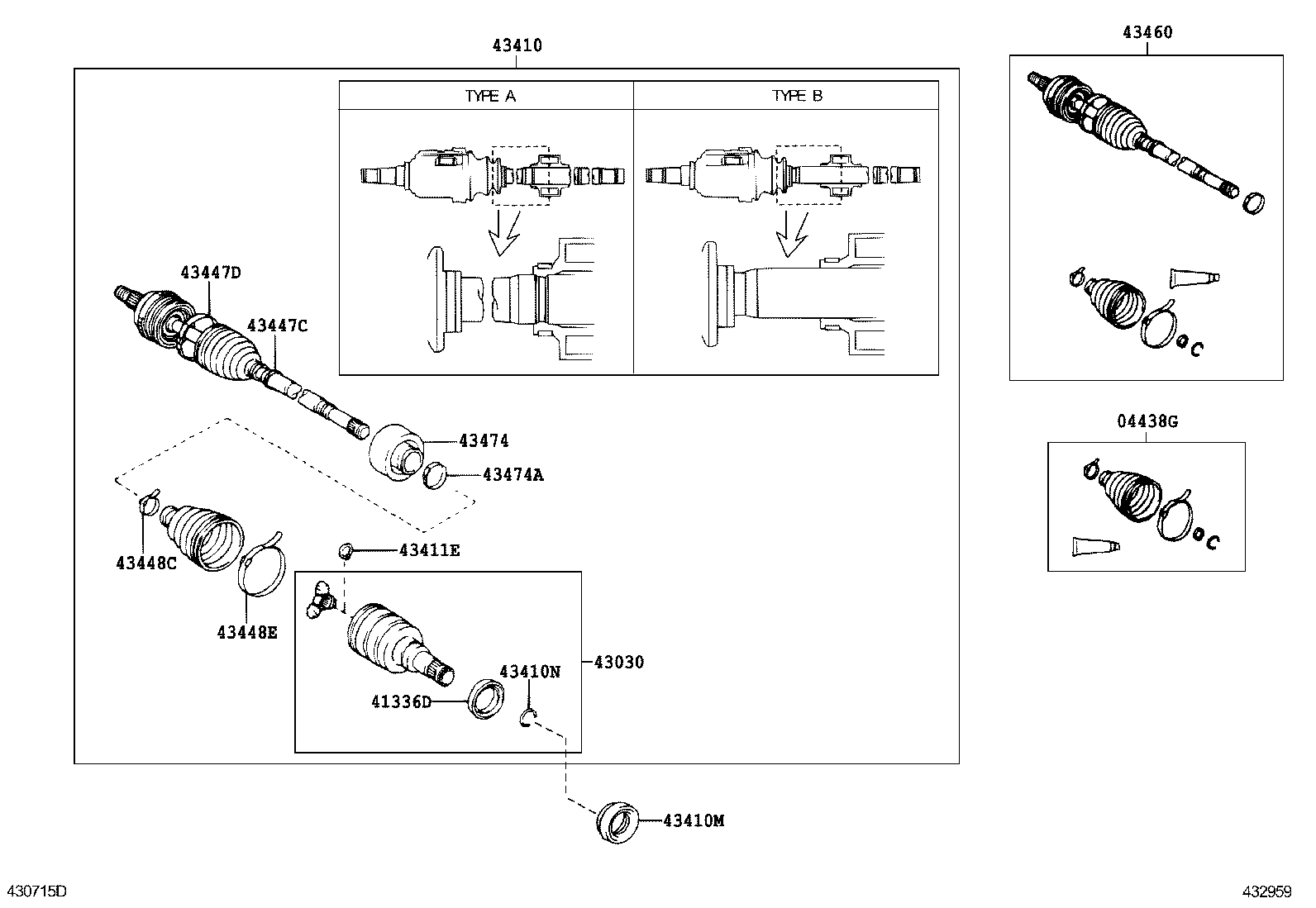

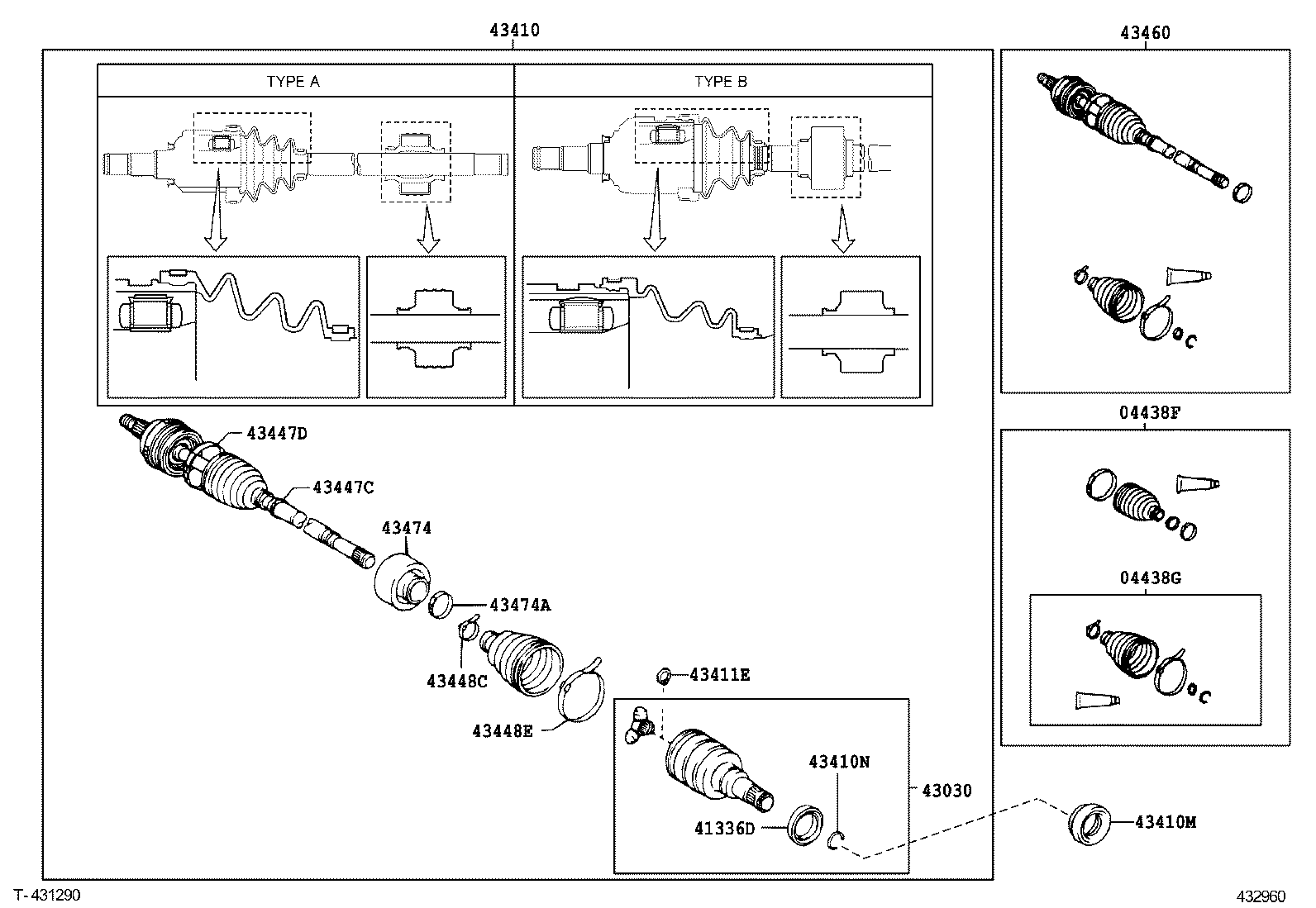

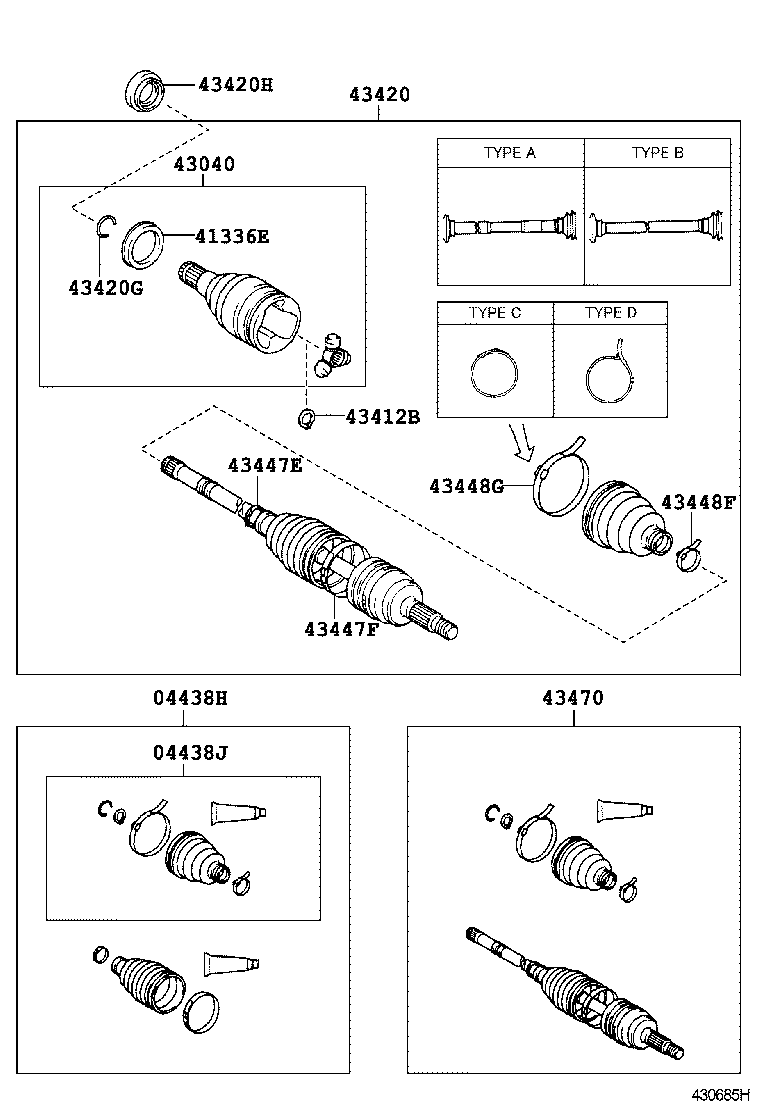

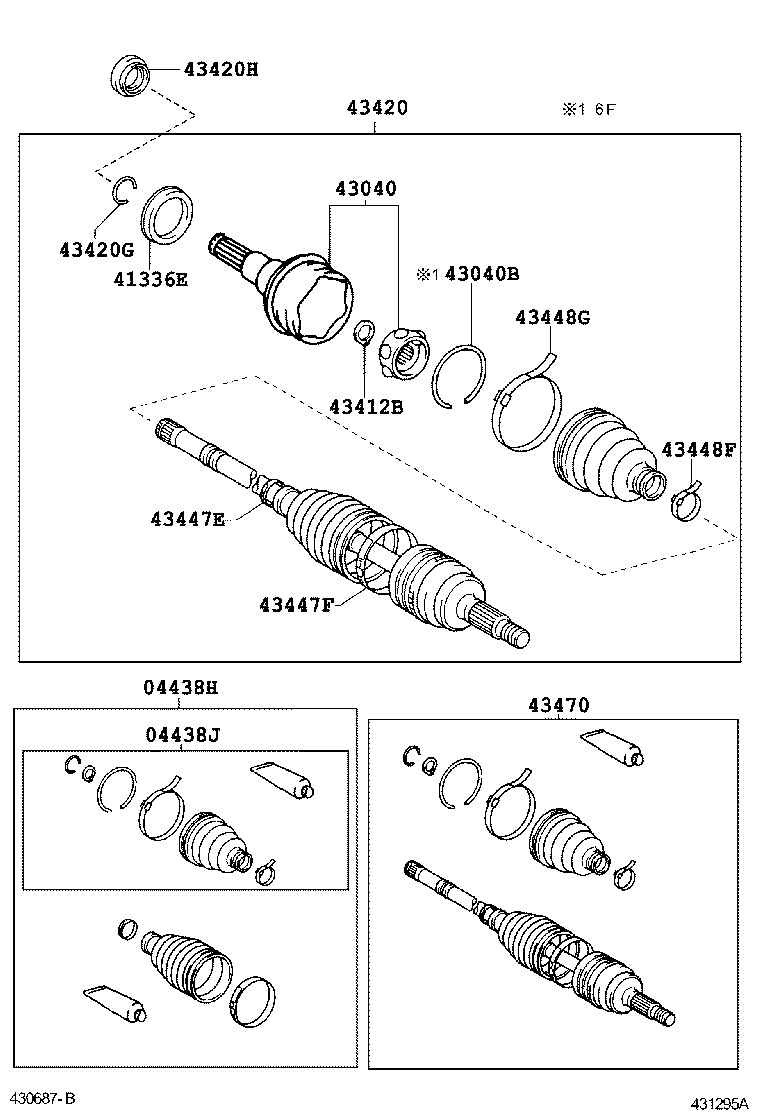

431999A 2001-01 → —

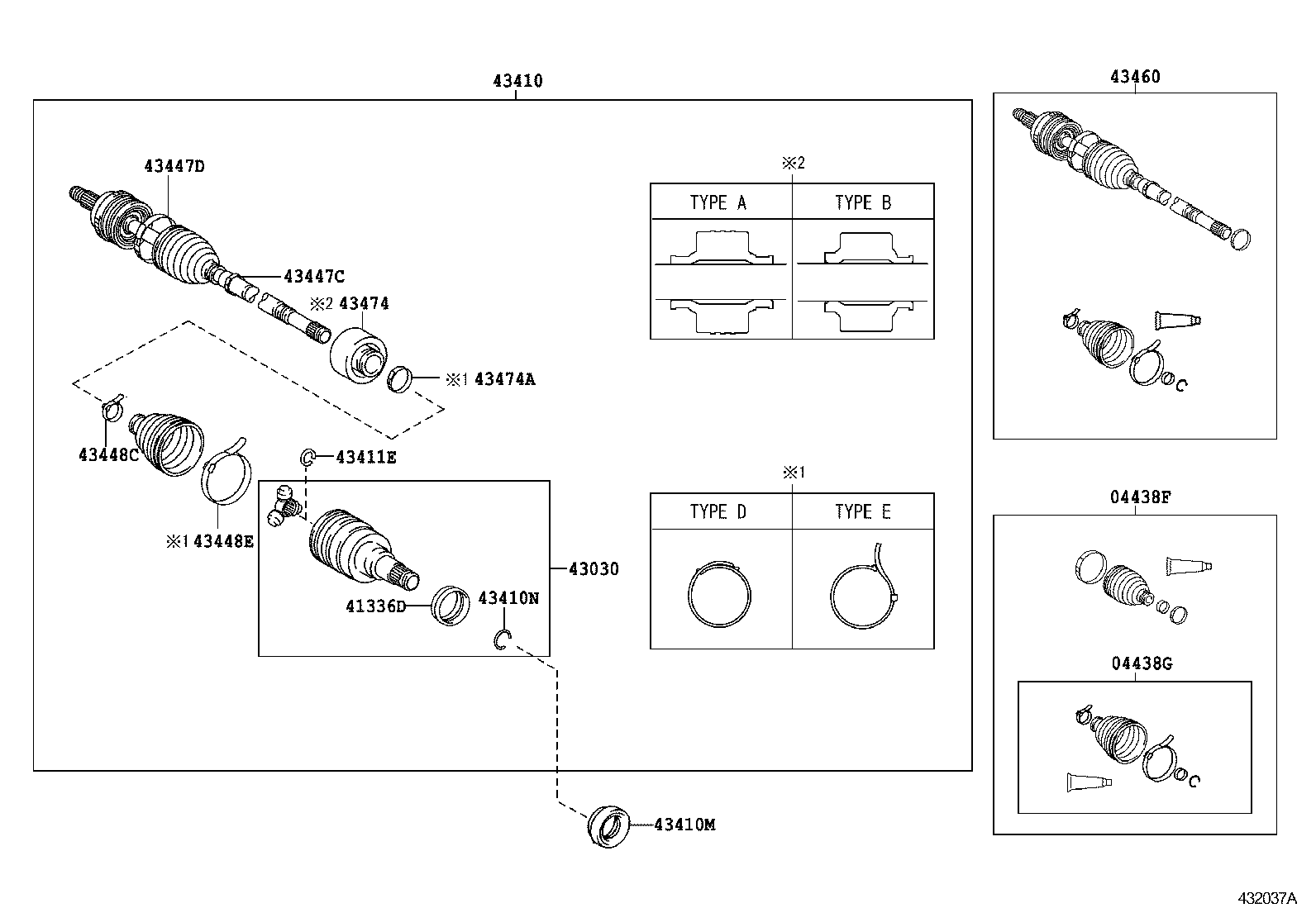

432037A 2001-01 → 2004-04

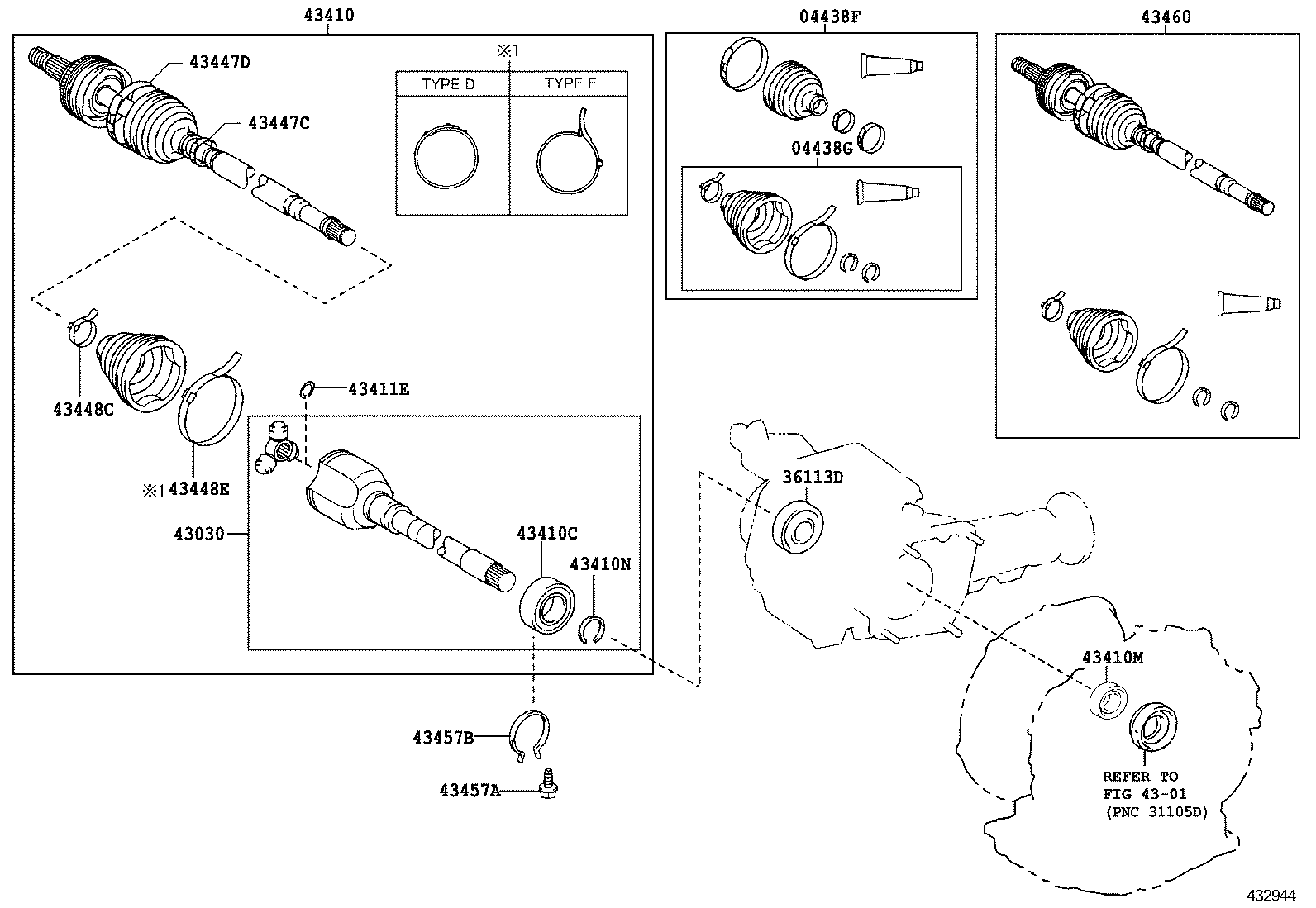

432944 2001-01 → 2004-04

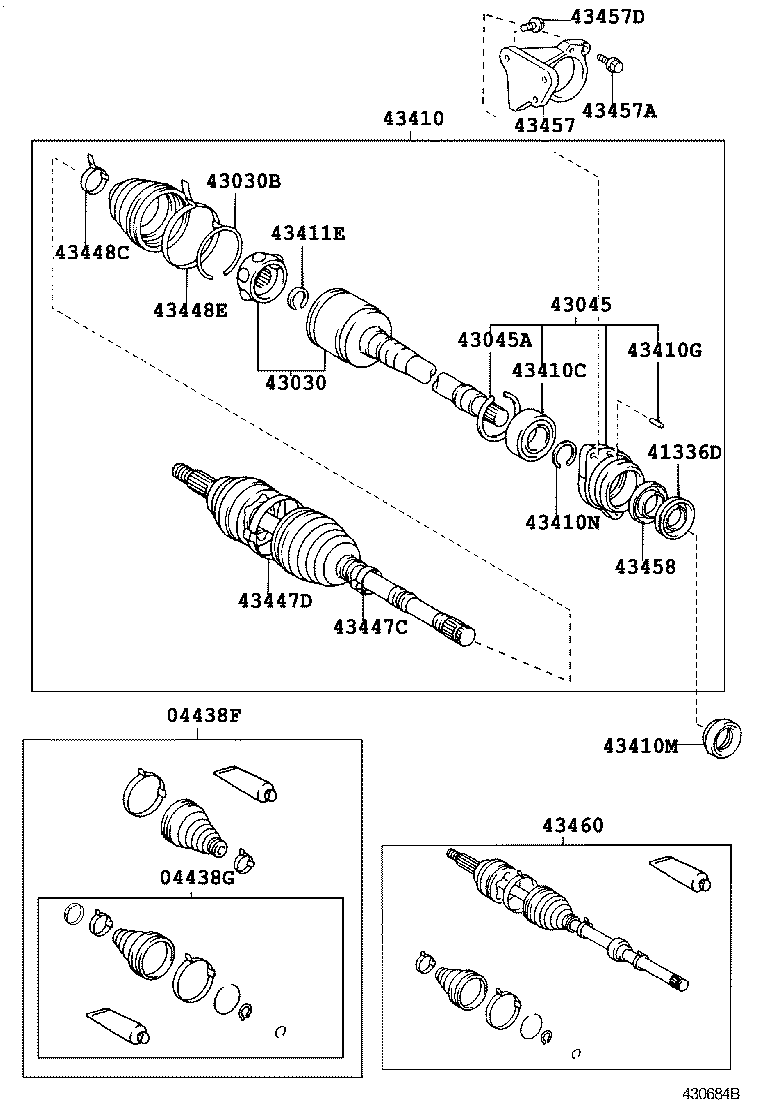

430684B 2001-01 → 2004-04

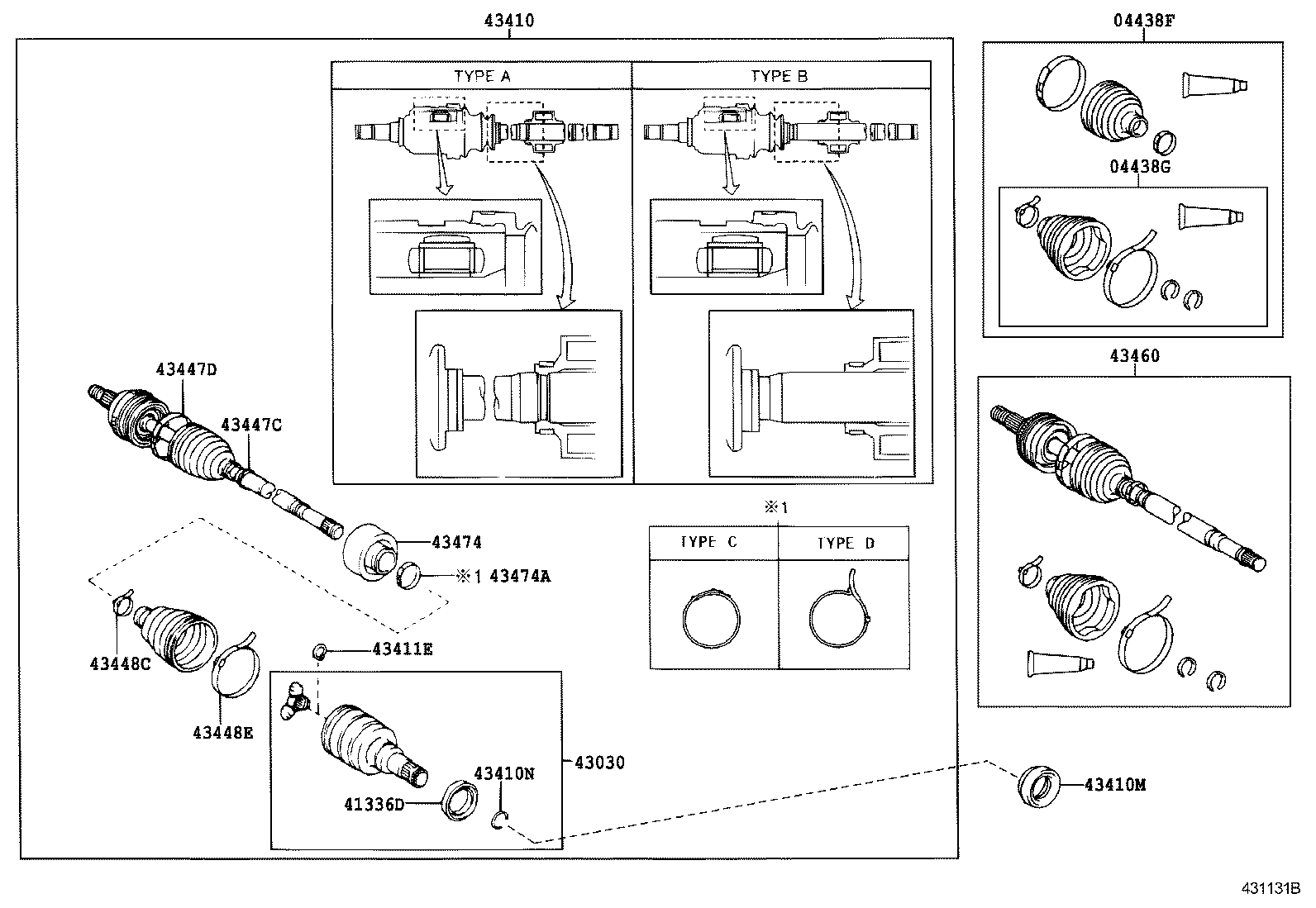

431131B 2002-09 → 2004-04

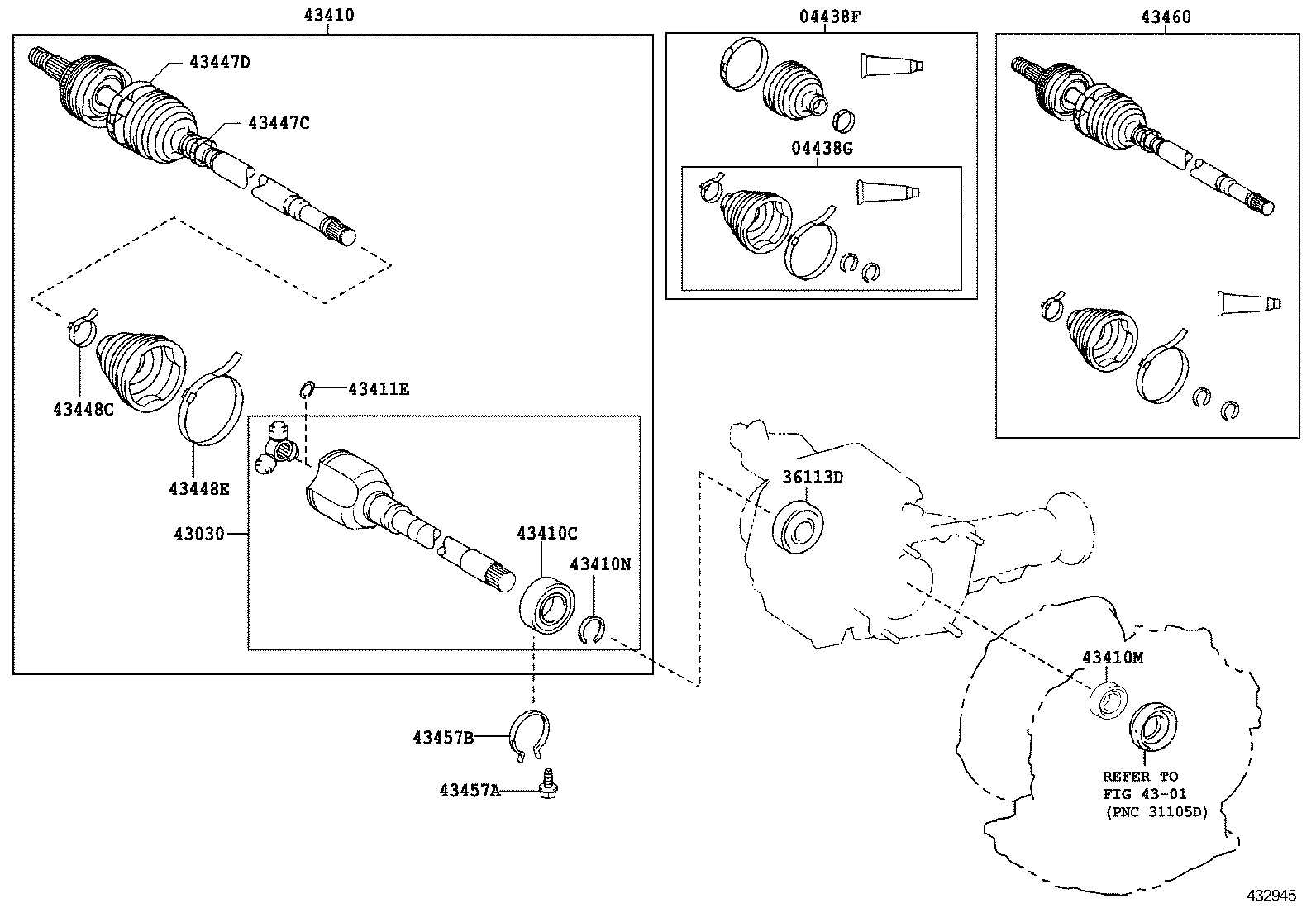

432945 2002-09 → 2004-04

430685H 2001-01 → 2004-04

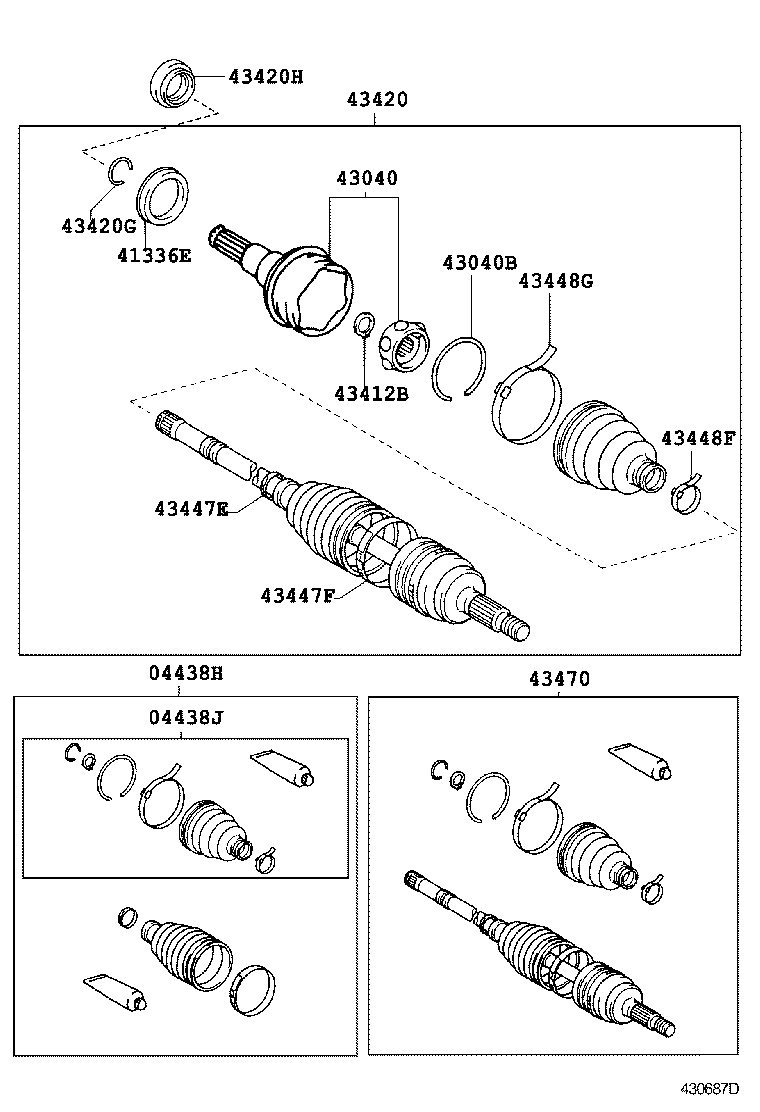

430687D 2001-01 → 2004-04

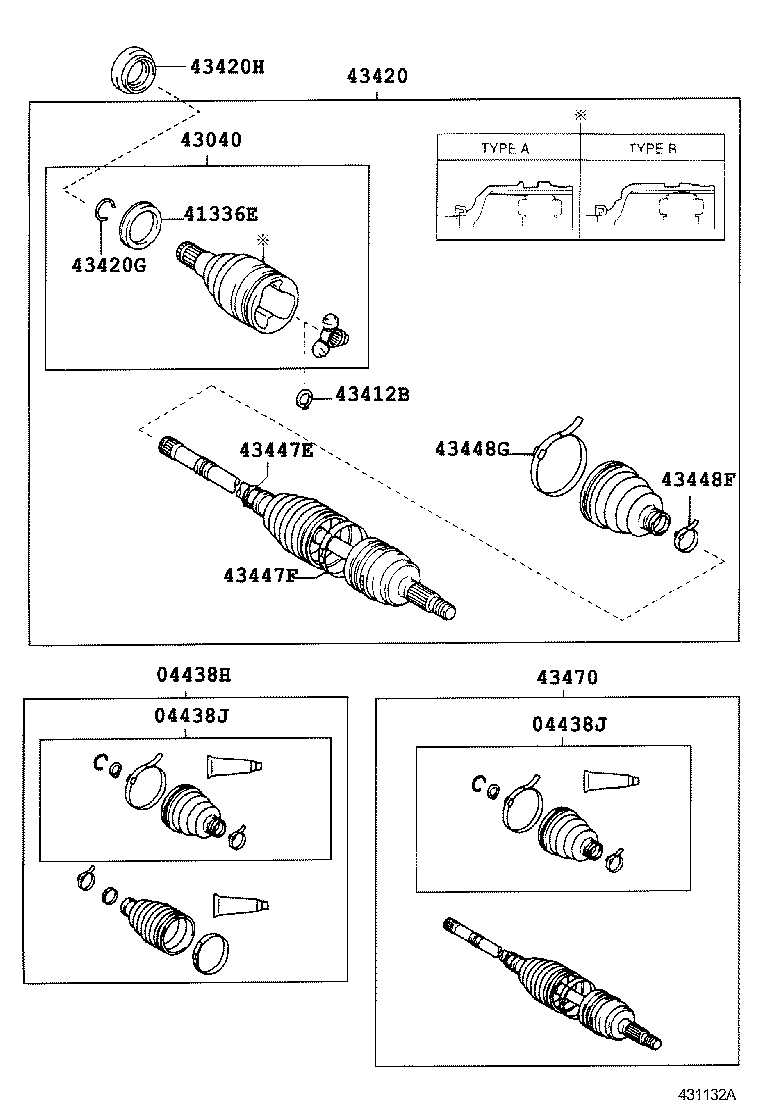

431132A 2002-09 → 2004-04

431130A 2002-09 → 2004-04

Part groups

PNC	Description
04438F	Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438G	Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H	Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J	Boot Kit, Front Drive Shaft Inboard Joint, LH
36113D	Seal, Oil (FOR TRANSFER CASE RH)
41336D	Cover, Front Drive Shaft Dust, RH
41336E	Cover, Front Drive Shaft Dust, LH
43030	Joint Assy, Front Drive Inboard, RH
43030B	Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
43040	Joint Assy, Front Drive Inboard, LH
43040B	Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
43045	Case Sub Assy, Drive Shaft Bearing
43045A	Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
43410	Shaft Assy, Front Drive, RH
43410C	Bearing (FOR FRONT DRIVE SHAFT)
43410G	Pin, Straight (FOR FRONT DRIVE SHAFT)
43410M	Oil Seal, Front Drive Shaft, RH
43410N	Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43411E	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412B	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43420	Shaft Assy, Front Drive, LH
43420G	Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43420H	Oil Seal, Front Drive Shaft, LH
43447C	Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D	Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447E	Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447F	Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448C	Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448E	Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448F	Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G	Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43457	Bracket, Drive Shaft Bearing
43457A	Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43457B	Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
43457D	Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43458	Cover, Front Drive Shaft Dust
43460	Shaft Assy, Front Drive Outboard Joint, RH
43470	Shaft Assy, Front Drive Outboard Joint, LH
43474	Damper, Drive Shaft
43474A	Clamp (FOR DRIVE SHAFT DAMPER SETTING)
