Toyota Sprinter

1979-03 → 1983-04 · chassis KE70,AE70,TE7#,CE70 · catalogue 162140 · Japan

Discontinued model Data version 1983-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

27 part groups · 11 illustrations

Illustrations

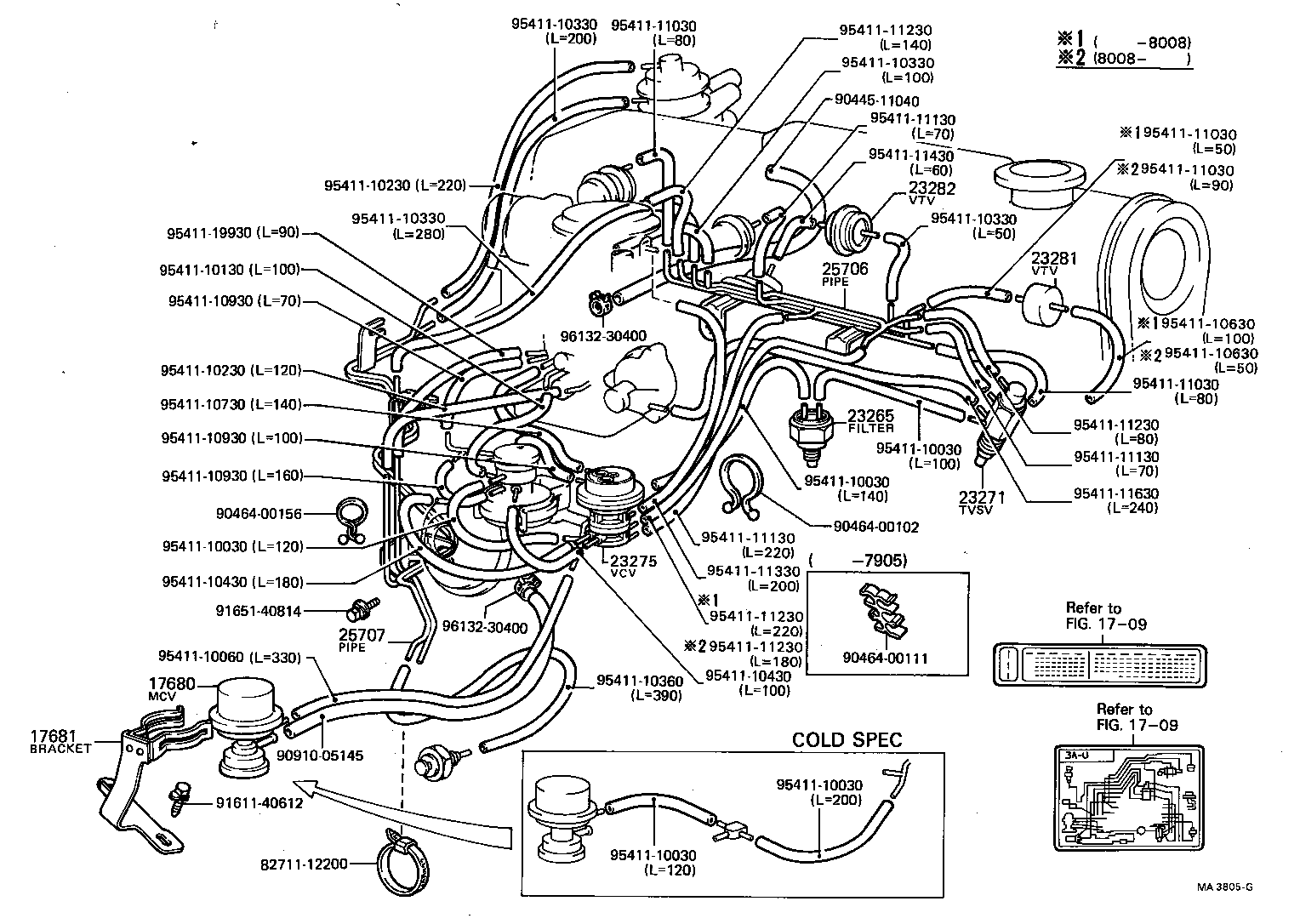

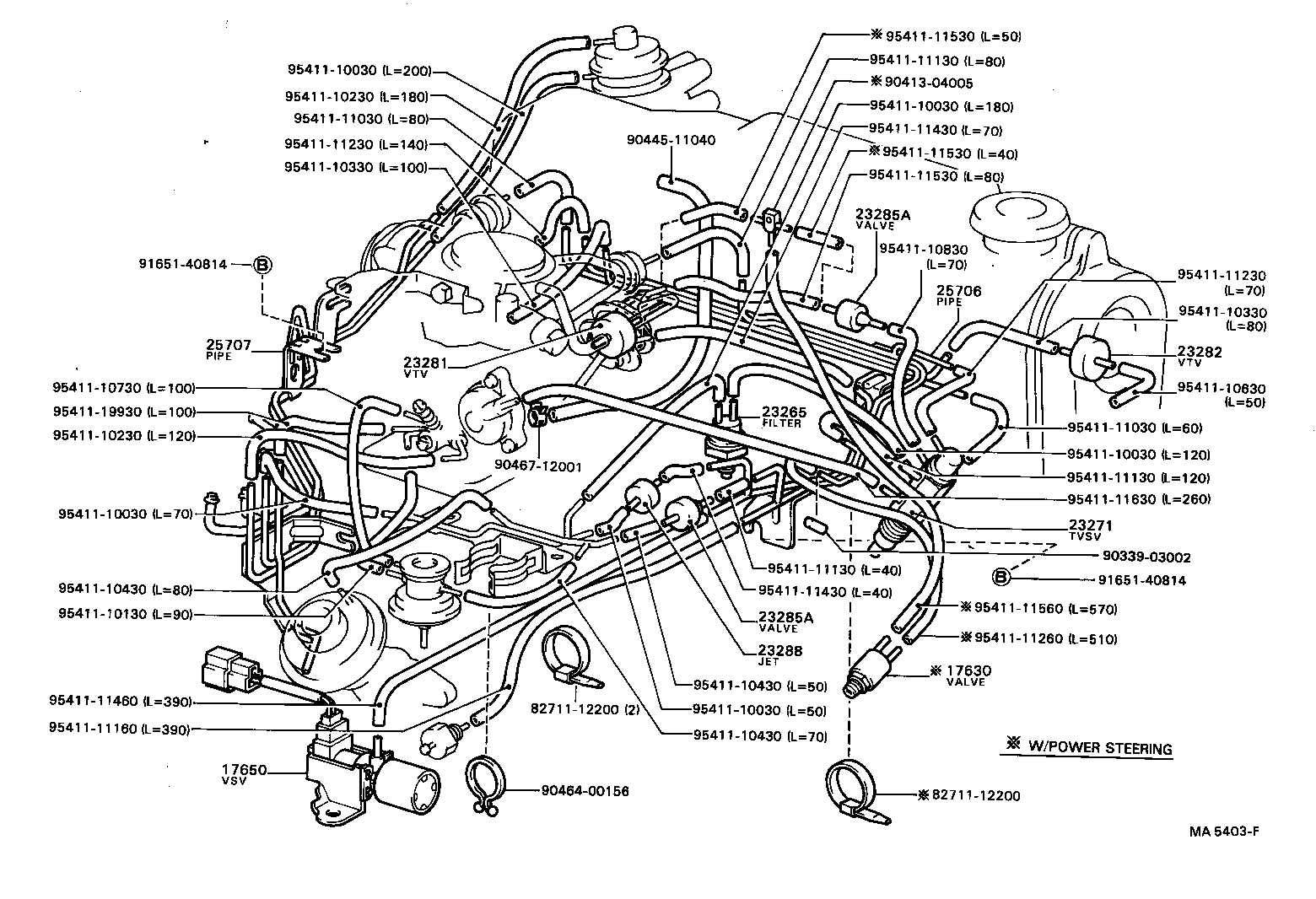

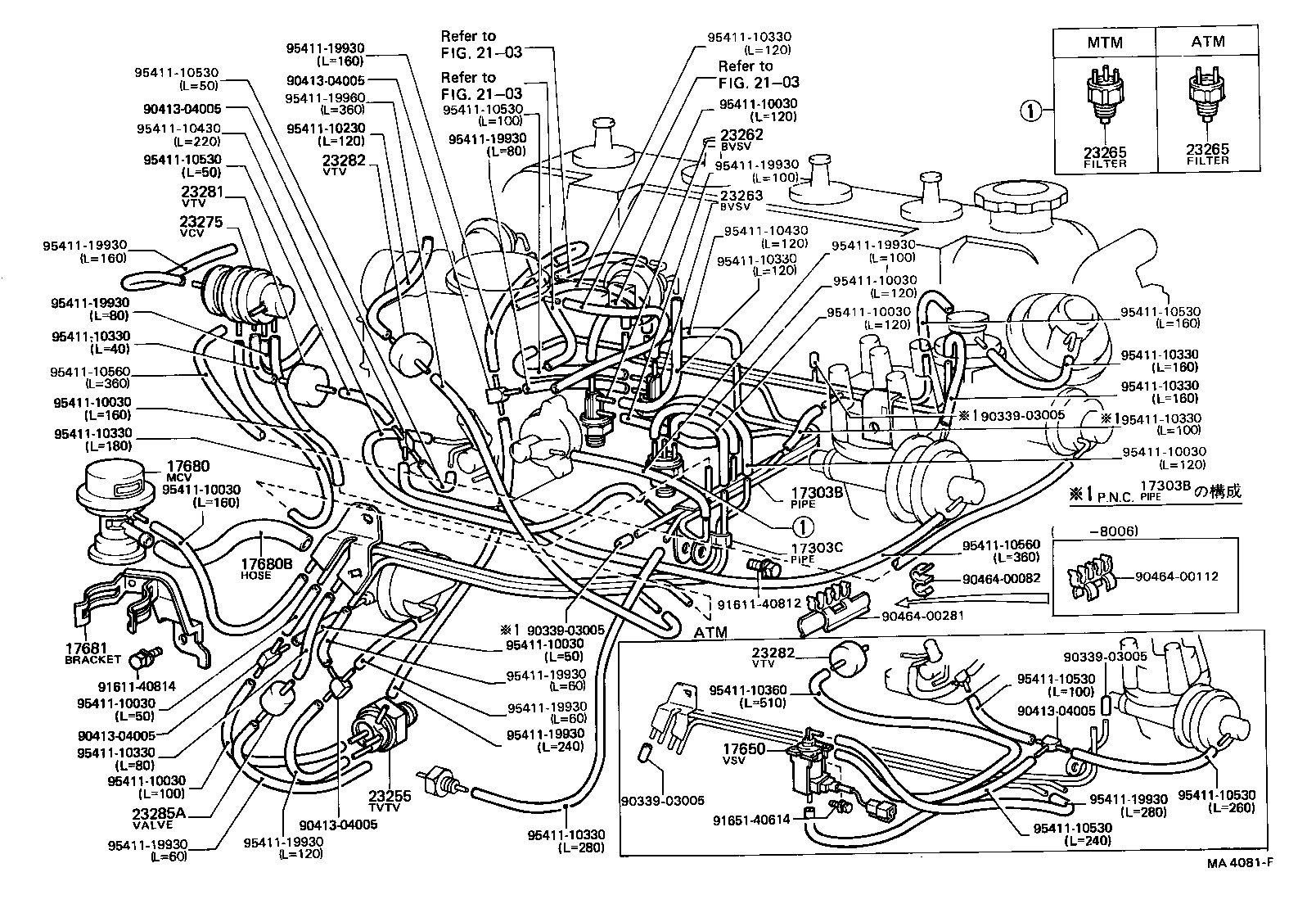

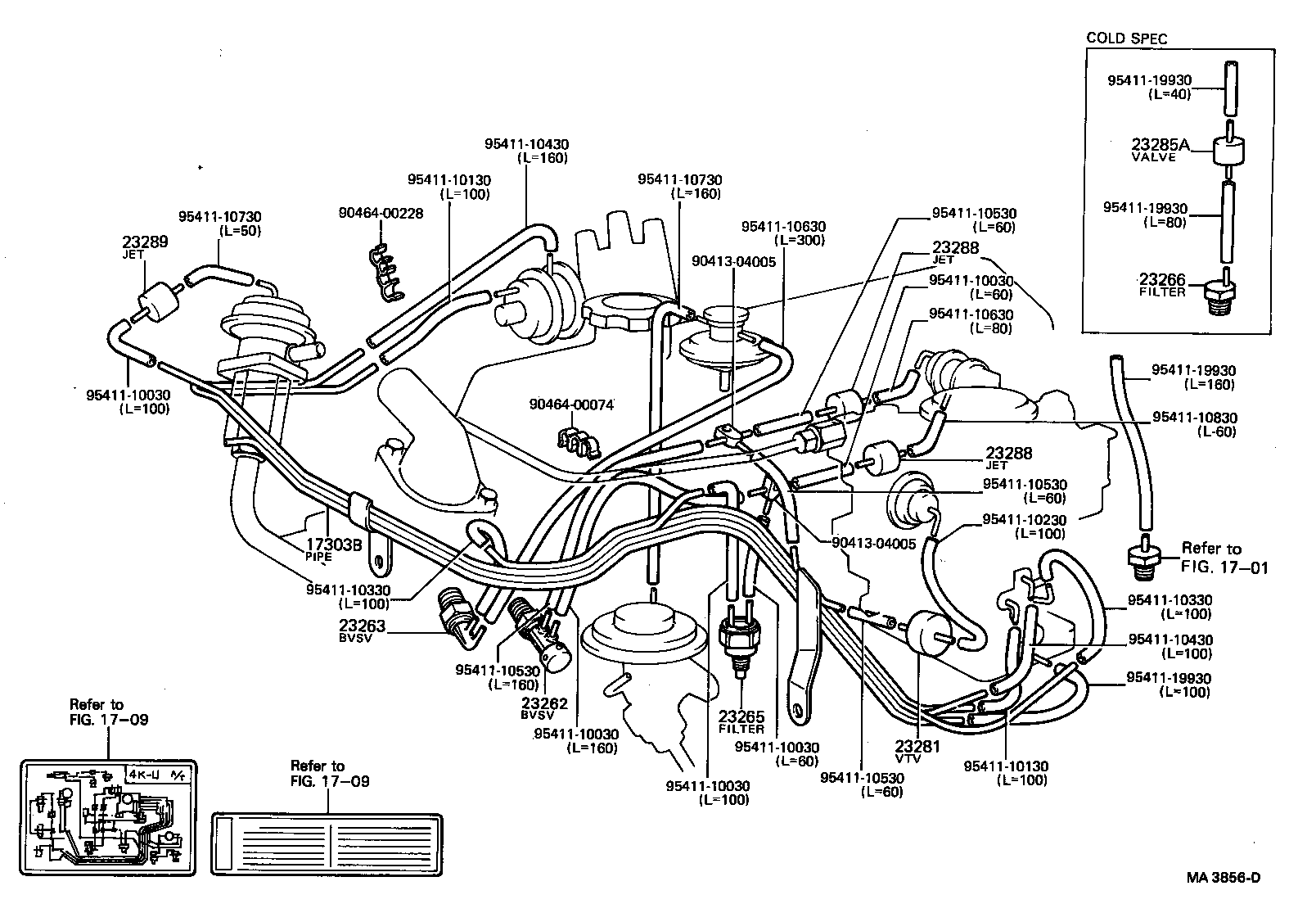

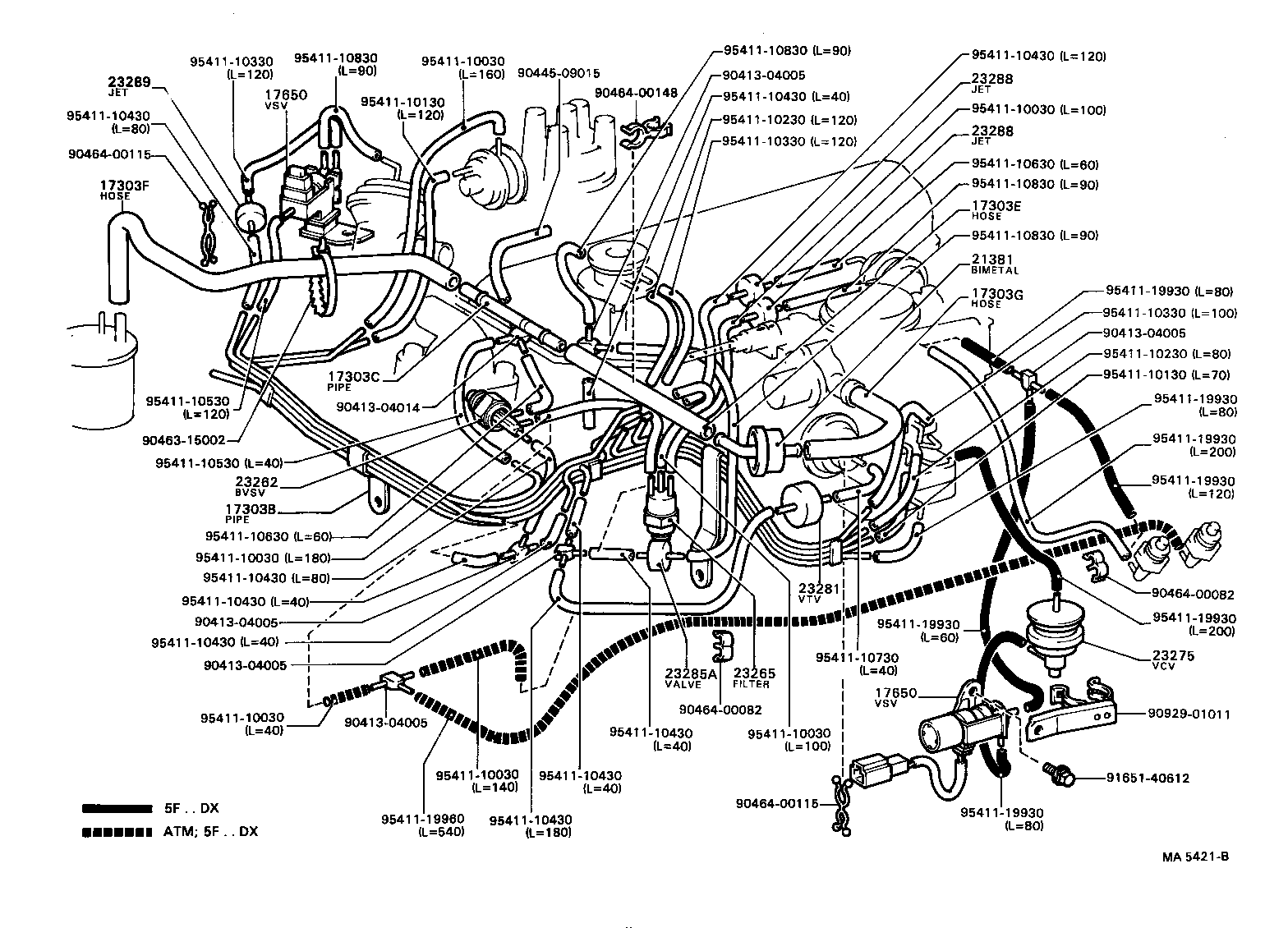

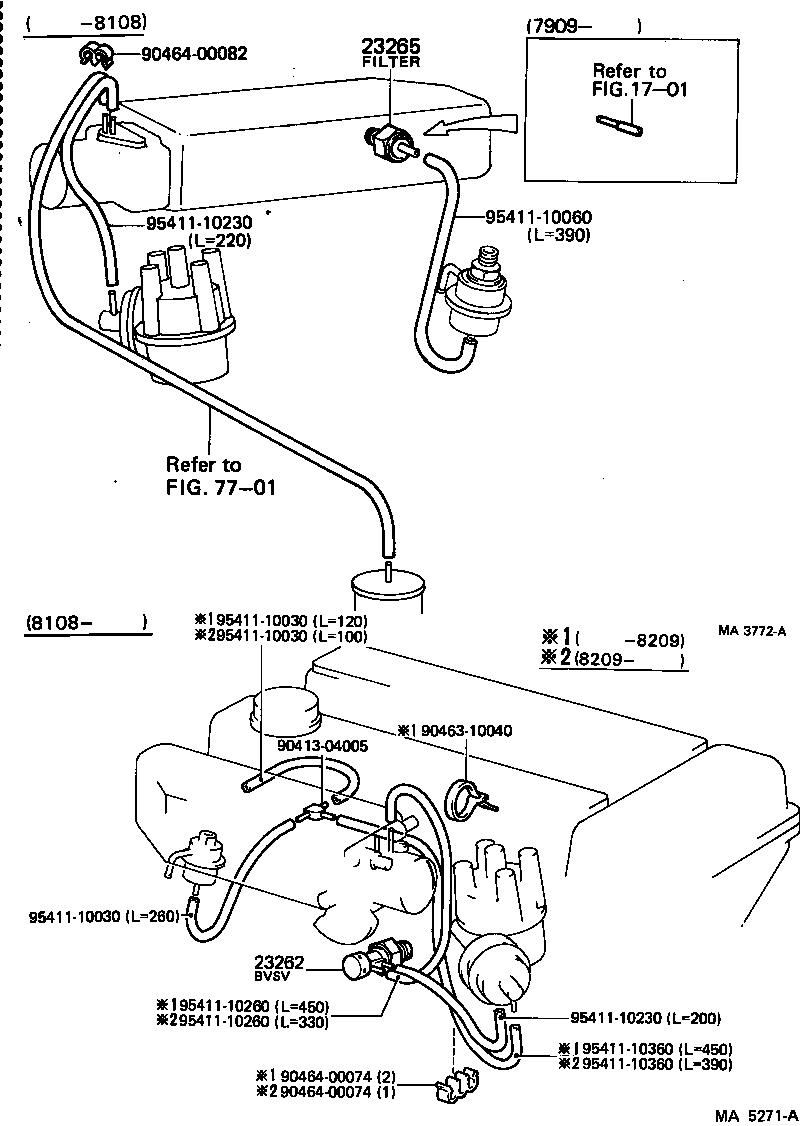

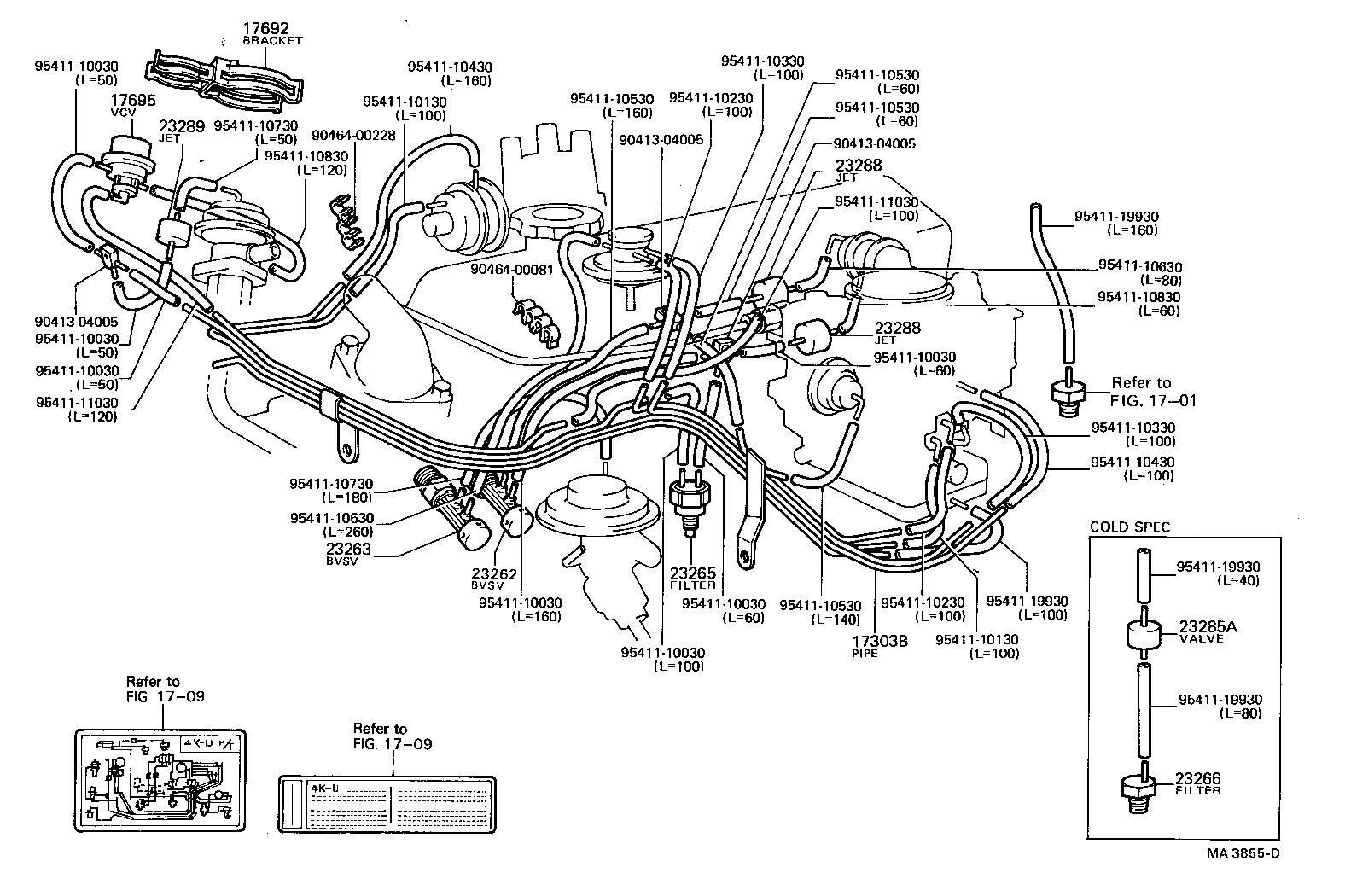

Figure MA9500 MA9500 1979-03 → — Figure MA3805G MA3805G 1979-03 → 1981-08 Figure MA5403F MA5403F 1981-08 → — Figure MA9500 MA9500 1979-03 → — Figure MA9500 MA9500 1979-03 → — Figure MA3855D MA3855D 1979-03 → 1981-08 Figure MA3856D MA3856D 1979-03 → 1981-08 Figure MA5421B MA5421B 1981-08 → — Figure MA9500 MA9500 1979-03 → — Figure MA4081F MA4081F 1979-08 → 1981-08 Figure AS0285A AS0285A 1979-03 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303C Pipe Sub-assy, Air, NO.2
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17303G Hose, NO.3(FOR AIR PIPE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17681 Bracket, Mixture Control Valve
17692 Bracket, Vacuum Control Valve, NO.2
17695 Valve Assy, Vacuum Control
21381 Bimetal, Thermostatic
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
