Heating & Air Conditioning - Cooler Piping

21 part groups · 5 illustrations

Illustrations

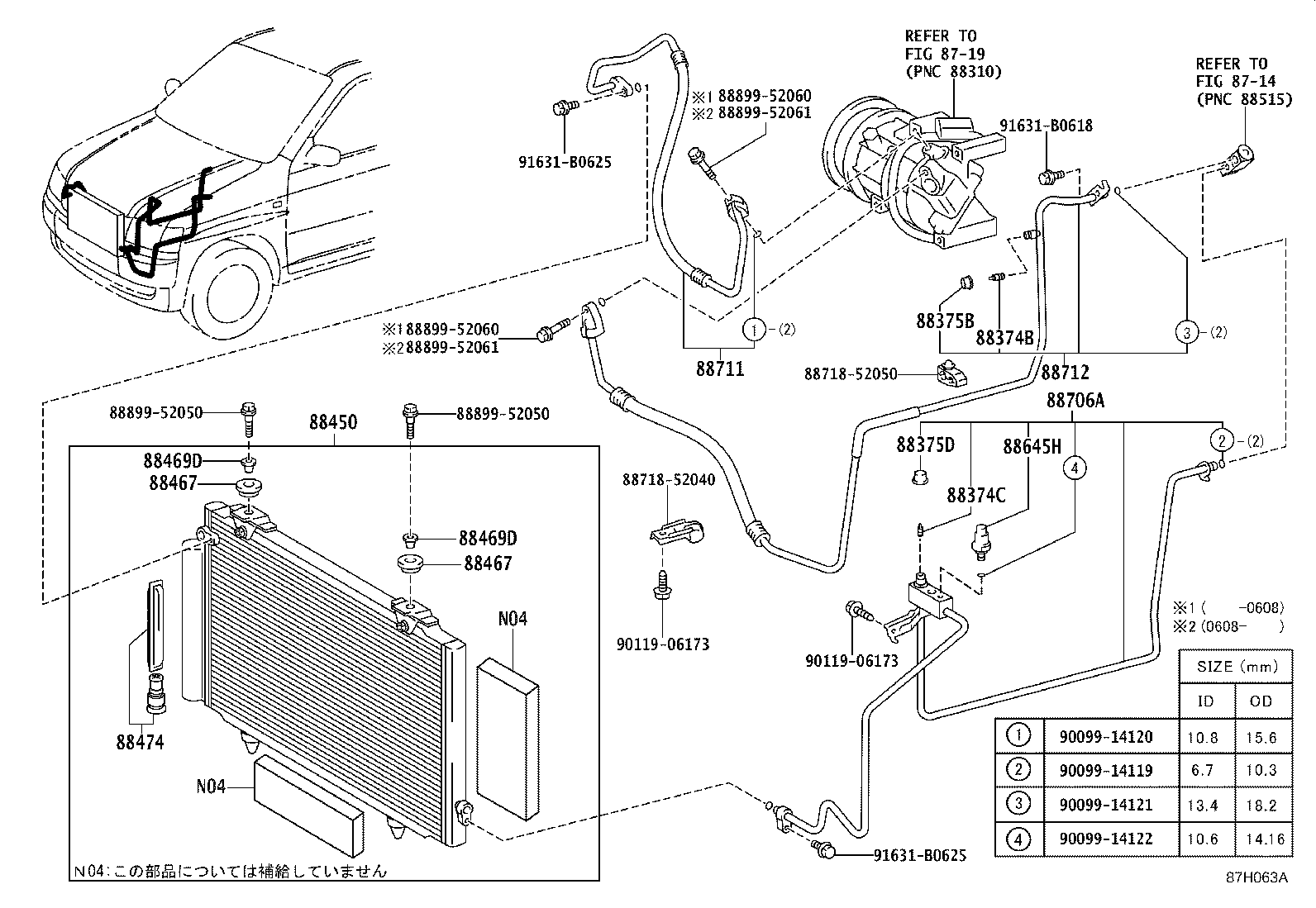

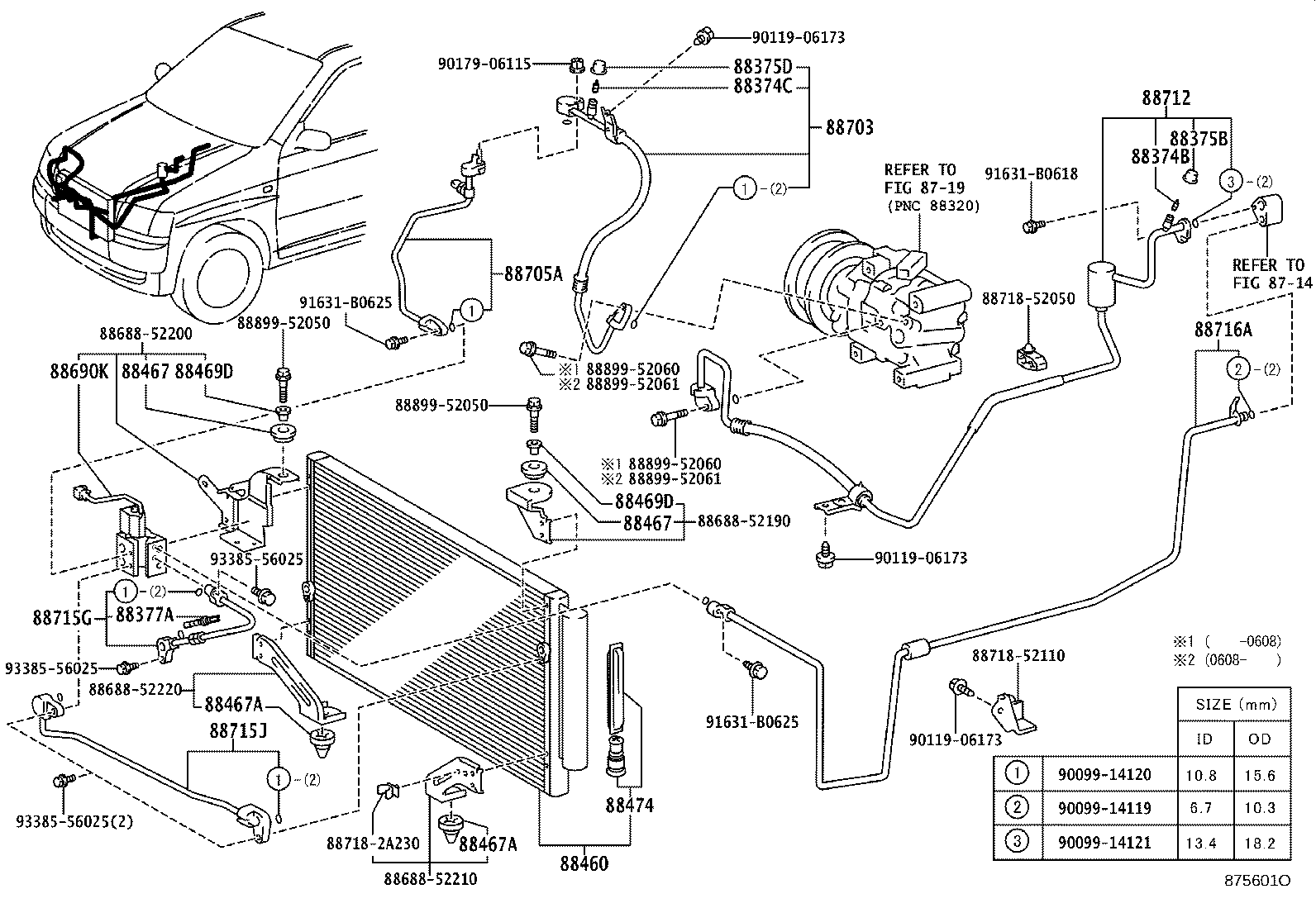

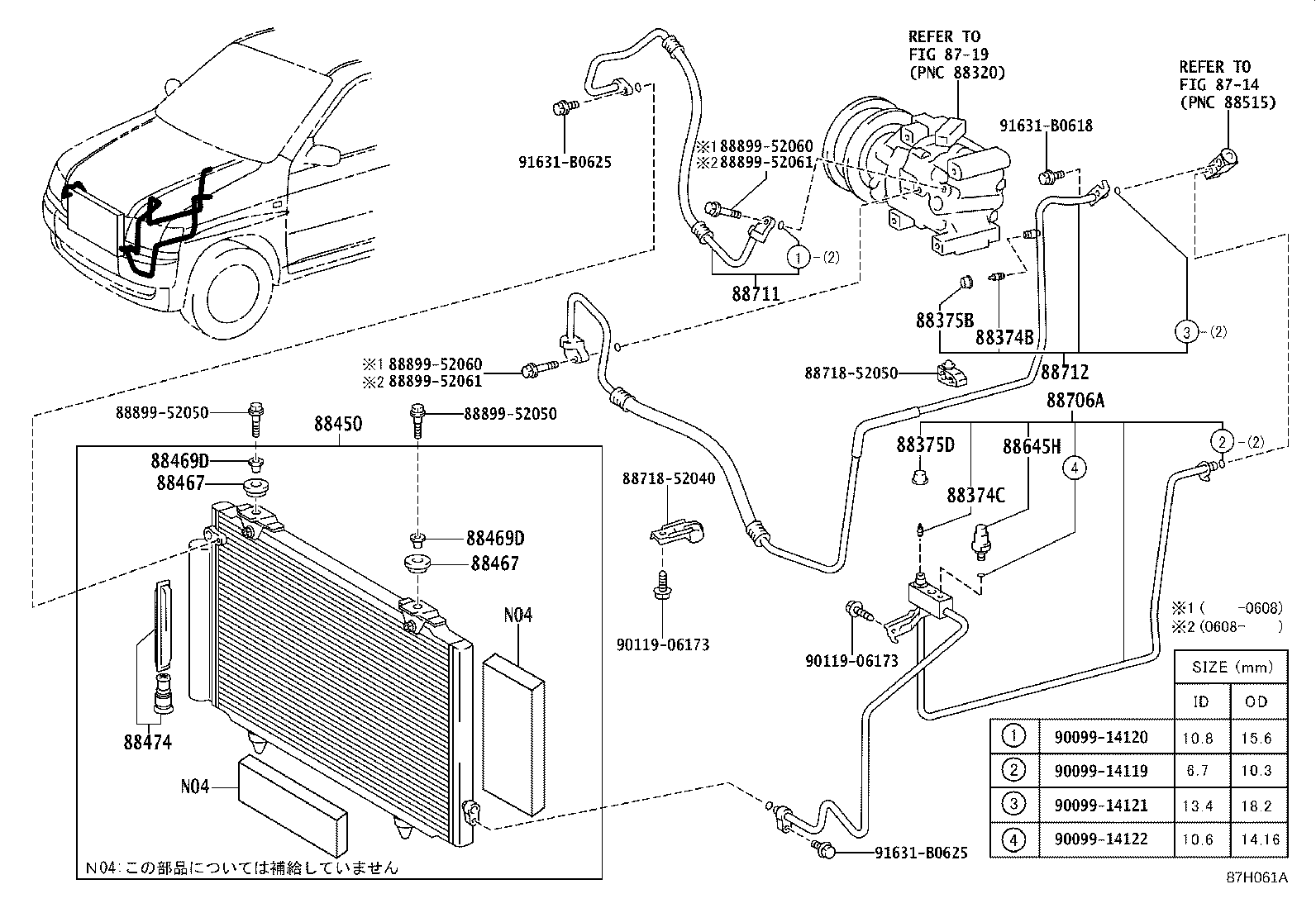

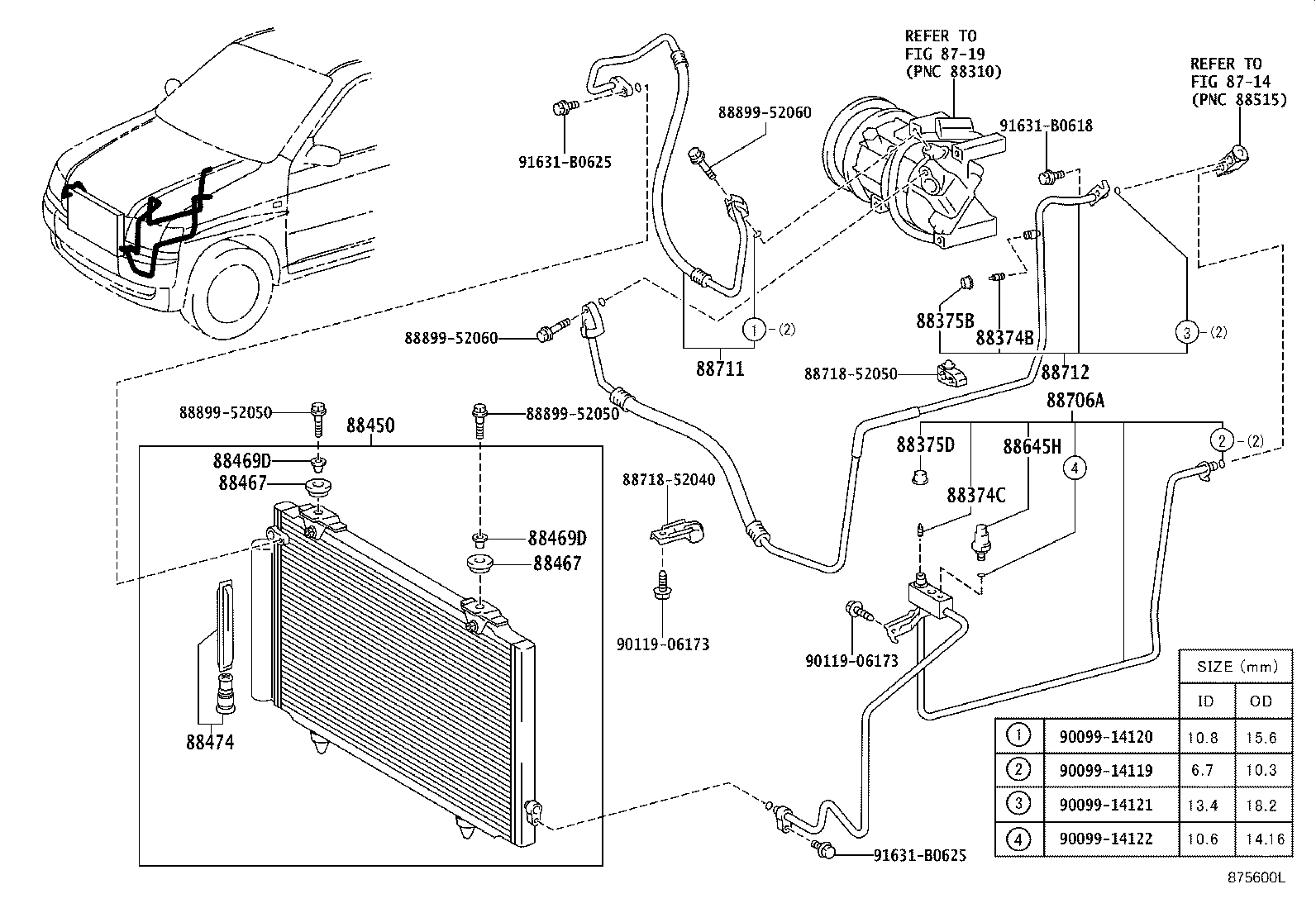

Figure 875599K 875599K 2002-06 → 2002-12 Figure 87H061A 87H061A 2002-12 → — Figure 875600L 875600L 2002-06 → 2002-12 Figure 87H063A 87H063A 2002-12 → — Figure 875601O 875601O 2002-06 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88377A Filter, Refrigerant
88450 Condenser Assy, W/Receiver
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88690K Valve Assy, Magnet
88703 Hose Sub-assy, Discharge
88705A Tube Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715G Tube, Discharge, G
88715J Tube, Discharge, J
88716A Pipe, Cooler Refrigerant Liquid, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
