Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

16 part groups · 7 illustrations

Illustrations

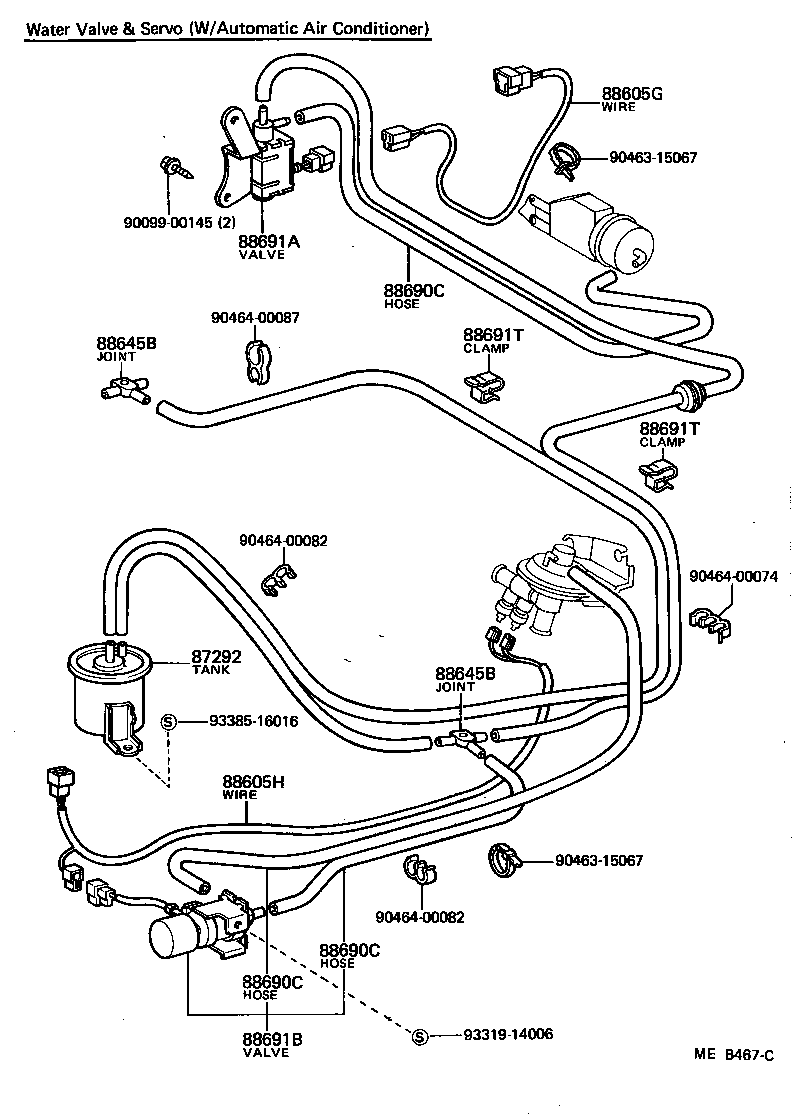

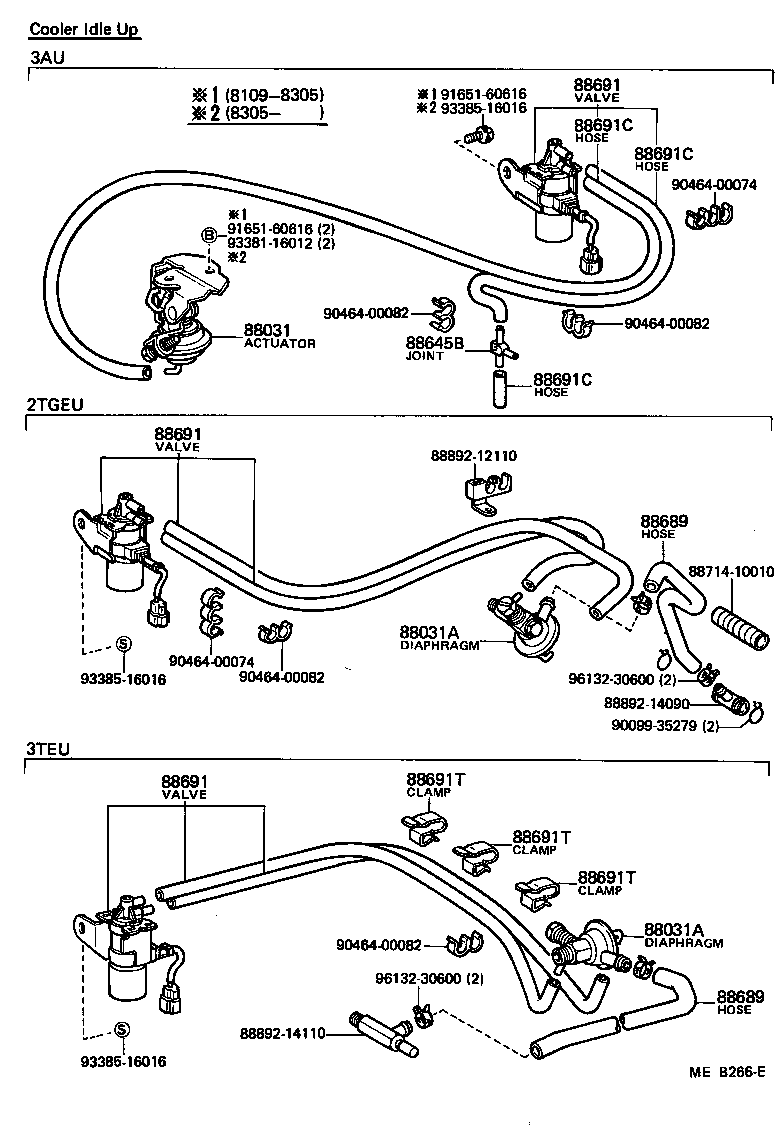

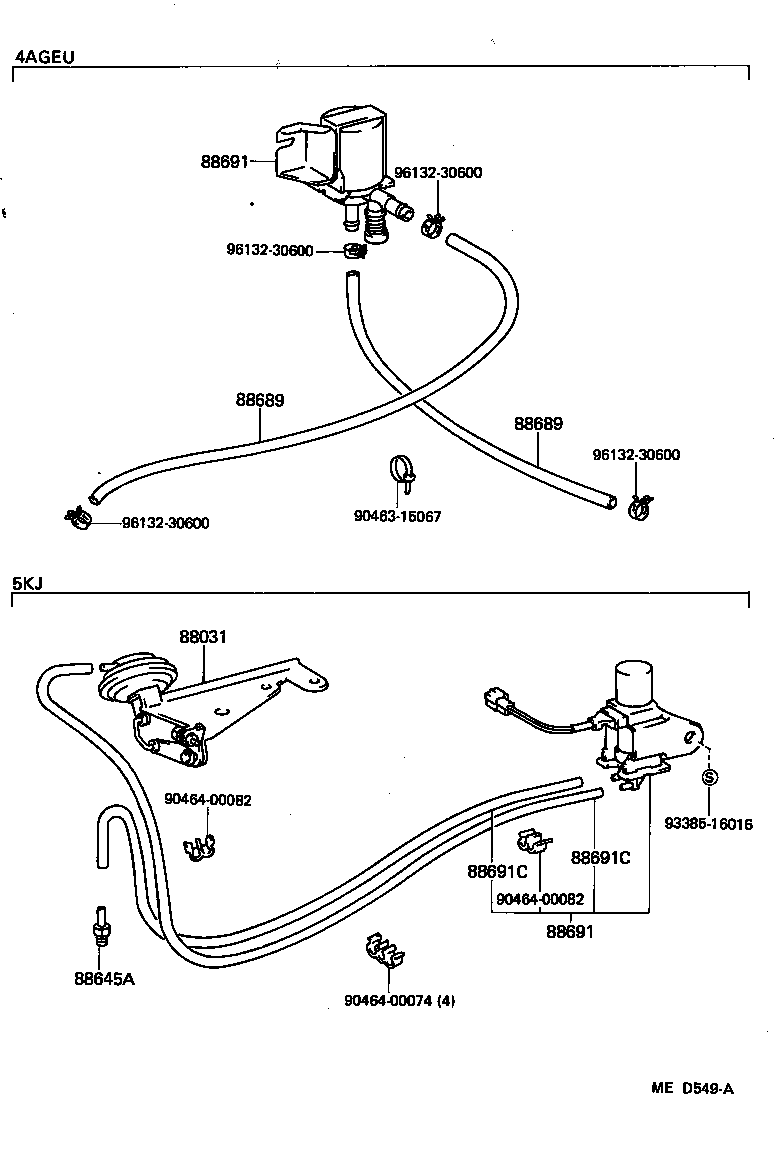

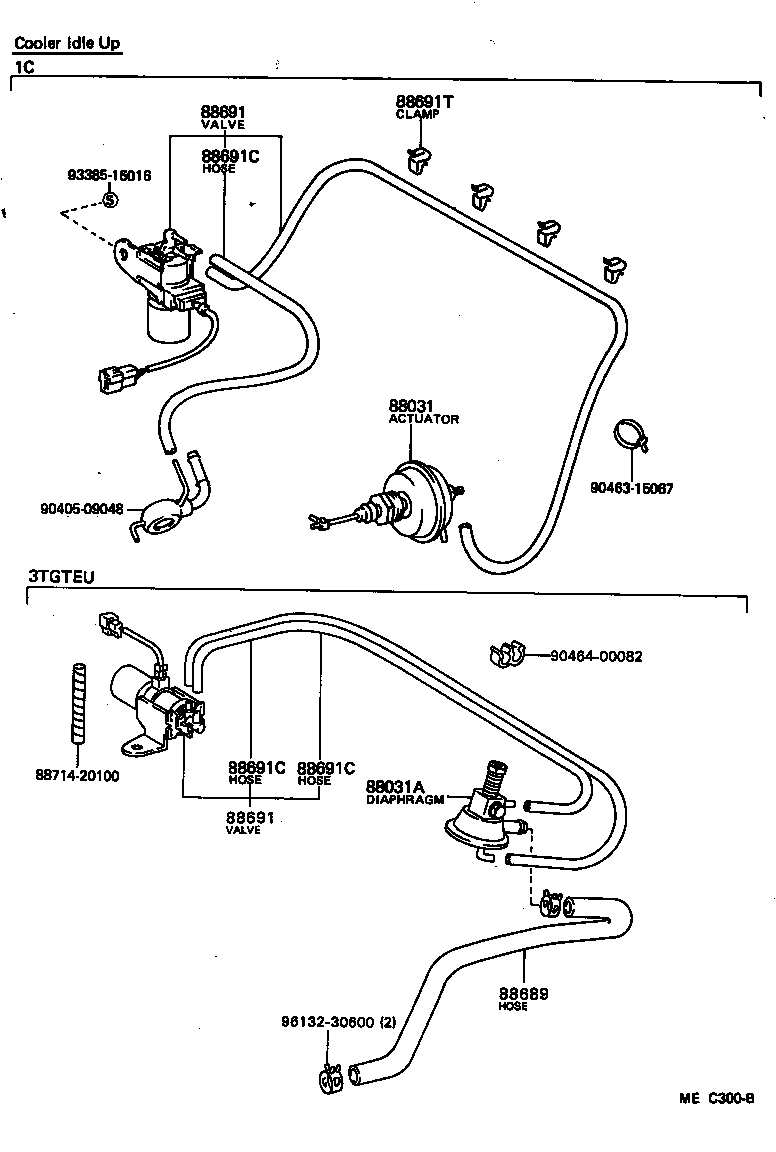

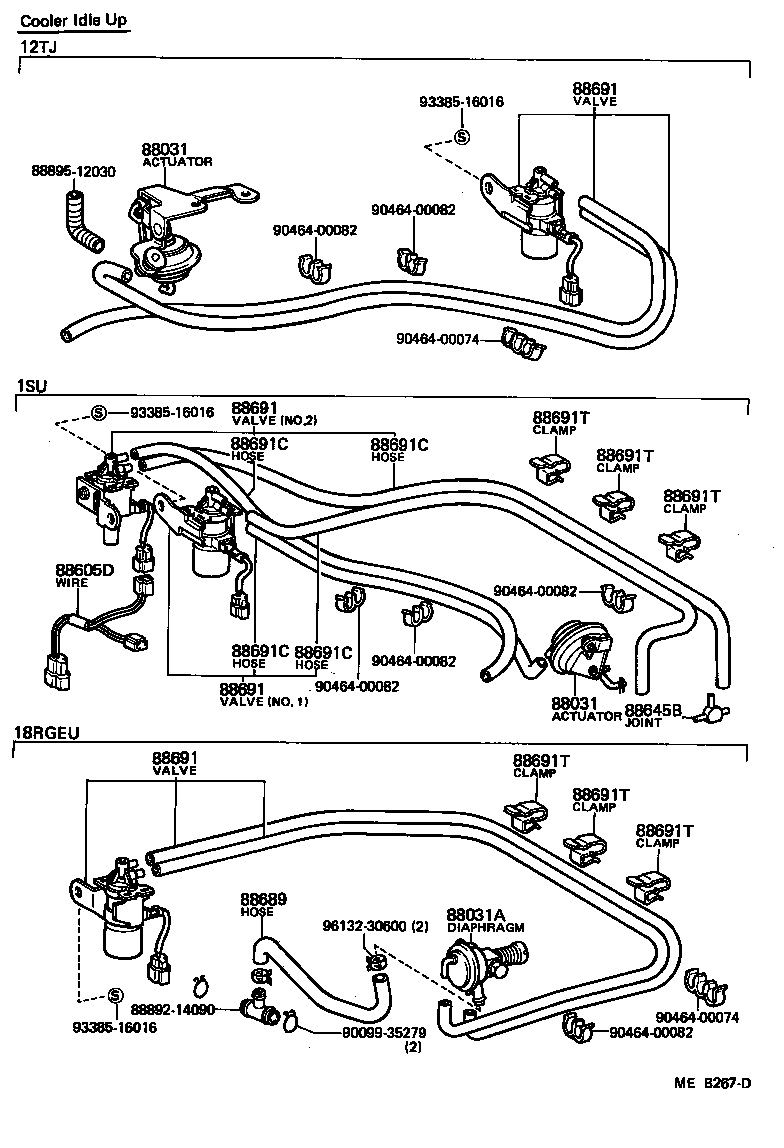

Figure MEA549B MEA549B 1981-09 → 1988-04 Figure MEB266E MEB266E 1981-09 → 1988-04 Figure MED549A MED549A 1983-05 → 1985-07 Figure MED549A MED549A 1983-08 → — Figure MEB267D MEB267D 1981-09 → 1988-04 Figure MEC300B MEC300B 1982-02 → 1988-04 Figure MEB467C MEB467C 1981-09 → 1988-04

Part groups

PNCDescription
87292 Tank, Vacuum
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88605D Wire, Air Conditioner
88605G Wire, Air Conditioner, NO.2
88605H Wire, Air Conditioner, NO.3
88645A Union (FOR IDLE UP DEVICE)
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88689 Hose, Damper Control Diaphragm Vacuum
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691A Valve, Magnet (FOR BLOWER CHANGING-OVER DEVICE)
88691B Valve, Magnet (FOR WATER VALVE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691S Clamp (FOR IDLE UP DIVICE), NO.1
88691T Clamp (FOR IDLE UP DIVICE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
