Toyota Prius A(ALPHA)

2011-04 → present · chassis ZVW4# · catalogue 225110 · Japan

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

21 part groups · 2 illustrations

Illustrations

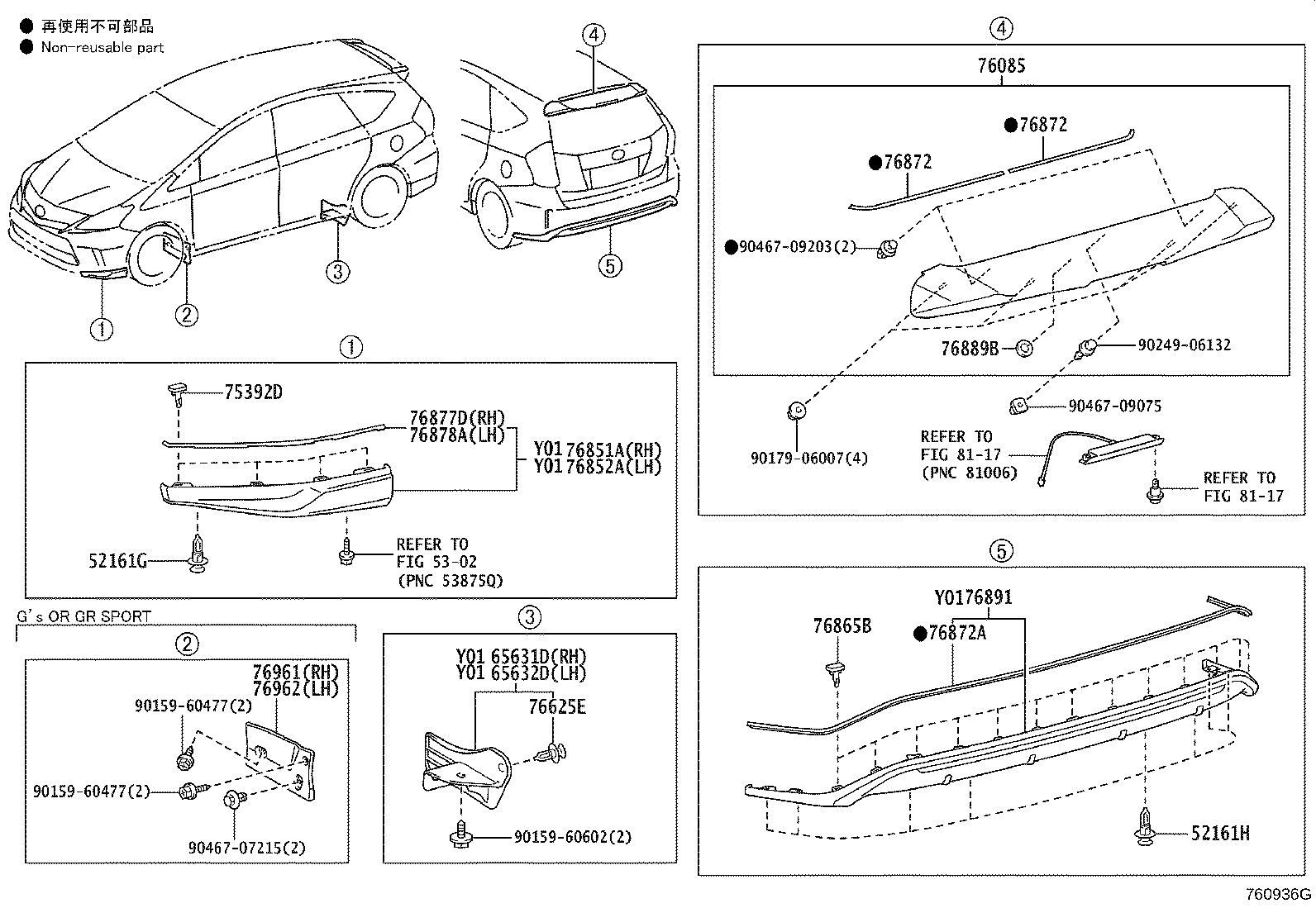

Figure 760787I 760787I 2011-04 → 2014-11 Figure 760936G 760936G 2014-11 → —

Part groups

PNCDescription
52161G Piece, Rear Bumper
52161H Piece, Rear Bumper
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75392D Retainer, Outside Moulding
76085 Spoiler Sub-assy, Rear
76625E Clip
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76865B Retainer, Rear Spoiler
76872 Protector, Rear Spoiler, NO.1
76872A Protector, Rear Spoiler, NO.1
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76889B Seal, Rear Spoiler, NO.1
76891 Spoiler, Rear NO.1
76892 Spoiler, Rear NO.2
76961 Mudguard, Front Door, Lower RH
76962 Mudguard, Front Door, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
