Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

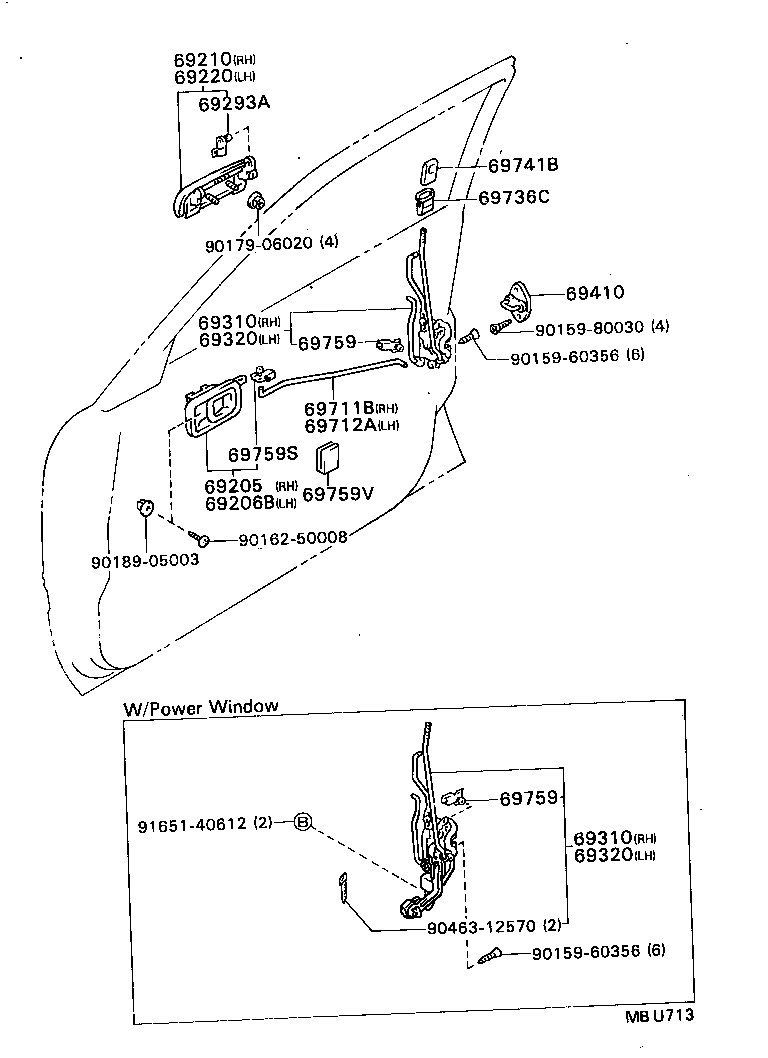

Exploded illustration MBU713 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (5 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (5 parts) 69293A — SNAP, FRONT DOOR OUTSIDE HANDLE (2 parts) 69741B — KNOB, FRONT DOOR LOCK CONTROL (7 parts) 69736C — GUIDE, FRONT DOOR LOCKING LINK (1 parts) 9017906020 — not listed in this catalogue 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (1 parts) 69310 — LOCK ASSY, FRONT DOOR, RH (16 parts) 9015980030 — not listed in this catalogue 69320 — LOCK ASSY, FRONT DOOR, LH (20 parts) 69759 — SNAP, DOOR LOCK CONTROL LINK, NO.1 (4 parts) 9015960356 — not listed in this catalogue 69711B — LINK, FRONT DOOR LOCK REMOTE CONTROL, RH (1 parts) 69712A — LINK, FRONT DOOR LOCK REMOTE CONTROL, LH (1 parts) 69759S — SNAP, FRONT DOOR INSIDE HANDLE (2 parts) 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (5 parts) 69759V — SILENCER, FRONT DOOR LOCK LINK (2 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (5 parts) 9016250008 — not listed in this catalogue 9018905003 — not listed in this catalogue 69759 — SNAP, DOOR LOCK CONTROL LINK, NO.1 (4 parts) 9165140612 — not listed in this catalogue 69310 — LOCK ASSY, FRONT DOOR, RH (16 parts) 69320 — LOCK ASSY, FRONT DOOR, LH (20 parts) 9046312570 — not listed in this catalogue 9015960356 — not listed in this catalogue
MBU713 · 18 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
69205 — Handle Sub-assy, Front Door Inside, RH
69205-20040-03 note Handle Sub-assy, Front Door Inside, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,010
69205-20040-04 note Handle Sub-assy, Front Door Inside, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,010
69205-20040-06 note Handle Sub-assy, Front Door Inside, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥2,010
69205-20040-06 note Handle Sub-assy, Front Door Inside, RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,010
69205-20040-14 note Handle Sub-assy, Front Door Inside, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,010
69206B — Handle Sub-assy, Front Door Inside, LH
69206-20040-03 note Handle Sub-assy, Front Door Inside, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,010
69206-20040-04 note Handle Sub-assy, Front Door Inside, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,010
69206-20040-06 note Handle Sub-assy, Front Door Inside, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥2,010
69206-20040-06 note Handle Sub-assy, Front Door Inside, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,010
69206-20040-14 note Handle Sub-assy, Front Door Inside, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,010
69210 — Handle Assy, Front Door, Outside RH
69210-20190 Handle Assy, Front Door, Outside RH
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,880
69210-20190 Handle Assy, Front Door, Outside RH
1990-05 → 1992-11 ended
AT170,175,CT17#,ET176 SG ¥2,880
69210-20200 Handle Assy, Front Door, Outside RH
1988-05 → 1992-11 ended
AT170,CT17#,ET176 DX,STD,SV ¥2,880
69210-20250 Handle Assy, Front Door, Outside RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥6,600
69210-20250 note Handle Assy, Front Door, Outside RH
1990-12 → 1992-08 ended
CT170 SG ¥6,600
69220 — Handle Assy, Front Door Outside, LH
69220-20190 Handle Assy, Front Door Outside, LH
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,880
69220-20190 Handle Assy, Front Door Outside, LH
1990-05 → 1992-11 ended
AT170,175,CT17#,ET176 SG ¥2,880
69220-20200 Handle Assy, Front Door Outside, LH
1988-05 → 1992-11 ended
AT170,CT17#,ET176 DX,STD,SV ¥2,880
69220-20250 note Handle Assy, Front Door Outside, LH
1990-12 → 1992-08 ended
CT170 SG ¥6,600
69220-20250 Handle Assy, Front Door Outside, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SGEXT,SX ¥6,600
69293A — Snap, Front Door Outside Handle
69293-12030 note Snap, Front Door Outside Handle
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥160
69293-12040 note Snap, Front Door Outside Handle
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥160
69310 — Lock Assy, Front Door, RH
69030-20391 note Lock Assy, Front Door, RH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥16,700
69030-20391 note Lock Assy, Front Door, RH
1990-12 → 1992-08 ended
CT170 SG ¥16,700
69030-20391 Lock Assy, Front Door, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE,SGEXT ¥16,700
69310-20540 Lock Assy, Front Door, RH
1988-05 → 1990-08 ended
ST170 SGEXT CI;AT17#,CT17#,ET176,ST170 DX,S,SG,STD,SV,SX ¥7,900
69310-20541 Lock Assy, Front Door, RH
1990-08 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,STD,SV,SX ¥7,600
69310-20550 note Lock Assy, Front Door, RH
1988-05 → 1988-09 ended
AT170 (4FC,5F) SG ¥8,800
69310-20550 Lock Assy, Front Door, RH
1988-05 → 1988-09 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥8,800
69310-20550 note Lock Assy, Front Door, RH
1988-05 → 1988-09 ended
AT171 S ¥8,800
69310-20550 note Lock Assy, Front Door, RH
1988-05 → 1988-09 ended
ST170 SX ¥8,800
69310-20550 note Lock Assy, Front Door, RH
1988-05 → 1988-09 ended
ST170 SGEXT;AT170 4F SG ¥8,800
69310-20551 note Lock Assy, Front Door, RH
1988-09 → 1990-05 ended
AT170 (4FC,5F) SG ¥10,000
69310-20551 Lock Assy, Front Door, RH
1988-09 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥10,000
69310-20551 note Lock Assy, Front Door, RH
1989-02 → 1990-05 ended
CT170 SG ¥10,000
69310-20551 note Lock Assy, Front Door, RH
1988-09 → 1990-05 ended
ST170 SGEXT;AT170 4F SG ¥10,000
69310-20551 note Lock Assy, Front Door, RH
1988-09 → 1990-05 ended
ST170 SX ¥10,000
69310-20551 note Lock Assy, Front Door, RH
1988-09 → 1990-05 ended
AT171 S ¥10,000
69320 — Lock Assy, Front Door, LH
69040-20390 note Lock Assy, Front Door, LH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥15,100
69040-20390 Lock Assy, Front Door, LH
1990-05 → 1992-08 ended
AT170,175,ST170 SGEXT ¥15,100
69040-20400 note Lock Assy, Front Door, LH
1990-10 → —
AT170,ST170 (4FC,5F) SGEXT ¥15,100
69040-20400 note Lock Assy, Front Door, LH
1990-12 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥15,100
69040-20400 note Lock Assy, Front Door, LH
1990-12 → 1992-08 ended
AT170 4F SGEXT;CT170,ST170 SG,SGEXT ¥15,100
69040-20400 Lock Assy, Front Door, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥15,100
69040-20400 note Lock Assy, Front Door, LH
1990-05 → 1990-12 ended
AT170 (4FC,5F) SGEXT ¥15,100
69320-20530 Lock Assy, Front Door, LH
1988-05 → 1990-08 ended
ST170 SGEXT CI;AT17#,CT17#,ET176,ST170 DX,S,SG,STD,SV,SX ¥7,900
69320-20531 Lock Assy, Front Door, LH
1990-08 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,STD,SV,SX ¥7,600
69320-20540 Lock Assy, Front Door, LH
1988-05 → 1988-09 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥7,900
69320-20540 note Lock Assy, Front Door, LH
1988-05 → 1988-09 ended
ST170 SGEXT;AT170 4F SG ¥7,900
69320-20540 note Lock Assy, Front Door, LH
1988-05 → 1988-09 ended
ST170 SX ¥7,900
69320-20540 note Lock Assy, Front Door, LH
1988-05 → 1988-09 ended
AT170 (4FC,5F) SG ¥7,900
69320-20540 note Lock Assy, Front Door, LH
1988-05 → 1988-09 ended
AT171 S ¥7,900
69320-20541 note Lock Assy, Front Door, LH
1988-09 → 1990-05 ended
ST170 SGEXT;AT170 4F SG ¥10,000
69320-20541 note Lock Assy, Front Door, LH
1988-09 → 1990-05 ended
ST170 SX ¥10,000
69320-20541 note Lock Assy, Front Door, LH
1988-09 → 1990-05 ended
AT170 (4FC,5F) SG ¥10,000
69320-20541 note Lock Assy, Front Door, LH
1988-09 → 1990-05 ended
AT171 S ¥10,000
69320-20541 Lock Assy, Front Door, LH
1988-09 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥10,000
69320-20541 note Lock Assy, Front Door, LH
1989-02 → 1990-05 ended
CT170 SG ¥10,000
69410 — Plate Assy, Front Door Lock Striker
69410-20080 Plate Assy, Front Door Lock Striker
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥1,180
69711B — Link, Front Door Lock Remote Control, RH
69711-20130 Link, Front Door Lock Remote Control, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥670
69712A — Link, Front Door Lock Remote Control, LH
69712-20130 Link, Front Door Lock Remote Control, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥670
69736C — Guide, Front Door Locking Link
69736-12030 Guide, Front Door Locking Link
1988-05 → 1992-11 ended
CT176,ET176 SG;AT17#,CT170,ST170 ¥450
69741B — Knob, Front Door Lock Control
69741-90K00-03 note Knob, Front Door Lock Control
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥360
69741-90K00-34 note Knob, Front Door Lock Control
1988-05 → 1988-09 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥360
69741-90K00-36 note Knob, Front Door Lock Control
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥360
69741-90K00-36 note Knob, Front Door Lock Control
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥360
69741-90K00-43 note Knob, Front Door Lock Control
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥360
69741-90K00-54 note Knob, Front Door Lock Control
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥360
69741-90K00-J0 note Knob, Front Door Lock Control
1988-09 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥360
69759 — Snap, Door Lock Control Link, NO.1
69759-24080 note Snap, Door Lock Control Link, NO.1
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥200
69759-24080 note Snap, Door Lock Control Link, NO.1
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥200
69759-24090 note Snap, Door Lock Control Link, NO.1
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥180
69759-24090 note Snap, Door Lock Control Link, NO.1
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥180
69759S — Snap, Front Door Inside Handle
69759-14050 note Snap, Front Door Inside Handle
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥180
69759-24070 note Snap, Front Door Inside Handle
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥180
69759V — Silencer, Front Door Lock Link
69759-12011 Silencer, Front Door Lock Link
1988-05 → 1988-08 ended
CT176,ET176 SG;AT17#,CT170,ST170 ¥270
69759-12011 Silencer, Front Door Lock Link
1988-08 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥270
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
