Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

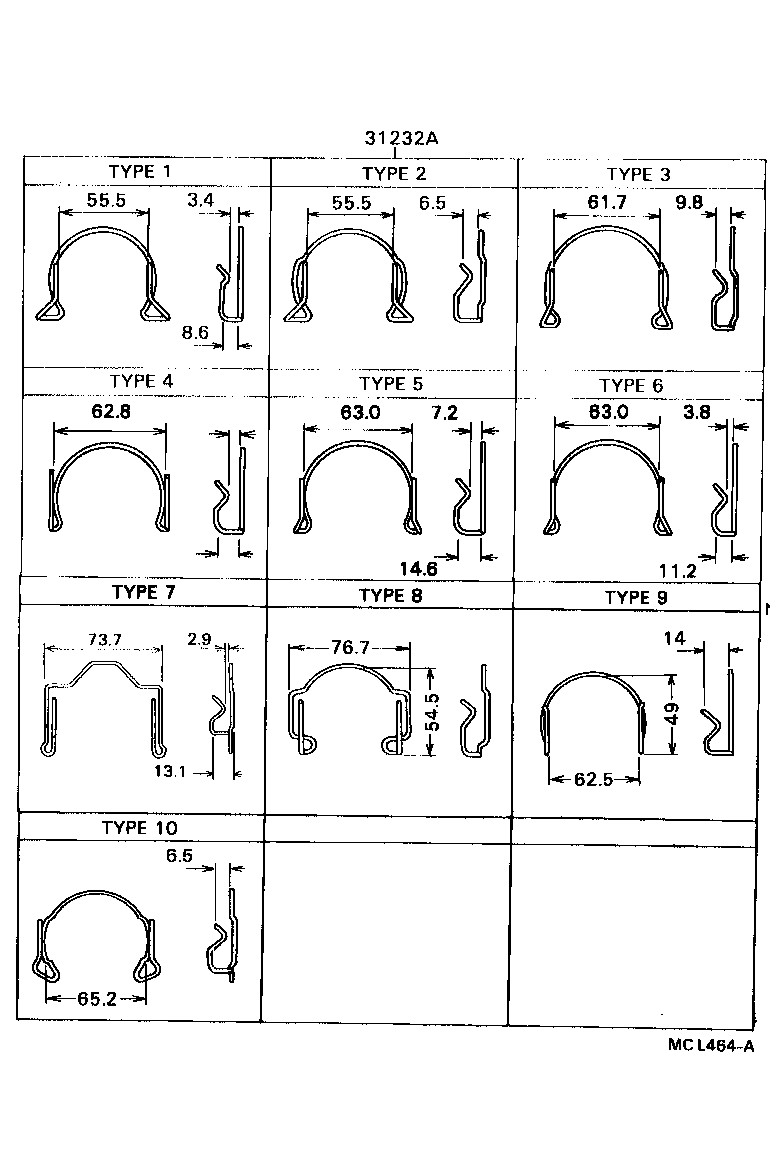

| 31232A — Clip, Release Bearing Hub | ||||
| 31232-12040 note |
Clip, Release Bearing Hub
1988-05 → 1991-05
ended
|
AT170,171,ET176 MTM | ¥160 | |
| 31232-12040 note |
Clip, Release Bearing Hub
1991-05 → 1992-11
ended
|
ET176 MTM | ¥160 | |
| 31232-12050 note |
Clip, Release Bearing Hub
1991-05 → 1992-11
ended
|
AT170,171 MTM | — | |
| 31232-12060 note |
Clip, Release Bearing Hub
1991-05 → 1992-11
ended
|
AT170,171 MTM | ¥170 | |
| 31232-12070 note |
Clip, Release Bearing Hub
1991-05 → 1992-11
ended
|
AT170,171 MTM | ¥200 | |
| 31232-16031 note |
Clip, Release Bearing Hub
1988-05 → 1991-05
ended
|
AT170,171,ET176 MTM | ¥200 | |
| 31232-16031 note |
Clip, Release Bearing Hub
1991-05 → 1992-11
ended
|
ET176 MTM | ¥200 | |
| 31232-20020 note |
Clip, Release Bearing Hub
1988-08 → 1990-05
ended
|
AT175 5F | ¥190 | |
| 31232-20020 |
Clip, Release Bearing Hub
1990-05 → 1992-11
ended
|
AT175 5F | ¥190 | |
| 31232-20020 note |
Clip, Release Bearing Hub
1990-05 → 1992-11
ended
|
CT17#,ST170 5F | ¥190 | |
| 31232-32010 note |
Clip, Release Bearing Hub
1988-05 → 1990-05
ended
|
CT17#,ST170 5F | ¥180 | |
| 31232-32020 note |
Clip, Release Bearing Hub
1988-05 → 1990-05
ended
|
CT17#,ST170 5F | ¥180 | |
| 31232-32030 note |
Clip, Release Bearing Hub
1988-05 → 1988-11
ended
|
AT175,CT17#,ST170 5F | ¥180 | |
| 31232-32030 note |
Clip, Release Bearing Hub
1988-11 → 1992-11
ended
|
CT17#,ST170 5F | ¥180 | |
| 31232-32050 note |
Clip, Release Bearing Hub
1990-08 → 1992-11
ended
|
CT17#,ST170 5F | ¥180 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
