Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

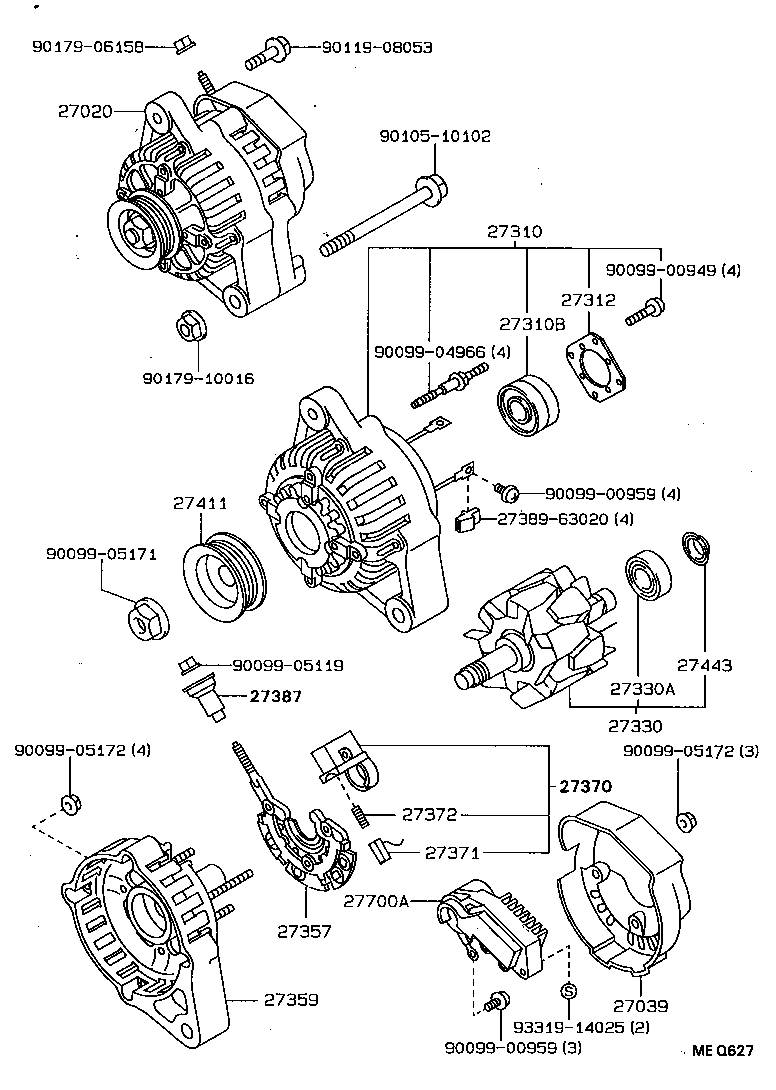

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27020-64170 note |
Alternator Assy
1988-05 → 1989-11
ended
|
2C CT170 4FC | ¥85,100 | |
| 27020-64180 note |
Alternator Assy
1988-05 → 1989-11
ended
|
2C CT17# 5F | ¥85,100 | |
| 27020-64220 note |
Alternator Assy
1989-11 → 1991-01
ended
|
2C CT17# | ¥80,200 | |
| 27020-64221 note |
Alternator Assy
1991-01 → 1991-06
ended
|
2C CT17# | ¥79,500 | |
| 27020-64310 note |
Alternator Assy
1991-06 → 1992-11
ended
|
2C CT17# | ¥79,500 | |
| 27060-10061 note |
Alternator Assy
1988-05 → 1989-11
ended
|
3E ET176 3FC | ¥94,600 | |
| 27060-10061 note |
Alternator Assy
1990-05 → 1992-11
ended
|
3E ET176 MTM | ¥94,600 | |
| 27060-10061 note |
Alternator Assy
1988-05 → 1992-11
ended
|
3E ET176 4F DX | ¥94,600 | |
| 27060-10100 note |
Alternator Assy
1991-08 → 1992-11
ended
|
3E ET176 MTM | ¥87,400 | |
| 27060-10100 note |
Alternator Assy
1988-05 → 1988-07
ended
|
3E ET176 MTM | ¥87,400 | |
| 27060-11030 note |
Alternator Assy
1989-11 → 1991-11
ended
|
3E ET176 3FC | ¥121,000 | |
| 27060-11080 note |
Alternator Assy
1988-07 → 1991-08
ended
|
3E ET176 MTM | ¥105,000 | |
| 27060-11120 note |
Alternator Assy
1991-11 → 1992-11
ended
|
3E ET176 3FC | ¥116,000 | |
| 27060-16140 note |
Alternator Assy
1988-05 → 1990-05
ended
|
5AF AT170 MTM | ¥103,000 | |
| 27060-16170 note |
Alternator Assy
1988-05 → 1992-11
ended
|
4AF#,5AFE AT17# MTM | ¥121,000 | |
| 27060-16180 note |
Alternator Assy
1988-05 → 1992-08
ended
|
4AGE AT171 5F | ¥120,000 | |
| 27060-16230 note |
Alternator Assy
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# 4FC | ¥116,000 | |
| 27060-16240 note |
Alternator Assy
1988-05 → 1992-08
ended
|
4AGE AT171 4FC | ¥116,000 | |
| 27060-74020 note |
Alternator Assy
1988-05 → 1990-05
ended
|
4SFI ST170 5F | ¥121,000 | |
| 27060-74080 note |
Alternator Assy
1988-05 → 1990-05
ended
|
4SFI ST170 4FC | ¥117,000 | |
| 27060-74110 note |
Alternator Assy
1990-05 → 1990-09
ended
|
4SFE ST170 4FC | ¥117,000 | |
| 27060-74190 note |
Alternator Assy
1990-05 → 1992-11
ended
|
4SFE ST170 5F | ¥116,000 | |
| 27060-74280 note |
Alternator Assy
1990-09 → 1992-02
ended
|
4SFE ST170 4FC | ¥116,000 | |
| 27060-74281 note |
Alternator Assy
1992-02 → 1992-11
ended
|
4SFE ST170 4FC | ¥116,000 | |
| 27039 — Cover, Alternator Rear End | ||||
| 27039-15170 |
Cover, Alternator Rear End
1991-09 → 1992-11
ended
|
4AF#,5AFE AT17# MTM | — | |
| 27039-42010 |
Cover, Alternator Rear End
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF#,4SFI AT17#,ST170 4FC | — | |
| 27039-70081 |
Cover, Alternator Rear End
1990-05 → 1991-09
ended
|
4SFE ST170 5F | — | |
| 27039-72010 |
Cover, Alternator Rear End
1988-05 → 1989-11
ended
|
4A#,4SFI AT171,175,ST170 5F | — | |
| 27039-72010 |
Cover, Alternator Rear End
1991-09 → 1992-11
ended
|
3E ET176 3FC;4AGE AT171 +1 | — | |
| 27039-72010 |
Cover, Alternator Rear End
1989-11 → 1991-09
ended
|
3E ET176 3FC;4AF#,4AGE,5AFE,4SFI AT17#,ST170 +1 | — | |
| 27039-72110 |
Cover, Alternator Rear End
1989-11 → 1990-05
ended
|
5AF AT170 MTM | — | |
| 27039-72110 note |
Cover, Alternator Rear End
1990-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27039-72110 note |
Cover, Alternator Rear End
1988-05 → 1992-11
ended
|
3E ET176 4F DX | — | |
| 27039-72110 |
Cover, Alternator Rear End
1988-05 → 1989-11
ended
|
3E ET176 3FC;5AF AT170 +1 | — | |
| 27039-72150 note |
Cover, Alternator Rear End
1988-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27039-74140 |
Cover, Alternator Rear End
1990-05 → 1992-11
ended
|
4SFE ST170 4FC | — | |
| 27039-74200 |
Cover, Alternator Rear End
1991-09 → 1992-11
ended
|
4SFE ST170 5F | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-10021 note |
Frame Assy, Drive End, Alternator
1990-05 → 1991-05
ended
|
3E ET176 MTM | — | |
| 27310-10090 note |
Frame Assy, Drive End, Alternator
1988-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27310-11110 note |
Frame Assy, Drive End, Alternator
1991-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27310-16081 |
Frame Assy, Drive End, Alternator
1988-05 → 1989-11
ended
|
3E ET176 3FC | — | |
| 27310-16081 note |
Frame Assy, Drive End, Alternator
1988-05 → 1992-11
ended
|
3E ET176 4F DX | — | |
| 27310-16102 |
Frame Assy, Drive End, Alternator
1990-05 → 1992-11
ended
|
3E ET176 3FC | — | |
| 27310-16102 |
Frame Assy, Drive End, Alternator
1988-05 → 1989-09
ended
|
4AGE AT171 5F | — | |
| 27310-16103 |
Frame Assy, Drive End, Alternator
1989-11 → 1990-05
ended
|
3E ET176 3FC;4AGE AT171 +1 | — | |
| 27310-16103 |
Frame Assy, Drive End, Alternator
1990-05 → 1992-08
ended
|
4AGE AT171 5F | — | |
| 27310-16103 |
Frame Assy, Drive End, Alternator
1989-09 → 1989-11
ended
|
4AGE AT171 5F | — | |
| 27310-16140 |
Frame Assy, Drive End, Alternator
1988-05 → 1990-05
ended
|
5AF AT170 MTM | — | |
| 27310-16190 |
Frame Assy, Drive End, Alternator
1988-05 → 1992-11
ended
|
4AF#,5AFE AT17# MTM | — | |
| 27310-16260 |
Frame Assy, Drive End, Alternator
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# 4FC | — | |
| 27310-16270 |
Frame Assy, Drive End, Alternator
1988-05 → 1992-08
ended
|
4AGE AT171 4FC | — | |
| 27310-42050 |
Frame Assy, Drive End, Alternator
1988-05 → 1992-11
ended
|
4SF# ST170 4FC | — | |
| 27310-64060 |
Frame Assy, Drive End, Alternator
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | — | |
| 27310-64060 |
Frame Assy, Drive End, Alternator
1991-06 → 1992-11
ended
|
2C CT17# | — | |
| 27310-64060 |
Frame Assy, Drive End, Alternator
1988-05 → 1990-05
ended
|
2C CT17# | — | |
| 27310-70100 |
Frame Assy, Drive End, Alternator
1988-05 → 1992-11
ended
|
4SF# ST170 5F | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1991-06 → 1992-11
ended
|
2C CT17# | — | |
| 90099-10137 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1988-05 → 1990-05
ended
|
2C CT17# | — | |
| 90099-10137 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | — | |
| 90099-10159 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1988-05 → 1992-11
ended
|
3E ET176 4F DX | — | |
| 90099-10159 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1990-05 → 1991-05
ended
|
3E ET176 MTM | — | |
| 90099-10159 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1989-11 → 1990-05
ended
|
5AF AT170 MTM | — | |
| 90099-10159 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1988-05 → 1989-11
ended
|
3E ET176 3FC;5AF AT170 +1 | — | |
| 90099-10160 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1988-05 → 1991-05
ended
|
4AF#,4AGE,5AF#,4SF# AT17#,ST170 4FC | — | |
| 90099-10160 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1991-05 → 1992-11
ended
|
4AGE,4SFE AT171,ST170 4FC | — | |
| 90099-10170 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1988-05 → 1991-05
ended
|
3E ET176 MTM | — | |
| 90099-10178 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1988-05 → 1989-11
ended
|
4A#,4SFI AT171,175,ST170 5F | — | |
| 90099-10178 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1989-11 → 1992-11
ended
|
3E ET176 3FC;4AF#,4AGE,5AFE,4SF# AT17#,ST170 +1 | — | |
| 90099-10192 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1991-05 → 1992-11
ended
|
4AF#,5AFE AT17# 4FC | — | |
| 90099-10198 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1991-05 → 1992-11
ended
|
3E ET176 MTM | ¥1,260 | |
| 90099-10199 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1991-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27312 — Plate, Retainer | ||||
| 27312-42010 |
Plate, Retainer
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF#,4SF# AT17#,ST170 4FC | — | |
| 27312-57060 |
Plate, Retainer
1991-06 → 1992-11
ended
|
2C CT17# | — | |
| 27312-57060 |
Plate, Retainer
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | — | |
| 27312-57060 |
Plate, Retainer
1988-05 → 1990-05
ended
|
2C CT17# | — | |
| 27312-70200 |
Plate, Retainer
1989-11 → 1992-11
ended
|
3E ET176 3FC;4AF#,4AGE,5AFE,4SF# AT17#,ST170 +1 | — | |
| 27312-70200 |
Plate, Retainer
1988-05 → 1989-11
ended
|
4A#,4SFI AT171,175,ST170 5F | — | |
| 27312-72100 |
Plate, Retainer
1988-05 → 1989-11
ended
|
3E ET176 3FC;5AF AT170 +1 | ¥0 | |
| 27312-72100 note |
Plate, Retainer
1988-05 → 1992-11
ended
|
3E ET176 4F DX | ¥0 | |
| 27312-72100 note |
Plate, Retainer
1990-05 → 1992-11
ended
|
3E ET176 MTM | ¥0 | |
| 27312-72100 |
Plate, Retainer
1989-11 → 1990-05
ended
|
5AF AT170 MTM | ¥0 | |
| 27312-72120 note |
Plate, Retainer
1988-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-10021 note |
Rotor Assy, Alternator
1990-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27330-10021 note |
Rotor Assy, Alternator
1988-05 → 1992-11
ended
|
3E ET176 4F DX | — | |
| 27330-10021 |
Rotor Assy, Alternator
1988-05 → 1989-11
ended
|
3E ET176 3FC;5AF AT170 +1 | — | |
| 27330-10021 |
Rotor Assy, Alternator
1989-11 → 1990-05
ended
|
5AF AT170 MTM | — | |
| 27330-42010 |
Rotor Assy, Alternator
1988-05 → 1990-12
ended
|
4AF#,4AGE,5AF#,4SF# AT17#,ST170 4FC | — | |
| 27330-64170 |
Rotor Assy, Alternator
1988-05 → 1991-01
ended
|
2C CT17# | — | |
| 27330-64171 |
Rotor Assy, Alternator
1991-01 → 1992-11
ended
|
2C CT17# | — | |
| 27330-72101 |
Rotor Assy, Alternator
1988-05 → 1989-11
ended
|
4A#,4SFI AT171,175,ST170 5F | — | |
| 27330-72101 |
Rotor Assy, Alternator
1989-11 → 1992-11
ended
|
3E ET176 3FC;4AF#,4AGE,5AFE,4SF# AT17#,ST170 +1 | — | |
| 27330-72150 note |
Rotor Assy, Alternator
1988-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27330-76030 |
Rotor Assy, Alternator
1990-12 → 1992-11
ended
|
4AF#,4AGE,5AFE,4SFE AT17#,ST170 4FC | — | |
| 27330A — Bearing(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
Bearing(FOR ALTERNATOR ROTOR)
1988-05 → 1992-11
ended
|
3E ET176 3FC;4AF#,4AGE,5AF#,4SF# AT17#,ST170 | — | |
| 90099-10140 note |
Bearing(FOR ALTERNATOR ROTOR)
1988-05 → 1992-11
ended
|
3E ET176 4F DX | — | |
| 90099-10140 note |
Bearing(FOR ALTERNATOR ROTOR)
1990-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 90099-10154 note |
Bearing(FOR ALTERNATOR ROTOR)
1988-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27357 — Holder, Alternator, W/Rectifier | ||||
| 27357-62040 |
Holder, Alternator, W/Rectifier
1991-12 → 1992-11
ended
|
4AF#,5AFE AT17# 4FC | — | |
| 27357-63020 |
Holder, Alternator, W/Rectifier
1988-05 → 1989-11
ended
|
4A#,4SFI AT171,175,ST170 5F | ¥0 | |
| 27357-63020 |
Holder, Alternator, W/Rectifier
1989-11 → 1992-11
ended
|
3E ET176 3FC;4AF#,4AGE,5AFE,4SFI AT17#,ST170 +1 | ¥0 | |
| 27357-63040 |
Holder, Alternator, W/Rectifier
1988-05 → 1989-11
ended
|
3E ET176 3FC;5AF AT170 +1 | — | |
| 27357-63040 |
Holder, Alternator, W/Rectifier
1989-11 → 1990-05
ended
|
5AF AT170 MTM | — | |
| 27357-63040 note |
Holder, Alternator, W/Rectifier
1988-05 → 1992-11
ended
|
3E ET176 4F DX | — | |
| 27357-63040 note |
Holder, Alternator, W/Rectifier
1990-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27357-70081 |
Holder, Alternator, W/Rectifier
1990-05 → 1992-11
ended
|
4SFE ST170 5F | — | |
| 27357-72150 note |
Holder, Alternator, W/Rectifier
1988-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27357-74050 |
Holder, Alternator, W/Rectifier
1991-12 → 1992-08
ended
|
4AGE AT171 4FC | — | |
| 27357-74050 |
Holder, Alternator, W/Rectifier
1988-05 → 1991-12
ended
|
4AF#,4AGE,5AF#,4SFI AT17#,ST170 4FC | — | |
| 27357-74120 |
Holder, Alternator, W/Rectifier
1991-12 → 1992-11
ended
|
4SFE ST170 4FC | — | |
| 27357-74140 |
Holder, Alternator, W/Rectifier
1990-05 → 1991-12
ended
|
4SFE ST170 4FC | — | |
| 27359 — Frame, Alternator Rectifier End | ||||
| 27359-16081 |
Frame, Alternator Rectifier End
1988-05 → 1989-11
ended
|
3E ET176 3FC | — | |
| 27359-16081 note |
Frame, Alternator Rectifier End
1990-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27359-16081 note |
Frame, Alternator Rectifier End
1988-05 → 1992-11
ended
|
3E ET176 4F DX | — | |
| 27359-16140 |
Frame, Alternator Rectifier End
1988-05 → 1990-05
ended
|
5AF AT170 MTM | — | |
| 27359-16151 |
Frame, Alternator Rectifier End
1988-05 → 1992-11
ended
|
4AF#,5AFE AT17# MTM | — | |
| 27359-16180 |
Frame, Alternator Rectifier End
1988-05 → 1989-11
ended
|
4AGE AT171 5F | — | |
| 27359-16180 |
Frame, Alternator Rectifier End
1989-11 → 1992-11
ended
|
3E ET176 3FC;4AGE AT171 +1 | — | |
| 27359-16260 |
Frame, Alternator Rectifier End
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# 4FC | — | |
| 27359-16270 |
Frame, Alternator Rectifier End
1988-05 → 1992-08
ended
|
4AGE AT171 4FC | — | |
| 27359-42010 |
Frame, Alternator Rectifier End
1988-05 → 1990-05
ended
|
4SFI ST170 4FC | — | |
| 27359-43160 |
Frame, Alternator Rectifier End
1988-05 → 1990-05
ended
|
4SFI ST170 5F | — | |
| 27359-72150 note |
Frame, Alternator Rectifier End
1988-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27359-74130 |
Frame, Alternator Rectifier End
1990-05 → 1992-11
ended
|
4SFE ST170 5F | — | |
| 27359-74140 |
Frame, Alternator Rectifier End
1990-05 → 1992-11
ended
|
4SFE ST170 4FC | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-16011 |
Holder Assy, Alternator Brush
1988-05 → 1991-05
ended
|
4AGE,3E AT171,ET176 3FC,4F,5F | — | |
| 27370-16011 |
Holder Assy, Alternator Brush
1991-05 → 1992-08
ended
|
4AGE AT171 5F | — | |
| 27370-35060 |
Holder Assy, Alternator Brush
1992-07 → 1992-11
ended
|
4AF#,5AFE AT17# MTM | — | |
| 27370-42010 |
Holder Assy, Alternator Brush
1991-05 → 1992-11
ended
|
4AGE,4SFE AT171,ST170 4FC | — | |
| 27370-42010 |
Holder Assy, Alternator Brush
1988-05 → 1991-05
ended
|
4AF#,4AGE,5AF#,4SF# AT17#,ST170 4FC | — | |
| 27370-54450 |
Holder Assy, Alternator Brush
1991-05 → 1992-11
ended
|
3E ET176 | — | |
| 27370-63021 |
Holder Assy, Alternator Brush
1988-05 → 1991-05
ended
|
4AF#,5AF#,4SF# AT17#,ST170 MTM | — | |
| 27370-63021 |
Holder Assy, Alternator Brush
1991-05 → 1992-11
ended
|
4SFE ST170 5F | — | |
| 27370-70300 |
Holder Assy, Alternator Brush
1991-05 → 1992-07
ended
|
4AF#,5AFE AT17# MTM | — | |
| 27370-75060 |
Holder Assy, Alternator Brush
1991-05 → 1992-11
ended
|
4AF#,5AFE AT17# 4FC | — | |
| 27371 — Brush, Alternator | ||||
| 27371-54412 |
Brush, Alternator
1991-06 → 1992-11
ended
|
2C CT17# | ¥0 | |
| 27371-56070 |
Brush, Alternator
1988-05 → 1991-06
ended
|
2C CT17# | — | |
| 27371-63020 |
Brush, Alternator
1990-05 → 1991-05
ended
|
4AF#,5AFE,3E,4SFE AT17#,ET176,ST170 MTM | — | |
| 27371-63020 |
Brush, Alternator
1991-05 → 1992-11
ended
|
4SFE ST170 5F | — | |
| 27371-63020 |
Brush, Alternator
1988-05 → 1989-11
ended
|
4A#,5AF,3E,4SFI AT17#,ET176,ST170 3FC,4F,5F | — | |
| 27371-63020 |
Brush, Alternator
1989-11 → 1990-05
ended
|
4A#,5AF,3E,4SFI AT17#,ET176,ST170 MTM | — | |
| 27371-70300 |
Brush, Alternator
1989-11 → 1990-05
ended
|
3E ET176 3FC | — | |
| 27371-70300 |
Brush, Alternator
1990-05 → 1991-05
ended
|
3E ET176 3FC;4AGE AT171 +1 | — | |
| 27371-70300 |
Brush, Alternator
1991-05 → 1992-11
ended
|
4AF#,4AGE,5AFE,3E AT17#,ET176 3FC,4F,5F | — | |
| 27372 — Spring, Alternator Brush | ||||
| 27372-56070 |
Spring, Alternator Brush
1988-05 → 1990-05
ended
|
2C CT17# | ¥0 | |
| 27372-56070 |
Spring, Alternator Brush
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | ¥0 | |
| 27372-56070 |
Spring, Alternator Brush
1991-06 → 1992-11
ended
|
2C CT17# | ¥0 | |
| 27372-63020 |
Spring, Alternator Brush
1989-11 → 1990-05
ended
|
3E ET176 3FC | — | |
| 27372-72100 |
Spring, Alternator Brush
1989-11 → 1990-05
ended
|
4A#,5AF,3E,4SFI AT17#,ET176,ST170 MTM | — | |
| 27372-72100 |
Spring, Alternator Brush
1992-08 → 1992-11
ended
|
3E ET176 | — | |
| 27372-72100 |
Spring, Alternator Brush
1990-05 → 1992-08
ended
|
4AF#,4AGE,5AFE,3E,4SFE AT17#,ET176,ST170 3FC,4F,5F | — | |
| 27372-72100 |
Spring, Alternator Brush
1988-05 → 1989-11
ended
|
4A#,5AF,3E,4SFI AT17#,ET176,ST170 3FC,4F,5F | — | |
| 27387 — Insulator, Terminal | ||||
| 27387-10080 note |
Insulator, Terminal
1988-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27387-42020 |
Insulator, Terminal
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF#,4SFI AT17#,ST170 4FC | — | |
| 27387-54010 |
Insulator, Terminal
1990-05 → 1992-11
ended
|
2C CT170 SV | — | |
| 27387-54010 |
Insulator, Terminal
1990-05 → 1992-11
ended
|
2C CT170 SED 5F | — | |
| 27387-54010 |
Insulator, Terminal
1990-05 → 1992-11
ended
|
2C CT170 SED 4FC | — | |
| 27387-54010 |
Insulator, Terminal
1990-05 → 1992-11
ended
|
2C CT176 5F | — | |
| 27387-54010 |
Insulator, Terminal
1988-05 → 1990-05
ended
|
2C CT17# | — | |
| 27387-54010 |
Insulator, Terminal
1990-05 → 1992-11
ended
|
2C CT176 4FC | — | |
| 27387-70110 |
Insulator, Terminal
1990-05 → 1992-11
ended
|
4SFE ST170 5F | — | |
| 27387-70170 note |
Insulator, Terminal
1988-05 → 1992-11
ended
|
3E ET176 4F DX | — | |
| 27387-70170 |
Insulator, Terminal
1988-05 → 1992-11
ended
|
3E ET176 3FC;4AF#,4AGE,5AF#,4SFI AT17#,ST170 +1 | — | |
| 27387-70170 note |
Insulator, Terminal
1990-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27387-74140 |
Insulator, Terminal
1990-05 → 1992-11
ended
|
4SFE ST170 4FC | — | |
| 27411 — Pulley, Alternator | ||||
| 27411-10051 note |
Pulley, Alternator
1988-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27411-10070 note |
Pulley, Alternator
1988-05 → 1992-11
ended
|
3E ET176 4F DX | — | |
| 27411-10070 note |
Pulley, Alternator
1990-05 → 1990-06
ended
|
3E ET176 MTM | — | |
| 27411-10070 |
Pulley, Alternator
1988-05 → 1989-11
ended
|
3E ET176 3FC | — | |
| 27411-16150 |
Pulley, Alternator
1988-05 → 1990-05
ended
|
5AF AT170 MTM | — | |
| 27411-16180 |
Pulley, Alternator
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AFE,4SF# AT17#,ST170 MTM | — | |
| 27411-16260 |
Pulley, Alternator
1990-12 → 1992-11
ended
|
4AF#,5AFE AT17# 4FC | — | |
| 27411-16270 |
Pulley, Alternator
1988-05 → 1990-12
ended
|
4AF#,4AGE,5AF# AT17# 4FC | — | |
| 27411-16270 |
Pulley, Alternator
1990-12 → 1992-08
ended
|
4AGE AT171 4FC | — | |
| 27411-64060 |
Pulley, Alternator
1988-05 → 1989-11
ended
|
2C CT17# 5F | — | |
| 27411-64160 |
Pulley, Alternator
1988-05 → 1989-11
ended
|
2C CT170 4FC | — | |
| 27411-64220 |
Pulley, Alternator
1991-06 → 1992-11
ended
|
2C CT17# | — | |
| 27411-64220 |
Pulley, Alternator
1989-11 → 1990-05
ended
|
2C CT17# | — | |
| 27411-64220 |
Pulley, Alternator
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | — | |
| 27411-65010 |
Pulley, Alternator
1989-11 → 1992-11
ended
|
3E ET176 3FC | — | |
| 27411-70261 note |
Pulley, Alternator
1990-06 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27411-74050 |
Pulley, Alternator
1990-05 → 1992-11
ended
|
4SFE ST170 4FC | — | |
| 27411-74070 |
Pulley, Alternator
1988-05 → 1990-05
ended
|
4SFI ST170 4FC | — | |
| 27443 — Cover, Alternator Bearing | ||||
| 27443-63020 |
Cover, Alternator Bearing
1988-05 → 1989-11
ended
|
3E ET176 3FC | — | |
| 27443-63020 |
Cover, Alternator Bearing
1988-05 → 1989-11
ended
|
5AF AT170 MTM | — | |
| 27443-63020 |
Cover, Alternator Bearing
1988-05 → 1989-11
ended
|
5AF AT170 4FC;4A#,3E,4SFI AT171,175,ET176,ST170 +1 | — | |
| 27443-63020 |
Cover, Alternator Bearing
1989-11 → 1990-05
ended
|
5AF AT170 MTM | — | |
| 27443-63020 |
Cover, Alternator Bearing
1989-11 → 1992-11
ended
|
5AF AT170 4FC;4AF#,4AGE,5AFE,3E,4SF# AT17#,ET176,ST170 | — | |
| 27443-63020 note |
Cover, Alternator Bearing
1990-05 → 1992-11
ended
|
3E ET176 MTM | — | |
| 27700A — Regulator Assy, Generator | ||||
| 27700-10050 note |
Regulator Assy, Generator
1988-07 → 1991-08
ended
|
3E ET176 MTM | ¥20,900 | |
| 27700-10080 note |
Regulator Assy, Generator
1988-05 → 1988-07
ended
|
3E ET176 MTM | ¥19,600 | |
| 27700-10080 note |
Regulator Assy, Generator
1991-08 → 1991-11
ended
|
3E ET176 MTM | ¥19,600 | |
| 27700-11020 note |
Regulator Assy, Generator
1991-11 → 1992-11
ended
|
3E ET176 MTM | ¥20,000 | |
| 27700-11030 |
Regulator Assy, Generator
1991-11 → 1992-11
ended
|
3E ET176 3FC | ¥19,600 | |
| 27700-11030 note |
Regulator Assy, Generator
1990-05 → 1992-11
ended
|
3E ET176 MTM | ¥19,600 | |
| 27700-16010 |
Regulator Assy, Generator
1988-05 → 1990-09
ended
|
4SFI ST170 5F;4AGE,4SFE AT171,ST170 | ¥19,700 | |
| 27700-16010 |
Regulator Assy, Generator
1990-09 → 1992-08
ended
|
4AGE AT171 | ¥19,700 | |
| 27700-63021 |
Regulator Assy, Generator
1988-05 → 1988-12
ended
|
3E ET176 3FC | ¥21,200 | |
| 27700-64040 |
Regulator Assy, Generator
1988-05 → 1990-05
ended
|
2C CT17# | ¥19,600 | |
| 27700-64040 |
Regulator Assy, Generator
1990-05 → 1991-06
ended
|
2C CT170 4FC SE;2C +2 | ¥19,600 | |
| 27700-64110 |
Regulator Assy, Generator
1991-06 → 1992-11
ended
|
2C CT17# | ¥19,600 | |
| 27700-70030 |
Regulator Assy, Generator
1991-11 → 1992-11
ended
|
4AF#,5AFE AT17# | ¥19,600 | |
| 27700-70030 note |
Regulator Assy, Generator
1988-05 → 1992-11
ended
|
3E ET176 4F DX | ¥19,600 | |
| 27700-70030 |
Regulator Assy, Generator
1988-12 → 1991-11
ended
|
4AF#,5AF# AT17#;3E,4SFI ET176,ST170 ATM | ¥19,600 | |
| 27700-70030 |
Regulator Assy, Generator
1988-05 → 1988-12
ended
|
4AFE,5AF AT17#;4SFI ST170 4FC | ¥19,600 | |
| 27700-74010 |
Regulator Assy, Generator
1990-09 → 1992-11
ended
|
4SFE ST170 | ¥19,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
