Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

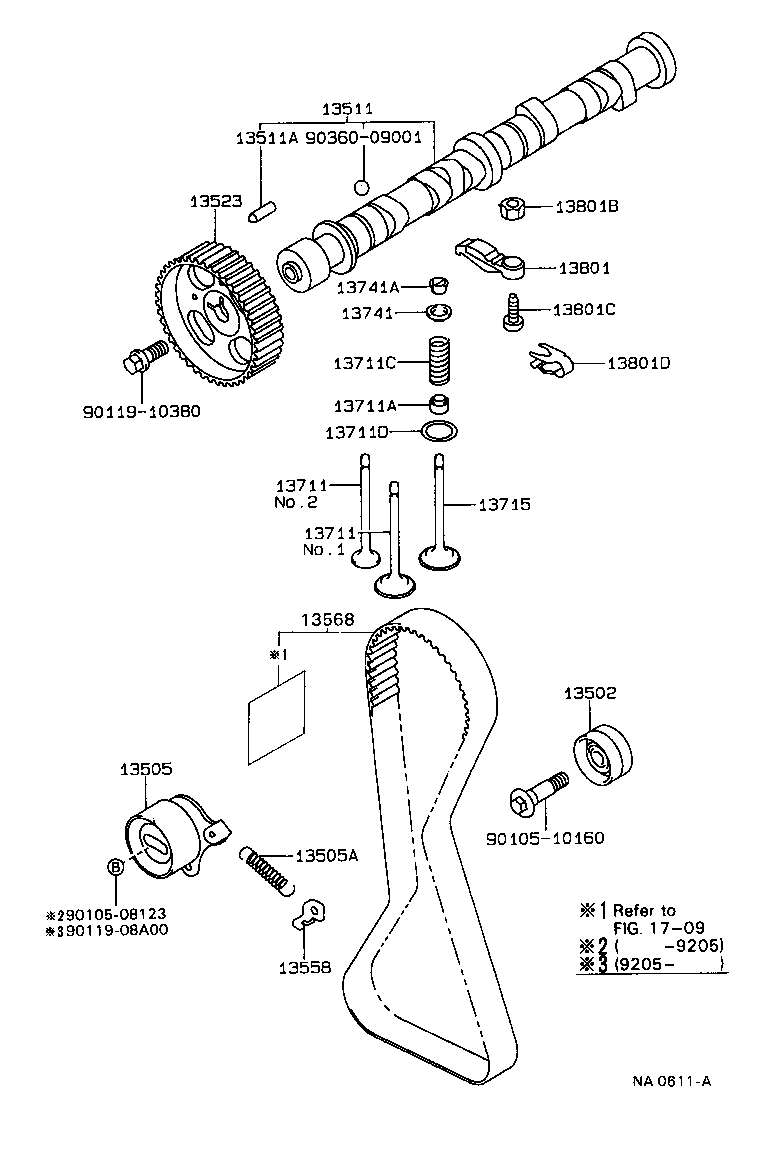

Exploded illustration NA0611A 13511 — CAMSHAFT (7 parts) 9036009001 — not listed in this catalogue 13511A — PIN, STRAIGHT(FOR CAMSHAFT KNOCK) (2 parts) 13523 — GEAR OR SPROCKET, CAMSHAFT TIMING (1 parts) 13801B — NUT, HEXAGON(FOR VALVE ADJUSTING) (1 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (4 parts) 13801C — SCREW, VALVE ADJUSTING (1 parts) 13741 — RETAINER, VALVE SPRING (4 parts) 13711C — SPRING, COMPRESSION(FOR OUTER) (1 parts) 13801D — SPRING, COMPRESSION(FOR ROCKER ARM) (1 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (19 parts) 9011910380 — not listed in this catalogue 13711D — WASHER, PLATE(FOR VALVE SPRING SEAT) (3 parts) 13711 — VALVE, INTAKE (6 parts) 13715 — VALVE, EXHAUST (5 parts) 13711 — VALVE, INTAKE (6 parts) 13568 — BELT, TIMING (16 parts) 13502 — IDLER SUB-ASSY, TIMING BELT, NO.2 (3 parts) 13505 — IDLER SUB-ASSY, TIMING BELT, NO.1 (7 parts) 9010510160 — not listed in this catalogue 13505A — SPRING, TENSION(FOR IDLER) (10 parts) 9010508123 — not listed in this catalogue 1709 — not listed in this catalogue 9011908A00 — not listed in this catalogue 13558 — BRACKET, SPRING(FOR IDLER) (1 parts)
NA0611A · 20 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
93 parts on this figure
Part number Description Fitment Price
13502 — Idler Sub-assy, Timing Belt, NO.2
13503-11010 Idler Sub-assy, Timing Belt, NO.2
1988-05 → 1992-11 ended
3E ET176 ¥2,680
13503-63011 Idler Sub-assy, Timing Belt, NO.2
1988-05 → 1992-11 ended
4SF# ST170 ¥2,330
13503-64020 Idler Sub-assy, Timing Belt, NO.2
1988-05 → 1992-11 ended
2C CT17# ¥2,870
13505 — Idler Sub-assy, Timing Belt, NO.1
13505-11010 Idler Sub-assy, Timing Belt, NO.1
1988-05 → 1992-11 ended
3E ET176 ¥3,860
13505-15041 Idler Sub-assy, Timing Belt, NO.1
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥4,540
13505-16020 Idler Sub-assy, Timing Belt, NO.1
1988-05 → 1989-05 ended
4AGE AT171 ¥5,500
13505-16021 Idler Sub-assy, Timing Belt, NO.1
1989-05 → 1992-08 ended
4AGE AT171 ¥4,580
13505-64011 Idler Sub-assy, Timing Belt, NO.1
1989-11 → 1992-11 ended
2C CT17# ¥4,180
13505-64021 Idler Sub-assy, Timing Belt, NO.1
1988-05 → 1989-11 ended
2C CT17# ¥4,230
13505-74011 Idler Sub-assy, Timing Belt, NO.1
1988-05 → 1992-11 ended
4SF# ST170 ¥4,200
13505A — Spring, Tension(FOR IDLER)
90506-15003 Spring, Tension(FOR IDLER)
1991-08 → 1992-11 ended
3E ET176 ¥200
90506-16050 Spring, Tension(FOR IDLER)
1988-09 → 1991-08 ended
3E ET176 ¥200
90506-18059 Spring, Tension(FOR IDLER)
1988-05 → 1988-09 ended
3E ET176 ¥250
90506-20052 Spring, Tension(FOR IDLER)
1988-05 → 1990-03 ended
4SFI ST170 ¥270
90507-18006 Spring, Tension(FOR IDLER)
1988-05 → 1992-11 ended
2C CT17# ¥390
90507-18017 Spring, Tension(FOR IDLER)
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥260
90507-18030 Spring, Tension(FOR IDLER)
1992-10 → 1992-11 ended
4SFE ST170 ¥260
90507-20010 Spring, Tension(FOR IDLER)
1988-05 → 1992-08 ended
4AGE AT171 ¥240
90507-20026 Spring, Tension(FOR IDLER)
1990-03 → 1991-07 ended
4SF# ST170 ¥270
90507-20028 Spring, Tension(FOR IDLER)
1991-07 → 1992-10 ended
4SFE ST170 ¥260
13511 — Camshaft
13501-10010 Camshaft
1988-05 → 1992-11 ended
3E ET176 ¥27,300
13501-15020 Camshaft
1988-05 → 1992-11 ended
4AFE,5AF# AT170,175 ¥31,100
13501-15030 Camshaft
1988-05 → 1992-08 ended
4AF# AT171 ¥39,600
13501-16030 Camshaft
1988-05 → 1992-08 ended
4AGE AT171 ¥32,300
13501-74020 Camshaft
1988-05 → 1992-11 ended
4SF# ST170 ¥36,100
13511-64050 Camshaft
1988-05 → 1992-04 ended
2C CT17# ¥36,400
13511-64051 Camshaft
1992-04 → 1992-11 ended
2C CT17# ¥36,400
13511A — Pin, Straight(FOR CAMSHAFT KNOCK)
90250-05121 note Pin, Straight(FOR CAMSHAFT KNOCK)
1988-05 → 1992-11 ended
3E ET176 ¥120
90250-05121 note Pin, Straight(FOR CAMSHAFT KNOCK)
1988-05 → 1992-08 ended
4AGE AT171 ¥120
13523 — Gear OR Sprocket, Camshaft Timing
13523-11010 Gear OR Sprocket, Camshaft Timing
1988-05 → 1992-11 ended
3E ET176 ¥4,890
13558 — Bracket, Spring(FOR IDLER)
13558-11010 Bracket, Spring(FOR IDLER)
1988-05 → 1992-11 ended
3E ET176 ¥520
13568 — Belt, Timing
13568-11031 Belt, Timing
1988-05 → 1989-03 ended
3E ET176 ¥5,600
13568-11032 Belt, Timing
1989-03 → 1992-05 ended
3E ET176 ¥4,570
13568-15040 Belt, Timing
1988-09 → 1988-10 ended
4AFE,5AF AT17# ¥4,280
13568-15041 Belt, Timing
1988-10 → 1992-04 ended
4AF#,5AF# AT17# ¥3,550
13568-15050 Belt, Timing
1988-05 → 1988-09 ended
4AFE,5AF AT17# ¥4,280
13568-16020 Belt, Timing
1988-05 → 1992-04 ended
4AGE AT171 ¥4,320
13568-19085 Belt, Timing
1992-05 → 1992-07 ended
3E ET176 ¥4,570
13568-19086 Belt, Timing
1992-07 → 1992-11 ended
3E ET176 ¥4,580
13568-19135 Belt, Timing
1992-04 → 1992-11 ended
4AF#,5AFE AT17# ¥3,570
13568-19145 Belt, Timing
1992-04 → 1992-08 ended
4AGE AT171 ¥4,320
13568-64011 Belt, Timing
1988-05 → 1992-05 ended
2C CT17# ¥6,400
13568-69065 Belt, Timing
1992-05 → 1992-11 ended
2C CT17# ¥6,400
13568-74010 Belt, Timing
1988-05 → 1988-08 ended
4SFI ST170 ¥6,600
13568-74011 Belt, Timing
1988-08 → 1991-01 ended
4SF# ST170 ¥5,400
13568-74012 Belt, Timing
1991-01 → 1992-04 ended
4SFE ST170 ¥5,400
13568-79025 Belt, Timing
1992-04 → 1992-11 ended
4SFE ST170 ¥5,400
13711 — Valve, Intake
13711-10020 note Valve, Intake
1988-05 → 1992-11 ended
3E ET176 ¥1,810
13711-15050 Valve, Intake
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥1,800
13711-16010 Valve, Intake
1988-05 → 1992-08 ended
4AGE AT171 ¥3,650
13711-64020 Valve, Intake
1988-05 → 1992-11 ended
2C CT17# ¥2,230
13711-74020 Valve, Intake
1988-05 → 1992-11 ended
4SF# ST170 ¥2,090
13712-11020 note Valve, Intake
1988-05 → 1992-11 ended
3E ET176 ¥1,800
13711A — Seal OR Ring, O(FOR VALVE STEM OIL)
90913-02053 Seal OR Ring, O(FOR VALVE STEM OIL)
1988-05 → 1990-11 ended
2C CT17# ¥590
90913-02062 note Seal OR Ring, O(FOR VALVE STEM OIL)
1988-05 → 1990-03 ended
4SFI ST170 ¥460
90913-02062 note Seal OR Ring, O(FOR VALVE STEM OIL)
1988-05 → 1990-03 ended
4AFE,5AF AT17# ¥460
90913-02062 note Seal OR Ring, O(FOR VALVE STEM OIL)
1990-03 → 1990-10 ended
4AF#,5AF# AT17# ¥460
90913-02066 note Seal OR Ring, O(FOR VALVE STEM OIL)
1990-10 → 1992-11 ended
4SFE ST170 ¥450
90913-02066 note Seal OR Ring, O(FOR VALVE STEM OIL)
1988-05 → 1990-10 ended
4AF#,5AF# AT17# ¥450
90913-02066 note Seal OR Ring, O(FOR VALVE STEM OIL)
1988-05 → 1990-10 ended
4SF# ST170 ¥450
90913-02071 Seal OR Ring, O(FOR VALVE STEM OIL)
1988-05 → 1990-02 ended
3E ET176 ¥470
90913-02077 note Seal OR Ring, O(FOR VALVE STEM OIL)
1989-03 → 1992-08 ended
4AGE AT171 ¥470
90913-02077 Seal OR Ring, O(FOR VALVE STEM OIL)
1988-05 → 1989-03 ended
4AGE AT171 ¥470
90913-02079 note Seal OR Ring, O(FOR VALVE STEM OIL)
1989-03 → 1992-08 ended
4AGE AT171 ¥450
90913-02081 note Seal OR Ring, O(FOR VALVE STEM OIL)
1990-11 → 1992-11 ended
3E ET176 ¥390
90913-02087 note Seal OR Ring, O(FOR VALVE STEM OIL)
1990-02 → 1990-11 ended
3E ET176 ¥400
90913-02089 note Seal OR Ring, O(FOR VALVE STEM OIL)
1990-02 → 1992-11 ended
3E ET176 ¥390
90913-02089 note Seal OR Ring, O(FOR VALVE STEM OIL)
1990-10 → 1992-11 ended
4AF#,5AFE AT17# ¥390
90913-02090 note Seal OR Ring, O(FOR VALVE STEM OIL)
1990-03 → 1990-10 ended
4SF# ST170 ¥450
90913-02090 note Seal OR Ring, O(FOR VALVE STEM OIL)
1990-10 → 1992-11 ended
4SFE ST170 ¥450
90913-02090 note Seal OR Ring, O(FOR VALVE STEM OIL)
1990-10 → 1992-11 ended
4AF#,5AFE AT17# ¥450
90913-02094 Seal OR Ring, O(FOR VALVE STEM OIL)
1990-11 → 1992-11 ended
2C CT17# ¥460
13711C — Spring, Compression(FOR OUTER)
90501-35011 Spring, Compression(FOR OUTER)
1988-05 → 1992-11 ended
3E ET176 ¥320
13711D — Washer, Plate(FOR VALVE SPRING SEAT)
90201-16010 Washer, Plate(FOR VALVE SPRING SEAT)
1988-05 → 1992-11 ended
2C CT17# ¥140
90201-16020 Washer, Plate(FOR VALVE SPRING SEAT)
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥120
90201-19008 Washer, Plate(FOR VALVE SPRING SEAT)
1988-05 → 1992-11 ended
3E ET176 ¥120
13715 — Valve, Exhaust
13715-10030 Valve, Exhaust
1988-05 → 1992-11 ended
3E ET176 ¥2,560
13715-15030 Valve, Exhaust
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥2,550
13715-16010 Valve, Exhaust
1988-05 → 1992-08 ended
4AGE AT171 ¥4,460
13715-64030 Valve, Exhaust
1988-05 → 1992-11 ended
2C CT17# ¥3,110
13715-74020 Valve, Exhaust
1988-05 → 1992-11 ended
4SF# ST170 ¥5,100
13741 — Retainer, Valve Spring
13741-10020 Retainer, Valve Spring
1988-05 → 1992-11 ended
3E ET176 ¥440
13741-16010 Retainer, Valve Spring
1988-05 → 1992-11 ended
4SF# ST170 ¥440
13741-16010 Retainer, Valve Spring
1988-05 → 1992-11 ended
4AF#,4AGE,5AF# AT17# ¥440
13741-43010 Retainer, Valve Spring
1988-05 → 1992-11 ended
2C CT17# ¥440
13741A — Lock, Valve Spring Retainer
90913-03014 Lock, Valve Spring Retainer
1988-05 → 1992-11 ended
2C CT17# ¥200
90913-03021 Lock, Valve Spring Retainer
1988-05 → 1992-11 ended
3E ET176 ¥180
90913-03021 Lock, Valve Spring Retainer
1988-05 → 1992-11 ended
4SF# ST170 ¥180
90913-03021 Lock, Valve Spring Retainer
1988-05 → 1992-11 ended
4AF#,4AGE,5AF# AT17# ¥180
13801 — Arm Sub-assy, Valve Rocker, NO.1
13811-10021 Arm Sub-assy, Valve Rocker, NO.1
1988-05 → 1992-11 ended
3E ET176 ¥2,110
13801B — Nut, Hexagon(FOR VALVE ADJUSTING)
90170-07004 Nut, Hexagon(FOR VALVE ADJUSTING)
1988-05 → 1992-11 ended
3E ET176 ¥100
13801C — Screw, Valve Adjusting
13788-10013 Screw, Valve Adjusting
1988-05 → 1992-11 ended
3E ET176 ¥1,090
13801D — Spring, Compression(FOR ROCKER ARM)
13935-10010 Spring, Compression(FOR ROCKER ARM)
1988-05 → 1992-11 ended
3E ET176 ¥300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
