Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

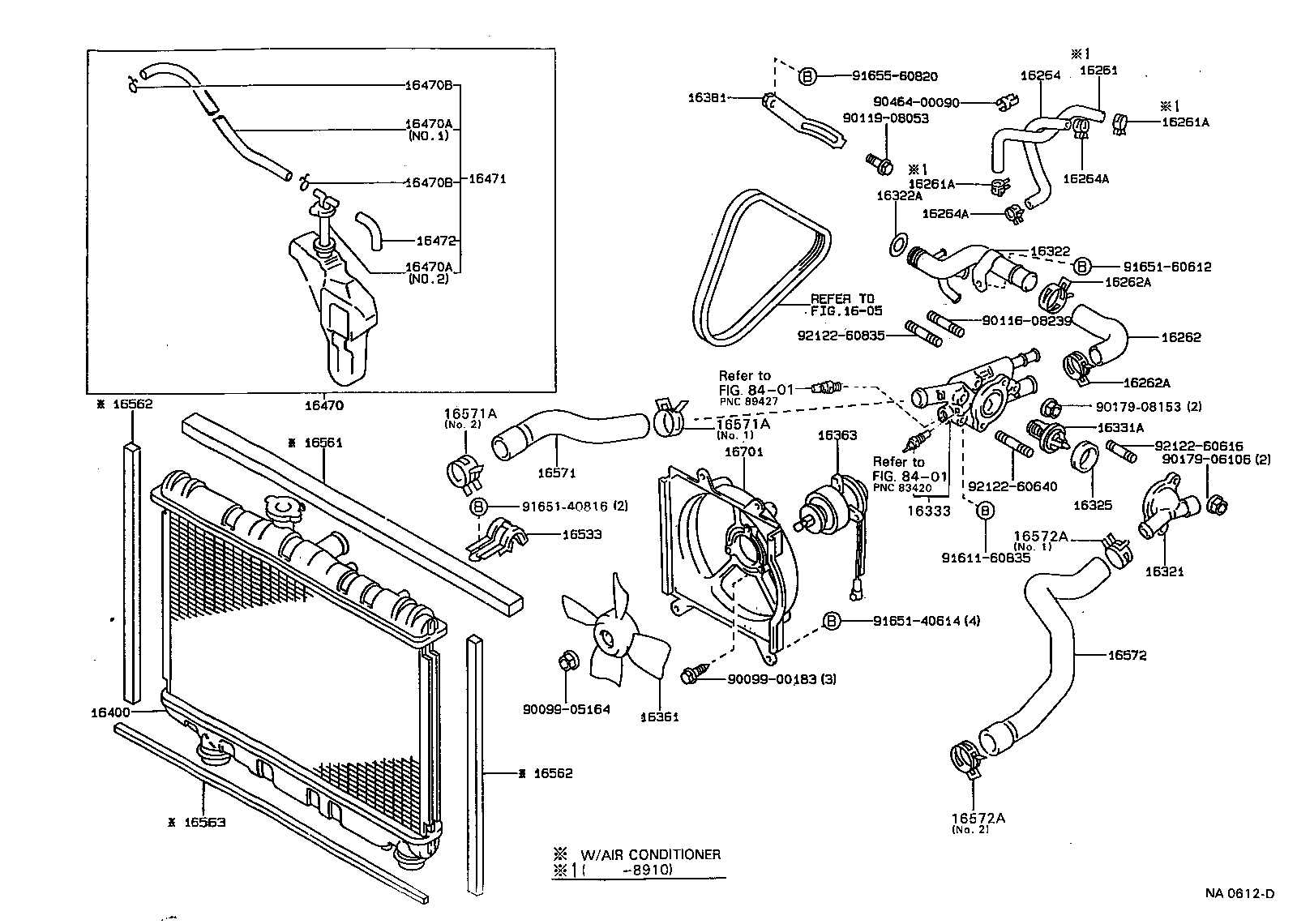

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-11040 |
Hose, Water By-pass
1988-05 → 1989-10
ended
|
3E ET176 | ¥650 | |
| 16261-15010 |
Hose, Water By-pass
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥620 | |
| 16261-64060 |
Hose, Water By-pass
1988-05 → 1992-11
ended
|
2C CT17# | ¥1,280 | |
| 16261-74010 |
Hose, Water By-pass
1990-05 → 1992-11
ended
|
4SFE ST170 | ¥640 | |
| 16261-74040 |
Hose, Water By-pass
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥820 | |
| 99555-10180 note |
Hose, Water By-pass
1988-05 → 1991-06
ended
|
4AF# AT171,175 | ¥400 | |
| 99555-10200 note |
Hose, Water By-pass
1988-05 → 1991-06
ended
|
5AF AT170 | ¥320 | |
| 99555-10200 note |
Hose, Water By-pass
1991-06 → 1992-08
ended
|
4AF# AT171,175 | ¥320 | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1989-01 → 1989-10
ended
|
3E ET176 | ¥260 | |
| 90467-11049 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1988-05 → 1989-01
ended
|
3E ET176 | ¥140 | |
| 90467-13001 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1988-05 → 1991-06
ended
|
4AF#,5AF AT17# | ¥230 | |
| 90467-15004 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1988-05 → 1989-08
ended
|
2C CT17# | ¥240 | |
| 90467-15022 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1989-08 → 1992-11
ended
|
2C CT17# | ¥170 | |
| 90467-22003 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1988-05 → 1992-11
ended
|
4SF# ST170 | ¥250 | |
| 96112-10250 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥240 | |
| 96135-41300 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1991-06 → 1992-08
ended
|
4AF# AT171,175 | ¥140 | |
| 16262 — Hose, Water Inlet | ||||
| 16262-10010 |
Hose, Water Inlet
1988-05 → 1992-11
ended
|
3E ET176 MTM | ¥800 | |
| 16262-10020 |
Hose, Water Inlet
1988-05 → 1992-11
ended
|
3E ET176 3FC | ¥800 | |
| 16262-15010 |
Hose, Water Inlet
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥1,410 | |
| 16262-15030 |
Hose, Water Inlet
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# | ¥1,620 | |
| 16262A — Clip(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
Clip(FOR WATER INLET HOSE)
1988-05 → 1992-11
ended
|
4AGE AT171 | ¥400 | |
| 90467-34003 |
Clip(FOR WATER INLET HOSE)
1988-05 → 1992-11
ended
|
3E ET176 | ¥400 | |
| 90467-36001 |
Clip(FOR WATER INLET HOSE)
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# | ¥470 | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-16030 |
Hose, Water By-pass, NO.2
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥800 | |
| 16264-16050 |
Hose, Water By-pass, NO.2
1990-05 → 1992-11
ended
|
5AFE AT170 | ¥550 | |
| 16264-64060 |
Hose, Water By-pass, NO.2
1988-05 → 1991-04
ended
|
2C CT17# | ¥1,550 | |
| 16264-64090 |
Hose, Water By-pass, NO.2
1991-04 → 1992-11
ended
|
2C CT17# | ¥1,280 | |
| 16264-74040 |
Hose, Water By-pass, NO.2
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥990 | |
| 90910-05208 |
Hose, Water By-pass, NO.2
1989-10 → 1992-11
ended
|
3E ET176 | ¥820 | |
| 99555-00270 |
Hose, Water By-pass, NO.2
1988-05 → 1989-10
ended
|
3E ET176 | ¥330 | |
| 99555-10180 note |
Hose, Water By-pass, NO.2
1988-05 → 1992-08
ended
|
4AF# AT171,175 | ¥400 | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1989-01 → 1989-10
ended
|
3E ET176 | ¥260 | |
| 90467-11049 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1988-05 → 1989-01
ended
|
3E ET176 | ¥140 | |
| 90467-13001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1989-10 → 1991-06
ended
|
3E ET176 | ¥230 | |
| 90467-13001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1989-10 → 1991-06
ended
|
4AF#,4AGE,5AFE AT17# | ¥230 | |
| 90467-13001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1991-06 → 1992-11
ended
|
4AGE AT171 | ¥230 | |
| 90467-13001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1991-06 → 1992-11
ended
|
3E ET176 | ¥230 | |
| 90467-13001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1988-05 → 1989-10
ended
|
4A# AT171,175 | ¥230 | |
| 90467-15004 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1988-05 → 1989-08
ended
|
2C CT17# | ¥240 | |
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1989-08 → 1992-11
ended
|
2C CT17# | ¥170 | |
| 90467-22003 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥250 | |
| 96135-41300 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1991-06 → 1992-11
ended
|
4AF#,5AFE AT17# | ¥140 | |
| 16321 — Inlet, Water | ||||
| 16321-11011 |
Inlet, Water
1988-05 → 1992-11
ended
|
3E ET176 | ¥2,530 | |
| 16321-15020 |
Inlet, Water
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# | ¥2,520 | |
| 16321-16030 |
Inlet, Water
1988-05 → 1992-08
ended
|
4AGE AT171 5F | ¥2,510 | |
| 16321-16040 |
Inlet, Water
1988-05 → 1992-08
ended
|
4AGE AT171 4FC | ¥2,510 | |
| 16321-64020 |
Inlet, Water
1988-05 → 1992-11
ended
|
2C CT17# | ¥3,780 | |
| 16321-74020 |
Inlet, Water
1990-05 → 1992-11
ended
|
4SFE ST170 | ¥3,990 | |
| 16321-88360 |
Inlet, Water
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥2,900 | |
| 16322 — Pipe, Water Inlet | ||||
| 16322-11010 |
Pipe, Water Inlet
1988-05 → 1989-10
ended
|
3E ET176 | ¥5,400 | |
| 16322-11080 |
Pipe, Water Inlet
1989-10 → 1992-04
ended
|
3E ET176 | ¥4,770 | |
| 16322-11081 |
Pipe, Water Inlet
1992-04 → 1992-11
ended
|
3E ET176 | ¥5,400 | |
| 16322-15020 |
Pipe, Water Inlet
1988-05 → 1990-05
ended
|
4AFE,5AF AT17# | ¥5,400 | |
| 16322-15040 |
Pipe, Water Inlet
1990-05 → 1991-06
ended
|
5AFE AT170 4FC DX;4AF#,5AFE +2 | ¥7,200 | |
| 16322-15041 |
Pipe, Water Inlet
1991-06 → 1992-11
ended
|
4AF#,5AFE AT17# | ¥7,500 | |
| 16322A — Ring, O(FOR WATER INLET) | ||||
| 96711-35028 |
Ring, O(FOR WATER INLET)
1988-05 → 1992-11
ended
|
3E ET176 | ¥220 | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-63010 |
Gasket, Water Inlet Housing, NO.1
1988-05 → 1992-11
ended
|
2C CT17# | ¥640 | |
| 16325-63010 |
Gasket, Water Inlet Housing, NO.1
1988-05 → 1992-11
ended
|
3E ET176 | ¥640 | |
| 16325-63010 |
Gasket, Water Inlet Housing, NO.1
1988-05 → 1992-11
ended
|
4SF# ST170 | ¥640 | |
| 16325-63010 |
Gasket, Water Inlet Housing, NO.1
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF# AT17# | ¥640 | |
| 16331A — Thermostat | ||||
| 90916-03046 note |
Thermostat
1988-05 → 1992-11
ended
|
2C CT17# | ¥1,740 | |
| 90916-03046 note |
Thermostat
1988-05 → 1992-11
ended
|
4SF# ST170 | ¥1,740 | |
| 90916-03046 note |
Thermostat
1988-05 → 1992-11
ended
|
3E ET176 | ¥1,740 | |
| 90916-03046 note |
Thermostat
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# | ¥1,740 | |
| 90916-03060 note |
Thermostat
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥2,010 | |
| 16333 — Housing, Water Outlet | ||||
| 16303-11050 |
Housing, Water Outlet
1989-10 → 1992-05
ended
|
3E ET176 | ¥8,000 | |
| 16303-11110 |
Housing, Water Outlet
1988-05 → 1989-10
ended
|
3E ET176 | ¥8,100 | |
| 16333-11190 |
Housing, Water Outlet
1992-05 → 1992-11
ended
|
3E ET176 | ¥8,200 | |
| 16361 — Fan | ||||
| 16361-15080 |
Fan
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF# AT170,171 MTM | ¥3,660 | |
| 16361-15080 |
Fan
1988-05 → 1992-11
ended
|
3E ET176 MTM | ¥3,660 | |
| 16361-63020 |
Fan
1989-10 → 1992-11
ended
|
2C CT176;2C CT170 4FC | ¥2,870 | |
| 16361-63020 |
Fan
1989-10 → 1992-11
ended
|
4AFE AT175 4FC | ¥2,870 | |
| 16361-63020 |
Fan
1989-10 → 1992-11
ended
|
3E ET176 3FC | ¥2,870 | |
| 16361-63020 |
Fan
1988-05 → 1989-10
ended
|
2C CT176;2C CT170 4FC | ¥2,870 | |
| 16361-63020 |
Fan
1988-05 → 1989-10
ended
|
4AFE AT175 4FC | ¥2,870 | |
| 16361-63040 |
Fan
1988-05 → 1992-11
ended
|
4SF# ST170 5F | ¥0 | |
| 16361-64010 |
Fan
1988-05 → 1989-10
ended
|
2C CT170 5F | — | |
| 16361-64010 |
Fan
1988-05 → 1989-10
ended
|
4SFI ST170 4FC | — | |
| 16361-64010 |
Fan
1988-05 → 1989-10
ended
|
3E ET176 3FC | — | |
| 16361-64010 |
Fan
1988-05 → 1989-10
ended
|
4AFE AT175 5F;4A#,5AF AT170,171 +1 | — | |
| 16361-64010 |
Fan
1989-10 → 1992-11
ended
|
4SF# ST170 4FC | — | |
| 16361-64010 |
Fan
1989-10 → 1992-11
ended
|
2C CT170 5F | — | |
| 16361-64010 |
Fan
1989-10 → 1992-11
ended
|
4AFE AT175 5F;4AF#,4AGE,5AF# AT170,171 +1 | — | |
| 16363 — Motor, Cooling Fan | ||||
| 16363-10010 |
Motor, Cooling Fan
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF# AT170,171 MTM | ¥21,900 | |
| 16363-10010 |
Motor, Cooling Fan
1988-05 → 1992-11
ended
|
4SF# ST170 5F | ¥21,900 | |
| 16363-10010 |
Motor, Cooling Fan
1988-05 → 1992-11
ended
|
3E ET176 MTM | ¥21,900 | |
| 16363-16010 |
Motor, Cooling Fan
1989-11 → 1992-11
ended
|
4SF# ST170 4FC | ¥23,600 | |
| 16363-16010 |
Motor, Cooling Fan
1989-11 → 1992-11
ended
|
2C CT170 5F | ¥23,600 | |
| 16363-16010 |
Motor, Cooling Fan
1989-11 → 1992-11
ended
|
4AFE AT175 5F;4AF#,4AGE,5AF# AT170,171 +1 | ¥23,600 | |
| 16363-16010 |
Motor, Cooling Fan
1988-05 → 1989-11
ended
|
4AFE AT175 5F;4A#,5AF AT170,171 +1 | ¥23,600 | |
| 16363-16010 |
Motor, Cooling Fan
1988-05 → 1989-11
ended
|
2C CT170 5F | ¥23,600 | |
| 16363-16010 |
Motor, Cooling Fan
1988-05 → 1989-11
ended
|
4SFI ST170 4FC | ¥23,600 | |
| 16363-16010 |
Motor, Cooling Fan
1988-05 → 1989-11
ended
|
3E ET176 3FC | ¥23,600 | |
| 16363-16020 |
Motor, Cooling Fan
1989-11 → 1992-11
ended
|
2C CT176 | ¥26,800 | |
| 16363-16020 |
Motor, Cooling Fan
1992-01 → 1992-11
ended
|
2C CT170 4FC | ¥26,800 | |
| 16363-16020 |
Motor, Cooling Fan
1989-11 → 1992-01
ended
|
2C CT170 4FC | ¥26,800 | |
| 16363-16020 |
Motor, Cooling Fan
1989-11 → 1992-01
ended
|
4AFE AT175 4FC | ¥26,800 | |
| 16363-16020 |
Motor, Cooling Fan
1989-11 → 1992-01
ended
|
3E ET176 3FC | ¥26,800 | |
| 16363-16020 |
Motor, Cooling Fan
1988-05 → 1989-11
ended
|
2C CT176;2C CT170 4FC | ¥26,800 | |
| 16363-16020 |
Motor, Cooling Fan
1988-05 → 1989-11
ended
|
4AFE AT175 4FC | ¥26,800 | |
| 16363-74010 |
Motor, Cooling Fan
1992-01 → 1992-11
ended
|
3E ET176 3FC | ¥26,800 | |
| 16363-74010 |
Motor, Cooling Fan
1992-01 → 1992-11
ended
|
4AFE AT175 4FC | ¥26,800 | |
| 16381 — Bar, Fan Belt Adjusting | ||||
| 16381-11020 |
Bar, Fan Belt Adjusting
1988-05 → 1992-07
ended
|
3E ET176 MTM | ¥990 | |
| 16381-11021 |
Bar, Fan Belt Adjusting
1992-07 → 1992-11
ended
|
3E ET176 MTM | ¥1,000 | |
| 16381-11030 |
Bar, Fan Belt Adjusting
1988-05 → 1992-11
ended
|
3E ET176 3FC | ¥680 | |
| 16381-11030 note |
Bar, Fan Belt Adjusting
1990-05 → 1992-11
ended
|
3E ET176 MTM | ¥680 | |
| 16381-15060 |
Bar, Fan Belt Adjusting
1990-05 → 1992-11
ended
|
4AF#,5AFE AT17# | ¥2,410 | |
| 16381-15060 |
Bar, Fan Belt Adjusting
1988-05 → 1990-05
ended
|
4AFE,5AF AT170,171 | ¥2,410 | |
| 16381-16050 |
Bar, Fan Belt Adjusting
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥1,540 | |
| 16400 — Radiator Assy | ||||
| 16400-11200 |
Radiator Assy
1988-05 → 1992-11
ended
|
3E ET176 MTM | ¥55,100 | |
| 16400-11200 |
Radiator Assy
1988-05 → 1992-11
ended
|
4AF# AT171 5F | ¥55,100 | |
| 16400-11210 |
Radiator Assy
1988-05 → 1992-11
ended
|
3E ET176 3FC | ¥65,900 | |
| 16400-15360 |
Radiator Assy
1988-05 → 1990-05
ended
|
5AF AT170 MTM | ¥54,900 | |
| 16400-15380 |
Radiator Assy
1988-05 → 1992-11
ended
|
4AFE,5AF# AT170,171 4FC | ¥32,700 | |
| 16400-15440 |
Radiator Assy
1988-08 → 1992-08
ended
|
4AFE AT175 4FC | ¥37,600 | |
| 16400-16190 |
Radiator Assy
1988-05 → 1992-08
ended
|
4AGE AT171 4FC | ¥65,900 | |
| 16400-16220 |
Radiator Assy
1988-05 → 1992-08
ended
|
4AGE AT171 5F | ¥32,700 | |
| 16400-16290 |
Radiator Assy
1988-08 → 1992-11
ended
|
4AFE,5AFE AT170,175 MTM | ¥28,800 | |
| 16400-16380 |
Radiator Assy
1990-05 → 1992-08
ended
|
4AFHE AT171 4FC | ¥74,100 | |
| 16400-64460 |
Radiator Assy
1988-05 → 1992-11
ended
|
2C CT17# 5F | ¥32,600 | |
| 16400-64470 |
Radiator Assy
1988-05 → 1989-10
ended
|
2C CT170 4FC | ¥77,500 | |
| 16400-64471 |
Radiator Assy
1989-10 → 1992-11
ended
|
2C CT17# 4FC | ¥77,500 | |
| 16400-74060 |
Radiator Assy
1988-05 → 1990-05
ended
|
4SFI ST170 5F | ¥31,900 | |
| 16400-74320 |
Radiator Assy
1988-05 → 1990-05
ended
|
4SFI ST170 4FC | ¥33,300 | |
| 16400-74710 |
Radiator Assy
1990-05 → 1992-11
ended
|
4SFE ST170 4FC | ¥75,400 | |
| 16400-74730 |
Radiator Assy
1990-05 → 1992-11
ended
|
4SFE ST170 5F | ¥64,800 | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16470-15050 |
Tank Assy, Radiator Reserve
1988-05 → 1992-11
ended
|
5AF AT170 | ¥3,370 | |
| 16470-15050 |
Tank Assy, Radiator Reserve
1988-05 → 1992-11
ended
|
3E ET176 | ¥3,370 | |
| 16470-16120 |
Tank Assy, Radiator Reserve
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥2,870 | |
| 16470-16140 |
Tank Assy, Radiator Reserve
1990-05 → 1992-08
ended
|
4AFE AT175 | ¥2,890 | |
| 16470-64100 |
Tank Assy, Radiator Reserve
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥3,370 | |
| 16470-64110 |
Tank Assy, Radiator Reserve
1988-05 → 1990-05
ended
|
4AFE AT175 | ¥3,370 | |
| 16470-64110 |
Tank Assy, Radiator Reserve
1988-05 → 1990-05
ended
|
2C CT17# | ¥3,370 | |
| 16470-64110 |
Tank Assy, Radiator Reserve
1990-05 → 1992-11
ended
|
2C CT17# | ¥3,370 | |
| 16470-74090 note |
Tank Assy, Radiator Reserve
1988-05 → 1990-05
ended
|
4SFI ST170 SE | ¥3,380 | |
| 16470-74090 |
Tank Assy, Radiator Reserve
1988-05 → 1992-11
ended
|
4SFE ST170 | ¥3,380 | |
| 16470-74090 |
Tank Assy, Radiator Reserve
1988-05 → 1992-11
ended
|
4AF#,5AFE AT170,171 | ¥3,380 | |
| 16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK) | ||||
| 85338-16120 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-05 → 1992-08
ended
|
4AGE AT171 | — | |
| 85338-70070 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-05 → 1992-08
ended
|
4AFE AT175 | ¥0 | |
| 85338-74080 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-09 → 1992-11
ended
|
4AFHE,5AFE AT170,171 | — | |
| 85338-74080 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-09 → 1992-11
ended
|
4SFE ST170 | — | |
| 85338-74080 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-09
ended
|
4SFE ST170 | — | |
| 85338-74080 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-09
ended
|
4AFE AT171 | — | |
| 85338-74080 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-09
ended
|
4AFHE,5AFE AT170,171 | — | |
| 85338-74080 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-09
ended
|
4SFI ST170 SE | — | |
| 90099-33466 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-09
ended
|
4AFE AT171 | — | |
| 90099-33466 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-09
ended
|
4SFI ST170 SE | — | |
| 90099-33466 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-09 → 1991-10
ended
|
4SFE ST170 | — | |
| 90099-33466 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-09 → 1991-10
ended
|
4AFHE,5AFE AT170,171 | — | |
| 90099-33494 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-05
ended
|
4AGE AT171 | — | |
| 90099-33534 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1992-11
ended
|
3E ET176 | — | |
| 90099-33534 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1992-11
ended
|
5AF AT170 | — | |
| 90445-12065 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥800 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-05 → 1992-08
ended
|
4AFE AT175 | ¥580 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1991-10 → 1992-11
ended
|
4AFHE,5AFE AT170,171 | ¥580 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1991-10 → 1992-11
ended
|
4SFE ST170 | ¥580 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥580 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-05
ended
|
4AFE AT175 | ¥580 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1992-11
ended
|
3E ET176 | ¥580 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1992-11
ended
|
5AF AT170 | ¥580 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-05 → 1990-05
ended
|
2C CT17# | ¥580 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-05 → 1992-11
ended
|
2C CT17# | ¥580 | |
| 16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1988-05 → 1992-11
ended
|
2C CT17# | ¥100 | |
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1988-05 → 1992-11
ended
|
3E ET176 | ¥100 | |
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1988-05 → 1992-11
ended
|
4SF# ST170 | ¥100 | |
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF# AT17# | ¥100 | |
| 16471 — Cap Sub-assy, Reserve Tank | ||||
| 16405-15060 |
Cap Sub-assy, Reserve Tank
1988-05 → 1992-11
ended
|
3E ET176 | — | |
| 16405-15060 |
Cap Sub-assy, Reserve Tank
1988-05 → 1992-11
ended
|
5AF AT170 | — | |
| 16405-16090 |
Cap Sub-assy, Reserve Tank
1988-05 → 1992-08
ended
|
4AGE AT171 | — | |
| 16405-16100 |
Cap Sub-assy, Reserve Tank
1990-05 → 1992-08
ended
|
4AFE AT175 | ¥1,240 | |
| 16405-64040 |
Cap Sub-assy, Reserve Tank
1988-05 → 1990-05
ended
|
4SFI ST170 | — | |
| 16405-64050 |
Cap Sub-assy, Reserve Tank
1988-05 → 1990-05
ended
|
2C CT17# | — | |
| 16405-64050 |
Cap Sub-assy, Reserve Tank
1990-05 → 1992-11
ended
|
2C CT17# | — | |
| 16405-64050 |
Cap Sub-assy, Reserve Tank
1988-05 → 1990-05
ended
|
4AFE AT175 | — | |
| 16405-74060 note |
Cap Sub-assy, Reserve Tank
1988-05 → 1990-05
ended
|
4SFI ST170 SE | — | |
| 16405-74060 |
Cap Sub-assy, Reserve Tank
1988-05 → 1992-11
ended
|
4SFE ST170 | — | |
| 16405-74060 |
Cap Sub-assy, Reserve Tank
1988-05 → 1992-11
ended
|
4AF#,5AFE AT170,171 | — | |
| 16472 — Hose, Breather | ||||
| 85338-14030 |
Hose, Breather
1988-05 → 1990-05
ended
|
4SFI ST170 | — | |
| 85338-70100 |
Hose, Breather
1990-05 → 1992-11
ended
|
2C CT17# | — | |
| 85338-70100 |
Hose, Breather
1988-05 → 1990-05
ended
|
2C CT17# | — | |
| 85338-70100 |
Hose, Breather
1988-05 → 1990-05
ended
|
4AFE AT175 | — | |
| 85338-74040 |
Hose, Breather
1990-05 → 1992-11
ended
|
4AF#,4AGE,5AFE AT17# | — | |
| 85338-74040 |
Hose, Breather
1990-05 → 1992-11
ended
|
4SFE ST170 | — | |
| 85338-74040 |
Hose, Breather
1990-05 → 1992-11
ended
|
3E ET176 | — | |
| 85338-74040 |
Hose, Breather
1988-05 → 1990-05
ended
|
4A#,5AF AT170,171 | — | |
| 85338-74040 note |
Hose, Breather
1988-05 → 1990-05
ended
|
4SFI ST170 SE | — | |
| 85338-74040 |
Hose, Breather
1988-05 → 1990-05
ended
|
3E ET176 | — | |
| 16533 — Support, Radiator, Upper | ||||
| 16533-15110 |
Support, Radiator, Upper
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥3,890 | |
| 16533-15110 |
Support, Radiator, Upper
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# | ¥3,890 | |
| 16533-15110 |
Support, Radiator, Upper
1988-05 → 1992-11
ended
|
3E ET176 | ¥3,890 | |
| 16533-64100 |
Support, Radiator, Upper
1988-05 → 1992-11
ended
|
2C CT17# | ¥3,890 | |
| 16533-74060 |
Support, Radiator, Upper
1988-05 → 1992-11
ended
|
4SFI ST170;4SFE ST170 5F | ¥3,890 | |
| 16533-74070 |
Support, Radiator, Upper
1990-05 → 1992-11
ended
|
4SFE ST170 4FC | ¥3,890 | |
| 16561 — Seal, Radiator TO Support, NO.1 | ||||
| 16561-74010 |
Seal, Radiator TO Support, NO.1
1988-05 → 1992-11
ended
|
3E ET176 | ¥760 | |
| 16561-74010 |
Seal, Radiator TO Support, NO.1
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF# AT17# | ¥760 | |
| 16561-74010 |
Seal, Radiator TO Support, NO.1
1988-05 → 1992-11
ended
|
4SFI ST170 | ¥760 | |
| 16561-74010 |
Seal, Radiator TO Support, NO.1
1988-05 → 1992-11
ended
|
2C CT17# | ¥760 | |
| 16562 — Seal, Radiator TO Support, NO.2 | ||||
| 16562-74010 |
Seal, Radiator TO Support, NO.2
1988-05 → 1992-11
ended
|
2C CT17# | ¥210 | |
| 16562-74010 |
Seal, Radiator TO Support, NO.2
1988-05 → 1992-11
ended
|
3E ET176 | ¥210 | |
| 16562-74010 |
Seal, Radiator TO Support, NO.2
1988-05 → 1992-11
ended
|
4SFI ST170 | ¥210 | |
| 16562-74010 |
Seal, Radiator TO Support, NO.2
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF# AT17# | ¥210 | |
| 16563 — Seal, Radiator TO Support, NO.3 | ||||
| 16563-74010 |
Seal, Radiator TO Support, NO.3
1988-05 → 1992-11
ended
|
2C CT17# | ¥330 | |
| 16563-74010 |
Seal, Radiator TO Support, NO.3
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF# AT17# | ¥330 | |
| 16563-74010 |
Seal, Radiator TO Support, NO.3
1988-05 → 1992-11
ended
|
4SFI ST170 | ¥330 | |
| 16563-74010 |
Seal, Radiator TO Support, NO.3
1988-05 → 1992-11
ended
|
3E ET176 | ¥330 | |
| 16571 — Hose, Radiator, Inlet | ||||
| 16571-11060 |
Hose, Radiator, Inlet
1988-05 → 1992-11
ended
|
3E ET176 | ¥1,600 | |
| 16571-15150 |
Hose, Radiator, Inlet
1988-05 → 1992-11
ended
|
4AF#,5AF# AT170,171 | ¥1,280 | |
| 16571-15180 |
Hose, Radiator, Inlet
1988-08 → 1992-08
ended
|
4AFE AT175 | ¥1,600 | |
| 16571-16090 |
Hose, Radiator, Inlet
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥2,590 | |
| 16571-64140 |
Hose, Radiator, Inlet
1988-05 → 1992-11
ended
|
2C CT17# | ¥1,740 | |
| 16571-74090 |
Hose, Radiator, Inlet
1988-05 → 1992-11
ended
|
4SF# ST170 | ¥2,160 | |
| 16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET) | ||||
| 90467-31003 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-05 → 1992-11
ended
|
3E ET176 | ¥240 | |
| 90467-33002 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1990-05 → 1992-11
ended
|
4SFE ST170 | ¥370 | |
| 90467-33002 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1990-05 → 1992-11
ended
|
4AGE AT171 | ¥370 | |
| 90467-33002 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1990-05 → 1992-11
ended
|
2C CT17# | ¥370 | |
| 90467-33002 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-05 → 1992-11
ended
|
3E ET176 | ¥370 | |
| 90467-33002 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-05 → 1990-05
ended
|
2C CT17# | ¥370 | |
| 90467-33002 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥370 | |
| 90467-33002 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-05 → 1990-05
ended
|
4AGE AT171 | ¥370 | |
| 90467-34003 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# | ¥400 | |
| 16572 — Hose, Radiator, Outlet | ||||
| 16572-11120 |
Hose, Radiator, Outlet
1988-05 → 1992-11
ended
|
3E ET176 | ¥2,590 | |
| 16572-15200 |
Hose, Radiator, Outlet
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# | ¥2,590 | |
| 16572-16070 |
Hose, Radiator, Outlet
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥2,160 | |
| 16572-64170 |
Hose, Radiator, Outlet
1988-05 → 1992-11
ended
|
2C CT17# | ¥1,950 | |
| 16572-74030 |
Hose, Radiator, Outlet
1988-05 → 1989-01
ended
|
4SFI ST170 | ¥2,170 | |
| 16572-74120 |
Hose, Radiator, Outlet
1989-01 → 1990-05
ended
|
4SFI ST170 | ¥2,210 | |
| 16572-74130 |
Hose, Radiator, Outlet
1990-05 → 1992-11
ended
|
4SFE ST170 | ¥1,960 | |
| 16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-05 → 1992-11
ended
|
3E ET176 | ¥240 | |
| 90467-33002 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-05 → 1992-11
ended
|
4SF# ST170 | ¥370 | |
| 90467-33002 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-05 → 1992-11
ended
|
4AGE AT171 | ¥370 | |
| 90467-33002 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-05 → 1992-11
ended
|
2C CT17# | ¥370 | |
| 90467-33002 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-05 → 1992-11
ended
|
3E ET176 | ¥370 | |
| 90467-34003 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-05 → 1992-11
ended
|
4AF#,5AF# AT17# | ¥400 | |
| 90467-37001 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-05 → 1992-11
ended
|
2C CT17# | ¥330 | |
| 16701 — Shroud Sub-assy, Fan | ||||
| 16711-15220 |
Shroud Sub-assy, Fan
1988-05 → 1992-11
ended
|
3E ET176 MTM | ¥6,200 | |
| 16711-15220 |
Shroud Sub-assy, Fan
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AF# AT170,171 MTM | ¥6,200 | |
| 16711-15230 |
Shroud Sub-assy, Fan
1988-05 → 1989-10
ended
|
4A#,5AF AT170,171 4FC | ¥5,700 | |
| 16711-15230 |
Shroud Sub-assy, Fan
1988-05 → 1989-10
ended
|
3E ET176 3FC | ¥5,700 | |
| 16711-15230 |
Shroud Sub-assy, Fan
1989-10 → 1992-11
ended
|
4AF#,4AGE,5AF# AT170,171 4FC | ¥5,700 | |
| 16711-16140 |
Shroud Sub-assy, Fan
1988-08 → 1992-08
ended
|
4AFE AT175 5F | ¥7,000 | |
| 16711-16150 |
Shroud Sub-assy, Fan
1988-08 → 1989-10
ended
|
4AFE AT175 4FC | ¥7,000 | |
| 16711-16150 |
Shroud Sub-assy, Fan
1989-10 → 1992-11
ended
|
3E ET176 3FC | ¥7,000 | |
| 16711-16150 |
Shroud Sub-assy, Fan
1989-10 → 1992-11
ended
|
4AFE AT175 4FC | ¥7,000 | |
| 16711-64220 |
Shroud Sub-assy, Fan
1988-05 → 1992-11
ended
|
2C CT176;2C CT170 4FC | ¥7,100 | |
| 16711-74020 |
Shroud Sub-assy, Fan
1988-05 → 1992-11
ended
|
4SF# ST170 5F | ¥7,100 | |
| 16711-74050 |
Shroud Sub-assy, Fan
1988-05 → 1992-11
ended
|
2C CT170 5F | ¥7,100 | |
| 16711-74140 |
Shroud Sub-assy, Fan
1988-05 → 1992-11
ended
|
4SF# ST170 4FC | ¥6,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
