Toyota Carina FF

1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 13 illustrations

Illustrations

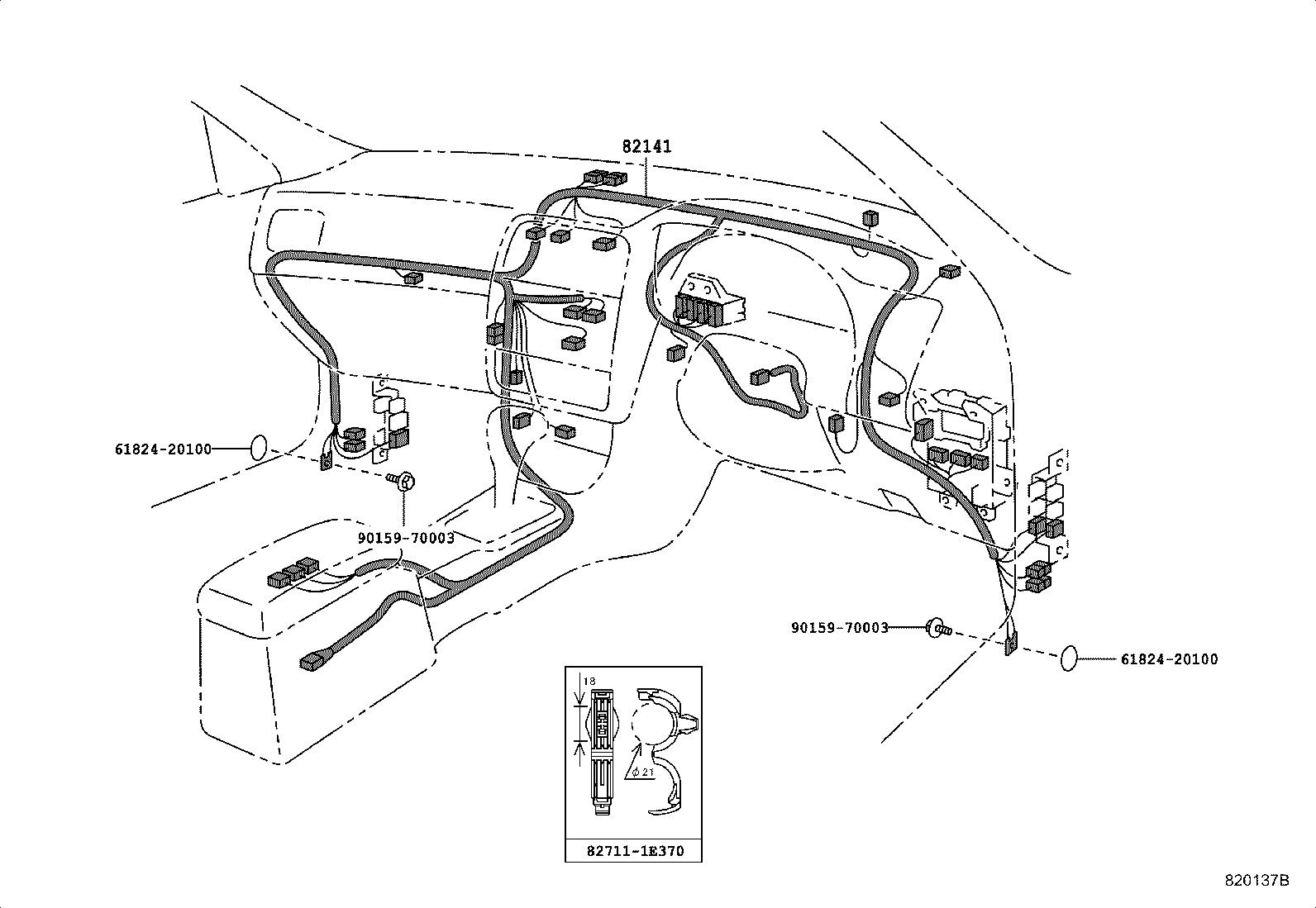

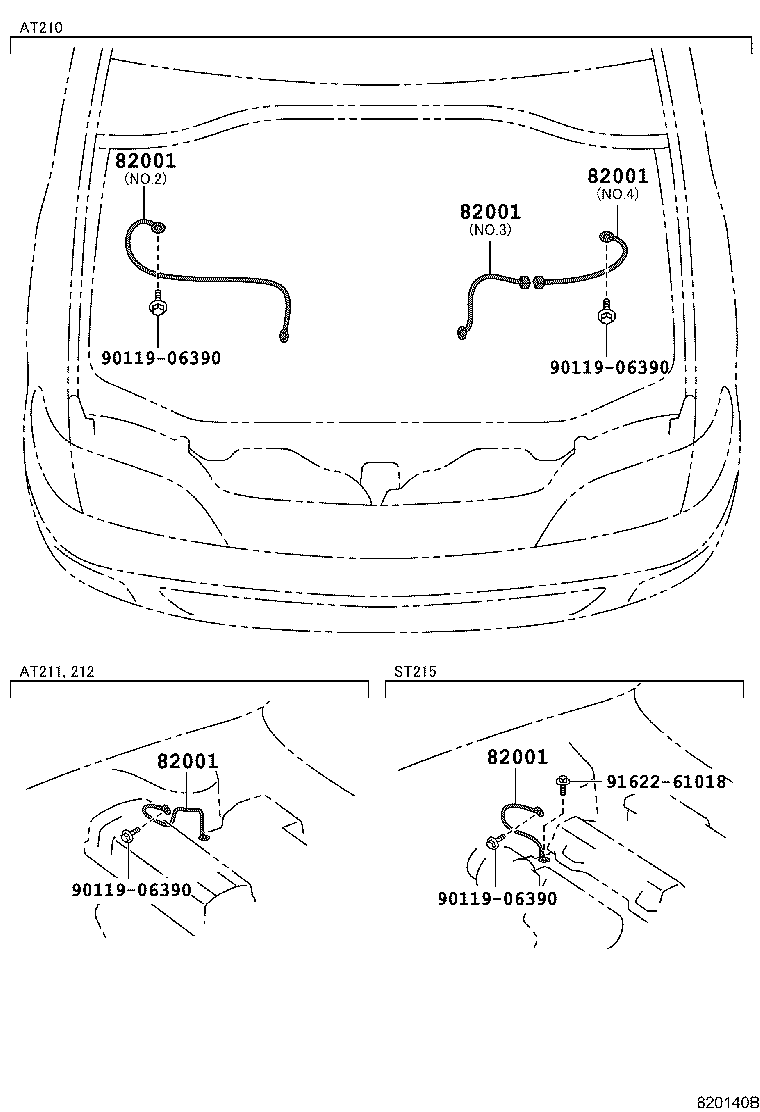

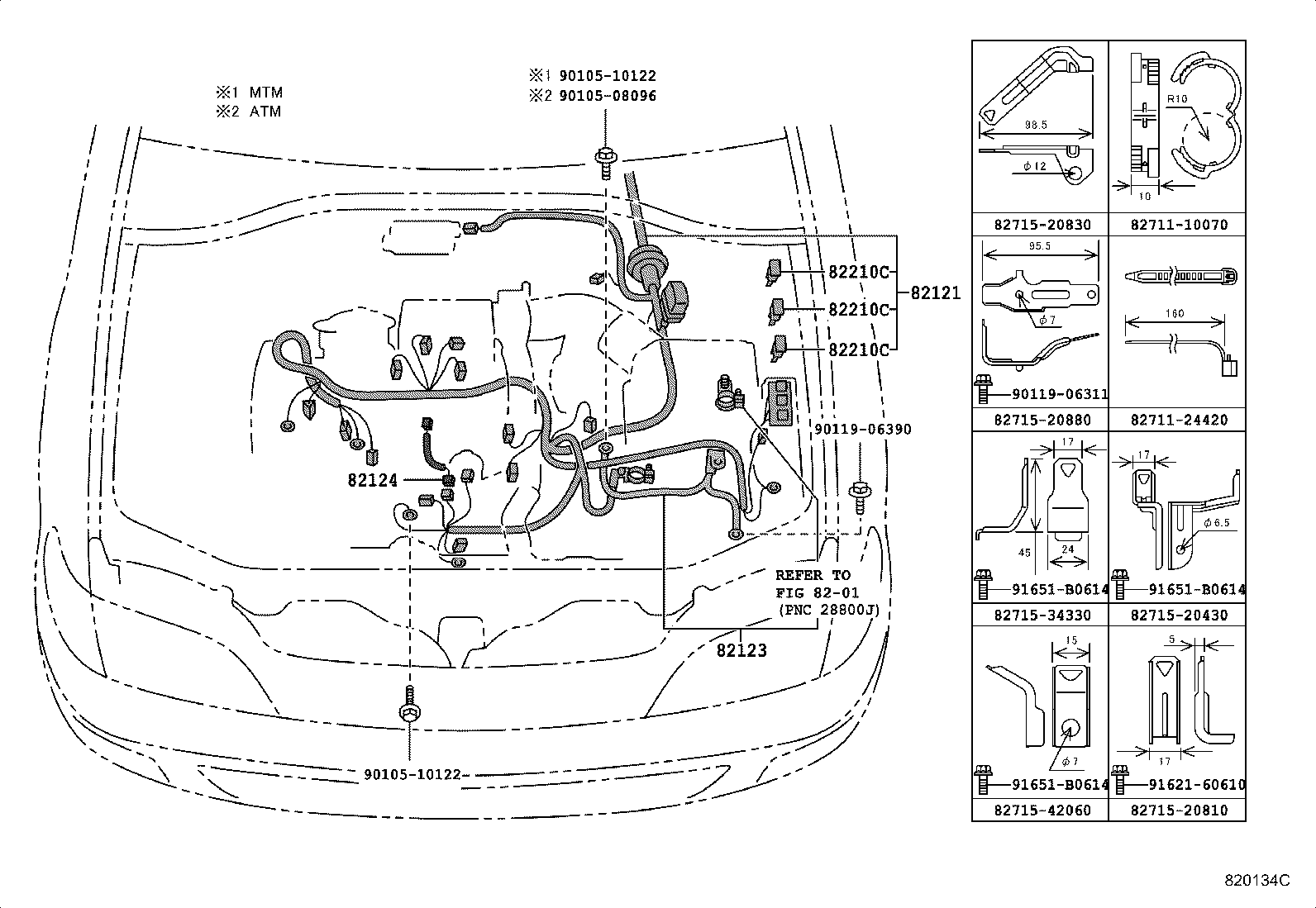

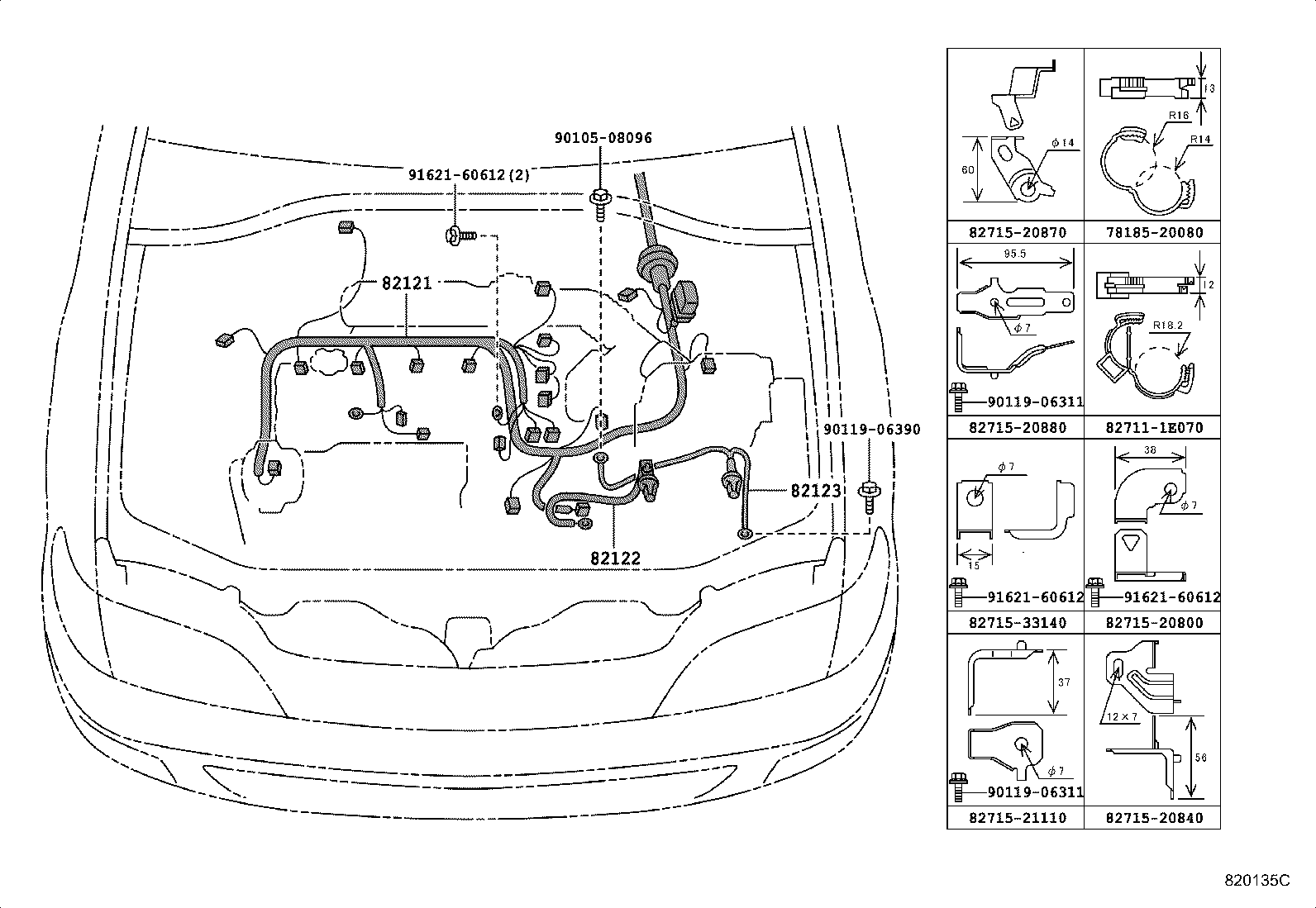

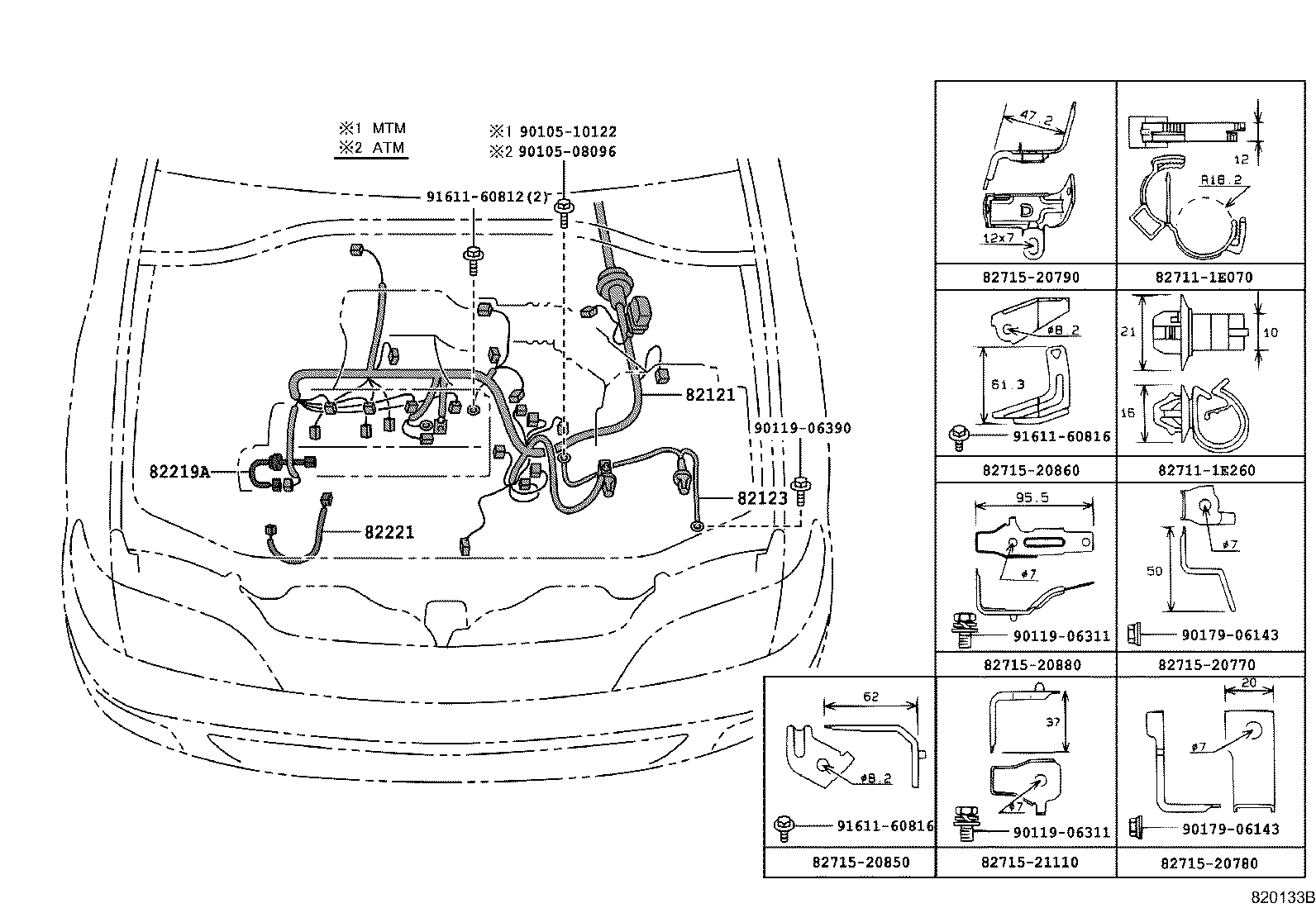

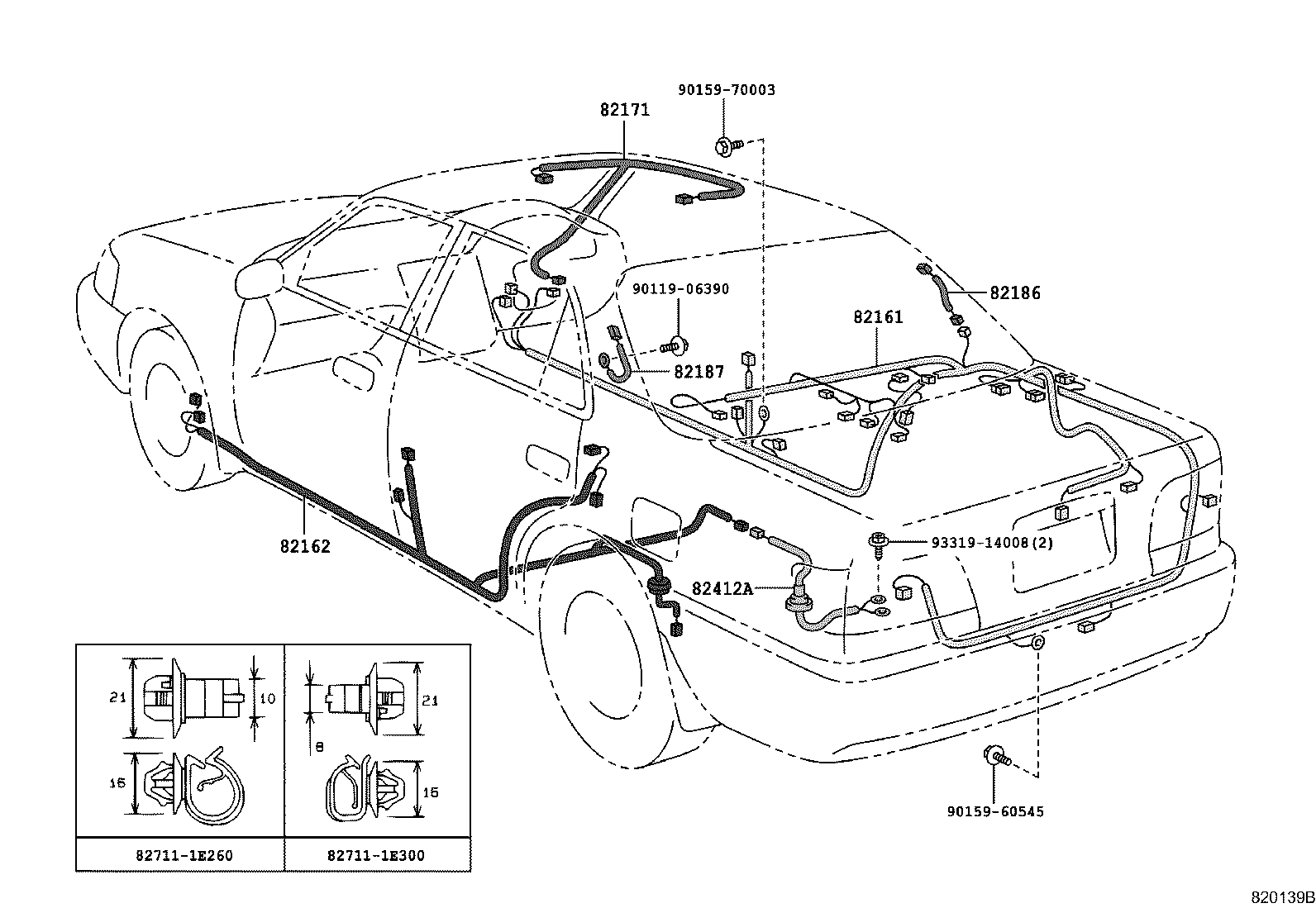

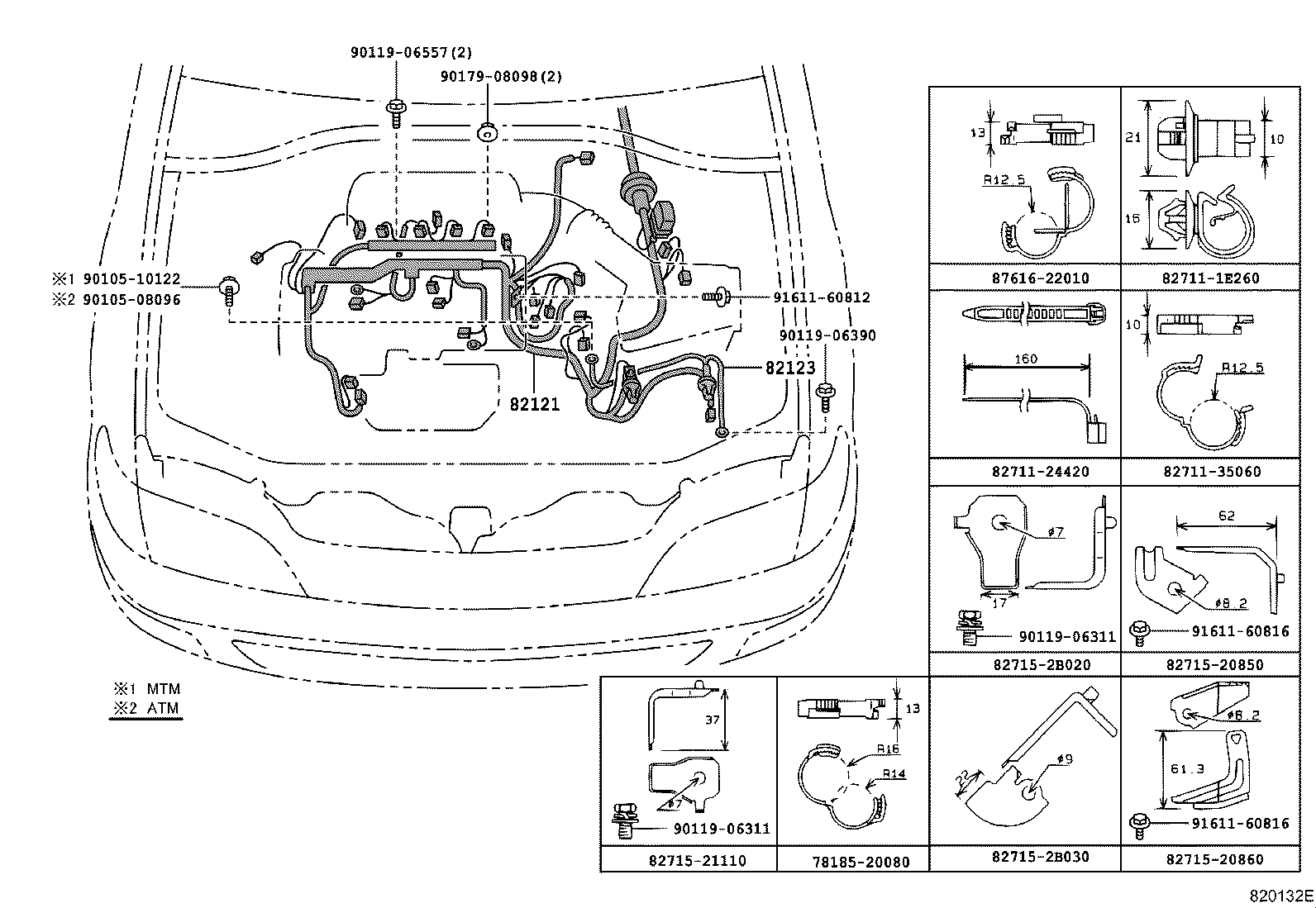

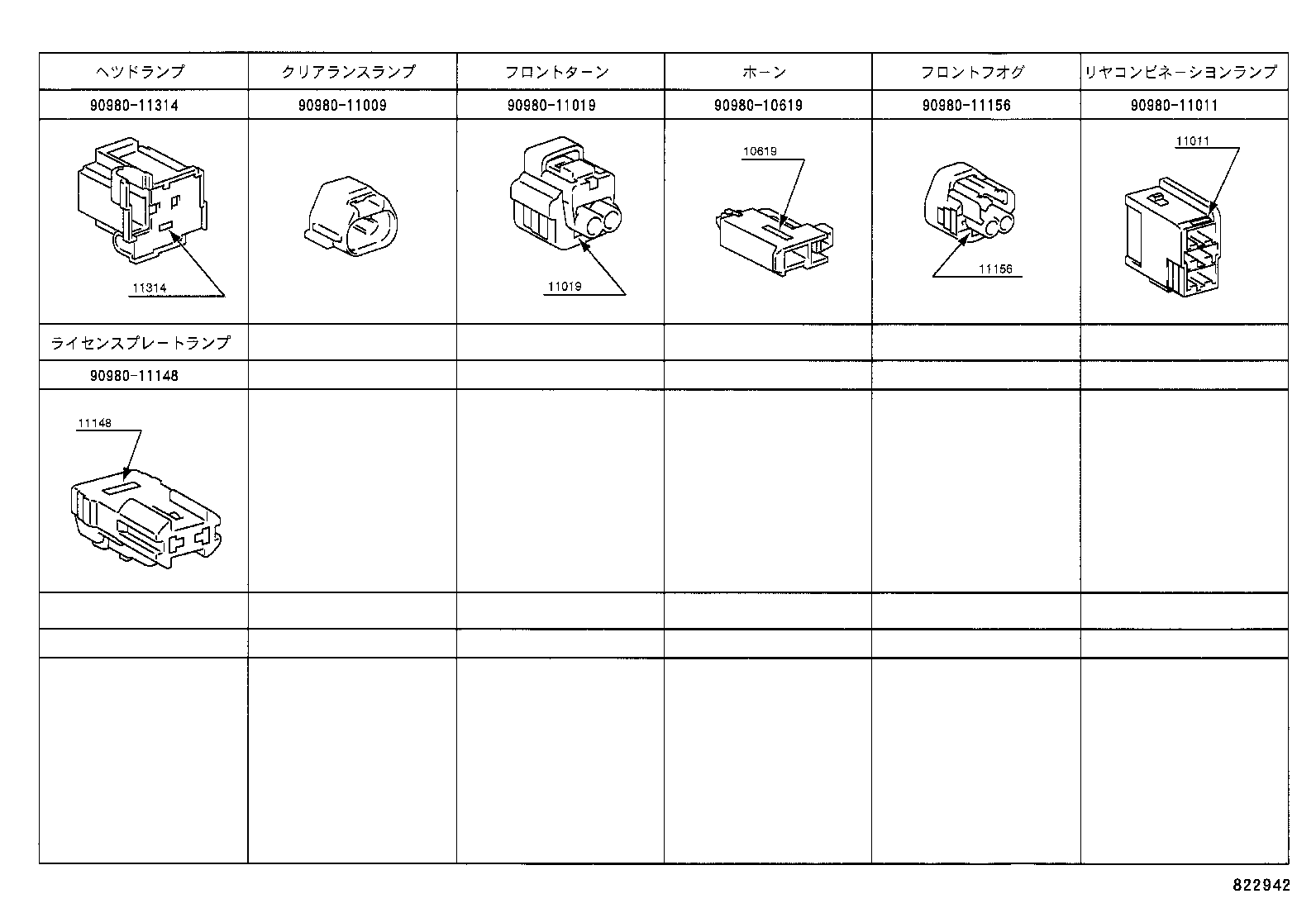

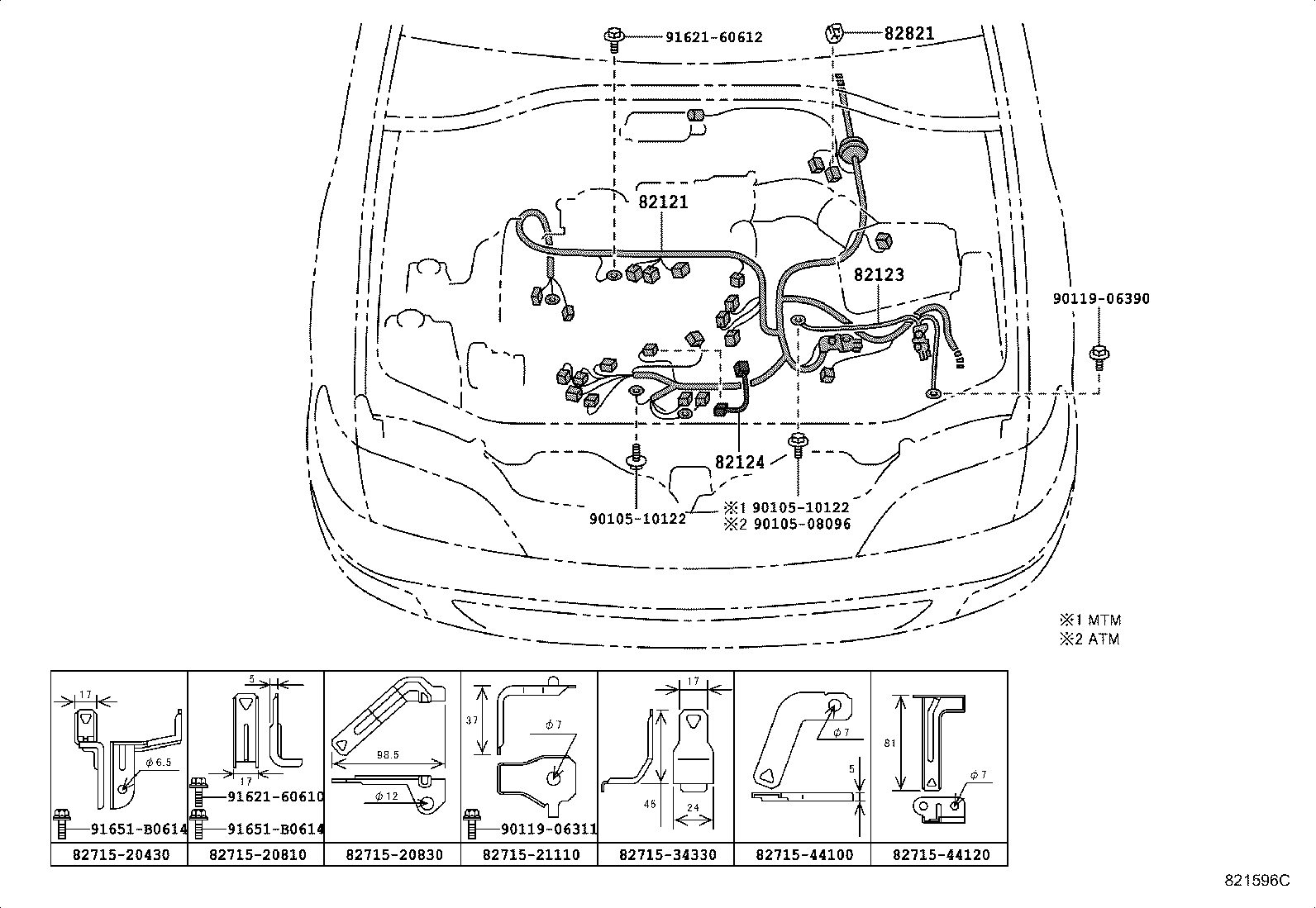

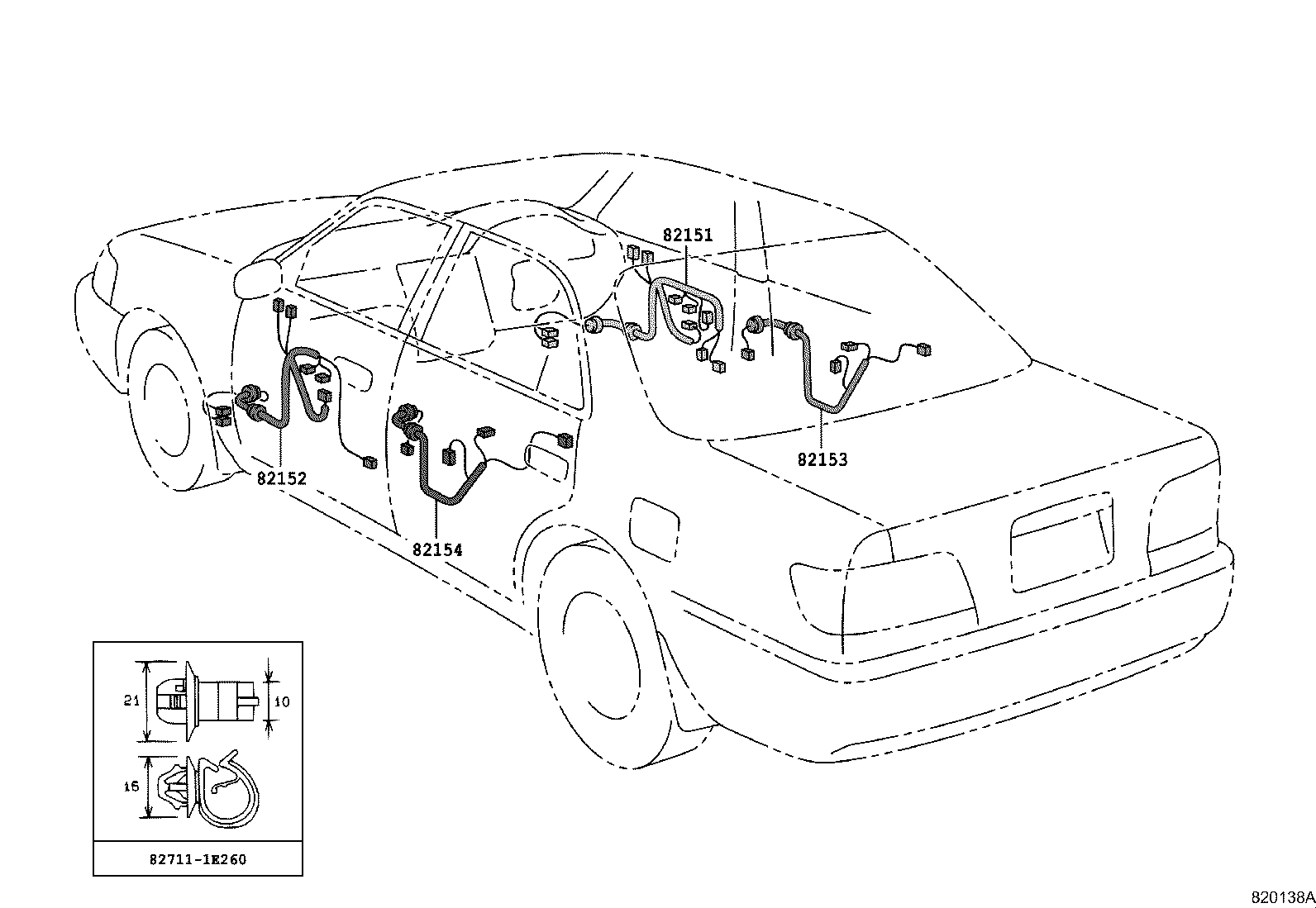

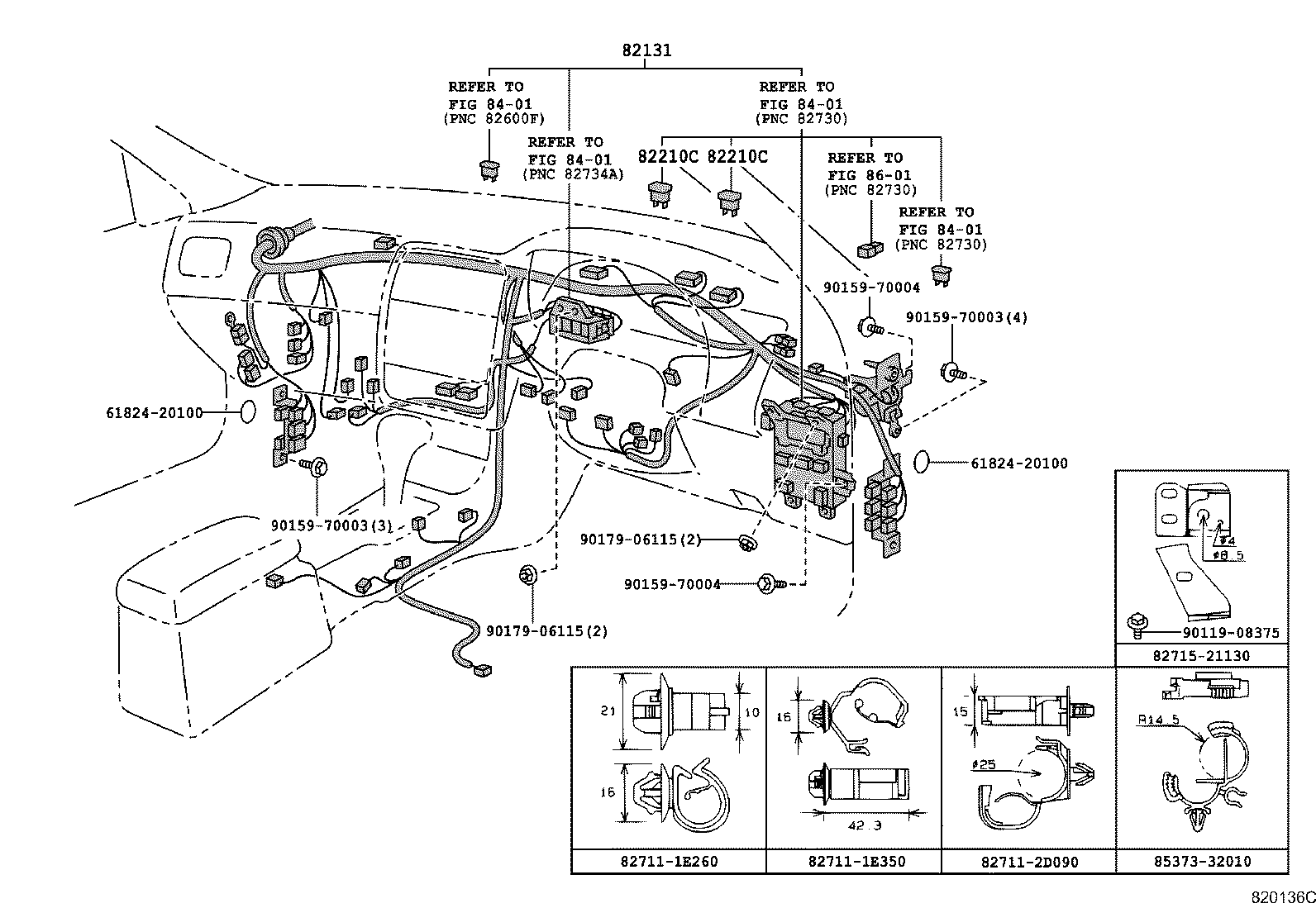

Figure 820131C 820131C 1996-08 → — Figure 820132E 820132E 1996-08 → — Figure 820133B 820133B 1996-08 → — Figure 820134C 820134C 1996-08 → 1998-08 Figure 821596C 821596C 1998-08 → — Figure 820135C 820135C 1996-08 → — Figure 820136C 820136C 1996-08 → — Figure 820137B 820137B 1996-08 → — Figure 820138A 820138A 1996-08 → — Figure 820139B 820139B 1996-08 → — Figure 820140B 820140B 1996-08 → — Figure 820141A 820141A 1996-08 → — Figure 822942 822942 1996-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82217A Wire, Front Window Defogger
82219A Wire, Sensor
82221 Wire, Oil Pressure Switch
82412A Wire, Fuel Gage, NO.2
82817 Protector, Wiring Harness, NO.1
82818 Protector, Wiring Harness, NO.2
82821 Retainer, Headlamp Harness
82823 Cap, Terminal, NO.1
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
