Toyota Lexus IS250/350

2005-08 → 2013-04 · chassis GSE2# · catalogue 242120 · Japan

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

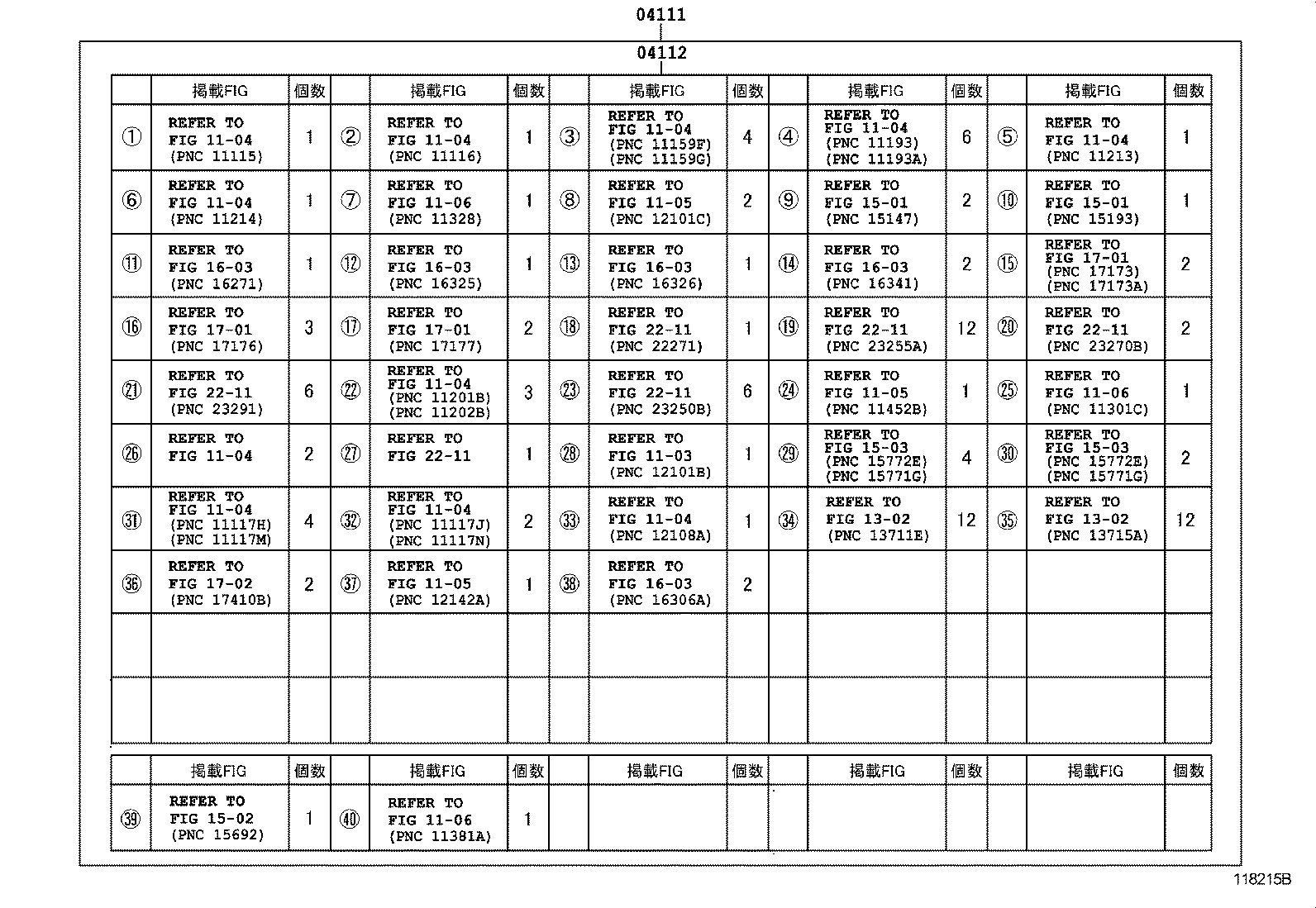

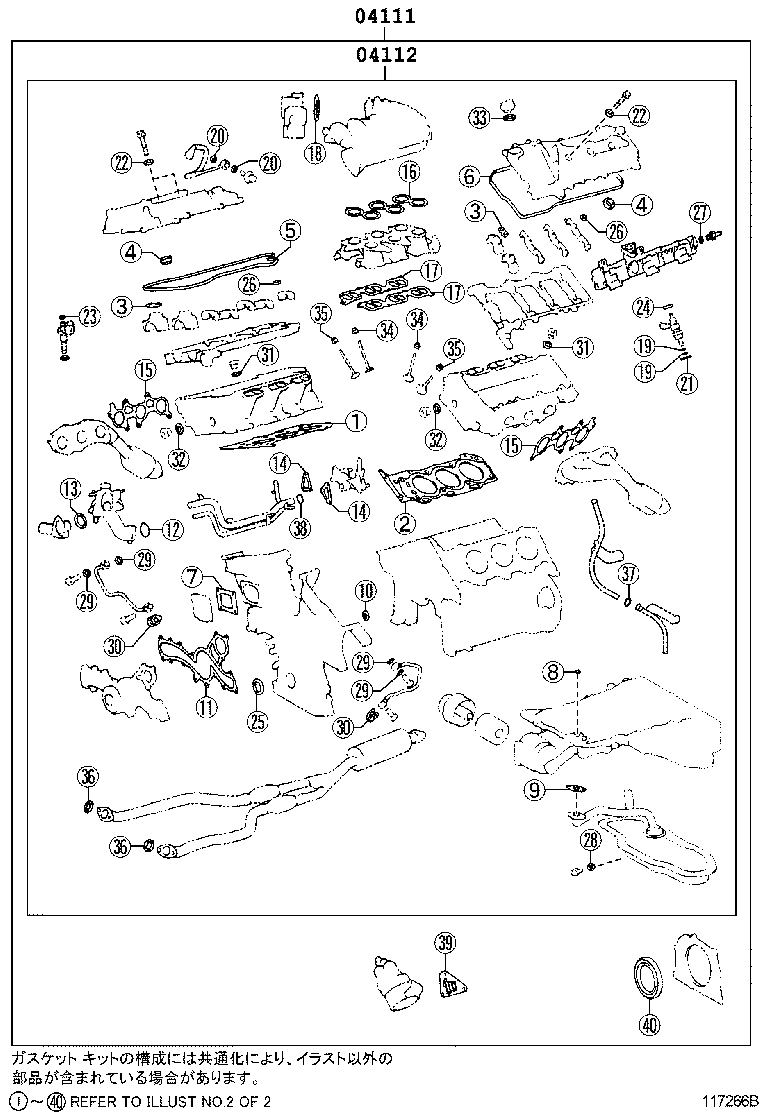

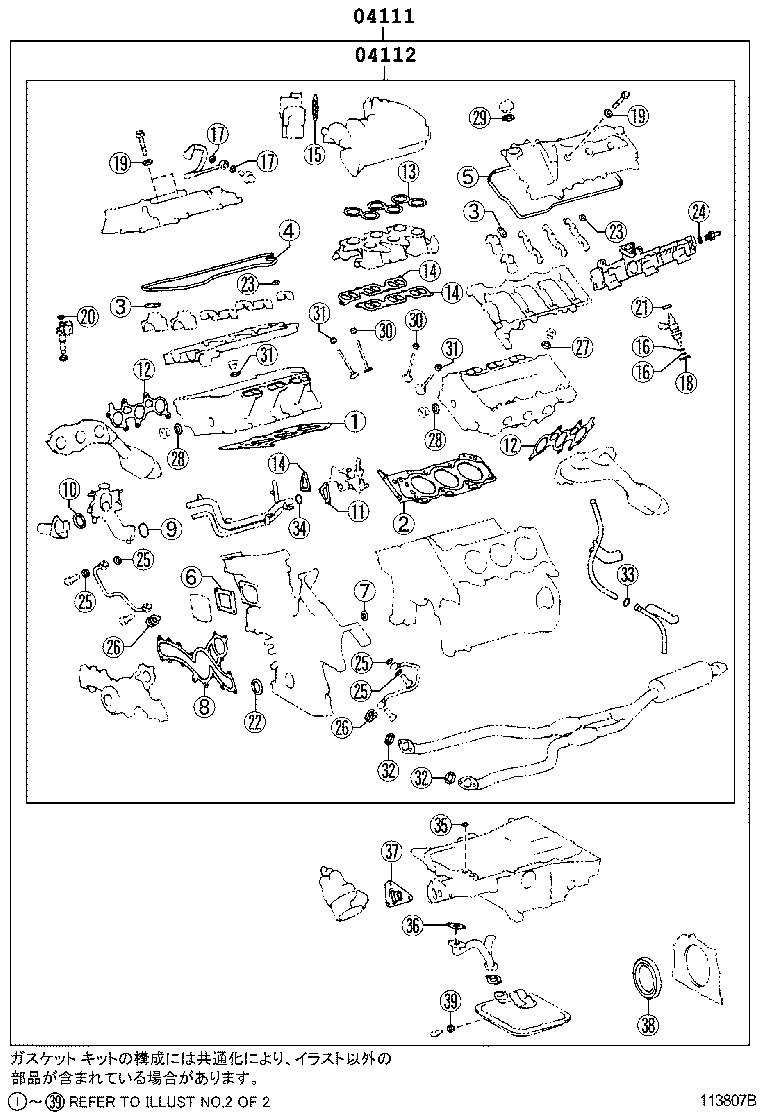

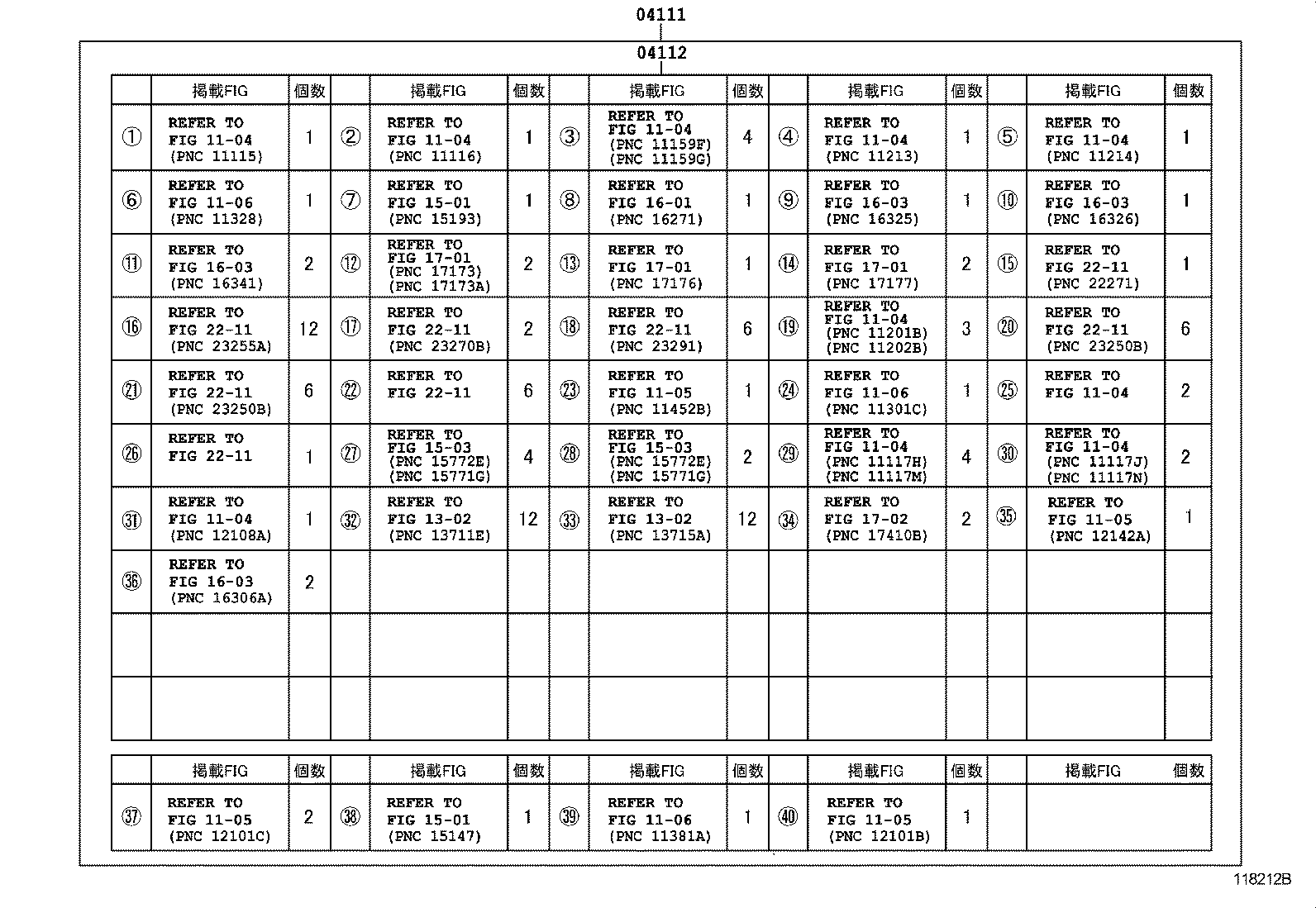

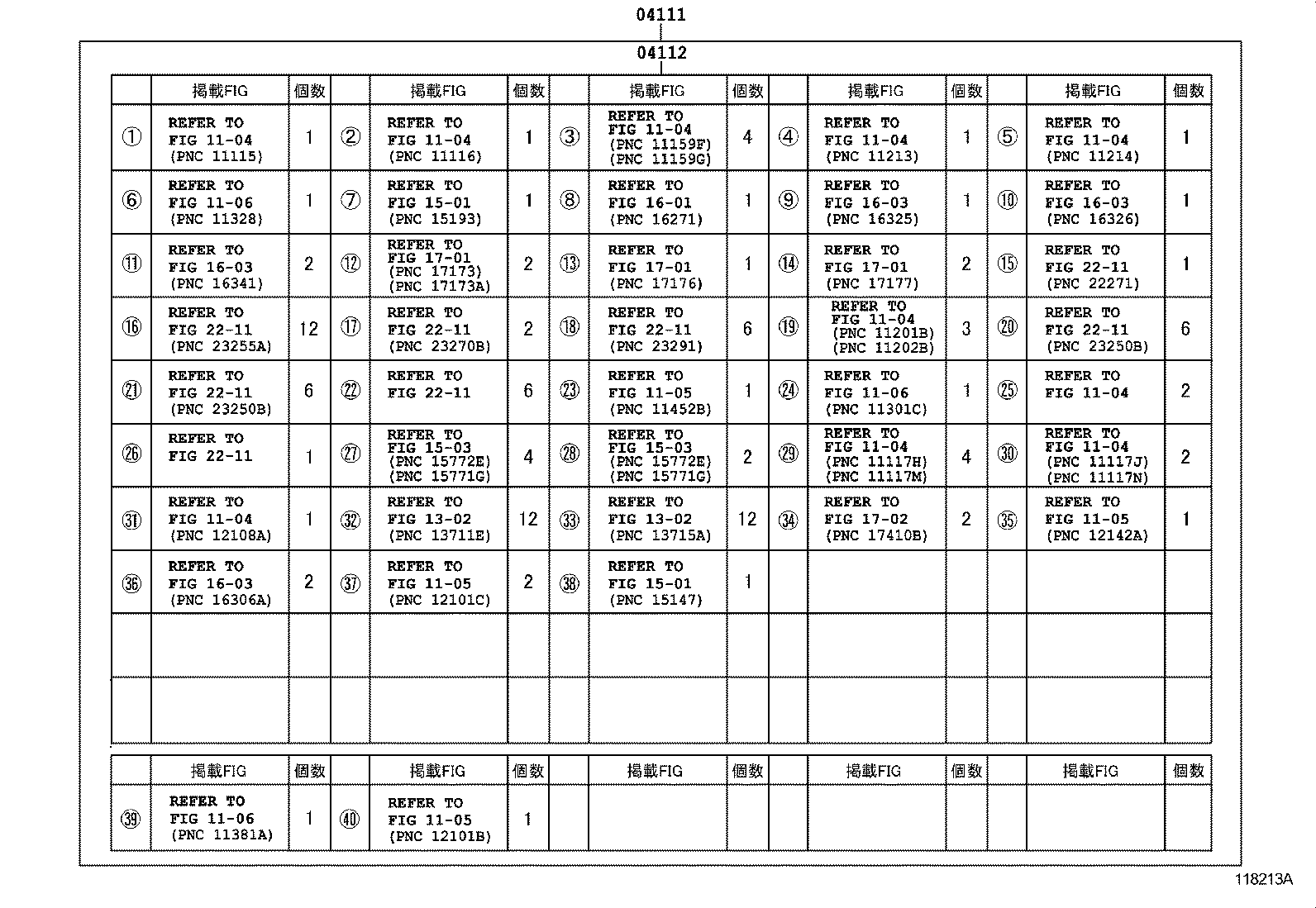

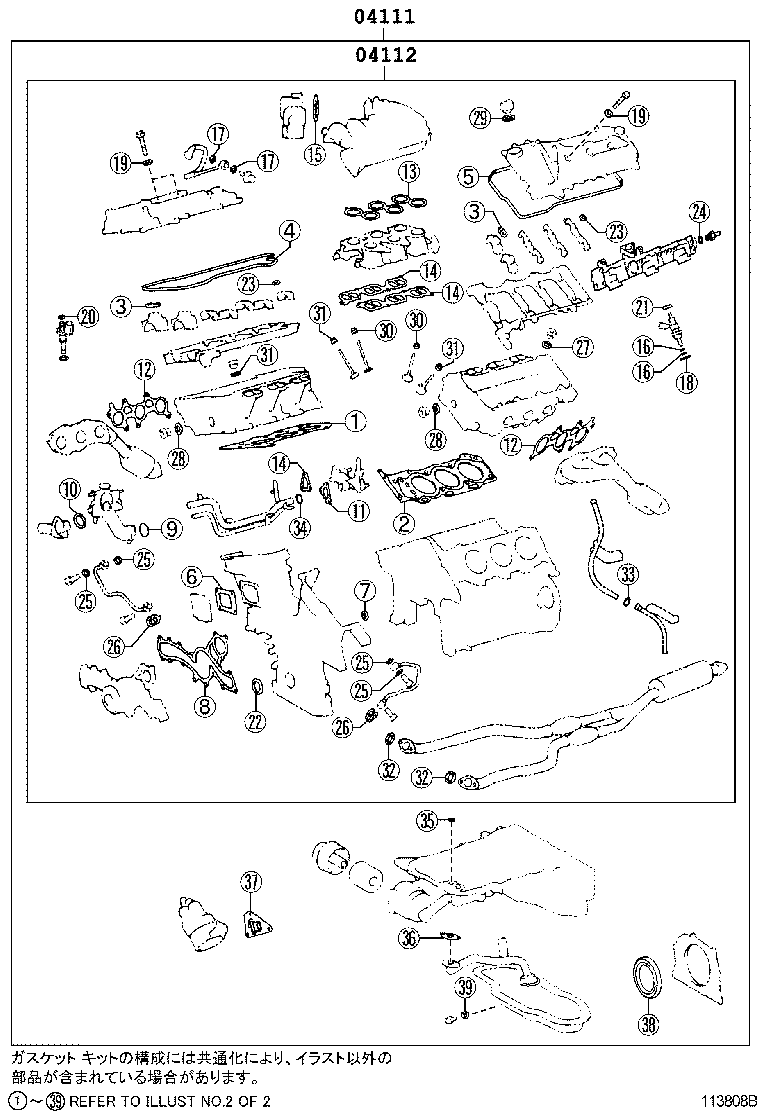

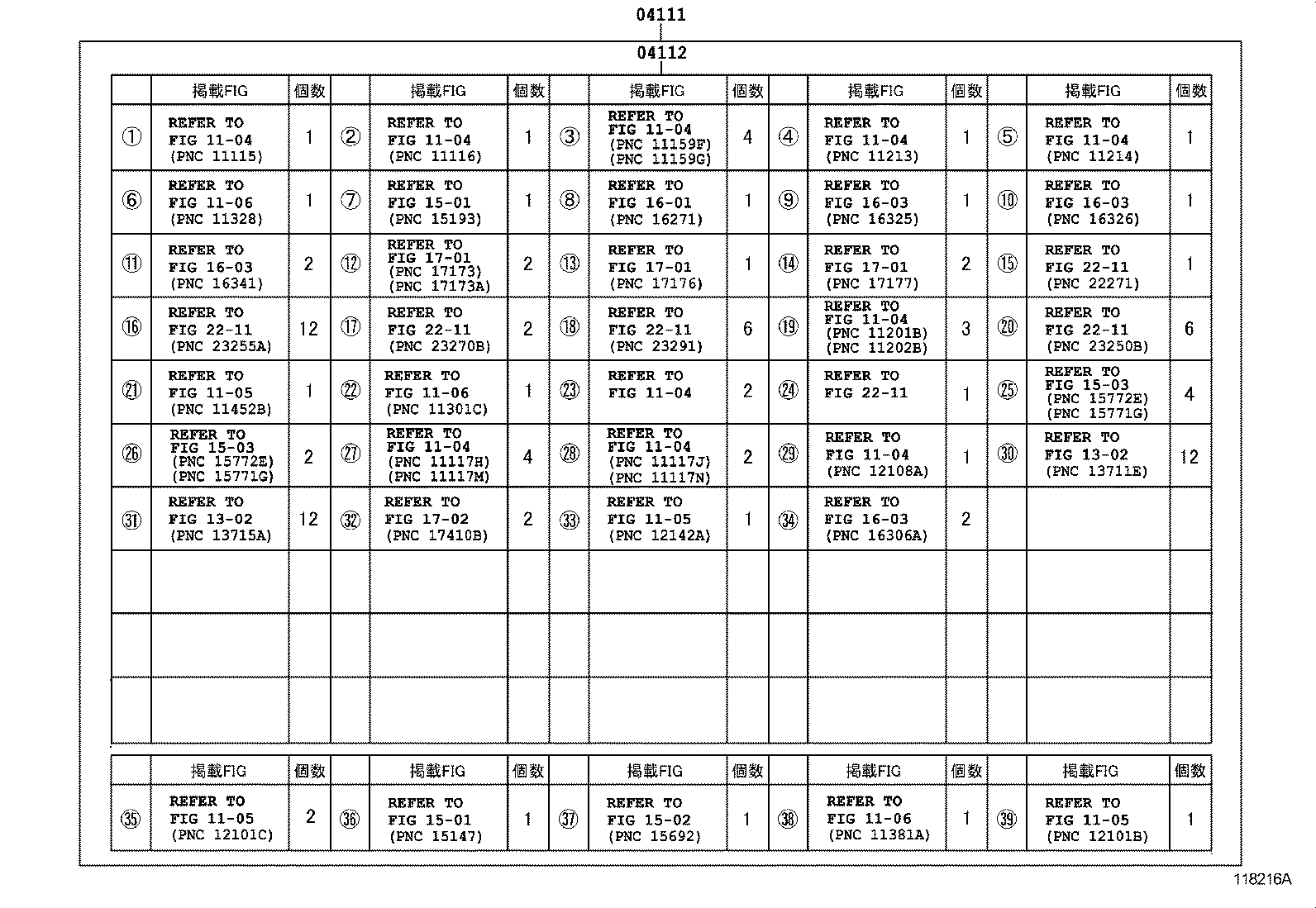

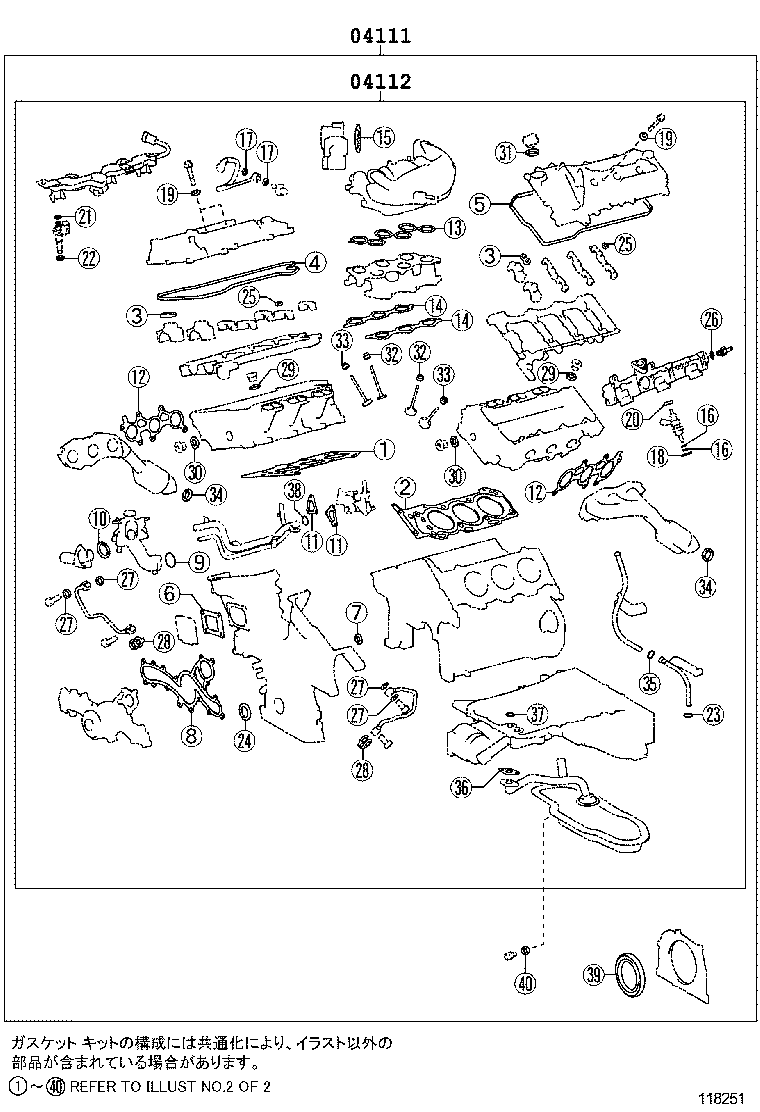

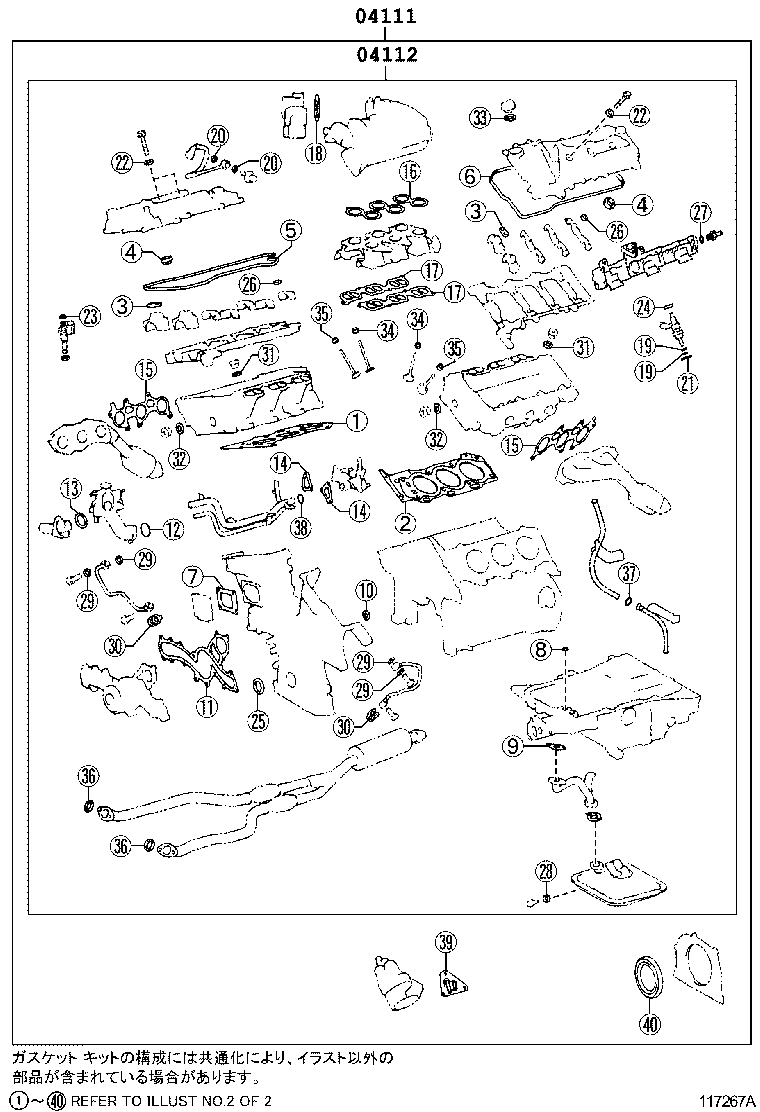

Figure 118250A 118250A 2005-08 → 2011-08 Figure 118212B 118212B 2005-08 → 2011-08 Figure 118251 118251 2011-08 → — Figure 118213A 118213A 2011-08 → — Figure 113808B 113808B 2005-08 → 2011-08 Figure 118214A 118214A 2005-08 → 2011-08 Figure 117266B 117266B 2011-08 → — Figure 118215B 118215B 2011-08 → — Figure 113807B 113807B 2005-08 → 2011-08 Figure 118216A 118216A 2005-08 → 2011-08 Figure 117267A 117267A 2011-08 → — Figure 118217A 118217A 2011-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
