Toyota Lexus IS Series

2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

11 part groups · 9 illustrations

Illustrations

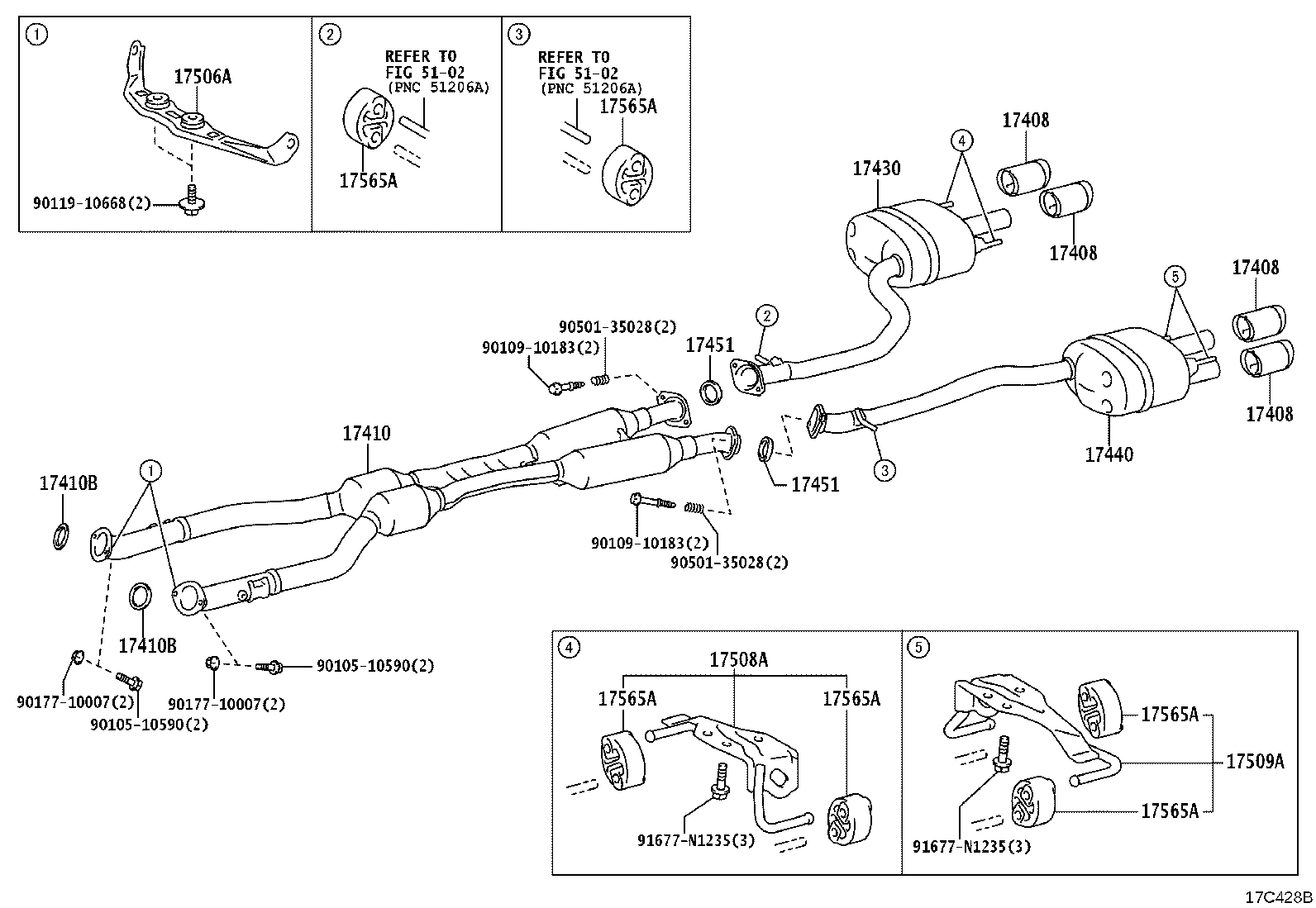

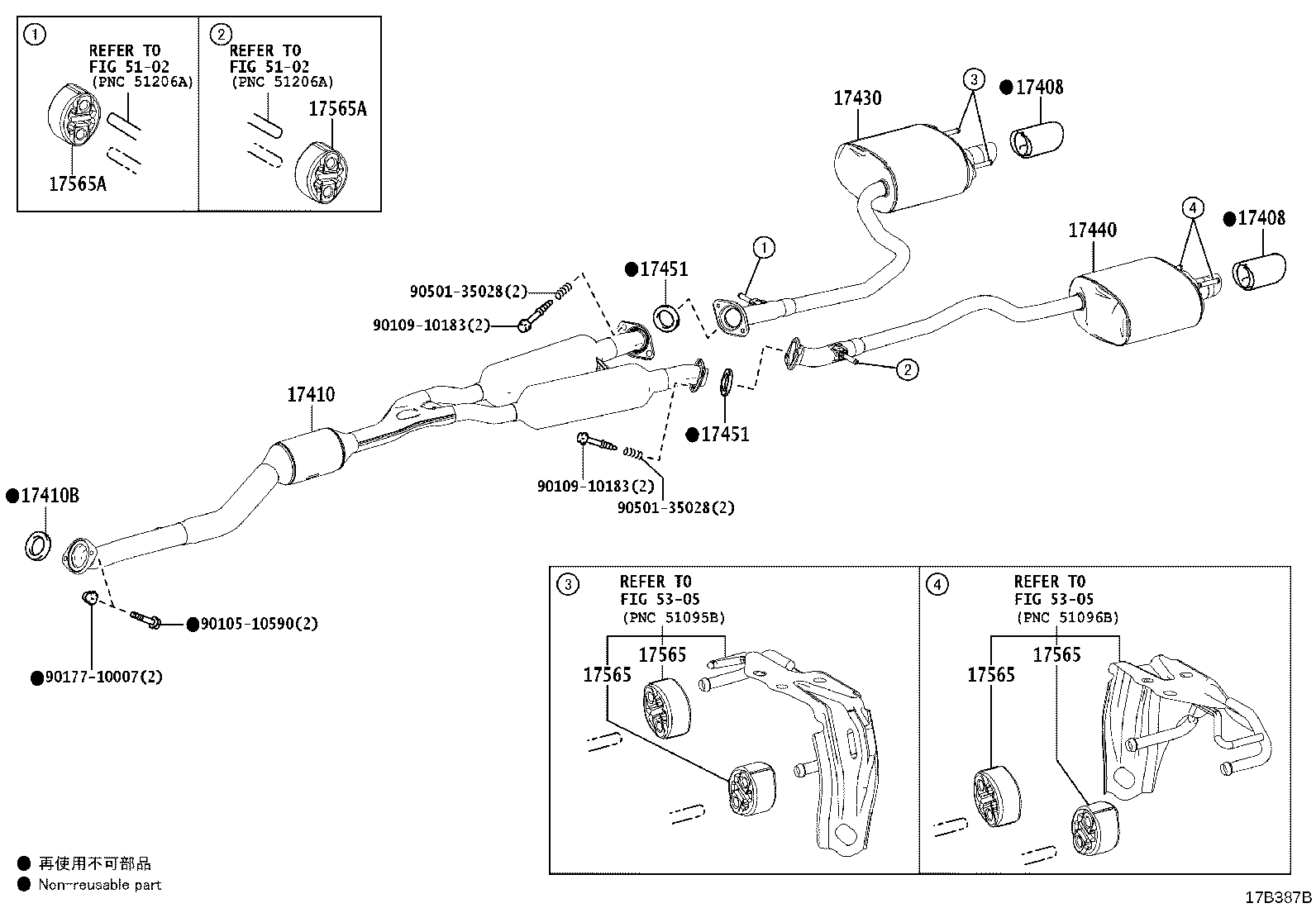

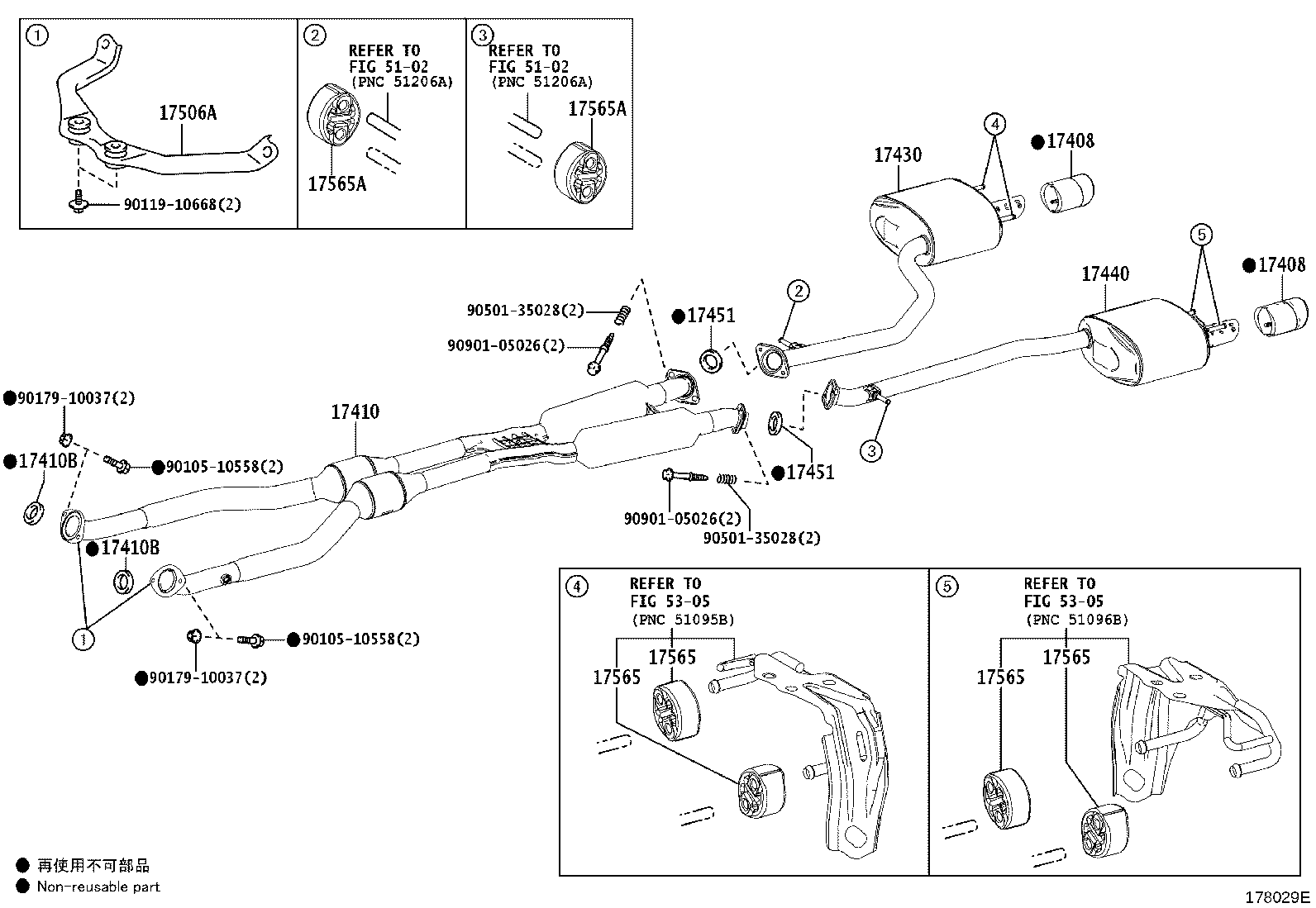

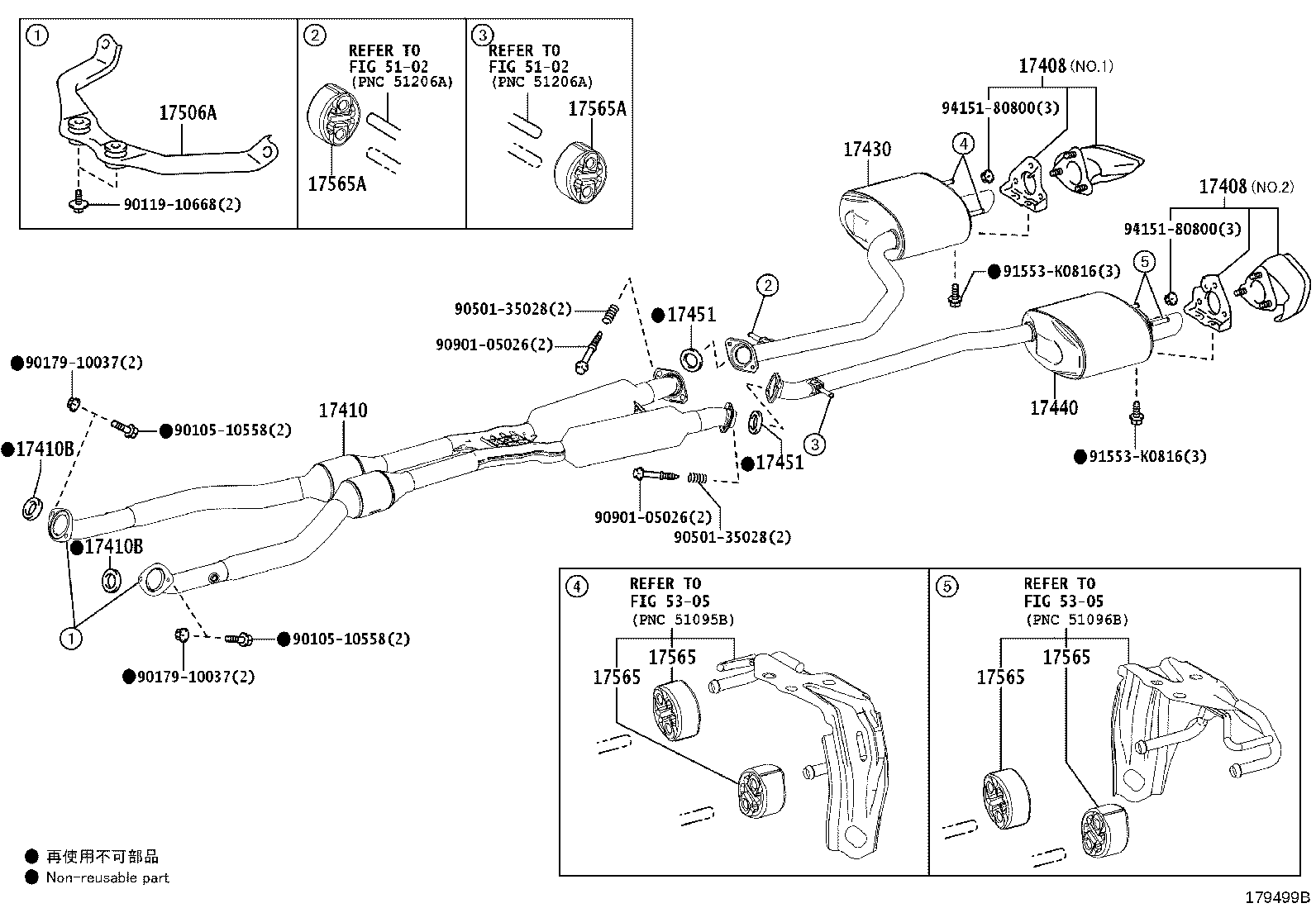

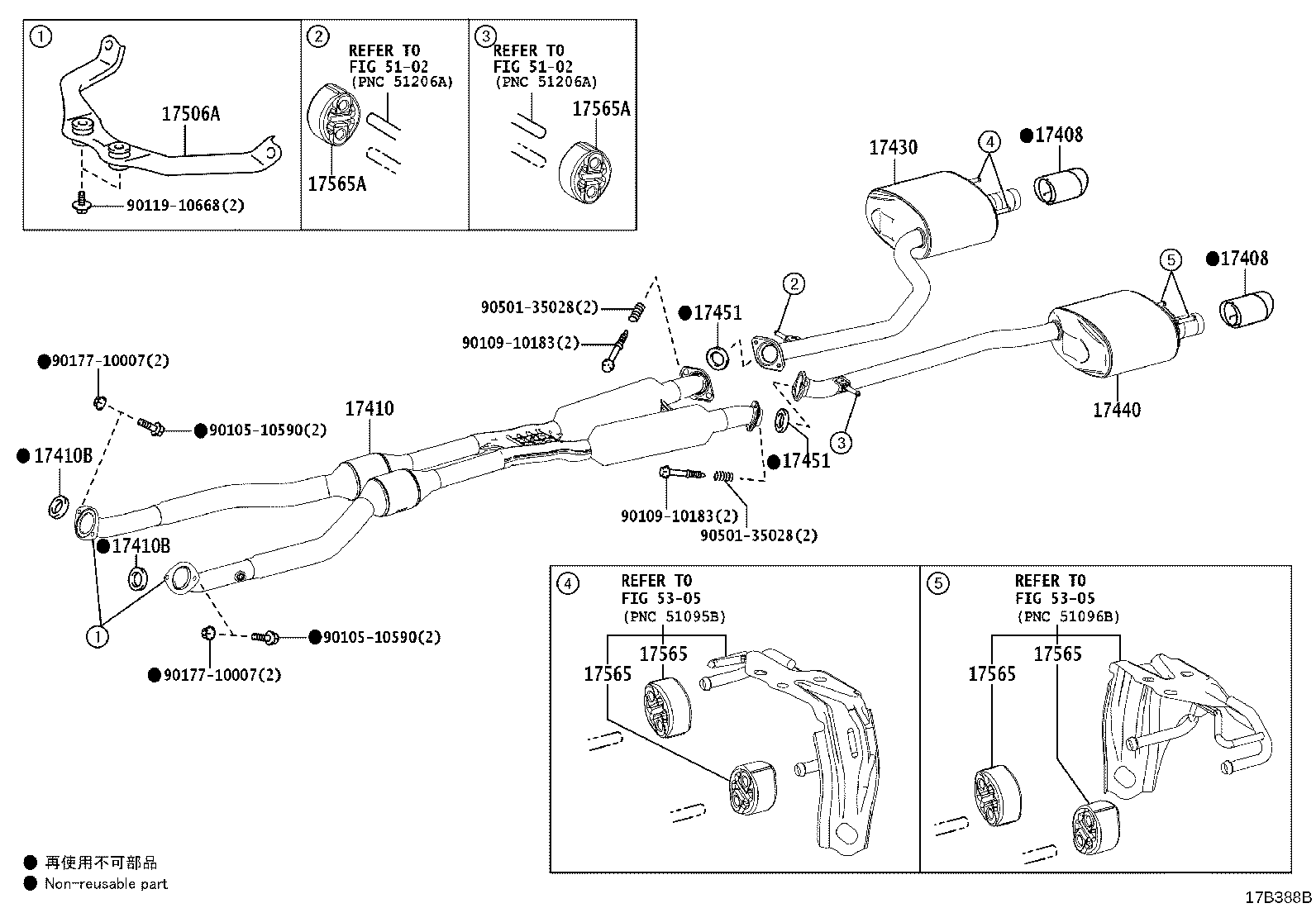

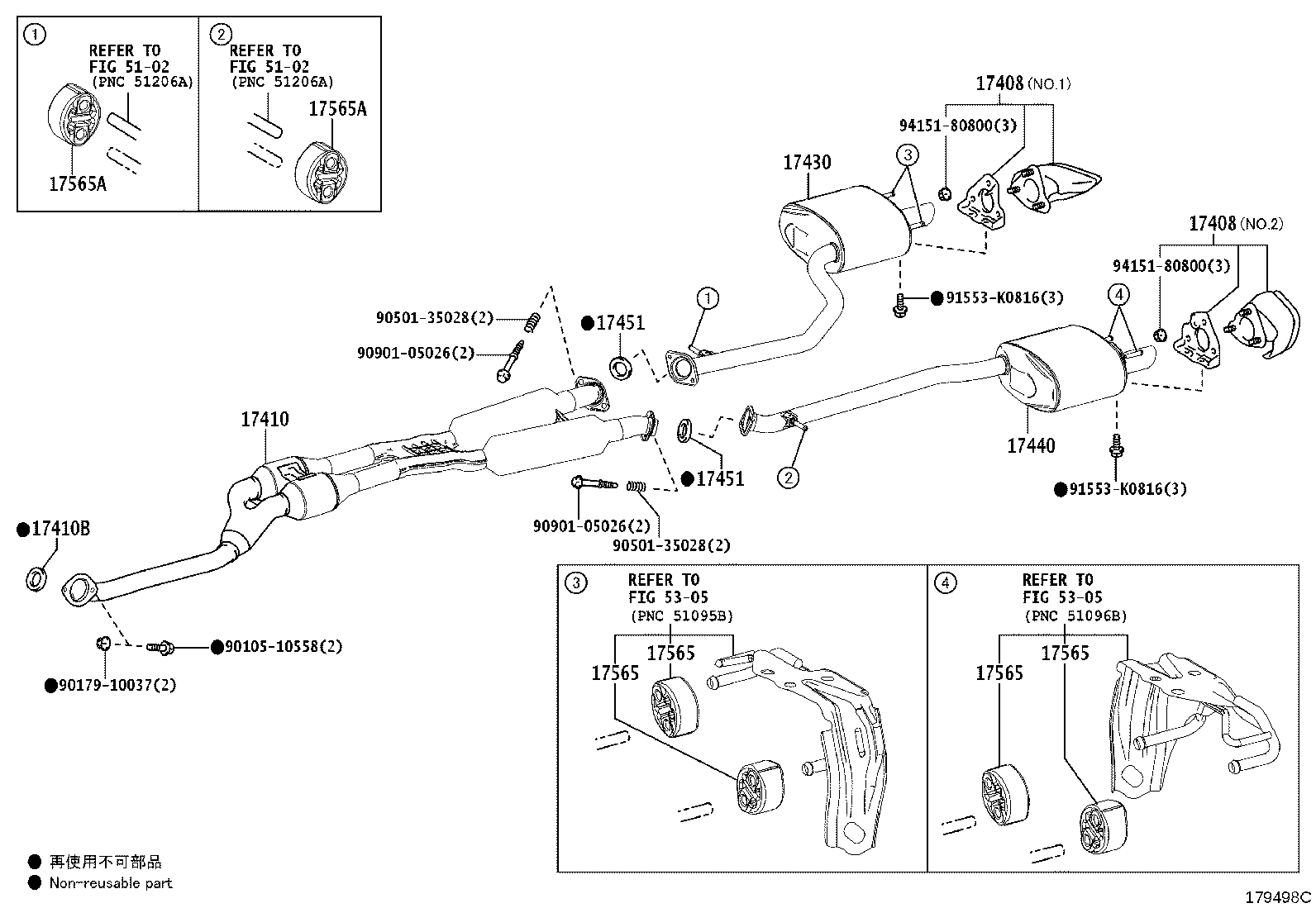

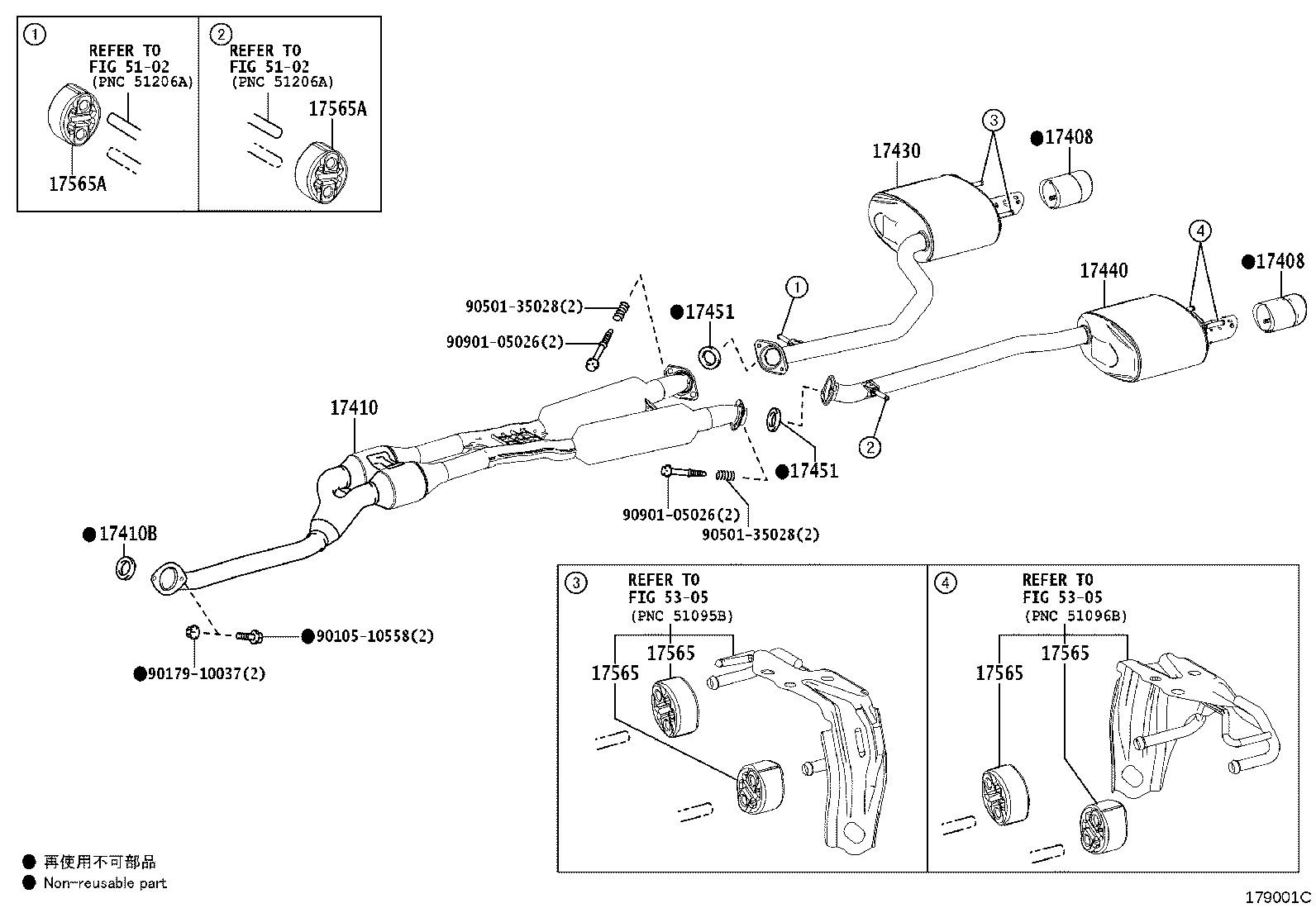

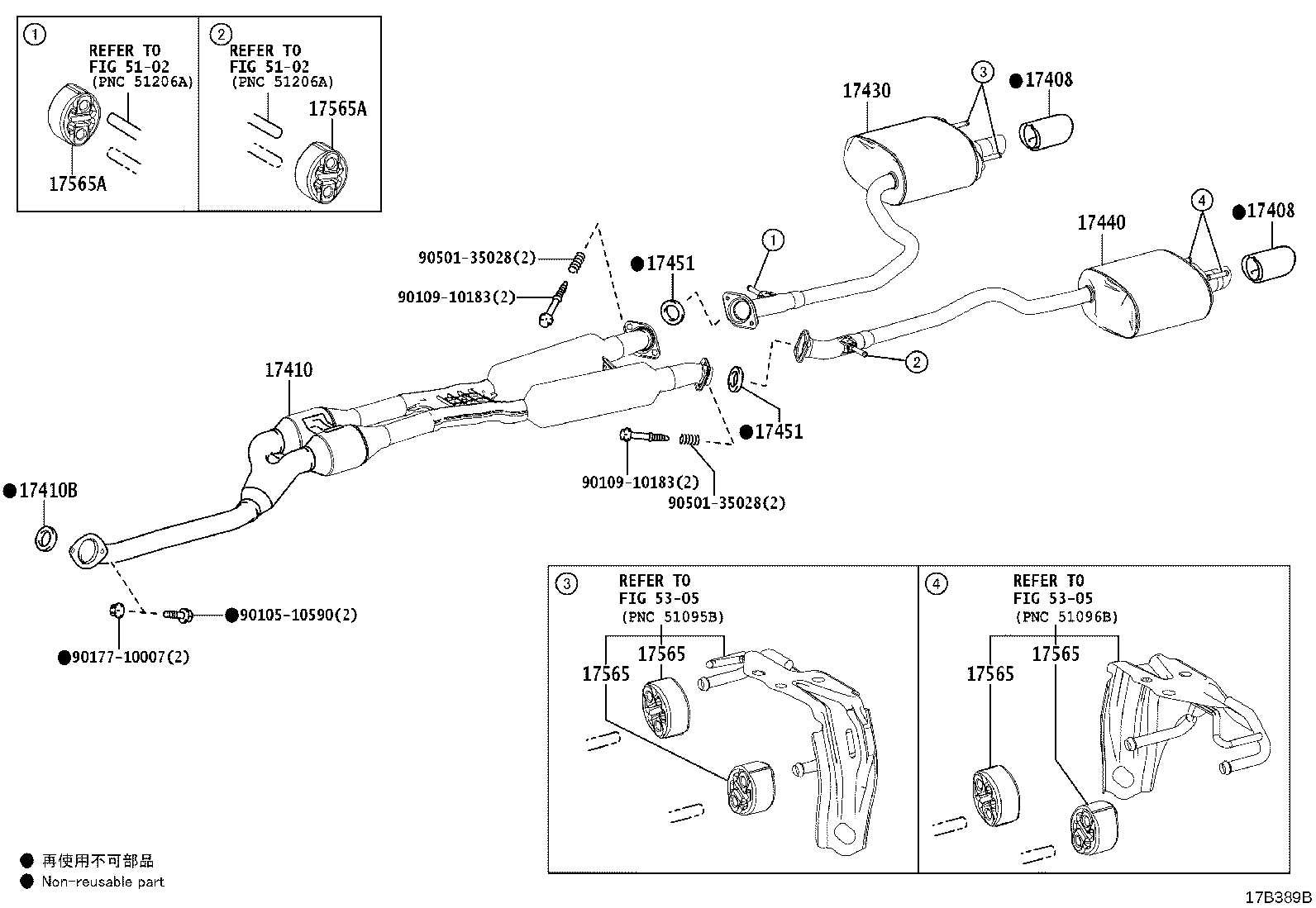

Figure 178028D 178028D 2013-04 → 2020-09 Figure 17B387B 17B387B 2020-09 → — Figure 178029E 178029E 2013-04 → 2016-10 Figure 179499B 179499B 2016-10 → 2020-09 Figure 17B388B 17B388B 2020-09 → — Figure 179001C 179001C 2015-08 → 2016-10 Figure 179498C 179498C 2016-10 → 2020-09 Figure 17B389B 17B389B 2020-09 → — Figure 17C428B 17C428B 2022-09 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
