Toyota Lexus IS Series

2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

2 part groups · 5 illustrations

Illustrations

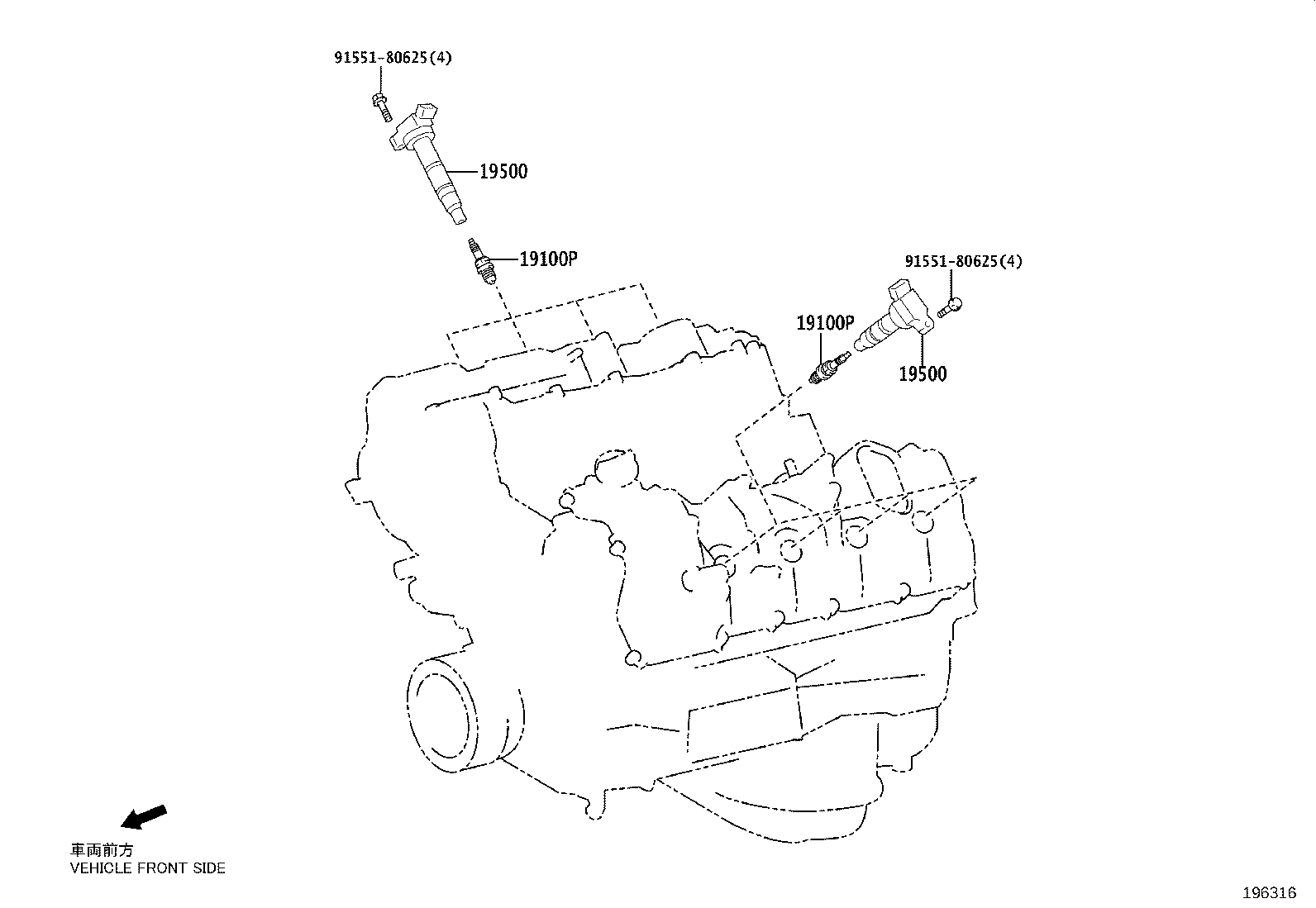

Figure 194146A 194146A 2013-04 → — Figure 194652A 194652A 2015-08 → — Figure 195206 195206 2013-04 → — Figure 195207 195207 2017-10 → — Figure 196316 196316 2022-09 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
