Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

6 part groups · 10 illustrations

Illustrations

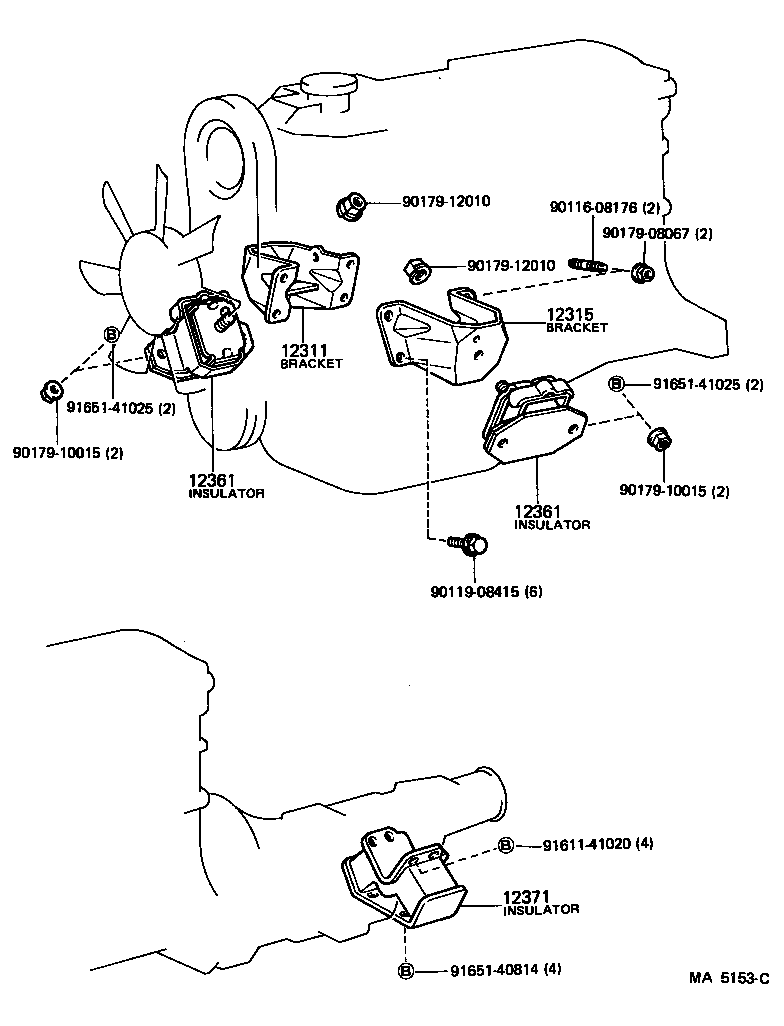

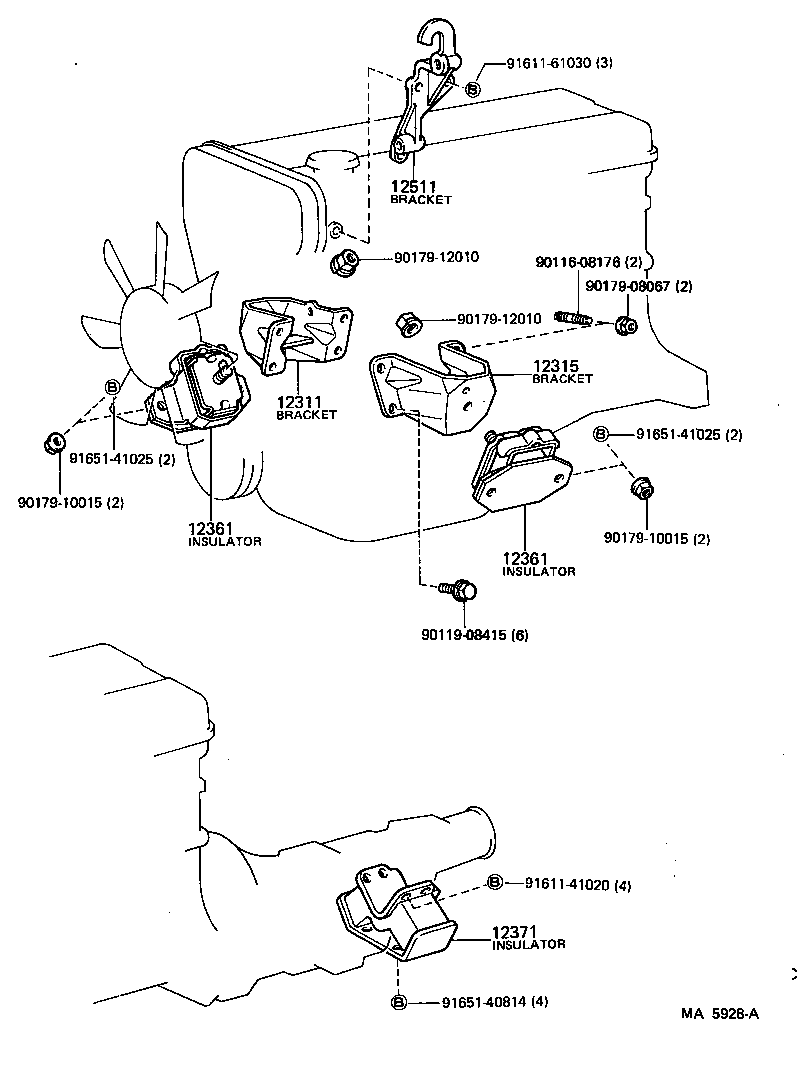

Figure MA6650C MA6650C 1983-08 → 1985-07 Figure MA5153C MA5153C 1981-07 → — Figure MA5928A MA5928A 1982-08 → — Figure MA5278C MA5278C 1981-07 → 1984-08 Figure MA7874 MA7874 1984-08 → — Figure MA5289B MA5289B 1981-07 → 1982-08 Figure MA5259D MA5259D 1981-07 → 1985-07 Figure MA5246B MA5246B 1981-07 → 1983-08 Figure MA3760D MA3760D 1981-07 → 1983-08 Figure MA6140 MA6140 1982-10 → 1985-07

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
