Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

18 part groups · 5 illustrations

Illustrations

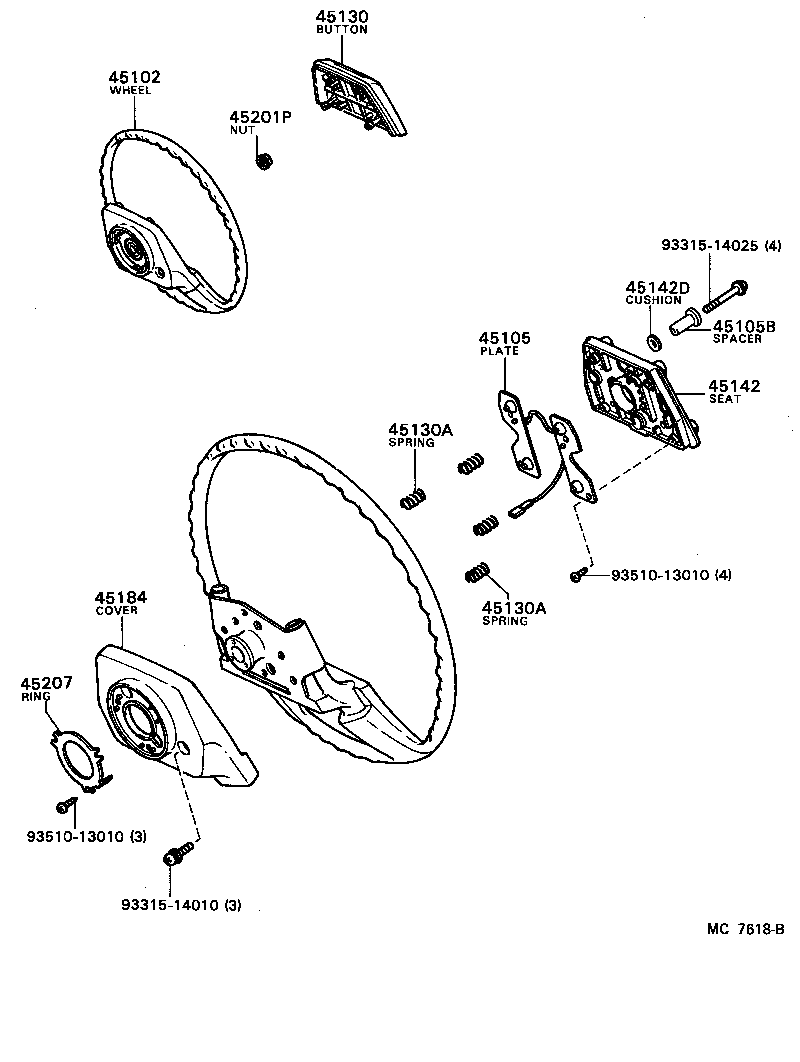

Figure MC7788D MC7788D 1981-07 → 1983-08 Figure MC7789C MC7789C 1981-07 → 1983-08 Figure MC9855A MC9855A 1983-08 → 1985-07 Figure MC8961 MC8961 1982-10 → 1985-07 Figure MC7618B MC7618B 1981-07 → —

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45107 Wire Sub-assy, Horn Button
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45142D Cushion(FOR HORN BUTTON CONTACT SEAT)
45143 Seat, Horn Button Contact, NO.2
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
