Toyota Celica
1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252140 · Japan
Discontinued model
Data version 1987-12
Front Axle Housing & Differential

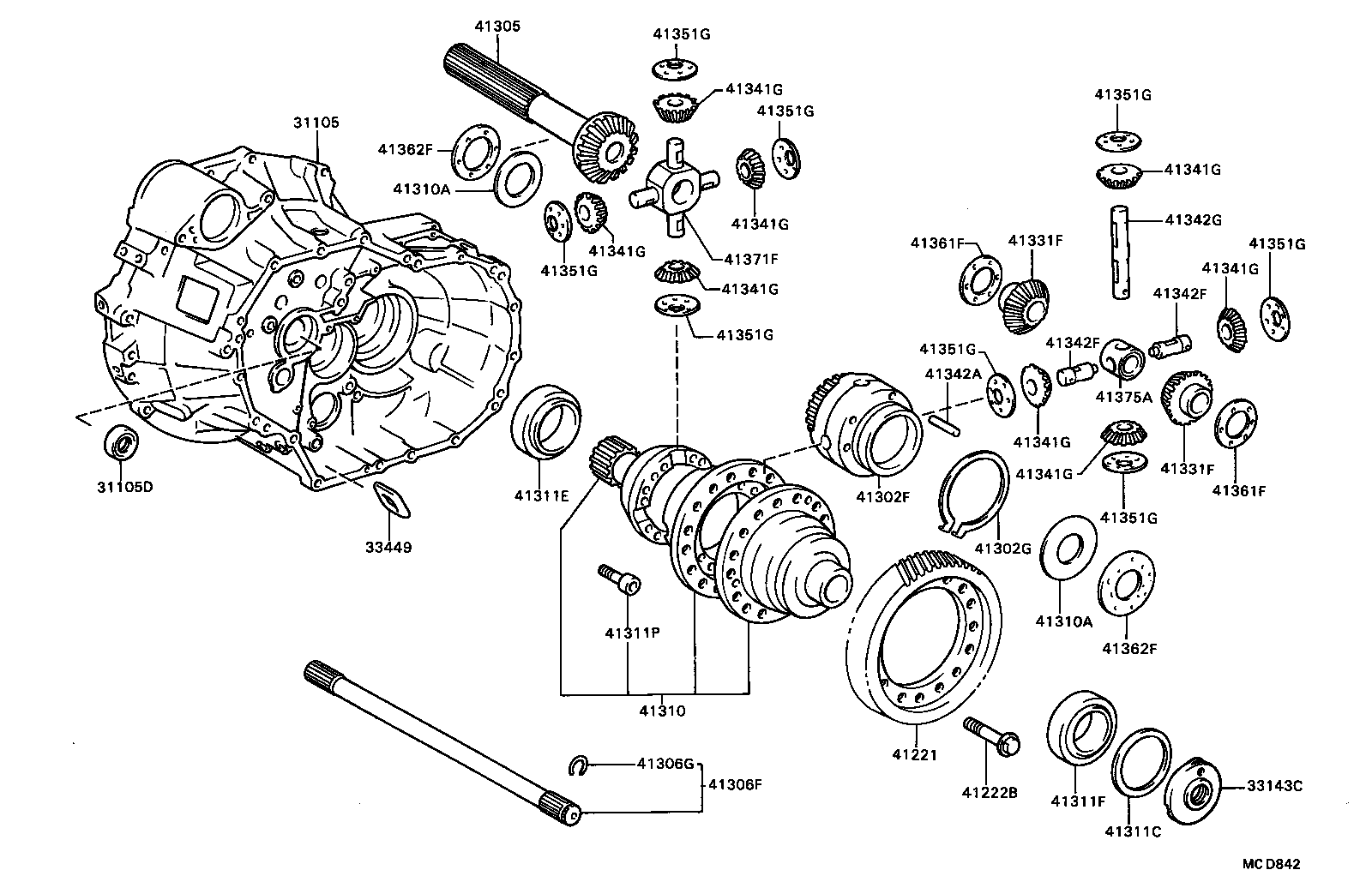

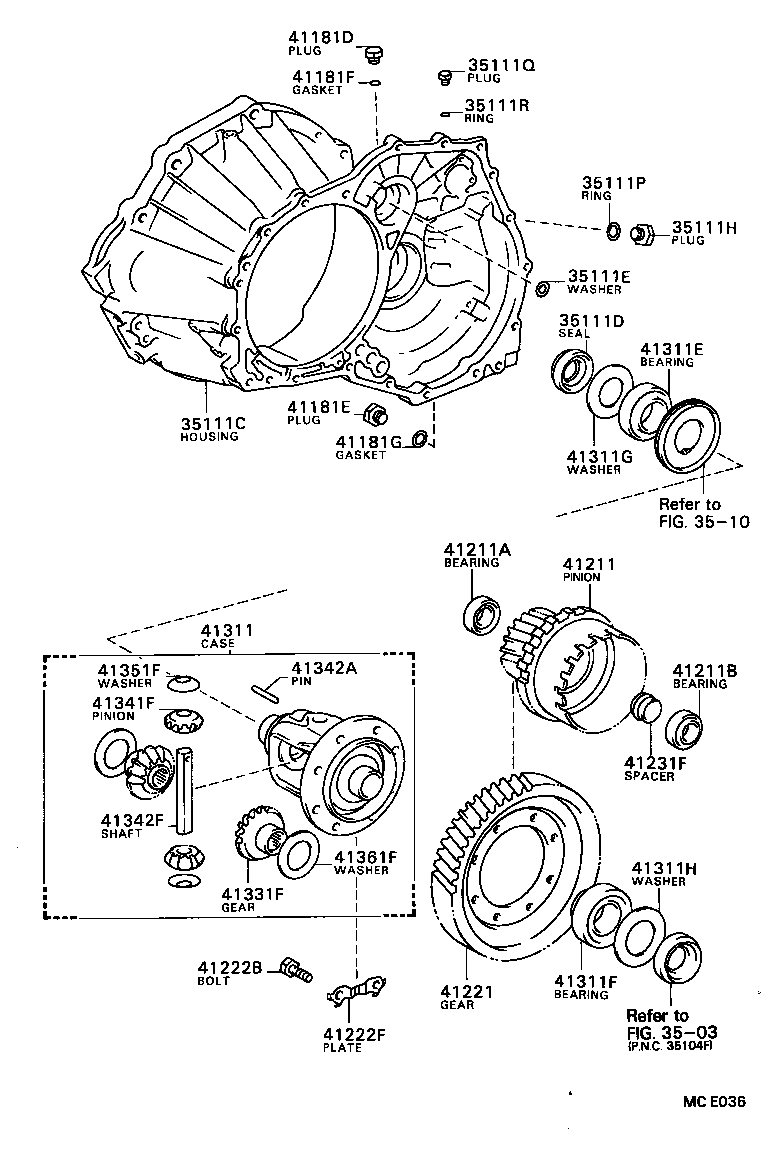

74 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105 | Case Sub-assy, Transaxle(MTM) |
| 31105A | Plug, Tight(FOR FRONT TRANSAXLE CASE) |
| 31105D | Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) |
| 31105F | Plug(FOR TRANSAXLE CASE) |
| 31105H | Seal, Oil, NO.2(FOR TRANSAXLE CASE) |
| 33143C | Baffle, Front Differential Oil |
| 33275D | Seat, Shift Detent Ball Spring |
| 33449 | Magnet, Transmission |
| 35111C | Housing, Transaxle |
| 35111D | Seal, Oil (FOR TRANSAXLE HOUSING) |
| 35111E | Washer, Seal (FOR FRONT TRANSAXLE HOUSING) |
| 35111H | Plug, NO.1 (FOR TRANSAXLE HOUSING) |
| 35111P | Ring, O (FOR TRANSAXLE HOUSING PLUG NO.1) |
| 35111Q | Plug, NO.2 (FOR TRANSAXLE HOUSING) |
| 35111R | Ring, O (FOR TRANSAXLE HOUSING PLUG NO.2) |
| 41109 | Cage Sub-assy, Differential Drive Pinion Bearing |
| 41109A | Seal, Oil (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) |
| 41109B | Ring, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) |
| 41109C | Ring, Hole Snap (FOR DIFF. DRIVE PINION BEARING CAGE) |
| 41141F | Retainer, Front Differential Side Bearing |
| 41141G | Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) |
| 41141H | Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER) |
| 41141J | Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) |
| 41181 | Cover, Front Differential Carrier |
| 41181B | Bolt (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) |
| 41181C | Plug, Breather (FOR FRONT DIFFERENTIAL CARRIER COVER) |
| 41181D | Plug (FOR FRONT DIFFERENTIAL FILLER) |
| 41181E | Plug (FOR FRONT DIFFERENTIAL DRAIN) |
| 41181F | Gasket (FOR FRONT DIFFERENTIAL FILLER PLUG) |
| 41181G | Gasket (FOR FRONT DIFFERENTIAL DRAIN PLUG) |
| 41182A | Gasket, Differential Carrier Cover |
| 41211 | Pinion, Differential Drive |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231A | Nut, Drive Pinion Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41302F | Case Sub-assy, Front Differential |
| 41302G | Ring, Snap(FOR FRONT DIFFERENTIAL CASE) |
| 41305 | Gear Sub-assy, Differential Side |
| 41306F | Shaft Sub-assy, Differential Side Gear Inter |
| 41306G | Ring, Hole Snap (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT) |
| 41310 | Case Assy, Differential |
| 41310A | Washer, Conical Spring(FOR DIFFERENTIAL CASE) |
| 41311 | Case, Front Differential |
| 41311C | Shim (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311G | Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311H | Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311P | Bolt (FOR FRONT DIFFERENTIAL CASE) |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41341G | Pinion, Center Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41342G | Shaft, Front Differential Pinion, NO.2 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41351G | Washer, Center Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41362F | Washer, Front Differential Side Gear Thrust, NO.2 |
| 41371F | Spider, Front Differential |
| 41375A | Holder, Front Differential Pinion Shaft |
| 41451A | Fork, Front Differential Lock Shift |
| 41453A | Sleeve, Front Differential Lock |
| 41462 | Shaft, Front Differential Lock Shift Fork |
| 41462A | Ball (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT) |
| 41462B | Spring (FOR FRONT DIFFERENTIAL LOCK SHIFT FORK SHAFT) |
| 41462C | Plug (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT) |
| 41463C | Bolt (FOR FRONT DIFFERENTIAL LOCK SHIFT FORK SHAFT SET) |
