Radiator & Water Outlet

71 part groups · 22 illustrations

Illustrations

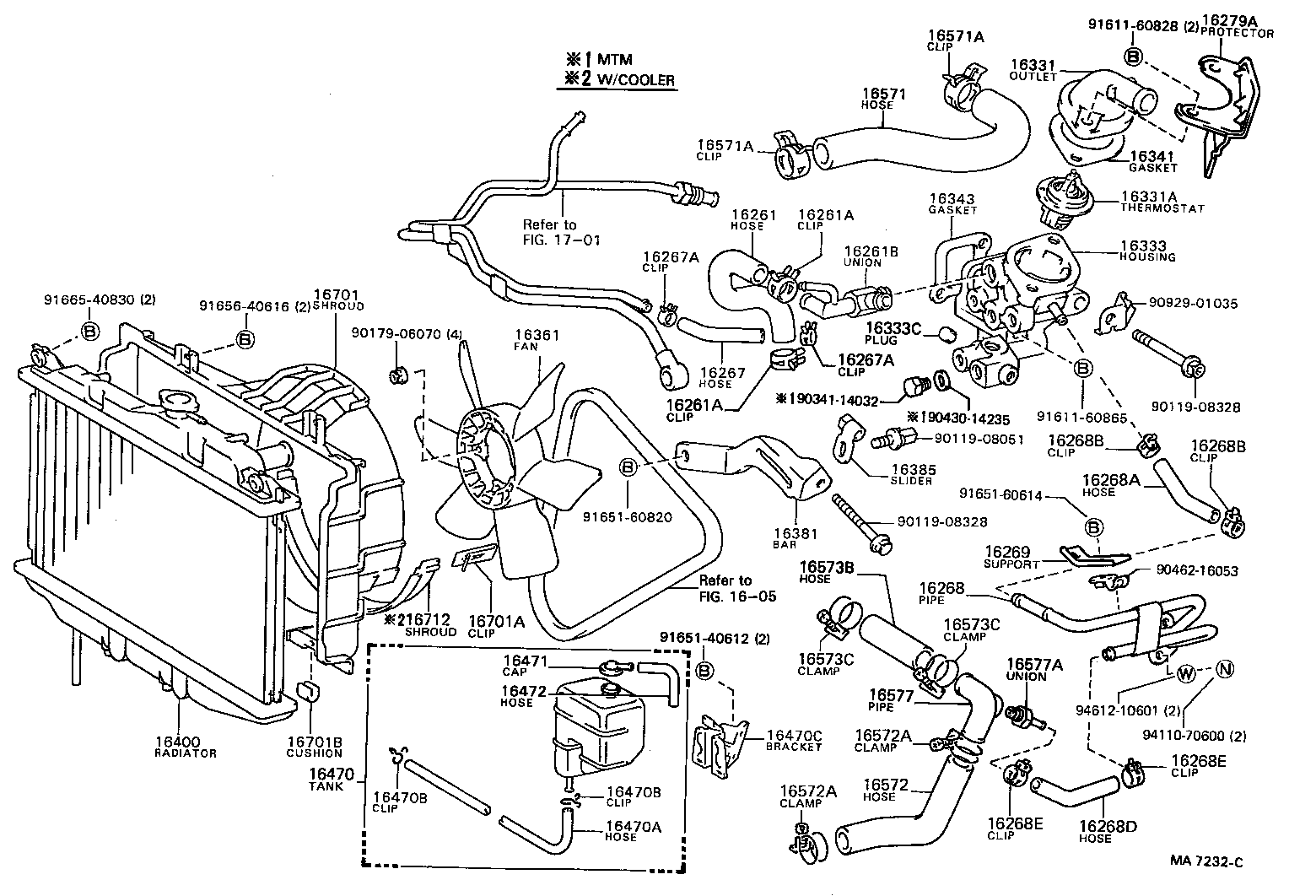

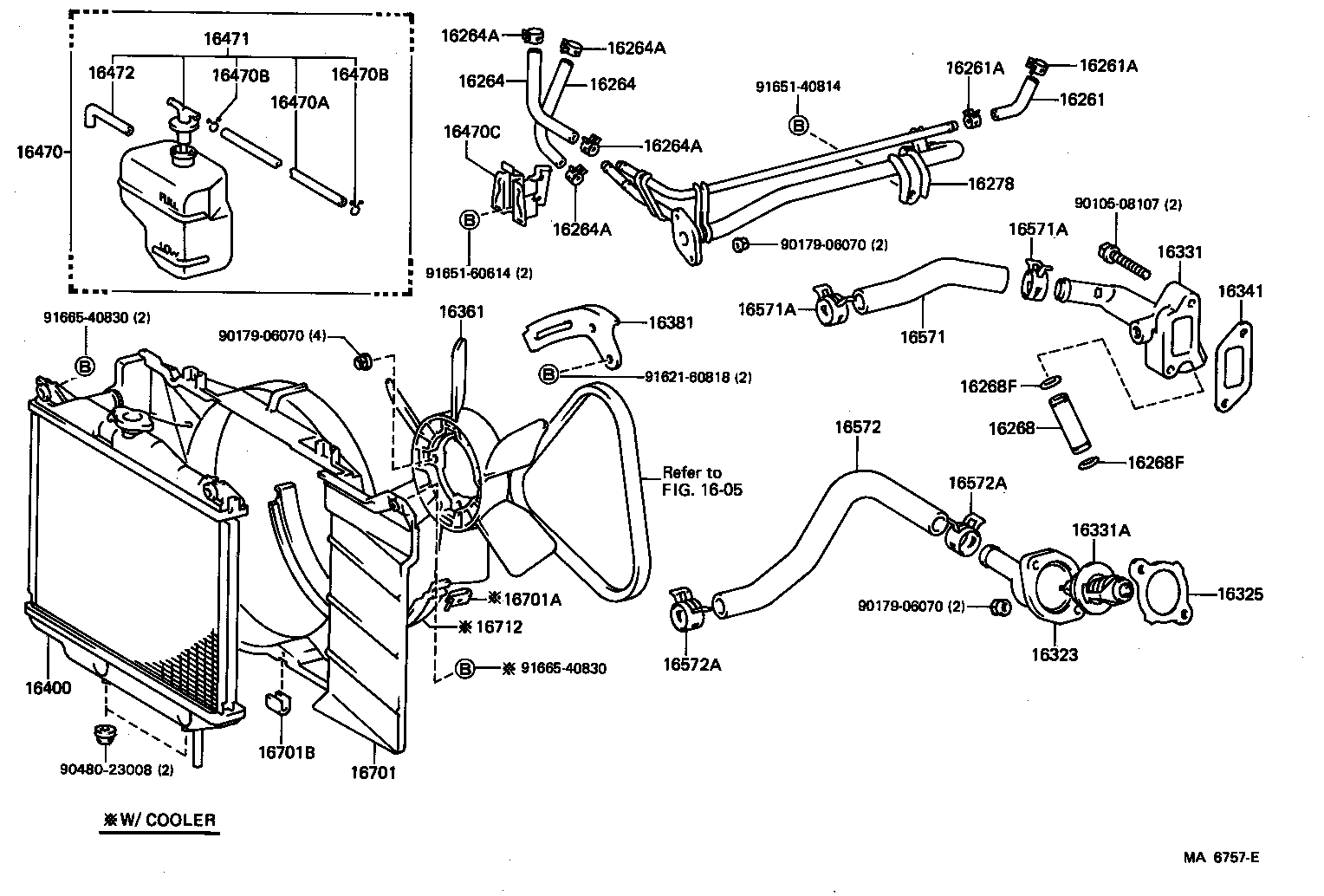

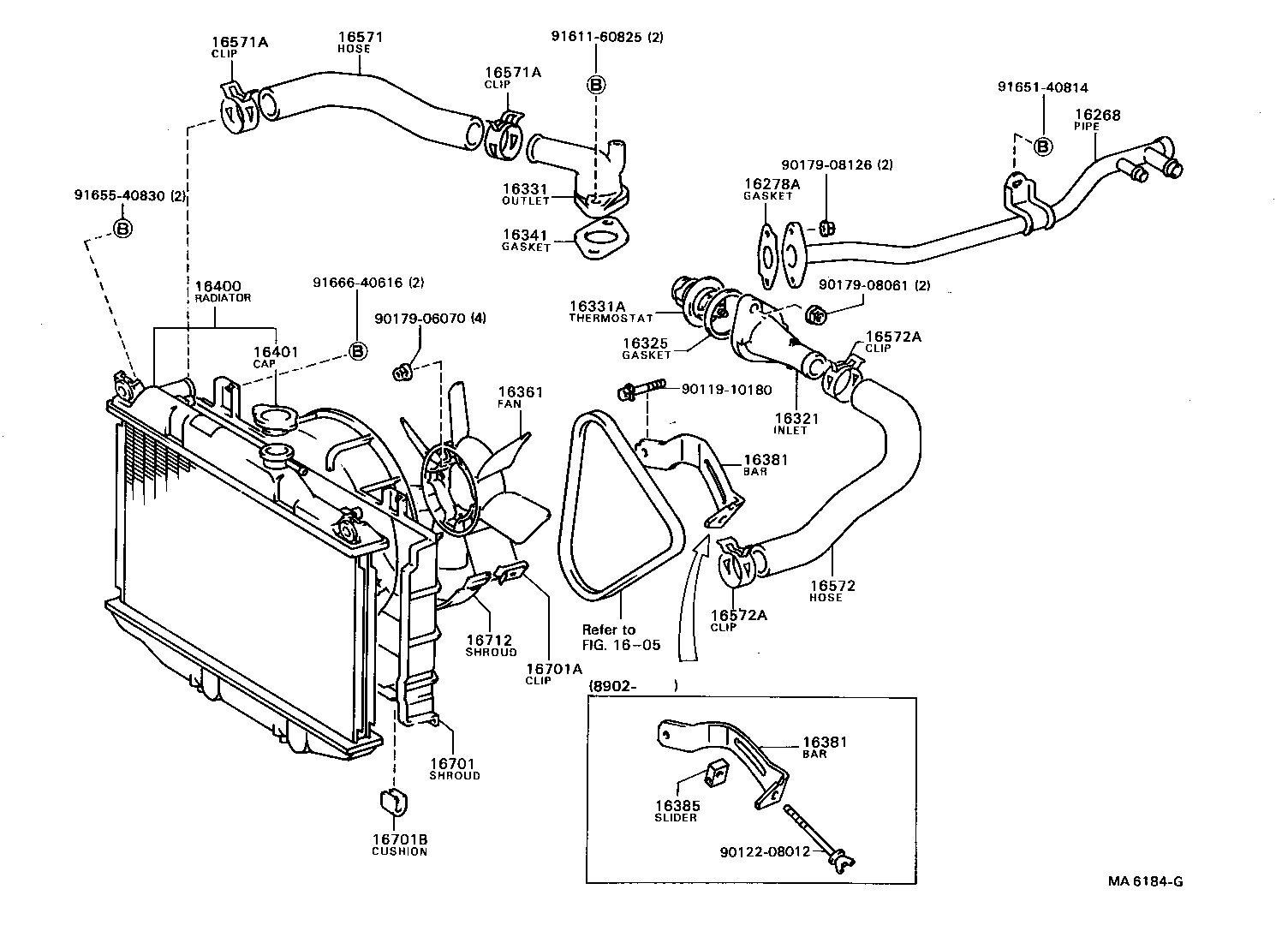

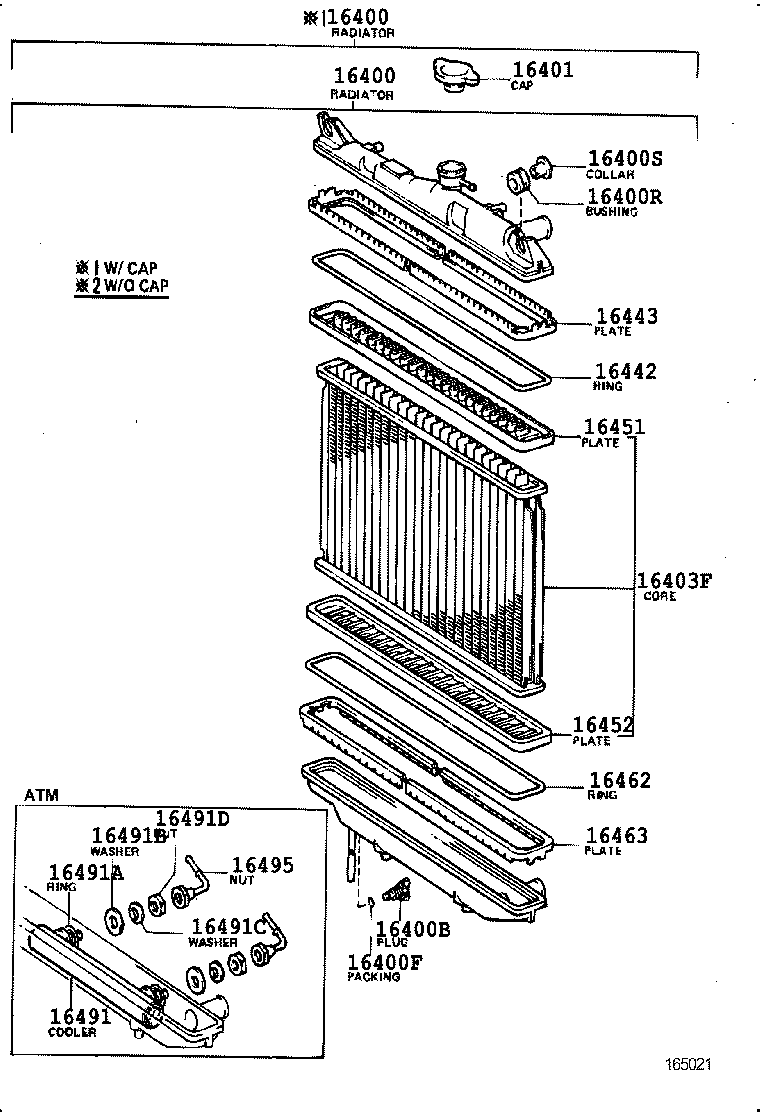

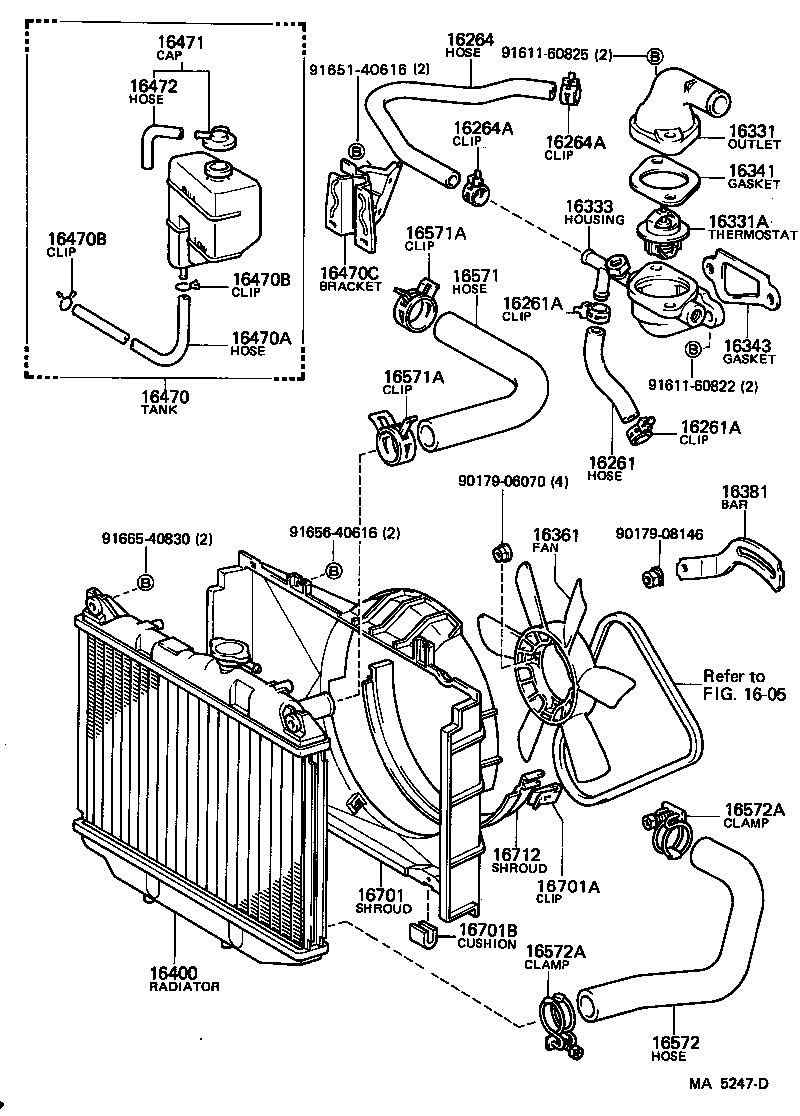

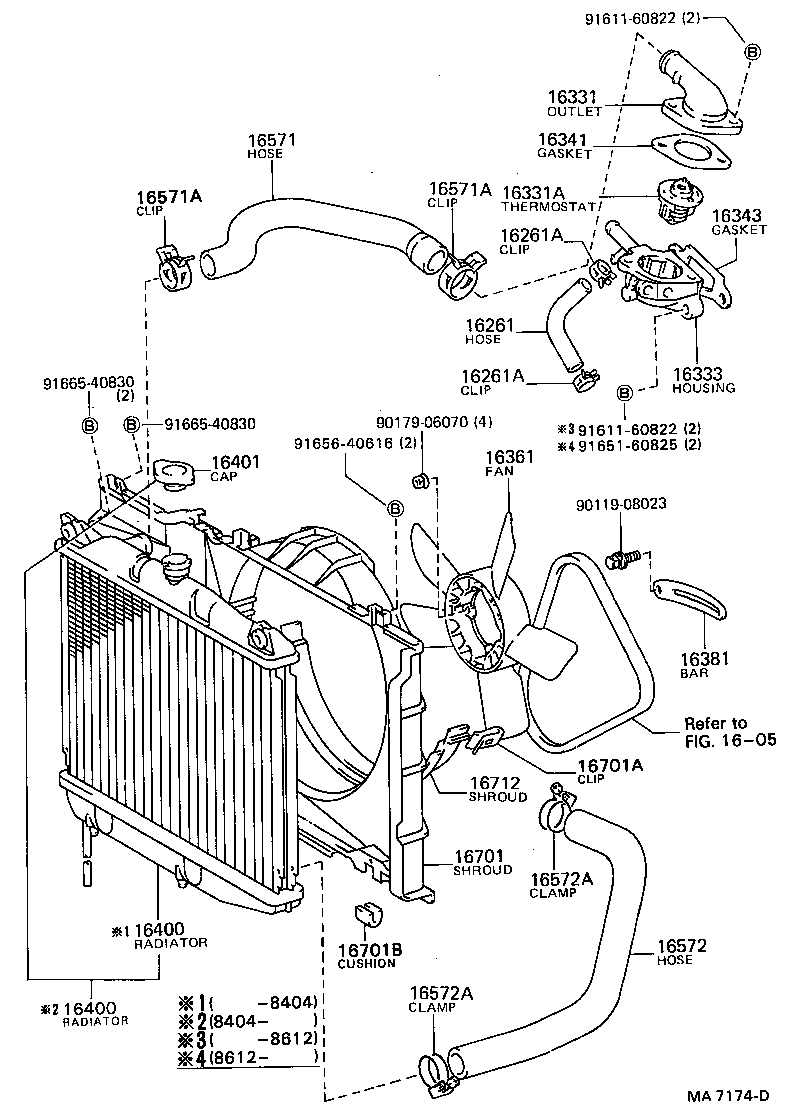

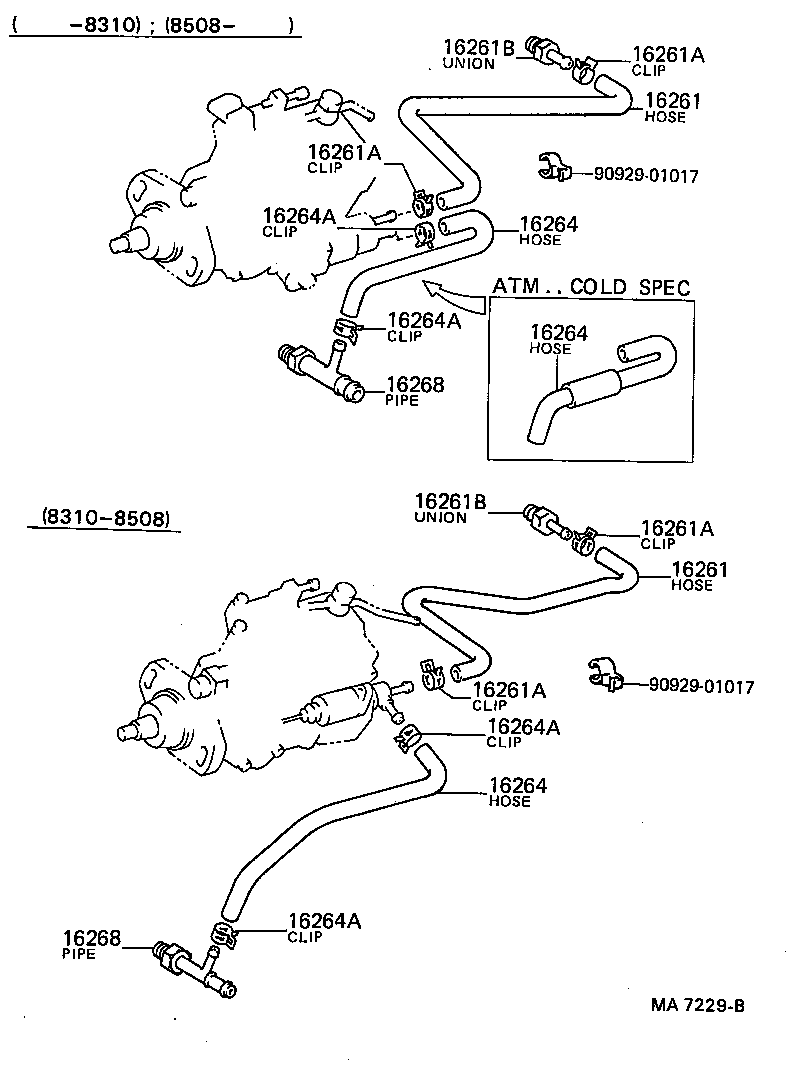

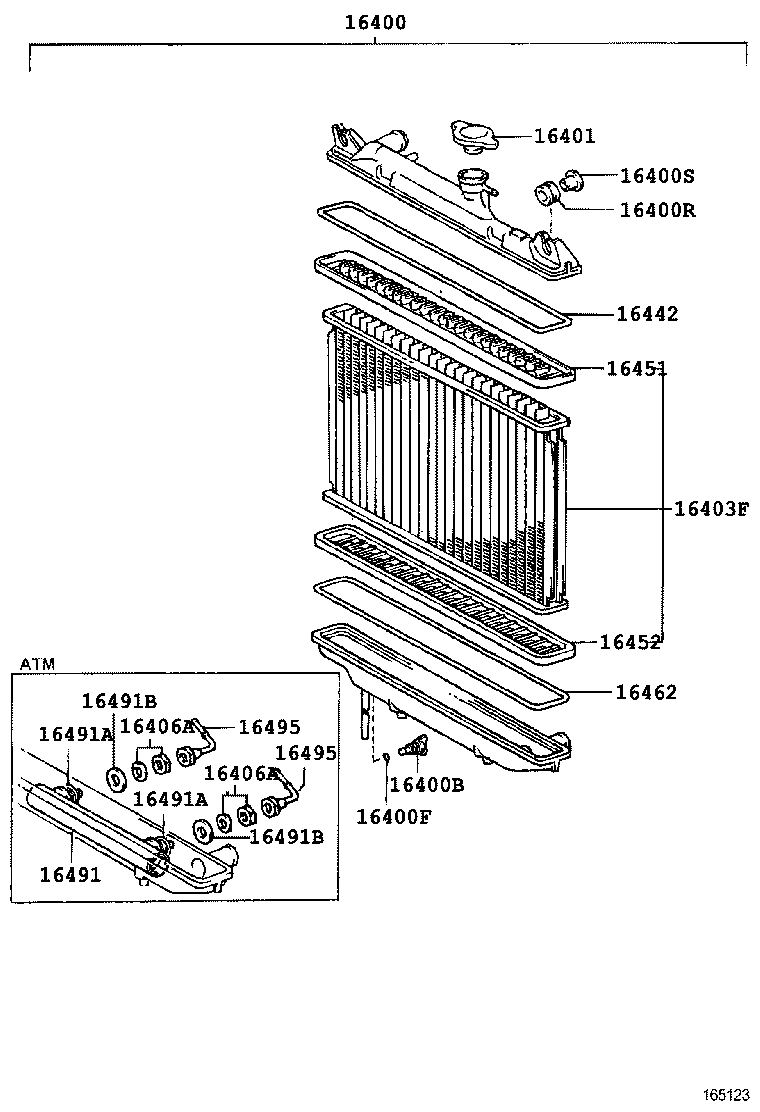

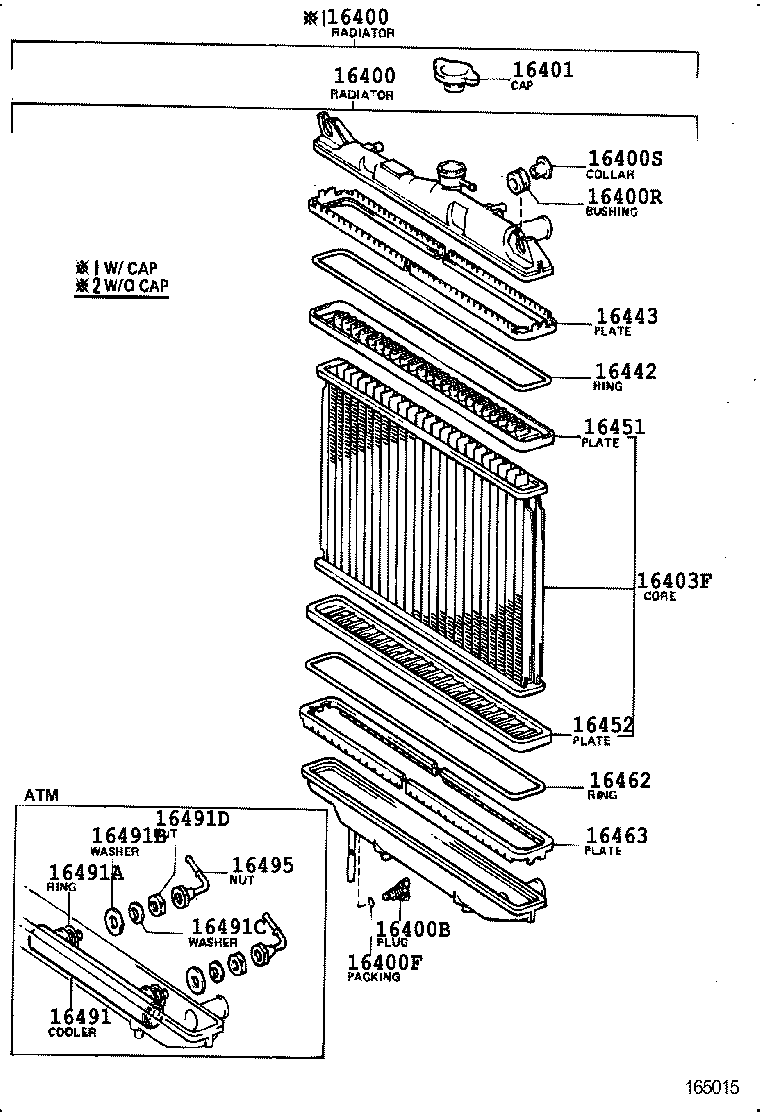

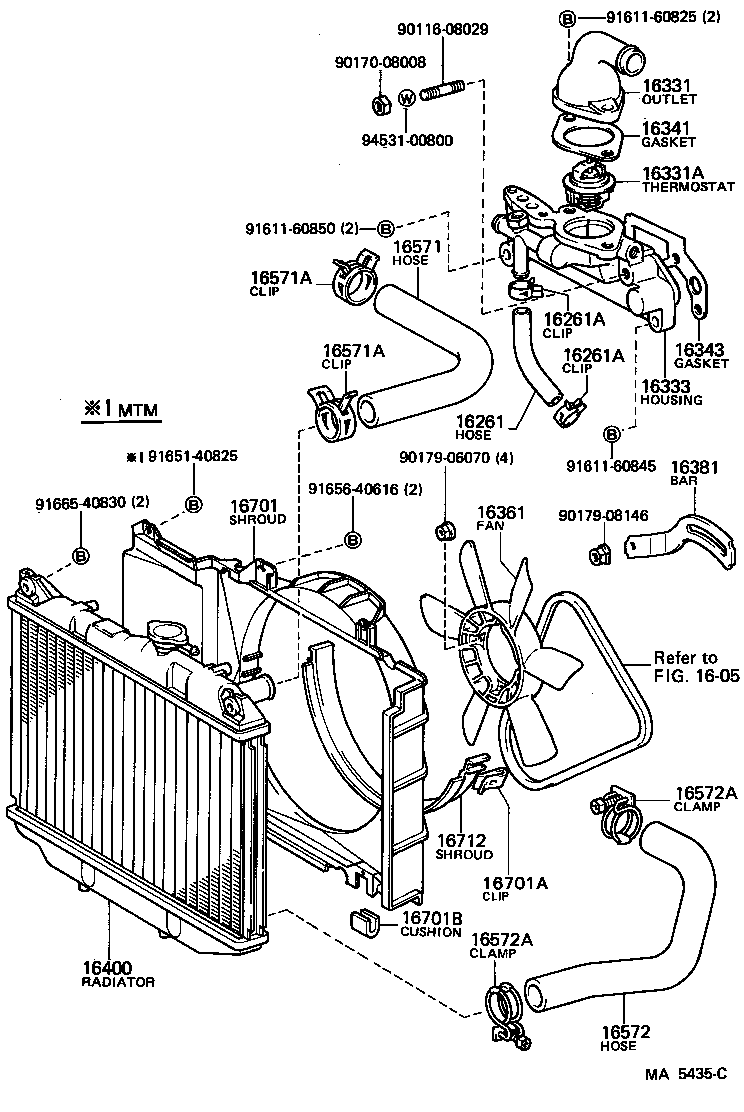

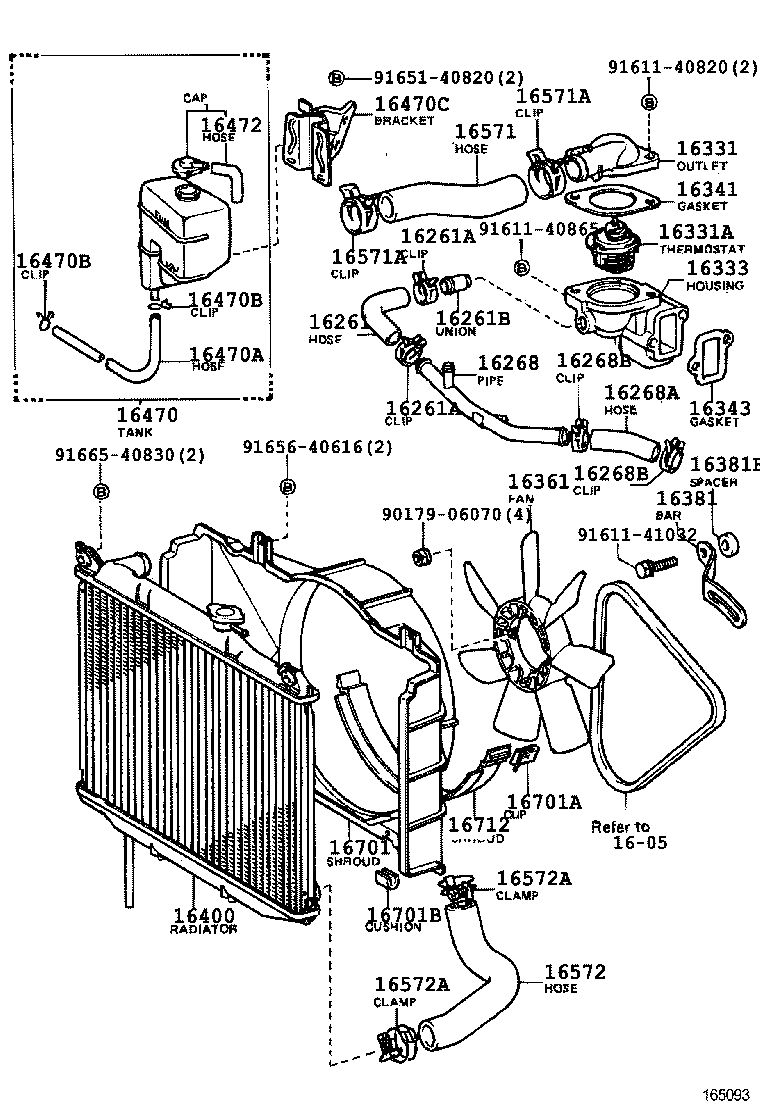

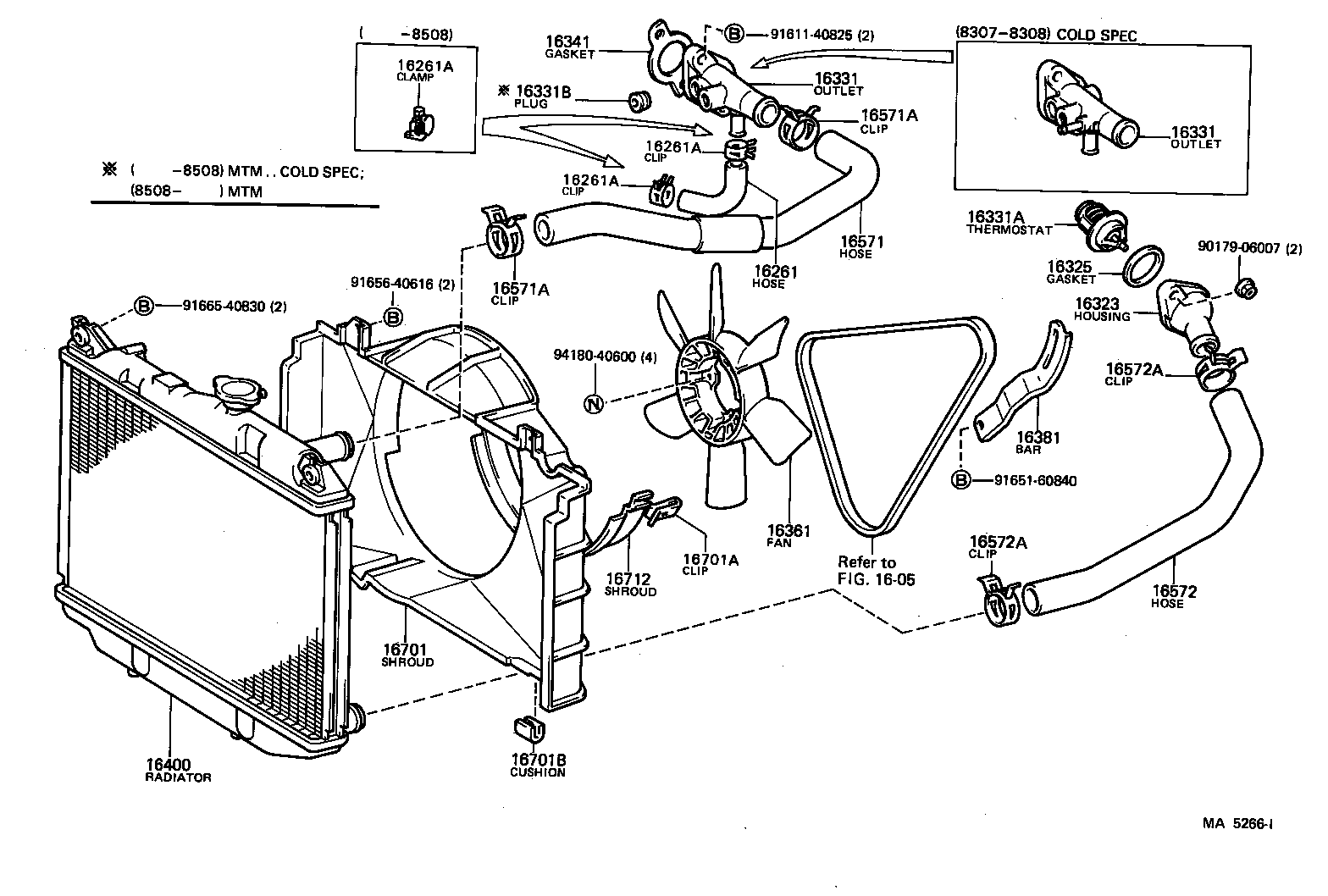

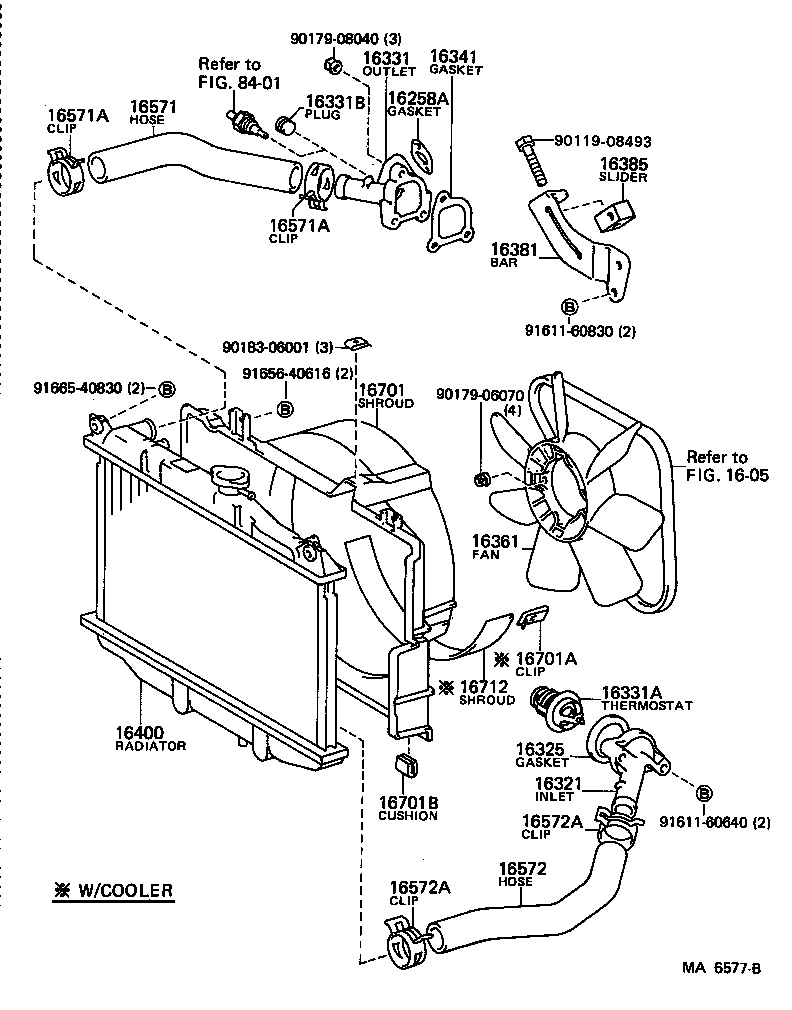

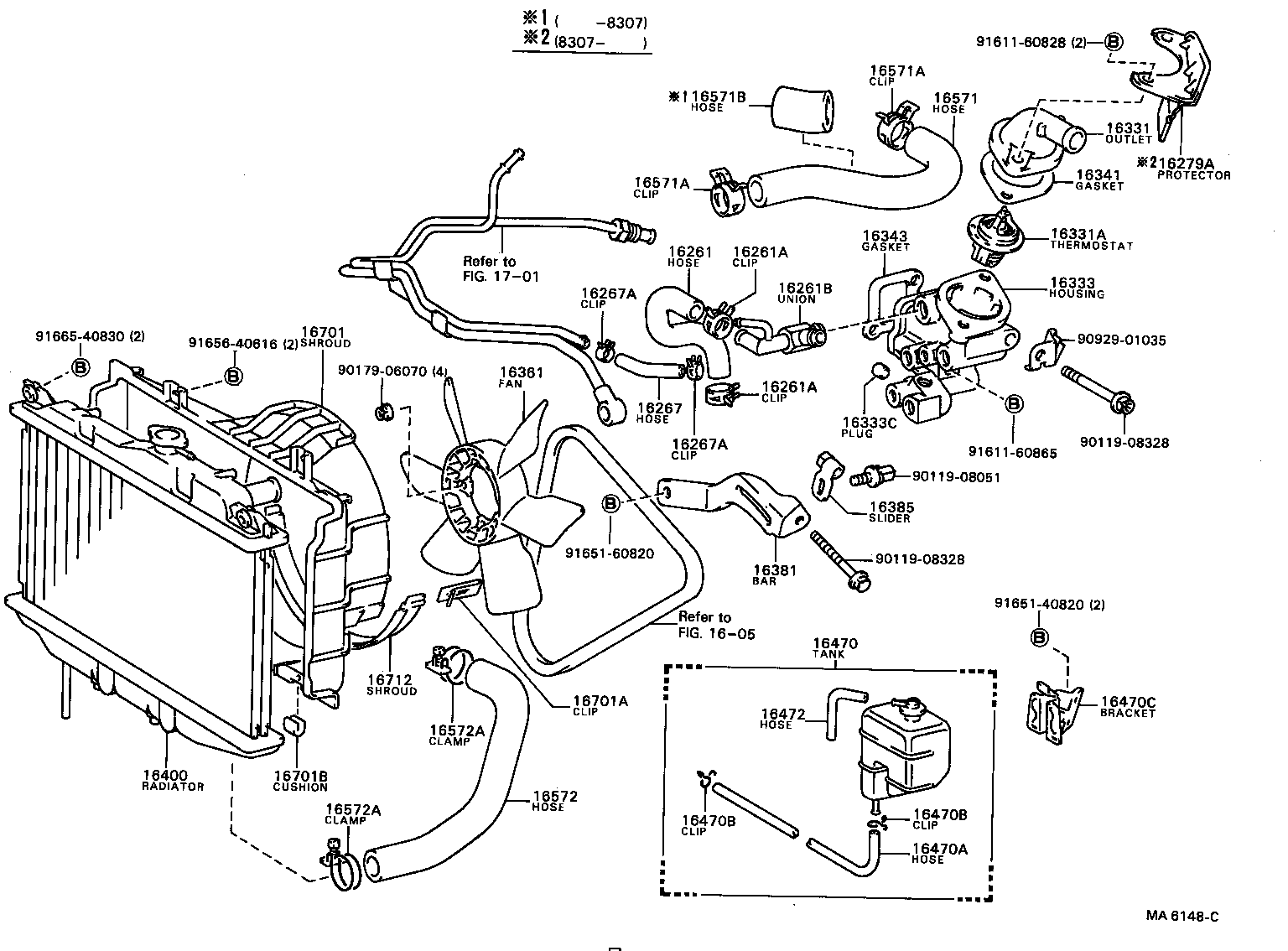

Figure MA5625H MA5625H 1982-01 → 1987-12 Figure MA6757E MA6757E 1983-10 → 1985-08 Figure 165021 165021 1982-01 → 1988-11 Figure MA6577B MA6577B 1982-01 → — Figure MA7229B MA7229B 1982-01 → — Figure 165021 165021 1982-01 → 1988-11 Figure 165021 165021 1988-11 → — Figure MA7174D MA7174D 1983-10 → — Figure 165021 165021 1983-10 → — Figure 165093 165093 1982-01 → 1982-10 Figure 165092 165092 1982-01 → 1988-11 Figure MA5266I MA5266I 1982-01 → 1987-12 Figure MA6787B MA6787B 1983-07 → 1987-12 Figure 165015 165015 1982-01 → 1988-11 Figure MA5435C MA5435C 1982-01 → 1983-10 Figure MA5247D MA5247D 1982-01 → 1983-10 Figure MA6148C MA6148C 1982-10 → 1983-10 Figure MA7232C MA7232C 1983-10 → 1985-08 Figure 164974 164974 1982-01 → 1988-11 Figure MA6184G MA6184G 1982-09 → — Figure 165021 165021 1982-01 → 1988-11 Figure 165123 165123 1988-11 → —

Part groups

PNCDescription
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268A Hose(FOR WATER BY-PASS PIPE)
16268B Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
16268D Hose(FOR WATER BY-PASS PIPE)
16268E Clamp, Hose(FOR WATER BY-PASS PIPE)
16268F Ring, O(FOR WATER BY-PASS PIPE)
16269 Support, Water By-pass Pipe
16278 Pipe, Water By-pass, NO.2
16278A Gasket, Water By-pass
16279A Protector, Hose Heat
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16331 Outlet, Water
16331A Thermostat
16331B Plug(FOR WATER OUTLET)
16333 Housing, Water Outlet
16333C Plug, W/Head Taper Screw
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16361 Fan
16381 Bar, Fan Belt Adjusting
16381B Spacer, Fan Belt Adjusting Bar
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400R Bushing(FOR RADIATOR)
16400S Collar(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16403F Core Sub-assy, Radiator
16406A Support(FOR OIL COOLER)
16442 Ring, O(FOR RADIATOR UPPER TANK)
16443 Plate, Radiator Tank, Lock, Upper
16451 Plate, Radiator Core, Upper
16452 Plate, Radiator Core, Lower
16462 Ring, O(FOR RADIATOR LOWER TANK)
16463 Plate, Radiator Tank, Lock, Lower
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470C Bracket(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16491 Cooler, Oil(FOR ATM)
16491A Ring, O(FOR ATM OIL COOLER)
16491B Washer, Plate(FOR ATM OIL COOLER)
16491C Washer, Spring(FOR ATM OIL COOLER)
16491D Nut(FOR ATM OIL COOLER)
16495 Nut, Flare(FOR ATM OIL COOLER)
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571B Hose, Slit(FOR RADIATOR HOSE)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16577 Pipe, Radiator, NO.7
16577A Union(FOR RADIATOR PIPE)
16701 Shroud Sub-assy, Fan
16701A Clip(FOR FAN SHROUD)
16701B Cushion, Fan Shroud
16712 Shroud, Fan, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
