Toyota Blade
2006-12 → 2012-04 · chassis AZE15#,GRE156 · catalogue 262110 · Japan
Supported model
Data version 2013-01
Switch & Relay & Computer
92 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

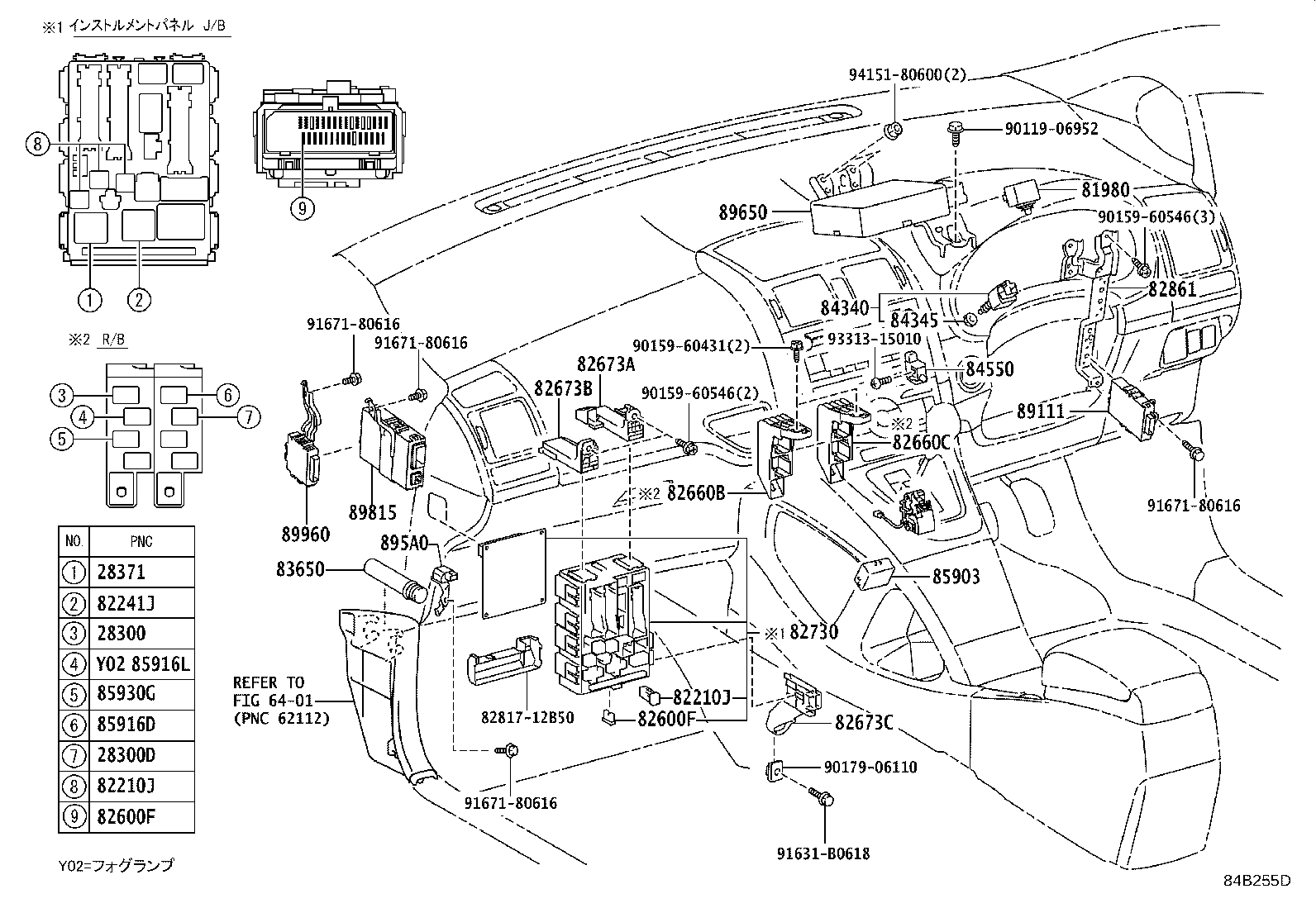

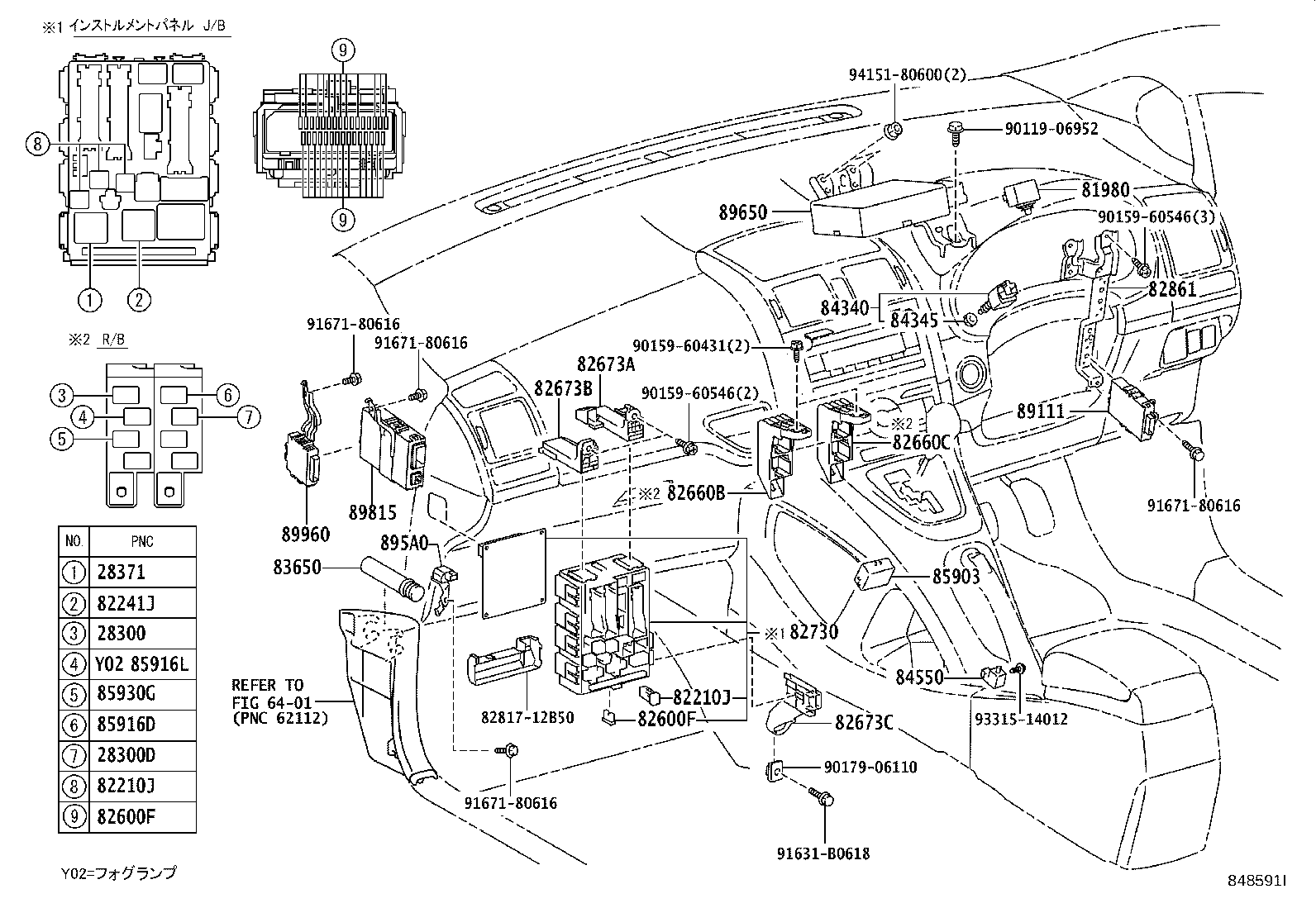

| 28300 | Relay Assy, Starter |
| 28300D | Relay, Starter Cut |
| 28371 | Relay, Ignition, NO.1 |
| 28380A | Resister, Fuel Pump |
| 28850 | Sensor Assy, Battery Current |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82241J | Pin, Short |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82630 | Holder Assy, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |
| 82730 | Block Assy, Instrument Panel Junction |

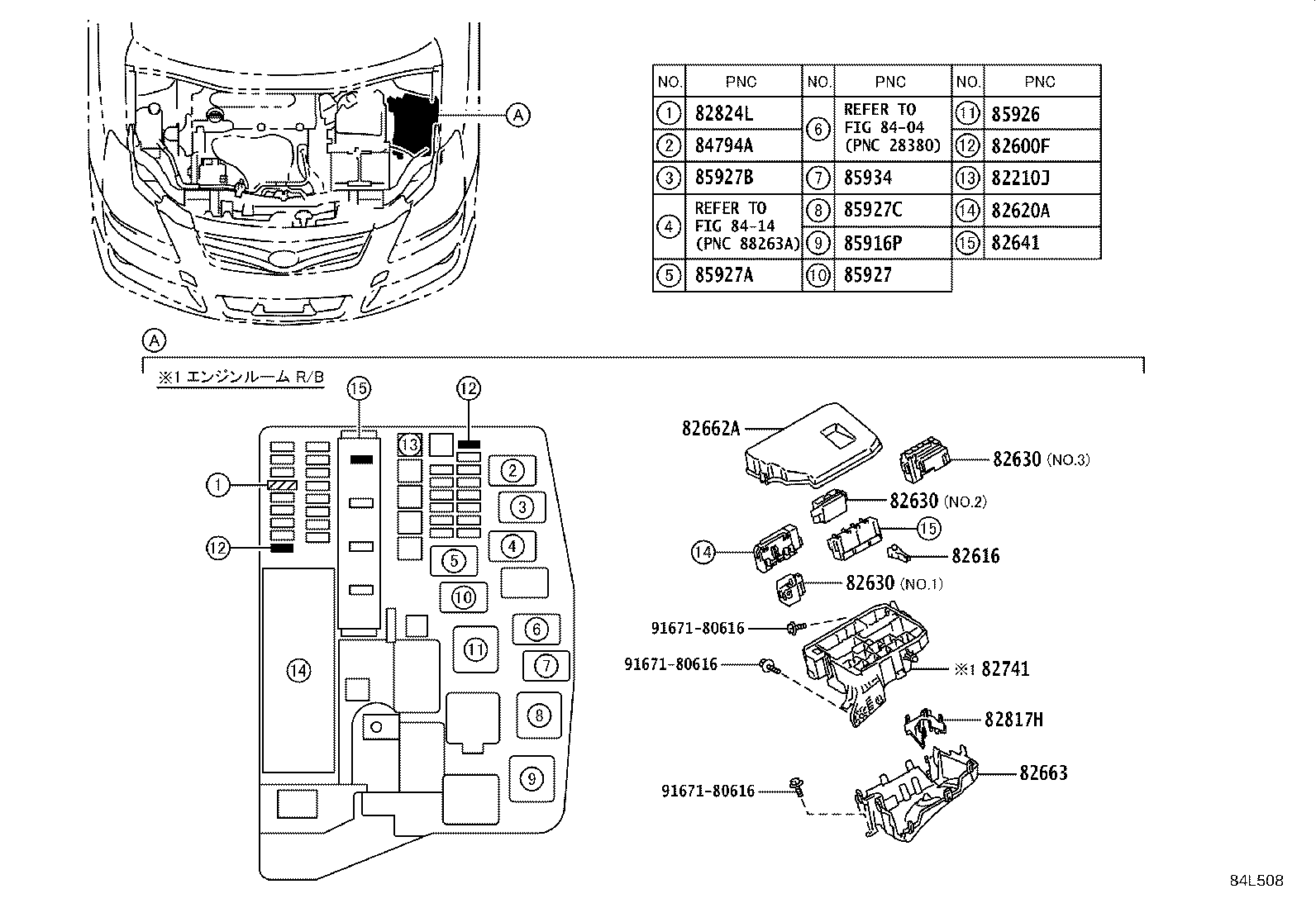

| 82741 | Block, Engine Room Relay |
| 82817H | Protector, Wiring Harness |
| 82824L | Pin, Short |
| 82861 | Bracket, Computer Integration, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83361 | Gasket, Fuel Sender Gage |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |

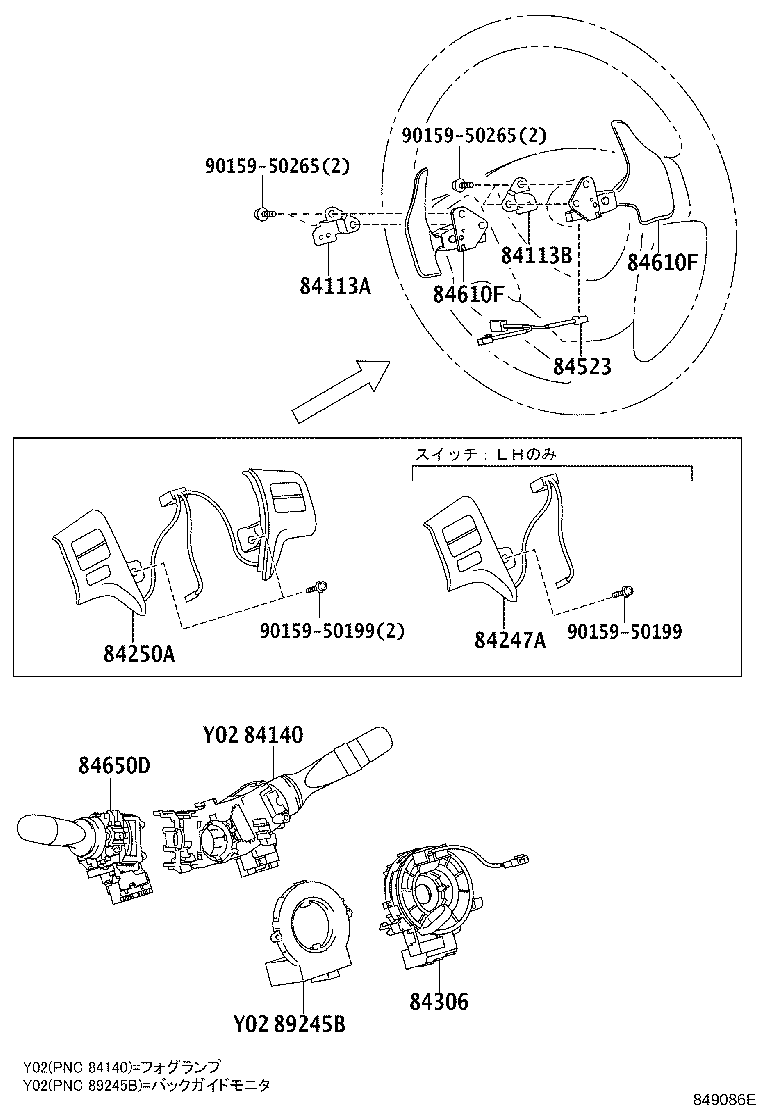

| 84113A | Bracket, Switch, NO.1 |
| 84113B | Bracket, Switch, NO.2 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

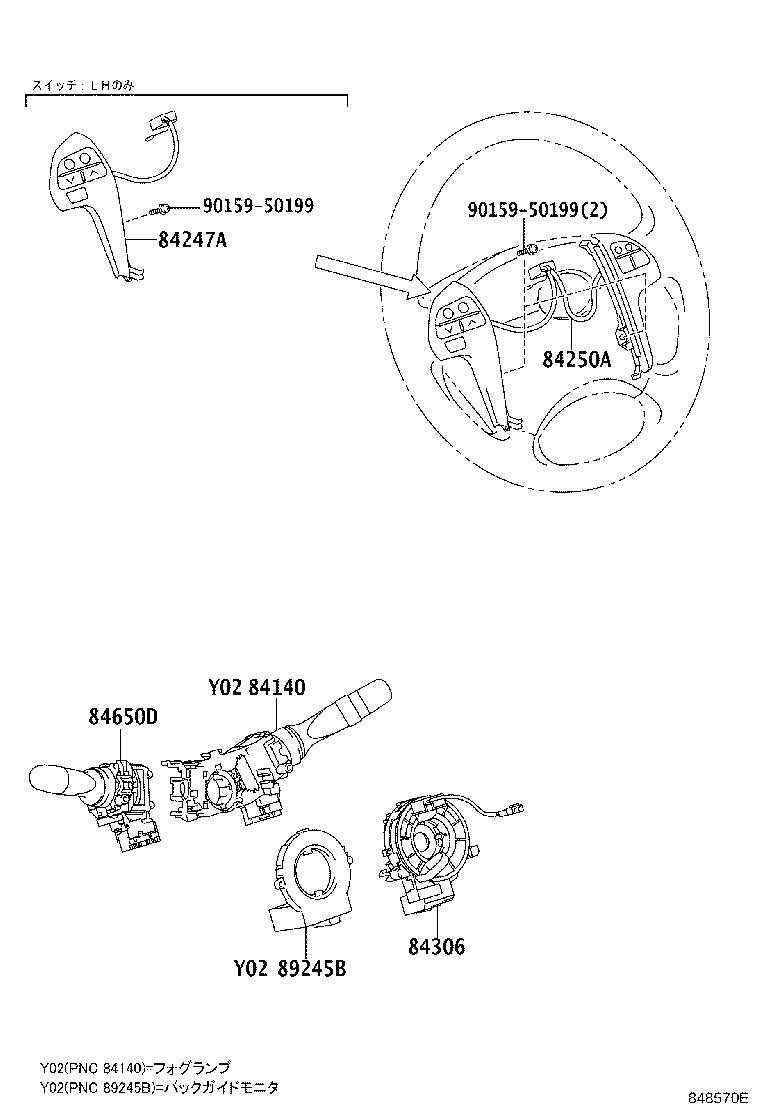

| 84247A | Switch, Steering Pad, LH |

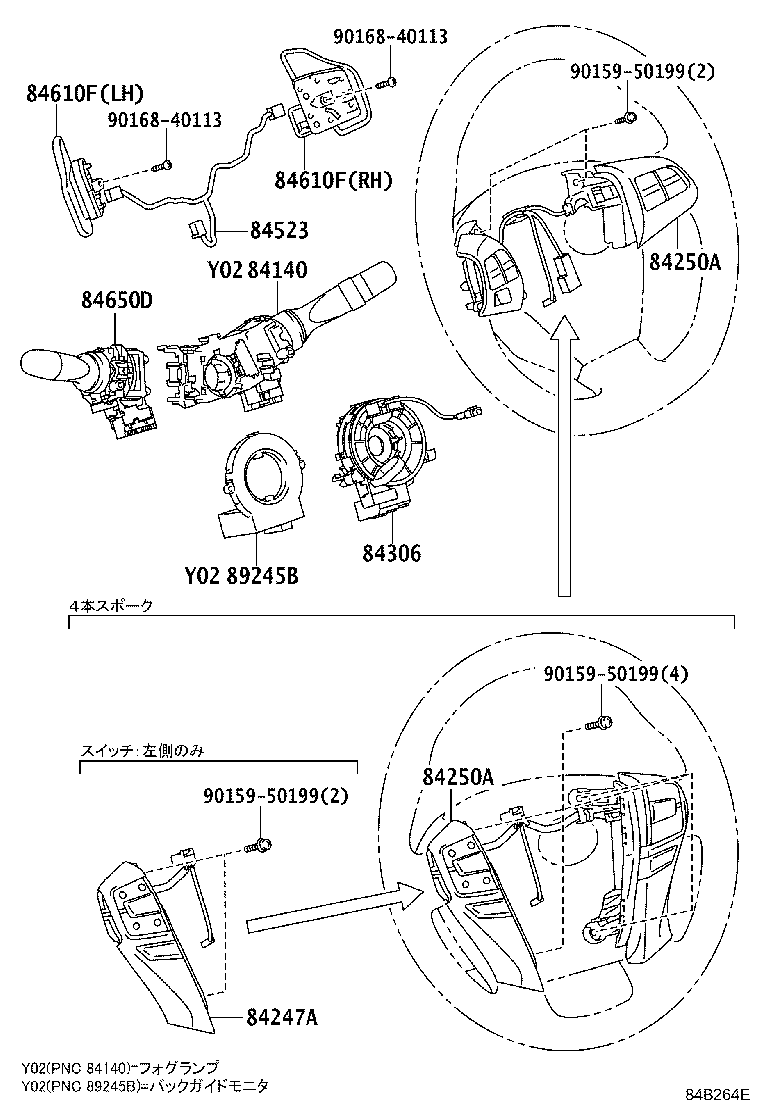

| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |

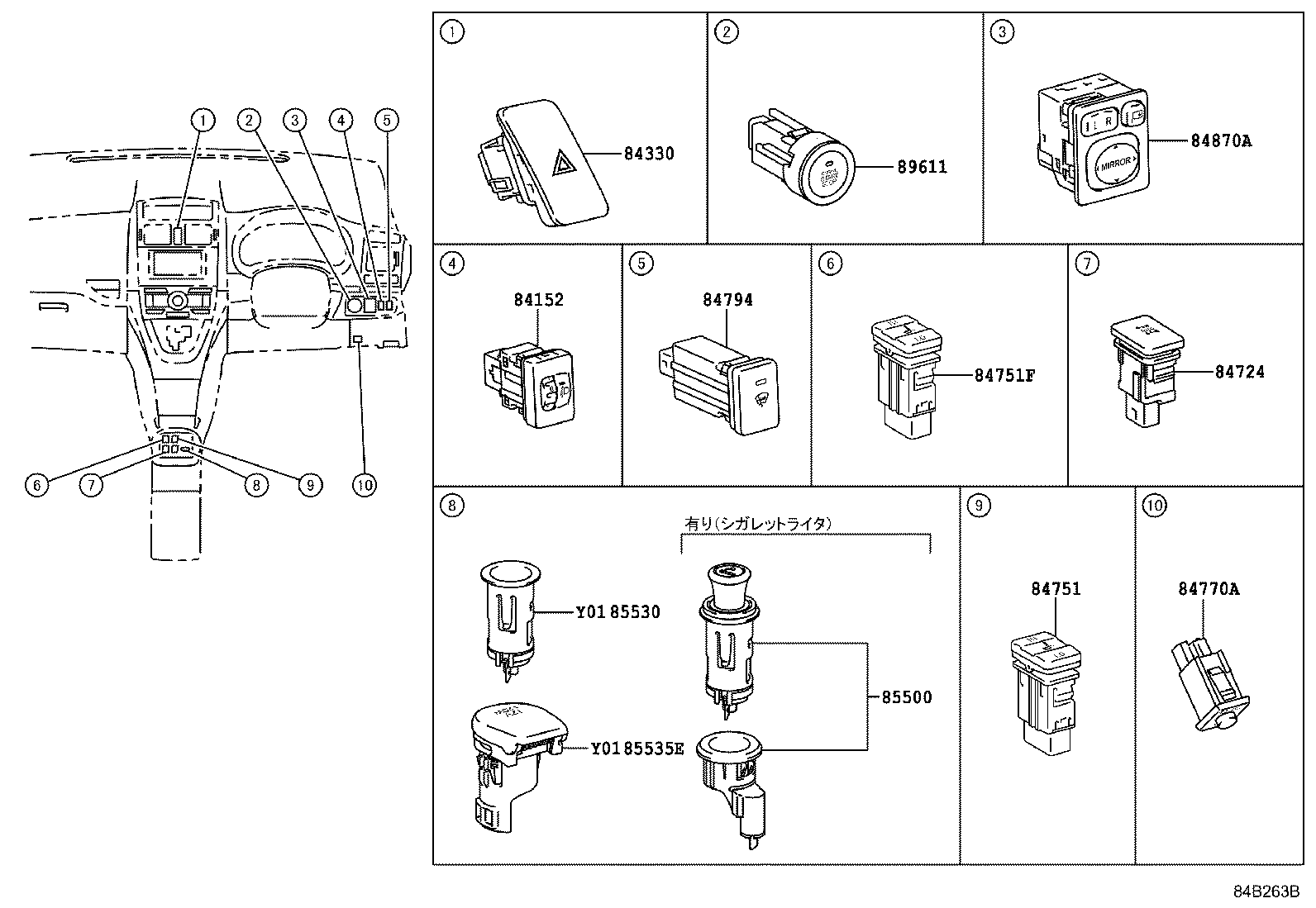

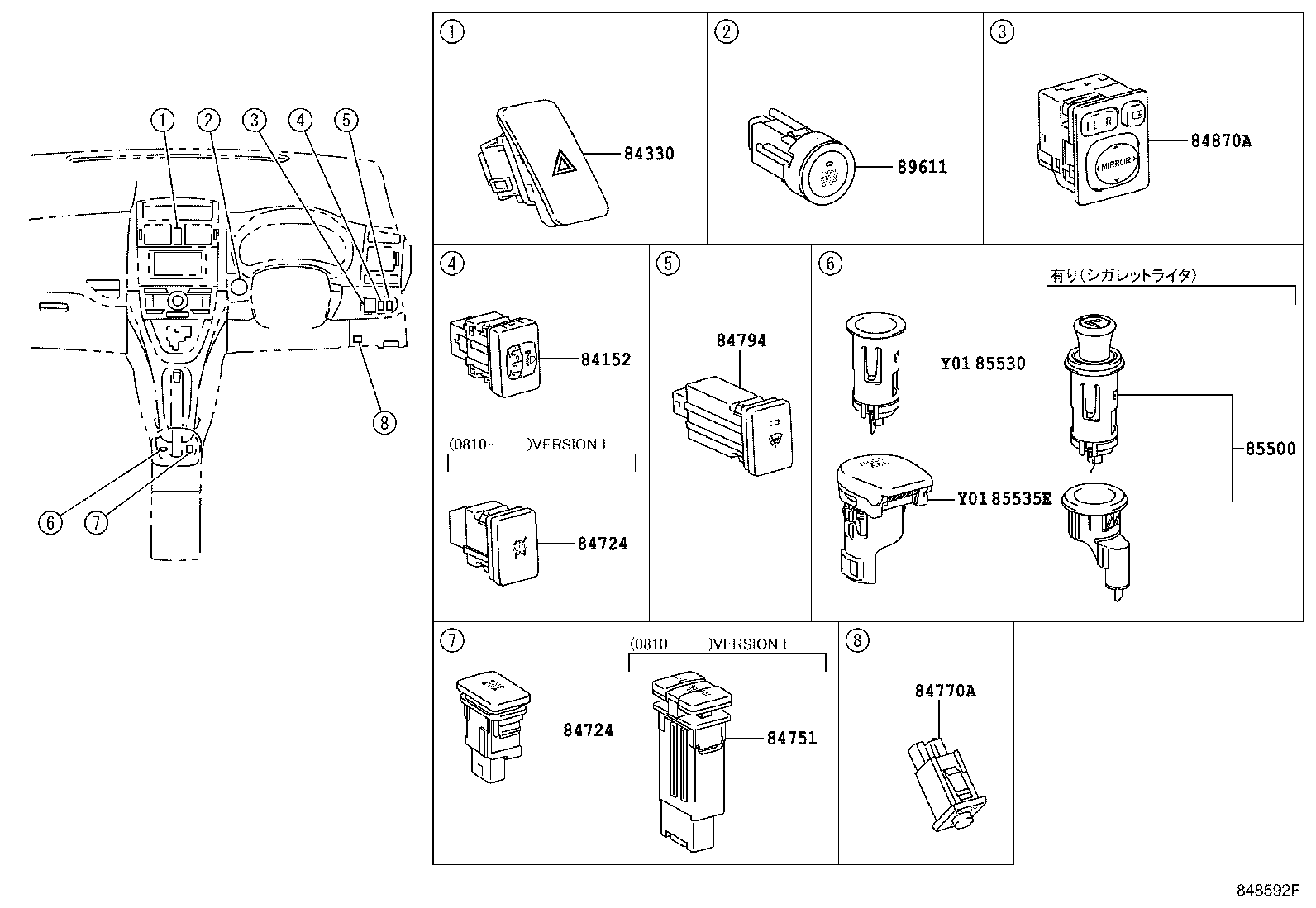

| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84610F | Switch Assy, Transmission Shift |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |
| 84724 | Switch, 4 Wheel Drive Control |
| 84751 | Switch, Seat Heater |
| 84751F | Switch, Seat Heater |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794 | Switch, FR Wiper Deicer |
| 84794A | Relay, FR Wiper Deicer |

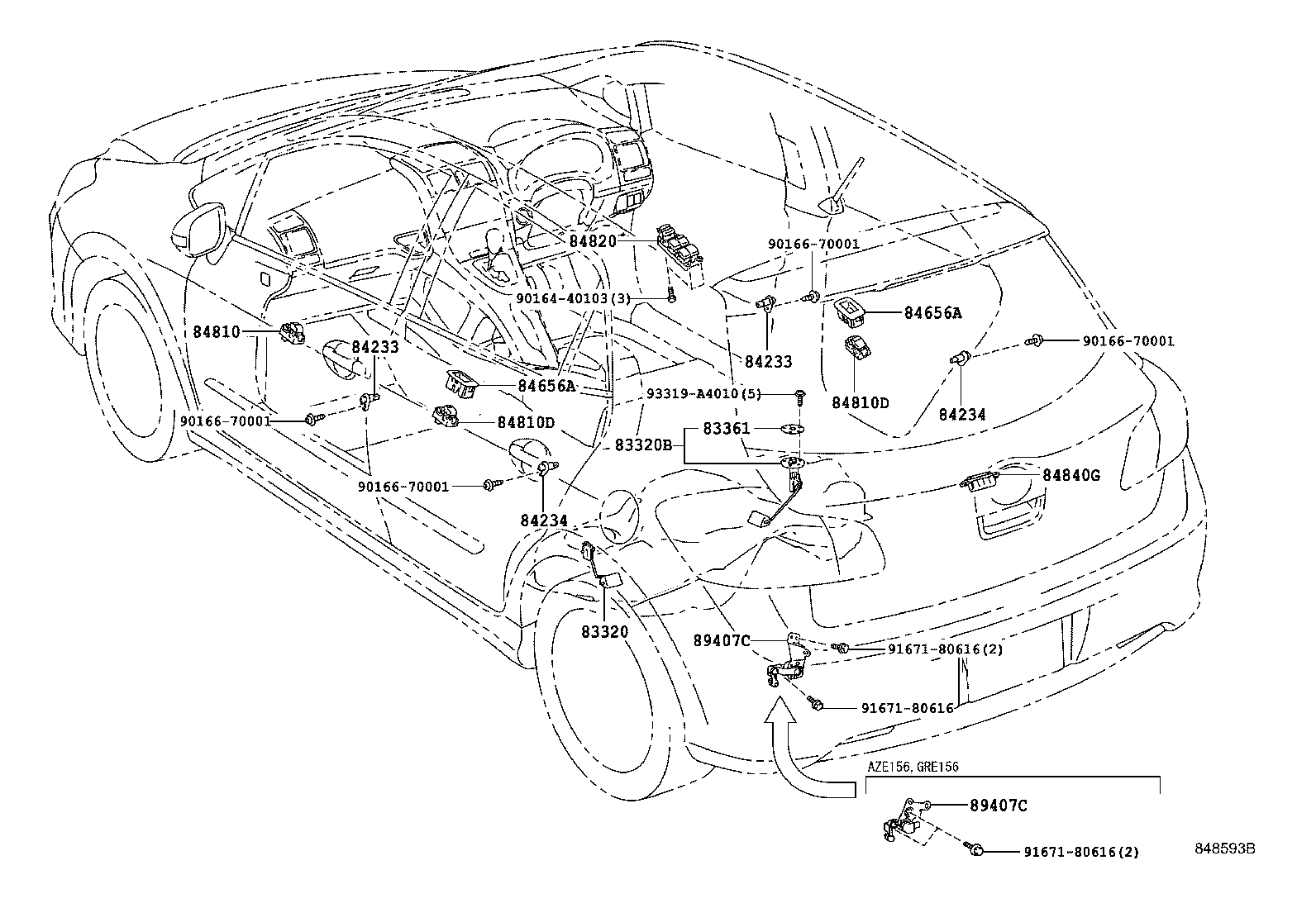

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 85500 | Lighter Assy, Cigarette |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85916D | Relay, Fog Lamp |
| 85916L | Relay, Rear Fog Lamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85927C | Relay, Cooling Fan, NO.4 |
| 85930G | Relay, Acc |
| 85934 | Relay, Magnet-clutch |
| 89111 | Computer, Network Gateway |
| 89245B | Sensor, Steering |

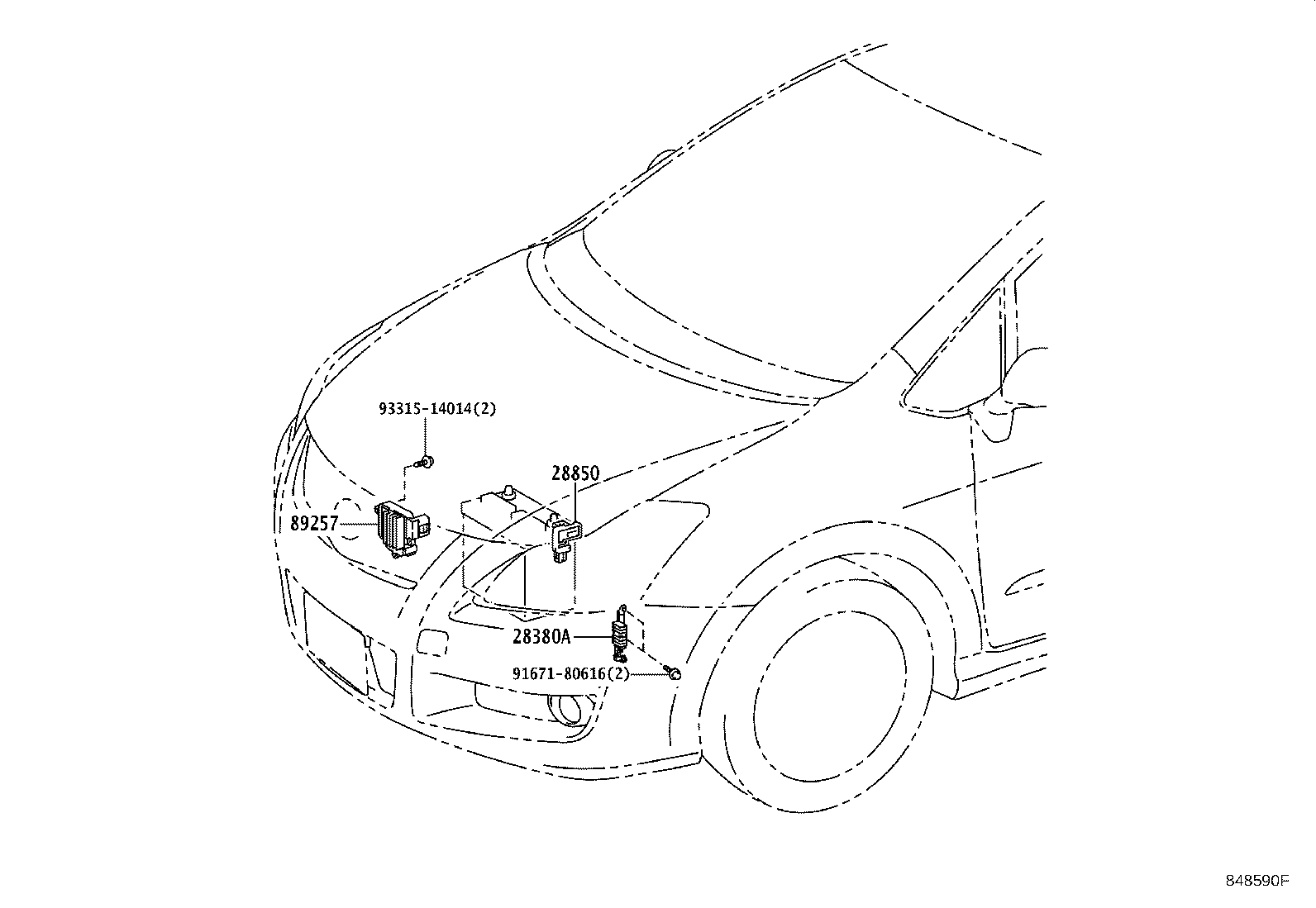

| 89257 | Computer, Cooling Fan |
| 89407C | Sensor Sub-assy, Height Control, Rear |

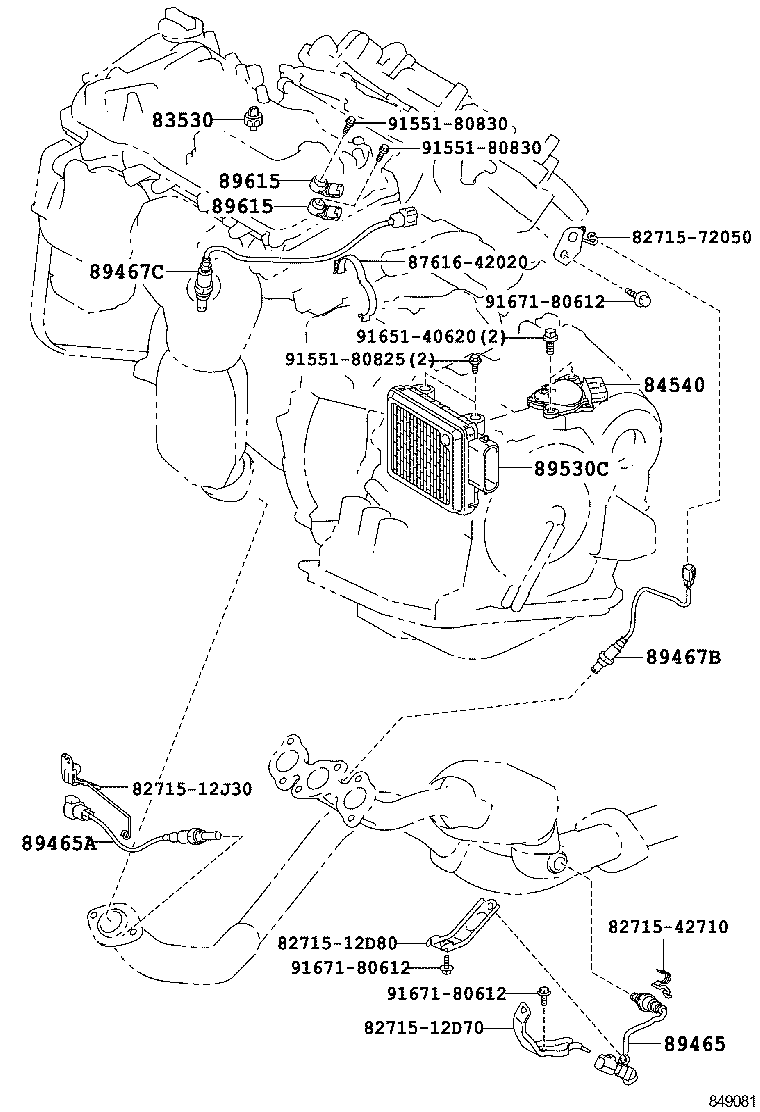

| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89530C | Computer Assy, Transmission Control |
| 895A0 | Relay Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89815 | Computer, Seat Belt Control |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
