Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

39 part groups · 11 illustrations

Illustrations

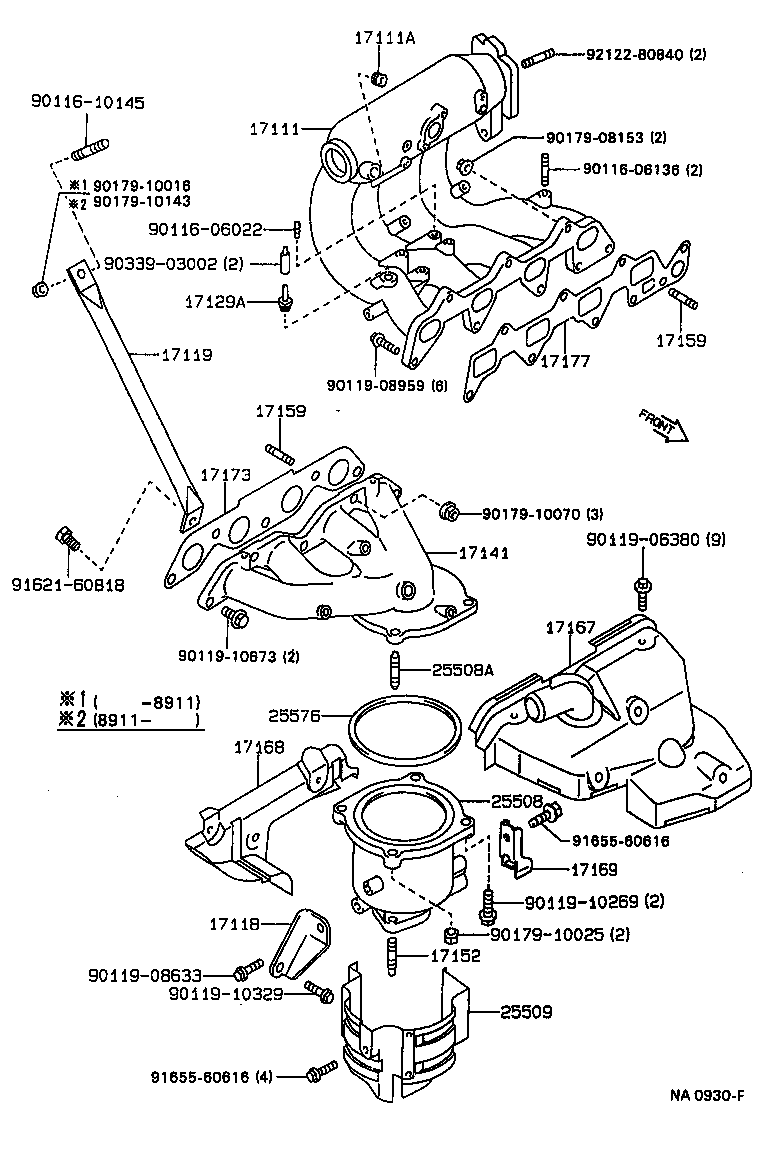

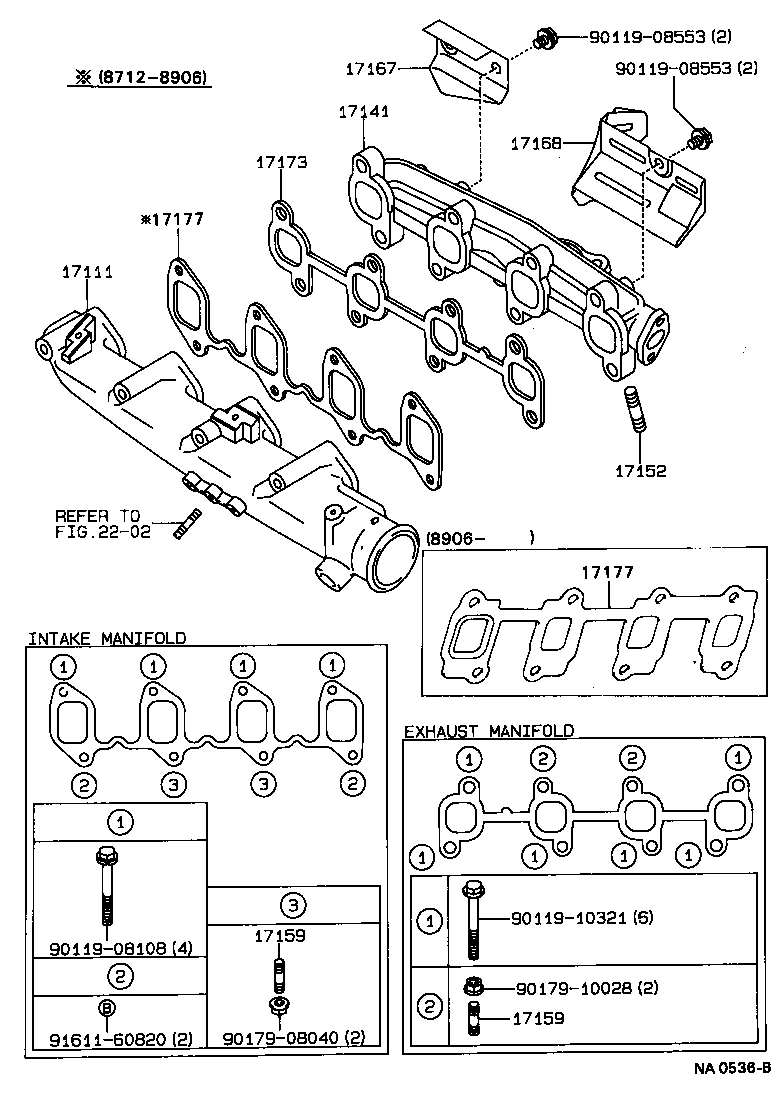

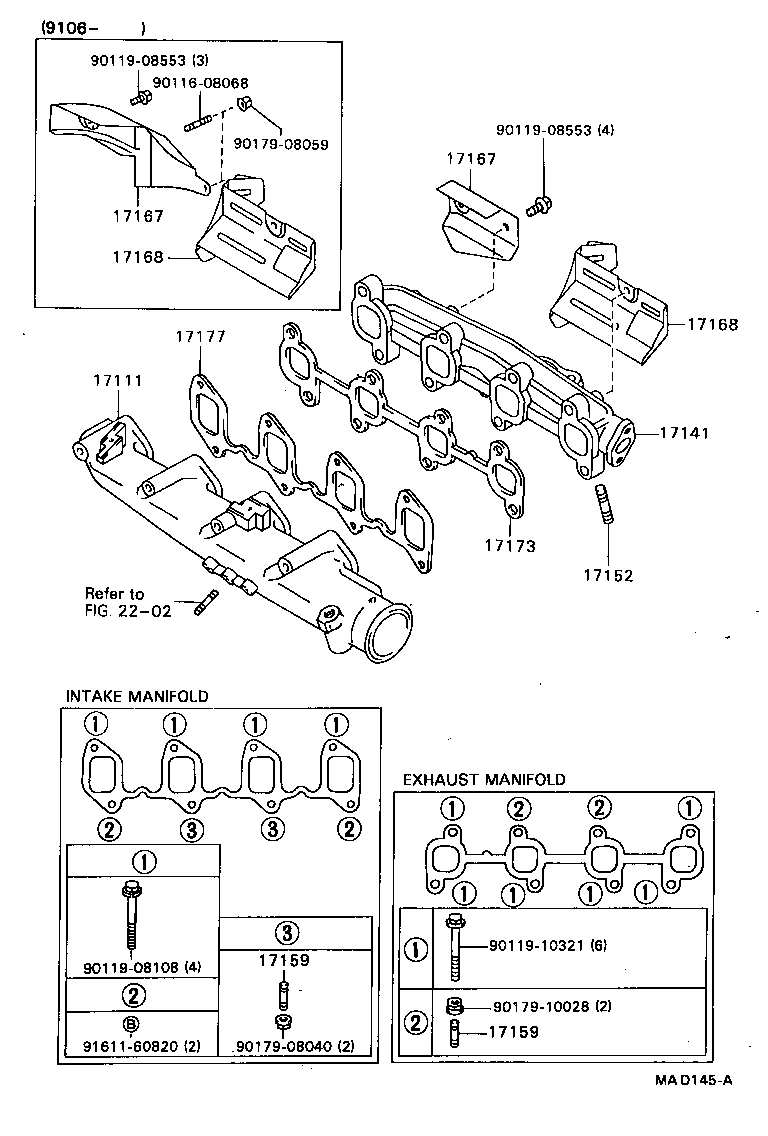

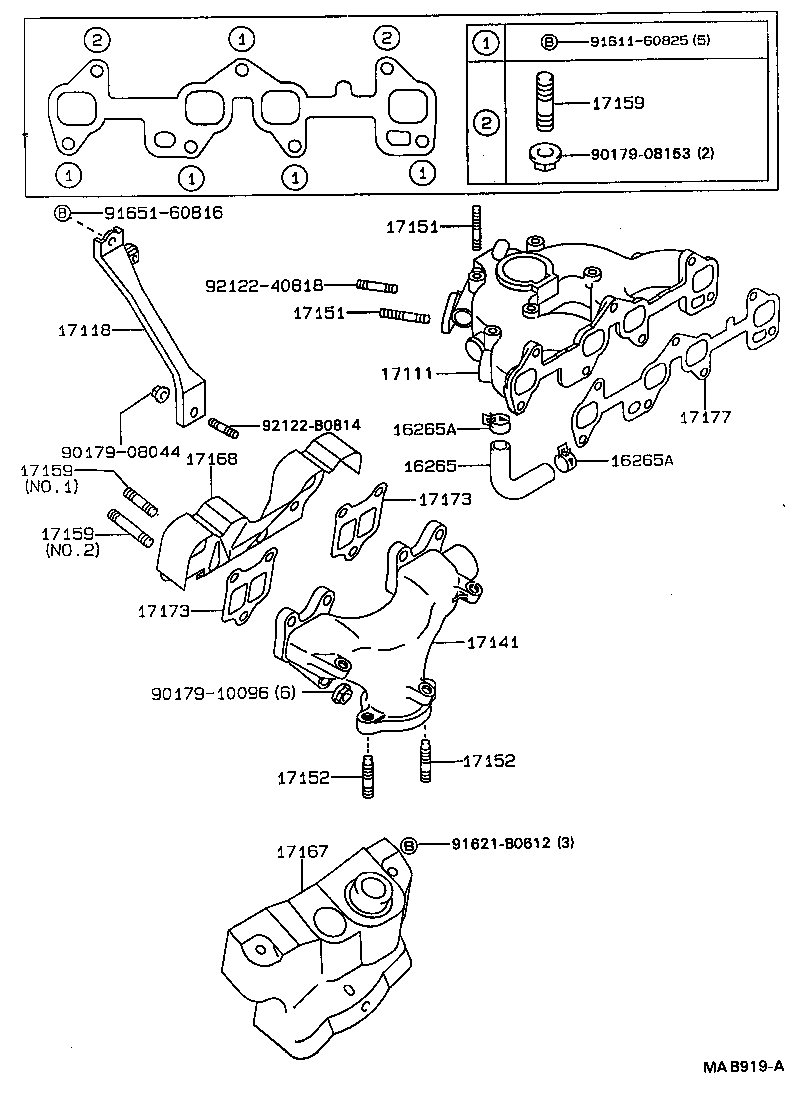

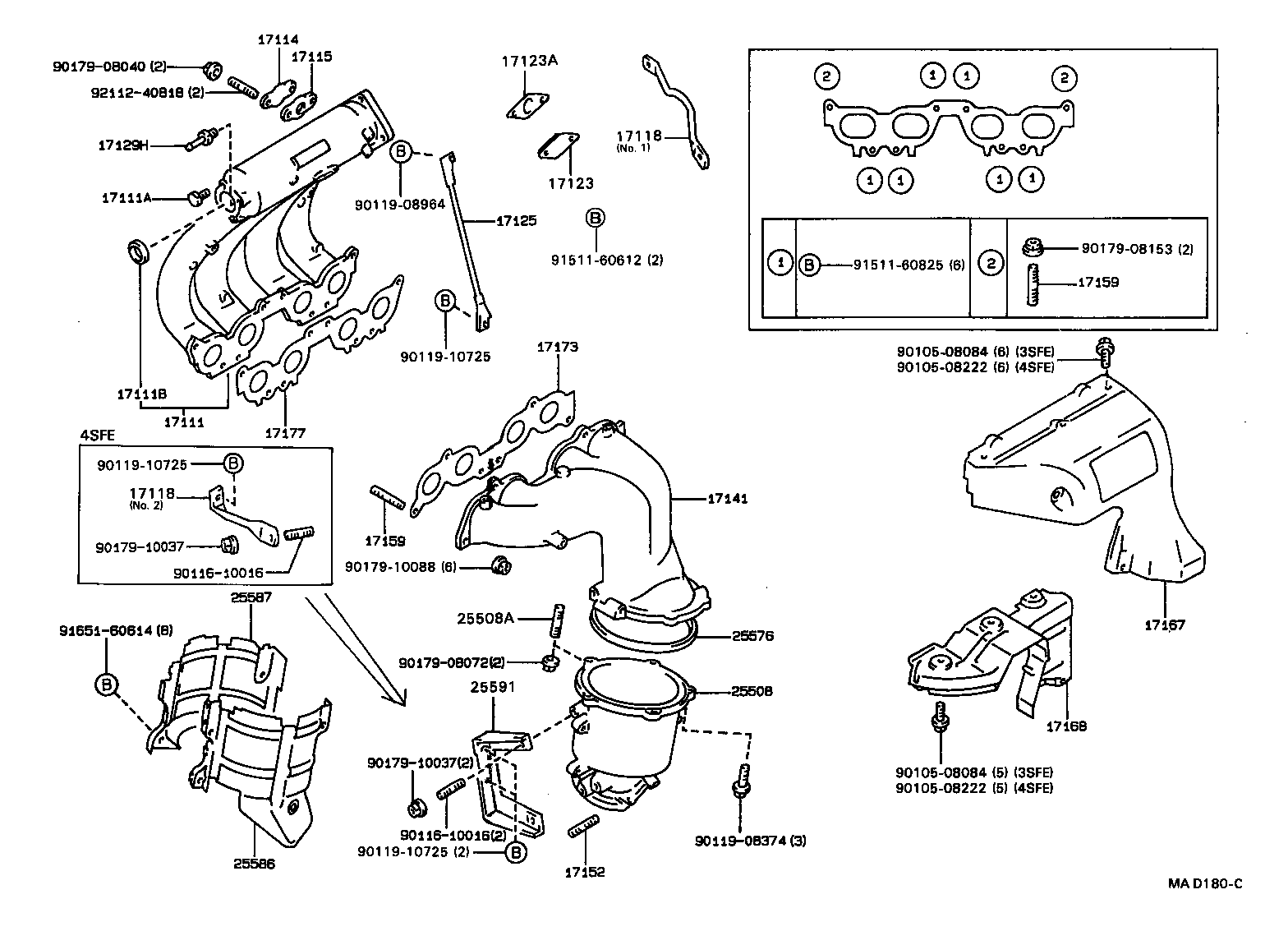

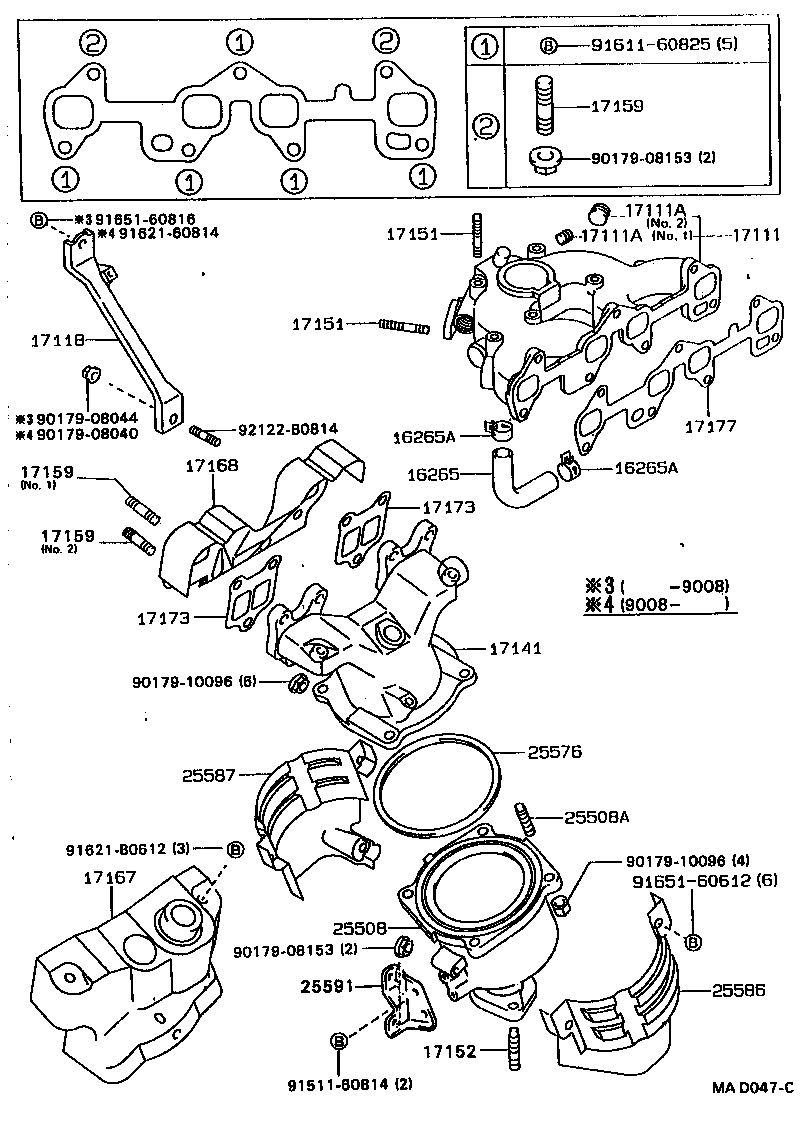

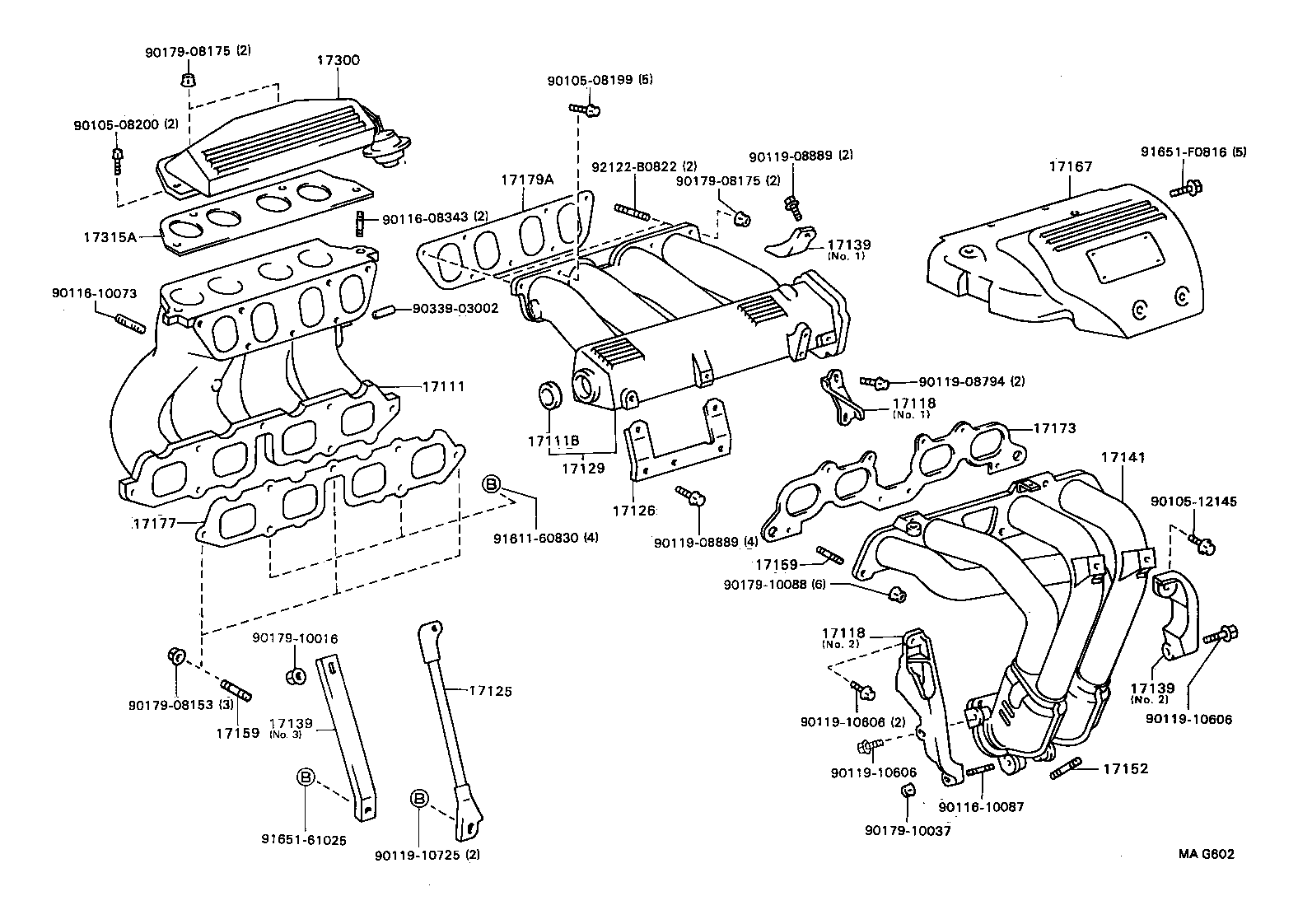

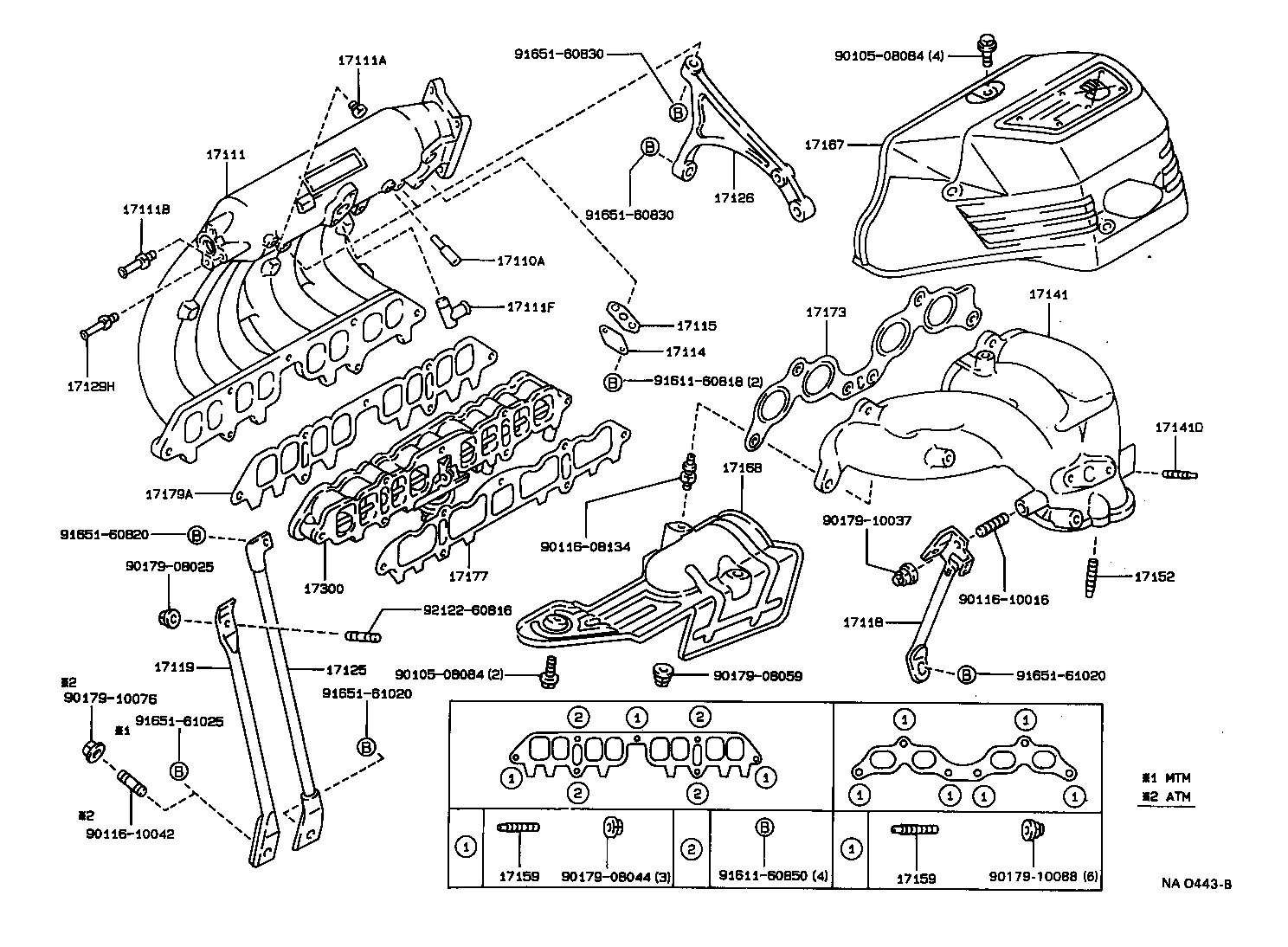

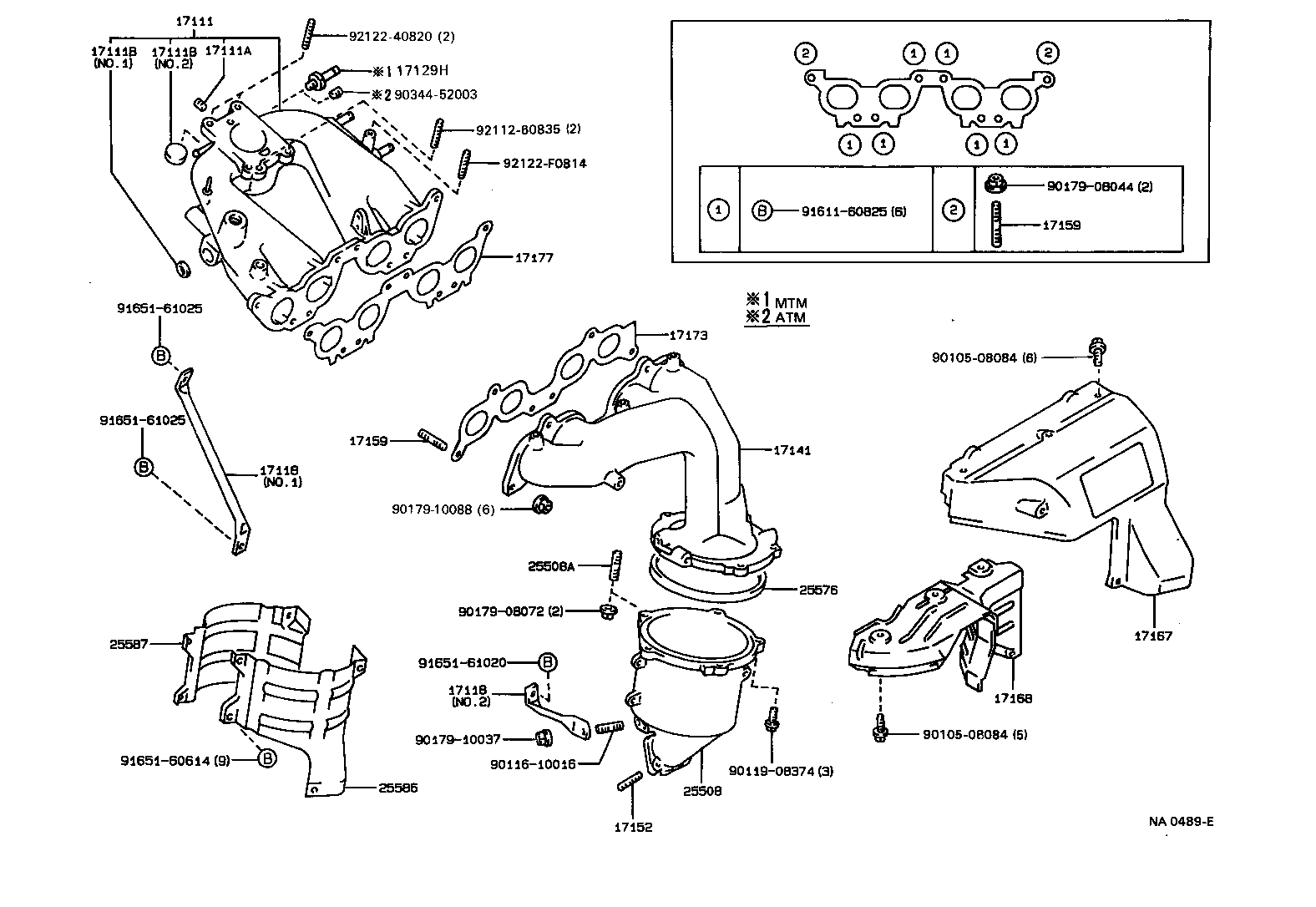

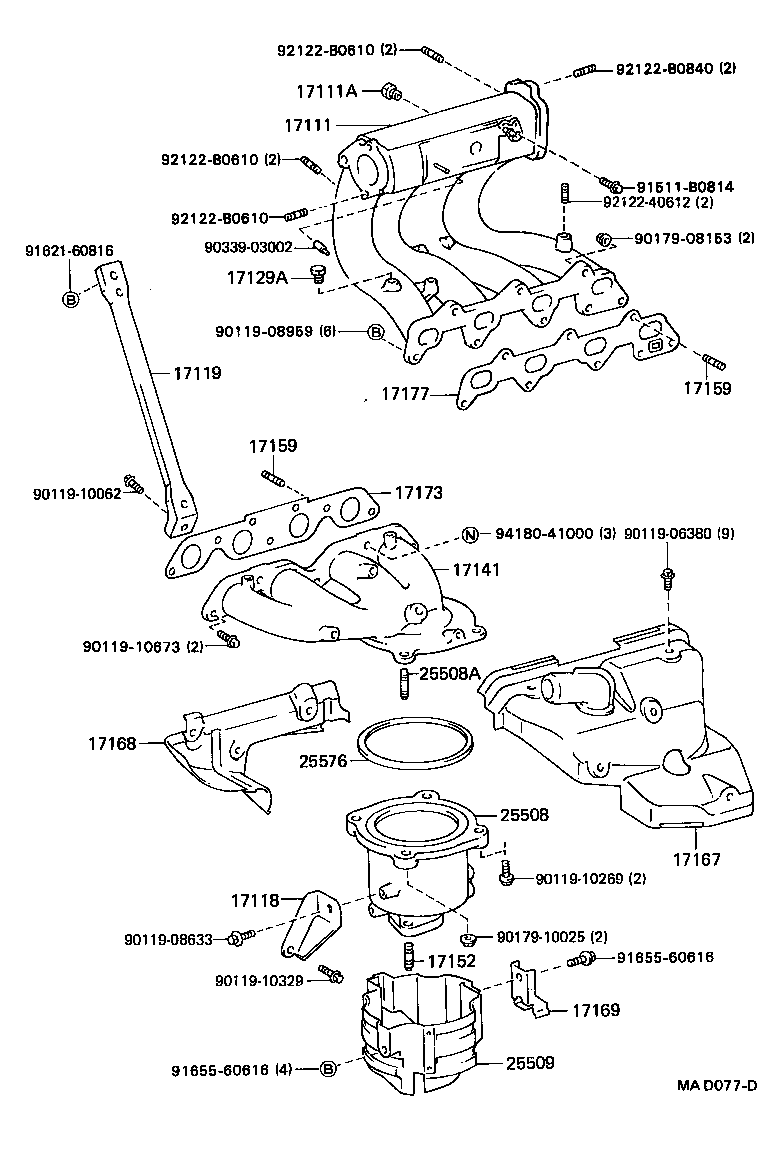

Figure NA0354E NA0354E 1987-12 → 1989-11 Figure NA0930F NA0930F 1988-08 → — Figure MAD077D MAD077D 1989-11 → — Figure NA0536B NA0536B 1987-12 → 1989-11 Figure MAD145A MAD145A 1989-11 → — Figure MAB919A MAB919A 1987-12 → 1989-11 Figure MAD047C MAD047C 1989-11 → — Figure NA0489E NA0489E 1987-12 → 1989-11 Figure NA0443B NA0443B 1987-12 → 1989-11 Figure MAG602 MAG602 1989-11 → — Figure MAD180C MAD180C 1987-12 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
17110A Union, Vacuum Hose
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111F Union(FOR VACUUM HOSE TO CARBURETOR)
17114 Plate, Intake Manifold Hole Cover
17115 Gasket, Intake Manifold Hole Cover
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17123 Cover, Surge Tank
17123A Gasket(FOR SURGE TANK COVER)
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129H Union, NO.4
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17300 Valve Assy, Intake Air Control
17315A Gasket, Intake Air Control Valve
25508 Converter Sub-assy, Manifold
25508A Bolt, Stud(FOR MANIFOLD CONVERTER)
25509 Insulator Sub-assy, Manifold Convertor
25576 Gasket, Manifold Converter
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
