Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

23 part groups · 7 illustrations

Illustrations

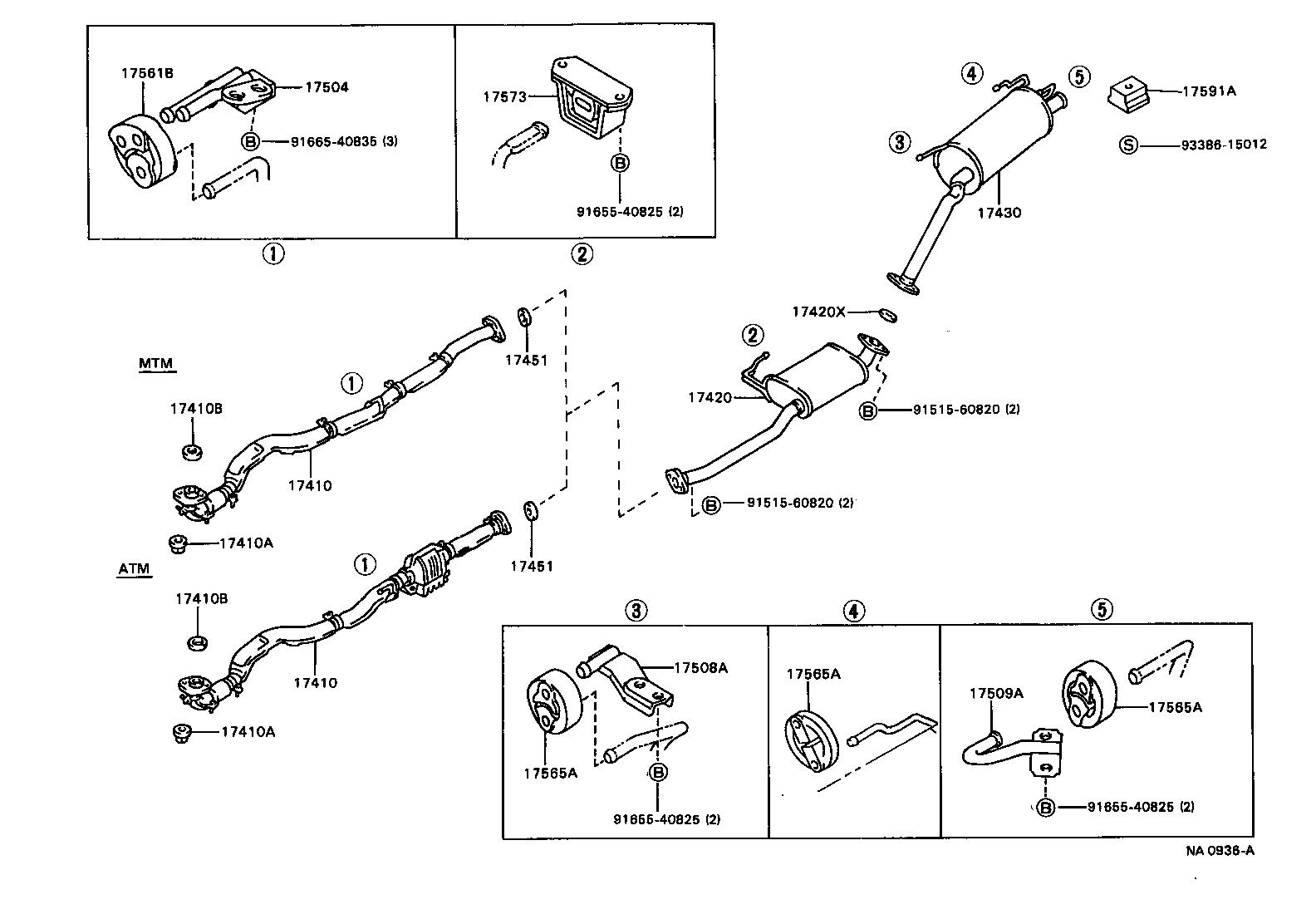

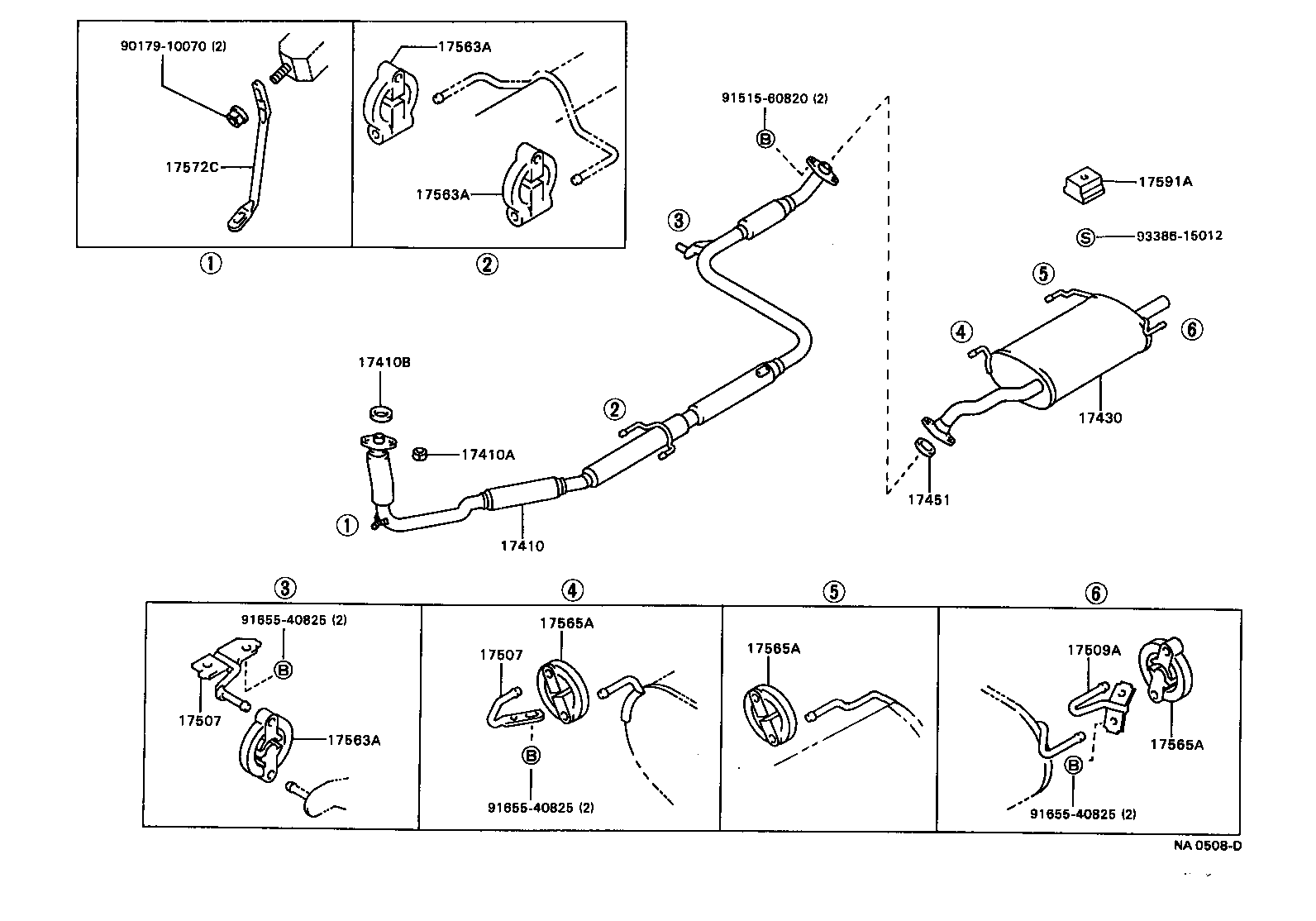

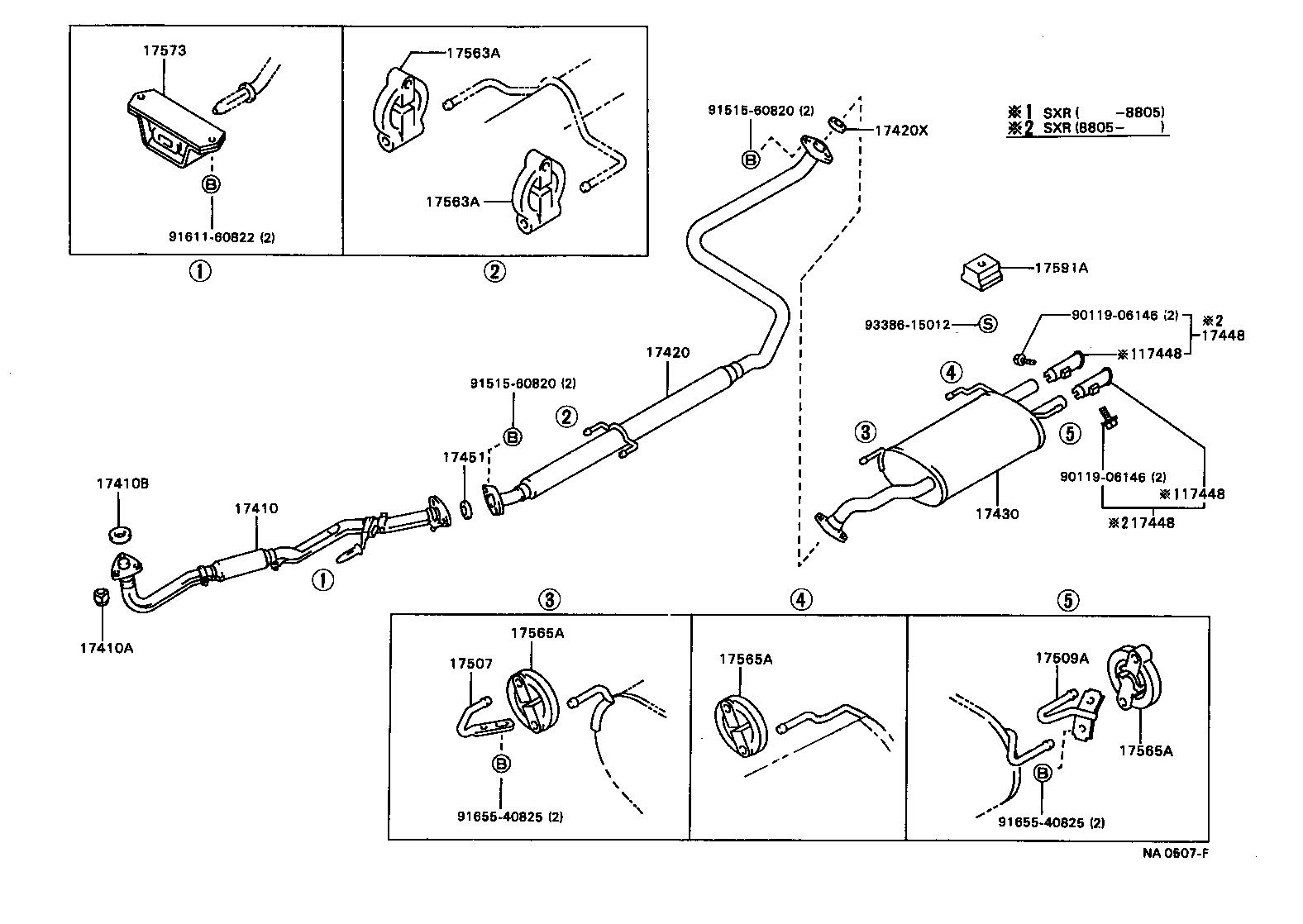

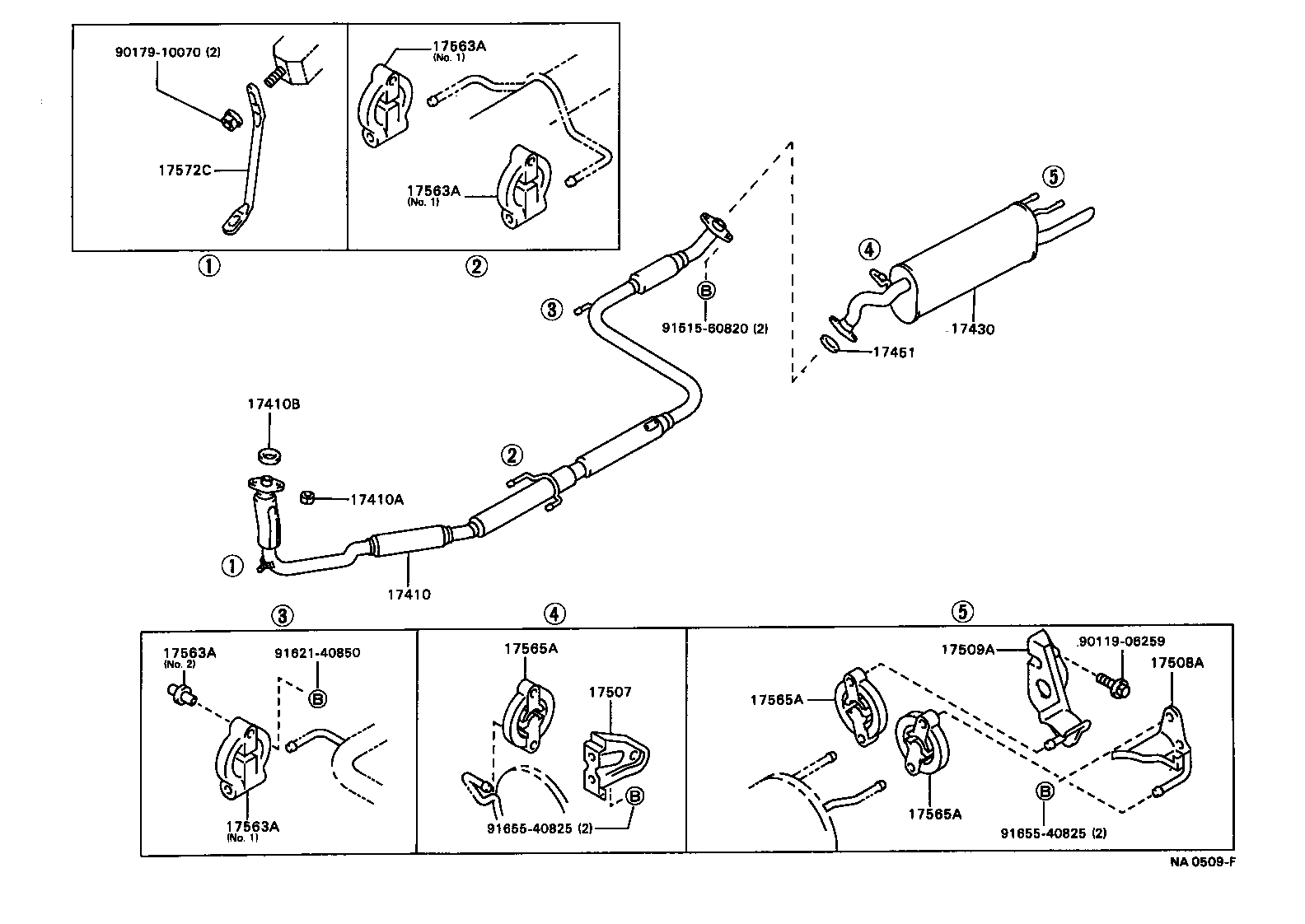

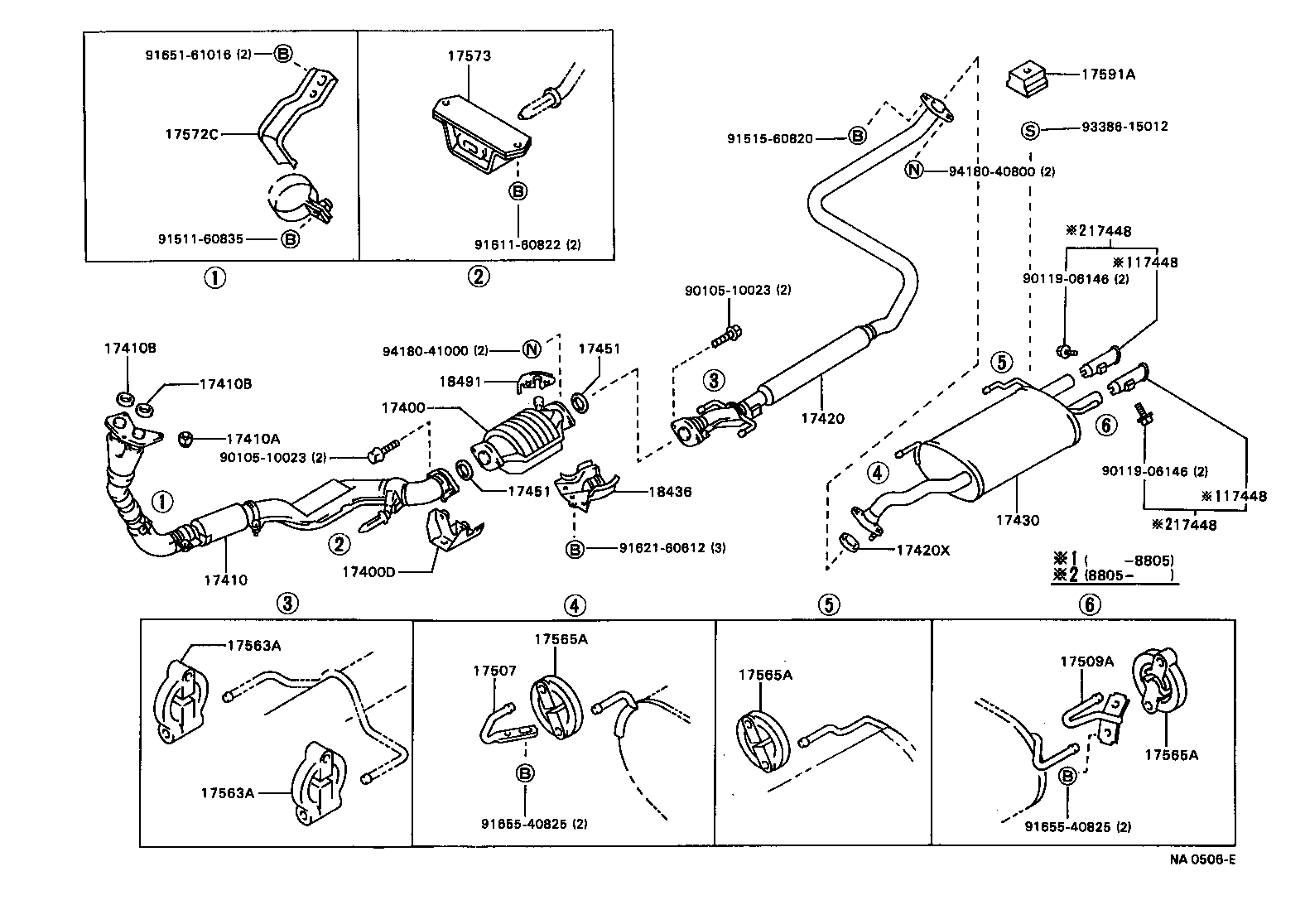

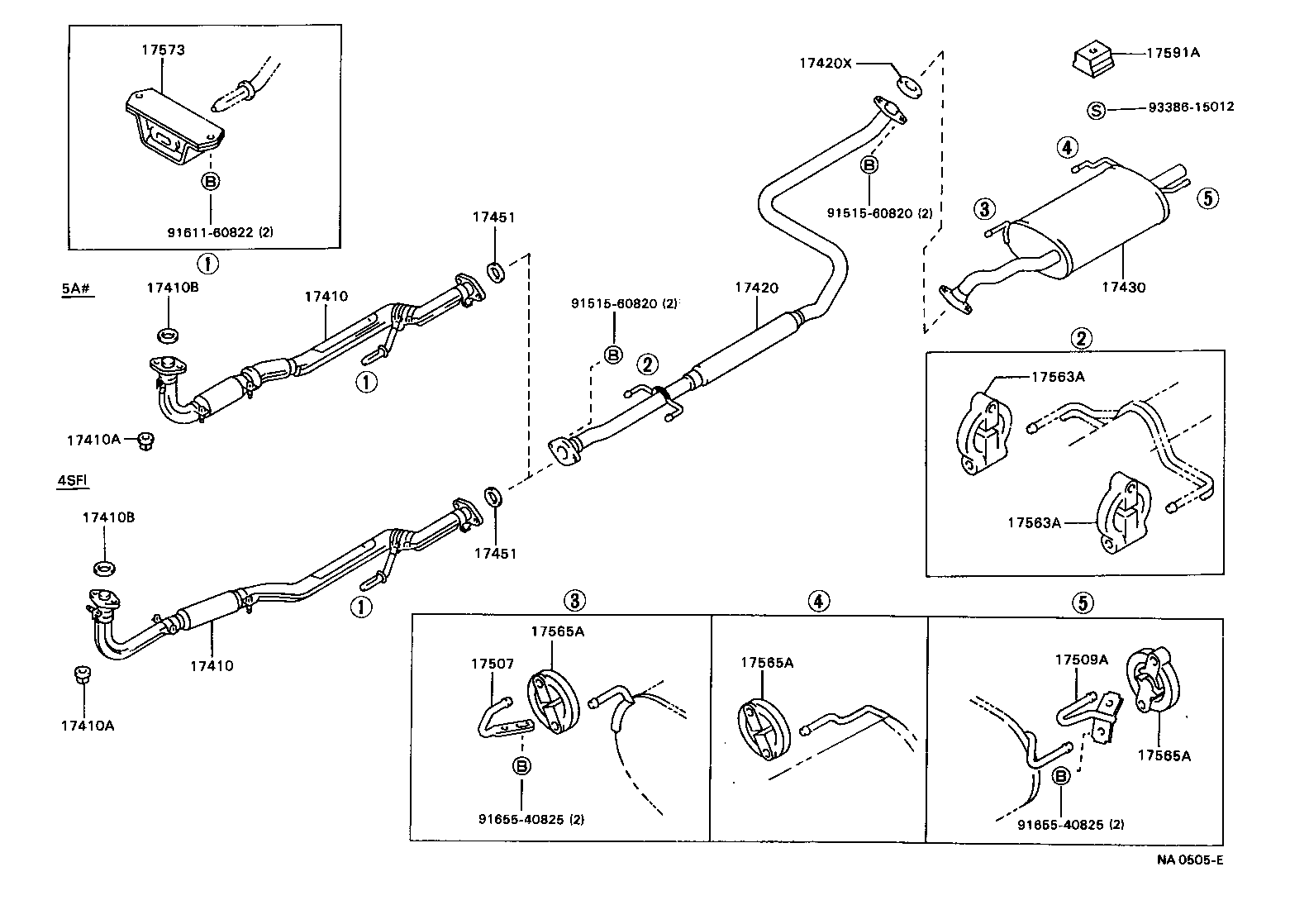

Figure 176598 176598 1987-12 → — Figure NA0505E NA0505E 1987-12 → — Figure NA0936A NA0936A 1988-08 → — Figure NA0506E NA0506E 1987-12 → — Figure NA0507F NA0507F 1987-12 → — Figure NA0508D NA0508D 1987-12 → — Figure NA0509F NA0509F 1987-12 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17504 Bracket Sub-assy, Catalytic Converter
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17561B Support, Exhaust Pipe, NO.1
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17591A Stopper, Exhaust Pipe Support
18435 Protector, Catalytic Converter
18436 Protector, Monolithic Converter, NO.1
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
