Toyota Corona

1987-12 → 1992-11 · chassis AT17#,ST17#,CT17#,ET176 · catalogue 271120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

10 part groups · 8 illustrations

Illustrations

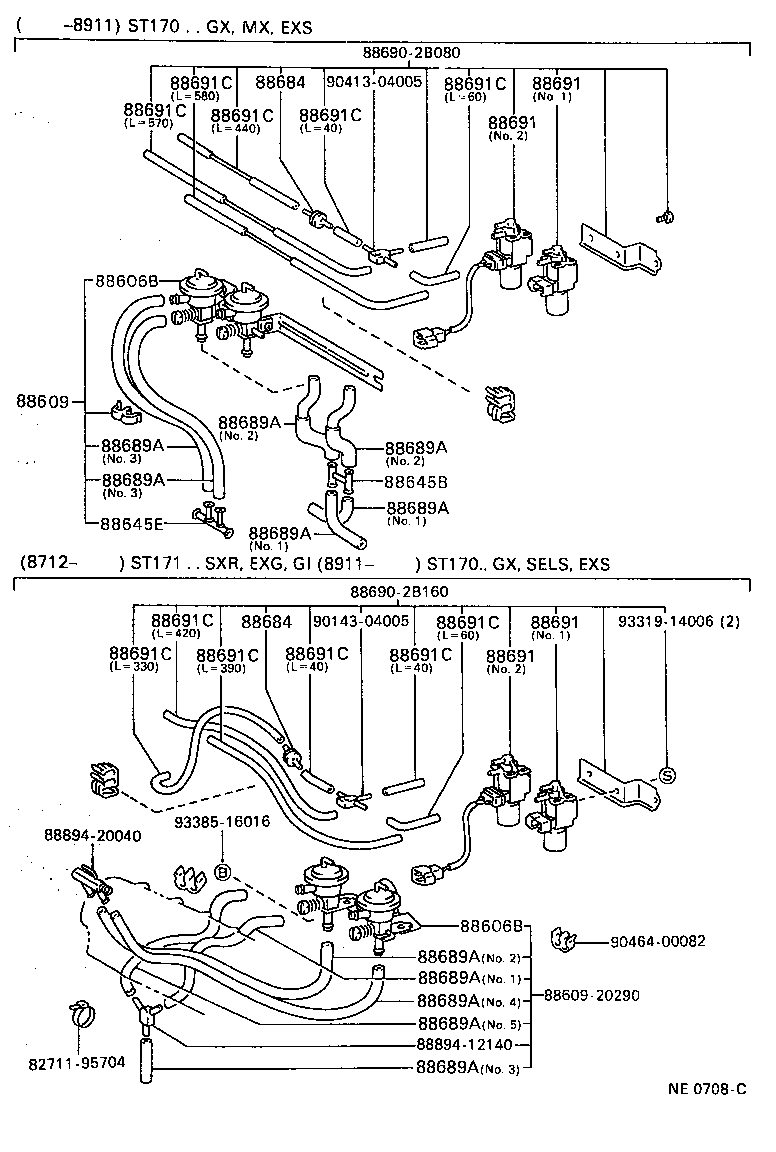

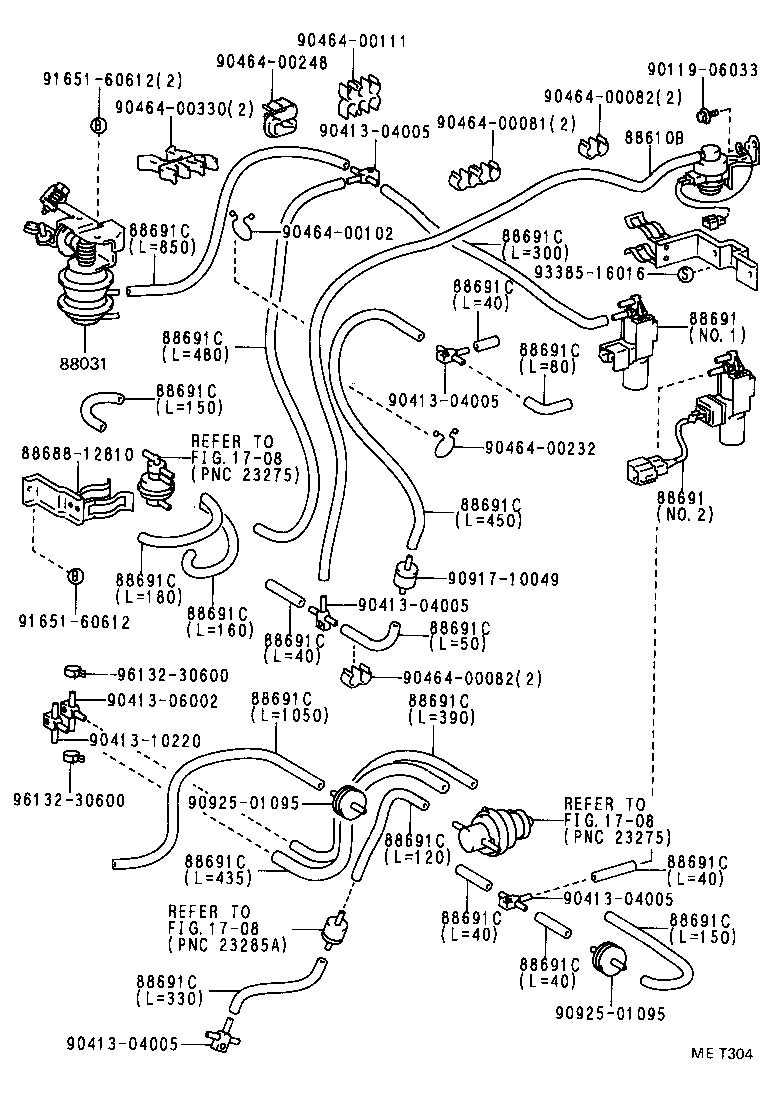

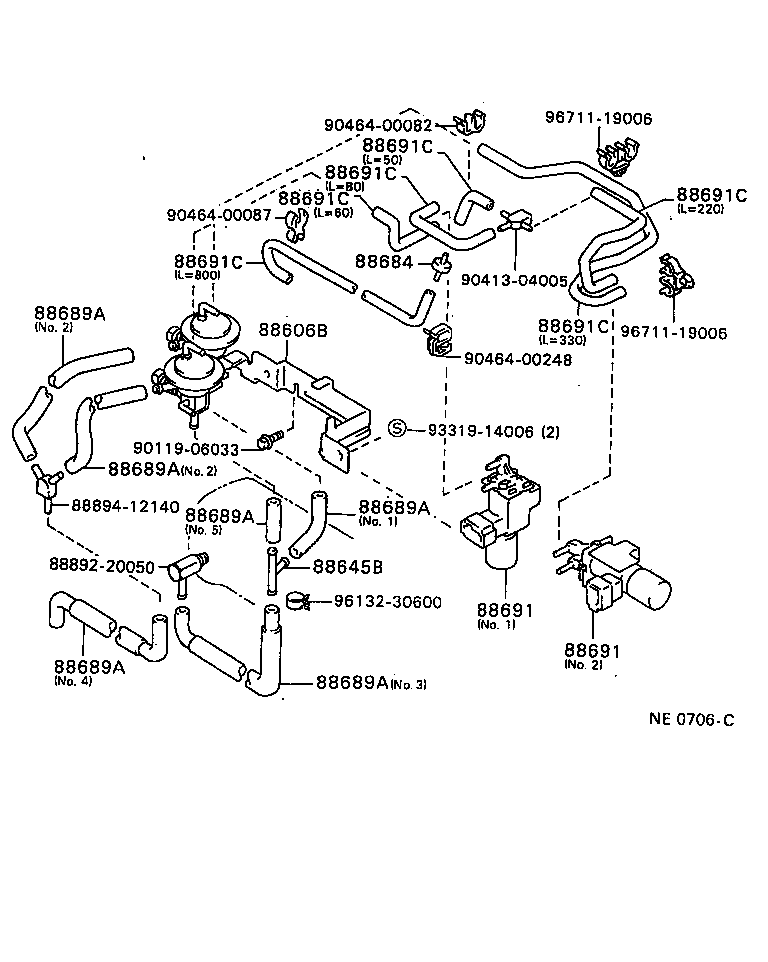

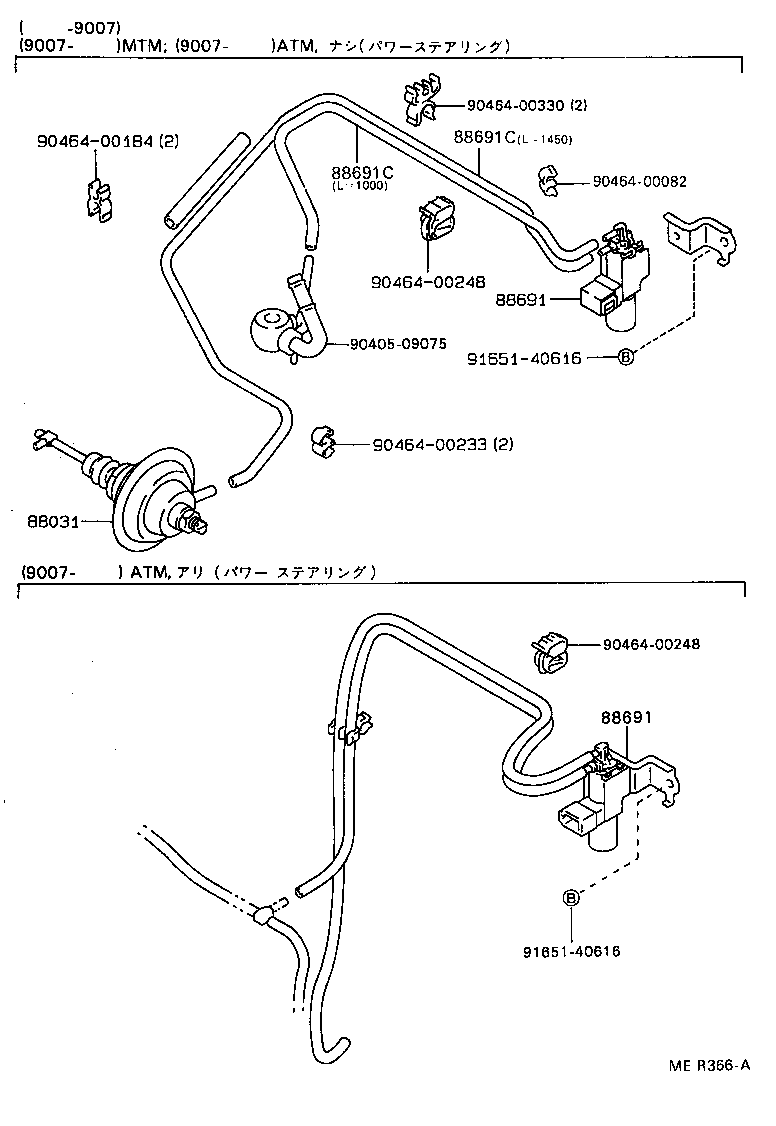

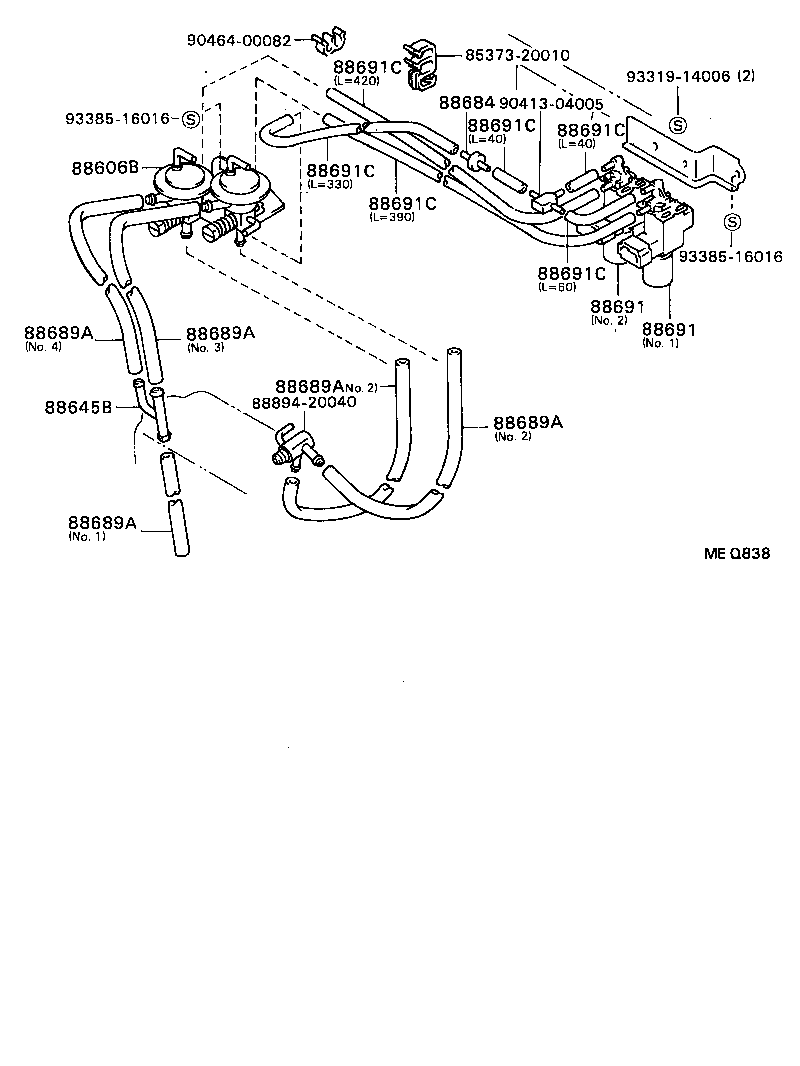

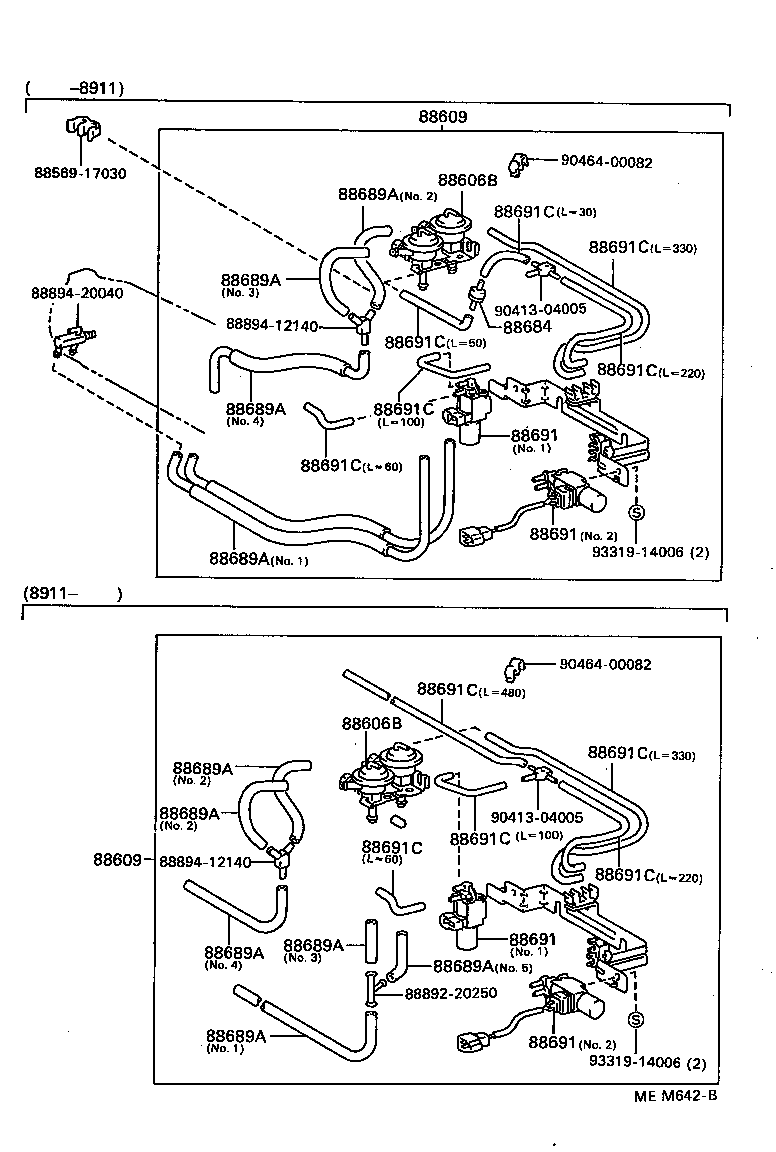

Figure NE0705C NE0705C 1987-12 → 1989-11 Figure MET304 MET304 1987-12 → 1989-11 Figure MEQ838 MEQ838 1989-11 → — Figure NE0706C NE0706C 1987-12 → — Figure MER366A MER366A 1987-12 → — Figure NE0707E NE0707E 1987-12 → — Figure NE0708C NE0708C 1987-12 → — Figure MEM642B MEM642B 1987-12 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88606B Diaphragm Sub-assy, Cooler
88609 Device Sub-assy, Idle UP
88610B Switch Assy, Idle UP Device
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645E Joint, NO.2 (FOR IDLE UP DEVICE)
88684 Valve, Vacuum
88689A Hose, Cooler Vacuum NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
