Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

15 part groups · 9 illustrations

Illustrations

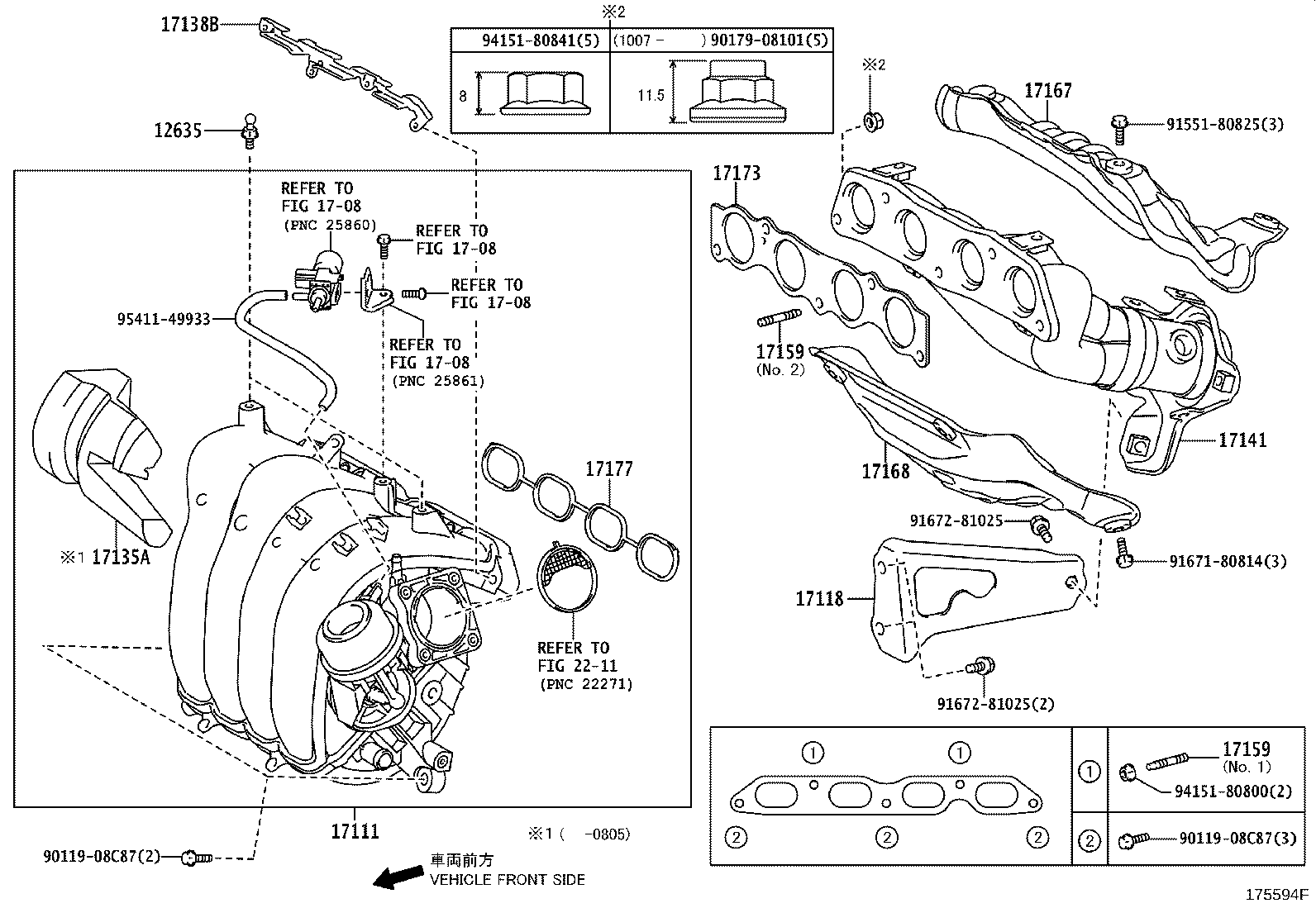

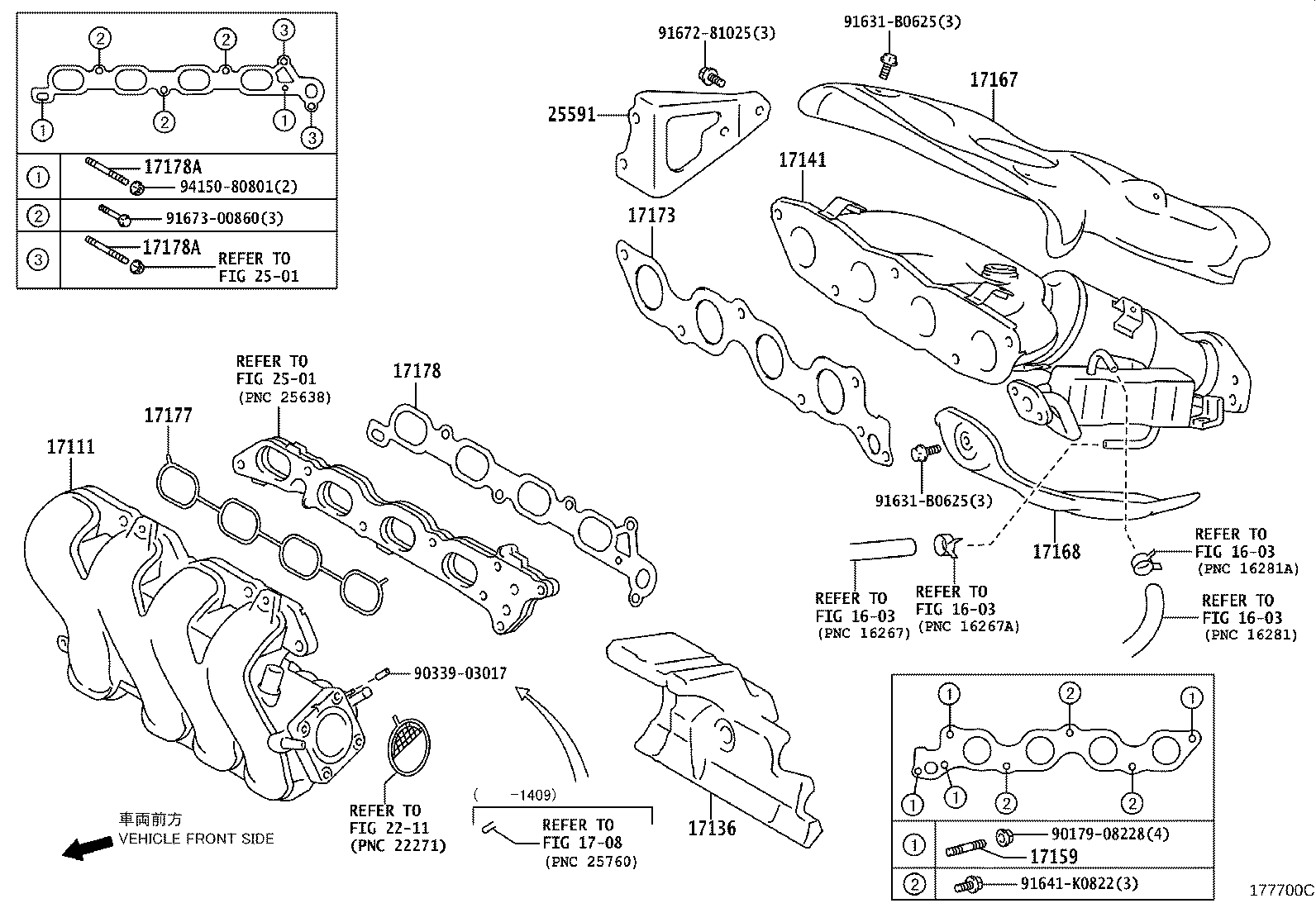

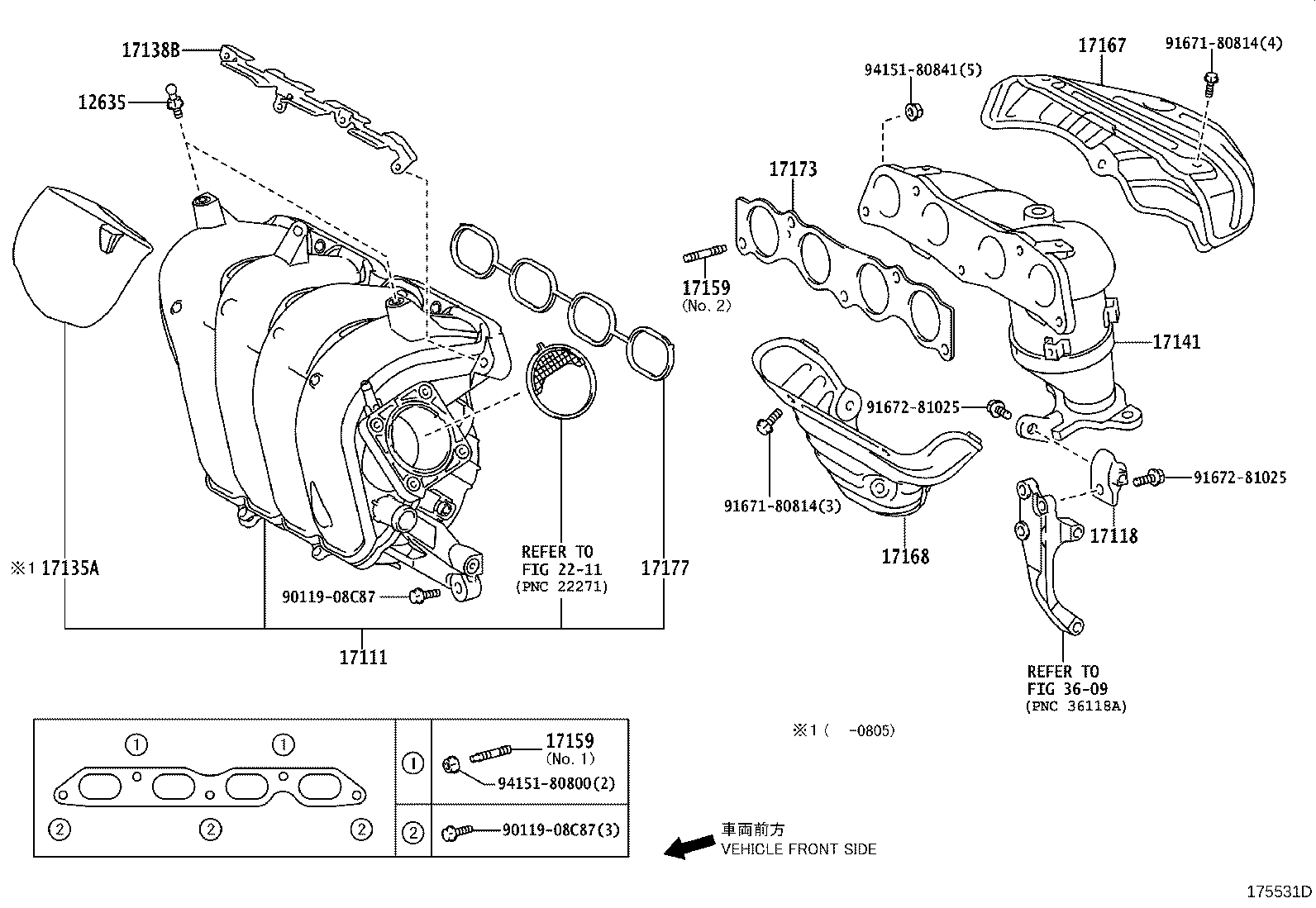

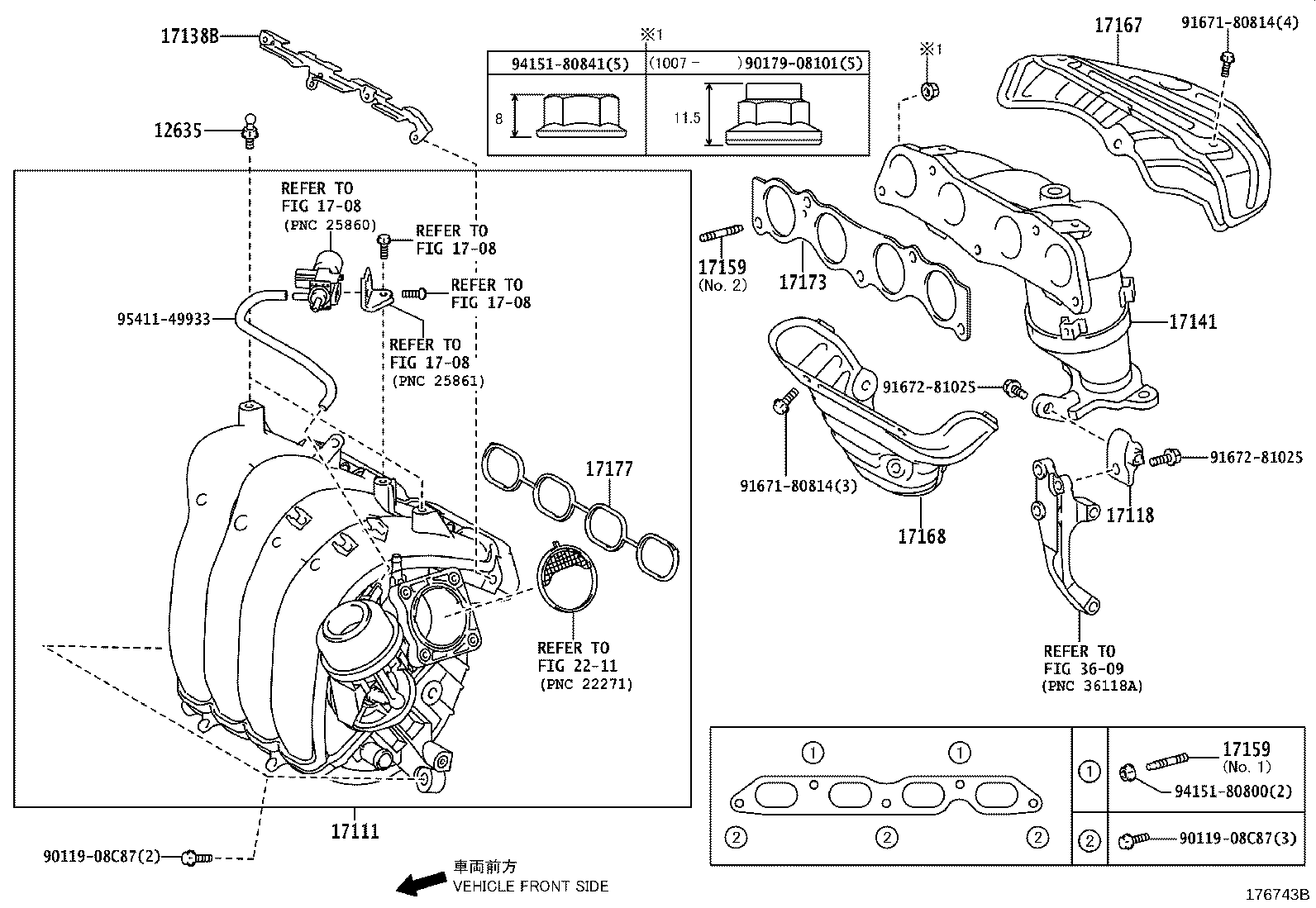

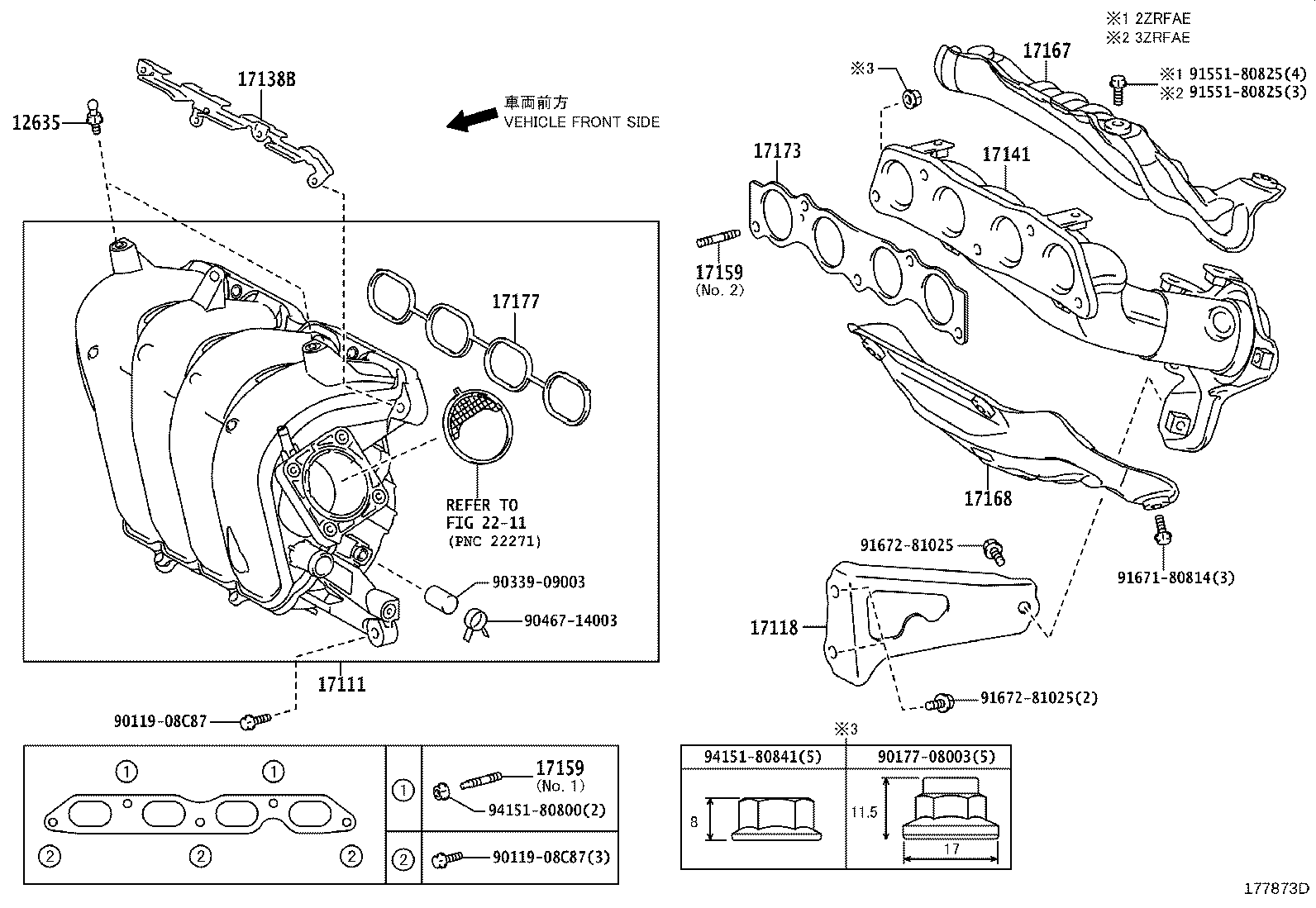

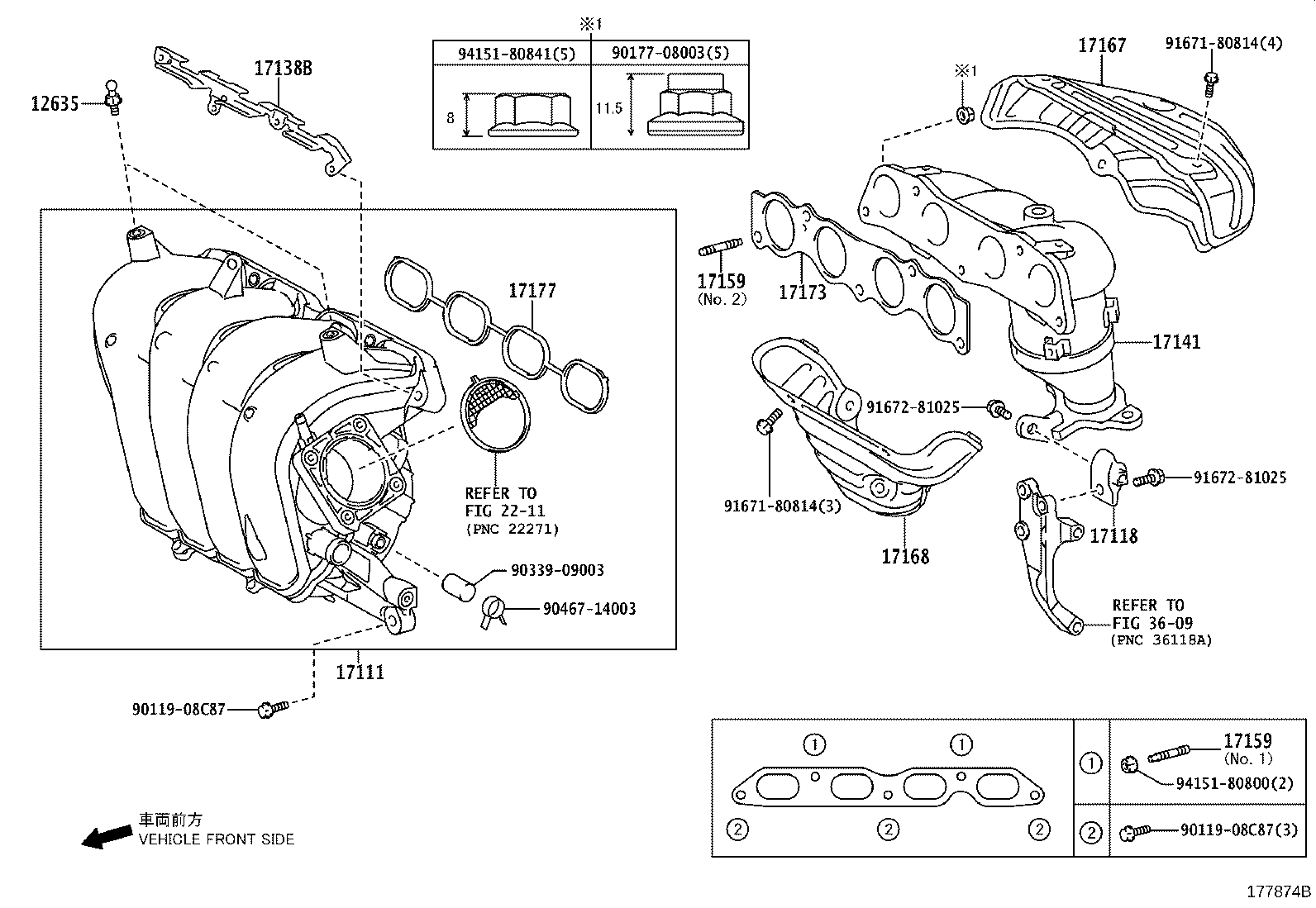

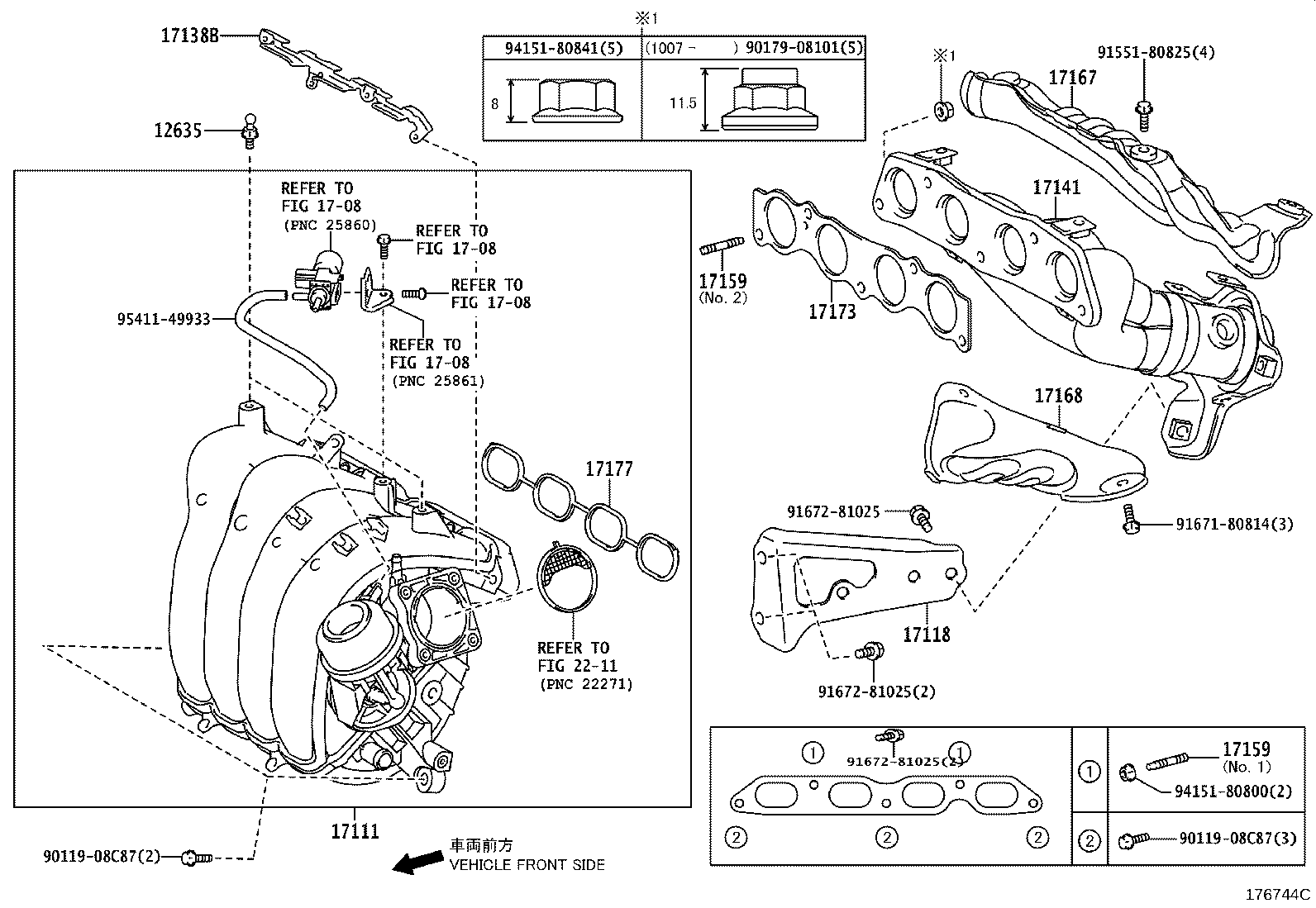

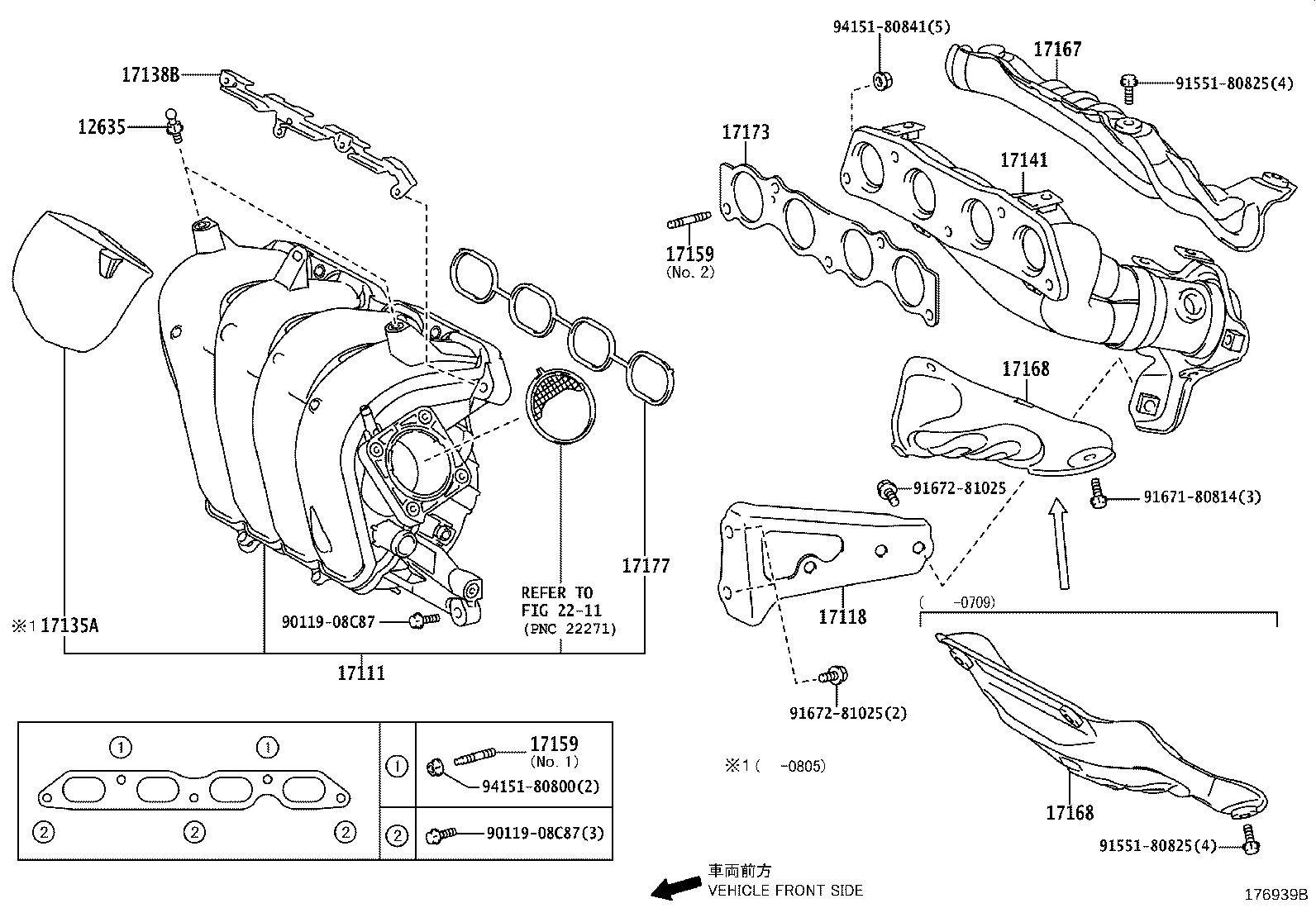

Figure 177699B 177699B 2007-05 → 2012-12 Figure 177700C 177700C 2012-12 → — Figure 179639B 179639B 2007-05 → 2010-04 Figure 175531D 175531D 2007-05 → 2010-04 Figure 176744C 176744C 2010-04 → 2012-12 Figure 176743B 176743B 2010-04 → 2012-12 Figure 175594F 175594F 2007-12 → 2012-12 Figure 177873D 177873D 2012-12 → — Figure 177874B 177874B 2012-12 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17118 Stay, Manifold
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17178A Stud, Hex Lobular(INTAKE MANIFOLD TO HEAD GASKET)
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
