Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

18 part groups · 5 illustrations

Illustrations

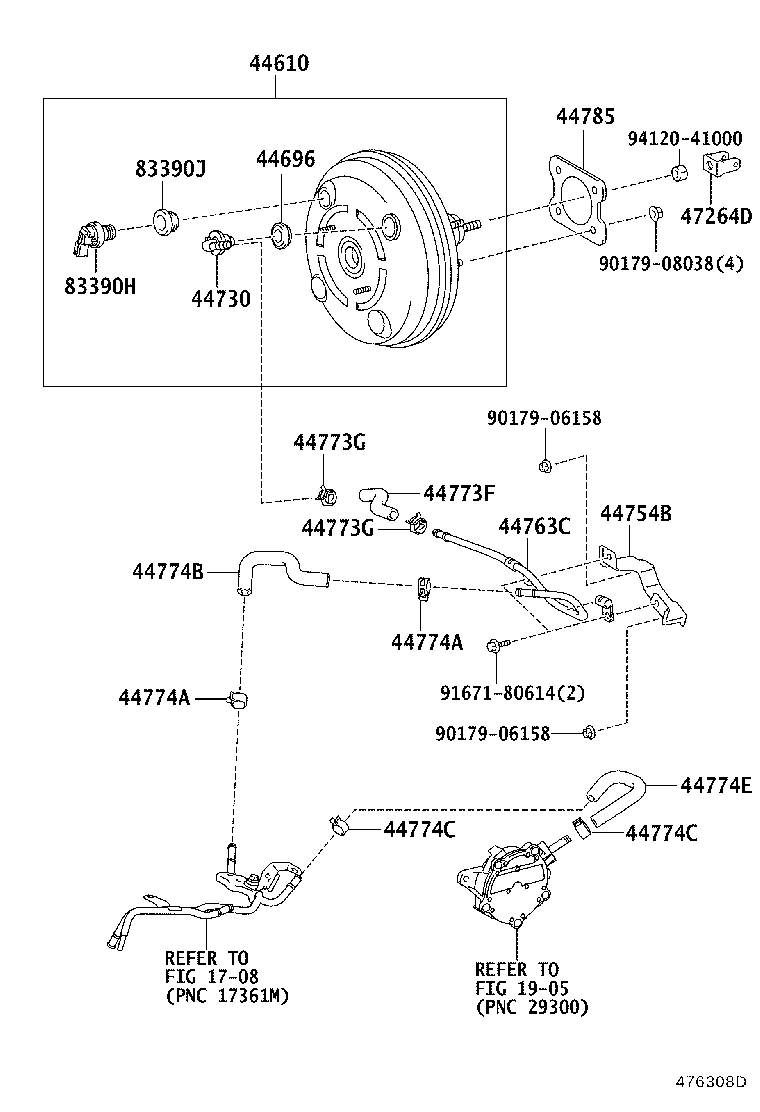

Figure 475966F 475966F 2007-05 → — Figure 475967D 475967D 2007-05 → 2010-04 Figure 476308D 476308D 2007-12 → 2012-12 Figure 476308D 476308D 2010-04 → 2012-12 Figure 478429B 478429B 2012-12 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44754B Bracket, Vacuum Tube
44763A Tube, Hose TO Hose, NO.1
44763C Tube, Hose TO Hose, NO.2
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774B Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
83390H Switch Assy, Vacuum Warning
83390J Grommet, Vacuum Warning Switch
89420H Sensor Assy, Vacuum
89420K Grommet, Vacuum Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
