Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

17 part groups · 12 illustrations

Illustrations

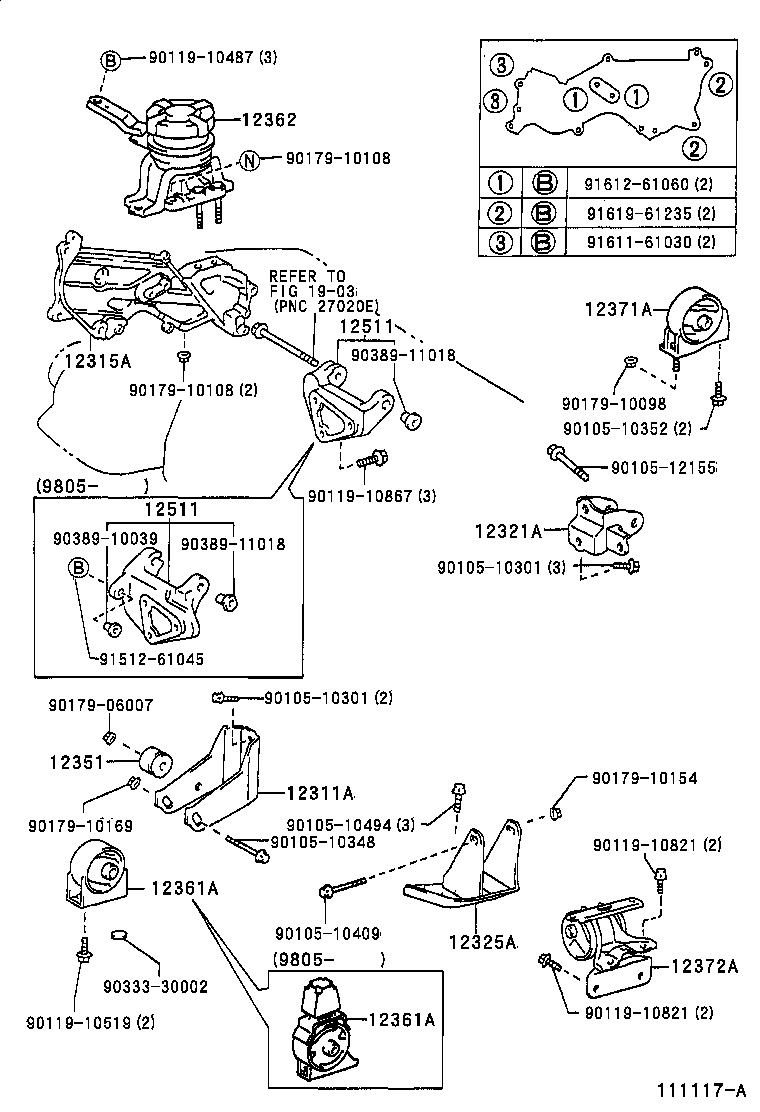

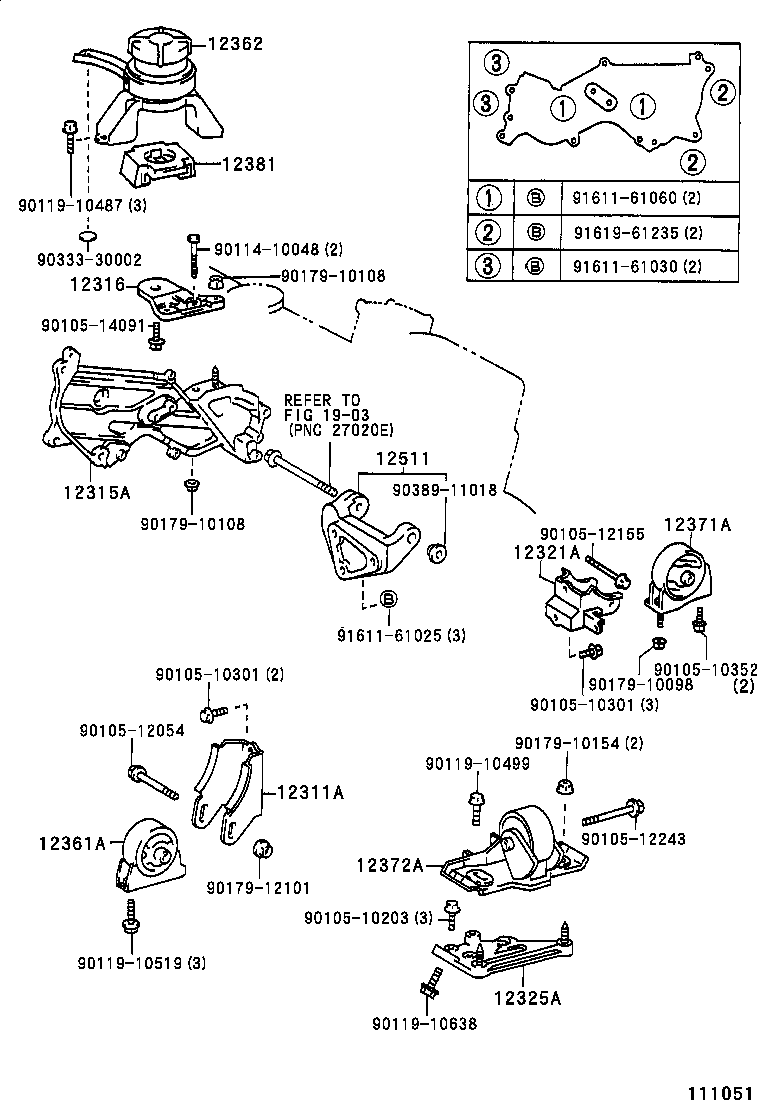

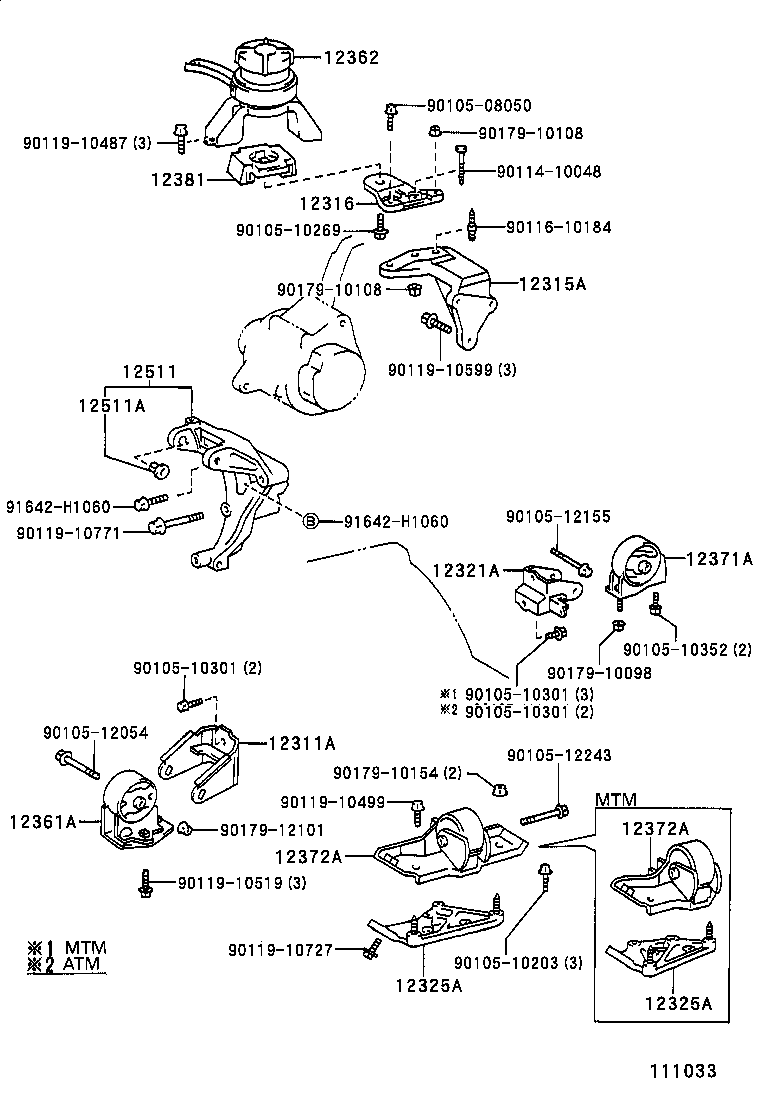

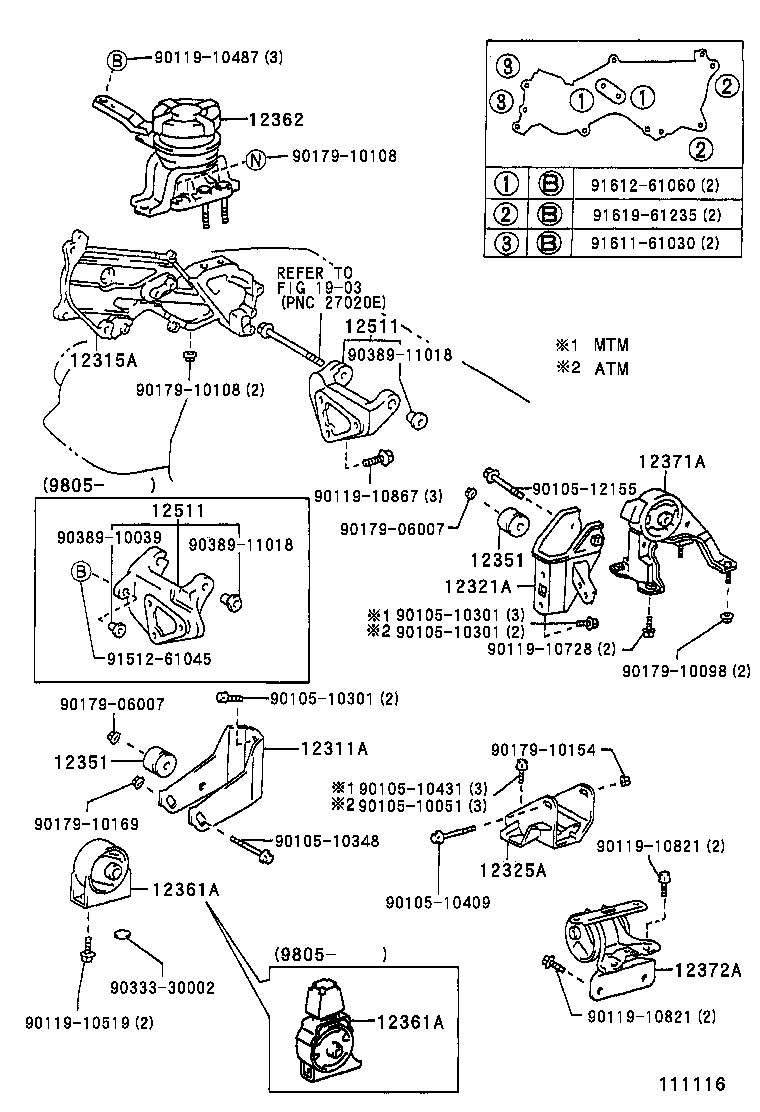

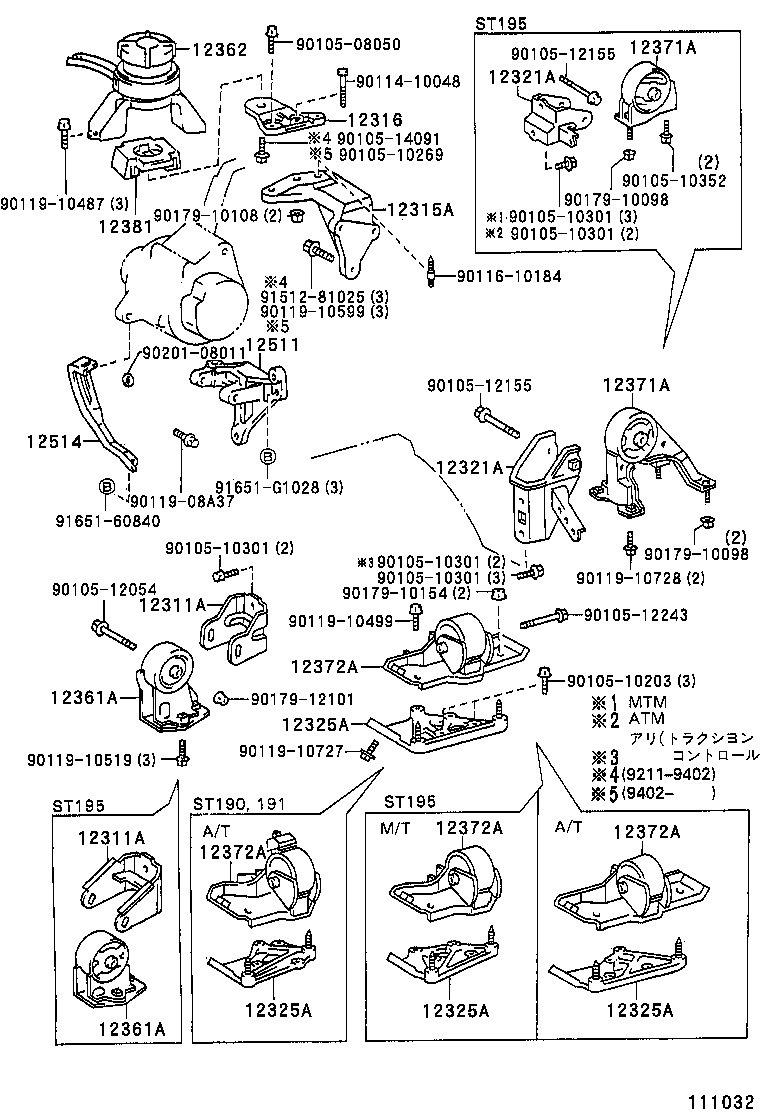

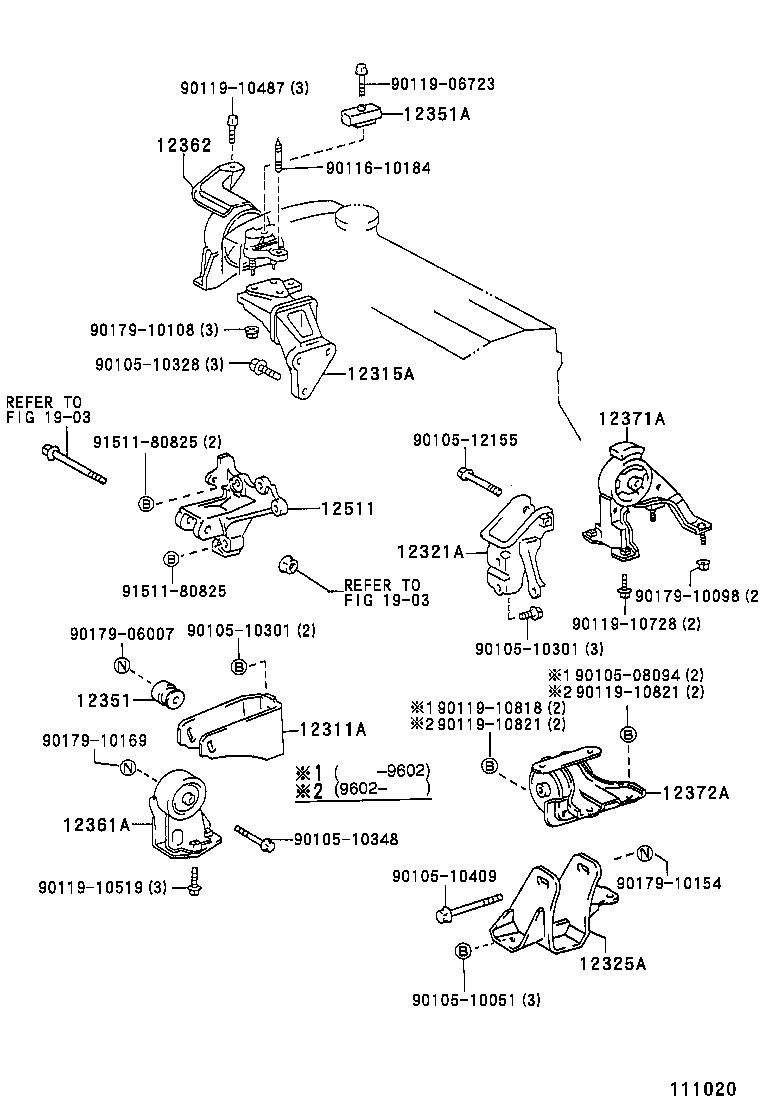

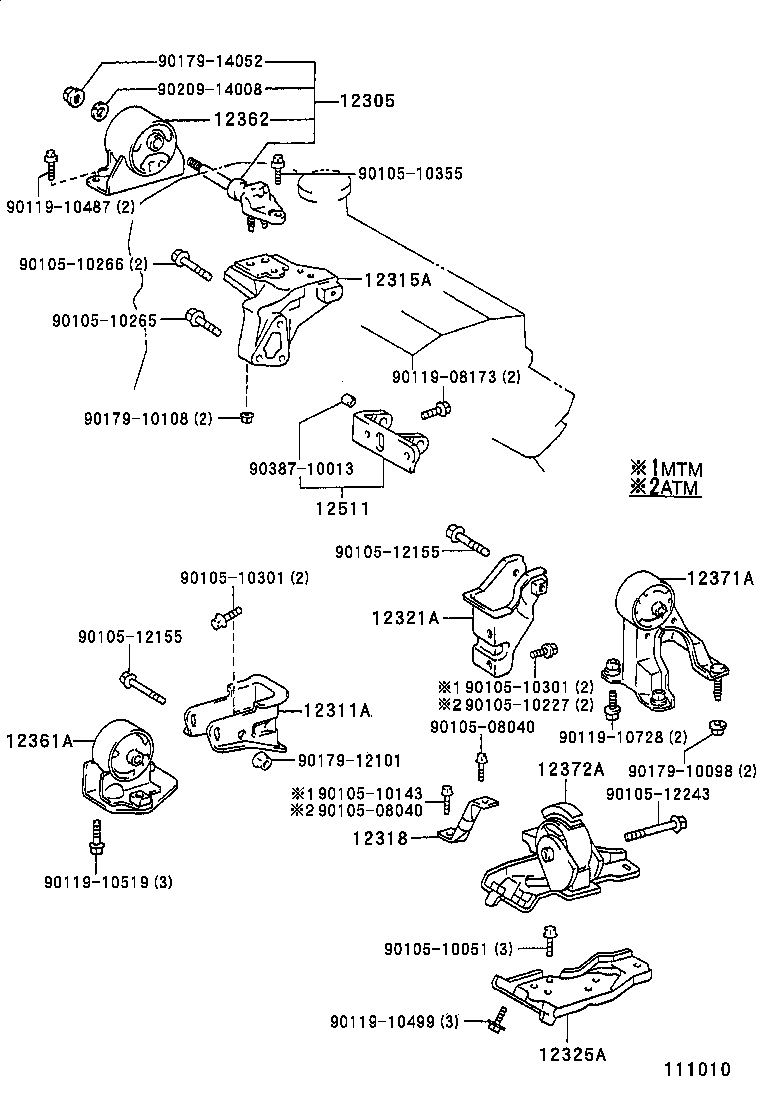

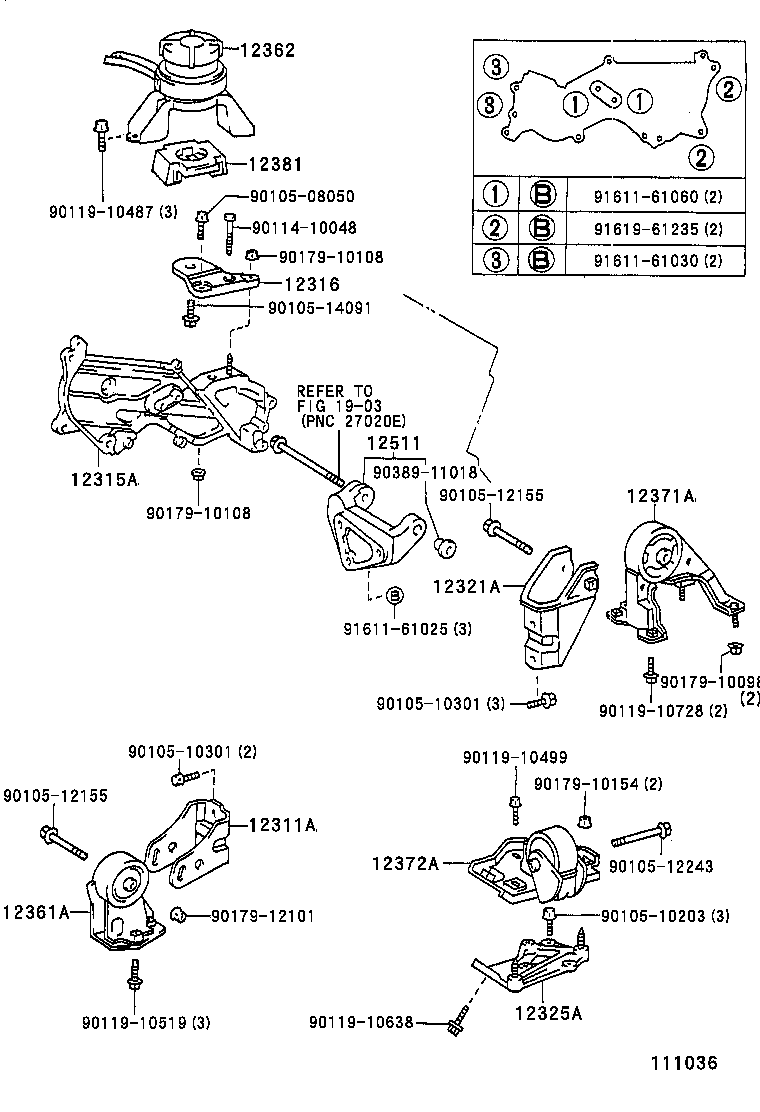

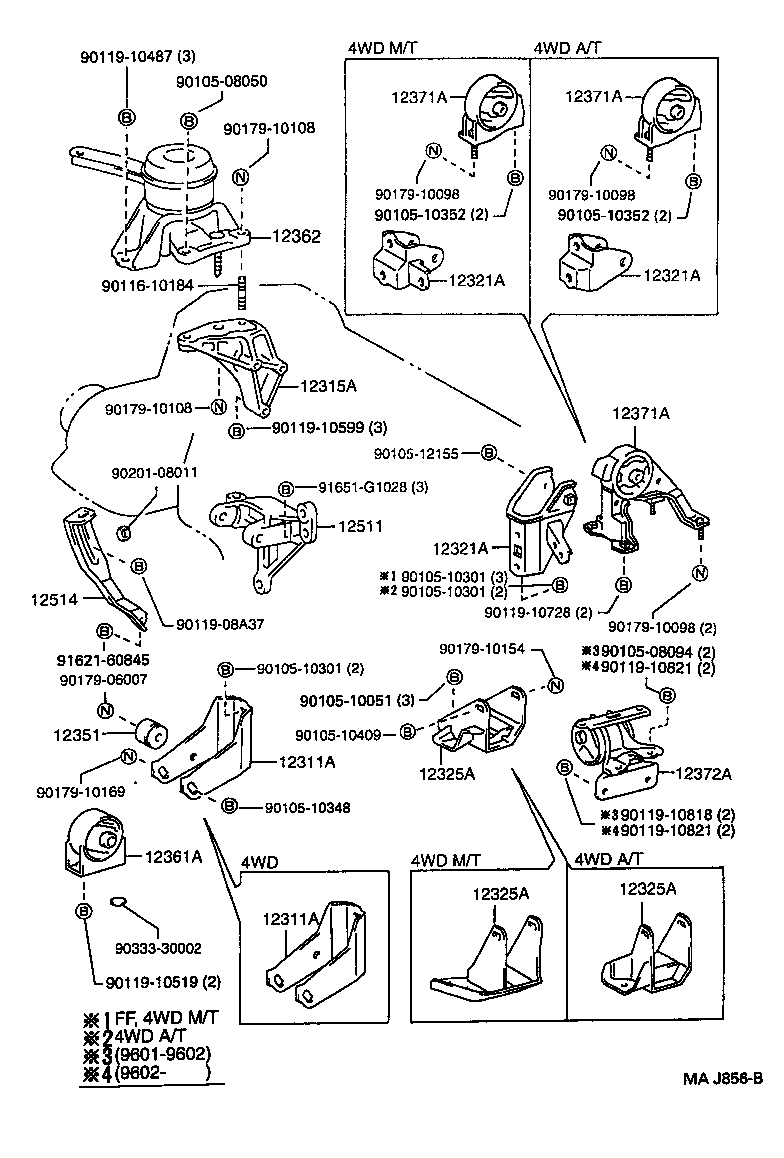

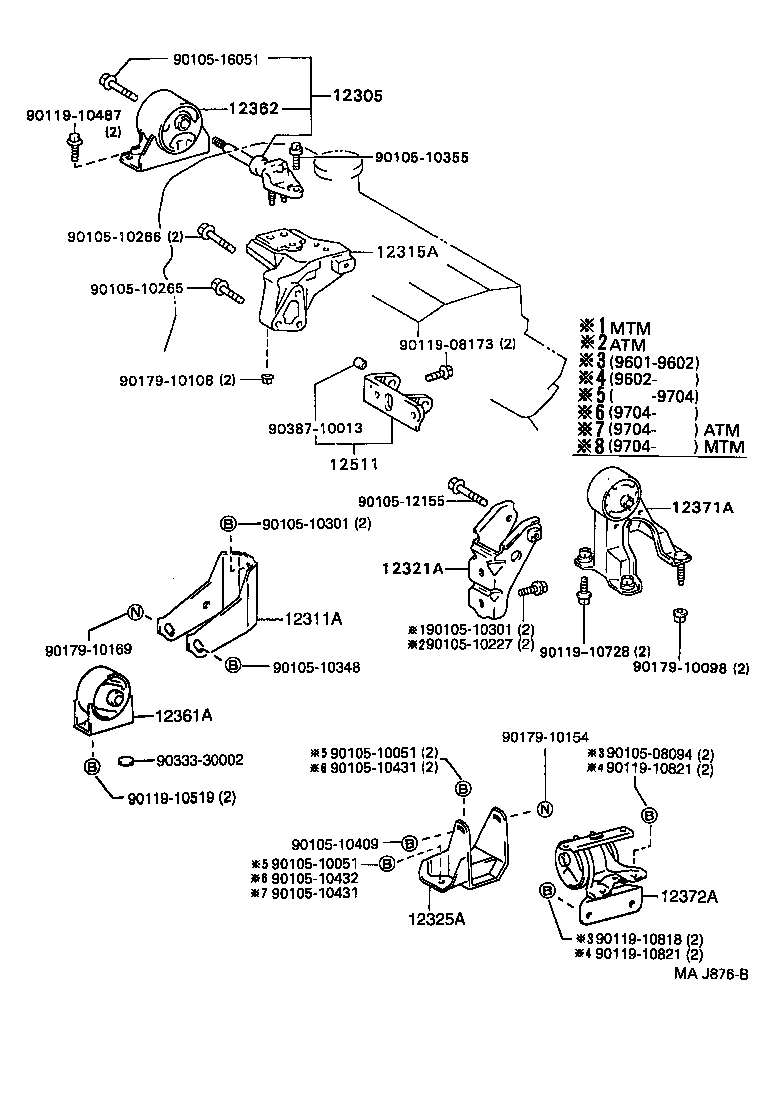

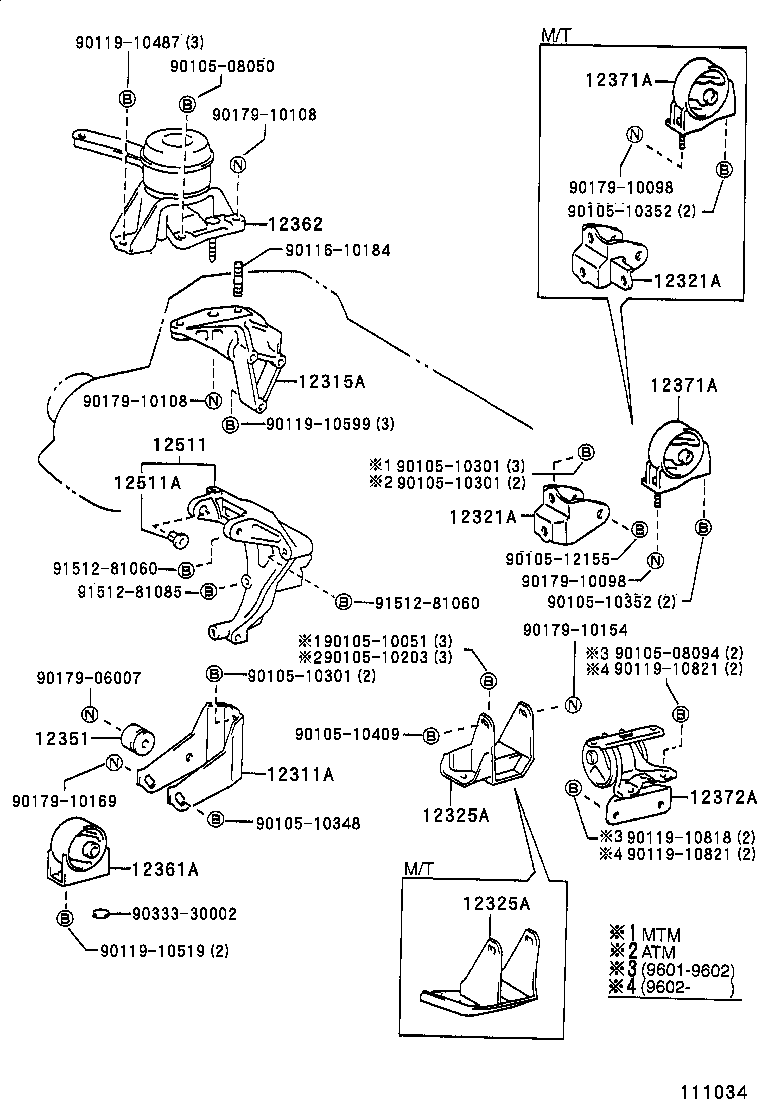

Figure 111019 111019 1996-01 → 1997-08 Figure 111020 111020 1996-01 → 1997-08 Figure 111036 111036 1992-11 → 1996-01 Figure 111116 111116 1996-01 → — Figure 111051 111051 1992-11 → 1996-01 Figure 111117A 111117A 1996-01 → — Figure 111010 111010 1992-11 → 1996-01 Figure MAJ876B MAJ876B 1996-01 → — Figure 111032 111032 1992-11 → 1996-01 Figure MAJ856B MAJ856B 1996-01 → — Figure 111033 111033 1995-02 → 1996-01 Figure 111034 111034 1996-01 → 1997-08

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12381 Stabilizer, Engine Mounting
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12514 Bar, Alternator Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
