Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

36 part groups · 19 illustrations

Illustrations

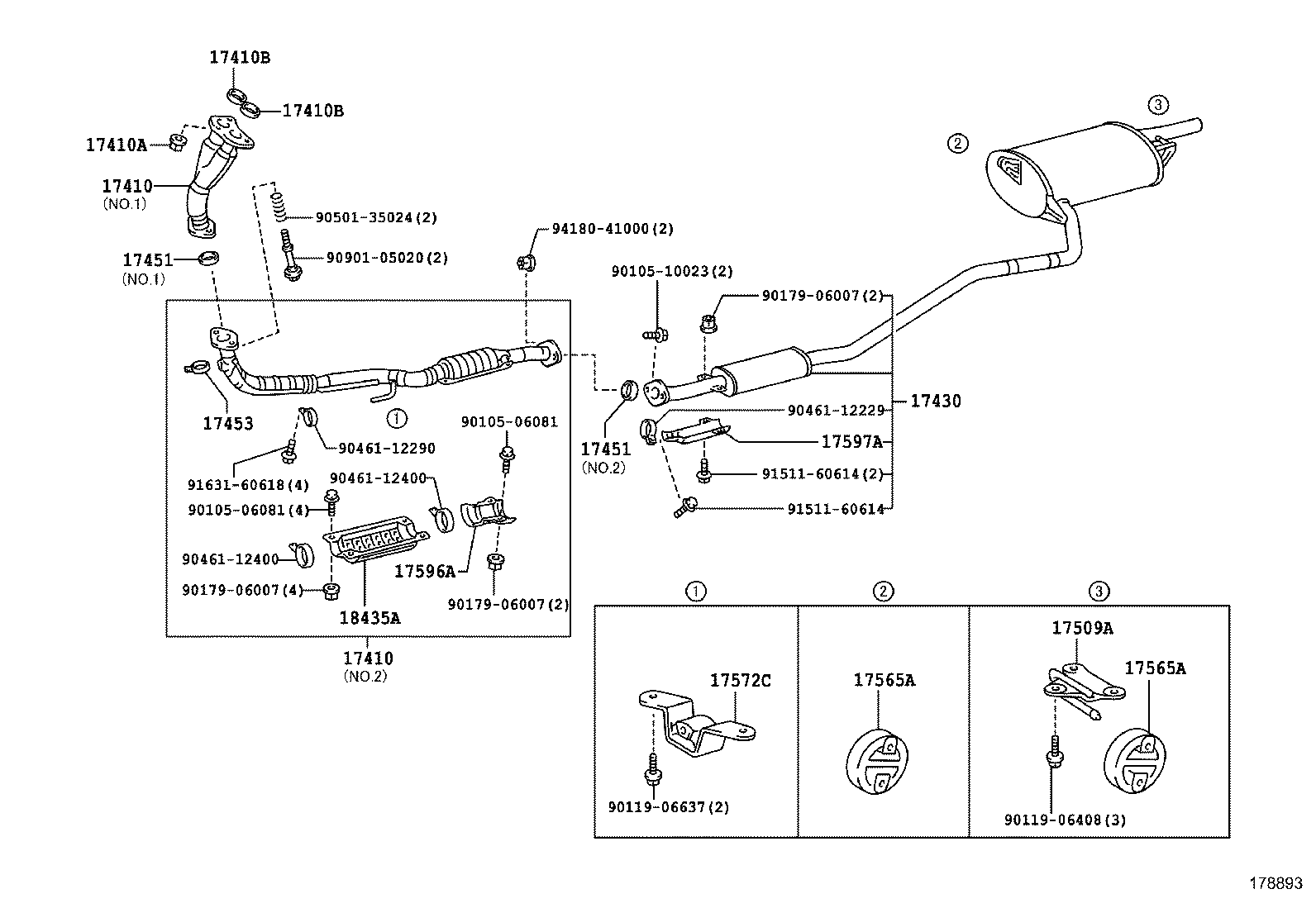

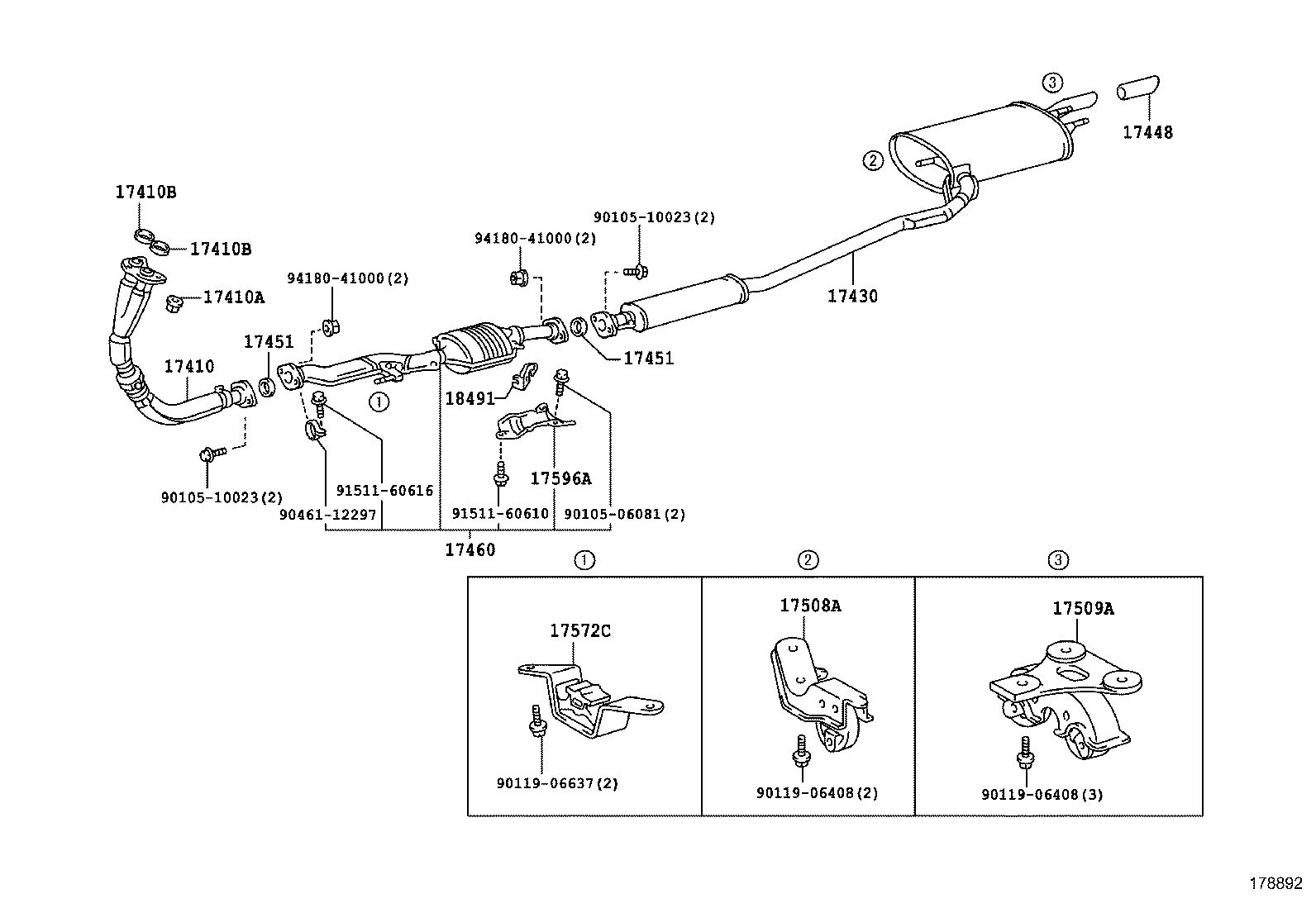

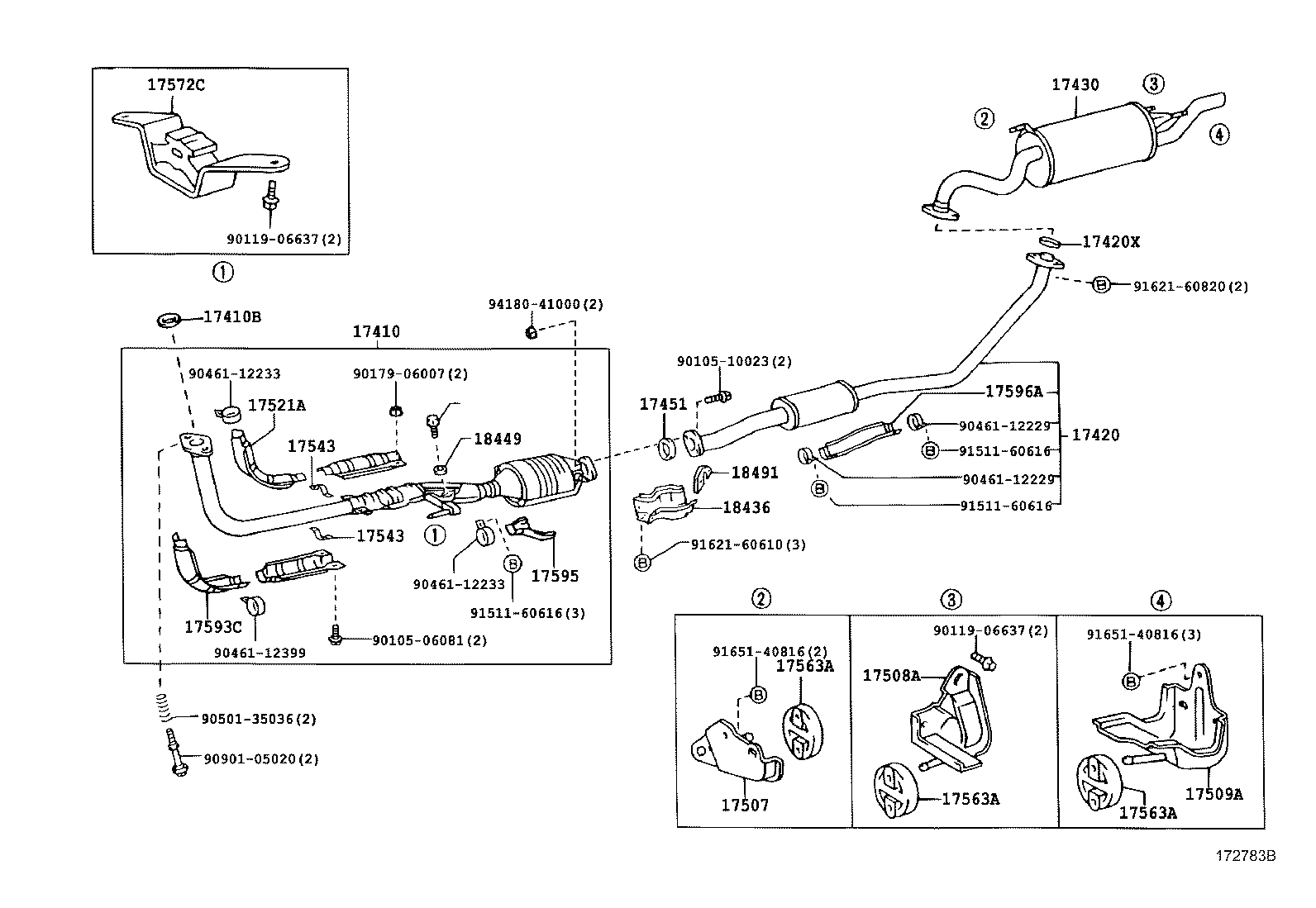

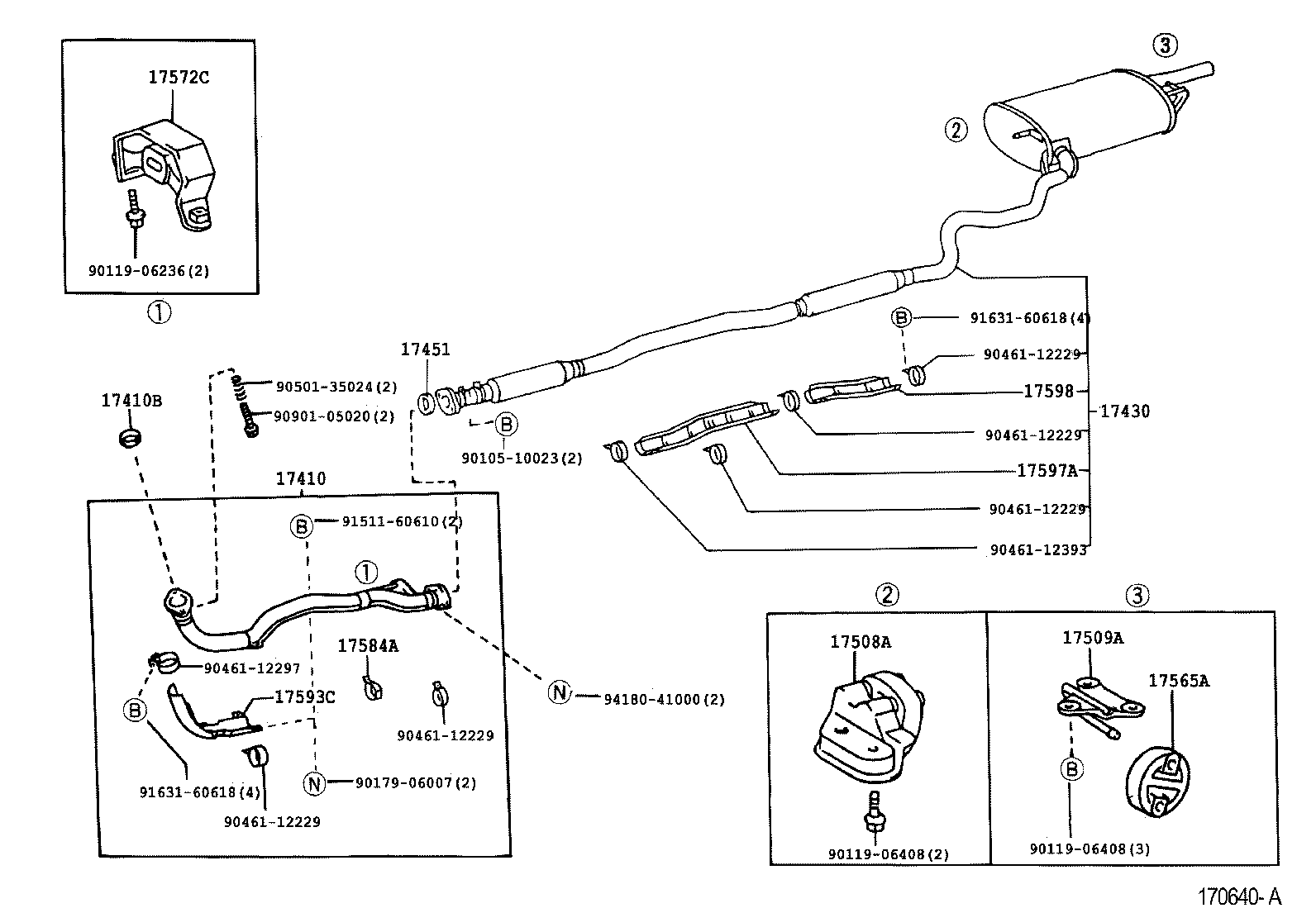

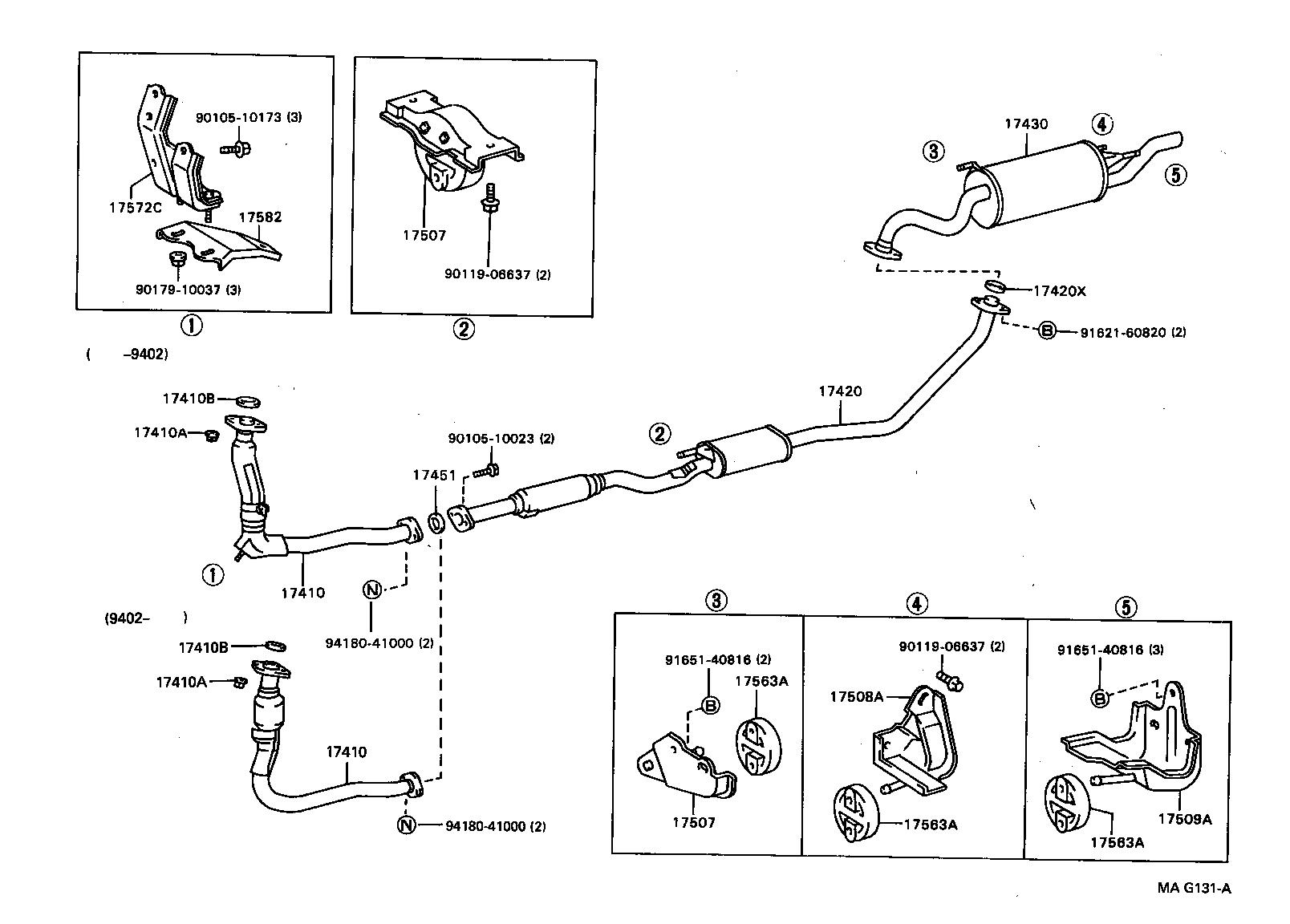

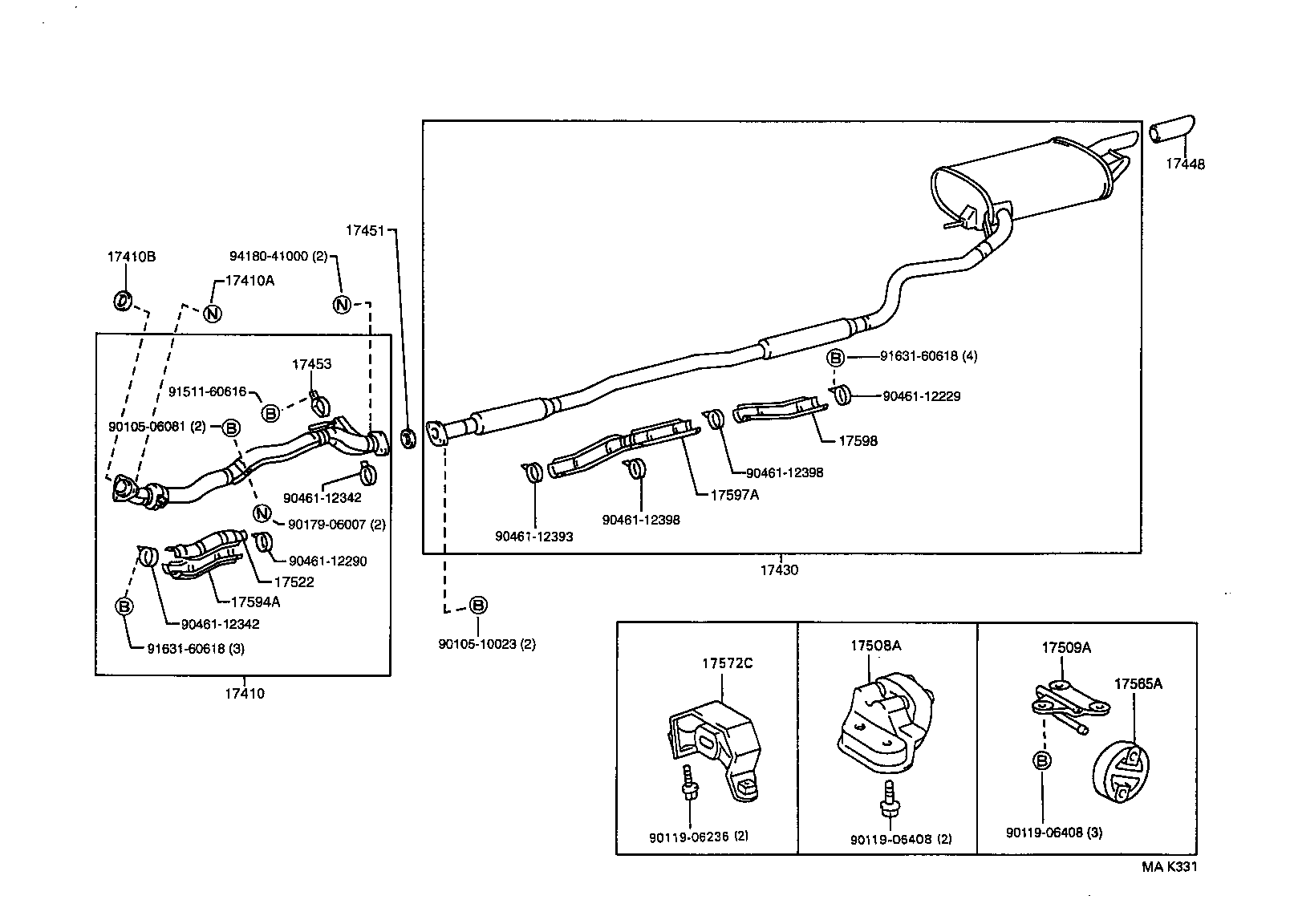

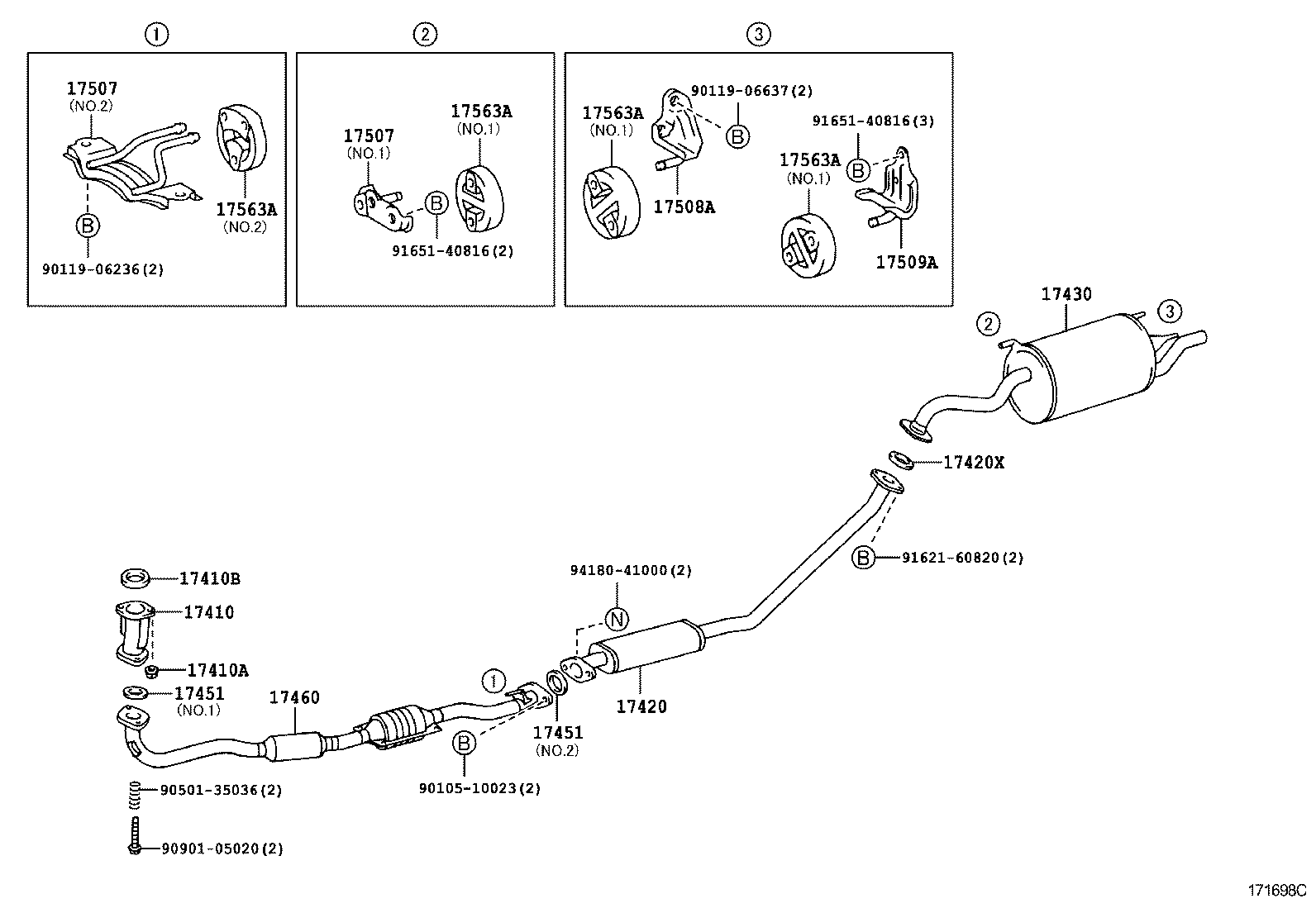

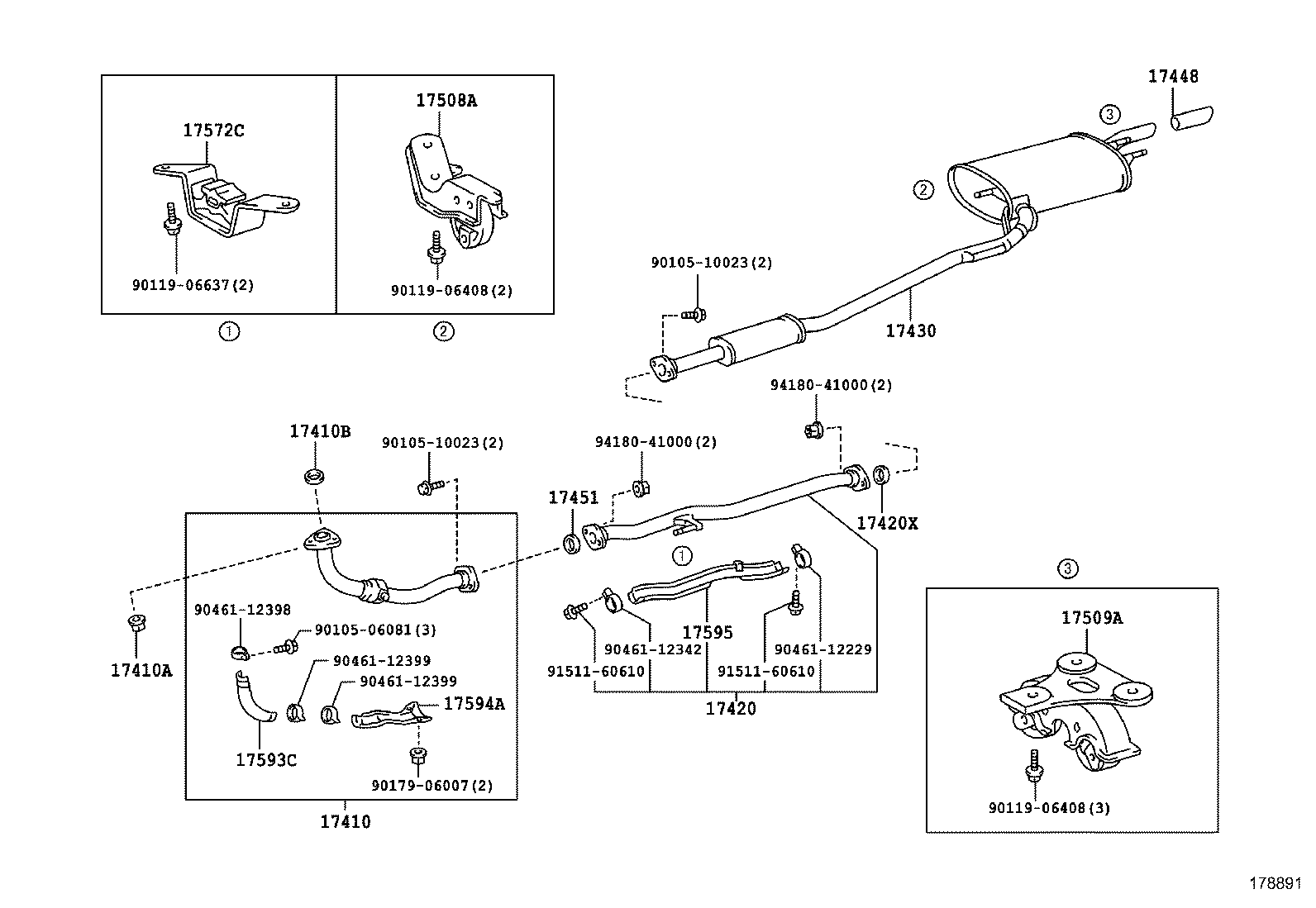

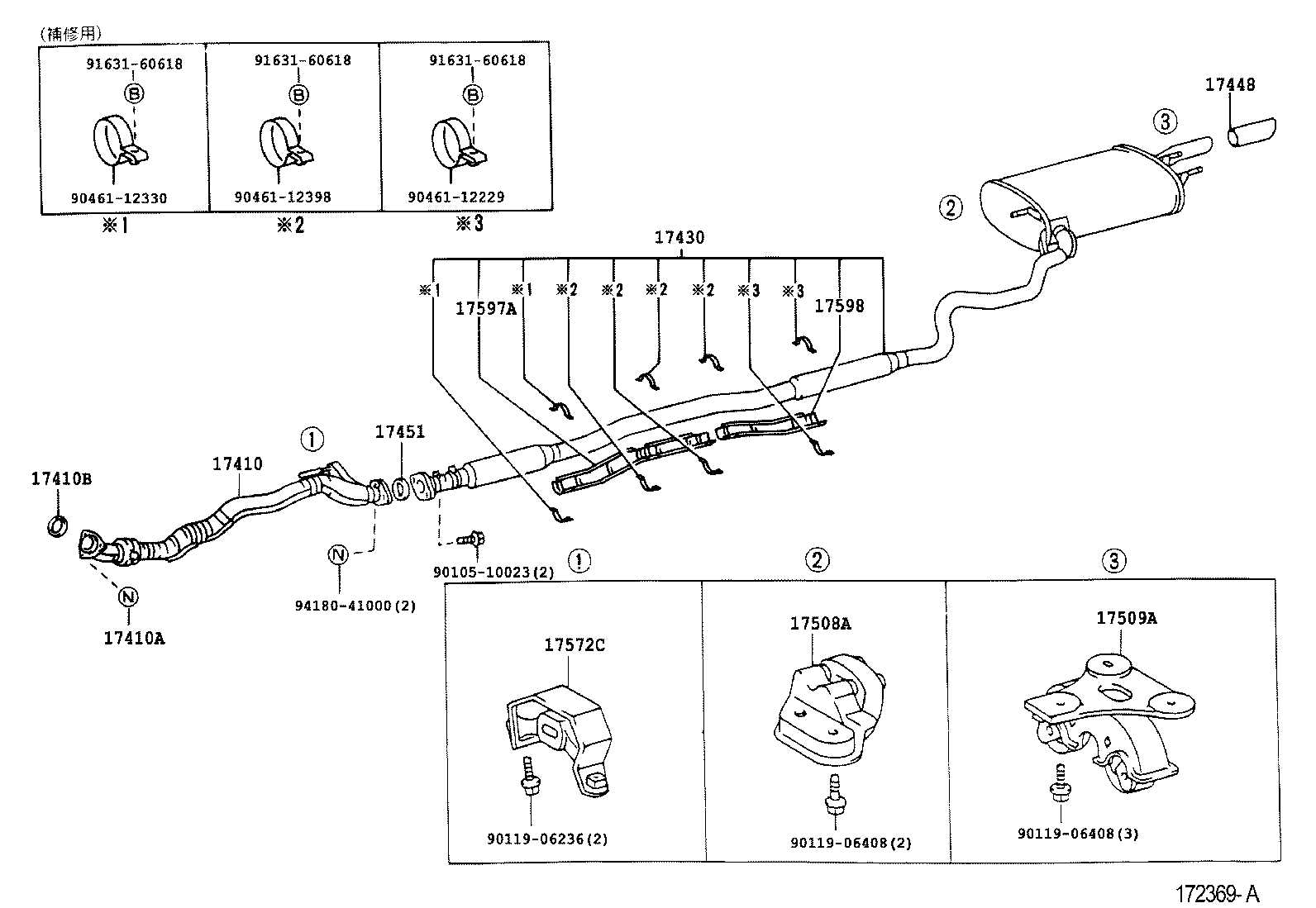

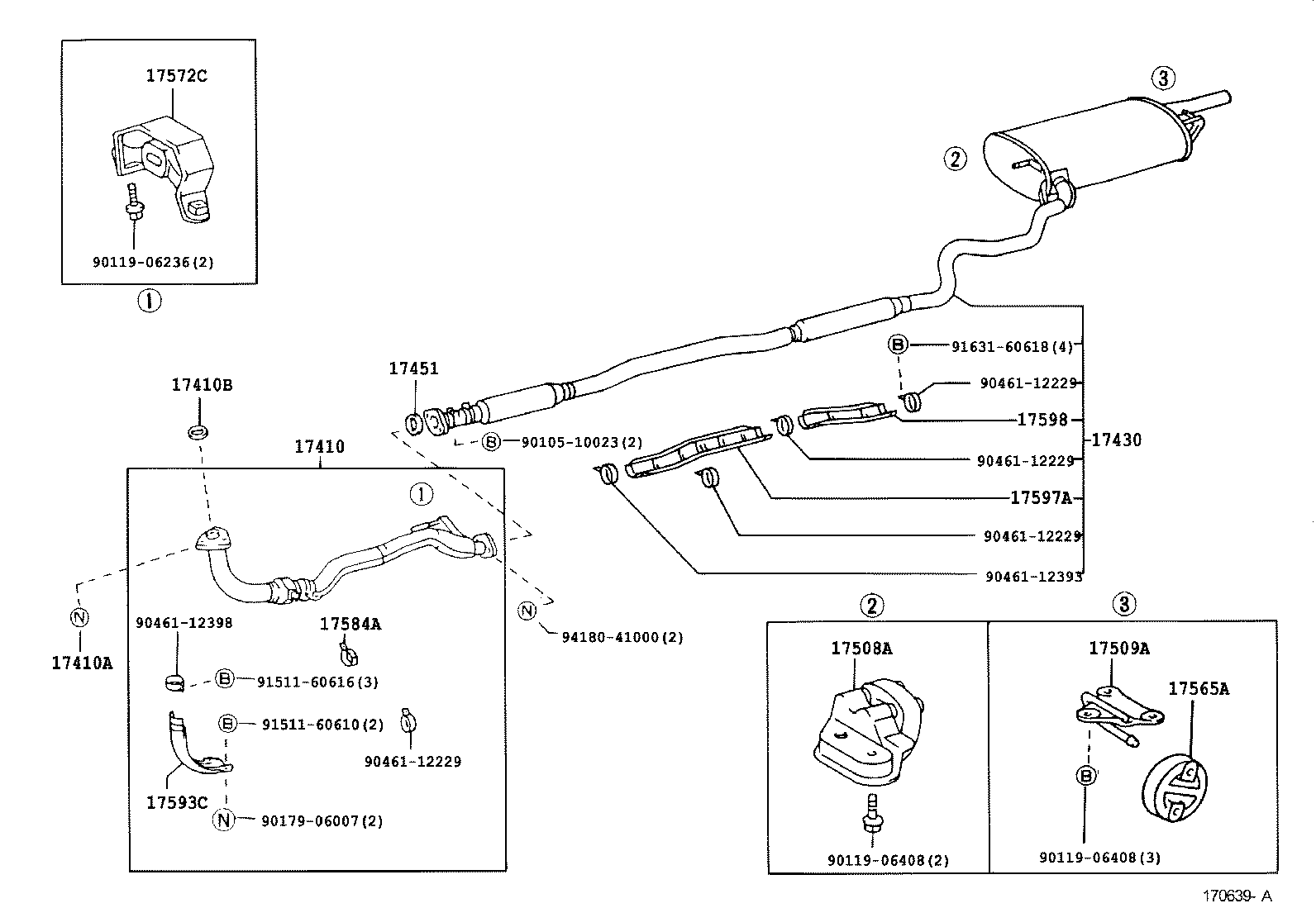

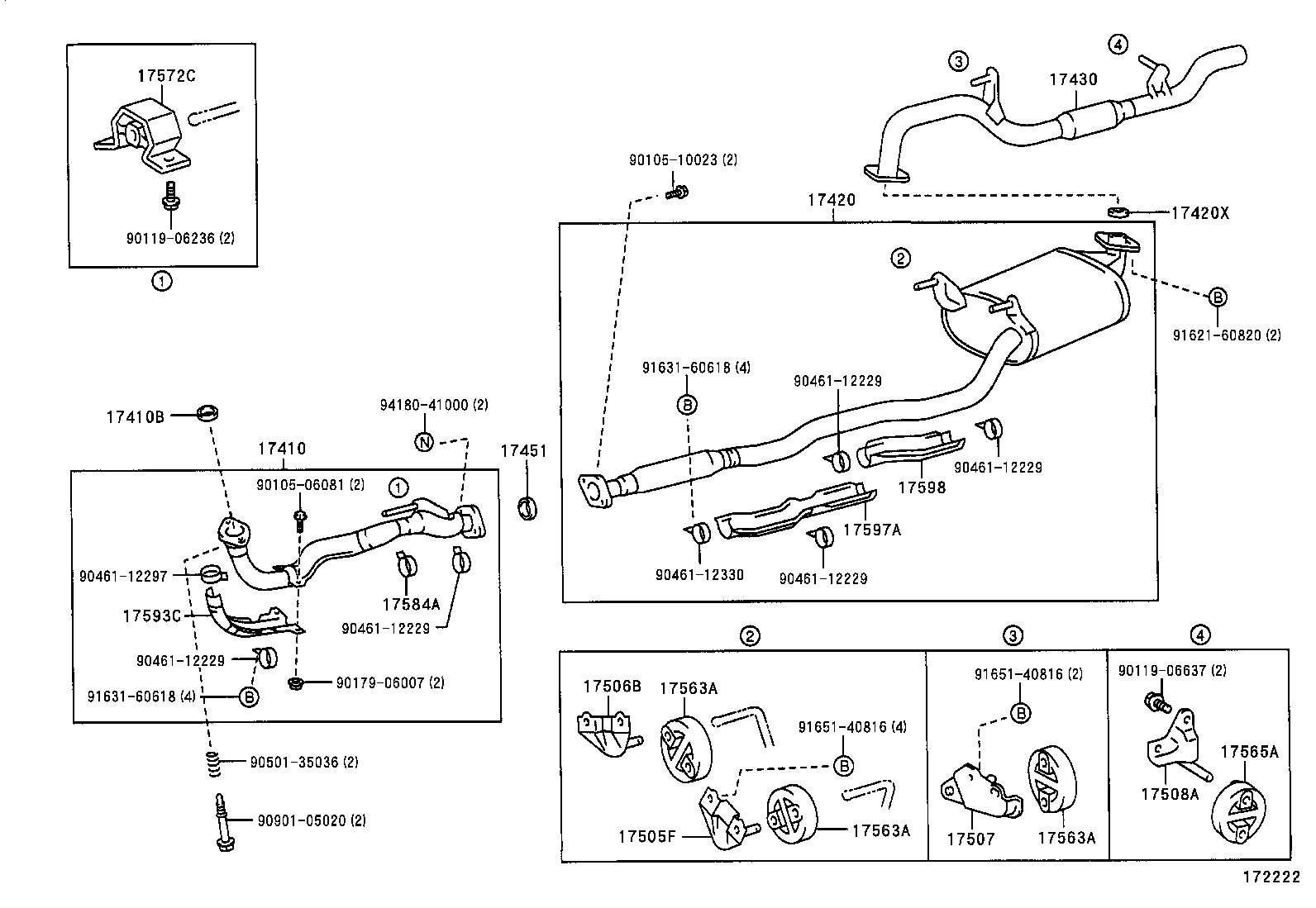

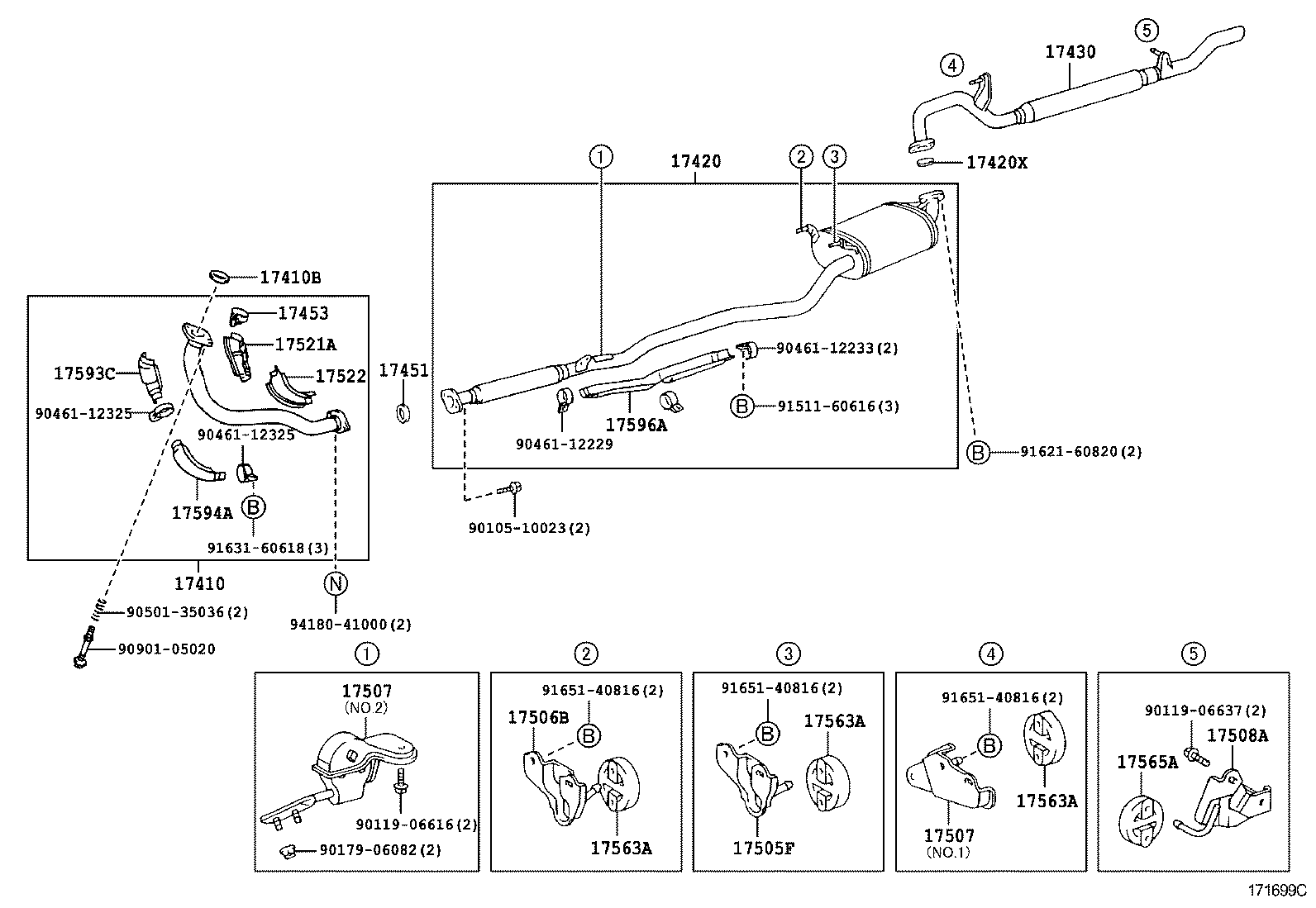

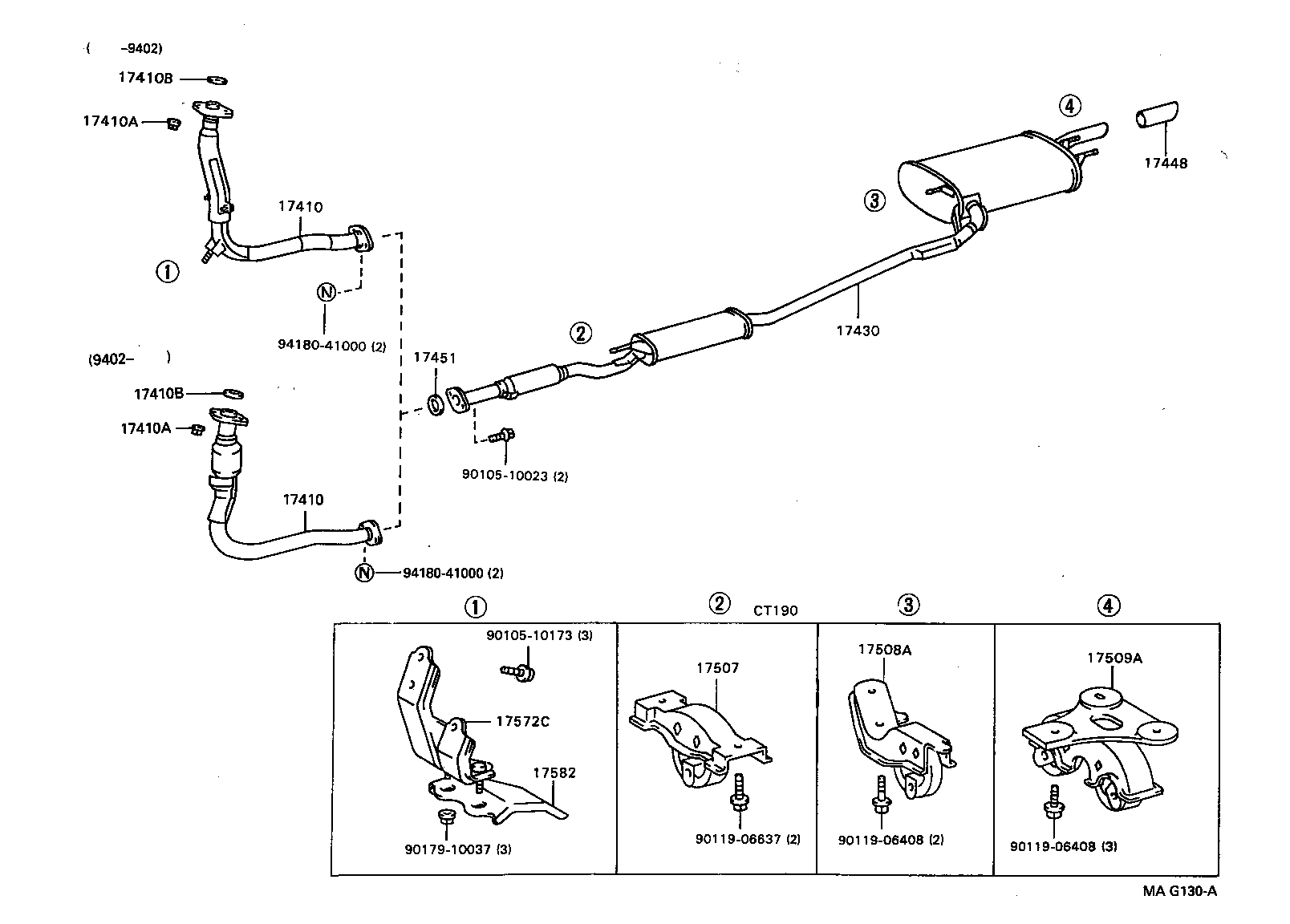

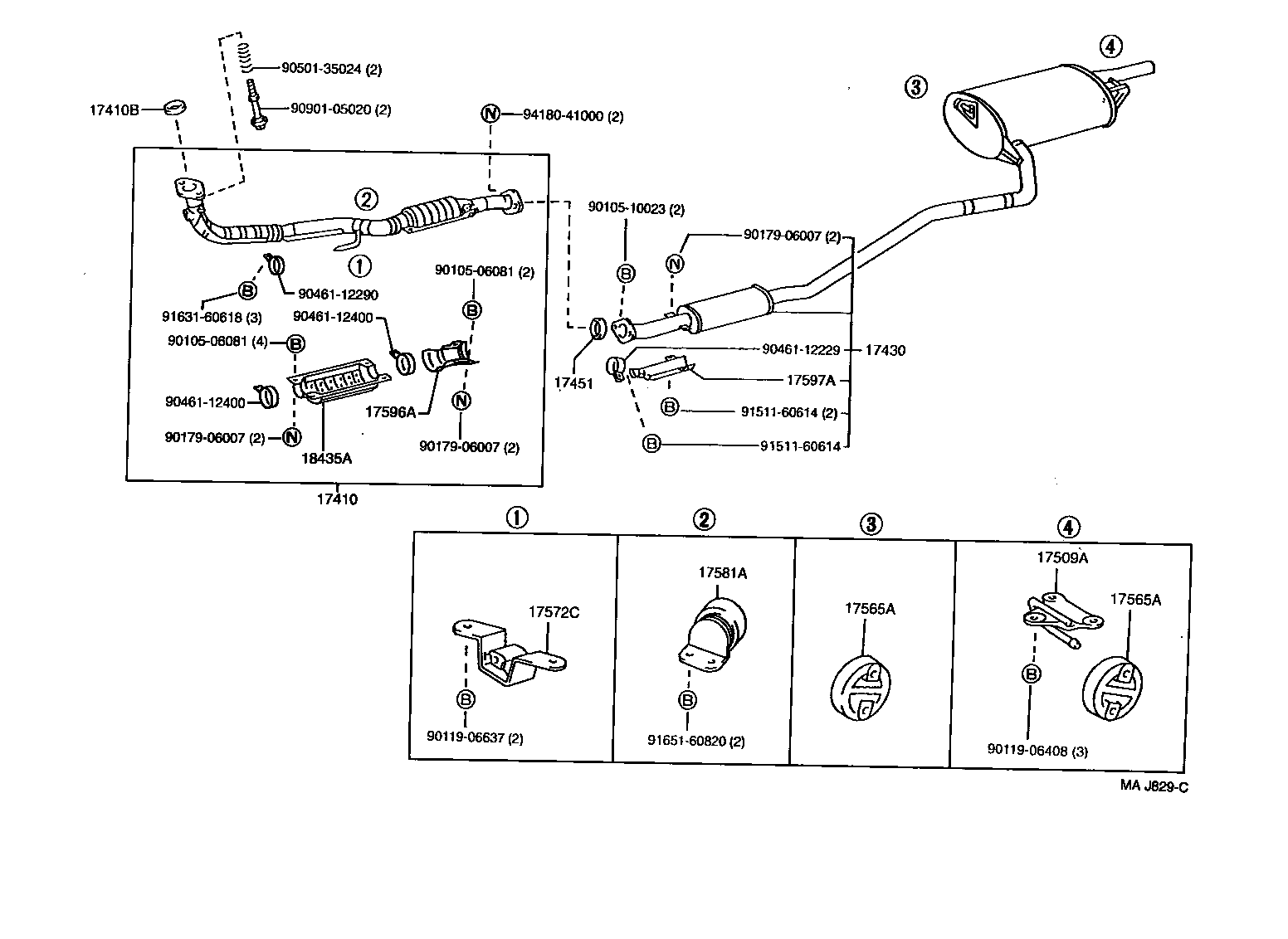

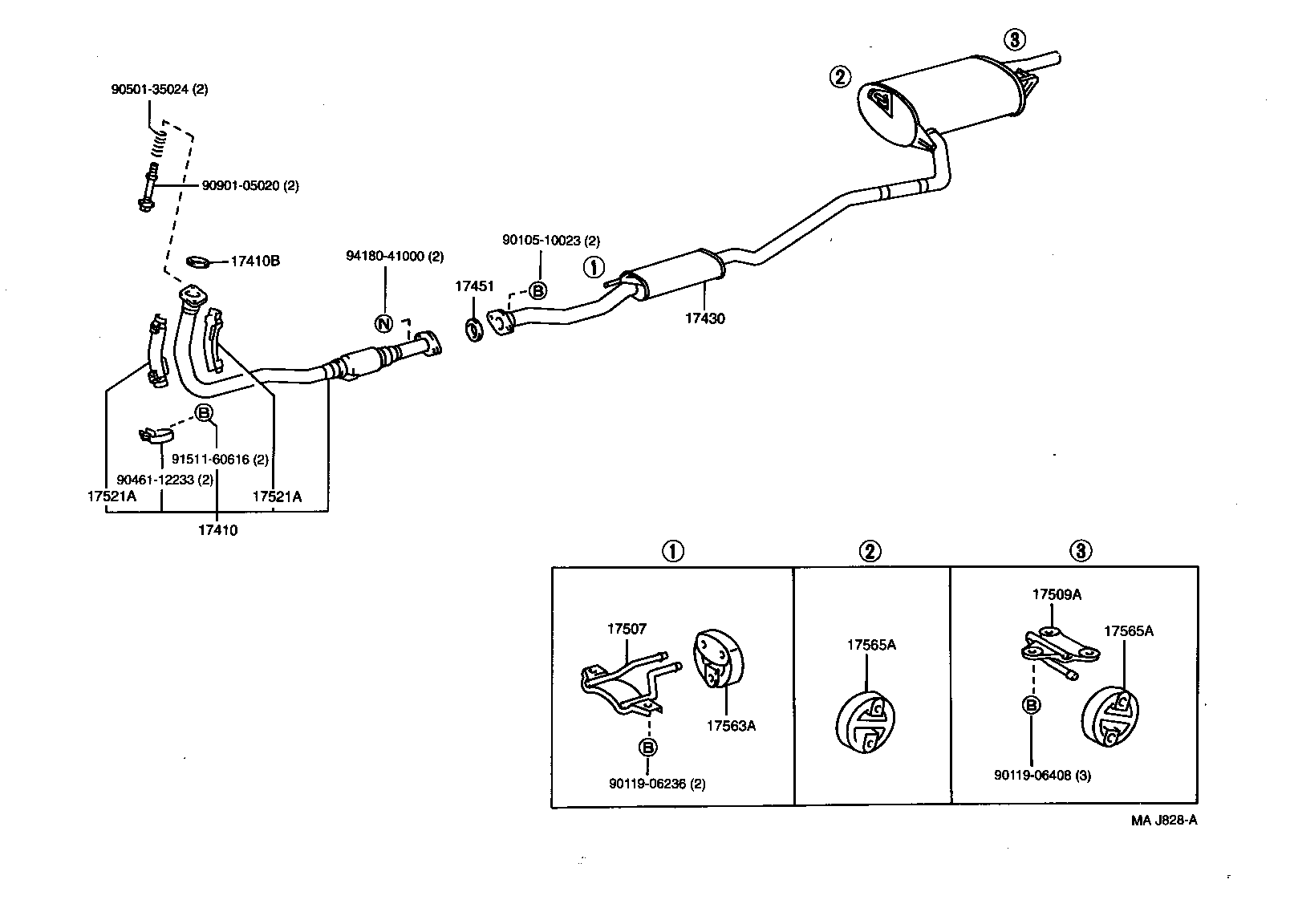

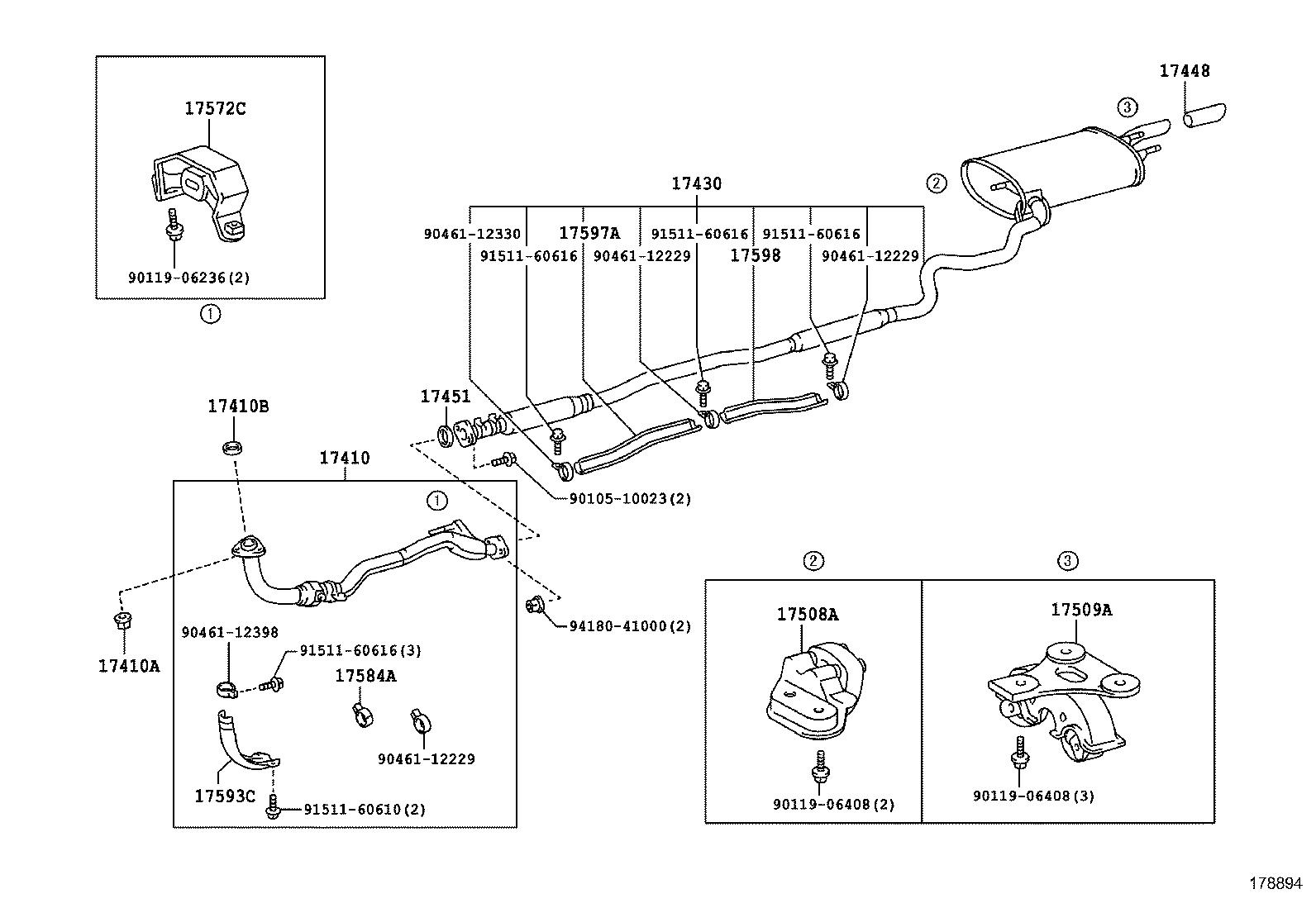

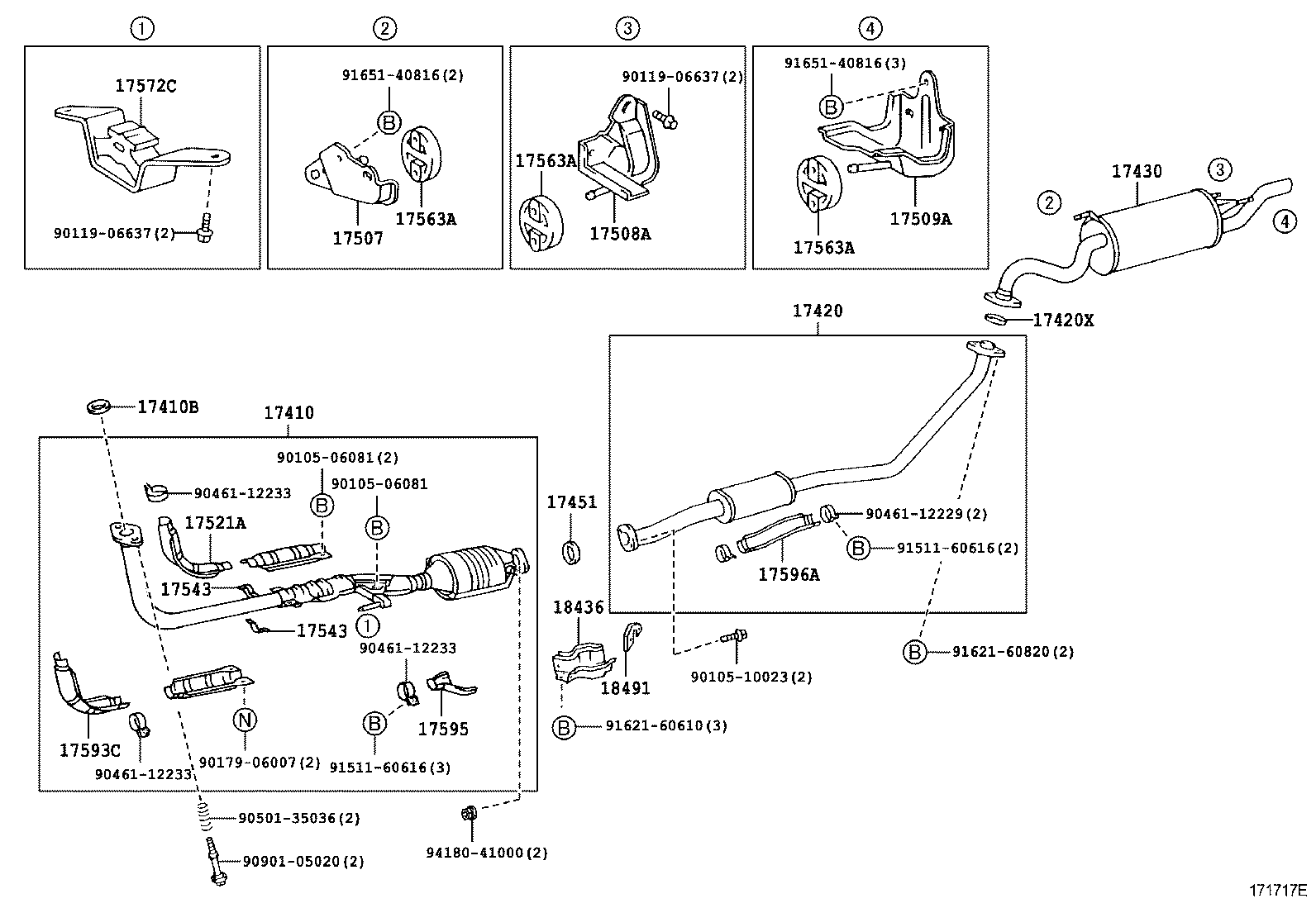

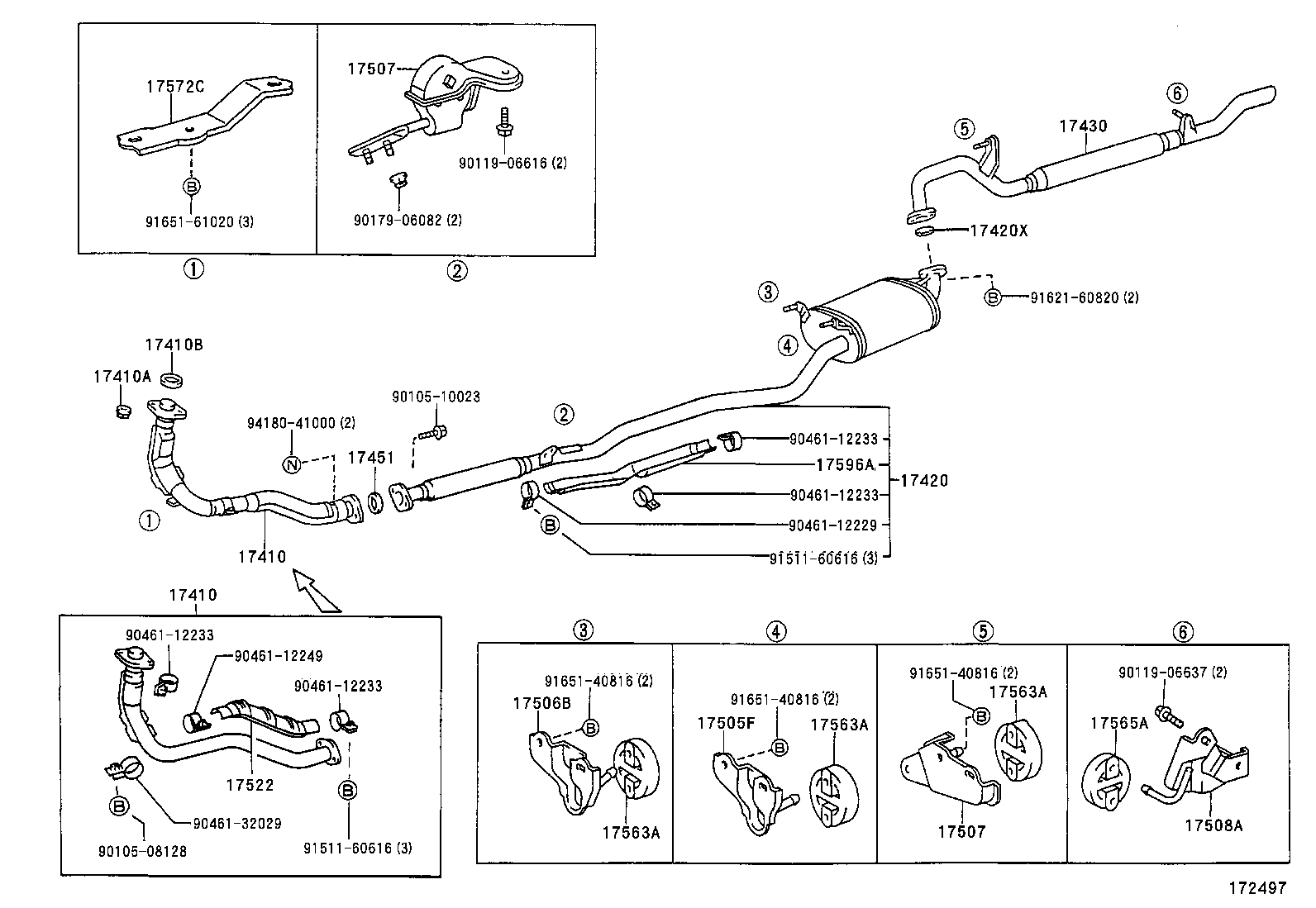

Figure 178890 178890 1992-11 → 1996-01 Figure 171717E 171717E 1996-01 → 2000-08 Figure 172783B 172783B 2000-08 → — Figure 178891 178891 1992-11 → 1996-01 Figure 178892 178892 1992-11 → 1996-01 Figure 178893 178893 1996-01 → 1997-08 Figure 178894 178894 1992-11 → 1996-01 Figure 170639A 170639A 1996-01 → 1996-12 Figure 170640A 170640A 1996-12 → 1997-08 Figure 172222 172222 1999-08 → — Figure 172369A 172369A 1995-02 → 1996-01 Figure MAK331 MAK331 1996-01 → 1997-08 Figure MAG130A MAG130A 1992-11 → 1996-01 Figure MAJ828A MAJ828A 1996-01 → 1997-08 Figure MAG131A MAG131A 1992-11 → 1998-05 Figure 172497 172497 1992-11 → 1998-05 Figure 171698C 171698C 1998-05 → — Figure 171699C 171699C 1998-05 → — Figure MAJ829C MAJ829C 1996-01 → 1997-08

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17453 Clamp, Exhaust Pipe, NO.2
17460 Converter Assy, Catalytic W/Pipe
17504 Bracket Sub-assy, Catalytic Converter
17505F Support Sub-assy, Exhaust Pipe
17506B Bracket Sub-assy, Exhaust Pipe Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17543 Stay, Exhaust Pipe Protector, NO.3
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17581A Damper, Exhaust Pipe
17582 Bracket, Catalytic Converter Support, Upper
17584A Stopper, Exhust Pipe, NO.1
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
17595 Protector, Exhaust Pipe, Lower NO.3
17596A Protector, Exhaust Pipe, Lower NO.4
17597A Protector, Exhaust Pipe, Lower NO.5
17598 Protector, Exaust Pipe, Lower NO.6
18435A Protector, Monolithic Converter
18436 Protector, Monolithic Converter, NO.1
18449 Spacer, Converter Protector
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
