Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

22 part groups · 9 illustrations

Illustrations

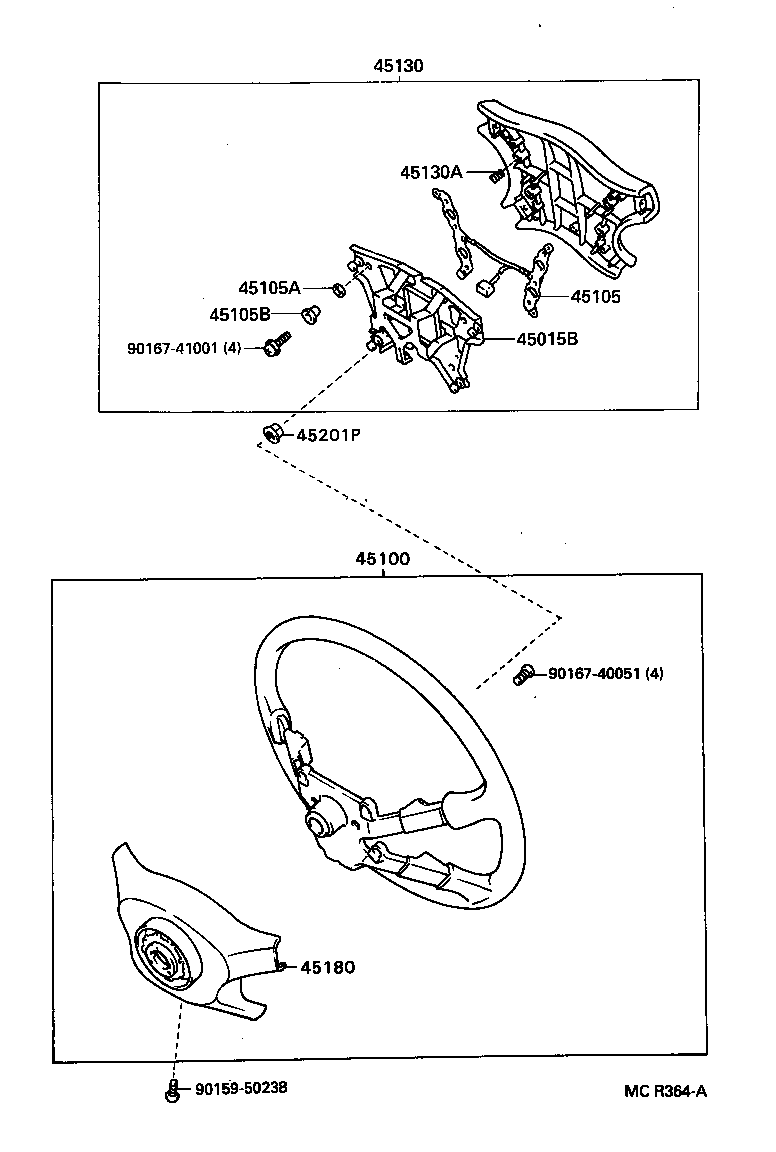

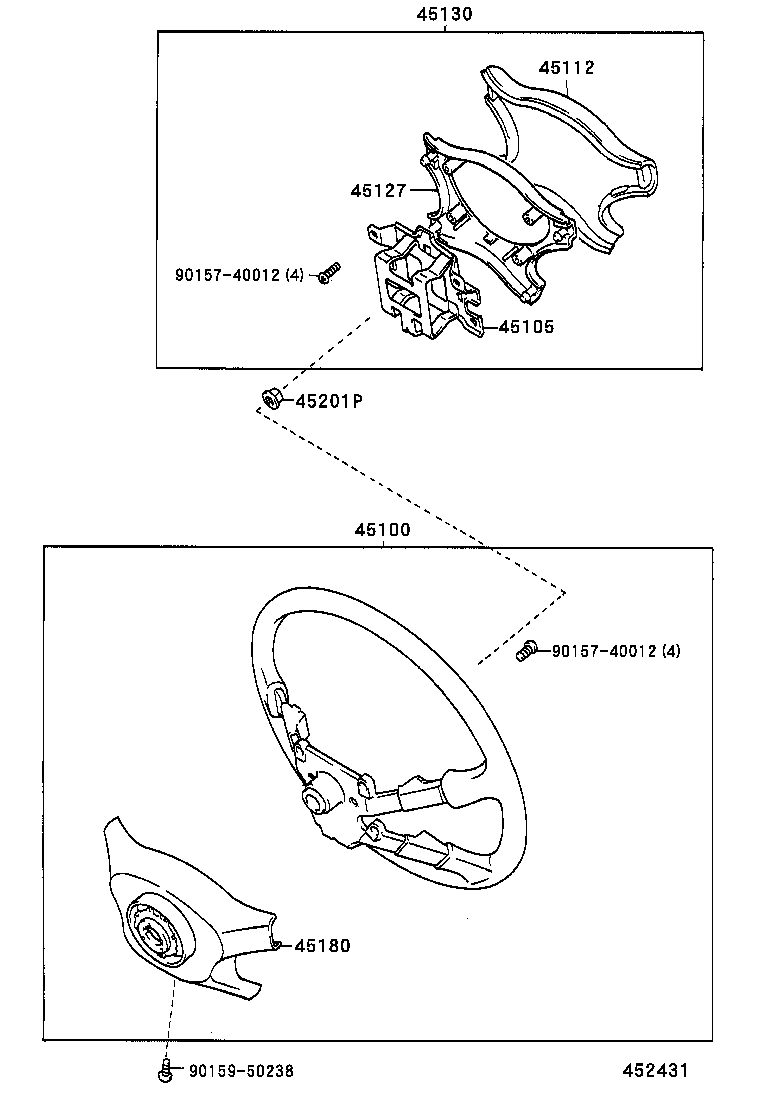

Figure MCM933B MCM933B 1992-11 → 1996-01 Figure 456697 456697 1996-01 → 1998-05 Figure MCM929A MCM929A 1992-11 → 1994-02 Figure 452431 452431 1992-11 → — Figure 451291A 451291A 1992-11 → 1996-01 Figure MCR364A MCR364A 1994-02 → — Figure 451292A 451292A 1995-01 → 1996-01 Figure 451901 451901 1996-01 → — Figure 451293A 451293A 1996-01 → —

Part groups

PNCDescription
45015B Plate Sub-assy, Horn Button Contact, NO.2
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45108B Button Sub-assy, Horn(FOR STEERING WHEEL ASSY)
45112 Pad, Steering Wheel
45127 Insert, Horn Button, Upper NO.1
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136F Plate, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45146B Spring, Horn Button Contact, NO.1
45155 Spacer, Horn Button Contact Plate
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
