Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

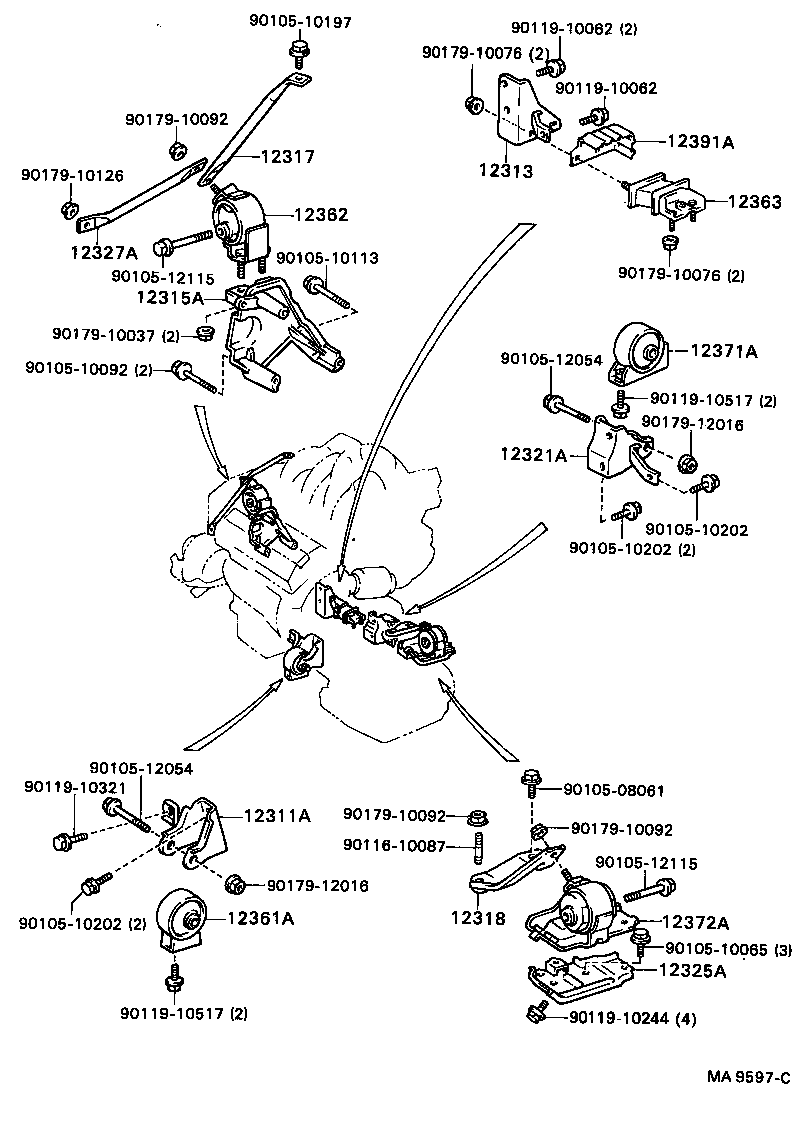

Exploded illustration MA9597C 9010510197 — not listed in this catalogue 9011910062 — not listed in this catalogue 9017910076 — not listed in this catalogue 9011910062 — not listed in this catalogue 9017910092 — not listed in this catalogue 12391A — INSULATOR, ENGINE MOUNTING, CENTER (1 parts) 12317 — STAY, ENGINE MOUNTING, RH (7 parts) 12313 — BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) (5 parts) 9017910126 — not listed in this catalogue 12363 — INSULATOR, ENGINE MOUNTING, CENTER (8 parts) 12362 — INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (5 parts) 12327A — STAY, ENGINE MOUNTING, NO.2 RH (1 parts) 9010510113 — not listed in this catalogue 9017910076 — not listed in this catalogue 9010512115 — not listed in this catalogue 12315A — BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (3 parts) 9017910037 — not listed in this catalogue 12371A — INSULATOR, ENGINE MOUNTING, REAR (12 parts) 9010512054 — not listed in this catalogue 9010510092 — not listed in this catalogue 9011910517 — not listed in this catalogue 9017912016 — not listed in this catalogue 12321A — BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) (11 parts) 9010510202 — not listed in this catalogue 9010510202 — not listed in this catalogue 9010512054 — not listed in this catalogue 9011910321 — not listed in this catalogue 9010508061 — not listed in this catalogue 9017910092 — not listed in this catalogue 12311A — BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (6 parts) 9017910092 — not listed in this catalogue 9011610087 — not listed in this catalogue 9010512115 — not listed in this catalogue 9017912016 — not listed in this catalogue 12361A — INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (15 parts) 12318 — STAY, ENGINE MOUNTING, LH (2 parts) 12372A — INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (11 parts) 9010510202 — not listed in this catalogue 9010510065 — not listed in this catalogue 12325A — BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (16 parts) 9011910517 — not listed in this catalogue 9011910244 — not listed in this catalogue
MA9597C · 14 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
103 parts on this figure
Part number Description Fitment Price
12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12311-62010 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-04 → 1988-08 ended
1VZFE VZV20 ¥3,310
12311-74030 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1SI,3S# SV2# ¥2,500
12311-74030 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
2CT CV20 ¥2,500
12311-74030 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1SI,3S# SV20,21 ¥2,500
12311-74030 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
2CT CV20 ¥2,500
12311-74050 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
3SFE SV25 ¥2,510
12313 — Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12313-62010 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1987-04 → 1987-10 ended
1VZFE VZV20 ¥2,510
12313-62010 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1VZFE VZV20 ¥2,510
12313-64010 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1986-08 → 1988-08 ended
2CT CV20 ¥930
12313-74020 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1SI,3S# SV2# ¥2,510
12313-74020 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1SI,3S# SV20,21 ¥2,510
12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12315-62010 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-04 → 1988-08 ended
1VZFE VZV20 ¥8,900
12315-64040 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1986-08 → 1988-08 ended
2CT CV20 ¥8,800
12315-74030 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1986-08 → 1988-08 ended
1SI,3S# SV2# ¥3,480
12317 — Stay, Engine Mounting, RH
12317-62010 Stay, Engine Mounting, RH
1987-04 → 1988-08 ended
1VZFE VZV20 ¥1,970
12317-63020 Stay, Engine Mounting, RH
1986-08 → 1988-08 ended
1SI SV20 ¥2,240
12317-64010 Stay, Engine Mounting, RH
1986-08 → 1988-08 ended
2CT CV20 ¥1,880
12317-74010 Stay, Engine Mounting, RH
1986-08 → 1987-10 ended
3SFE SV21 ¥1,960
12317-74010 Stay, Engine Mounting, RH
1987-10 → 1988-08 ended
3SFE SV21,25 ¥1,960
12317-74020 Stay, Engine Mounting, RH
1986-08 → 1988-08 ended
3SGE SV21 ¥2,080
12317-74060 Stay, Engine Mounting, RH
1988-08 → 1988-08 ended
3SFE SV21,25 ¥1,140
12318 — Stay, Engine Mounting, LH
12318-62010 Stay, Engine Mounting, LH
1987-04 → 1988-08 ended
1VZFE VZV20 5F ¥3,280
12318-62020 Stay, Engine Mounting, LH
1987-04 → 1988-08 ended
1VZFE VZV20 4FC ¥1,480
12321A — Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12321-62010 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-04 → 1988-08 ended
1VZFE VZV20 5F ¥1,560
12321-62020 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-04 → 1988-08 ended
1VZFE VZV20 4FC ¥3,350
12321-64110 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1SI,3S# SV20,21 5F ¥2,490
12321-64110 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
2CT CV20 5F ¥2,490
12321-64110 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1SI,3S# SV2# 5F ¥2,490
12321-64110 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
2CT CV20 5F ¥2,490
12321-64120 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
2CT CV20 4FC ¥1,560
12321-64120 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
2CT CV20 4FC ¥1,560
12321-64120 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1SI,3S# SV20,21 4FC ¥1,560
12321-64120 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1SI,3S# SV2# 4FC ¥1,560
12321-74060 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
3SFE SV25 ¥1,550
12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12325-62010 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
3SFE SV25 ¥3,310
12325-62010 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1VZFE VZV20 5F ¥3,310
12325-62010 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-04 → 1987-10 ended
1VZFE VZV20 5F ¥3,310
12325-62020 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-04 → 1988-08 ended
1VZFE VZV20 4FC ¥2,490
12325-74030 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1SI,3S# SV2# 5F ¥2,510
12325-74030 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1SI,3S# SV20,21 5F ¥2,510
12325-74030 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
2CT CV20 5F ¥2,510
12325-74030 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
2CT CV20 5F ¥2,510
12325-74031 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1988-08 ended
2CT CV20 5F ¥2,490
12325-74031 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1988-08 ended
1SI,3S# SV20,21 5F ¥2,490
12325-74040 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1986-08 → 1987-06 ended
1SI,3S# SV2# 4FC ¥2,050
12325-74040 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1986-08 → 1987-06 ended
2CT CV20 4FC ¥2,050
12325-74041 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1SI,3S# SV20,21 4FC ¥2,030
12325-74041 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
2CT CV20 4FC ¥2,030
12325-74041 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-06 → 1987-10 ended
1SI,3S# SV2# 4FC ¥2,030
12325-74041 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-06 → 1987-10 ended
2CT CV20 4FC ¥2,030
12327A — Stay, Engine Mounting, NO.2 RH
12327-62010 Stay, Engine Mounting, NO.2 RH
1987-04 → 1988-08 ended
1VZFE VZV20 ¥1,680
12361A — Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12361-62010 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-04 → 1988-02 ended
1VZFE VZV20 5F ¥8,800
12361-62011 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-02 → 1988-08 ended
1VZFE VZV20 5F ¥8,800
12361-62020 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-02 → 1988-08 ended
1VZFE VZV20 4FC ¥7,500
12361-64110 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1986-08 → 1988-08 ended
2CT CV20 5F ¥7,100
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1VZFE VZV20 4FC ¥8,800
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-02 → 1988-08 ended
1SI,3S# SV20,21 4FC ¥8,800
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-02 → 1988-08 ended
2CT CV20 4FC ¥8,800
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-10 → 1988-02 ended
2CT CV20 4FC ¥8,800
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-10 → 1988-02 ended
1VZFE VZV20 4FC ¥8,800
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1SI,3S# SV2# 4FC ¥8,800
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
2CT CV20 4FC ¥8,800
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-10 → 1988-02 ended
1SI,3S# SV20,21 4FC ¥8,800
12361-74010 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
3SFE SV25 ¥7,900
12361-74020 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1SI,3S# SV20,21 5F ¥8,800
12361-74020 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1SI,3S# SV2# 5F ¥8,800
12362 — Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12362-62010 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-04 → 1988-08 ended
1VZFE VZV20 ¥11,800
12362-64050 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1986-08 → 1988-08 ended
2CT CV20 ¥16,300
12362-74030 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1SI,3S# SV20,21 ¥16,500
12362-74030 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1SI,3S# SV2# ¥16,500
12362-74060 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
3SFE SV25 ¥16,500
12363 — Insulator, Engine Mounting, Center
12363-64010 Insulator, Engine Mounting, Center
1986-08 → 1988-08 ended
2CT CV20 ¥10,900
12363-74010 Insulator, Engine Mounting, Center
1987-04 → 1987-10 ended
1VZFE VZV20 ¥7,100
12363-74010 note Insulator, Engine Mounting, Center
1987-10 → 1988-08 ended
1SI,3SFE SV20,21 ¥7,100
12363-74010 note Insulator, Engine Mounting, Center
1987-10 → 1988-08 ended
3SGE SV21 ¥7,100
12363-74010 note Insulator, Engine Mounting, Center
1987-10 → 1988-08 ended
1VZFE VZV20 ¥7,100
12363-74030 Insulator, Engine Mounting, Center
1986-08 → 1987-10 ended
1SI,3S# SV2# ¥7,100
12363-74030 note Insulator, Engine Mounting, Center
1987-10 → 1988-08 ended
3SGE SV21 ¥7,100
12363-74030 note Insulator, Engine Mounting, Center
1987-10 → 1988-08 ended
1SI,3SFE SV20,21 ¥7,100
12371A — Insulator, Engine Mounting, Rear
12371-62010 Insulator, Engine Mounting, Rear
1987-04 → 1988-02 ended
1VZFE VZV20 5F ¥8,800
12371-62011 Insulator, Engine Mounting, Rear
1988-02 → 1988-08 ended
1VZFE VZV20 5F ¥8,800
12371-64090 Insulator, Engine Mounting, Rear
1986-08 → 1988-08 ended
2CT CV20 5F ¥7,100
12371-64100 Insulator, Engine Mounting, Rear
1986-08 → 1987-10 ended
2CT CV20 4FC ¥7,100
12371-64100 Insulator, Engine Mounting, Rear
1987-10 → 1988-08 ended
1SI,3S# SV20,21 4FC ¥7,100
12371-64100 Insulator, Engine Mounting, Rear
1987-10 → 1988-08 ended
2CT CV20 4FC ¥7,100
12371-64100 Insulator, Engine Mounting, Rear
1986-08 → 1987-10 ended
1SI,3S# SV2# 4FC ¥7,100
12371-64100 Insulator, Engine Mounting, Rear
1986-08 → 1987-10 ended
1VZFE VZV20 4FC ¥7,100
12371-64100 Insulator, Engine Mounting, Rear
1987-10 → 1988-08 ended
1VZFE VZV20 4FC ¥7,100
12371-74030 Insulator, Engine Mounting, Rear
1986-08 → 1987-10 ended
1SI,3S# SV2# 5F ¥8,800
12371-74030 Insulator, Engine Mounting, Rear
1987-10 → 1988-08 ended
1SI,3S# SV20,21 5F ¥8,800
12371-74060 Insulator, Engine Mounting, Rear
1987-10 → 1988-08 ended
3SFE SV25 ¥6,000
12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12372-62010 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-04 → 1988-08 ended
1VZFE VZV20 5F ¥19,700
12372-62020 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-04 → 1988-08 ended
1VZFE VZV20 4FC ¥19,700
12372-64060 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1986-08 → 1988-08 ended
2CT CV20 5F ¥19,700
12372-64070 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1986-08 → 1987-06 ended
2CT CV20 4FC ¥19,700
12372-64071 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-06 → 1988-08 ended
2CT CV20 4FC ¥19,700
12372-74040 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1SI,3S# SV2# 5F ¥19,700
12372-74040 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
1SI,3S# SV20,21 5F ¥19,700
12372-74050 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-02 ended
1SI,3S# SV20,21 4FC ¥19,700
12372-74050 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1986-08 → 1987-10 ended
1SI,3S# SV2# 4FC ¥19,700
12372-74052 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-02 → 1988-08 ended
1SI,3S# SV20,21 4FC ¥20,600
12372-74080 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-10 → 1988-08 ended
3SFE SV25 ¥16,500
12391A — Insulator, Engine Mounting, Center
12391-62010 Insulator, Engine Mounting, Center
1987-04 → 1988-08 ended
1VZFE VZV20 ¥1,330
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
