Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

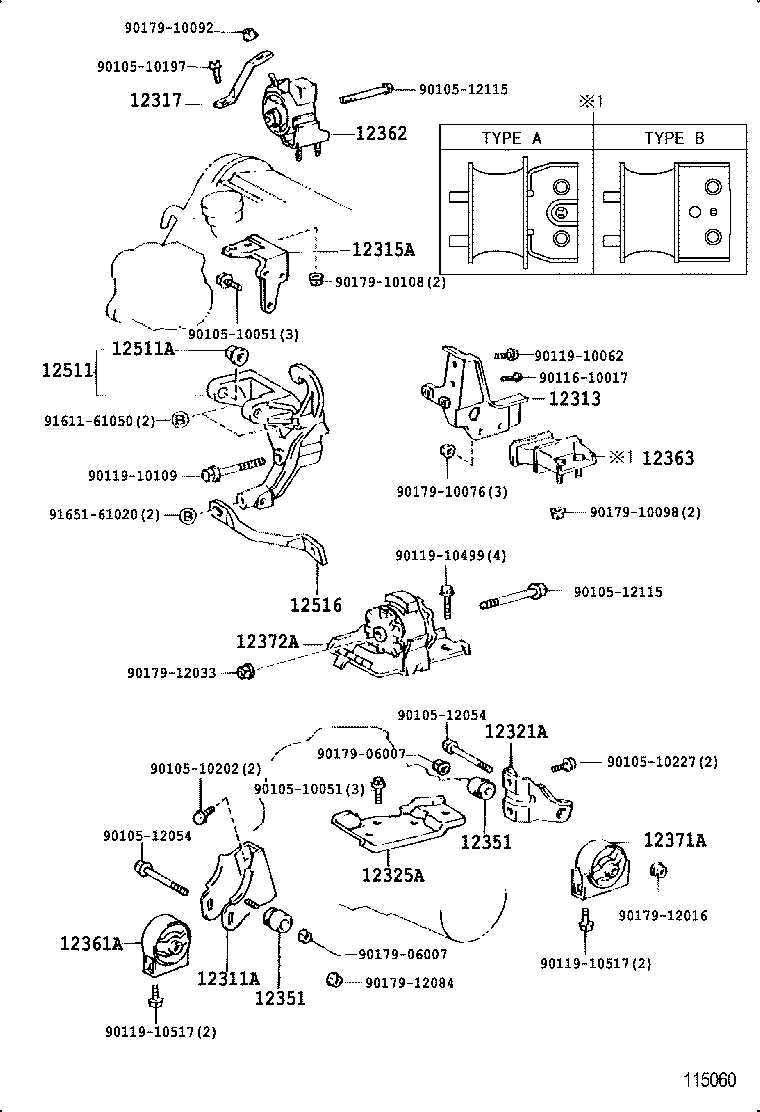

Exploded illustration 115060 9017910092 — not listed in this catalogue 9010510197 — not listed in this catalogue 9010512115 — not listed in this catalogue 12317 — STAY, ENGINE MOUNTING, RH (7 parts) 12362 — INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (6 parts) 12315A — BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (5 parts) 9017910108 — not listed in this catalogue 9010510051 — not listed in this catalogue 12511A — BUSH, ALTERNATOR BRACKET (1 parts) 9011910062 — not listed in this catalogue 12511 — BRACKET, ALTERNATOR, NO.1 (3 parts) 9011610017 — not listed in this catalogue 12313 — BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) (6 parts) 9161161050 — not listed in this catalogue 12363 — INSULATOR, ENGINE MOUNTING, CENTER (4 parts) 9011910109 — not listed in this catalogue 9017910076 — not listed in this catalogue 9017910098 — not listed in this catalogue 9165161020 — not listed in this catalogue 9011910499 — not listed in this catalogue 9010512115 — not listed in this catalogue 12516 — BRACKET, ALTERNATOR, NO.2 (1 parts) 12372A — INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (11 parts) 9017912033 — not listed in this catalogue 9010512054 — not listed in this catalogue 12321A — BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) (9 parts) 9017906007 — not listed in this catalogue 9010510227 — not listed in this catalogue 9010510202 — not listed in this catalogue 9010510051 — not listed in this catalogue 9010512054 — not listed in this catalogue 12371A — INSULATOR, ENGINE MOUNTING, REAR (13 parts) 12351 — DAMPER, ENGINE MOUNTING (10 parts) 12325A — BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (8 parts) 9017912016 — not listed in this catalogue 12361A — INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (13 parts) 9017906007 — not listed in this catalogue 9011910517 — not listed in this catalogue 12311A — BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (4 parts) 9017912084 — not listed in this catalogue 12351 — DAMPER, ENGINE MOUNTING (10 parts) 9011910517 — not listed in this catalogue
115060 · 16 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
101 parts on this figure
Part number Description Fitment Price
12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12311-62010 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 ¥3,310
12311-64100 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
2CT CV20 ¥3,070
12311-74030 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3S#,4SFI SV21,22 ¥2,500
12311-74050 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE SV25 ¥2,510
12313 — Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12313-62010 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 ¥2,510
12313-64010 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
2CT CV20 ¥930
12313-74020 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1988-08 → 1989-05 ended
3S#,4SFI SV21,22 ¥2,510
12313-74020 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1989-05 → 1989-11 ended
3SGE,4SFI SV21,22 ¥2,510
12313-74021 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1989-11 → 1990-07 ended
3SGE,4SFI SV21,22 ¥1,970
12313-74050 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
1989-05 → 1990-07 ended
3SFE SV21 ¥6,600
12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12315-62020 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 ¥6,500
12315-64040 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1988-08 → 1989-05 ended
2CT CV20 ¥8,800
12315-64050 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1989-05 → 1990-07 ended
2CT CV20 ¥6,100
12315-74030 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3S# SV21,25 GT,VL,VR,XT,ZE ¥3,480
12315-74060 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 ¥4,160
12317 — Stay, Engine Mounting, RH
12317-62020 Stay, Engine Mounting, RH
1988-08 → 1990-07 ended
1VZFE VZV20 ¥3,270
12317-64010 Stay, Engine Mounting, RH
1988-08 → 1990-07 ended
2CT CV20 5F ¥1,880
12317-64040 Stay, Engine Mounting, RH
1988-08 → 1990-07 ended
2CT CV20 4FC ¥1,440
12317-74010 Stay, Engine Mounting, RH
1988-10 → 1990-07 ended
3SFE SV25 4FC ¥1,960
12317-74020 Stay, Engine Mounting, RH
1988-08 → 1990-07 ended
3SGE SV21 ¥2,080
12317-74060 Stay, Engine Mounting, RH
1988-08 → 1988-10 ended
3SFE,4SFI SV2# ¥1,140
12317-74060 Stay, Engine Mounting, RH
1988-10 → 1990-07 ended
3SFE SV25 5F;3SFE,4SFI SV21,22 ¥1,140
12321A — Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12321-62010 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 5F ¥1,560
12321-62020 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 4FC ¥3,350
12321-64110 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
2CT CV20 5F ¥2,490
12321-64110 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3S#,4SFI SV21,22 5F ¥2,490
12321-64120 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SGE SV21 4FC ¥1,560
12321-74060 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE SV25 5F ¥1,550
12321-74110 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE SV25 4FC ¥1,950
12321-74130 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 4FC ¥2,290
12321-74130 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
2CT CV20 4FC ¥2,290
12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12325-62010 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 5F ¥3,310
12325-62010 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE SV25 5F ¥3,310
12325-62020 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 4FC ¥2,490
12325-62020 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE SV25 4FC ¥2,490
12325-74031 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
2CT CV20 5F ¥2,490
12325-74031 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3S#,4SFI SV21,22 5F ¥2,490
12325-74041 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
2CT CV20 4FC ¥2,030
12325-74041 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3S#,4SFI SV21,22 4FC ¥2,030
12351 — Damper, Engine Mounting
12351-63010 Damper, Engine Mounting
1988-08 → 1990-07 ended
3SFE SV25 5F ¥3,010
12351-63010 note Damper, Engine Mounting
1988-08 → 1990-07 ended
3SFE SV25 4FC ¥3,010
12351-64020 Damper, Engine Mounting
1988-08 → 1990-07 ended
3SGE SV21 4FC ¥3,310
12351-64020 note Damper, Engine Mounting
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 4FC ¥3,310
12351-64020 Damper, Engine Mounting
1988-08 → 1990-07 ended
3S#,4SFI SV21,22 5F ¥3,310
12351-64030 Damper, Engine Mounting
1988-08 → 1990-07 ended
2CT CV20 5F ¥3,050
12351-64030 note Damper, Engine Mounting
1988-08 → 1990-07 ended
2CT CV20 4FC ¥3,050
12351-64040 note Damper, Engine Mounting
1988-08 → 1990-07 ended
2CT CV20 4FC ¥3,330
12351-74020 note Damper, Engine Mounting
1988-08 → 1990-07 ended
3SFE SV25 4FC ¥2,900
12351-74051 note Damper, Engine Mounting
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 4FC ¥3,000
12361A — Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12361-62011 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 5F ¥8,800
12361-62020 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 4FC ¥7,500
12361-62020 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 4FC ¥7,500
12361-64111 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1989-02 ended
2CT CV20 5F ¥5,500
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1988-11 ended
3SGE SV21 4FC ¥8,800
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-11 → 1990-07 ended
3SGE SV21 4FC ¥8,800
12361-64120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-11 → 1990-07 ended
2CT CV20 4FC ¥8,800
12361-64121 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1988-11 ended
2CT CV20 4FC ¥5,500
12361-64190 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1989-02 → 1990-07 ended
2CT CV20 5F ¥5,500
12361-74010 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE SV25 5F ¥7,900
12361-74020 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SGE SV21 5F ¥8,800
12361-74100 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 5F ¥8,800
12361-74120 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE SV25 4FC ¥5,500
12362 — Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12362-62020 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 ¥13,600
12362-64050 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
2CT CV20 5F ¥16,300
12362-64100 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
2CT CV20 4FC ¥7,900
12362-74030 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SGE SV21 ¥16,500
12362-74060 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE SV25 ¥16,500
12362-74110 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 ¥12,900
12363 — Insulator, Engine Mounting, Center
12363-64010 Insulator, Engine Mounting, Center
1988-08 → 1990-07 ended
2CT CV20 ¥10,900
12363-74010 note Insulator, Engine Mounting, Center
1988-08 → 1990-07 ended
3S#,4SFI SV21,22 ¥7,100
12363-74010 Insulator, Engine Mounting, Center
1988-08 → 1990-07 ended
1VZFE VZV20 ¥7,100
12363-74030 note Insulator, Engine Mounting, Center
1988-08 → 1990-07 ended
3S#,4SFI SV21,22 ¥7,100
12371A — Insulator, Engine Mounting, Rear
12371-62011 Insulator, Engine Mounting, Rear
1988-08 → 1990-07 ended
1VZFE VZV20 5F ¥8,800
12371-64091 Insulator, Engine Mounting, Rear
1988-08 → 1990-07 ended
2CT CV20 5F ¥5,500
12371-64100 Insulator, Engine Mounting, Rear
1988-08 → 1988-11 ended
3SGE SV21 4FC ¥7,100
12371-64100 Insulator, Engine Mounting, Rear
1988-08 → 1988-11 ended
1VZFE VZV20 4FC ¥7,100
12371-64100 Insulator, Engine Mounting, Rear
1988-11 → 1990-07 ended
1VZFE VZV20 4FC ¥7,100
12371-64100 Insulator, Engine Mounting, Rear
1988-11 → 1990-07 ended
3SGE SV21 4FC ¥7,100
12371-64100 Insulator, Engine Mounting, Rear
1988-11 → 1990-07 ended
2CT CV20 4FC ¥7,100
12371-64101 Insulator, Engine Mounting, Rear
1988-08 → 1988-11 ended
2CT CV20 4FC ¥5,500
12371-74030 Insulator, Engine Mounting, Rear
1988-08 → 1990-07 ended
3SGE SV21 5F ¥8,800
12371-74130 Insulator, Engine Mounting, Rear
1988-08 → 1990-07 ended
3SFE SV25 4FC ¥5,500
12371-74140 Insulator, Engine Mounting, Rear
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 5F ¥6,600
12371-74150 Insulator, Engine Mounting, Rear
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 4FC ¥5,400
12371-74170 Insulator, Engine Mounting, Rear
1988-08 → 1990-07 ended
3SFE SV25 5F ¥10,900
12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12372-62010 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 5F ¥19,700
12372-62020 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
1VZFE VZV20 4FC ¥19,700
12372-64120 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
2CT CV20 5F ¥9,300
12372-64130 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
2CT CV20 4FC ¥9,300
12372-74040 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SGE SV21 5F ¥19,700
12372-74052 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SGE SV21 4FC ¥20,600
12372-74080 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE SV25 5F ¥16,500
12372-74150 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1988-10 ended
3SFE SV25 4FC ¥9,900
12372-74151 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-10 → 1990-07 ended
3SFE SV25 4FC ¥9,900
12372-74160 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 5F ¥9,100
12372-74170 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1988-08 → 1990-07 ended
3SFE,4SFI SV21,22 4FC ¥9,100
12511 — Bracket, Alternator, NO.1
12511-64020 Bracket, Alternator, NO.1
1988-08 → 1990-07 ended
2CT CV20 ¥4,500
12511-74011 Bracket, Alternator, NO.1
1988-08 → 1990-07 ended
3SGE SV21 ¥10,900
12511-74020 Bracket, Alternator, NO.1
1988-08 → 1990-07 ended
3SFE,4SFI SV2# ¥3,560
12511A — Bush, Alternator Bracket
27351-70010 Bush, Alternator Bracket
1988-08 → 1990-07 ended
3SGE SV21 —
12516 — Bracket, Alternator, NO.2
12512-88362 Bracket, Alternator, NO.2
1988-08 → 1990-07 ended
3SGE SV21 ¥2,940
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
